Your First Brother SE1900 Patch Without the Panic: Threading, Bobbin Errors, and a Clean Two-Color Box Logo

If you just unboxed a Brother SE1900 and you’re staring at the thread path like it’s a terrifying puzzle, take a deep breath. You are not alone. The manual tells you where the thread goes, but it doesn't tell you how it should feel.

The good news: your first clean patch doesn’t require 20 years of experience. It just requires a specific set of physical habits—protocols that prevent the "Big Three" beginner disasters: bird nesting (giant knots under the plate), bobbin thread showing on top, and hoop popping.

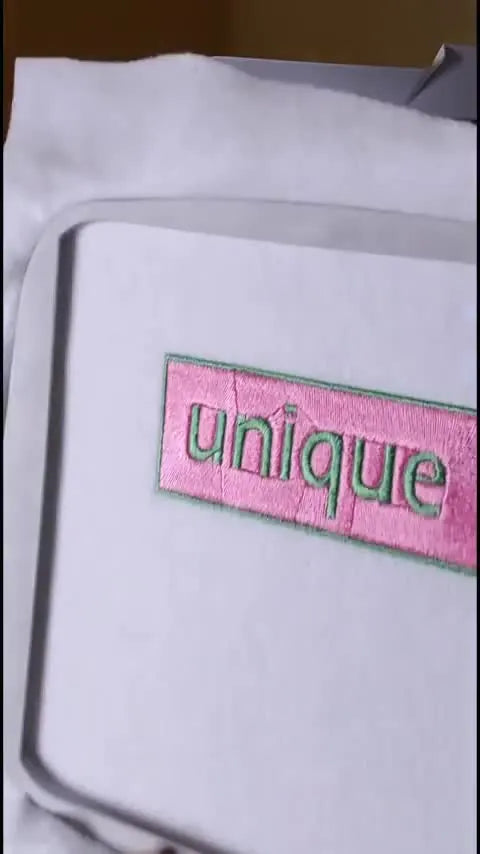

This guide rebuilds Jamal’s first SE1900 project—a Supreme-inspired “Unique” box logo patch—but I’m going to layer in the sensory cues and safety checks that usually take years to learn. We are moving from "guessing" to "engineering" your results.

The “First Stitch” Nerves: Calibrating Your Expectations

The first time you press that green Start/Stop button, your brain expects an explosion. That’s normal. Machine embroidery is a mix of high-speed mechanics and delicate physics.

Here’s the calm truth: on a Brother SE1900/1950, 90% of failures happen before you press start. They are physical setup errors:

1. Threading: Missing the take-up lever (the "heartbeat" of the machine).
2. Bobbin: Loading it clockwise instead of counter-clockwise.
3. Hooping: Fabric that is "drum-tight" (wrong) or "loose" (worse).

Jamal’s project is the perfect designated driver for your first ride because it forces you to master the basics: a solid fill background (tension test), a forced bobbin stop (recovery test), and a color change (thread handling).

PE Design Preview: The "Digital Twin" Strategy

Jamal starts on his Mac, reviewing the “Unique” box logo file in PE Design software. He changes the colorway to a pink background with green lettering.

Before you touch the machine, you must lock in your digital plan.

• Check Size: The SE1900 has a max 5x7 stitching field. If your design is 5.1" x 7.1", the machine will refuse to stitch it.
• Check Density: Since we are making a patch, the fill stitch needs to be dense enough to cover the base, but not so dense it perforates the felt like a stamp line.
• Color Order: Organize this now so you aren't digging for spools mid-stitch.

Pro Insight: A lot of beginners ask if software is optional. Technically, yes, you can buy pre-made files. But if you plan to build your own text logos, owning the software is non-negotiable. Furthermore, organizing your files correctly ensures that specific tools, like a particular hoop for brother embroidery machine, match the design output orientation (vertical vs. horizontal).

The "Hidden" Prep: Supplies That Save Your Sanity

This is the part most fast-paced tutorials skip: the mise-en-place.

Jamal stitches on a white base for a patch. He creates a rigid foundation. My 20-year rule: Physical stability = Digital accuracy. If your fabric shifts 1mm, your outline will be off by 3mm.

The Toolkit You Actually Need

• Base: High-quality craft felt (stiff) or twill fabric.
• Stabilizer: For patches, a medium-weight Tear-Away is standard. If your felt is floppy, use Cut-Away for structure.
• Adhesive: A light mist of temporary adhesive spray (like ODIF 505) fixes the felt to the stabilizer so they act as one unit.
• The Hidden Consumer: New Needles. If you don't know how old the needle in the machine is, change it. Use a 75/11 Embroidery needle.

Commercial Reality Check: If you are doing one patch, standard hoops are fine. If you are doing 50 patches, standard hoops are miserable. This is where professionals pivot to a magnetic embroidery hoop. They don't just hold fabric; they eliminate the need to unscrew and tighten the ring for every single patch, saving your wrists and your sanity.

Prep Checklist (Do this BEFORE threading)

• Needle Check: Is the needle straight? Roll it on a flat table. If the tip wobbles, throw it away.
• Bobbin Case Clearing: Remove the bobbin case. Blow out any lint. A single dust bunny can ruin your tension.
• Hoop Hygiene: Check inner hoop ring for old adhesive residue. Clean hoops grip better.
• Spool Orientation: Check your thread spools. If using a large cone, use a stand at the back. If using a small spool, use the spool cap that fits tightly (no gap for thread to snag).


Like a Drum? No. Like a Suspension Bridge.

Jamal’s hooping is successful because the result is flat. But "how tight" is the eternal question.

The Sensory Anchor: Do not pull the fabric until it distorts.

1. Lay the outer hoop down.
2. Lay stabilizer and felt over it.
3. Press the inner hoop in.
4. Tighten the screw.
5. The Test: Gently run your fingers over the felt. It should feel firm and flat, but not stretched like a balloon about to pop. If you pull woven fabric too tight, it will pucker when you release it.

The Hooping Pain Point: If you find yourself struggling to get thick items (like hoodies or heavy felt) into the hoop, or if you see "hoop burn" (shininess) on delicate fabrics, this is a mechanical limitation of the friction hoop.

• Trigger: You are bruising your thumbs tightening the screw, or the inner ring pops out mid-stitch.
• Criteria: Are you stitching thick materials often?
• Option: A brother 5x7 magnetic hoop uses vertical magnetic force rather than horizontal friction. It clamps down on thick felt without needing to be "wedged" in, preventing hoop burn and hand fatigue.

Warning: Magnetic Force Safety
Modern magnetic hoops use industrial-grade neodymium magnets. They snap together with extreme force (up to 30lbs of pressure). Keep fingers clear of the contact zone. Keep these magnets at least 6 inches away from pacemakers, insulin pumps, and magnetic storage media (credit cards/hard drives).

Threading: The "Floss Test" & The Bird Lips

Jamal threads the machine using paths 1 through 7. This looks simple, but step 3-4 is where 50% of beginners fail.

The Critical Zone: The Take-Up Lever Jamal calls it "bird lips" (the silver lever that moves up and down).

• The Physics: This lever pulls the stitch tight. If the thread slips out of this eyelet, the machine cannot pull the thread back up, and you get a giant bird nest of thread under the fabric instantly.

The "Floss Test" (Sensory Anchor): When you pass the thread through the tension disks (usually step 3 down to 4), hold the thread spool with your right hand and pull the thread down with your left. You should feel a distinct resistance, similar to flossing your teeth.

• No resistance? The thread is floating outside the tension discs. Re-thread.
• Step 6 (Needle Bar): Listen for a tiny click or verify visually that the thread is behind the metal guide above the needle.

Warning: Physical Safety
Once the machine is threaded, keep hands, scissors, and loose hair away from the needle zone. The SE1900 stitches at up to 850 stitches per minute. A needle hitting a finger is a hospital trip. Never attempt to remove lint while the machine is on.

The Launch Sequence: Consistency is Key

Jamal drops the presser foot and hits the green button. The machine performs a "tie-in" (backstitch) and begins the pink fill.

The Expert Sequence:

1. Hoop Lock: Slide the hoop onto the carriage arm. Wiggle it. It should click and have zero play.
2. Tail Management: Hold the top thread tail gently.
3. Foot Down: Lower the presser lever.
4. GO: Press Start.
5. The 5-Stitch Stop: Count 5 stitches, Stop the machine. Trim the starting thread tail close to the fabric.
6. Resume. This prevents the tail from being stitched into the design and looking messy.


Setup Checklist (Pre-Flight)

• Carriage arm is clear of walls/objects (it moves further than you think).
• Presser foot is DOWN (if it's up, you get instant nesting).
• Top thread is confirmed in the Take-Up Lever.
• Speed Slider is set to Medium (for your first project, do not go Full Throttle; 600spm is safer).


The "Bobbin Empty" Panic: Recovery Protocol

Jamal triggers the "Bobbin Thread Almost Almost Empty" sensor. The machine stops.

Why this is scary: If you bump the hoop or pull the fabric while changing the bobbin, your registration (alignment) will be ruined. The pink box will shift, and the green letters will stitch outside the lines.

The Safe Fix method:

1. Do NOT remove the hoop from the carriage arm if you can avoid it.
2. Slide the plastic bobbin cover open.
3. Lift the empty bobbin out.
4. The "P" Rule: Hold the new bobbin so the thread hangs down to the left, looking like the letter P.
5. Drop it in.
6. The Trap: Follow the arrow guide (Standard Brother bobbin path). You must ensure the thread enters the tension spring in the plastic case. You should feel a slight drag when you pull the tail.
7. Cut the tail at the cutter mark. Close lid. Resume.




Expert Note on Bobbin Thread Showing on Top: Jamal notes: "If bobbin thread shows on top, it's inserted wrong." He is correct. If the bobbin flows too freely (missed the tension spring), the top thread pulls it straight up.

• Visual Check: Look at the back of your test patch. You should see 1/3 white (bobbin) thread ran down the center of the satin column. If you see ONLY top thread on the back, your top tension is too loose. If you see bobbin thread on the front, bobbin is too loose.

Color Change: The Jump Stitch & Thread Swap

Jamal cuts the jump stitch (the long thread traveling from A to B) and swaps to Green (Color 502).

Why we trim jumps: If you don't trim the "travel" thread across the pink box before the green letters start, the green letters might stitch over that travel thread, trapping it forever. It looks messy.

Workflow:

1. Machine stops for color change.
2. Trim the thread tail from the finished pink block.
3. Remove pink spool. Install Green.
4. Repeat the Floss Test while threading.
5. Press start.




Operation Checklist (During Stitching)

• Listen: A happy machine sounds like a rhythmic sewing machine (chug-chug-chug). A sharp Clack-Clack or grinding noise means STOP immediately.
• Watch: Don't walk away. Watch the first 50 stitches of every color.
• Slack Check: Is the thread pooling off the spool too fast? Use a thread net if the thread is falling off the spool downward.

The Flip Test: Your Quality Report Card

Creating the patch is one thing; verifying quality is another. Jamal flips the hoop.

• The Result: Flat back. No loops. The white bobbin thread is visible but controlled.
• The Lesson: If the back looks like a rat's nest, you didn't accidentally mess up—you missed the Top Tension engagement (the bird lips) or you forgot to lower the presser foot.






Troubleshooting: The "Why is this happening?" Table

When things go wrong, don't guess. Use this logic flow.

Decision Tree: Fabric, Stabilizer, and Hoops

Jamal mentions broad applications: Hats, Shirts, Patches. You cannot treat them the same.

Scenario A: The Patch (Video Project)

• Fabric: Felt or Twill.
• Stabilizer: Tear-Away.
• Tool: Standard Hoop or Magnetic Hoop (Flat).

Scenario B: The T-Shirt (Knit)

• Fabric: Stretchy Cotton.
• Stabilizer: CUT-AWAY (Mandatory). If you use tear-away, the shirt will stretch and distort the logo after one wash.
• Tool: Magnetic Hoop is excellent here to prevent "hoop burn" rings on the garment.

Scenario C: The Hat (Structured Cap)

• The Hard Truth: The SE1900 is a "Flatbed" machine. It hates hats. You have to flatten the hat bill, which ruins the shape.
• The Fix: You can buy a specialized brother se1900 hat hoop, but it is still physically difficult.
• The Transition: If you want to do hats mostly, you are fighting the machine's design. This is the primary trigger to upgrade to a multi-needle machine with a free-arm.

Turning Patches into Profit: The Workflow Pivot

Jamal suggests turning this into an iron-on patch or sewing it onto a blank.

• Iron-On: Use HeatnBond Ultra Hold. Apply to the back of the patch after embroidery, then peel and stick to the hat/shirt.
• Direct Sew: Stitching the patch onto a hat with a sewing machine.

The Bottleneck: If you start selling these, you will realize that threading the machine and hooping the fabric takes longer than the actual stitching.

• Efficiency Hack: Using a hooping station for machine embroidery coupled with magnetic frames allows you to prep the next garment while the machine is running the current one. This is how you double your output without buying a second machine.


The Upgrade Path: Knowing When You've Outgrown the SE1900

The Brother SE1900 is a fantastic entry-level machine. But it has limits: single needle (constant thread changes), flatbed (bad for bags/hats), and slower speeds.

How to know when to upgrade:

1. Level 1 (Tools): You are getting hoop burns or spending 5 minutes hooping. Solution: Upgrade to brother se1900 hoops that use magnets.
2. Level 2 (Speed): You are doing orders of 20+ hats or shirts. The constant thread changes are killing your profit margin. Solution: Move to a Multi-Needle Machine (like SEWTECH models).
3. Level 3 (Scale): You need to stitch on heavy bags or pre-assembled caps. Solution: You need a free-arm machine (Multi-needle).

Final encouragement

Start with the patch. It’s low risk. Check your needle. Floss your tension. Listen for the click. And if you fail? It's usually just some thread and felt. Cut it out and try again.

Ready to tackle your first project? If you're struggling with hooping thick felt, check out our section on magnetic framing tools to save your thumbs.

FAQ

• Q: How do I prevent bird nesting on a Brother SE1900/SE1950 during the first stitches of embroidery?
  A: Re-thread the top thread with the presser foot DOWN and confirm the top thread is inside the take-up lever before restarting—this fixes most instant nests.
  • Stop the machine, cut the thread ball from the underside carefully, and remove trapped threads around the needle area.
  • Re-thread the upper path and visually confirm the thread passes through the take-up lever (“bird lips”) and the needle bar guide.
  • Lower the presser foot before pressing Start/Stop (foot up commonly causes instant nesting).
  • Success check: the first 5–10 stitches form a flat underside with no thread ball building under the fabric.
  • If it still fails: repeat the “floss test” for resistance at the tension discs and check for lint in the bobbin area.
• Q: How do I perform the Brother SE1900 “floss test” to confirm the upper thread is actually in the tension discs?
  A: Pull the thread through the tension path and feel clear resistance—no resistance usually means the thread missed the tension discs and will cause loops or nesting.
  • Hold the spool steady and pull the thread down through the tension area as you thread steps in the main path.
  • Feel for tooth-floss-like drag/resistance as the thread seats between the tension discs.
  • Re-thread immediately if the thread pulls with almost no drag.
  • Success check: the thread movement feels controlled (not “free-falling”) when you gently tug the thread after threading.
  • If it still fails: re-check that the thread is also in the take-up lever eyelet and behind the metal guide above the needle.
• Q: How tight should fabric be in a Brother SE1900 embroidery hoop to avoid shifting, puckering, and outline-to-fill gaps?
  A: Hoop fabric flat and firm without stretching—think “suspension bridge,” not “drum-tight.”
  • Lay the outer hoop down, place stabilizer and fabric on top, then press the inner hoop in evenly.
  • Tighten the hoop screw until the surface is firm and smooth, but do not pull fabric until it distorts.
  • Use a light mist of temporary adhesive spray to bond fabric to stabilizer so they move as one unit.
  • Success check: running fingers over the hooped area feels flat and stable, and outlines align with fills without drifting.
  • If it still fails: re-hoop (looser hooping often shifts more) and check hoop ring for adhesive residue that reduces grip.
• Q: Why is bobbin thread showing on top on a Brother SE1900, and how do I correct the bobbin insertion?
  A: Reinsert the bobbin using the “P” orientation and make sure the thread enters the tension spring path—incorrect insertion lets the bobbin unwind too freely.
  • Open the bobbin cover and remove the bobbin without removing the hoop from the carriage if possible.
  • Hold the bobbin so the thread hangs to the left like the letter “P,” then drop it in and follow the arrow guide.
  • Pull the tail and confirm you feel slight drag as the thread seats into the tension spring path, then cut at the cutter mark and close the lid.
  • Success check: the back of the design shows controlled bobbin thread centered in satin areas, not large bobbin pull-through on the front.
  • If it still fails: clean lint from the bobbin area and re-check upper threading through the take-up lever.
• Q: What is the correct Brother SE1900 bobbin-change recovery method when the “Bobbin Thread Almost Empty” warning stops embroidery mid-design?
  A: Change the bobbin with minimal disturbance and avoid removing the hoop from the carriage arm to protect registration.
  • Leave the hoop mounted on the carriage arm whenever possible and avoid pulling fabric during the swap.
  • Replace the bobbin using the “P” orientation and ensure the thread follows the guided path into the tension spring.
  • Close the cover, then resume stitching to keep alignment consistent.
  • Success check: the next stitches land exactly where the previous stitches stopped, with no visible shift between sections.
  • If it still fails: verify the hoop is fully locked onto the carriage arm (no play) and re-check hooping stability.
• Q: What safety steps should beginners follow when operating a Brother SE1900 at up to 850 stitches per minute?
  A: Keep hands and tools away from the needle zone once stitching starts, and stop power before cleaning—high-speed needle motion can cause serious injury.
  • Keep fingers, scissors, loose hair, and clothing away from the needle area during stitching and color changes.
  • Stop the machine before trimming close to the needle area, and never try to remove lint while the machine is on.
  • Start at a medium speed setting for the first projects to reduce risk while learning.
  • Success check: trimming and thread handling are done only when the needle area is fully stopped and hands never enter the needle path while moving.
  • If it still fails: pause the machine more often (especially in the first 50 stitches of each color) and slow down the workflow.
• Q: How do I improve embroidery production efficiency on a Brother SE1900 when hooping and thread changes take longer than stitching patches?
  A: Treat efficiency as a tiered fix: optimize workflow first, then upgrade hooping tools, then consider a multi-needle machine when order volume demands it.
  • Level 1 (technique): Prep supplies before threading (new needle, clean bobbin area, correct stabilizer, adhesive spray) and use the 5-stitch stop to trim tails cleanly.
  • Level 2 (tool): If hooping hurts hands, causes hoop burn, or takes minutes per item, switch to a magnetic hoop style to reduce tightening effort and speed loading.
  • Level 3 (capacity): If frequent color changes and higher order volume (e.g., batches of hats/shirts) are killing throughput, moving to a multi-needle machine is often the next step.
  • Success check: hooping time drops, fewer restarts happen (less nesting/misalignment), and you can prep the next item while the current one runs.
  • If it still fails: track where time is lost (threading vs hooping vs trimming jump stitches) and address the biggest bottleneck first.
