Your Brother or Janome Embroidery Machine Can’t See the File? Fix the USB, the Folder, and the “Too-Dense” Design Before You Panic

ERROR: USB Media Not Loaded.

You stare at the screen. You know the file is on the thumb drive. You watched it transfer. You ejected it safely. Yet, your machine looks back at you with a blank screen or that infuriating error message.

I have seen this exact moment turn calm, creative artisans into furious people in under 30 seconds. I’ve seen seasoned shop owners walk back and forth between the computer and the embroidery machine ten times, praying that this time it will work.

Here is the truth based on 20 years of floor experience: Your machine is likely not broken.

Embroidery machines effectively speak a very old, very specific dialect of computer language. When specific criteria—file structure, drive speed, stitch density—aren't met, the machine simply goes silent to protect itself.

This guide replaces the panic with a protocol. We will walk through the mechanical, software, and physical checks required to clear this error. We will also cover when to stop fixing the file and start upgrading your tools—because if you are fighting your equipment daily, you are losing money.

That “USB Media Is Not Loaded” Message on a Brother SE625: What It Usually Means (and What It *Doesn’t*)

When a machine like the Brother SE625 (or similar computerized models) throws the "USB media is not loaded" error, it triggers a fear response: "My motherboard is fried."

Take a breath. In 95% of cases, the hardware is fine. The machine is simply rejecting the handshake with the storage device.

Use your senses to diagnose this.

• Visual: Is the screen completely blank, or do you see folders but no files?
• Auditory: When you plug the drive in, do you hear the faint electronic "whine" or click that indicates power is flowing?
• Tactile: Does the USB drive wobble in the port? It should feel snug.

The culprit is usually one of five "Incompatibility Ghosts":

1. Format Mismatch: The design file is JEF, but the machine speaks PES.
2. Drive Architecture: The USB drive is USB 3.0/3.1 (High Speed), but the machine’s brain only understands USB 2.0.
3. File System: The drive is formatted to NTFS or exFAT (modern standards), but the machine requires FAT32 (an older standard).
4. Density Overload: The file exists, but resizing has pushed the stitch count or density beyond the machine’s safety limits.
5. Physical Debris: Lint—the enemy of all embroidery—is blocking the contact pins.

If you are running a brother embroidery machine for a hobby, this is a nuisance. If you are fulfilling orders, this is a production halt. The fix is a strict process of elimination, starting with the cheapest variable (the file) and ending with the most expensive (the hardware).

The “Hidden” Prep Pros Do First: Protect Your Designs, Your USB Port, and Your Sanity

Before we format drives or analyze software, we must secure the environment. Professional digitizers do not guess; they verify.

This prep phase prevents the two most common self-inflicted wounds: wiping the wrong drive (data loss) and physically destroying the machine’s data port (hardware failure).

Prep Checklist: The "Do Not Skip" Protocol

• Verify the Drive: Use a dedicated USB stick for embroidery. Label it with blue painter's tape to avoid mixing it with your family photo backup.
• The "Clean" Eject: Never yank the drive out of your computer. Always use "Safe to Remove Hardware." This closes the data write cycle.
• Empty the Drive (Janome specific): If troubleshooting a Janome, start with a completely empty drive. The machine needs to build its own house before you move the furniture in.
• Physical Inspection: Look at the metal connector of the USB stick. Is it bent? Is there lint inside?
• Power Cycle: Turn the embroidery machine OFF before inserting the drive for this test. Booting up with the drive inserted can sometimes force the machine to mount the directory.

Hidden Consumables: You should always have a can of compressed air and a spare 2GB-4GB USB 2.0 drive in your troubleshooting kit. These are your first lines of defense.

Fix #1: Stop Saving JEF for Brother—Convert the Design to PES in Embird (and Center It)

The most common reason for a "ghost file" (a file you know is there but the machine cannot see) is a language barrier.

In the video example, the user attempts to load a .JEF file (native to Janome) into a Brother machine. The Brother machine does not show an error for the file; it simply pretends the file does not exist.

The Solution: Translator Software (Embird/Wilcom/Hatch) You must convert the file to .PES (Brother's native language).

The Workflow:

1. Open your digitizing software (Embird is shown in the example).
2. Verify Hoop Constraints: Select the hoop size that matches your physical hoop. For the Brother SE625/400 series, this is the 4x4 hoop (100mm x 100mm).
3. Go to File > Save As.
4. Select .PES from the format list.
5. Critical Step: Ensure "Center in Hoop" is checked. If a design is saved 1mm outside the printable area, the machine will reject it.
6. Save to your desktop, then drag to the USB.

Symptom Check: If you load the file and the machine shows it, but the colors look wrong or the orientation is weird—don't panic. The machine parses the instructions, not the image. As long as the stitch data is there, you are safe.

Fix #2: Janome USB Folder Structure—Let the Machine Create “Emb/Embf” or Your Files Won’t Show

Janome machines are notorious for their strict filing bureaucracy. You cannot simply dump a file onto the root of the USB drive. The machine looks for a specific address.

The "Handshake" Protocol:

1. Take your Empty USB drive.
2. Insert it into the Janome machine while the machine is on.
3. Wait a few seconds. You might hear a beep or see a flashing icon. The machine is formatting the stick and building its directory.
4. Remove the stick and plug it into your computer.
5. Open the drive. You will now see a folder named Emb. Inside that, a folder named Embf.

The Fix: You must place your design files inside the Embf folder.

Reasoning: If you place files outside this folder, the machine’s operating system ignores them. It’s like putting mail on the roof instead of in the mailbox.

Pro Tip on Naming: Keep filenames meant for a janome embroidery machine simple. Avoid special characters (like &, #, !) and keep the name under 8 characters if possible (e.g., FLOWER01.JEF). Long, complex filenames can cause the machine to truncate or hide the file.

Fix #3: The USB Hub Trick—Save Your Motherboard Port (and Your Repair Budget)

This is a maintenance secret capable of saving you $300 in repairs.

Embroidery machine USB ports are soldered directly to the mainboard. They are rated for a finite number of insertion cycles. Every time you plug and unplug a drive, you are physically wearing down the gold contacts. Once that port fails, you often have to replace the entire motherboard.

The $10 Insurance Policy:

1. Buy a short USB extension cable or a small USB hub.
2. Plug this hub into your machine’s port permanently.
3. Tape or Velcro the hub to the side of the machine.
4. Plug your thumb drives into the hub, not the machine.

Why this works: You transfer the mechanical wear and tear to the $10 hub. If the hub wears out and the connection gets loose, you throw the hub in the trash and buy a new one. Your machine’s expensive port remains pristine.

Warning: Never force a USB plug into a port. If you feel resistance, stop. A bent pin inside the machine's port can cause a short circuit that kills the mainboard instantly.

Fix #4: Choose a USB Drive Your Machine Can Actually Read (USB 2.0 + Smaller Capacity Wins)

We live in a world of 64GB, 128GB, and 1TB drives. Your embroidery machine hates them.

Most embroidery machines run on operating systems designed in the early 2000s or 90s. They cannot address the memory space of a massive modern drive.

The "Sweet Spot" Specs:

• Generation: USB 2.0 (Look for the black or white plastic insert in the plug, not the blue one which signifies USB 3.0).
• Capacity: 2GB to 4GB is ideal.
• The Ceiling: Many machines have a hard limit of 8GB or 16GB. Anything larger may simply fail to mount.

Real-world Scenario: I have seen users bring a high-speed, expensive 64GB USB 3.1 drive to a machine, hoping for faster transfers. The machine freezes because it tries to index 64GB of empty space and runs out of RAM.

The Rule: Use the cheapest, smallest, "slowest" USB stick you can find. It is exactly what your machine craves.

Fix #5: Format the USB Drive to FAT32 in Windows (and Reset the File Table)

If your drive is the right size but still won't load, the file table—the map that tells the computer where data lives—may be corrupt. Formatting wipes the map and draws a new one.

The Windows FAT32 Sequence:

1. Insert the USB drive into your PC.
2. Open File Explorer (Windows Key + E).
3. Right-click the USB drive. Select Format.
4. File System: Select FAT32. (Note: If your drive is larger than 32GB, Windows might not offer FAT32 easily, which is another reason to use small drives).
5. Allocation Unit Size: The video suggests 8192 bytes. This is a safe "block size" for older data readers. Default usually works, but specific block sizes can help with picky machines.
6. Uncheck "Quick Format" if you suspect the drive has errors (this takes longer but checks for bad sectors).
7. Click Start.

Mac Users: MacOS often formats drives to "Mac OS Extended" or "APFS". Your Brother or Janome machine cannot read this. You must use Disk Utility to format the drive as MS-DOS (FAT).

Warning: Formatting deletes EVERYTHING on the drive permanently. Backup your designs to your desktop before you click Start.

Fix #6: Resizing in Embird Without “Bulletproof” Density—Turn On Auto Stitch Density First

This is the physics of embroidery.

If you take a design that is 10cm wide with 10,000 stitches and shrink it to 5cm wide, you still have 10,000 stitches—but now they are packed into half the space.

The Consequence: The density doubles. The machine sees a file where the needle commands are virtually on top of each other.

1. Software Failure: The machine rejects the file because the stitch commands violate its safety buffers.
2. Hardware Failure: If it does sew, the needle will hammer the same spot repeatedly, creating a "bulletproof" patch of thread that snaps needles and shreds fabric.

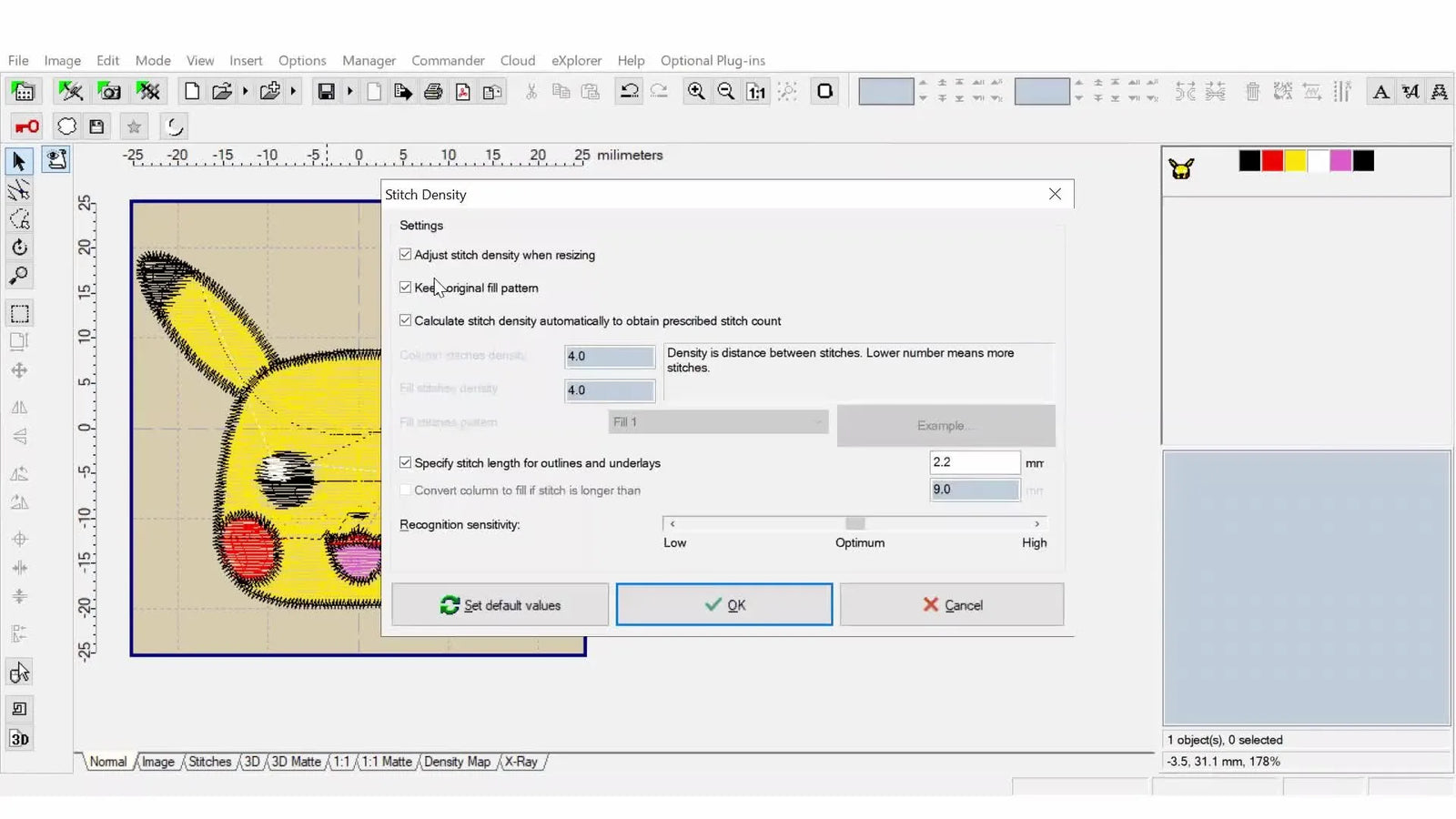

The Fix (Embird Example):

1. Go to Options > Stitch Density.
2. Check the box: “Calculate Stitch density automatically...”
3. Click OK.
4. Now resize your design.

The Result: Software reduces the stitch count proportionally. The 5cm design now has 5,000 stitches. The density remains safe (usually ~0.4mm spacing). The machine accepts the file, and your needle doesn't break.

Fix #7: Clean the USB Port with Canned Air—Then Know When It’s a Real Hardware Failure

If you have verified the file, the drive, and the format, and the connection still flickers in and out, you are dealing with a physical disconnect.

Dust and lint are insulators. A tiny piece of fluff inside the USB port can block the 5V power pin or the data pins.

The Cleaning Protocol:

1. Turn the machine OFF.
2. Use a can of compressed air with the straw attached.
3. Hold the can upright (do not tilt, or you will spray freezing liquid).
4. Spray short, controlled bursts into the machine's port.

When to Call a Tech: If you wiggle the USB stick and the machine connects for a second then disconnects, you likely have a broken solder joint on the motherboard. This requires a professional repair. Stop wiggling it—you could cause a short that fries higher-level components.

The “Can Not Sew From This Screen” Message on Brother PE-770 / PE-780D: The Button You’re Probably Missing

Sometimes the file loads perfectly, but you cannot start the machine. The Start/Stop button is red, or a message pops up: "Can not sew from this screen."

This is user interface confusion, not a bug.

The Logic: Consumer machines often separate the "Edit" mode (resizing, rotating) from the "Sewing" mode. You are stuck in the waiting room.

The Fix: Look for an icon that represents "Upload" or "Move to Sew". On older Brother models, it is often a Pocket Icon with an Up Arrow. Pressing this commits the design to the machine's memory and switches the screen to the sewing interface.

Hard Reset: If the screen is frozen, perform a soft reset:

1. Turn the machine off.
2. Hold down the Thread Cutter (scissors) button.
3. Turn the machine on while holding the button.
4. Release once the screen initializes. (Consult your specific manual, as buttons vary by model).


Setup That Prevents Repeat Problems: A Simple “Transfer Station” Workflow

Troubleshooting kills momentum. If you are stopping every 20 minutes to format a drive, you aren't creating.

The "Clean Workflow" Standard:

• Dedicated Hardware: One USB 2.0 stick (2GB), reformatted to FAT32.
• Dedicated Port: A USB hub permanently attached to avoid port wear.
• Staged Files: A folder on your PC named "READY_TO_SEW" where only processed, finalized .PES/.JEF files go.

Upgrade Path: Solving the Bottlenecks

Once you master the file transfer, you will notice other friction points. This is where upgrading your tools (not just your skills) pays off.

Bottleneck 1: Hoop Burn & Framing Frustration If you spend 5 minutes fighting to hoop a thick towel or a delicate knit, and then have to redo it because it's crooked, you are wasting time.

• The Upgrade: Magnetic Hoops.
• For home users, a brother se600 hoop compatible magnetic frame allows you to clamp fabric instantly without tightening screws.
• For users with larger machines, searching for a brother pe800 magnetic hoop will reveal 5x7 options that prevent the "ring around the embroidery" marks on dark fabrics.

Bottleneck 2: Production Speed If you are constantly waiting for the single needle to change colors, no amount of USB troubleshooting will fix your speed.

• The Upgrade: Commercial multi-needle machines (like Sewtech models) that hold 10+ colors at once.

Warning: Magnet Safety
Magnetic hoops use industrial-strength magnets. They can pinch fingers severely. Do not use magnetic hoops if you have a pacemaker, as the magnetic field can interfere with medical devices. Keep them away from computerized hard drives and credit cards.

A Quick Decision Tree: If the File Still Won’t Show, Don’t Guess—Diagnose

Use this logic flow to isolate the problem. Do not skip steps.

Decision Tree (File Not Showing / Not Loading):

1. The Physical Check:
   • Does the USB drive light up/mount on your PC?
   • No: The drive is dead. Replace drive.
   • Yes: Proceed to Step 2.
2. The Format Check:
   • Is the file format correct for your brand? (PES for Brother, JEF for Janome).
   • No: Convert file.
   • Yes: Proceed to Step 3.
3. The Architecture Check:
   • Is the drive USB 2.0 and <4GB?
   • No: Switch to older/smaller drive.
   • Yes: Proceed to Step 4.
4. The File System Check:
   • Is it formatted FAT32?
   • No/Unsure: Reformat (Backup first!).
   • Yes: Proceed to Step 5.
5. The Logic Check (Janome):
   • Are files inside the Embf folder?
   • No: Move files.
   • Yes: Proceed to Step 6.
6. The Physics Check:
   • Did you clean the port?
   • No: Use canned air.
   • Yes: Hardware failure imminent.


Operation: The 7-Fix Routine You Can Run in Under 10 Minutes

Once you internalize this routine, a "USB Error" becomes a minor speed bump rather than a day-ruining event.

Operation Checklist: The "Green Light" Sequence

• 1. File Identity: File is confirmed .PES (Brother) or .JEF (Janome).
• 2. Boundary Check: Design is centered and within the physical limits (e.g., 100x100mm).
• 3. Density Check: Auto-density calculation was ON during resizing.
• 4. Drive Health: Drive is USB 2.0, formatted FAT32, plugged into a hub.
• 5. Folder Path: Files are in the machine-created subfolder (if required).
• 6. UI Flow: You have pressed the "Upload/Pocket" button to enter sewing mode.

If you pass this checklist and still struggle, your bottleneck is likely procedural.

The Production Mindset If you are doing this for clients, "fiddling" is lost profit.

• If file transfer is the issue, standardize your USB sticks.
• If hooping is the issue, look into a hooping station for embroidery to standardize placement across 50 shirts, or magnetic frames to speed up the load/unload time.
• If volume is the issue, it is time to look at multi-needle machines.


The “Why” Behind These Fixes: Compatibility Beats Convenience Every Time

Why are these machines so picky?

Embroidery requires extreme precision. The X/Y pantograph moves in fractions of a millimeter. The processors inside these machines prioritize motor control safety over multimedia convenience.

• Resizing changes the physics of the fabric penetration (Force).
• Folder structures ensure the limited RAM doesn't get overflowed (Memory).
• Older USB standards ensure stable voltage to the motherboard (Power).

When you respect the machine's limitations, it rewards you with perfect stitches.

When It’s Time to Upgrade the Workflow (Not Just “Fix the Problem Again”)

Troubleshooting is necessary, but it shouldn't be your job description. If you find yourself spending more time fixing connection errors or re-hooping fabric than actually embroidering, your tools are no longer serving you.

The Upgrade Triggers:

• Trigger: You dread changing colors on a complex design.
  • Solution: Move from Single-Needle to Multi-Needle.
• Trigger: You get "Hoop Burn" (shiny crushing marks) on delicate velvet or performance polos.
  • Solution: Magnetic Hoops. They hold fabric with magnetic force rather than friction, protecting the pile. For those of you with a specific machine, searching for a brother se700 magnetic hoop compatible frame is the first step toward mark-free embroidery.
• Trigger: You produce batches (team uniforms) and placement is inconsistent.
  • Solution: A magnetic hooping station guarantees the logo is in the exact same spot on every shirt, every time.

Fix the USB today. But plan for the equipment that will make tomorrow easier. Keep stitching.

FAQ

• Q: How do I fix the “USB media is not loaded” error on a Brother SE625 when the embroidery file is on the thumb drive but does not appear on the machine screen?
  A: Use a small USB 2.0 drive formatted to FAT32, and confirm the design is saved as Brother .PES and centered in the hoop.
  • Switch to a dedicated 2GB–4GB USB 2.0 stick and plug it in firmly (a snug fit matters).
  • Format the drive to FAT32, then copy only the finalized .PES file to the USB (avoid extra clutter during testing).
  • Re-save the design as .PES and enable “Center in Hoop” so the file stays inside the sewable area.
  • Success check: The Brother SE625 shows the design thumbnail/listing instead of a blank folder or “USB media is not loaded.”
  • If it still fails: Clean the machine USB port with canned air and re-test with a different small USB 2.0 stick.
• Q: Why does a Brother SE625 not show a .JEF embroidery design file on the USB drive even though the file transfers correctly from the computer?
  A: Brother machines generally will not read Janome .JEF files, so the fix is converting the design to .PES in Embird (or similar software) and re-saving it centered.
  • Open the file in Embird (or Wilcom/Hatch) and choose File > Save As.
  • Select .PES and make sure “Center in Hoop” is checked before saving.
  • Match the hoop setting to the physical hoop (for Brother SE625/400 series, use the 4x4 / 100mm x 100mm boundary mentioned).
  • Success check: The .PES file becomes visible on the Brother screen and can be selected.
  • If it still fails: Re-check the design is not even 1mm outside the hoop boundary when saved.
• Q: How do I make a Janome embroidery machine recognize files on a USB drive when the Janome screen shows folders but no designs?
  A: Let the Janome machine create its required USB folder structure (Emb/Embf), then place the design files inside the Embf folder.
  • Start with an empty USB drive and insert it into the Janome machine while the machine is on.
  • Remove the USB, plug it into the computer, and open the drive to locate Emb and Embf.
  • Move embroidery files into Embf and keep filenames simple (often safest: no special characters and short names).
  • Success check: The Janome design list populates after inserting the USB back into the machine.
  • If it still fails: Confirm the file type matches the Janome format being used and retry with a freshly emptied USB.
• Q: How do I format a USB drive to FAT32 for a Brother or Janome embroidery machine, and what settings should I use in Windows?
  A: Format the embroidery USB to FAT32 in Windows (and consider 8192 bytes allocation unit size) to reset a corrupted file table and improve compatibility with older machines.
  • Backup the designs to the computer first (formatting erases everything).
  • In Windows File Explorer: right-click the USB drive > Format > File System: FAT32.
  • Set Allocation Unit Size to 8192 bytes if the machine is picky; otherwise, default is often fine.
  • Success check: After formatting, the embroidery machine mounts the USB and displays the folder/design list normally.
  • If it still fails: Use a smaller-capacity USB (2GB–4GB) because some machines will not reliably mount large drives.
• Q: How do I stop a Brother or Janome embroidery machine from freezing or refusing to mount a modern 64GB USB 3.0/3.1 thumb drive?
  A: Use an older, smaller, slower USB stick—USB 2.0 and 2GB–4GB is the most reliable “sweet spot” for many embroidery machines.
  • Replace the USB 3.x drive with a USB 2.0 drive (often black/white insert, not blue).
  • Keep capacity small (2GB–4GB is ideal; many machines have a practical ceiling and may fail on large drives).
  • Format the new drive to FAT32 and test with one known-good design file.
  • Success check: The machine loads the USB quickly without hanging while indexing.
  • If it still fails: Move to port cleaning and physical connection checks (loose fit, lint in port).
• Q: How do I protect the USB port on a Brother or Janome embroidery machine from wearing out and causing intermittent “USB media is not loaded” connection drops?
  A: Leave a short USB extension cable or small USB hub plugged into the machine permanently, and plug thumb drives into the hub instead of the machine port.
  • Plug the hub/extension into the machine once and secure it (tape/Velcro) to reduce stress on the port.
  • Insert and remove USB sticks only from the hub to take the wear, not the motherboard-mounted port.
  • Never force a USB plug—stop immediately if there is resistance to avoid bent pins and shorts.
  • Success check: The connection feels snug and does not flicker when the USB is gently touched.
  • If it still fails: Stop wiggling the stick; a broken solder joint on the mainboard may need professional repair.
• Q: When resizing a design in Embird, how do I prevent “bulletproof” stitch density that can make an embroidery machine reject the file or break needles?
  A: Turn on Embird’s automatic stitch density calculation before resizing so stitch count scales down and density stays safe.
  • Go to Options > Stitch Density and enable “Calculate Stitch density automatically...”
  • Resize only after auto-density is enabled, then re-save the design to the correct machine format (.PES for Brother, .JEF for Janome).
  • Keep the design centered and within the hoop boundary before exporting to USB.
  • Success check: The machine accepts the file and the needle does not hammer the same spot repeatedly during stitching.
  • If it still fails: Re-check hoop boundary/centering and try exporting a fresh copy to a known-good FAT32 USB 2.0 drive.
• Q: When should a home embroidery user switch from troubleshooting USB transfer issues to upgrading workflow tools like magnetic hoops or a multi-needle machine?
  A: If USB transfer is stable but production is still slowed by hooping frustration or color-change downtime, upgrade in layers: technique first, then magnetic hoops, then multi-needle capacity.
  • Level 1 (technique): Standardize one dedicated USB 2.0 FAT32 stick, a permanent hub, and a “READY_TO_SEW” folder on the PC.
  • Level 2 (tool): If hoop burn or re-hooping wastes time, magnetic hoops can reduce screw-tightening and fabric marking (follow magnet safety).
  • Level 3 (capacity): If single-needle color changes are the true bottleneck, consider a multi-needle machine to hold many colors at once.
  • Success check: You spend more time stitching and less time re-hooping, reloading files, or waiting through color changes.
  • If it still fails: If the USB connection is physically intermittent even after cleaning, stop troubleshooting and schedule a hardware inspection.
