Write Names on the HSW Embroidery Machine Screen (No Software): Fonts, Kerning, and a Clean Save That Actually Stitches

Master On-Screen Lettering: The Veteran’s Guide to HSW Control Panels

By the SEWTECH Education Team

Creating embroidery directly on your machine’s screen is the ultimate litmus test for an operator. When a customer is standing at your counter asking for a quick name on a jersey, you don’t have time to open laptop software, digitize a file, transfer it via USB, and test it. You need to type, hoop, and stitch—in under ten minutes.

However, the HSW multi-needle control panel—like many industrial interfaces—can handle like a cockpit: powerful, but intimidating. New users often fall into two traps: (1) Panic Mode, where the screen seems frozen or "broken" because of a simple safety lock, and (2) The Screen Lie, where text looks perfect on the LCD but stitches out as a illegible knot on fabric because the operator ignored the physics of thread.

This guide moves beyond the manual. We are breaking down the HSW lettering workflow using a "Safety-First, Efficiency-Second" approach. We will cover technical inputs, sensory checks to confirm you are doing it right, and the commercial tools that turn this feature from a headache into a profit center.

1. Calm the Panic: The "Red Button" Rule

The video tutorial begins with a scenario I have seen a thousand times: an operator frantically tapping a screen that won't respond.

On HSW interfaces, the touchscreen is unresponsive by design when the machine is in "Satin" or "Ready" mode. This is a safety feature, not a glitch.

The Rule: Look at the Unlock/Lock icon.

• Green/Locked: The machine is ready to fire. The screen is frozen to prevent accidental edits while stitching.
• Red/Unlocked: The motors are disengaged. The screen is open for editing.

Action Step: Before you touch anything, locate the padlock icon. If it is green, press it until it turns red. You should hear a distinct software beep confirming the mode switch.

Warning: Mechanical Safety
Never reach your hands into the needle bar area or near the take-up levers while the machine is powered on, even if unlocked. A multi-needle machine can cycle unexpectedly if a sensor is triggered. Always keep fingers clear of the "Danger Zone" (the active needle area).

2. The "Hidden" Prep: Physics Before Pixels

The video jumps straight to the screen, but as a veteran, I must stop you here. The success of your lettering is determined before you type a single character. It is determined by Stabilization and Hooping.

Text is the most unforgiving design type. In a large logo, a 1mm shift is invisible. In 6mm lettering, a 1mm shift makes an "E" look like an "F".

The "Pre-Flight" Prep Checklist

• Check Your Needle: Are you using a 75/11 Sharp? Ballpoints are fine for knits, but Sharps give crisper edges on small text.
• Check Your Bobbin: Open the case. Is the bobbin at least half full? Running out of bobbin thread inside a 5-letter name is a disaster.
• Consumable Check: Do you have your temporary spray adhesive (like 505) and water-soluble topping ready? (Essential for sinking prevention on polos).
• Hoop Tension Check: Drum the fabric. It should sound like a dull thump, not a hollow ring (too tight) or a rustle (too loose).

The Commercial Reality: If you are struggling to get fabric "drum tight" without leaving "hoop burn" (shiny rings) on dark shirts, your tool is the bottleneck. This is where professional shops upgrade to magnetic hooping station systems. Unlike traditional screw-tightened hoops that pinch and distort, magnetic frames snap fabrics flat instantly, reducing hoop burn and "slipped" lettering by over 80%.

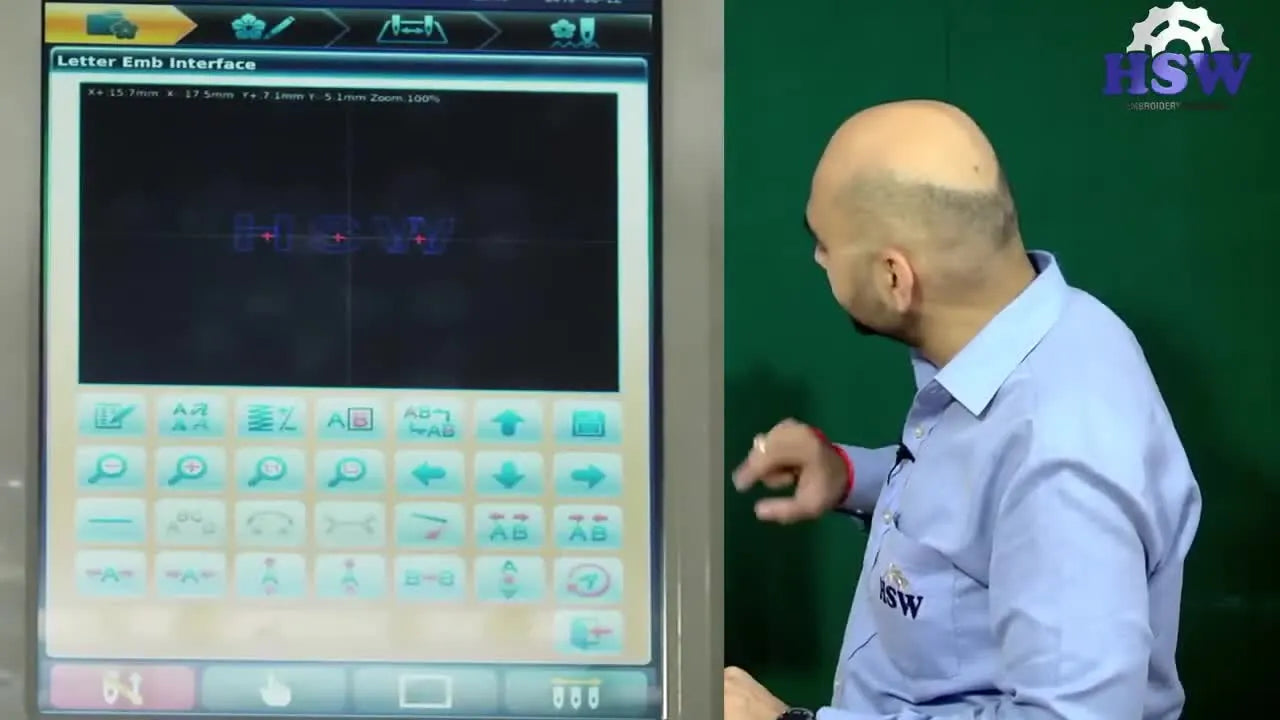

3. Entering the Matrix: The ABC Interface

Once your machine is unlocked and your workspace is prepped, navigation is straightforward.

The Action Chain:

1. Locate: Find the icon labeled "ABC" on the main grid.
2. Tap: Press firmly. Industrial screens are pressure-sensitive, not capacitive like an iPhone. You need a deliberate touch.

Sensory Check: You will see the interface shift from the "Sewing Status" screen to the "Editor" grid. If the screen flashes but doesn't change, check if a previous design is still "loaded" in the drive memory. You must clear the current job before creating a new one.

4. Selecting a Font: The "Sweet Spot" Strategy

The machine displays a list of pre-digitized fonts. The host selects one and confirms with the Check/Right button.

Expert Calibration: It is tempting to let the customer pick the "prettiest" font. Do not do this. Screen previews lie. A swirling script font that looks beautiful at 20mm will become a thread-break nightmare at 8mm because the needle penetrations are too close together.

The "Safe Zone" Font Rules:

• Block Fonts: Safe down to 5-6mm height.
• Serif Fonts (Times New Roman style): Safe down to 8-10mm. The tiny "feet" of the letters will disappear if smaller.
• Script/Calligraphy: Dangerous below 12-15mm.

Pro Tip: If you absolutely must stitch small text on a piqué polo, put a layer of Water Soluble Topping (Solvy) on top. It prevents the stitches from sinking into the fabric weave, keeping the text legible.

5. typing the Text: avoiding the Caps Lock Trap

The host demonstrates entering text using the virtual keypad. Note the A_a button—this is your toggle for Case Sensitivity.

Action Steps:

1. Press the Notepad/Pencil icon to open the keyboard.
2. Toggle Case: Press A_a to switch between Uppercase (Caps) and Lowercase.
3. Input: Type "HSW" (or your client's name).
4. Verify: Read the text on the display line before hitting Enter.

Hidden Consumable: I always keep a fine-point stylus near the machine using velcro. Industrial screens can be fussy with large fingertips, and a stylus prevents "fat-finger" typos.

6. Sizing and Reality: The "Push/Pull" Compensaion

The preview screen shows the design dimensions (e.g., X: 45.0 mm).

The Concept: Thread has tension. When you stitch a column, it pulls the fabric in (narrowing the letter).

• On Screen: A letter might look 10mm wide.
• On Fabric: It might stitch out 9mm wide.

The Solution: Always size your text slightly bolder or larger than you think you need. Never shrink a built-in font by more than 20%. If you go beyond that limit, the stitch density becomes too high, leading to:

1. Broken needles.
2. Stiff, bulletproof lettering.
3. Holes cut in the fabric.

If you find yourself constantly fighting with sizing limitations, this is the trigger point where a single head embroidery machine limits your growth. For distinct logo work with specific sizing needs, consider integrating external digitizing software into your workflow rather than relying solely on the panel.

7. Kerning: The Mark of a Professional

The host uses the A<->B icons to adjust spacing. This is called Kerning.

Visual Check: Look at the gap between letters like "A" and "V" or "T" and "o".

• Amateur: Every letter box has equal spacing (looks gapped).
• Pro: The visual volume of space between letters is equal.

Critical Adjustment: Thread has physical thickness (volume). If letters touch on the LCD screen, they will overlap on the fabric.

• Rule: Leave a visible "pixels of air" gap between every letter on screen.
• Correction: Use the "Arrow Out" icon to add 1-2 clicks of spacing for any text under 10mm height.

If you are consistently struggling with text registration (letters dancing up and down), the issue is rarely the kerning settings—it is the hooping. Efficient production demands tools like magnetic embroidery hoops to ensure the fabric grain is perfectly straight (perpendicular) to the needle bar.

8. Changing Logic: The "Rescue" Feature

The video shows you can change the font after typing. This is a massive workflow saver.

Scenario: You type "Alexander" in a Block font. It’s too wide for the pocket. The Fix: Don’t delete and re-type. Simply go back to the Font Select menu and choose a condensed (narrow) font. The text string remains; only the style updates.

9. Saving Principles: Scaling Your Business

The machine auto-assigns a design number (e.g., No. 16). The host renames it "HSW".

Business Advice: Do not rely on "Design 16". Three months from now, clean-up will be impossible. Naming Convention: Use a consistent format.

• Format: [Client]_[JobType]_[Date]
• Example: Smith_LChest_Oct24

This takes 10 extra seconds but saves hours of searching later.

10. The Fabric-Stabilizer Decision Tree

The video skips this, but it is the #1 cause of failure. Use this logic gate before every job:

Step 1: Is the fabric stretchy? (T-shirts, Polos, Hoodies)

• YES: You MUST use Cutaway Stabilizer. Tearaway will fail, and letters will distort.
• NO: Proceed to Step 2.

Step 2: Is the fabric visible? (Towels, Fleece)

• YES: You need a Water Soluble Topping to prevent stitches from sinking.
• NO: Standard backing is fine.

Step 3: Is it a structured item? (Caps, Canvas Bags)

• YES: Use Tearaway Stabilizer. It supports the needle penetration but removes cleanly.

Commercial Upgrade: For high-volume shops running mixed fabrics, swapping hoops is slow. magnetic embroidery hoop systems (like the MaggieFrame) are universal—they hold thick canvas and thin silk with equal security, eliminating the need to adjust screw tensions between jobs.

Warning: Magnetic Safety
Professional magnetic hoops use neodymium magnets. They are incredibly strong.
1. Pinch Hazard: They can crush fingers if allowed to snap together uncontrolled.
2. Medical: Keep at least 6 inches away from pacemakers.
3. Electronics: Do not place directly on top of the HSW control screen or hard drives.

11. Troubleshooting: The Quick-Fix Matrix

When things go wrong, do not blame the software immediately. Follow this "Low Cost to High Cost" diagnostic path:

12. Final Operation Checklist: The "Last 60 Seconds"

You are ready to hit start. Pause. Execute this final check to protect your garment and profit margin.

The "Save the Shirt" Checklist:

1. Placement: Is the center of the design marked on the shirt with a disappearing ink pen or chalk?
2. Clearance: Rotate the handwheel (or do a "Trace" on screen). Does the hoop hit the presser foot at any corner?
3. Trace Check: Run the screen trace. Does the laser/needle stay within the hoop boundaries?
4. Thread Path: Pull a few inches of thread from the needle. Does it flow smoothly with light resistance (like flossing teeth)?
5. Start: Press the Start button and watch the first 100 stitches. Do not walk away.

Conclusion: Upgrading Your Toolkit

Mastering the HSW control panel is Step 1. It allows you to say "Yes" to quick jobs. But as your volume grows, you will find that "typing speed" isn't what slows you down—it's the physical handling of garments.

If you find yourself dreading the setup process—struggling with hoop marks on delicate polos, hurting your wrists on stiff clamps, or rejecting orders because you can't hoop them straight—it is time to look at your hardware.

• For Efficiency: Look into how to use magnetic embroidery hoop accessories to cut hooping time in half.
• For Capacity: If you are changing threads manually on a single needle, explore multi needle embroidery machines for sale. The ability to preset 15 colors and run continuous production is the difference between a hobby and a factory.
• For Beginners: Don't buy complexity you don't need. The best embroidery machine for beginners is one that has a supportive community and parts availability (like SEWTECH supports).

Embroidery is a mix of digital precision and physical art. Trust your hands, verify your settings, and keep your tools sharp. Now, go stitch that name—perfectly.

FAQ

• Q: Why is the HSW multi-needle embroidery control panel touchscreen unresponsive in “Satin” or “Ready” mode?
  A: The HSW touchscreen locks on purpose when the machine is in a stitch-ready state, so unlock it with the padlock icon before editing.
  • Press the Lock/Unlock (padlock) icon until it turns red/unlocked and listen for the confirmation beep.
  • Confirm the machine is not actively in a stitch cycle and keep hands away from the needle bar area even when unlocked.
  • Success check: The screen switches into an editable state and taps register normally in the editor menus.
  • If it still fails: Treat it as an error state—check the machine’s specific error code and any triggered sensors (for example, thread-break sensor).
• Q: What “pre-flight” checks should be done before stitching small lettering on an HSW multi-needle embroidery machine screen?
  A: Do needle, bobbin, consumables, and hoop-tension checks before typing, because lettering fails from physics issues more than screen settings.
  • Install the correct needle (the guide’s baseline is a 75/11 Sharp for crisp small text).
  • Open the bobbin case and confirm the bobbin is at least half full.
  • Prepare temporary spray adhesive (e.g., 505) and water-soluble topping if the fabric tends to swallow stitches.
  • Success check: Hooped fabric “drums” with a dull thump—not a hollow ring (too tight) and not a rustle (too loose).
  • If it still fails: Re-check stabilizer choice (cutaway vs tearaway) and confirm the fabric is not slipping inside the hoop.
• Q: How can hoop tension be judged correctly to prevent wavy “drunk” lettering on HSW multi-needle embroidery machine text?
  A: Aim for secure, even hooping—fabric movement inside the hoop is the most common cause of wavy lettering.
  • Hoop the fabric so it is flat and supported, not stretched to the point of shine or distortion.
  • “Drum test” the hooped area and adjust until the sound is a dull thump.
  • Keep fabric grain straight so letters don’t “dance” up and down during stitching.
  • Success check: During the first stitches, the fabric stays stable with no visible shifting or rippling around the needle.
  • If it still fails: Upgrade the holding method—magnetic embroidery frames often reduce slipping and hoop marks compared with screw-tight hoops.
• Q: What are the minimum safe lettering heights for HSW built-in embroidery fonts (block, serif, script) to avoid thread breaks and unreadable text?
  A: Use block fonts for small sizes, keep serif larger, and avoid tiny script—screen previews can look fine while stitches fail on fabric.
  • Choose block fonts for about 5–6 mm lettering.
  • Keep serif fonts around 8–10 mm so small “feet” don’t disappear.
  • Avoid script/calligraphy below about 12–15 mm because density and overlaps become risky.
  • Success check: Stitched letters have open counters (like inside “e” and “a”) and edges look crisp instead of filling in.
  • If it still fails: Add water-soluble topping on textured knits (like piqué polos) and increase letter size rather than shrinking further.
• Q: Why does HSW built-in lettering get stiff, break needles, or cut holes after shrinking the text size on the control panel?
  A: Don’t shrink HSW built-in fonts by more than about 20%, because density becomes too high and causes needle breaks and “bulletproof” stitching.
  • Increase lettering size slightly or choose a narrower built-in font instead of heavy shrinking.
  • Re-evaluate the design width by changing font style after typing (keep the text string, swap the font).
  • Consider bolder/larger sizing to compensate for push/pull narrowing on fabric.
  • Success check: The needle runs smoothly without repeated punching in the same spot and the finished text is flexible, not board-stiff.
  • If it still fails: Treat it as a density limitation—use external digitizing software for precise small-text control rather than relying only on built-in fonts.
• Q: How do I stop birdnesting (thread bunching under the needle plate) on an HSW multi-needle embroidery machine during lettering?
  A: Re-thread the top thread with the presser foot UP so the thread seats into the tension disks—this is the most common cause of birdnesting.
  • Raise the presser foot, completely re-thread the top path, and ensure it enters the tension system correctly.
  • Pull a few inches of thread at the needle to confirm smooth, light resistance before starting.
  • Watch the first 100 stitches instead of walking away so nesting is caught immediately.
  • Success check: The underside shows clean bobbin stitches rather than a tangled wad, and the top thread does not loop underneath.
  • If it still fails: Stop and check for bobbin area lint buildup and confirm the bobbin is correctly installed and not near empty.
• Q: What magnetic embroidery hoop safety rules should be followed when using strong neodymium magnetic frames in a production shop?
  A: Handle magnetic embroidery hoops as pinch-hazard tools and keep them away from medical devices and sensitive electronics.
  • Control the snap: separate and bring magnets together slowly to avoid finger crush injuries.
  • Keep magnetic hoops at least 6 inches away from pacemakers.
  • Do not place magnetic frames directly on the HSW control screen or near hard drives.
  • Success check: The hoop closes without uncontrolled snapping, and fabric is held flat without shifting.
  • If it still fails: Switch to a different hooping method for the specific item and confirm the fabric/stabilizer stack is not too thick for safe handling.
