Wilcom Satin Stitch Settings That Actually Stitch Clean: Density, Pull Compensation, Underlay, and Short Stitches (Without Broken Needles)

If you have ever digitized a satin column that looked pristine on your computer screen—smooth, glossy, perfect—only to stitch it out and see gaps, skinny, malnourished letters, or hear the terrifying snap of a needle, you are not “bad at embroidery.” You are simply colliding with the laws of physics.

Software shows you geometry; the machine gives you reality.

This guide rebuilds the satin stitch from the ground up. We are moving beyond basic definitions into the “shop floor reality”: specific numbers, sensory checks, and the exact order of operations to prevent ruined garments. We will also cover when to stop fighting the software and upgrade your holding tools to stabilize the one variable regular hoops can't control: the fabric itself.

The Satin Stitch Reality Check (and Why Your “Perfect” Preview Lies)

The video starts with a definition that is more useful than it sounds: a satin stitch is a long straight embroidery stitch worked closely parallel in rows.

To master this, you must accept two non-negotiables:

1. Curves are an optical illusion. There are no curves in embroidery. Every stitch is a straight line. Curves are created by the angle of these straight lines shifting gradually.
2. “Satin” is purely about spacing. That spacing is your density.

When beginners panic, it is usually because they expect the fabric to behave like pixels. Pixels don't stretch; fabric does. Pixels don't have thickness; thread does.

The "Candy Cane" Visualization

Imagine wrapping a candy cane with ribbon. If you wrap it perfectly tight, you see only ribbon (satin). If you space it out, you see the candy cane underneath (low density). If you wrap it too many times in one spot, the ribbon bulges and slips (high density). Your job is to find the tension that covers the cane without snapping the ribbon.

Dialing Satin Stitch Density in Wilcom: Why 0.38 mm Is a Safe Starting Point

In the video, the host measures the distance between stitch rows and lands on 0.38 mm spacing (approx 0.015 inches) as a standard satin density setting for Wilcom.

Why this specific number? Density is a "Goldilocks" game. It affects three physical forces simultaneously:

• Coverage: Do you see the fabric color peeking through?
• Stress: How hard does the needle have to punch to penetrate the previous thread/stabilizer matrix?
• Heat: Friction from the needle passing through tight spaces creates heat, which can melt synthetic threads or adhesives.

The Danger Zone (0.10 mm)

He demonstrates what happens when you crank spacing down to 0.10 mm. On screen, it looks like a solid, rich block. In reality, this is “Bulletproof Vest” density. You are essentially hammering a wireframe into a solid block of plastic. The needle has nowhere to go, friction spikes, and the thread sets shred.

Warning: Physical Hazard
If you push satin spacing too tight (like the 0.10 mm example), you risk more than a bad design. The Needle Deflection can cause the needle to strike the throat plate, shattering the needle.
* Flying Metal: Broken needle shards can fly toward your eyes. Always wear glasses when testing high-density designs.
* Machine Damage: A strike can burr your bobbin hook, ruining timing.
* Safety Rule: Keep hands at least 6 inches away from the needle bar during test stitchouts.

The Beginner's Sweet Spot

• Standard Fabrics (Cotton/Twill): Start at 0.38 mm to 0.40 mm.
• Puff Foam (3D): You technically need tighter density (closer to 0.20 mm - 0.25 mm) to cut the foam, but never start there without testing.
• The Adjustment Rule: Only tighten density (lower the number) if you see fabric showing through after you have verified your underlay is correct. Density is your last resort, not your first fix.

“Round Satin Stitches” Don’t Exist: Use Geometry, Not Hope

The host makes a point that saves hours of editing time: even if you draw an oval or rounded satin object, the stitches are still straight lines.

If your satin stroke looks "jagged" or "stepped" on a curve, beginner instinct is to add more nodes or try to smooth the curve vector. This rarely works. The fix is usually mechanical, not artistic:

1. Column Shaping: Is the angle of the stitch changing too abruptly?
2. Short Stitches: Are you forcing too much thread into the inner radius?
3. Fabric Stability: Is the fabric shifting as the needle lands?


Push–Pull Compensation in Wilcom: The #1 Reason Satin Text Gets Gaps

Here is the classic heartbreak: you digitize a satin column letter "I" to the exact width of your artwork. You stitch it out, and it looks like a toothpick. Even worse, the horizontal crossbar of the "H" doesn't connect to the vertical legs—there is a gap.

This is Push and Pull Physics:

• Pull (Narrowing): As the thread tightens, it cinches the fabric in, making the column narrower (Width reduction).
• Push (Lengthening): As the foot pounds the fabric, it pushes material forward, making the column longer (Length extension).

In Wilcom, the default pull compensation shown is 0.17 mm. For bolder text, the host often bumps it to 0.30 mm.

How to compensate (Standard vs. Professional)

1. Global Setting (The Blunt Tool): Increase the Pull Compensation setting. This makes every satin stitch wider by the set amount.
2. Manual Editing (The Surgeon's Tool): Manually drag the nodes of the satin column wider on the screen.


The "Drum Skin" Test

Before you change any settings, check your hoop. Push-pull is exaggerated by loose fabric.

• Tactile Check: Tap the fabric in the hoop. It should sound like a dull drum thud.
• Visual Check: If you pull on the fabric edge, the bias should not warp easily.
• The Tool Factor: Whether you are using traditional hoops or searching for hooping for embroidery machine technique tutorials, the goal is "neutral tension." You want the fabric flat, but not stretched so tight it snaps back (puckers) when removed.

Underlay Choices That Don’t Backfire: Match Underlay to Satin Column Width

Underlay is the hidden foundation. Just as you wouldn’t pour concrete on soft mud, you shouldn’t stitch satin on bare fabric. The video provides a clear rule set regarding column width.

The "Traffic Jam" Analogy

Think of the satin column width as a road.

• Wide Road (7mm+): You have plenty of space. You need a strong foundation to prevent the road from sinking. Use Edge Run + Double Zigzag.
• Narrow Alley (1mm): You have zero space. If you put a Zigzag underlay here, it will poke out the sides. Use a Center Run.




Why tiny text fails

The host shows a thin 1 mm column. If you leave a default "Tatami" or "Zigzag" underlay on this, you create a "thread traffic jam."

• Symptom: The column looks lumpy, stiff, and you might break thread because the needle is trying to penetrate 3 layers of thread in a 1mm space.
• The Fix: For columns under 2mm, strictly use Center Run.

Short Stitches in Wilcom: The Corner-Saver That Prevents Needle Breaks

A viewer asked, “How do you add short stitches?” The creator’s answer is vital: it is a software algorithm, not a manual drawing.

When a satin stitch turns a sharp corner (like the inside of the letter 'V' or 'R'), the inner stitches bunch up. Imagine 50 cars trying to turn into a single-lane driveway at once—crash.

Short Stitches ON: The software automatically stops every other stitch short of the inner corner. This reduces density on the inside radius while maintaining coverage on the outside.

Pro Tip: The Audio Check
When your machine is running a design with sharp corners, listen.
Good Sound: A consistent hum-hum-hum* rhythm.
Bad Sound: A sudden, heavy THUMP-THUMP-THUMP* in the corners.
* Diagnosis: That "thump" is the needle struggling to penetrate a density pile-up. Stop immediately. Check if Short Stitches are enabled.

Safe Satin Stitch Length Limits: Stay Between 1.5 mm and 10–12 mm Unless You Know Your Machine

The video offers safety zones that you should adhere to unless you enjoying picking out bird nests of thread.

The Upper Limit (10mm - 12mm)

• The Risk: Stitches longer than 10mm are loose "jump ropes." They can snag on buttons, washing machines, or jewelry.
• The Machine Limit: Most commercial machines automatically trim or slow down if a stitch exceeds 12.1mm (moving into "Jump" mode).

The Lower Limit (1.5mm)

• The Risk: Stitches smaller than 1.5mm are barely visible and cause needle heat.
• Micro-Text: If you are doing tiny text (3mm high), you will break this rule. That is okay, but you must use 60wt thread and a smaller needle (65/9 or 70/10) to compensate.




Hidden Consumable: The Needles

You cannot stitch quality satin with a dull needle.

• Standard: 75/11 Sharp (for wovens) or Ballpoint (for knits).
• The Fingernail Test: Run your fingernail down the needle shaft to the tip. If you feel a "click" or catch near the tip, the needle has a burr. Throw it away. A burred needle shreds satin thread instantly.

The “Hidden” Prep Pros Do Before Touching Wilcom Settings

Before you touch a single density number, you must clear the "Pre-Flight" checklist. This prevents you from blaming the software for a hardware issue.

📋 Phase 1: The "Pre-Flight" Prep Checklist

• Check 1 (Needle): Is the needle fresh? Are you using the right type (Ballpoint for Polos/Knits, Sharp for Twill/Hats)?
• Check 2 (Bobbin): Is the bobbin tension correct?
  • The Drop Test: Hold the bobbin case by the thread. It should not drop. Shake it gently—it should drop 1-2 inches and stop.
• Check 3 (Thread Path): Is the thread seated deeply in the tension disks? Floss it like teeth to ensure it's tight.
• Check 4 (Stabilizer): Do you have the right backing?
  • Rule: If the fabric stretches (Tees/Polos), you MUST use Cutaway. Tearaway is only for stable fabrics (Towels/Canvas).
• Check 5 (Design Review): Scan the design for "Widow Stitches"—tiny 0.5mm stitches usually hidden in dirty artwork vectors. Delete them.

Setup That Makes Satin Predictable: A Decision Tree for Underlay + Compensation

Use this logic flow to determine your settings. Memorize this, and you stop guessing.

🌳 Decision Tree: Satin Column Configuration

Step 1: Analyze Column Width

• Is it < 2mm (Thin)?
  • Underlay: Center Run ONLY.
  • Pull Comp: High (0.30mm+). Thin columns distort the most.
• Is it 2mm - 7mm (Standard)?
  • Underlay: Edge Run OR Zigzag.
  • Pull Comp: Standard (0.17mm - 0.20mm).
• Is it > 7mm (Wide)?
  • Underlay: Edge Run + Double Zigzag (Grid).
  • Stitch Type: Consider splitting (Auto Split) to avoid snagging loops.

Step 2: Analyze Geometry

• Are there acute angles (< 45 degrees)?
  • Action: Short Stitches = ON.
• Is it a Cap/Hat?
  • Action: Center Run Underlay is mandatory to tac the fabric to the buckram first. Increase Pull Comp to 0.35mm.

Operation: Stitchout Checkpoints That Catch Problems Early (Before You Ruin a Cap)

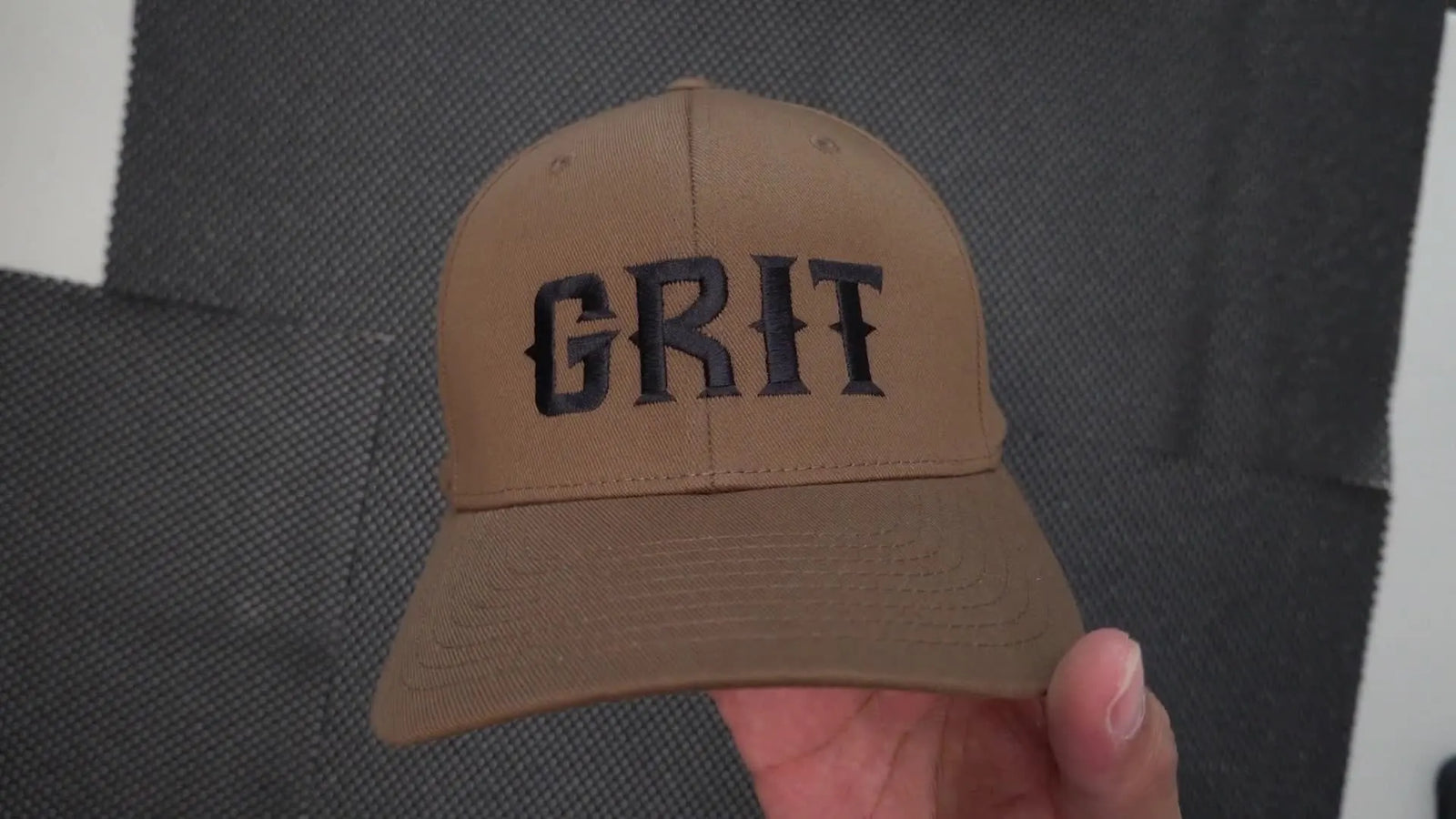

The cap example in the video is a high-stakes scenario. One mistake puts a hole in the front of a finished product.

📋 Phase 3: Operation Checklist (The "Listen & Look" Protocol)

• Run 1 (Trace): Always trace the design to ensure the needle bar won't hit the hoop.
• Run 2 (Underlay Observation): Watch the underlay stitch out.
  • Check: Is the underlay pulling the fabric? If you see ripples before the top stitch lands, your hooping is too loose. Stop and re-hoop.
• Run 3 (The First Satin Column): Pause after the first satin letter.
  • Check: Look at the bobbin side. You should see 1/3 white bobbin thread in the center, and top thread rails on the sides.
• Run 4 (Corner Sound): Listen for the smooth hum. If you hear thud-crunch, your density is too high for the needle size.

Troubleshooting Satin Stitch Problems (Symptoms → Causes → Fixes)

When things go wrong, do not randomly click buttons. Follow this hierarchy of repair (cheapest fix to most expensive fix).

Symptom 1: Needle Breaks in Corners

• Likely Cause: "Thread Traffic Jam" (Density too high + Short Stitches OFF).
• Quick Fix: Turn Short Stitches ON.
• Secondary Fix: Reduce density (increase spacing from 0.38mm to 0.42mm).

Symptom 2: Gaps between Outline and Fill (Registration)

• Likely Cause: Fabric movement (Hooping issue) OR insufficient Pull Comp.
• Diagnosis: If the gap is random/different every time, it's a hooping issue. If the gap is exactly the same every time, it's a digitizing issue.
• The "Pro" Fix: For caps, where the "flagging" motion causes massive distortion, ensure you have a tight, consistent lock. This is where a specialized cap hoop for embroidery machine setup is critical to stop the bill from bouncing.

Symptom 3: "Sawtooth" or Rough Edges

• Likely Cause: Fabric grain is fighting the stitch angle.
• Fix: Increase your underlay (Edge Run) to create a "rail" for the satin to wrap around.

The Upgrade Path: When Better Hooping Tools Beat Endless Setting Tweaks

Digitizing fixes software problems, but it cannot fix physics. If you are digitizing perfectly but still getting gaps, puckering, or hoop burn ("shine" marks on the fabric), the bottleneck is likely your physical holding method.

Traditional hoops force you to pull fabric causing distortion. Professionals solve this by upgrading their tooling workflow.

Level 1: The Stability Solution If you struggle with alignment or physical pain from repetitive clamping, searching for a hooping station for machine embroidery can introduce you to systems that hold the hoop for you, ensuring every chest logo is in the exact same spot.

Level 2: The Tension Solution For those fighting "hoop burn" or thick items (Carhartt jackets, heavy towels), standard plastic rings fail. They slip. This is where magnetic embroidery hoops change the game.

• Why Upgrade? Unlike screw-tension hoops that distort fabric bias, embroidery hoops magnetic clamp straight down. This allows the fabric to sit naturally, reducing the Pull Compensation you need to add in software.
• Production Speed: If you have an order for 50 shirts, a magnetic hooping station combined with magnetic frames can cut your labor time by 30-40% per shirt.

Warning: Magnetic Safety
Pinch Hazard: Magnetic hoops use industrial-grade magnets. They snap shut with immense force.
* Fingers: Keep fingers clear of the mating surfaces. They will crush skin.
* Medical Devices: Maintain a safe distance (12 inches+) from pacemakers or insulin pumps.
* Electronics: Do not place phones or credit cards directly on the magnets.

A Quick Note on “3-Inch Logo Settings” (What the Comments Are Really Asking)

One commenter asked: “What is the satin and tatami fill settings for 3 inch logos?”

There is no "Magic 3-Inch Preset." A 3-inch block letter needs different settings than a 3-inch script font.

• The Logic: Measure the width of the column, not the size of the logo.
• The Application: If a 3-inch logo has a 2mm wide lette 'L', treat it as a "Standard Column" (0.17mm pull, 0.38mm density). If it has a fat 8mm letter 'O', use the "Wide Column" rules (Edge Run underlay).

The Takeaway: Satin Stitch Quality Is a System, Not a Single Setting

If you only remember one thing, make it this: Satin quality is the sum of Stability + Underlay + Density.

1. Stabilize the fabric (Cutaway / Magnetic Hoops).
2. Support the stitch (Edge Run / Center Run).
3. Space the stitch (0.38mm Sweet Spot).

When you build the stitch in this order, you stop breaking needles and start producing the glossy, professional embroidery that commands higher prices.

FAQ

• Q: In Wilcom EmbroideryStudio, what satin stitch density (row spacing) is a safe starting point for satin columns on cotton or twill?
  A: Start around 0.38–0.40 mm spacing for most standard cotton/twill satin columns.
  • Set: Enter 0.38 mm as the baseline, then stitch a small test sample before changing anything else.
  • Verify: Confirm underlay is appropriate for the column width before tightening density.
  • Success check: Satin looks glossy and covered with no fabric color peeking through, and the machine runs with a steady rhythm (no heavy “thumping”).
  • If it still fails… Increase spacing slightly (for example, move from 0.38 to 0.42 mm) instead of forcing tighter density.
• Q: In Wilcom EmbroideryStudio, why does 0.10 mm satin spacing cause needle breaks and thread shredding during satin stitch test runs?
  A: 0.10 mm spacing is extremely high density that spikes friction and needle deflection, which can snap needles and shred thread.
  • Stop: Pause immediately if the machine starts “thump-thump” punching in corners or the needle feels like it is struggling.
  • Reduce: Increase spacing back toward a safer starting point (around 0.38 mm) and re-test.
  • Protect: Wear eye protection during high-density testing and keep hands at least 6 inches away from the needle bar.
  • Success check: No needle strikes, no sudden corner “thuds,” and no thread fuzzing/shredding after a short run.
• Q: In Wilcom EmbroideryStudio, how do I fix satin text gaps caused by push–pull compensation (for example, skinny “I” columns and disconnected “H” crossbars)?
  A: Increase Wilcom Pull Compensation and/or manually widen the satin column, because fabric pull physically narrows satin columns during stitching.
  • Adjust: Raise Pull Compensation from a common default like 0.17 mm toward 0.30 mm when bold text or noticeable narrowing occurs.
  • Re-hoop: Check hooping first—loose fabric exaggerates push–pull and makes any compensation inconsistent.
  • Success check: The stitched column matches the intended visual weight, and letter connections (like an “H” crossbar) close cleanly with no consistent gap.
  • If it still fails… If the gap changes location run-to-run, treat it as a hooping/fabric movement issue; if it repeats exactly, treat it as digitizing compensation/geometry.
• Q: For satin columns under 2 mm in Wilcom EmbroideryStudio, which underlay prevents lumpy stitches and thread breaks on tiny lettering?
  A: Use Center Run underlay only for satin columns under 2 mm to avoid an underlay “traffic jam” that bulks up and breaks thread.
  • Change: Remove zigzag/tatami-style underlay from 1–2 mm columns and switch to Center Run.
  • Test: Stitch a small sample of the smallest letters first before committing to a full design.
  • Success check: The thin satin looks smooth (not ropey or stiff) and does not show underlay poking out of the sides.
  • If it still fails… Check for hidden “widow stitches” (tiny ~0.5 mm stitches) in the artwork/digitizing and delete them before re-testing.
• Q: In Wilcom EmbroideryStudio, how do Short Stitches prevent needle breaks on sharp satin corners (like inside “V”, “R”, or tight angles)?
  A: Turn Short Stitches ON so the software automatically reduces stitch pile-up on the inside radius of sharp corners.
  • Enable: Switch Short Stitches ON before re-digitizing or re-running sharp-corner satin.
  • Listen: Run a test and monitor the corner sound—corner “thumping” usually means density pile-up.
  • Success check: Corners stitch with a consistent hum (no heavy corner punches), and the inside corner is not distorted or overly stiff.
  • If it still fails… Slightly reduce density (increase spacing) because Short Stitches cannot compensate for “bulletproof” settings.
• Q: What is the correct hooping tightness test for embroidery satin stitch stability, and how can loose hooping affect Wilcom Push–Pull results?
  A: Aim for neutral, stable hooping—flat and secure without overstretching—because loose fabric makes push–pull distortion worse.
  • Tap: Perform the “drum skin” test by tapping the hooped fabric; it should sound like a dull drum thud, not a loose flutter.
  • Watch: During underlay, stop if ripples appear before the top satin lands—re-hoop immediately.
  • Success check: Underlay stitches without pre-topstitch rippling, and satin columns remain consistent without random registration shifts.
  • If it still fails… Treat repeated, identical gaps as digitizing compensation/underlay issues; treat changing/random gaps as fabric movement/hooping issues.
• Q: What safety rules prevent injury and machine damage during high-density satin stitch testing (needle deflection and needle strikes)?
  A: Treat high-density satin tests as a physical hazard: protect eyes, keep hands clear, and stop at the first sign of needle struggle.
  • Wear: Use safety glasses when testing dense satin settings or new designs.
  • Keep clear: Maintain at least 6 inches distance from the needle bar while running tests.
  • Stop: If the needle deflects/strikes or the machine “thuds,” stop and reduce density before continuing.
  • Success check: No needle strike marks, no broken needle, and no abnormal sound changes during corners.
• Q: When satin stitch quality problems (gaps, puckering, hoop burn) persist after Wilcom density/underlay/pull-comp tweaks, what is the practical upgrade path from technique to magnetic hoops to multi-needle embroidery machines?
  A: Follow a staged approach: optimize technique first, upgrade fabric holding next (magnetic hoops), and only then consider production equipment upgrades if volume demands it.
  • Level 1 (Technique): Run the pre-flight checks (fresh needle, correct stabilizer—cutaway for stretch fabrics, correct bobbin drop-test, correct thread seating) and re-hoop to neutral tension.
  • Level 2 (Tooling): If hoop burn, slippage, or thick items keep shifting, consider magnetic hoops to clamp straight down and reduce fabric distortion.
  • Level 3 (Capacity): If you consistently have large orders and hooping/time is the bottleneck, consider moving to a multi-needle workflow for throughput.
  • Success check: Registration becomes repeatable across multiple garments, and the same design stitches consistently without constant setting changes.
  • If it still fails… Re-test with a small sample and re-check stabilizer choice and underlay-column-width matching before increasing density again.
