This guide rebuilds a "KEEP IT SIMPLE" layout and a complex "SABLE CONSTRUCTION" logo. But more importantly, it teaches you the cognitive habits—the "pre-flight checks"—that turn a risky guess into a predictable success.

The Calm-Down Check: Why Perfect Screen Lettering Fails on Fabric

Before we touch the mouse, let's reset your expectations. Lettering usually fails because it fights against the fabric's nature.

• The Pull: Satin stitches pull the fabric in, making columns narrower than they look on screen.
• The Push: The displacement of fabric makes open ends push out.

If you don’t account for this, your 100mm logo might stitch out at 97mm width with distorted text.

Two "Prime Directives" will save you hours of frustration:

1. Size Dictates Feasibility: If you scale standard text below 4mm height, you differ from physics, not software limits.
2. Stitch Geometry over Font Style: A font that looks correct but has chaotic stitch angles will shine weirdly and break needles.

If you are running a business, consistency is your currency. Digitizing is step one. Step two is a physical setup—like a stable hooping station for embroidery—that ensures the fabric enters the machine exactly as flat and square as your software assumes it is.

Phase 1: The "Hidden" Prep (Import, Crosshair, Measure)

The video tutorial starts correctly: Bring in the truth (the reference image) and measure it. Never guess sizes based on zoom level.

The "Measure Twice" Workflow

1. Insert the Bitmap: (Image > Insert File). This is your blueprint.
2. Activate Crosshair Cursor: This gives you a vertical/horizontal guide to check alignment instantly.
3. The Sensory Check (Measure Tool 'M'): Don't just look at the numbers. Visualize the physical space. In the "KEEP IT SIMPLE" example, the design width is 160.46 mm and letter height is 9.00 mm.
   • Visual Anchor: 9mm is roughly the height of a AAA battery's body. It's plenty of room for clean satin.

Prep Checklist (The "Do Not Skip" List)

• Version Control: Confirm you have the final approved logo file (no "logo_v3_final_REAL.jpg").
• Scale Verification: Measure one horizontal width and one vertical height on the bitmap. Does it match the client's order?
• Resource Check: Do you have the right needle? (Standard 75/11 is fine for 9mm text; go to 65/9 for text under 5mm).
• Hooping Strategy: Decide now—will this be a floating setup or fully hooped?
• Consumable Check: Do you have temporary spray adhesive or a water-soluble topping if the fabric is textured?


Phase 2: "KEEP IT" Simple (Using the Lettering Tool)

Once measured, we use the Lettering Tool (A). This uses pre-digitized alphabets inside Wilcom, which are generally safer than auto-tracing.

The Selection Process

The video demonstrates typing "KEEP IT" and cycling through fonts (starting with Swiss Run Hollow before settling on a Block style).

Expert Insight: Finding the "closest font" is a trap. A font might look like the logo shape-wise but have terrible pull compensation settings.

• Action: Type the text.
• Sensory Check: Look at the "O"s and "A"s. Are the internal gaps (counters) open enough? If they look tight on screen, they will be shut tight on fabric.

If you find yourself constantly re-hooping to test different fonts, you are burning profit. This is where physical efficiency matters. A consistent hooping for embroidery machine workflow allows you to pop frames on and off quickly, making the testing phase less physically draining.

Phase 3: When Fonts Fail (Manual Digitizing with Input A)

Eventually, you will hit a logo where no font matches. In the video, the letters K, E, and P require manual intervention. This is where you graduate from "software user" to "digitizer."

The tool of choice is Input A (Column A).

The Manual Workflow

1. Select Input A.
2. Trace the Shape: Click along the outline of the bitmap.
   • Left Click: Creates a sharp corner (Hard point). Use for corners of the 'K' or 'E'.
   • Right Click: Creates a curve (Smooth point). Use for the bowl of a 'P'.
3. Control the Angle: As you place points, you are defining the "rung" of the satin ladder.

Warning: Mechanical Safety Hazard.
When manually digitizing dense satin columns, avoid creating "short stitches" (points too close together). If needle penetrations cluster within 0.3mm, you risk heat buildup, thread shredding, or a needle strike that can send metal fragment flying. Always view your design in "Stitch View" (TrueView off) to check for dangerous clusters before running.

Why Manual Input Wins

Manual input gives you control over Stitch Angles.

• Bad Digitizing: All stitches run horizontal (90°). This looks flat and boring.
• Pro Digitizing: The angle follows the flow of the letter stroke (e.g., vertical for the leg of the 'E', horizontal for the arm). This reflects light dynamically, making the logo pop.

If you are doing this for paid work, your ability to match a logo exactly justifies a higher price point. Combine this skill with professional equipment like SEWTECH [KWD: machine embroidery hoops], and you can deliver shop-quality samples that justify the setup fee.

Phase 4: The 80% Density Sweet Spot (Object Properties)

Novices often think "Higher Density = Better Quality." False. High density essentially hammers the fabric into cardboard, causing puckering and bulletproof stiffness.

The video suggests a specific adjustment in Object Properties > Fills / Stitch Values:

The Magic Numbers

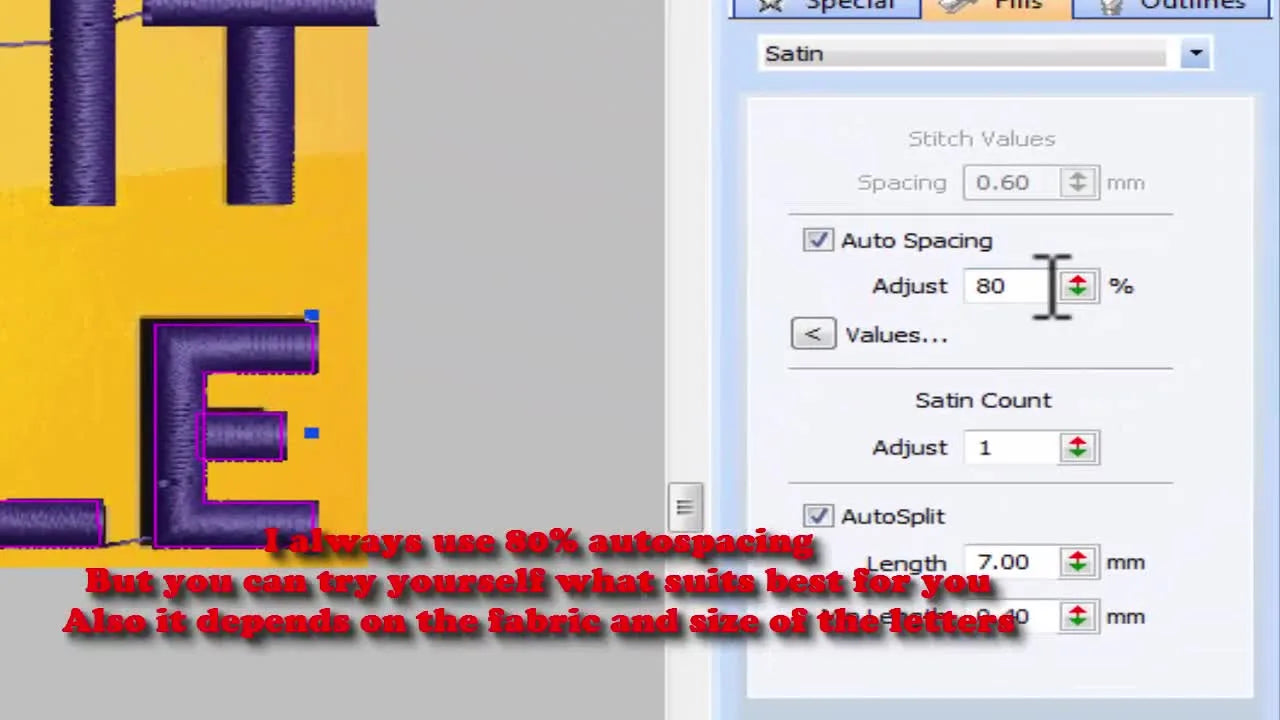

• Auto Spacing: Set to 80%.
• Stitch Spacing: The video shows 0.60 mm.

Empirical Calibration

Let's analyze these numbers against industry standards.

• Standard spacing is usually 0.40mm.
• 0.60mm is significantly lighter (more space between threads).
• Why this works here: For large, blocky text, 0.40mm might be too heavy. Opening it to 0.60mm (or 80% auto-spacing) creates a "Sweet Spot" that covers the fabric without stressing it.

Sensory Anchor: When you touch the finished satin stitch, it should feel flexible, like a heavy ribbon, not hard like a coin. If it feels like a coin, your density is too high.

Speed of production matters here. If you are testing densities, having a magnetic hooping station allows you to keep the fabric perfectly tensioned while you run test A (80%) and test B (90%).

Phase 5: The "SABLE" Advanced Logo (Mixing Icons & Text)

Real logos are rarely just text. The second project, "SABLE CONSTRUCTION," features an "S" that is actually a custom icon.

The video searches for a font (mentioning 1001fonts.com), but correctly pivots to manual digitizing. A font is never going to capture the nuance of a custom logo mark.

The "S" Curve Technique

Using Input A again, the video traces the tails of the S.

The Secret Sauce: Stitch Flow. Notice how the stitch angles (the lines running across the satin) fan out around the curve? This is critical.

• If the angles act like parallel train tracks, the curve will look jagged (like stair steps).
• If the angles fan out (radial), the light reflects smoothly, creating the illusion of a liquid curve.

Phase 6: Mastering Kerning (The Space Between)

You type "ABLE" in Block1 font at 14.00 mm height. On screen, it looks mechanically spaced. But in embroidery, mechanical spacing often looks wrong because of optical illusions created by stitch direction.

The video demonstrates manual kerning—selecting the diamond handle at the center of a letter and dragging it.

The Optical Physics of Kerning

• A vs. L: The gap between a diagonal 'A' and a vertical 'L' usually needs to be tightened because the negative space looks huge.
• E vs. L: Two vertical strokes usually need more space so they don't visually merge.

Expert Tip: Stitches pull inward. If you leave a 1mm gap on screen between two satin columns, it might end up being 1.2mm on fabric (pull compensation). But if the fabric puckers, they might touch. Always test stitch kerning settings using the exact stabilizer you plan to produce with. Consistency is key, which is another reason pros rely on calibrated magnetic embroidery frames to ensure the fabric tension is identical from test run to production run.

Phase 7: The 4mm Barrier (Physical Limits)

The video flashes a warning: Minimum text size 4 mm.

Why 4mm?

A standard 40wt thread is about 0.4mm thick. To make a "U" turn (a satin stitch), you need room for the needle down, the thread loop, and the needle up.

• At 3mm height, a letter 'e' loop is almost impossible to form without the hole closing up.
• The Fix: If the client demands 3mm text, switch to 60wt thread and a 65/9 needle. If they refuse? Tell them it will be illegible. It’s better to lose a bad job than to deliver bad work.

Phase 8: The Sub-line Alignment ("CONSTRUCTION")

Finally, adding the sub-text.

Alignment Reality Check: Does the "CONSTRUCTION" line look centered? Don't trust the alignment tool blindly if your "S" icon has a long tail. Use your eyes to find the optical center. Also, ensure there is meaningful separation between the main logo and the sub-text. Stitches expand (push) vertically. If they are too close on screen, they will bleed into each other on fabric.

Critical Decision Tree: Fabric & Stabilizer Selection

You can have the perfect file, but if you pair it with the wrong stabilizer, it will fail. Use this logic flow before every job.

Decision Tree: Stabilizer Selection for Lettering

1. Is the fabric stretchy (Knits, Polos, T-shirts)?
   • YES: STOP. You must use Cutaway stabilizer. Tearaway will eventually disintegrate, and the lettering will distort after the first wash.
   • NO: Proceed to 2.
2. Is the fabric high-visibility/sheer (bamboo, silk)?
   • YES: Use No-Show Mesh (Poly-mesh). It provides stability without the "badge effect."
   • NO: Proceed to 3.
3. Is the fabric stable and heavy (Denim, Canvas, Caps)?
   • YES: Tearaway is acceptable here. The fabric supports itself.

The Hooping Factor: Even the best stabilizer fails if the hoop is loose. The fabric should feel "taut like a drum skin" but not stretched out of shape. This balance is hard to achieve with standard screw hoops, which is why the industry is shifting toward specific tools like the magnetic embroidery hoop. They auto-adjust to thickness, preventing "hoop burn" (the shiny ring mark) and ensuring even tension.

Warning: Magnet Safety.
Magnetic hoops are incredibly powerful. They can pinch fingers severely, leading to blood blisters or bruising. Keep them away from pacemakers, credit cards, and hard drives. Always slide the magnets apart; never pry them or let them snap together uncontrollably.

Troubleshooting: The "Why is it Ugly?" Table

If your test stitch looks bad, don't panic. Check this table.

Setup & Operation: The Professional Path

You have the knowledge; now let's talk about the gear. You can start with basic tools, but recognizing when to upgrade is the key to scaling your hobby into a business.

The Upgrade Path:

1. Skill Optimization (Level 1): Master the stabilizer decision tree and the 80% density rule. This costs nothing but time.
2. Tool Optimization (Level 2): If you are tired of hoop burn or fighting with thick jackets, standard hoops are your bottleneck. A [KWD: embroidery hooping station] paired with magnetic frames eliminates the physical struggle, letting you focus on the art.
3. Capacity Upgrade (Level 3): If you are refusing orders because your single-needle machine is too slow, it's time to look at multi-needle solutions like SEWTECH machines. This isn't just about speed; it's about not having to change thread for every color stop.

Setup Checklist (Pre-Digitizing)

• Canvas Clean: Is your workspace clean? (Dust bunnies ruin joyous stitching).
• Needle Check: Is the needle sharp and straight? (Run your fingernail down the tip; if it catches, replace it).
• Bobbin Check: Do you have enough bobbin thread for the full run?
• Hoop Check: detailed inspection of the inner hoop ring for nicks or burrs that could snag fabric.

Operation Checklist (The Final Countdown)

• Trace Function: Run a "Trace" on the machine to ensure the needle won't hit the hoop frame.
• Speed Control: For the first test run, reduce speed to 600-700 SPM. Listen to the machine. A rhythmic thump-thump is good; a sharp clack-clack means trouble.
• Watch Layer 1: Watch the underlay stitch out. If the underlay is puckering the fabric, stop immediately. The satin top stitch won't fix it; it will only hide the disaster temporarily.


By combining the precision of Wilcom's software with the tactile reality of proper hooping and stabilization, you move from "guessing" to "engineering." Measure first, digitize intentionally, and hoop securely. That is the only secret to perfect lettering.
