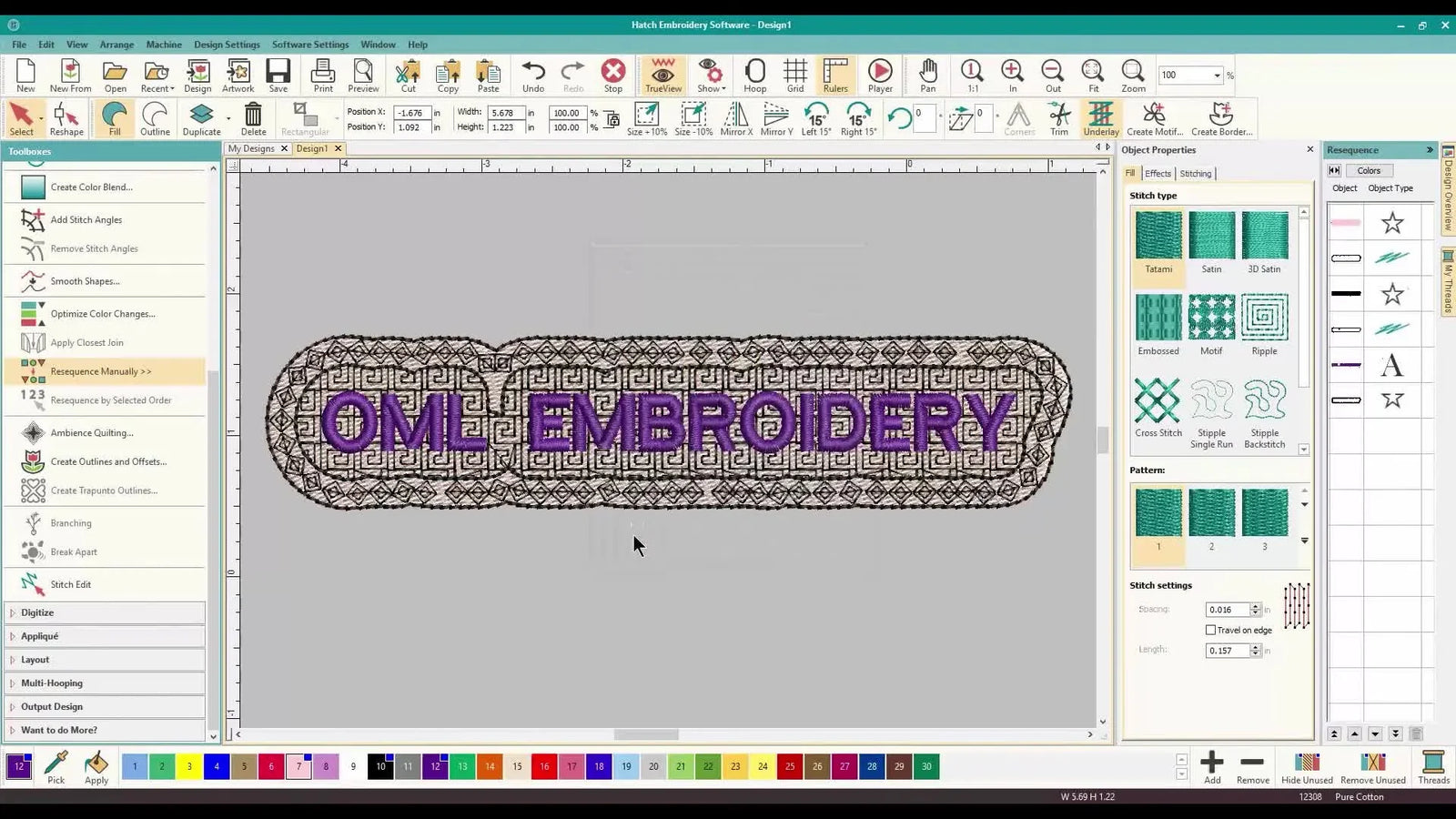

Wilcom Hatch Offsets That Actually Stitch Clean: Turn Simple Lettering into a Badge-Style Design (Without the Weird Artifacts)

Offsets are one of those Wilcom Hatch features that feels like “cheating”—in the best possible way. You can take plain, flat text and transform it into a fully designed, retail-ready badge in under three minutes.

But here is the reality check that software manuals won’t tell you: Offsets are geometry, but stitching is physics.

On screen, an offset is a perfect mathematical line. On your machine, that offset can turn into a thread trap that snaps needles, creates ugly "bird nests," or leaves gaps where the fabric peeks through. If you have ever stitched a badge only to find the border didn’t line up with the fill, you have felt this pain.

This guide rebuilds Sue’s excellent workflow from OML Embroidery, but I am going to add the layer that separates amateurs from pros: the shop-floor logic. We will cover how to keep offsets stitchable, specific parameter "safety zones" for beginners, and when your frustration is actually a signal to upgrade your tools.

The Calm-Down Moment: Wilcom Hatch “Create Outlines and Offsets” Is Safe—If You Know What It’s Really Doing

If you have ever clicked an auto-feature button and immediately panicked because the screen exploded with lines, take a breath. Offsets look deceptively simple, but Hatch is performing complex geometry calculations around every curve and serif of your lettering.

Here is your psychological safety net: Nothing in this workflow is destructive.

Think of offsets not as "decoration," but as scaffolding. When you generate them, you are creating new objects. You can delete the ugly bits, change the stitch order, and adjust densities without ruining your original text. If it looks wrong, Ctrl+Z (Undo) is your best friend. You are in control.

The “Hidden” Prep Before You Touch Offsets: Lettering Choices That Prevent Headaches Later

In the video, Sue starts with Block lettering. As a beginner, you should too.

Why? It’s not just an aesthetic choice; it is a stitch physics choice.

• Serif Fonts (like Times New Roman): Have tiny, sharp feet that create messy, fragmented offsets.
• Script Fonts: Have narrow loops that turn into thread clumps.
• Block Fonts: Have clean, wide geometry.

The Pro Tip: If your text is small (under 10mm height), standard machine/hoop tension is critical. If you see your letters "dancing" or becoming unreadable, verify you aren't using a needle that is too large (use a 75/11 Sharp for detail) and that your lettering spacing isn't too tight.

Prep Checklist (do this before generating offsets)

• Spell Check: Verify spelling, capitalization, and kerning. (Editing text after generating multiple offset rings is a nightmare).
• Letter Spacing: Increase letter spacing by 5-10%. Offsets need "breathing room" to form between letters without overlapping chaotically.
• Font Choice: Stick to Block or Rounded fonts for your first attempt.
• Consumable Check: Ensure you have enough bobbin thread. Badges eat thread rapidly, and running out mid-fill creates a weak point.
• Save As: Save your file as Badge_Project_v1.EMB so you can always go back to the clean slate.


Build the Offset Rings in Wilcom Hatch: The Exact Dialog Settings Sue Uses (Count, Distance, Stitch Type, Color)

Sue opens the tool from Edit Objects > Create Outlines and Offsets. This is your command center.

Here is the "Sweet Spot" configuration for a standard badge:

• Object Outlines: OFF (We don't want to outline the letters themselves yet).
• Offset Outlines: ON.
• Offset Count: 4 (This creates the layers: Background, Texture frame, Border, Outer edge).
• Offset Distance: 2.00 mm (Beginner Range: 2.0mm - 2.5mm).
  • Why? Anything tighter than 1.5mm often creates "thread jams" in tight corners. 2.0mm gives the needle room to work.
• Stitch Type: Single Run.
  • Pro Logic: Never start with heavy Satin or Tatami. Start with Single Run so you can clearly see the geometry. It’s like sketching in pencil before using a permanent marker.
• Color: Black (or a high-contrast color).




The One Choice That Makes or Breaks Lettering Offsets: Common (Welded) vs Individual Offsets

This is the single most critical decision in the dialog box.

• Individual Offsets: Every letter gets its own bubble. Where they touch, they cross over. This looks messy and creates rigid lines inside your badge.
• Common Offsets: The software ignores the intersections and draws a line around the entire group.

For badge-making, select Common Offsets (usually the 3rd icon).

Sensory Concept: Think of "Common Offsets" like shrink-wrapping the whole word. Think of "Individual Offsets" like wrapping each letter in plastic wrap separately. For a clean badge background, you want the shrink-wrap effect.

What You Should See After Clicking OK: Four Equidistant Rings (and Why the First One May Behave Differently)

After clicking OK, Hatch generates your rings.

Visual Check: You might see the first ring (the one closest to the letters) dipping inside the gap between two words, while the outer rings form a smooth oval. This is normal. It is simply math—the further out you go, the smoother the curve becomes.

Do not panic if it looks like a mess of lines. At this stage, we are judging Geometry, not Beauty.

• Are the lines smooth curves?
• Are there sharp, weird spikes sticking out?
• Are there tiny "pepper flakes" of stitches floating in nowhere?

Those "pepper flakes" are artifacts, and they are our next target.

The Tiny Black Specks Problem: Deleting Offset Artifacts in Tight Letter Gaps (Fast and Clean)

Sue calls them "anomalies." I call them "Digital Dust."

These occur when Hatch calculates that there is just enough room (e.g., inside the loop of a letter 'e' or between an 'L' and a 'T') to put a 1mm line. On fabric, these tiny stitches will look like mistakes or dirt.

The Fix:

1. Zoom In (to at least 200%).
2. Identify floating objects that aren't connected to the main loops.
3. Select them and hit Delete.
4. Sensory Check: If an object looks smaller than a grain of rice, delete it. It won't stitch well.


Warning: The "Click Risk." When deleting small artifacts, it is very easy to accidentally select your main offset ring and delete it. If you are using a mouse, work slowly. If you make a mistake, Ctrl+Z immediately. Do not try to "patch" a broken offset line; undos are cleaner.

Turn an Outline Ring into a Real Background: Converting to Fill, Then Resequencing So the Letters Stay Visible

Now we turn the skeleton into a body. Sue demonstrates the standard "Knockdown" technique—creating a solid background so your lettering pops.

The Workflow:

1. Select the First Offset Layer (the inner one).
2. Click Fill (Top Toolbar) to convert it from Single Run to Tatami Fill.
3. The Crisis: "Where did my text go?" The fill is covering it.
4. The Fix: Open the Resequence Docker.
5. Click and drag the Fill Object to the TOP of the list (Start of design).

Success Metric: You should see your lettering sitting on top of the colored background.

Setup Checklist (Before you start styling fills and motifs)

• Layer Verification: Ensure your background fill is Object #1 in the Resequence list.
• Gap Check: Zoom in on the edge where the letter meets the background. Is there a gap?
  • Experience Fix: If you fear gaps (pull compensation issues), slightly increase the Pull Compensation on the fill to 0.30mm or 0.40mm.
• Hidden Consumable: Stitching a solid fill changes the fabric tension. Ensure you have Spray Adhesive (like 505) or a sticky-back stabilizer to hold the fabric firm.
• Color Contrast: Change the background color to something light (like Pink or Grey) so you can see your black lettering clearly while editing.

Swap Dense Tatami for a “Light and Airy” Motif Fill: How to Get Texture Without Turning It Into a Brick

A standard Tatami fill has a stitch count of roughly 1000 stitches per square inch. For a large badge, this creates a "bulletproof vest" stiffness that can pucker t-shirts.

Sue’s solution: Motif Fills.

1. Select the background fill.
2. Go to Object Properties > Fill Tab.
3. Select Motif.
4. Choose a pattern (Sue uses circles/bubbles).

The "Sweet Spot" for Motifs:

• Standard Size: Often Motifs load too small. Increase the pattern size (X/Y) to 3.0mm - 5.0mm.
• Spacing: If the badge feels stiff, increase the column/row spacing.
• Density Warning: Be careful with purely decorative motifs on unstable fabric (like pique polo shirts). If the motif is too open (gaps larger than 2mm), the fabric will bubble up through the design.


Add a Crisp Border the Right Way: Object Outlines + Merge + Backstitch (So It Frames the Motif Cleanly)

A motif fill usually has jagged edges. To make it look like a professional patch, you need a hard border.

1. Select the Motif Fill object.
2. Go back to Create Outlines and Offsets.
3. Settings Change:
   • Offsets: OFF
   • Object Outlines: ON
   • Type: Backstitch (or Triple Run).
   • Merge: CHECKED.

Why Merge? This tells Hatch to trace the outer perimeter of your motif shape as one continuous line, rather than circling every individual bubble in the pattern. This gives you that crisp, defined "Badge Edge."

Style the Outer Rings Like a Designer: Candlewicking Texture + A Final Fill Layer in Pink

Sue completes the look by using the remaining offset rings to create a frame.

• Ring 3: Applies Candlewicking. This is an "heirloom" stitch that looks like little French Knots. It adds physical height and texture.
• Ring 4 (Outermost): Converts to a Fill and moves it to the very back, creating a solid color rim.

Design Logic:

• Text: High detail, Forefront.
• Motif: Texture, Middle ground.
• Candlewicking: Decorative accent.
• Outer Rim: Physical boundary.




The “Why It Works” Digitizing Insight: Density, Underlay, and Pull Compensation When Offsets Get Real

This is where the video ends, but your work begins. Stitching this design requires understanding the forces at play.

1. The "Push and Pull" Physics

Fills pull the fabric in the direction of the stitch. A round badge often comes out oval if not stabilized.

• The Fix: Use a Cutaway Stabilizer (2.5oz or 3.0oz). Tearaway is rarely strong enough for a multi-layer badge fill.

2. Offsets Amplify Mistakes

If your fabric shifts 1mm during the first fill, by the time the machine stitches that 4th offset ring (the Candlewicking), it might be 3mm off-center.

• Sensory Check: Listen to your machine. A rhythmic "thump-thump" is good. A slapping sound means the fabric is flagging (bouncing) in the hoop.

3. Underlay is the Anchor

The Motif fill is light, but the Outer Rim needs a solid foundation. Ensure the outermost fill has an Edge Run Underlay to lock the fabric to the stabilizer before the heavy satin or fill stitches land.

Troubleshooting Wilcom Hatch Offsets: Symptoms → Likely Cause → Fix (The Stuff That Wastes Your Afternoon)

The Production Reality: Hooping and Stabilization Decide Whether Your Offset Badge Looks “Pro” or “Homemade”

You can create the perfect offset file in Hatch, but if you hoop it poorly, the concentric rings will never align. Badges are unforgiving of hooping errors because they rely on perfect symmetry.

The "Hooping Pain" Cycle:

1. You try to hoop a thick hoodie or a jacket back.
2. You have to force the inner ring into the outer ring.
3. Your wrists hurt, and the fabric is stretched unevenly.
4. Result: The final offset ring is oval, not round.

This is the moment where "skill" isn't the problem—the tool is. If you are struggling with thick seams, zippers near the hoop area, or leaving "hoop burn" marks on sensitive performace wear, it is time to look at your hardware.

Professional shops rarely use standard pressure hoops for this work. They utilize a magnetic embroidery hoop. These frames use strong magnets to hold the fabric flat without forcing it into a ring, eliminating the distortion that ruins offset alignment. It allows you to slide thick items like Carhartt jackets or towels in without "un-hooping" the whole setup.

Warning: Magnet Safety. Magnetic hoops are industrial tools with powerful clamping force. Watch your fingers! They can pinch severely. Keep them away from pacemakers, computerized machine screens, and credit cards.

A Simple Decision Tree: Which Stabilizer Strategy Fits Offset-Heavy Lettering Designs?

Do not guess. Use this logic:

Start → What is your Base Fabric?

1. Stable Woven (Denim, Canvas, Twill)
   • Stabilizer: Medium Tearaway is usually fine.
   • Hooping: Standard or Magnetic.
2. Unstable Knit (T-Shirts, Polo Shirts)
   • Stabilizer: Fusible No-Show Mesh (Cutaway) + tearaway floater.
   • Hooping: Do not stretch! Lay flat.
3. High-Pile (Towels, Fleece)
   • Stabilizer: Medium Cutaway (Back) + Water Soluble Topping (Front).
   • Why? Without the topping, your skinny offset lines will sink into the fluff and vanish.
4. Thick/Structured (Jackets, Caps)
   • Stabilizer: Heavy Cutaway.
   • Hooping: This is the danger zone for standard hoops. Use a magnetic embroidery hoop to maintain grip over seams.

Operation Checklist: The “Stitchable Badge” Final Pass Before You Export

• Artifact Sweep: Zoom to 400% and scan the letter gaps one last time for "digital dust."
• Sequence Check: Does the background fill stitch first?
• Color Stop: Does the machine stop between the fill and the lettering? (You might want to change thread colors).
• Underlay: Did you enable Edge Run underlay for the outer borders?
• Center Check: Is the design centered in the hoop on screen?
• Test Sew: Always sew a test on scrap fabric similar to your final garment.

The Upgrade Path (Without the Hard Sell): When Tools Pay for Themselves

If you are doing one badge for a grandchild, stay patient and simple. But if you land an order for 50 badges for a local club, the manual alignment and hooping struggle will kill your profit margin.

When you hit the "50 Shirt Wall," consider two upgrades:

1. Consistency: Hand-hooping 50 times leads to crooked logos. Look into a hooping station or search for terms like hoop master embroidery hooping station. These fixtures act like a jig, ensuring every badge lands in the exact same spot on every shirt.
2. Speed: If dragging fabric and fighting screws is slowing you down, the magnetic embroidery hoop isn't just about quality—it's about speed. It turns a 2-minute hooping job into a 15-second job.

One Last Note from the Comments: Finding the Community Matters

A viewer on the original video noted they couldn't find the specific Wilcom Facebook group. This is common—groups go private or change names.

My advice: Don't rely solely on one group. Focus on mastering the principles in this guide: Geometry (Hatch) + Physics (Stabilizer/Hooping). Once you understand that offsets need space to breathe and a stable foundation to sit on, you can make any badge design work, regardless of which software version you are running.

Follow Sue’s steps, but add these safety checks, and you will stop producing "hopeful" samples and start producing professional badges. Happy stitching!

FAQ

• Q: In Wilcom Hatch, which setting should be used in “Create Outlines and Offsets” for badge-style lettering: Common Offsets or Individual Offsets?
  A: Use Common Offsets for badge backgrounds because it creates one clean outline around the whole word instead of messy crossings between letters.
  • Select Edit Objects > Create Outlines and Offsets and choose the Common Offsets icon (the welded/group option).
  • Undo and redo if you already generated rings with Individual Offsets—rebuilding is faster than trying to edit crossings.
  • Increase letter spacing by 5–10% before offsetting if letters are crowded.
  • Success check: The offset rings look like a smooth “shrink-wrapped” shape around the full word, not separate bubbles per letter.
  • If it still fails: Switch to a Block/Rounded font and regenerate offsets to avoid tight serifs/loops.
• Q: In Wilcom Hatch, what offset distance and count are a safe starting point to avoid thread traps when creating badge rings with “Create Outlines and Offsets”?
  A: Start with 4 offsets at 2.00 mm distance using Single Run so the geometry stays stitchable and easy to inspect.
  • Set Offset Count: 4 to build background + frame + border + outer edge layers.
  • Set Offset Distance: 2.00 mm (beginner range 2.0–2.5 mm) to reduce tight-corner jams.
  • Set Stitch Type: Single Run first (treat it like a pencil sketch before heavier stitches).
  • Success check: Rings are evenly spaced with no sharp spikes or chaotic overlaps in tight corners.
  • If it still fails: Increase text spacing or bump offset distance slightly within the 2.0–2.5 mm range.
• Q: In Wilcom Hatch, how do you remove tiny black specks (offset artifacts/anomalies) that appear between letters after generating offsets?
  A: Zoom in and delete the floating “digital dust” objects—if it looks smaller than a grain of rice, it usually won’t stitch cleanly.
  • Zoom to 200%+ (often faster at 400% for final checking).
  • Click each tiny disconnected piece and press Delete.
  • Work slowly to avoid deleting the main offset ring; use Ctrl+Z immediately if you mis-click.
  • Success check: No isolated fragments remain in letter gaps or inside small loops—only continuous rings are left.
  • If it still fails: Increase letter spacing and/or increase offset distance so Hatch has “breathing room” to calculate clean shapes.
• Q: In Wilcom Hatch, how do you convert the first offset ring into a background fill without hiding the lettering (resequencing for badge designs)?
  A: Convert the inner ring to Tatami Fill, then move that fill to stitch first using Resequence Docker so the letters stay on top.
  • Select the first (inner) offset layer and convert it from Single Run to Fill (Tatami).
  • Open Resequence Docker and drag the fill object to the top/start of the sequence.
  • Add Pull Compensation: 0.30–0.40 mm if you see gaps where letters meet the background.
  • Success check: On screen, the lettering remains visible above the background, and the stitch order shows the fill stitching first.
  • If it still fails: Re-check the object order in Resequence and confirm you selected the correct ring before converting.
• Q: In Wilcom Hatch, how can motif fills reduce stiffness and puckering compared with dense tatami in large badge backgrounds?
  A: Switch the badge background from dense Tatami to a Motif Fill and scale the motif larger for a lighter, “airy” texture.
  • Select the background fill and go to Object Properties > Fill and choose Motif.
  • Increase motif pattern size (X/Y) to 3.0–5.0 mm if the motif loads too small.
  • Increase motif spacing if the badge feels stiff, but avoid overly open motifs on unstable fabrics.
  • Success check: The stitched badge background looks textured without feeling like a “brick,” and the fabric shows less puckering.
  • If it still fails: Use stronger stabilization (often a cutaway stabilizer) and avoid very open motifs on unstable knits.
• Q: What stabilizer and topping combination is recommended for offset-heavy badge lettering on towels or fleece so the thin offset lines don’t sink?
  A: Use medium cutaway on the back plus water-soluble topping on the front to keep skinny offset lines from disappearing into pile.
  • Hoop with a medium cutaway stabilizer behind the towel/fleece.
  • Add water-soluble topping over the surface before stitching.
  • Keep the fabric held flat (flagging makes concentric rings drift).
  • Success check: The offset outlines remain visible on top of the pile instead of sinking and fading.
  • If it still fails: Re-check hooping firmness and listen for “slapping” (flagging); reduce bounce before re-running the design.
• Q: How do magnetic embroidery hoops reduce hoop burn and distortion when stitching offset-heavy badges on thick jackets, hoodies, or seam areas?
  A: Use a magnetic embroidery hoop when standard pressure hoops force-stretch thick items—magnetic clamping holds fabric flat with less distortion that throws offset rings out of alignment.
  • Identify the trigger: forcing the inner ring in, wrist strain, stretched fabric, or an oval “round” badge.
  • Switch from screw/pressure hooping to a magnetic hoop to grip evenly across seams and bulky layers.
  • Pair with heavy cutaway stabilizer on thick/structured garments for better registration.
  • Success check: The final outer ring stays concentric (not drifting/oval), and the fabric shows less hoop burn/shiny marking.
  • If it still fails: Add a consistent placement method (often a hooping station) and run a test sew on similar material before production.
• Q: What magnetic hoop safety precautions should be followed when using industrial magnetic embroidery hoops for badge production?
  A: Treat magnetic embroidery hoops as high-force tools—protect fingers and keep magnets away from sensitive medical devices and magnetic-stripe items.
  • Keep fingers clear when lowering the magnetic clamping ring to prevent severe pinches.
  • Keep magnetic hoops away from pacemakers, computerized machine screens, and credit cards.
  • Set the hoop down deliberately—avoid snapping magnets together uncontrolled.
  • Success check: The fabric is clamped securely without hand strain, and hooping can be done repeatedly without near-pinch incidents.
  • If it still fails: Pause and change handling technique (two-hand control, slower placement); do not “fight” the magnets.
