Wilcom Hatch Layout Toolbox: Turn One Simple Shape into Clean Mirror-Copies and Circle Logos (Without the “Mess”)

If you’ve ever stared at a “simple” design in Hatch and thought, “Why does this look perfect on screen but chaotic the moment I duplicate it?”—you’re not alone. The digital canvas is forgiving; physics is not. When you take a clean shape and multiply it ten times, you aren't just multiplying the art; you are multiplying the stitch count, the pull compensation, and the stress on your fabric.

The good news is that Wilcom Hatch’s Layout toolbox is built for speed, but it rewards a calm, methodical approach. It transforms manual copying—which is prone to alignment errors—into a mathematical certainty.

In this industry-grade walkthrough, we’ll recreate the workflow from the video, but we will add the production safeguards that keep your machine from eating your garment. We will digitize a circle, explode it into a donut-like motif, and use Mirror-Copy to build symmetry. Finally, we’ll apply this logic to lettering to create a circular logo—and address the specific stitch-path mechanics required to join overlapping objects without leaving an ugly seam.

The “Layout Panic” Reset: What Wilcom Hatch Layout Tools Can (and Can’t) Fix in 60 Seconds

Hatch Layout tools feel like magic because they are interactive: you move your mouse, and the duplicates respond like a kaleidoscope in real time. That speed is exactly why beginners get spooked—one wrong twitch of the wrist, and the screen fills with a "bird's nest" of overlapping objects.

Here’s the steadying truth: Layout doesn’t “ruin” your design. It simply duplicates what you already made, then asks you one critical question—do you want those overlaps merged into one object, or kept as separate objects you can still edit?

• The Merged Path (Production Friendly): If you are building borders, frames, or solid backgrounds, you usually want to merge. This turns 10 confusing objects into 1 single shape that the machine digests easily.
• The Separate Path (Editor Friendly): If you are still experimenting with colors or individual rotations, keep them separate.

Empirical Rule of Thumb: If your machine speed is set above 600 SPM (Stitches Per Minute), merged objects generally run smoother because there are fewer trims and tie-offs between the elements.

The “Hidden” Prep Pros Do First: Clean Base Objects Before Circle Layout and Mirror-Copy

The video starts with a quick circle because it’s the fastest way to demonstrate the Layout toolbox. That’s also the right habit: Layout works best when your base object is clean, simple, and intentional.

A messy base object (one with too many nodes or erratic stitch angles) multiplied 10 times becomes a loud mess.

One more practical note from the shop floor: digitizing decisions are not just “software decisions.” They become stitch decisions—thread consumption, trim count, and how stable the fabric must be to hold the design.

If you’re planning to stitch these layouts on garments (not just admire them on screen), you must think ahead about hooping. A symmetrical layout makes alignment errors painfully obvious. If your hoop is crooked by even 2 degrees, a mirrored design will look off-center.

This is where the physical tools meet the software. If you’re setting up repeatable workflows, a dedicated hooping station for machine embroidery can reduce alignment errors simply because you’re not fighting the garment every time you hoop. It creates a static environment where the fabric geometry matches the screen geometry.

Prep Checklist (Do this *before* you touch Layout)

• Base Object Audit: Zoom in on your "seed" object. Are the underlay settings correct? (e.g., Edge run for knits, Tatami underlay for towels).
• Merge Strategy: Decide now—do you want duplicates to remain editable (separate) or become one unified shape?
• The 50% Rule: If your design overlaps heavily, consider reducing the density of the base object by 10-15% before duplicating, to prevent bullet-proof stiffness in the final overlap zones.
• Physical Anchor: Mentally label your “center” point. Circle Layout and Mirror-Copy both depend on this axis.
• Safety Save: Save a version before you start the layout tool. Label it Design_Name_PreLayout.EMB.


Build the Base Shape Fast: Digitizing a Circle in Hatch Without Overthinking It

In the video, Sue uses the Digitize toolbox to create a circle quickly. Let's break this down into the micro-steps that ensure valid stitch generation:

1. Activate Tool: Go to Digitize Standard Shape.
2. Select Geometry: Choose Circle.
3. Anchor Center: Click to place the center point on the grid. Pro Tip: Use the grid lines to ensure you are centered on the X/Y axis.
4. Define Radius: Drag outward. You are looking for a size that stitches well—usually at least 5mm diameter for satin stitches. Anything smaller runs the risk of "thread nesting" in the bobbin case.
5. Confirm: Click again and press Enter to finish.
6. Escape: Return to the Select tool immediately so you don't accidentally draw a second circle.

You’ll see a satin-stitched circle appear (in the video it shows as a filled pink circle). That’s your “seed” object.

Make a Donut-Style Motif with Circle Layout: The Mouse-Driven Trick That Makes Hatch Feel “Instant”

Now the interactive part. This tool allows you to visually "audition" layouts without committing to them.

1. Open Toolbox: Click the Layout toolbox on the left.
2. Select Seed: Click your circle object.
3. Activate: Choose Circle Layout.
4. Visual Sweep: Move your mouse—watch the ghost outlines reposition dynamically. Do not click yet.
5. Input Data: In the top toolbar, set Object Count to 10.
6. Adjust Radius: Keep moving the mouse. Watch the center hole.
   • Visual Check: If the center hole disappears, your objects are overlapping 100% in the middle. This is a "Needle Break Zone." Move the mouse outward until a clear "donut hole" appears.
7. Commit: Click to place.

At placement, Hatch prompts: Merge Overlapped Objects?

• Choose Yes: This welds the satin paths together. You will get a single complex shape.
• Choose No: You get 10 stacked circles. Warning: If you stitch 10 stacked satin circles, you will have 10 layers of thread in the overlaps. This leads to needle deflection.

In the video, selecting Yes produces a donut-like merged object made from the 10 overlapping circles.

What you should expect to see (Success Metrics)

• Screen: Ghost outlines that rotate/expand fluidly as you move the mouse.
• Density: A denser “ring” look where the circles overlap.
• Structure: After merging, a single combined object that visually resembles a wreath or donut. It should select as one item in the Sequence docker.

Why this matters in real stitching (Expert Reality Check)

Circle layouts concentrate stitch direction changes (pull force) around a center point. On fabric, that can amplify distortion. Imagine 10 hands pulling a tablecloth in 10 different directions simultaneously.

If you stitch a 10-object circle layout on a t-shirt without proper stabilization, the center hole will distort into an oval.

• The Fix: Use a Cutaway Stabilizer (2.5oz or 3.0oz). Tearaway is rarely strong enough for dense radial designs.
• The Discipline: If you’re doing repeated circular logos, consistent hooping pressure is critical. Loose hooping + Radial pull = Puckering.


Mirror-Copy Horizontal vs Vertical: Control the Axis Line Like a Pro (So Spacing Doesn’t Surprise You)

Mirror-Copy in Hatch is simple—but only if you respect the Axis Line. This is the invisible mirror you are placing on the fabric.

Mirror-Copy Horizontal (as shown in the video)

1. Select Object: Highlight your shape.
2. Activate: Choose Mirror-Copy Horizontal.
3. The Guide: A dashed line appears under your cursor. The direction of that line determines the reflection axis.
4. Spacing Control: Move the mouse closer/farther.
   • Visual Hue Check: Look at the space between the objects. Is it touching? Is it overlapping?
5. Commit: Click to place.
6. Merge Decision: When prompted, choose whether to Merge Overlapped Objects.

Sue demonstrates overlapping slightly and then merging. This creates a dumbbell-like single shape.

Mirror-Copy Vertical

Mirror-Copy Vertical behaves the same way, but the axis line is oriented 90 degrees offset.

The key takeaway is spatial awareness. If the reflection looks “wrong” or inverted unexpectedly, do not fight the object settings. Simply Press Esc, undo, and move your mouse to the opposite quadrant relative to the object.

Warning: Mechanical Safety. When testing mirrored designs—especially wide layouts that span the full width of your hoop—ensure your machine arm has clearance. Keep fingers clear of the needle bar and moving pantograph. Test sew-outs often involve trimming jump stitches and handling sharp appliqué scissors; rushing the "trim" phase while the machine is paused is a common cause of minor puncture injuries.

Mirror-Copy Both (Quad Layout): The Fastest Way to Build Symmetry Without Redrawing Anything

Mirror-Copy Both is the “quad” move. It mirrors X and Y simultaneously.

1. Activate: Choose Mirror-Copy Both.
2. Dual Axes: You’ll see two axes (crosshairs) at once.
3. Diagonal Drag: Move the mouse diagonally. This adjusts spacing on both X and Y simultaneously.
4. Placement: Click to place.
5. Merge: If prompted, choose Merge Overlapped Objects (the video selects Yes).

This produces four copies in a grid-like formation. If they overlap, they merge into a clover-like or quatrefoil base shape. This is an excellent technique for creating "Fabric Frame" borders for patches.

Expert Insight: Why “Merge” changes stitch physics

When you merge overlapped objects, you aren't just grouping them; you are altering the stitch path. Hatch recalculates the entry and exit points to create a continuous flow.

• The Benefit: Reduces trims (the machine doesn't stop and cut thread between leaves).
• The Risk: It can create a "ridge" or visible seam line where the stitch angles collide.

That exact concern shows up in the comments: “How do I join mirrored overlaps into one clean object without an ugly stitch line?”

Pro Tip (The "Invisible Joint" Technique)

To avoid the "scar" where objects merge:

1. Angle Alignment: Ensure the stitch angles of the two objects flow in the same direction at the join point. If one is horizontal and the other vertical, the merge line will be obvious.
2. Overlap Depth: Do not overlap by just 1mm. Overlap deeply (3-5mm) or barely touch. Shallow overlaps confuse the software's logic for calculating "turning satin" stitches.
3. Manual Reshape: After merging, press H (Reshape). You might see a chaotic cluster of nodes at the join. Delete the excess nodes to smooth the transition curve manually.

Typography That Doesn’t Turn Into a Tangled Cluster: Circle Layout for “OML” Logos That Actually Look Intentional

The video’s lettering example is where most people either fall in love with Layout—or swear it off. Text is harder to layout than shapes because letters have strict readability requirements.

Here’s the workflow shown:

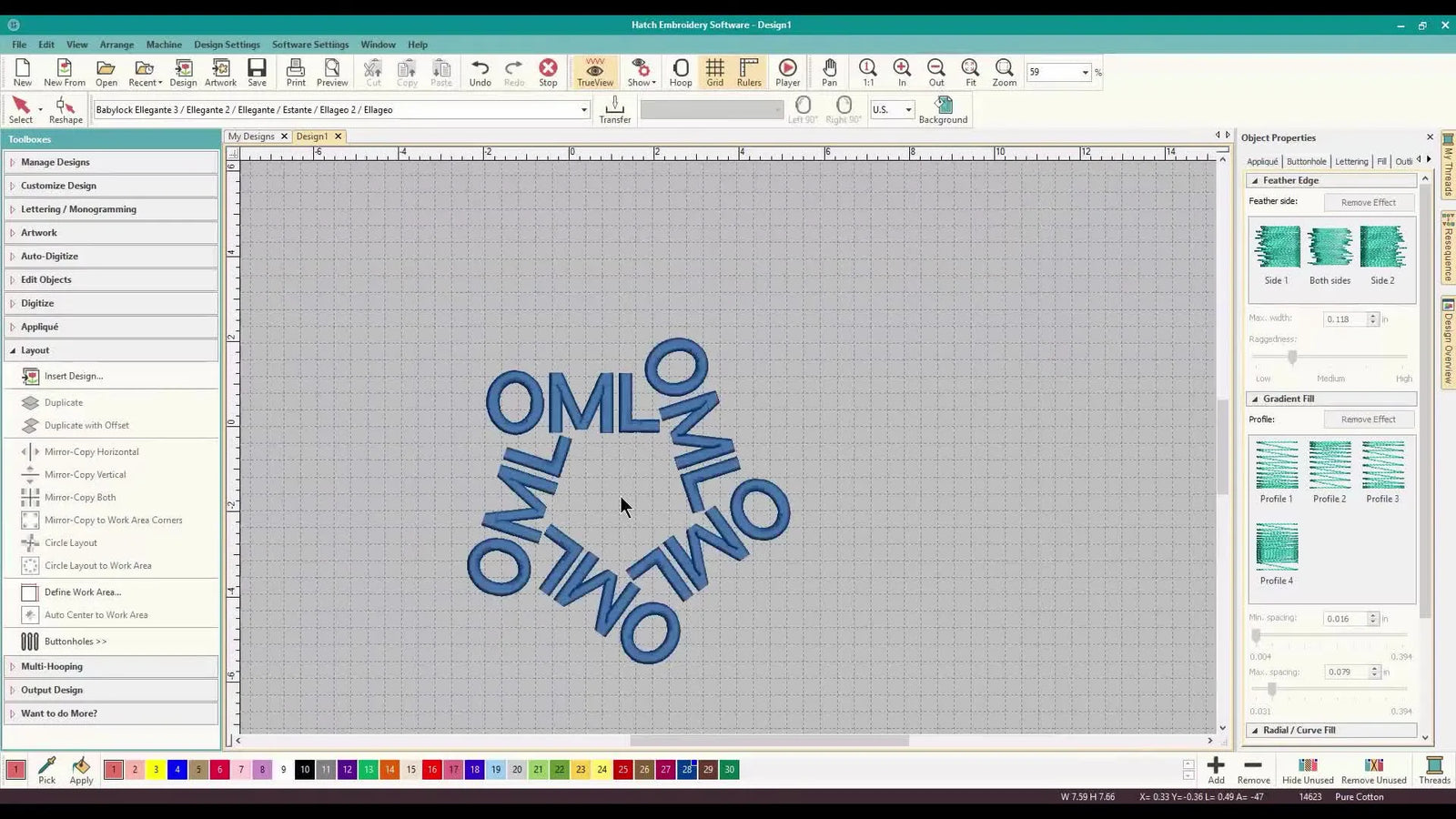

1. Type: Create a text object: “OML”.
2. Color: Change the color (Sue switches it to a nice blue).
3. Layout: Go back to Layout > Circle Layout.
4. The Crisis: It will initially look chaotic because the default count is likely too high for the text width.
5. The Fix: Reduce the Object Count to 5.
6. The Spread: Zoom out and pull the mouse outward to increase the radius until the letters stop crashing into each other.












The “Why” behind the mess (Preventing the "Bird's Nest")

When you apply a circle layout to lettering, Hatch rotates each copy to follow the curve. This creates a "V" shape gap between words—wide at the top, tight at the bottom.

The Danger Zone: The bottom corners of the letters. As they converge in the center, they can overlap. If you stitch 5 layers of lettering on top of each other:

• Auditory Cue: You will hear a rhythmic "thump-thump-thump" (the needle struggling to penetrate).
• Visual Cue: The thread will shred or fray.

The Solution:

• Use fewer repeats (5 is a magic number for logos).
• Push the radius out further than looks "perfect" on screen. Real thread expands (blooms) slightly; screen pixels do not. Give the text breathing room.

Setup Choices That Save You Later: A Simple Decision Tree for Stitching Layout-Heavy Designs on Fabric

Even though the video is software-focused, the end goal is a physical product. Layout-heavy designs (lots of repeats, symmetry, circular motion) place high stress on the fabric grain.

Use this decision tree to select your consumables before you hoop:

Decision Tree: Fabric → Stabilizer Strategy (for circular/mirrored layouts)

1. Is the fabric stretchy (Tees, Polos, Knits)?
   • Yes: MANDATORY Cutaway Stabilizer. (No Tearaway). Use a fusible (iron-on) backing if possible to freeze the fabric stretch.
   • No: Go to #2.
2. Is the fabric lightweight or slippery (Silk, Satin, Rayon)?
   • Yes: Use a Sticky Stabilizer or spray adhesive to prevent shifting. Reduce machine speed to 600 SPM.
   • No: Go to #3.
3. Is the design a high-repeat circle layout (e.g., 10 copies) or tight lettering?
   • Yes: Double up on stability. If using cutaway, add a layer of crisp tearaway underneath it for stiffness during stitching.
   • No: Standard stabilization is sufficient.

The Hooping Variable: If you are doing frequent garment work, the actual act of hooping is often where quality fails. Traditional hoops force you to pull the fabric, which distorts the grain. Many shops move toward machine embroidery hoops that use magnetic force. These hold the fabric evenly without "pulling" it out of shape, which is the #1 defense against oval circles.

The "Mess" Troubleshooting Map: Symptom → Likely Cause → Fix

Use this cheat sheet when your result doesn't match the screen.

The Upgrade Path That Actually Makes Sense: When Better Hoops and Better Workflow Beat “More Clicking”

Once you master the software layout, the bottleneck shifts to your hands. You can design a badge in 60 seconds, but if it takes 5 minutes to hoop securely, you are losing money (or patience).

Here’s a practical way to think about upgrades based on your volume:

• Scenario A: The "Hoop Burn" Struggle.
  • Trigger: You are stitching on delicate performace wear or velvet, and the standard hoop leaves a permanent "ring" mark.
  • Solution: A magnetic embroidery hoop clamps the fabric flat without the mechanical friction that crushes fibers. It is the cleanest way to hold fabric for symmetrical layout designs.
• Scenario B: The "Wrist Pain" Struggle.
  • Trigger: You are doing a run of 20+ left-chest logos for a local club.
  • Solution: magnetic hoops for embroidery machines snap shut instantly. This eliminates the repetitive twisting of hoop screws, drastically increasing your units per hour.

Warning: Magnet Safety. Magnetic frames are industrial tools with powerful clamping force.
* Pinch Hazard: Keep fingers away from the clamping zone.
* Medical Safety: Keep magnets away from pacemakers, insulin pumps, and implanted medical devices.
* Electronics: Store away from magnetic-stripe cards and machine LCD screens.

Finally, if your layout designs are complex and require many color changes (e.g., a floral circle layout with 6 colors), a single-needle machine will require you to baby-sit it for 45 minutes. The ultimate productivity jump is moving to a multi-needle platform (like SEWTECH models), where you set the colors once and walk away.

Three Checkpoints That Keep Layout Designs Clean from Screen to Stitch

1. Setup Checklist (Software)

• Axis Check: Is my Mirror line vertical or horizontal? Am I fighting the tool?
• Count Logic: Is 10 objects necessary? Can I achieve the look with 6 or 8 to save density?
• Merge Verify: Did I click "Yes" to merge for my final border shape?
• Save As: Did I save a copy of the un-merged file for future edits?

2. Operation Checklist (Physical)

• Needle Status: Is the needle sharp? A dull needle + high density overlap = bird's nest.
• Bobbin Check: Is there enough bobbin thread for a density-heavy circle motif?
• Hoop Check: Is the inner hoop ring flush with the outer ring? (Or is the magnet seated fully?)
• Clearance: Does the hoop arm have room to move for the full width of the mirrored design?

3. Hidden Consumables List (Don't start without these)

• Temporary Spray Adhesive (KK100 or similar): Crucial for holding backing to fabric on wide layouts.
• New Top Stitch Needle (75/11): Ideally Titanium or Chrome for cutting through dense merged overlaps.
• Water Soluble Topping: If stitching on pique or fleece, this prevents your intricate layout details from sinking into the fabric pile.

FAQ

• Q: In Wilcom Hatch Circle Layout, should the Hatch prompt “Merge Overlapped Objects” be set to Yes or No to avoid needle breaks in overlapped satin circles?
  A: Choose Yes for most production runs, because merging reduces stacked stitch layers and trims.
  • Select the seed circle, run Layout > Circle Layout, set Object Count (e.g., 10), then pull radius outward until a visible “donut hole” appears before you click.
  • Click to place, then choose Merge Overlapped Objects: Yes to weld the satin paths into one object.
  • Success check: The design selects as one item in the Sequence/objects list and the center does not look 100% filled in (no “needle break zone”).
  • If it still fails… reduce the object count (e.g., 10 → 5) or lower base density by ~10–15% before duplicating (a safe starting point; confirm with your machine and fabric).
• Q: In Wilcom Hatch Circle Layout, why does a duplicated circle layout turn into a “blob,” and how do I fix the circle layout diameter vs object count?
  A: A “blob” usually means too many objects for too small a radius, causing heavy overlap at the center.
  • Reduce Object Count (common quick test: 10 → 5) and increase radius by moving the mouse outward before committing.
  • Watch the center while adjusting: if the center hole disappears, the layout is collapsing into full overlap.
  • Success check: A clear donut-like gap remains in the middle and the ring looks evenly spaced on screen.
  • If it still fails… simplify/clean the seed object first (fewer nodes, cleaner angles) before multiplying, because messy bases multiply into messy results.
• Q: In Wilcom Hatch Mirror-Copy (Horizontal/Vertical/Both), how do I control the axis line so spacing does not flip or land in the wrong place?
  A: Treat the dashed axis line as the mirror boundary—if the reflection looks wrong, Esc/Undo and reposition the axis rather than fighting settings.
  • Select the object, choose Mirror-Copy Horizontal or Mirror-Copy Vertical, then move the mouse to place the dashed axis where the mirror should occur.
  • Adjust spacing by moving closer/farther before clicking to commit; decide at the prompt whether to Merge Overlapped Objects.
  • For Mirror-Copy Both, drag diagonally to set spacing on X and Y together.
  • Success check: The gap/overlap between copies matches what you intended before the click, and the mirrored copy lands on the expected side of the axis.
  • If it still fails… press Esc, redo the mirror from a different cursor quadrant relative to the object and re-check the dashed line orientation.
• Q: In Wilcom Hatch, how do I join mirrored overlaps into one clean merged object without an ugly stitch line (“merge seam”)?
  A: Reduce the visible seam by making the merge geometry easier for Hatch: align stitch angles and use a decisive overlap.
  • Align stitch direction at the join so both objects flow similarly (misaligned angles make the seam obvious).
  • Overlap deeply (about 3–5 mm) or barely touch—avoid shallow ~1 mm overlaps that often create a “scar” line.
  • After merging, press H (Reshape) and delete excess nodes clustered at the join to smooth the transition.
  • Success check: The merged area looks like a continuous surface, not a ridge line where angles collide.
  • If it still fails… undo and change the overlap amount first; then re-merge and re-check stitch angle continuity.
• Q: When stitching Wilcom Hatch circle layouts on knit T-shirts, what stabilizer and speed choices prevent center puckering (“radial pull donut effect”)?
  A: Use cutaway stabilizer for knits and keep the setup stable; radial designs amplify distortion at the center.
  • Use Cutaway Stabilizer (2.5 oz or 3.0 oz); tearaway is often not strong enough for dense radial layouts.
  • Keep hooping consistent and firm (loose hooping + radial pull commonly causes puckering).
  • If fabric is slippery/lightweight, use sticky stabilizer or spray adhesive and reduce speed to 600 SPM (as a safe starting point; follow the machine manual).
  • Success check: The stitched center hole stays round (not oval) and the fabric lies flat after stitching.
  • If it still fails… slightly loosen top tension (small changes) and reduce repeat count or density before re-running the design.
• Q: What pre-run checklist should be used before stitching density-heavy Wilcom Hatch merged layouts (needle, bobbin, adhesive, topping) to avoid bird’s nests and thread shredding?
  A: Prep consumables first—dense merged overlaps punish dull needles and weak backing.
  • Install a new 75/11 topstitch needle (titanium/chrome often helps with dense areas, but confirm compatibility with the machine manual).
  • Verify bobbin thread capacity before starting (circle layouts and overlaps consume bobbin fast).
  • Apply temporary spray adhesive to hold backing stable on wide/mirrored layouts.
  • Add water-soluble topping on pique/fleece to prevent detail from sinking.
  • Success check: Stitching sounds smooth (no repeated “thump-thump”), thread does not fray, and there is no nesting in the bobbin area.
  • If it still fails… reduce density/overlap strategy in software and re-test at a lower speed (a safe starting point is ≤600 SPM for tricky fabrics).
• Q: What safety precautions are required when test-sewing wide Wilcom Hatch mirrored designs and when using magnetic embroidery hoops/frames?
  A: Slow down and protect hands—mirrored layouts can push hoop travel to the limits, and magnetic frames can pinch hard.
  • Confirm machine arm clearance across the full mirror width before running; keep fingers clear of the needle bar and moving parts when trimming jump stitches.
  • Pause safely before handling appliqué scissors; rushing the trim phase is a common cause of puncture injuries.
  • For magnetic hoops/frames, keep fingers out of the clamping zone and keep magnets away from pacemakers/implanted medical devices and magnetic-stripe cards.
  • Success check: The hoop completes the full mirrored travel without striking the machine, and the frame closes without pinching or shifting fabric.
  • If it still fails… switch to a smaller hoop/design size for test sew-outs and re-check placement/clearance before scaling up.
