Wilcom Hatch Font Pack 2 Monogram Fonts: Pick the Right Size First (So Your Microscan, Glory Applique, and Henriksson Actually Stitch Clean)

Mastering Wilcom Hatch Font Pack 2: The "Size-First" Strategy for Perfect Monograms

Monogram fonts are deceptive. On screen, they feel like "plug-and-play" magic. But in the physical world, that magic often evaporates the moment you press "Start," turning a beautiful digital file into a chewed-up knot of thread.

If you’ve ever stared at a birdnest on your bobbin case and thought, "But it’s a professional font—why did it stitch so badly?" you are not alone.

In this masterclass, based on insights from Sue at OML Embroidery, we are going to dissect Wilcom Hatch Font Pack 2. We won't just look at how to select fonts; we will cover the physics of lettering. You will learn how to pair specific fonts (Microscan, Glory, Henriksson) with the correct physical parameters, and how to stop "force-feeding" your machine sizes it cannot handle.

Calm the Panic: Why Pre-Digitized Fonts Fail When You Ignore Physics

Pre-digitized fonts are engineering files, not just graphics. They are built to stitch correctly only within a specific density-to-size ratio.

When you shrink a font below its engineered minimum:

1. Satin columns collapse: The needle penetrations get too close, physically shredding the fabric.
2. Thread breakage: You will hear a rhythmic thump-thump followed by a shredding sound as the thread fights through strict density.
3. Illegibility: Loops close up, and an "e" looks like a blob.

Sue’s lesson is critical for any operator: Font choice is aesthetic; sizing is structural engineering.

If you are running a generic or dedicated monogram machine, treat the software limits not as suggestions, but as safety rails. Stepping outside them risks machine timing issues and ruined garments.

The "Hidden" Prep: Setup Rituals for Clean Lettering

Before you touch the keyboard, you must stabilize your environment. Lettering is the most unforgiving type of embroidery because the eye instantly detects imperfections.

Hidden Consumables List

A pro shop always has these within arm's reach for lettering:

• Needles: Size 75/11 Sharp (for wovens) or Ballpoint (for knits). A dull needle kills small text.
• Bobbin Thread: 60wt (thinner than top thread) to prevent bulk.
• Topper: Water-soluble stabilizer (Solvy) to keep stitches sitting on top of the fabric.

Prep Checklist: The "Zero-Friction" Start

• Software Access: Confirm you represent in Wilcom Hatch with the Lettering toolbox active.
• Intent Definition: Are you making micro-text (labels), applique (bold impact), or medallion (decorative)?
• Placement Strategy: visualizing the "Real Estate." A pocket logo has a 3.5-inch limit; a cap front has a 2.2-inch height limit.
• The "TrueView" Pact: Promise yourself to never export a file without inspecting it in TrueView (3D render) first.
• Reference Logic: Keep the Wilcom Size Chart open. Do not guess.


Microscan: The Solution for Small, Crisp ID Text

The first font in the pack is Microscan. Sue selects this in the Lettering toolbox under Object Properties.

The Trap: Most users try to use bold, serif fonts for small lettering (under 10mm). This creates messy lumps. The Fix: Microscan is a "run-stitch" or lightweight satin style font designed specifically to remain legible at tiny scales. It removes the bulk that causes localized distortion.

The "Sweet Spot" Data

Sue references the official specs. While the software allows you to scale anything, physics dictates you follow this range:

• Minimum: 0.3 in / 7 mm
• Maximum: 1.6 in / 40 mm

Expert Note: While 7mm is the minimum, the "Safety Zone" for beginners is 8mm - 10mm. At 7mm, your fabric stabilization must be perfect. If your text looks jagged, you have likely dropped below this floor.

Glory Applique: High Impact, Low Stitch Count

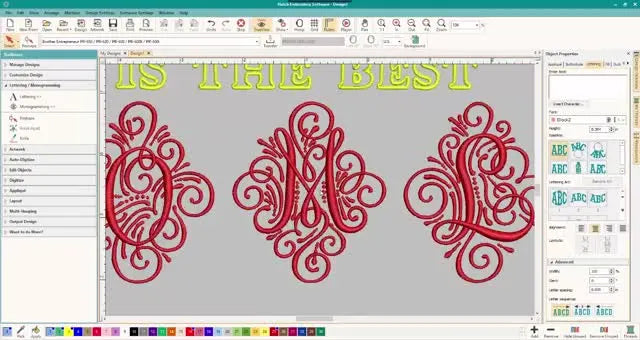

Next, Sue demos Glory Applique. On screen, you create text (“IS THE BEST”) and apply the font. You will see visual cues: yellow fill (placement) and red borders (tack down/satin).

Why Use It?

Applique creates massive letters without the "bulletproof vest" stiffness of full embroidery. It saves stitch time and profit margins.

The "Sweet Spot" Data

• Minimum: 1.2 in / 30 mm
• Maximum: 4.0 in / 100 mm

The Risk: Applique relies on fabric holding its shape while the machine travels the perimeter. If you go smaller than 30mm, holding the applique fabric becomes dangerous and fiddly.

Warning (Physical Safety): Applique requires you to place fabric and trim it while the hoop is attached. Keep hands clear of the needle bar area. Never trim while the machine is "Active" (green light). Engagae "E-Stop" or "Lock" mode before putting your fingers near the needle.

Expert Insight: If you love the look but hate the cutting, you can stitch this as "Outline Only" by skipping the fabric placement step. It creates a modern, hollow aesthetic.

Henriksson: The Medallion Masterpiece (And Why It Scares Newbies)

Sue types "OML" and applies Henriksson. Immediately, it looks wrong—tiny, cramped, and messy. This is normal.

The Logic: Henriksson is not a "font" in the traditional sense; it is a collection of complex, digitized ornaments mapped to keys. It loads at a default size that is often too small for its details to resolve.

The Fix: Scale to Glory

Sue scales the design up significantly. Suddenly, the chaotic blobs resolve into elegant scrollwork.

The "Sweet Spot" Data

• Minimum: 0.3 in / 8 mm
• Maximum: 2.4 in / 60 mm

Expert Reality Check: Although Wilcom lists 8mm as the minimum, do not attempt Henriksson at 8mm unless you are using 60wt thread and perfect stabilization. This font shines at 25mm (1 inch) and above. It is designed for monograms on towels, pillowcases, and totes—places where you have room to show off the detail.

The Size-Spec Reality Check: Design by Rules, Not Guesses

Sue emphasizes leaving the software to check the Official Font Pack 2 PDF.

The "20-Year Shop" Perspective

Why does size matter? Pull Compensation.

• Large letters absorb fabric pull easily.
• Tiny letters are vulnerable. If a satin column is 1mm wide and the fabric pulls 0.5mm, you have lost 50% of your structure.
• Rule of Thumb: If you must stitch near the Minimum size spec, slow your machine down (e.g., from 800 SPM to 600 SPM) to reduce tension on the thread.

The Physical Reality: Hooping, Stabilization, and "Hoop Burn"

You can have the perfect font and the perfect size, but if your hoop technique is flawed, the result will be distorted. Monograms, with their precise outlines, show every millimeter of fabric shifting.

Sensory Check: When you hoop, tap the fabric. It should sound like a tight drum skin (thump-thump). If it feels spongy or loose, your letters will warp.

However, getting this tension often leads to "Hoop Burn" (permanent friction marks on delicate items like velvet or performance polos). This is a major pain point for boutiques using standard machine embroidery hoops.

Setup Checklist: The Mechanical Foundation

• Stabilizer Match: Backing is secure (see Decision Tree below).
• Hoop Tension: The screw is tight, but not stripping the fabric.
• Inner Ring Check: Ensure the inner ring protrudes slightly past the outer ring on the back side to grip the fabric.
• Topper Applied: If working with towels or knits, place Solvy on top.
• Needle Check: Is the needle straight? Roll it on a flat surface to check.

For shops struggling with alignment on repetitive orders (like team shirts), installing a consistent hooping station for machine embroidery upgrades your workflow from "guessing" to "manufacturing."

Decision Tree: Fabric vs. Strategy

Do not guess which stabilizer to use. Follow this logic path to ensure your fonts don't distort.

• Scenario A: Stable Woven (Denim, Canvas, Tote)
  • Action: Use Medium Tearaway.
  • Needle: 75/11 Sharp.
  • Hooping: Standard hoop is usually fine.
• Scenario B: Stretchy Knit (T-Shirt, Polo, Performance Wear)
  • Action: Must use Cutaway (Polymesh). Tearaway will cause letters to break after washing.
  • Needle: 75/11 Ballpoint.
  • Hooping: Do not stretch the fabric while hooping; let it rest naturally.
• Scenario C: High Pile (Towel, Fleece)
  • Action: Tearaway (bottom) + Water Soluble Topper (top).
  • Hooping: Difficult with standard hoops due to thickness. Magnetic hoops are preferred here.
  • Font Choice: Avoid Microscan; the stitches will sink. Use bold satin or Applique.

Structured Troubleshooting: From Symptom to Cure

The "Professional Pivot": When Tools Matter More Than Skill

If you are doing occasional hobby work, you can fiddle with screws and struggle with thick fabrics. But if you are doing volume—50 shirts for a local team or high-end gifts—the "struggle" eats your profit.

The Upgrade Trigger: If you spend more time hooping and fixing hoop burn than actually stitching, your tools are the bottleneck.

1. Level 1 Fix: Use a Hooping Station to guarantee placement accuracy every time.
2. Level 2 Fix (Speed & Safety): Switch to magnetic embroidery hoops. They clamp automatically without friction, eliminating hoop burn and handling thick towels effortlessly.

Warning (Magnetic Force): Magnetic Hoops use industrial-grade neodymium magnets. Pinch Hazard: They snap shut with extreme force—keep fingers clear. Health Warning: Keep away from pacemakers as the magnetic field can interfere with medical devices.

1. Level 3 Fix (Production Scale): If strictly single-needle constraints (thread changes) are slowing you down, look into SEWTECH multi-needle solutions to automate color changes and increase throughput.

Operation Checklist: The "One-Minute Pre-Flight"

Execute this sequence before every "Start."

• Font Validated: Selected font matches the purpose (Microscan for small, Glory for big).
• Size Validated: Design is within the Min/Max safety zone.
• Visual Logic: Viewed in TrueView to confirm no collapsed satin columns.
• Physical Logic: Fabric sound-checked (drum tight); correct needle installed.
• Path Clear: No obstructions (wall, other hoops) behind the machine arm.


By combining the digital precision of Wilcom Hatch with the physical discipline of correct hooping and sizing, you transform from a "hopeful hobbyist" to a "confident operator." Respect the physics, and the machine will respect your design.

FAQ

• Q: What needles, bobbin thread, and topper should Wilcom Hatch Font Pack 2 lettering jobs use to avoid jagged text and bulk?
  A: Use a sharp, correct-size needle, thin bobbin thread, and water-soluble topper so small lettering stays clean.
  • Install a 75/11 Sharp for wovens or a 75/11 Ballpoint for knits.
  • Load 60wt bobbin thread to reduce buildup under dense lettering.
  • Add water-soluble topper (Solvy) on knits or textured fabrics so stitches sit on top.
  • Success check: Small letters look crisp (not “bumpy”), and the fabric surface is not being chewed or distorted.
  • If it still fails: Re-check the font size against the official min/max range for that specific font.
• Q: What is the safe minimum size for Wilcom Hatch Font Pack 2 Microscan lettering when stitching tiny ID text?
  A: Keep Wilcom Hatch Microscan in the beginner safety zone of 8–10 mm, even though 7 mm is the listed minimum.
  • Set Microscan for small ID text and avoid bold/serif fonts under 10 mm.
  • Resize lettering upward if stitches start to “lump” or details close up.
  • Inspect the design in TrueView before exporting to catch collapsed satin/run structure.
  • Success check: An “e” and small loops remain readable instead of turning into blobs.
  • If it still fails: Improve stabilization and avoid pushing down to the absolute minimum size.
• Q: Why does Wilcom Hatch Glory Applique outline not land on the fill, and how can Glory Applique alignment be improved?
  A: Glory Applique outline misalignment usually comes from fabric movement or shrink during stitching, so stabilize better and reduce stress.
  • Use cutaway stabilizer when fabric is prone to shifting or shrinking during the run.
  • Slow machine speed if working near minimum sizes or on challenging materials.
  • Confirm the applique is not being pushed below the recommended minimum size (30 mm).
  • Success check: The red border/outline stitches land cleanly on the intended edge instead of drifting.
  • If it still fails: Re-hoop for firmer support and consider adding adhesive spray to secure the backing.
• Q: How can machine embroidery hooping be checked to prevent distorted monograms and misshapen circles (O, Q) from fabric flagging?
  A: Hoop so the fabric is drum-tight without being stretched, then verify grip and backing before stitching.
  • Tap the hooped fabric and adjust until it sounds like a tight drum skin (“thump-thump”), not spongy.
  • Tighten the hoop screw firmly without stripping or crushing delicate fabric.
  • Ensure the inner ring protrudes slightly past the outer ring on the back to grip the fabric.
  • Success check: Circles (O, Q) stay round instead of becoming ovals during stitching.
  • If it still fails: Add adhesive spray to the backing to reduce shifting and re-check stabilizer choice.
• Q: How can embroidery birdnesting on the bottom be fixed by rethreading the top thread correctly before restarting the machine?
  A: Rethread the top thread with the presser foot UP, because birdnesting is commonly caused by incorrect top threading or loose upper tension.
  • Raise the presser foot fully before threading so the thread seats into the tension discs.
  • Completely unthread and rethread the upper path (do not “half-correct” it).
  • Restart and watch the first stitches to confirm the thread is feeding smoothly.
  • Success check: The underside shows controlled bobbin lines instead of a crunchy wad of loops.
  • If it still fails: Re-check needle condition (dull/bent needles trigger problems fast on small text).
• Q: What safety steps are required when trimming fabric for Wilcom Hatch Glory Applique while the hoop is attached to the embroidery machine?
  A: Never trim while the machine is active—lock out motion first and keep hands away from the needle bar area.
  • Engage E-Stop or Lock mode before placing hands near the hoop and needle area.
  • Wait for the needle bar to stop completely before trimming.
  • Keep fingers outside the needle travel zone at all times.
  • Success check: Trimming is done with zero machine motion and no “green light/active” state.
  • If it still fails: Stitch Glory Applique as “Outline Only” to avoid the fabric placement/trimming step.
• Q: What magnetic hoop safety rules should be followed when using neodymium magnetic embroidery hoops to prevent finger pinch injuries and pacemaker interference?
  A: Treat magnetic embroidery hoops as pinch hazards and keep them away from medical implants.
  • Keep fingers clear as the magnets snap shut with high force.
  • Separate and assemble the hoop slowly and deliberately—do not let halves slam together.
  • Keep magnetic hoops away from pacemakers and similar medical devices.
  • Success check: The hoop closes without finger contact and clamps fabric evenly without excessive force handling.
  • If it still fails: Use a controlled setup routine (clear bench space, slow handling) before attempting faster production.
• Q: When frequent hoop burn and slow hooping on towels or thick fabrics becomes a production bottleneck, what is the step-by-step upgrade path from technique to magnetic hoops to multi-needle output?
  A: Start with process control, then upgrade clamping tools, and only then consider production machines if thread-change limits are the real constraint.
  • Level 1 (Technique): Add a hooping station to standardize placement and reduce re-hooping time.
  • Level 2 (Tooling): Switch to magnetic hoops to reduce hoop burn friction and handle thick towels/fleece more easily.
  • Level 3 (Capacity): Move to a multi-needle workflow if single-needle color changes are consistently slowing throughput.
  • Success check: Time spent hooping and fixing marks drops below time spent stitching, and repeat orders align consistently.
  • If it still fails: Re-audit stabilizer choices (cutaway vs tearaway + topper) and slow speed when working near minimum font sizes.
