Wilcom Hatch Contour Stitch: Turn a Flat Circle into a 3D “Sphere” (and Make It Sew Cleanly)

Master Contour Stitch in Wilcom Hatch: The "One-Click" 3D Effect (That Actually Works)

If you’ve ever stared at a perfectly “correct” flat fill and thought, “Why does this still look lifeless?”—you’re in the right place. Most beginners rely on standard Tatami fills, which reflect light flatly. Contour Stitch in Wilcom Hatch is a physics-based hack: by curving the stitch angle, you force the thread to catch light differently, creating an instant 3D sphere effect without adding a single extra layer of thread.

In the original video, Sue from OML Embroidery demonstrates the workflow: digitize a circle, switch to Contour, and tweak the settings.

As an educator with two decades on the production floor, I’m going to take this a step further. I will give you the safe numerical ranges to prevent bulletproof-vest density, the sensory checks to know if your machine is happy, and the commercial logic for when to upgrade your tools.

The Psychology of the "One-Click" Trap

Contour Stitch is seductive because it’s fast. Select an object, click the icon, and suddenly a flat circle looks like a shaded marble. This speed is exactly why beginners get burned.

Here is the reality check: Hatch generates the path, but YOU must manage the physics. When you curve stitches tightly into a center point, you risk creating a "doughnut hole" of bulletproof thread density that can break needles.

Your job is to control three distinct variables:

1. The Shape: (We start with a circle).
2. The Texture: (Spacing + Stitch Length = The "Feel").
3. The Light Source: (Entry Point = The Visual Pop).


Phase 1: The "Hidden" Prep (Do This First)

Before you touch the software, look at your physical setup. Contour fills rely on precise, concentric circles. If your fabric shifts even 1mm during stitching, the "sphere" effect turns into a "wobbly egg" effect.

The Golden Rule: Digitizing is only 50% of the battle; the other 50% is fighting fabric distortion.

If you are sampling this for a client:

• Fabric: Pick what you will actually use (e.g., Pique Knit vs. Twill).
• Stabilizer: Do not guess. If the fabric stretches (T-shirt/Polo), you must use Cutaway. Tearaway will allow the center to distort.
• Hidden Consumables: Have Spray Adhesive (KK100) or a designated hooping station ready. You need the fabric to be "drum-tight."

Commercial Insight: If you plan to stitch this logo 50 times, hooping by hand with standard plastic hoops is a recipe for repetitive strain injury and inconsistency. This is where hooping stations pay for themselves—not just for speed, but for ensuring that "Center" is actually "Center" every single time.

Prep Checklist

• Stabilizer: Selected based on fabric coverage (Weight: 2.5oz - 3.0oz is the safe beginner zone).
• Needle Check: Is your needle fresh? A dull needle pushes fabric rather than piercing it, ruining concentric circles.
• Bobbin: Is it full? You do not want to run out in the middle of a contour fill.
• Consumables: Spray adhesive or water-soluble topper (if stitching on fuzzy towels).


Phase 2: Build the Base Object

Sue’s workflow is standard and correct. We start with the geometry.

1. Open the Digitize toolbox (Left Toolbar).
2. Select Circle/Oval.
3. Click center, drag outward, and press ENTER.

The Detail That Matters: Pressing Enter forces a perfect mathematical circle. If you just click complete, you often get a slight oval, which makes the contour shading look "warped" later.

Phase 3: The Transformation (Stitch Type)

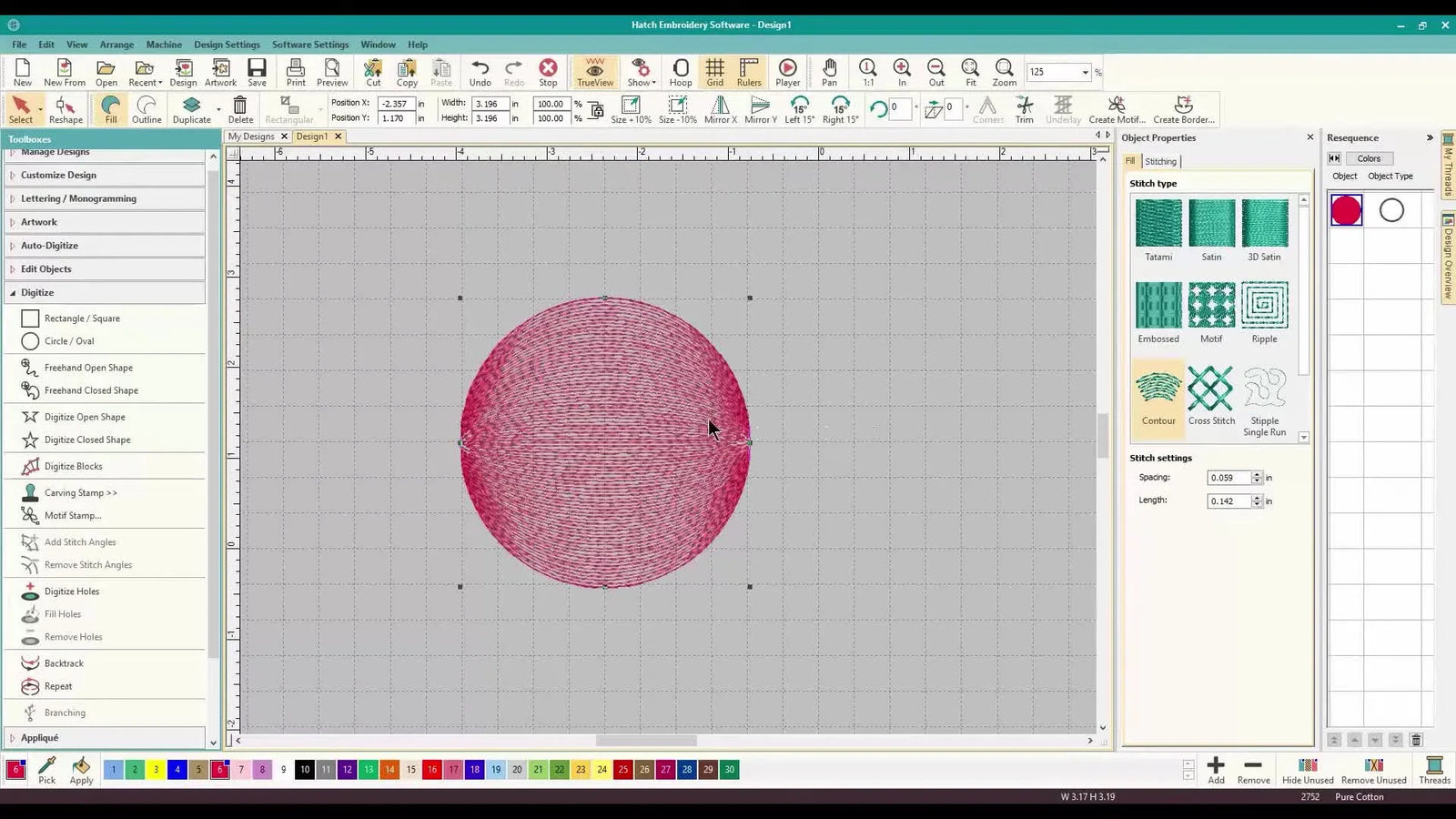

With your new circle selected, look at the Object Properties (Right Panel). Switch from Tatami or Satin to Contour.

Visual Check:

• The flat lines should instantly turn into a spiral/curved pattern.
• The center should look lighter, and the edges darker (simulating depth).


Phase 4: Texture Control (The Safety Zone)

This is where the video demonstrates what to do, but I will tell you how much to do. Sue adjusts Spacing and Length. Let's define the safety zones so you don't break a needle.

Spacing (Density)

Spacing defines the distance between the rings of the spiral.

• Hatch Default: Often around 0.40mm (Standard).
• The Danger Zone: Below 0.35mm. This creates a "cardboard" stiff patch that feels terrible to wear.
• The Sweet Spot: 0.45mm – 0.60mm. This allows the fabric to breathe and reduces push-pull distortion while still maintaining the 3D look.

Stitch Length

This defines how long the thread travels before penetrating the fabric again.

• The Sweet Spot: 3.5mm – 4.5mm.
• Why? Longer stitches reflect more light (shinnier), improving the 3D effect. Short stitches look matte and flat.

Warning: Do not exceed 7.0mm - 8.0mm without an auto-split setting, otherwise your stitches become "snag hazards" (loops that catch on fingernails or washing machines).

If you are struggling to keep these settings consistent across a run of polo shirts, realize that standard plastic hoops often slip slightly as stitches pull the fabric inward. Many production shops upgrade to machine embroidery hoops designed for high grip to stop this "flagging" movement.

Phase 5: The "Light Source" Secret (Entry Point)

This is the "Magician's Trick." The physical texture hasn't changed, but the visual result changes drastically.

1. Select the object.
2. Click Reshape (or press H).
3. Locate the Green Diamond (Start Point).
4. Drag it around the perimeter of the circle.

The Physics: The embroidery machine stitches away from the start point. By moving the start point, you change the angle at which the thread lays down. Since embroidery thread is twisted (reflective), changing the angle changes how light hits it.

• Top Left Entry: Simulation of "Sunlight from top left."
• Center Entry: Often creates a "Cone" look.

For beginners: Move the green point to the 10 o'clock position. It is the universal standard for "pleasant lighting" in design.

Start-Up Decision Tree: Fabric & Stabilizer

Don't guess. Use this logic path before every stitch-out.

1. Is the fabric stable? (Denim, Canvas, Twill)

• YES: Use Tearaway (2 sheets).
• NO: Go to step 2.

2. Is the fabric stretchy? (T-shirt, Polo, Performance Wear)

• YES: You MUST use Cutaway (Medium weight aka 2.5oz).
  • Why? The contour stitch spirals exert Centripetal Force (pulling toward the center). Without Cutaway, your circle will become a puckered raisins.
• NO: Go to Step 3.

3. Is it difficult to hoop? (Thick Jacket, Bag, Velvet)

• YES: Do not force it into a plastic hoop. This causes "Hoop Burn" (permanent crushing of fibers).
  • Solution: This is the specific scenario where professionals switch to magnetic embroidery hoops. They hold thick material without crushing the grain and allow for faster adjustments.

Warning (Magnetic Safety): Magnetic frames generate powerful fields. Pinch Hazard: Keep fingers clear of the snapping zone. Medical: Keep at least 6 inches away from Pacemakers and insulin pumps. Store away from credit cards.

Setup Checklist (Pre-Flight)

• Visual: In TrueView (Hatch), does the spiral look smooth?
• Data: Spacing is between 0.45mm and 0.60mm?
• Data: Stitch Length is between 3.5mm and 4.5mm?
• Machine: Thread tension check—pull the thread; it should feel like flossing tight teeth, not loose.
• Hooping: Fabric sounds like a drum when tapped?


The Color Swatch Reality

Sue creates a blue sphere. Remember this: Dark threads absorb light; Light threads reflect it.

• A Contour Stitch effect will look amazing in Gold, White, or Neon.
• It will look subtle or "invisible" in Navy Blue or Black.

Pro Tip: If you must use black thread, increase your stitch length (to 5.0mm) to maximize the surface area for light reflection.

Troubleshooting: Why does it look "Muddy"?

If your screen looks great but your sew-out looks like a mess, it is usually a Physical Support issue, not a software issue.

1. The "Doughnut" Pucker: The center of the circle is bulging up.
   • Cause: Fabric moved during stitching.
   • Fix: Switch to Cutaway stabilizer or use spray adhesive.
2. The Gap: The outline doesn't meet the fill.
   • Cause: Poor stabilization or hoop slip.
   • Fix: Tighten the hoop screw (use a screwdriver, not just fingers). If using generic hoops that slip, consider upgrading to quality embroidery machine hoops with better locking mechanisms.


Common Beginner Mistakes (Experience Log)

After supervising hundreds of students, here is where they fail:

• The "Undo" Loop: They change spacing, then length, then entry point, and get lost. Fix: Save as you go (Circle_v1, Circle_v2).
• The Speed Demon: Running a complex contour stitch at 1000 SPM (Stitches Per Minute) on a home machine. Fix: Slow down. 600-700 SPM is the "Quality Sweet Spot" for contour fills. It gives the thread time to lay flat.

If you are doing this commercially, time is money. Fighting with plastic hoops for 5 minutes per shirt destroys profit. This is why automated alignment systems or magnetic embroidery hoop solutions are not "luxuries"—they are efficiency tools that allow you to clear the queue faster.

Troubleshooting Guide: Symptom → Cause → Fix

Keep this chart near your machine.

Warning: If you hear a rhythmic "Thump-Thump" sound, STOP immediately. This usually means the needle is hitting a build-up of thread (birdnesting) under the throat plate. Do not force it.

The Upgrade Path: From Hobbyist to Pro

Contour Stitch is just one tool in your arsenal. As you move from making one gift to making 50 team patches, your bottlenecks will shift.

1. Level 1 (Technique): Use the settings above (Spacing/Length) to get quality results on your single-needle machine.
2. Level 2 (Workflow): If you are tired of hoop burn or wrestling with thick jackets, invest in Magnetic Hoops. They snap on, hold tight, and save your wrists.
3. Level 3 (Scale): If you have orders for 20+ items, a single-needle machine is too slow (color changes take too long). This is when you look at Multi-Needle Machines (like SEWTECH models) that handle color swaps automatically.

Operation Checklist (The Final Go/No-Go)

• Design: Entry point is set to 10 o'clock (or desired light source).
• Hooping: Stabilizer is correct (Cutaway for knits!).
• Machine: Speed reduced to 700 SPM.
• Safety: Hands clear of the needle bar.
• Audit: Run a test sew on scrap fabric first. Always.


Final Thoughts

Contour Stitch looks like magic, but it respects physics. By controlling the density (Spacing), the reflection (Stitch Length), and the direction (Entry Point), you take full control of the result.

Don't settle for "flat" embroidery. Use these settings, stabilize properly, and let the thread do the work.

FAQ

• Q: In Wilcom Hatch Contour Stitch, what Spacing and Stitch Length settings prevent “bulletproof” density and needle breaks on a circle fill?
  A: Use a safe starting range of 0.45–0.60 mm Spacing and 3.5–4.5 mm Stitch Length to keep the 3D effect without over-densifying the center.
  • Set Spacing first; avoid going below 0.35 mm to prevent a stiff, needle-stressing “doughnut” center.
  • Set Stitch Length to 3.5–4.5 mm for better light reflection; avoid 7.0–8.0 mm+ unless using an auto-split feature to reduce snag loops.
  • Success check: The sewn circle feels flexible (not cardboard-stiff), and the machine runs without a harsh punching sound or repeated thread breaks.
  • If it still fails: Reduce machine speed to 600–700 SPM and re-check stabilization/hoop hold before changing software values again.
• Q: In Wilcom Hatch, how does moving the green Start Point in Contour Stitch change the “light source” and 3D sphere look?
  A: Move the green diamond Start Point to change stitch direction and thread reflection, which changes the shaded “3D” look without adding layers.
  • Click the object, choose Reshape (or press H).
  • Drag the green Start Point around the circle perimeter; a common beginner-friendly choice is the 10 o’clock position.
  • Success check: The sew-out shows a clear highlight-to-shadow shift (lighter center/edge contrast) instead of a flat, uniform sheen.
  • If it still fails: Confirm the circle is truly round (finish the circle with ENTER) and verify Spacing/Length are inside the safe ranges.
• Q: For Wilcom Hatch Contour Stitch on polo shirts and T-shirts, should the stabilizer be Cutaway or Tearaway to stop center puckering?
  A: Use medium-weight Cutaway (about 2.5 oz) for stretchy knits to resist the inward pull of the contour spiral and prevent center puckering.
  • Identify fabric type first: knits/stretch fabrics need Cutaway; stable fabrics (denim/canvas/twill) can use Tearaway (often 2 sheets).
  • Add spray adhesive to reduce fabric shifting during the spiral stitch-out.
  • Success check: The circle stays round and flat; the center does not dome up or wrinkle into a “raisin” texture.
  • If it still fails: Re-hoop to “drum-tight,” and consider a higher-grip hooping method if hoop slip is visible.
• Q: What physical prep checks should be done before stitching Wilcom Hatch Contour Stitch to avoid wobbly circles and inconsistent 3D shading?
  A: Do the physical prep first—Contour Stitch is sensitive to even small fabric movement, so hooping and consumables matter as much as digitizing.
  • Replace a dull needle; a dull needle can push fabric and ruin concentric circles.
  • Confirm the bobbin is full to avoid stopping mid-fill and restarting with a visible shift.
  • Secure fabric with spray adhesive and use a water-soluble topper when stitching fuzzy fabrics like towels.
  • Success check: Tapped fabric sounds “drum-tight,” and the sew-out rings look concentric rather than drifting.
  • If it still fails: Slow to 600–700 SPM and re-check for hoop slip before adjusting design settings.
• Q: What should be done immediately if an embroidery machine makes a rhythmic “Thump-Thump” sound during a Contour Stitch fill?
  A: Stop immediately—this sound commonly indicates needle strikes or thread build-up/birdnesting under the throat plate, and forcing it can cause damage.
  • Stop the machine and remove the hoop to prevent further needle impacts.
  • Inspect under the throat plate area for thread build-up and clear it before restarting.
  • Re-check the Contour Stitch density (increase Spacing if it was set too tight).
  • Success check: After clearing, the machine runs smoothly without repeated impacts and the stitches form cleanly without piling underneath.
  • If it still fails: Re-test on scrap fabric with safer Spacing and reduced speed before running the full job.
• Q: How can hoop burn (ring marks) be reduced on thick jackets when stitching Wilcom Hatch Contour Stitch circles?
  A: Avoid over-tightening standard plastic hoops on thick materials; hoop burn comes from crushing fibers, not from the software.
  • Do not force thick jackets/velvet into a tight plastic hoop fit; reduce pressure and re-evaluate the hooping method.
  • Steam the fabric to help relax ring marks after stitching.
  • Use a magnetic hooping approach when thick materials need strong hold without crushing the grain.
  • Success check: The fabric surface shows minimal or recoverable hoop marks, and the stitch-out stays centered without slipping.
  • If it still fails: Prioritize stronger stabilization and higher-grip hoop hold to stop movement before increasing stitch density.
• Q: What magnetic embroidery hoop safety rules should be followed when using magnetic frames for thick fabric hooping?
  A: Treat magnetic frames as pinch hazards and keep them away from sensitive medical devices and magnetic-stripe items.
  • Keep fingers out of the snapping zone when closing the magnetic frame.
  • Keep magnetic frames at least 6 inches away from pacemakers and insulin pumps.
  • Store magnetic frames away from credit cards and similar magnetic media.
  • Success check: The frame closes without finger pinches, and the fabric is held firmly without crushing or shifting.
  • If it still fails: Reposition the fabric and stabilize better—do not “muscle” the frame closed if alignment is off.
• Q: For commercial runs of Wilcom Hatch Contour Stitch logos, when should the workflow move from technique tweaks to magnetic hoops or a multi-needle machine?
  A: Use a tiered approach: optimize settings first, upgrade hooping when consistency and hooping time become the bottleneck, and consider multi-needle only when order volume makes color changes the limiting factor.
  • Level 1 (Technique): Lock in safe Spacing/Length, set Start Point (often 10 o’clock), and run at 600–700 SPM.
  • Level 2 (Workflow): If repeated hooping causes inconsistency, wrist strain, or hoop burn on thick items, move to magnetic-style hooping for faster, repeatable holding.
  • Level 3 (Scale): If orders reach 20+ items and single-needle color changes dominate time, a multi-needle machine becomes the practical scaling step.
  • Success check: Hooping time drops, circles stay concentric across repeats, and rework from puckering/hoop slip noticeably decreases.
  • If it still fails: Audit the process with a scrap test sew-out and confirm stabilizer choice (Cutaway for knits) before investing further.
