Wilcom EmbroideryStudio Vector-to-Stitch Conversion: Fast Results, Clean Lettering, and the Two Auto-Digitizing Traps That Ruin Logos

If you have ever stared at a computer screen, clicked "Send to Machine," and felt a knot in your stomach because you aren't 100% sure what constitutes a "good" file versus a potential needle-breaking disaster, you are in good company.

Embroidery is not just graphic design; it is engineering. It is physical. When a customer sends you a "perfect" vector logo, the software sees math, but you have to see thread tension, fabric pull, and friction. Wilcom’s vector-to-stitch workflow is a powerful tool—potentially cutting hours off your digitization time—but it is dangerous in the hands of a rookie who trusts the "Auto" button blindly.

This guide rebuilds the workflow from the video, but we are going to add the "Shop Floor Safety Net." We will cover the exact steps to convert vector artwork in Wilcom EmbroideryStudio (Graphics Mode), but we will also layer in the physical parameters—density, compensation, and hooping physics—that keep your machine running smoothly and your profit margins intact.

Bitmaps vs Vector Artwork in Wilcom EmbroideryStudio: the 10-second test that saves you hours of cleanup

Before we touch a single digitizing tool, we must understand what we are feeding the machine. The presenter starts with a scenario every shop knows: receiving a file that looks like a logo but acts like a ghost—it contains no stitch data.

Here is the cognitive shift you need to make:

• Pixel/Bitmap (JPEG/PNG): These are like photographs of a house. You can see the walls, but you cannot separate the bricks. The software sees thousands of colored squares, not shapes.
• Vector (AI/CDR/EPS): These are the architectural blueprints. The software knows exactly where the wall ends and the window begins.

The 10-Second Zoom Test

How do you know what you have? Zoom in.

• If the edges get blurry or pixelated (blocky), it is a Bitmap. Stop. You cannot auto-convert this reliably without tracing it first.
• If the edges remain razor-sharp no matter how close you zoom, it is a Vector. Proceed.

Why does this matter? If you auto-convert a bitmap, the software tries to stitch the "noise" or pixel fuzz. This results in excessive needle penetrations in small areas, which leads to thread breaks or, worse, a hole in your customer's garment.

Pro Tip from the Floor: Even "clean" vectors can be dirty. Look for "nodes" (the little dots that define the shape). If a simple circle has 50 nodes instead of 4, the machine will stutter (slow down/speed up) trying to process that data. Clean vectors = smooth machine sound.

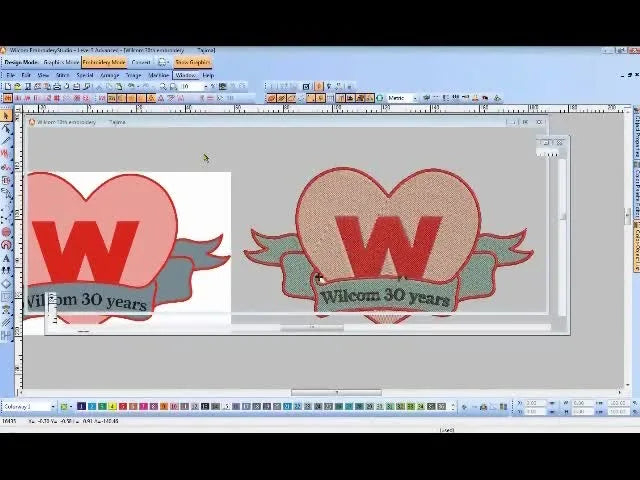

The fast lane: converting vector artwork to stitches in Wilcom Graphics Mode (CorelDRAW integration) without guessing

The video’s core workflow is the bridge between graphic design and embroidery production. It is straightforward, but let's break it down with safety checks.

1. Switch to Graphics Mode: Wilcom integrates CorelDRAW. You aren't just importing; you are opening a graphics suite inside your embroidery software.
2. Select the vector object: Click on the shape you want to become thread.
3. Click Convert: This translates the vector fill color into a default stitch type (usually Tatami for large areas, Satin for narrow ones).




What you should expect right after conversion (The Baseline)

In the video, the automated conversion produces 16,477 stitches. A manual digitizer created a similar file at 17,460 stitches. Later, after expert cleanup, the count rises to 17,958.

Beginner Reality Check: Do not obsess over the stitch count yet. Instead, look at Needle Penetrations.

• Standard Density: The software usually defaults to a spacing of roughly 0.40mm. This is the industry "sweet spot" for pique polos and cotton.
• Safety Zone: If your auto-convert settings generate stitches closer than 0.30mm, you are entering the "cardboard zone" where the embroidery becomes bulletproof and stiff. If it’s wider than 0.60mm, you will see the fabric through the thread.

Prep Checklist: The Physical Foundation

Before you convert, you must match your digital plan to physical reality.

• Fabric Classification: Are you stitching on a stable denim or a stretchy performance knit? (Rule: Stretchy fabrics need Cutaway stabilizer. No exceptions for beginners.)
• Object Hierarchy: Identify text vs. shapes. Text requires different logic (columns) than shapes (fills).
• Hidden Consumable Check: Do you have fresh needles? A burred needle tip will shred thread regardless of how perfect your file is. Use a 75/11 Ballpoint for knits or a 75/11 Sharp for wovens.
• Vector Cleanliness: Ensure there are no hairline outlines in the vector that are too thin to stitch (anything under 1mm width runs the risk of not holding together).

Auto-digitizing vs manual digitizing in Wilcom: the real trade is time-to-acceptable, not ego

There is a pervasive myth that "Real Digitizers Don't Use Auto." This is ego speaking, not business acumen.

• Manual Digitizing: You control every needle drop. Essential for high-end fashion or complex puff 3D embroidery. Time cost: 20+ minutes.
• Auto Conversion: The software applies algorithms based on general physics. Excellent for basic logos and uniform patches. Time cost: 3-5 minutes.

In the tutorial, the time saved is roughly 15 minutes. If you charge $60/hour for digitizing, manual digitizing costs you $20 in time; auto costs you $3. Over a year of orders, that margin defines whether you can afford to upgrade your equipment.

The "Trust but Verify" Protocol: One commenter noted that auto-digitizing is "unforgivable." This is only true if you ship the file without looking at it. The software is a tool, like a calculator. It gives you the answer, but you have to check if the logic makes sense.

The overlap “hole” problem: fixing gaps under objects with Wilcom Reshape tool (node editing) so backgrounds stay solid

This is the single most common failure point for new embroiderers using auto-digitizing. You look at the screen, it looks perfect. You stitch it out, and there is a visible white gap between the red heart and the black letter.

The Physics of "The Pull"

Why does this happen? The software attempts to reduce bulk by removing the stitches of the background object (the heart) where the foreground object (the "W") sits. However, correctly digitized embroidery must account for Push and Pull.

• Pull: Stitches pull the fabric in, shrinking the object in the direction the thread runs.
• Result: The background shrinks away from the letter, creating a gap.

On screen, pixels don't pull. On fabric, everything moves.

The Fix: Manual Node Reshaping

The video demonstrates the correct engineering fix:

1. Select the Background Object (the heart).
2. Activate Reshape Tool: This reveals the nodes (blue squares/circles).
3. Create Overlap: Drag the nodes of the heart underneath where the "W" will sit.


You need Overlap Assurance. You clearly want the background stitches to extend 1.5mm to 2mm under the top object. This is your safety margin against the fabric shifting in the hoop.

Expert Insight: Hooping consistency is your variable

If you use flimsy stabilizer or hoop loosely, you need more overlap. If you use a drum-tight hooping technique, you can get away with less.

If you are struggling with "hoop burn" (the shine left on fabric) or keeping adequate tension, this is where tool selection matters. Many professionals switch to magnetic hoops because they allow for consistent tension without the "cranking" motion of traditional screw hoops that distorts fabric fibers. If you are running volume, mastering hooping for embroidery machine entails minimizing fabric distinction—a magnetic frame often provides a flatter, more consistent surface which reduces the "gap" risk significantly.

Lettering quality is where auto conversion gets exposed: replace converted text with Wilcom pre-digitized fonts (Serif 2) for professional standards

Text is the signature of a professional. Amateur embroidery creates text that looks like a "blob" or a "filled shape." Professional text has crisp corners, consistent column width, and proper underlay.

The presenter compares:

• Auto-Digitized Text: Treat letters as arbitrary shapes. (Risk: Unreadable at small sizes, messy serifs).
• Pre-Digitized Fonts: These are fonts built by Wilcom's master digitizers where the needle path is optimized for legibility.


The "Swap" Technique

1. Identify the Text: Do not auto-convert it.
2. Delete: Remove the vector text shape from the stitch data.
3. Replace: Use the Lettering Tool, type the text, and select a pre-digitized font (like Serif 2) that matches the artwork.


Setup Checklist: The "5mm Rule"

• Size Threshold: If the text is smaller than 5mm in height, you generally cannot use standard fonts. You must use "Small Text" fonts or run stitches. Auto-converting a 4mm letter A is a guaranteed thread nest.
• Underlay Check: For text height 6mm-10mm, ensure Center Run underlay is on. For text >10mm, use Edge Run + Zigzag. This anchors the fabric before the satin column covers it.
• Kerning (Letter Spacing): Embroidery adds bulk. Letters that touch on screen will overlap on fabric. Increase spacing by 10-15% for clarity.

The Tagging feature in Wilcom Graphics Mode: map vector text to embroidery fonts so conversion follows lettering logic

For a more automated workflow, Wilcom offers "Tagging." This bridges the gap between the design world and the stitch world.

• You select the text in Graphics Mode.
• You "Tag" it, essentially telling the software: "When you convert this later, do not make it a shape. Make it Block 2 embroidery font."




Troubleshooting Tip: If you cannot find these features, you likely have "Wilcom Decorator" or "Designing" levels rather than the full suite, or your Corel integration is inactive. Do not panic. The "Delete and Replace" method mentioned above works in almost every version and offers maximum control.

Stitch count comparisons in the video: what the numbers really tell you (and what they don’t)

The video notes the stitch counts:

• Auto: ~16,500
• Manual: ~17,500
• Edited Auto: ~18,000




Cognitive Reframing for New Users: Novices think "Fewer stitches = Cheaper/Faster." Experts know "Enough stitches = Quality/Durability."

The increase in stitch count in the final file comes from Underlay and Overlap correction.

• Underlay: This is the foundation stitching that happens before the visible thread. It locks the fabric to the stabilizer. Auto-conversion often skimps on this. Adding it back in costs stitches but buys you crispness.
• Stitch "Inflation": If your count jumps by 50% without you adding objects, check your settings. You might have accidentally set the density too high (e.g., 0.30mm).

The “why” behind the cleanup: stitch architecture decisions you should sanity-check after any auto conversion

The machine is blind. It relies on the file to tell it how to handle physics. Here are the parameters you must verify in the Object Properties after auto-converting:

1. Pull Compensation:
   • Find this setting. It adds width to columns to counteract the thread pulling in.
   • Value: Set Absolute Pull Comp to 0.20mm - 0.25mm. If it is set to 0.00mm, your text will look skinny and gaps will appear.
2. Tie-ins and Tie-offs:
   • Ensure every object has a tie-in (start) and tie-off (end). Without these, the thread will unravel the moment you wash the garment.
   • Sensory Check: You should hear the machine take 3-4 tiny stitches before jumping to the next spot. That is the sound of security.
3. Start/End Points:
   • Auto-digitizing sometimes puts the end point of one letter far away from the start of the next, causing long jump stitches. Moving these points closer reduces trim time and machine wear.

Decision tree: when to keep auto-digitizing, when to go manual, and when to upgrade your production workflow

Embroidery is a series of "If-Then" decisions. Use this logic tree to navigate your next order.

1. Is the Input Vector?
   • No (Bitmap/Pixel): Do not Auto Convert. Trace it or digitize manually.
   • Yes: Proceed to Step 2.
2. Does the design contain lettering?
   • Yes: Strip and Replace. Delete converted text shapes and use pre-digitized fonts. This is non-negotiable for professional results.
   • No: Proceed to Step 3.
3. Are there overlapping layers (Background + Foreground)?
   • Yes: Use Reshape Tool. Drag background nodes 1-2mm under the foreground object.
   • No: Proceed to Step 4.
4. Is this a high-profit/high-volume order?
   • One-off Gift: Auto-convert + Quick Visual Check is acceptable.
   • 50+ Corporate Polos: Do not risk it. Spend the 20 minutes to Manually Digitize or heavily audit the Auto file. The cost of ruining 50 shirts is higher than your time.

The upgrade path that actually feels like relief: pairing clean files with faster hooping (without sacrificing quality)

You can have the perfect file, but if your physical setup is flawed, the result will look amateur. The most common physical pain point in embroidery production is Hooping.

Traditional screw hoops are slow. They require wrist strength, and they often leave "hoop burn" (a crushed ring of fabric fibers) that creates customer complaints/returns.

• The Problem: You have optimized your software workflow (3 mins), but it takes you 5 minutes to hoop a shirt straight, and you are hurting your wrists.
• The Upgrade: Upgrading to toolsets like limiting framing systems or dedicated hoopmaster station kit setups changes the physics of your shop. Instead of fighting the garment, you use fixtures to ensure placement is identical on Shirt #1 and Shirt #100.
• The Solution: For the frames themselves, magnetic embroidery hoops are the industry secret for speed. They clamp fabric without the "friction twist" of a screw hoop. They are gentler on velvet, pique, and performance wear, reducing the "hoop burn" that ruins merchandise.

Warning: Magnet Safety
Magnetic hoops (specifically Mighty Hoops or Sewtech Magnetics) rely on powerful industrial magnets.
* Pinch Hazard: They snap together with immense force. Keep fingers clear of the edges.
* Medical Safety: Keep them at least 6-10 inches away from pacemakers or insulin pumps.
* Storage: Store them separated by their foam spacers; do not let them snap directly to each other or machine metal when not in use.

If you are transitioning from hobby to business, learning how to use magnetic embroidery hoop systems is the fastest way to double your hourly output without buying a second machine immediately.

Operation Checklist: The Last 60 Seconds Before "Start"

You have the clean file. You have the right hoop. Do not crash the plane on the runway.

• Bobbin Check: Open the case. Is it low? Change it now.
  • Visual: Look for the "1/3 rule." The white bobbin thread should show about 1/3 of the width on the back of a satin column test.
• Needle Check: Run your fingernail down the needle. If you feel a scratch (burr), throw it away. A $0.50 needle can ruin a $50 jacket.
• Clearance Check: Rotate the handwheel (or use the Trace function) to ensure the needle bar will not hit the plastic of the hoop.
  • Auditory: Listen for the "Clack-Clack" of the presser foot hitting the hoop. If you hear it during Trace, resize or re-hoop immediately.

Warning: Physical Safety
Never place your hands inside the hoop area while the machine is running. 1000 stitches per minute (SPM) means the needle moves faster than your reflex. If a needle breaks, it can shatter into flying shrapnel—always wear glasses or keep the safety shield down.

Final takeaway: auto conversion is a tool—your standards are the product

Auto-conversion is not "cheating"; it is leverage. But leverage requires a fulcrum, and that fulcrum is your experience.

The workflow demonstrated here—Convert > Reshape Overlaps > Replace Lettering > Check Pull Comp—is the difference between a "home-made" look and a "commercial" finish.

Start with the software tools to get 80% of the way there. Use your sensory checks (visual zoom, auditory machine rhythm) to verify the last 20%. And when your volume grows to the point where your hands hurt from hooping, look to hardware solutions like hooping stations or a specialized embroidery magnetic hoop to sustain your growth.

The goal isn't just to make stitches; it's to make a profit without panic.

FAQ

• Q: In Wilcom EmbroideryStudio Graphics Mode, how can Wilcom users confirm the artwork is a true vector (AI/CDR/EPS) before using Convert to Stitches?
  A: Use the 10-second zoom test before converting, because auto-converting a bitmap often creates noisy stitches and thread breaks.
  • Zoom in hard on the artwork edges in Graphics Mode.
  • Stop and trace/redraw if the edge becomes blurry or blocky (bitmap behavior).
  • Proceed to Convert only if the edge stays razor-sharp at high zoom (vector behavior).
  • Success check: At maximum zoom, a true vector edge stays clean and smooth, not pixelated.
  • If it still fails: Inspect the vector for excessive nodes (e.g., a “simple” circle made of many nodes) and clean the artwork before converting.
• Q: After Wilcom Convert to Stitches, what Wilcom EmbroideryStudio density numbers should Wilcom users sanity-check to avoid stiff “cardboard” embroidery or show-through?
  A: Treat stitch spacing as the safety control: around 0.40 mm is a common baseline, below 0.30 mm often gets too dense, and above 0.60 mm often shows fabric.
  • Open the converted object properties and find the spacing/density value.
  • Keep a safe starting point near 0.40 mm for common cotton/pique jobs.
  • Back off if spacing is tighter than 0.30 mm (risk: stiffness, friction, breaks).
  • Tighten up if spacing is wider than 0.60 mm (risk: fabric showing through).
  • Success check: The design looks filled without feeling “bulletproof” stiff in test sew-out.
  • If it still fails: Re-check fabric + stabilizer choice first, because unstable fabric can mimic “bad density” problems.
• Q: In Wilcom EmbroideryStudio, how can Wilcom users fix white gaps between a background fill (Tatami) and a top object after auto conversion using the Reshape Tool?
  A: Add intentional overlap on the background object, because fabric pull can open gaps even when the screen preview looks perfect.
  • Select the background object (the fill that sits under the top shape).
  • Activate Reshape Tool and expose the nodes.
  • Drag the background edge to extend about 1.5–2.0 mm underneath the top object area.
  • Success check: After stitch-out, the background does not “shrink away” to reveal a visible halo/gap around the top object.
  • If it still fails: Improve hooping consistency (loose hooping and flimsy stabilizer usually require more overlap than drum-tight, stable setups).
• Q: In Wilcom EmbroideryStudio, why should Wilcom users delete auto-converted lettering and replace it with Wilcom pre-digitized fonts (e.g., Serif 2), especially under the 5 mm text height rule?
  A: Do not trust auto-converted text shapes—replace lettering with pre-digitized embroidery fonts for clean, readable results, and treat <5 mm text as a special case.
  • Delete the converted stitch objects that came from vector text shapes.
  • Use the Lettering Tool and select a pre-digitized embroidery font (example: Serif 2) that matches the style.
  • Enforce the 5 mm rule: if lettering is smaller than 5 mm, switch to small-text/run-style solutions rather than standard satin letters.
  • Success check: Letter corners stay crisp and readable, not blobby, and the machine does not build a thread nest in tiny letter interiors.
  • If it still fails: Increase letter spacing (often 10–15%) and verify underlay is appropriate for the text size.
• Q: In Wilcom EmbroideryStudio auto-converted designs, what Wilcom Object Properties checks prevent skinny text, unraveling, and excessive trims (Pull Compensation, Tie-ins/Tie-offs, Start/End Points)?
  A: Run a quick “architecture audit” after any auto conversion: pull comp, tie-offs, and start/end points prevent the most expensive surprises.
  • Set Absolute Pull Compensation to a safe starting point of 0.20–0.25 mm to reduce skinny columns and gaps.
  • Verify each object has tie-in and tie-off stitches so stitches do not unravel after washing.
  • Move start/end points to reduce long jump stitches that waste time and increase wear.
  • Success check: During stitching, the machine makes the small securing stitches at starts/ends, and jump stitches are short and controlled.
  • If it still fails: Re-check overlap decisions and density—auto conversion can stack multiple issues at once.
• Q: Before pressing Start on a multi-needle embroidery machine, what last-60-second checks should operators perform to prevent hoop strikes, thread nests, and avoidable scrap?
  A: Do the last-minute checklist every time—most “mystery failures” are consumables or clearance problems, not the digitizing.
  • Check bobbin level now and replace if low (avoid running out mid-object).
  • Inspect the needle for burrs (if a fingernail catches, replace the needle).
  • Run Trace/handwheel rotation to confirm the needle bar and presser foot clear the hoop (no contact risk).
  • Success check: Trace completes with no “clack-clack” hoop contact and the first stitches form cleanly without birdnesting.
  • If it still fails: Stop immediately and re-check hoop clearance and the needle condition first, then review start/end points and trims.
• Q: What safety rules should operators follow to prevent needle-injury hazards on high-speed embroidery machines running around 1000 stitches per minute (SPM)?
  A: Keep hands out of the hoop area while running, because 1000 SPM needle motion is faster than human reflex and broken needles can become shrapnel.
  • Never place fingers inside the hoop/sewing field during operation.
  • Use the safety shield or wear eye protection when running tests or production.
  • Stop the machine before making any adjustments near the needle or hoop.
  • Success check: All adjustments happen with the machine fully stopped, and operators never “reach in” while stitching.
  • If it still fails: Slow down the workflow—use Trace and pre-flight checks to avoid panic interventions mid-run.
• Q: What magnetic embroidery hoop safety rules should embroidery shop owners follow when using industrial magnetic hoops to reduce hoop burn and speed up hooping?
  A: Treat magnetic hoops as pinch-hazard tools and follow strict handling rules, because the magnets snap together with high force.
  • Keep fingers away from hoop edges when closing the magnetic frame (pinch hazard).
  • Keep magnetic hoops 6–10 inches away from pacemakers or insulin pumps.
  • Store magnetic hoops separated with foam spacers and avoid letting hoops snap onto metal surfaces.
  • Success check: Hoops close under control without finger pinches, and frames are stored separated (not stuck together or to machine metal).
  • If it still fails: Switch to a slower two-handed closing technique and reorganize the work area so magnets cannot “jump” to nearby metal accidentally.
