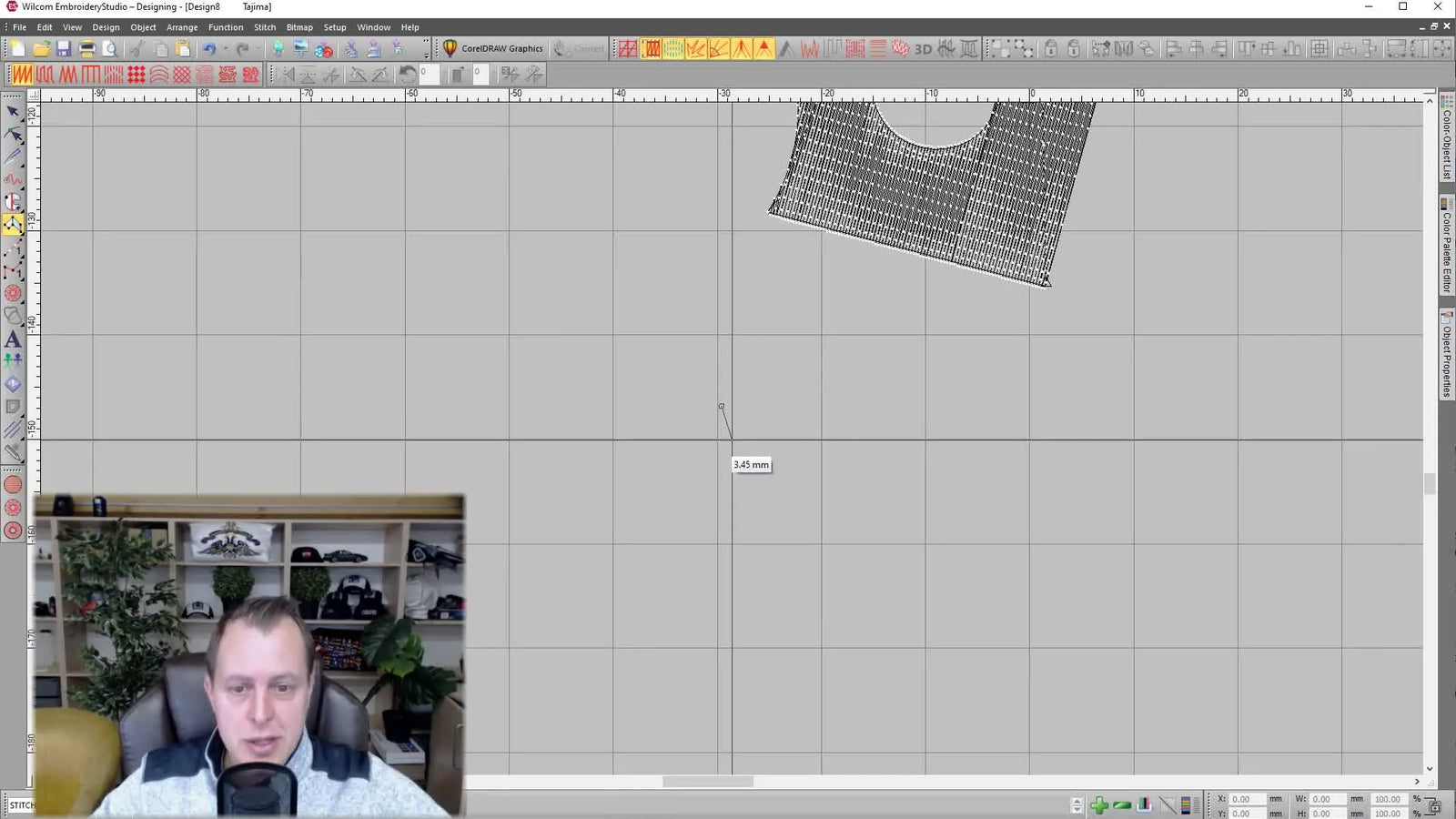

Wilcom EmbroideryStudio Tools That Actually Matter: Reshape, Knife, Complex Fill, Input C, and Clean Outlines (Without the Usual Mistakes)

If Wilcom EmbroideryStudio feels like a cockpit full of buttons, you’re not alone. Most beginners don’t fail because they “can’t digitize”—they fail because they use the right tool at the wrong moment, then spend an hour repairing a design that should’ve taken five minutes.

Drawing from twenty years of production floor experience, I can tell you that embroidery is an "empirical science"—it lives in the tension between your software settings and the physical movement of the needle. A file that looks perfect on screen can tear a T-shirt in seconds if the logic is wrong.

This post rebuilds the video lesson into a shop-friendly workflow: where the Toolbox lives, how to reshape lettering without breaking it, how to split objects cleanly, how to create fills (and holes) that stitch predictably, and how to choose the right line type for fabrics like towels and fleece.

Calm First: When the Wilcom Toolbox Disappears, It’s Not a Crash—It’s a Checkbox

The video starts with the most common “panic moment”: the left-side tool panel is gone, or it’s floating somewhere random because it was dragged. When your visual anchor points vanish, your muscle memory fails, and frustration spikes.

Video fix (exact path): go to Window > Toolbars > Toolbox and make sure Toolbox is checked. Once it’s visible, you can drag-and-drop it wherever your eyes work best.

Pro tip from real-world production: keep the Toolbox in a consistent location across all your shop computers. When you’re training staff (or switching between home and studio), consistency prevents “where did my tools go?” delays.

The "45-Degree" Rule

I recommend docking your toolbox on the left. Why? Because most Western readers scan left-to-right. Your eyes naturally return to the left margin. Docking it there reduces eye strain and milliseconds of "search time" every time you need a new tool.

Warning: Don’t digitize while distracted by layout chaos. Mis-clicks in Wilcom often create extra nodes or accidental objects that you won’t notice until you’re troubleshooting thread breaks on the machine. If you see tiny "+s" appearing on screen where you didn't intend to stitch, stop immediately and check your object list.

Prep Checklist (before you touch a single node)

• Verify Toolbox Visibility: Go to Window > Toolbars > Toolbox and ensure the checkmark is active.
• Anchor Your Layout: Park the Toolbox where you can reach it without crossing the entire screen area (less wrist travel = fewer mis-clicks).
• Safe Sandbox: Open a simple practice file (text + one filled shape) so you can test tools safely without risking a client file.
• Goal Definition: Decide your specific task first: are you reshaping letters, splitting shapes, or creating outlines? Focus prevents feature-creep.
• Safety Save: Save a copy of the file before heavy edits (Ctrl+Shift+S) so you can roll back if you over-reshape.
• Hidden Consumable Check: Have a notepad or second monitor ready. Do not rely on memory for specific stitch angle numbers or pull compensation values.

The Select Tool + Reshape Object: The Fastest Way to Fix Lettering Without Re-digitizing

The instructor begins with the two tools you’ll touch constantly. Think of these as your "Left Hand" and "Right Hand."

• Select tool (arrow): This is for macro movements. Click an object, drag it, reposition it.
• Reshape Object: This is for micro-surgery. It edits the object’s geometry—lettering outlines, nodes, and the “feel” of the shape.


What the video shows (and what most people miss)

1) Click Reshape Object on a font object. 2) You’ll see outlines and control points. 3) Baseline behavior matters: dragging normally keeps letters locked to the baseline. 4) To move a single letter freely off the baseline (creating a custom "bouncing" text effect), hold Ctrl (STRG) while dragging that letter diamond.

The two keyboard habits that separate beginners from confident digitizers

• Ctrl (STRG) while dragging: This is your "freedom key." It breaks the magnetic snap of the baseline, letting you manually kern or vertically offset letters for logos.
• Spacebar toggles node type: This is the secret to smooth curves. In the video, pressing Spacebar switches a selected node between round/curve (Blue circle) and corner/square (Yellow square).


Why this matters (expert insight): Every extra node is a coordinate the machine must calculate. Beginners often try to fix a weird shape by adding more nodes. This creates a "jittery" edge because the pantograph (the arm moving the hoop) has to make micro-stutters.

• The Rule: Your goal is not "more control points"—your goal is "the fewest points that still describe the shape cleanly."
• Sensory Check: Look at your curve. Is it smooth like a highway turn, or jagged like a saw blade? Use the Spacebar to smooth out jagged corners.

Comment integration (common beginner question): someone asked what software is being used. It’s Wilcom EmbroideryStudio. The reason it’s the standard in professional shops is exactly what you’re seeing here: object-level editing (Format .EMB) keeps the design "live," whereas stitch-file editing (Format .DST) is like trying to edit a flattened PDF.

The Knife Tool in Wilcom: Split Shapes Cleanly So You Can Insert Text (Without Making a Mess)

Sooner or later you’ll need to split a shape—maybe to place text in the middle, or to separate a fill into two stitch directions to create a light-reflecting effect.

Video sequence (exact): 1) Select the object first. (Crucial Step) 2) Choose the Knife tool. 3) Click once outside the shape to start the cut line. 4) Click again on the other side to define direction. 5) Press Enter to execute the cut.

After pressing Enter, the object becomes two separate pieces.

Why Knife is a production tool (not just a trick): Splitting a large area allows you to control the "Push and Pull" of the fabric.

• The Physics: Large fills pull the fabric in together. By knifing a shape into smaller sections, you can angle the stitches differently in each section (e.g., 45 degrees vs 135 degrees), which balances the tension on the fabric and prevents puckering.

Watch out: If you forget step (1) and don’t select the object first, you’ll think the Knife is “broken” or grayed out. It isn’t—Wilcom is just waiting for a valid target.

Complex Fill in Wilcom: The “Big Area” Tool That Saves You From Satin Disasters

The video calls out a key rule: for large filled areas, Tatami is preferred; Satin is for small sections.

The exact Complex Fill workflow shown in the video

1) Select Complex Fill. 2) Click around the perimeter to define the shape.

• Left click for corners (Sharp turns).
• Right click for curves (Flowing lines).

3) Press Enter three times:

• Enter 1: Close the shape.
• Enter 2: Set the entry point (Where does the needle start?).
• Enter 3: Set the exit point (Where does it end?).

4) Click to define the stitch angle.

Expected outcome: once the angle is set, the shape fills with stitches.

The “why” behind Tatami vs Satin (so you stop learning by failure)

• Satin Stitches: These are long, floating threads jumping from one side of a column to the other. If a Satin stitch is longer than 7mm to 10mm (depending on the machine), it becomes a "snag hazard." It will loop loosely, catch on zippers or jewelry, and look unprofessional.
• Tatami Fills: This breaks the area into a stable, woven pattern. It is structurally sound for areas wider than 1cm.

Fabric Warning: If you’re digitizing for fluffy substrates like towels or fleece, this choice is critical. A Satin stitch might sink and get lost, whereas a dense Tatami mats down the pile to create a smooth platform for light reflection.

Cutting Holes Inside a Complex Fill: The Clean Way to Create Voids Without Redrawing Everything

The video demonstrates a simple but powerful move: you can remove stitches from inside an existing fill by drawing an inner “hole.” This reduces the total stitch count—saving you money and time—and prevents "bulletproof embroidery" (designs so dense they are stiff and uncomfortable).

Video method (exact): 1) Select the filled object you just created. 2) Click Complex Fill again. 3) Draw the inner shape (the void). 4) Press Enter.

Expected outcome: Wilcom removes stitches inside the second shape, creating a transparent hole instantly.

Pro workflow note: The instructor prefers to create the outer shape first, then add holes afterward. That’s a smart habit—your brain stays focused on one geometry problem at a time. Trying to draw a donut shape in one continuous line is cognitively taxing and prone to errors.

Input C (“Double Needle”) in Wilcom: Build Satin Paths for Fonts, Pipes, and Bold 3D Lines

This is where beginners start to feel like “real digitizers.” The instructor calls Input C the “double needle” tool and uses it to draw satin-style paths. It simulates the effect of drawing with a calligraphy pen.

What the video teaches about Input C

• Function: Input C creates a satin column based on two rails or a centerline with width properties.
• Usage: It’s ideal for custom fonts, borders, stems of flowers, and pipe-like shapes.
• Flexibility: You can adjust the width variably along the path (thin-thick-thin) by manipulating the side nodes.
• Video dimension callout: An example outline width shown is 3.22 mm.

Expert insight (digitizing logic you’ll thank yourself for later): Satin columns are unforgiving when paths overlap. If two Satin paths cross each other at 90 degrees, you get 4x the thread buildup at the intersection.

• The Risk: Heavy overlap creates "hard ridges." When the needle tries to penetrate this hardened mass of thread, it deflects.
• The Sound: Listen for a loud "Thud" or "Bang." That is the sound of a needle struggling.
• The Fix: Use Input C carefully. If paths must cross, ensure the density is lowered at the intersection, or use the "Knife Tool" to stop one path before it crosses the other.

Fixed-Width Outline Under Input C: Perfect Borders Fast—But You’re Locked Into One Width

The video shows a second option under the Input C flyout: a fixed-width outline tool.

Video workflow (exact)

1) Select the fixed-width outline option under Input C. 2) Trace the edge of an object. 3) Press Enter. 4) Enter the precise width value when prompted (e.g., 2.5mm).

Expected outcome: A consistent-width satin border appears around the shape instantly.

The tradeoff (the instructor is very clear): You cannot vary width in different sections later. It’s one width everywhere.

How I decide in a shop setting:

• Use Fixed-Width: For uniform borders, patch edges, and simple badges where consistency is key.
• Use Variable Input C: For artistic designs, script lettering, or organic shapes (like vines) where the line needs to taper from thick to thin.

Run Stitch vs Backstitch in Wilcom: The Fabric Rule That Prevents “My Line Disappeared”

The video compares two line types. This seems basic, but choosing the wrong one is why designs look great on screen but disappear on the finished product.

• Run Stitch: A single thin line (one pass). The needle goes A -> B -> C.
• Backstitch (or Triple/Bean Stitch): Multiple passes back and forth. The needle goes A -> B -> A -> C. This creates a much thicker, bolder line.




The fabric-specific advice shown in the video

Backstitch is mandatory on towels or fleece. Why? Because these fabrics have a "pile" (loops or fuzz). A single Run stitch is thin; it will sink between the loops of a towel and vanish completely. The Backstitch (or Triple Run) has enough bulk to sit on top of the pile, remaining visible.

Setup Checklist (before you commit to line types)

• Identify the Substrate: Is it a towel, fleece hoody, or smooth dress shirt?
• Select Line Type: If the line must stay visible on fluffy fabric, choose Backstitch/Triple Run.
• Reserve Detail: Keep single Run stitches only for very fine details on stable, smooth fabrics (like Twill or Poplin).
• Visual Check: Preview the design on-screen in "TrueView" (3D mode). Thin lines vs bold lines should match the hierarchy of your design.
• Layering: If you’re mixing fills and outlines, plan the order so outlines stitch last and don’t get buried by adjacent fills.

Create Outlines & Offsets in Wilcom: The “Quick Outline” Button—Great, But Not Magic

The last tool in the video is automated outlining. It’s a huge time saver, but dangerous if trusted blindly.

Video workflow (exact)

1) Select an object. 2) Click Create Outlines & Offsets. 3) Choose options in the dialog (Input C type, color, offset distance, loop count). 4) Click OK.

Expected outcome: Wilcom generates an outline around the selected shape automatically.

The honest truth (and the instructor says it too): It’s useful for speed, but it often misinterprets sharp internal corners, creating weird loops.

The “why” (expert insight): compensation is where beginners get burned

Even when software generates a perfect-looking outline on screen, embroidery is physical.

• Pull Compensation: Stitches pull fabric in.
• Push Compensation: Stitches push fabric out.

If you use the auto-outline tool with zero offset, the outline might land inside the object on one side and outside on the other due to fabric distortion.

• The Fix: Always generate the outline, then manually inspect curves. You will often need to slightly overlap the outline with the fill to ensure no "white gaps" appear between the border and the fill.

A Practical Decision Tree: Which Wilcom Tool Should You Use for This Shape?

Use this when you’re staring at the screen thinking, “Which tool is the right one?”

1) Are you editing existing lettering or reshaping an object?

• Yes → Use Reshape Object.
  • Tip: Hold Ctrl/STRG to move letters off the baseline.
  • Tip: Press Spacebar to toggle between round and sharp nodes.
• No → Go to 2.

2) Are you trying to split an object into separate pieces?

• Yes → Use the Knife tool.
  • Select object → Click Start Cut → Click End Cut → Enter.
• No → Go to 3.

3) Are you filling a large area (>10mm width)?

• Yes → Use Complex Fill with Tatami stitch type.
• No → Go to 4.

4) Do you need a satin-style border or bold “pipe” line?

• Yes, and width must vary (artistic) → Use Input C satin path.
• Yes, and width must stay constant (uniform) → Use Fixed-width outline under Input C.
• No → Go to 5.

5) Are you digitizing a thin line detail?

• Smooth fabric, very fine detail → Run Stitch.
• Towels/fleece/fluffy fabric → Backstitch (Triple Run) so it doesn’t disappear.

The “Hidden” Production Prep Nobody Mentions: Digitizing Choices Must Match Hooping + Stabilizer Reality

The video focuses on Wilcom tools (as it should), but as a production manager, I must tell you: Software is only 50% of the battle. Your file only looks “good” if the garment is held stable.

Here’s the practical connection: You can digitize the most beautiful, scientifically correct Tatami fill in Wilcom, but if your hooping is loose, the fabric will shift. The outline you added in Step 10 will miss the fill, creating a gap.

When hooping becomes the bottleneck or the cause of errors, many shops look at their hardware setup.

• Terms like hooping station for embroidery often come up in professional forums because consistent placement reduces rejects. If you can't hoop straight, your perfect file stitches crooked.
• If you struggle with "Hoop Burn" (those shiny rings left on dark fabric) or wrist pain from clamping thick items, looking into a magnetic embroidery hoop can be a workflow upgrade. They hold fabric firmly without the friction burn of traditional rings, which complements the precise low-distortion files you create in Wilcom.

Warning: Magnets are not a “toy upgrade.” Keep magnetic frames away from pacemakers/implanted medical devices, and never let magnets snap together near fingers—pinch injuries are real.

How to think about upgrades without getting sold the wrong thing

• Scene Trigger: “My design file is perfect, but the outline is shifted on the actual shirt.”
• Diagnosis: This is likely a stability issue. Inspect your hooping tension. It should feel like a drum skin—tight, but not stretched.
• Options for Resolution:
  • Level 1 (Skill): Use a heavier Cutaway stabilizer.
  • Level 2 (Tool): If clamping thick jackets prevents tight hooping, a magnetic hoop can secure the garment without forcing it.
  • Level 3 (System): If your placement varies by inch every time, a hooping station for machine embroidery ensures the logo lands on the exact same spot for all 50 shirts.

Comment-Driven Micro Fixes: Cursor Confusion and Special Characters (What You Can Do From This Lesson)

A viewer on the original video asked how to make the cursor point look like a cross. The video doesn’t cover cursor customization directly, but it does show a reliable workaround mindset: when you can’t “see” what you’re doing, zoom in using the mouse wheel and rely on node visibility (Reshape Object). In practice, most cursor confusion comes from not being in the expected tool mode.

Another viewer asked how to make "Enye" (ñ). While the video doesn't teach keyboard mapping, it demonstrates the core skill you need: Reshape Object.

• The Fix: Type an "n". Create a separate small wave line (tilde) using the Run Stitch tool. Select the tilde, use the Reshape Object tool to move it exactly over the "n". Group them together. You now have a custom character without needing a special font.

The Upgrade Path From Hobby to Shop-Speed: Where Wilcom Ends and Production Begins

Wilcom skill makes your files cleaner. Production tools make your output consistent.

If you’re running one-off projects, you can survive with careful manual hooping and a single-needle machine. But if you’re doing repeats, team orders, or small-batch production, the biggest "Time Sink" is usually hooping and setup—not digitizing.

This is where the ecosystem of magnetic hooping station systems (or a standalone hooping station) starts paying for themselves: fewer placement errors, less operator fatigue, and faster turnaround.

And if you’re scaling beyond a single needle, the conversation shifts from “Can I digitize it?” to “How many can I stitch per hour?”

• The Limit: A single-needle machine requires you to stop and manually change threads for every color.
• The Solution: This is where multi-needle productivity upgrades become the next logical step. A machine that holds 15 colors and trims its own threads allows you to act as a manager, not a machine operator.

Warning: Always treat needles, scissors, and moving machine parts as industrial hazards. Power down before changing needles, keep fingers clear during test runs, and never reach under a presser foot area while the machine is active.

Operation Checklist (the “export-ready” sanity pass)

• Object Integrity: Confirm objects are selected and separated correctly (Knife splits should be truly independent pieces).
• Node Cleanup: Inspect node count after Reshape edits; remove unnecessary points if the shape got “wobbly” or jagged.
• Fill Type Validation: For large areas (>1cm), confirm you used Tatami rather than forcing Satin into a big fill.
• Intersection Safety: Check for overlapping Satin paths in Input C that could cause heavy density/needle breaks.
• Width Consistency: If you used fixed-width outlines, confirm the width is correct for the scale (e.g., is 2mm visible enough?).
• Fabric Match: Choose Run Stitch vs Backstitch based on fabric (Towels/Fleece/Knits MUST have Backstitch/Underlay).
• Expansion Check: If you used Create Outlines & Offsets, inspect corners and tight curves. Ensure they overlap the fill slightly to prevent gaps.

If you master just these tools—Select, Reshape, Knife, Complex Fill (with holes), Input C (variable and fixed), and Run vs Backstitch—you’ll stop “fighting Wilcom” and start making files that stitch the way you intended.

FAQ

• Q: How do I restore the missing Wilcom EmbroideryStudio Toolbox panel when the Toolbox disappears or floats off-screen?
  A: Turn the Toolbox back on in Wilcom EmbroideryStudio; it is usually just unchecked, not a crash.
  • Go to Window > Toolbars > Toolbox and make sure Toolbox is checked.
  • Drag the Toolbox and dock it in a consistent spot (many shops keep it on the left to reduce mis-clicks).
  • Save your workspace/layout if your version supports it, so the panel stays put.
  • Success check: the full left tool panel is visible and stays anchored after reopening the file.
  • If it still fails: reset the interface/layout and reopen Wilcom, then re-check Window > Toolbars for disabled toolbars.
• Q: How do I reshape Wilcom EmbroideryStudio lettering without re-digitizing, including moving one letter off the baseline?
  A: Use Reshape Object for lettering edits, and hold Ctrl/STRG to free a single letter from the baseline.
  • Select the text object, then click Reshape Object to reveal outlines/control points.
  • Hold Ctrl/STRG while dragging the letter diamond to move one character independently (for “bouncing” text).
  • Press Spacebar on a selected node to toggle curve (round) vs corner (square) and keep curves clean.
  • Success check: the letter moves where intended and the outline remains smooth (not jagged or “wobbly” from excess nodes).
  • If it still fails: undo and reduce node edits—adding extra nodes often causes jittery edges when stitched.
• Q: Why is the Wilcom EmbroideryStudio Knife tool grayed out or “not working” when trying to split a shape for text placement?
  A: The Knife tool needs a valid target first—select the object before using the Knife.
  • Click the object you want to cut (this is the step most people miss).
  • Choose the Knife tool, click once outside the shape to start the cut, then click on the other side to set direction.
  • Press Enter to execute the cut.
  • Success check: the original shape becomes two separate selectable objects.
  • If it still fails: confirm you are not trying to cut an unselected or locked element; reselect the fill object and repeat the cut sequence.
• Q: When should Wilcom EmbroideryStudio use Tatami (Complex Fill) instead of Satin for large areas, and how do I create the fill correctly?
  A: For large filled areas, use Complex Fill (Tatami) because Satin over big widths can snag and stitch unreliably.
  • Select Complex Fill and digitize the perimeter: left-click corners, right-click curves.
  • Press Enter three times: close shape, set entry point, set exit point.
  • Click to define the stitch angle after setting entry/exit.
  • Success check: the area fills evenly as a stable tatami pattern after the angle is set (not long floating satin spans).
  • If it still fails: re-check that the shape was properly closed on the first Enter; redo the entry/exit points so the stitch flow makes sense.
• Q: How do I cut a hole (void) inside a Wilcom EmbroideryStudio Complex Fill without redrawing the entire object?
  A: Re-enter Complex Fill on the existing filled object and draw an inner shape to subtract stitches instantly.
  • Select the filled object you already created.
  • Click Complex Fill again and draw the inner “hole” shape.
  • Press Enter to apply the void.
  • Success check: the inside area becomes stitch-free immediately (the fill remains only around the hole).
  • If it still fails: confirm the outer fill object is selected before drawing the inner shape; then redraw the hole as a clean closed shape.
• Q: Which Wilcom EmbroideryStudio line type prevents outlines from disappearing on towels or fleece: Run Stitch or Backstitch (Triple/Bean Stitch)?
  A: Use Backstitch/Triple Run on towels or fleece because a single Run Stitch often sinks into the pile and vanishes.
  • Identify the substrate first: fluffy pile (towel/fleece) vs smooth stable fabric.
  • Choose Backstitch/Triple Run for any line that must remain visible on pile fabrics.
  • Preview in Wilcom (e.g., TrueView/3D) to confirm line weight matches the design hierarchy.
  • Success check: the outline appears bold enough in preview and remains visually “on top” of the fabric pile after stitching.
  • If it still fails: increase line robustness by switching any remaining thin run details to backstitch where visibility matters most.
• Q: What safety steps should operators follow when using embroidery machine needles and moving parts during test runs and needle changes?
  A: Treat the embroidery machine as industrial equipment—power down before needle work and keep hands clear during motion.
  • Power off (or fully stop) the machine before changing needles or reaching near the presser-foot/needle area.
  • Keep fingers away during test runs; never reach under the presser foot while the machine is active.
  • Use scissors and tools deliberately; store them so they cannot fall into the needle area.
  • Success check: needle changes happen with zero machine motion, and no hands enter the stitch field during a running cycle.
  • If it still fails: stop production immediately and review the machine’s safety procedure in the manual before resuming.
