Wilcom EmbroideryStudio e4 Shading & Open Fills: Accordion Spacing, Color Blending, Stippling, Cross Stitch, and the Trapunto “Clean Edge” Trick

If you’ve ever watched a beautiful “open fill” preview in Wilcom and then stitched it on a real garment—only to see underlay peeking through, travel runs ghosting across the fabric, or a blend that looks muddy instead of smooth—you’re not alone.

Machine embroidery is an unforgiving art. The screen is perfect; the fabric is chaotic. What looks like a smooth gradient in software often translates into a stiff, bulletproof patch on a T-shirt because the physics of thread displacement weren't considered.

This lesson (based on insights from James Timmons) is a deep dive into Wilcom EmbroideryStudio e4’s Shading & Open Fills elements: Accordion Spacing, Color Blending, Stippling, Cross Stitch, and the Trapunto effect. But we aren't just clicking buttons. I will overlay 20 years of shop-floor experience onto these steps, adding the physical parameters, sensory checks, and safety protocols necessary to prevent expensive re-stitches.

The “Don’t Panic” Primer: What Wilcom Shading & Open Fills Really Change in Your Stitchout

Open fills and shading effects are not magic thread tricks—they are essentially density and pathing decisions. Standard Tatami fills usually run at a density of about 0.40mm spacing. When you use tools like Accordion Spacing to open that up to 1.0mm or 2.0mm, you are removing the structural integrity of that object.

This creates a high-stakes environment where:

1. Everything underneath shows. If you leave a travel run or standard underlay beneath an open fill, it will look like a mistake, not a texture.
2. Fabric stability becomes critical. With fewer stitches holding the fabric down, the fabric can bubble up between the threads.

The Golden Rule: When you open the top density, you must control the sub-structure. And yes—if you can’t find the Accordion tool on your toolbar, it is likely because Accordion Spacing is a paid add-on element depending on your Wilcom license level.

The “Hidden” Prep in Wilcom EmbroideryStudio e4: Object Properties, Underlay, and Start/End Discipline

Before you touch Accordion Spacing, you must perform "The Clean Up." If you skip this, your final sew-out will look messy.

The Problem with Default Underlay

Standard underlay (Edge Run + Tatami) is designed to support a dense top layer. If you apply an open gradient effect without turning off the underlay, you will see the grid of the underlay clearly visible through the gradient. It ruins the illusion of fading color.

Hidden Consumable: Water-Soluble Topping

Pro Tip: When stitching open fills on textured fabrics (like pique polos or fleece), dragging the density down allows the pile of the fabric to poke through. Always keep a roll of water-soluble topping (Solvy) nearby. Placing a patch on top prevents the stitches from sinking and disappearing into the fabric pile.

Prep Checklist (Do this BEFORE applying effects)

• Object Type Verification: Confirm if you are editing a Column C (satin path) or a Complex Fill. The tools behave differently for each.
• Underlay Kill Switch: Open Object Properties, go to Underlay, and uncheck everything. Sensory Check: The preview should look flat, with no cross-hatching visible.
• Pathing Check (H): Press H (Reshape). Ensure your Start (Green Diamond) and End (Red Cross) points are logical. Long jumps across an open fill will be visible.
• Background Audit: Decide what is showing through. Is it the fabric color? A solid fill of another color? A specific backing color?

Warning: Physical Safety Hazard. When testing open fills or long gradients, the machine often accelerates to maximum speed (800-1000 SPM) because the stitch lengths are long. Keep hands clear. Do not reach in to trim a thread wisp while the machine is running. A 10mm jump stitch happens faster than your blink reflex, and it can trap a finger under the needle bar.

Make a Satin Gradient Fast: Column C + Accordion Spacing Tool (and Why Underlay Must Be Off)

In the video, James starts with a satin-style object using Column C. This is ideal for things like flower petals, flames, or swooshes.

What he does (Exact Scenario)

1. Select Column C and digitize a curved satin column.
2. Press Enter to generate stitches.
3. Crucial Step: Go to Object Properties → Underlay and turn off all underlay.
4. Press H for Reshape to verify the stitch angle flows along the curve.
5. Click the Accordion Spacing icon.

The Physics of the Stitch

Upon clicking the icon, Wilcom spreads the stitches apart at one end.

• Visual Check: One end remains solid (supports the fabric). The other end fans out (reveals the fabric).
• Tactile Check: On the finished garment, the dense end should feel firm, like a patch. The open end should feel soft and drape with the fabric. If the open end feels scratchy, your stabilizer might be too heavy for the low stitch count.


Why this fails in production (The "Ghost" Effect)

If you forget to remove the underlay (specifically the "Center Run"), you will see a single line running right down the middle of your beautiful fade. It looks like a scar. Always check your "Slow Redraw" preview to ensure no travel runs exist under the open area.

Dialing the Look: Wilcom Accordion Spacing Profiles (Linear, Exponential, Convex/Concave) + “Opposite”

James demonstrates 8 profiles available under Object Properties → FX (Special Effects). These act like mathematical curves controlling how fast the density drops off.

The Profiles Defined

• Linear: A steady, even fade. Good for mechanical shading.
• Exponential: Fades very quickly. Good for "sparkle" effects.
• Convex/Concave: These create a "bulge" in the density.

Pro Tip: Matching Physics to Art

In the physical world, light doesn’t always fade linearly.

• Organic Shapes (Feathers/Petals): Use Convex or Concave profiles. They look more natural and soft.
• Man-Made Shapes (Logos/Metal): Use Linear profiles for a chrome-like reflection effect.


The "Opposite" Button

Often, the software defaults to fading from Top-to-Bottom, but you need Bottom-to-Top. Instead of re-digitizing, check the Opposite box in the Accordion settings. This gives you instant control over the direction of the light source.

Two-Color Shading the Old-School Way: Ctrl+D Duplicate + Reverse the Accordion Profile

Before the "Color Blending" tool existed, digitizers managed blends manually. This skill is still vital because it gives you total control over the overlap.

The Workflow

1. Select your shaded object (e.g., a blue petal fading to open).
2. Press Ctrl + D to duplicate. You now have two identical objects stacked.
3. Change the duplicate’s color (e.g., to yellow).
4. In Accordion settings, check Opposite.

The Result

The Blue fades Out; the Yellow fades In. They interlock like fingers.

Troubleshooting: The "Bulletproof" Problem

If you don't adjust the spacing correctly, you might end up with a middle section where both colors are dense.

• Symptom: The embroidered area feels like a piece of cardboard. The needle makes a heavy "thud-thud-thud" sound as it struggles to penetrate the density.
• Fix: Increase the Maximum Spacing on both objects so they breathe. You want the threads to sit between each other, not on top of each other.


Open Fills on Complex Fill Objects: Applying Accordion Spacing to the Sailboat Sails (and Why Background Color Matters)

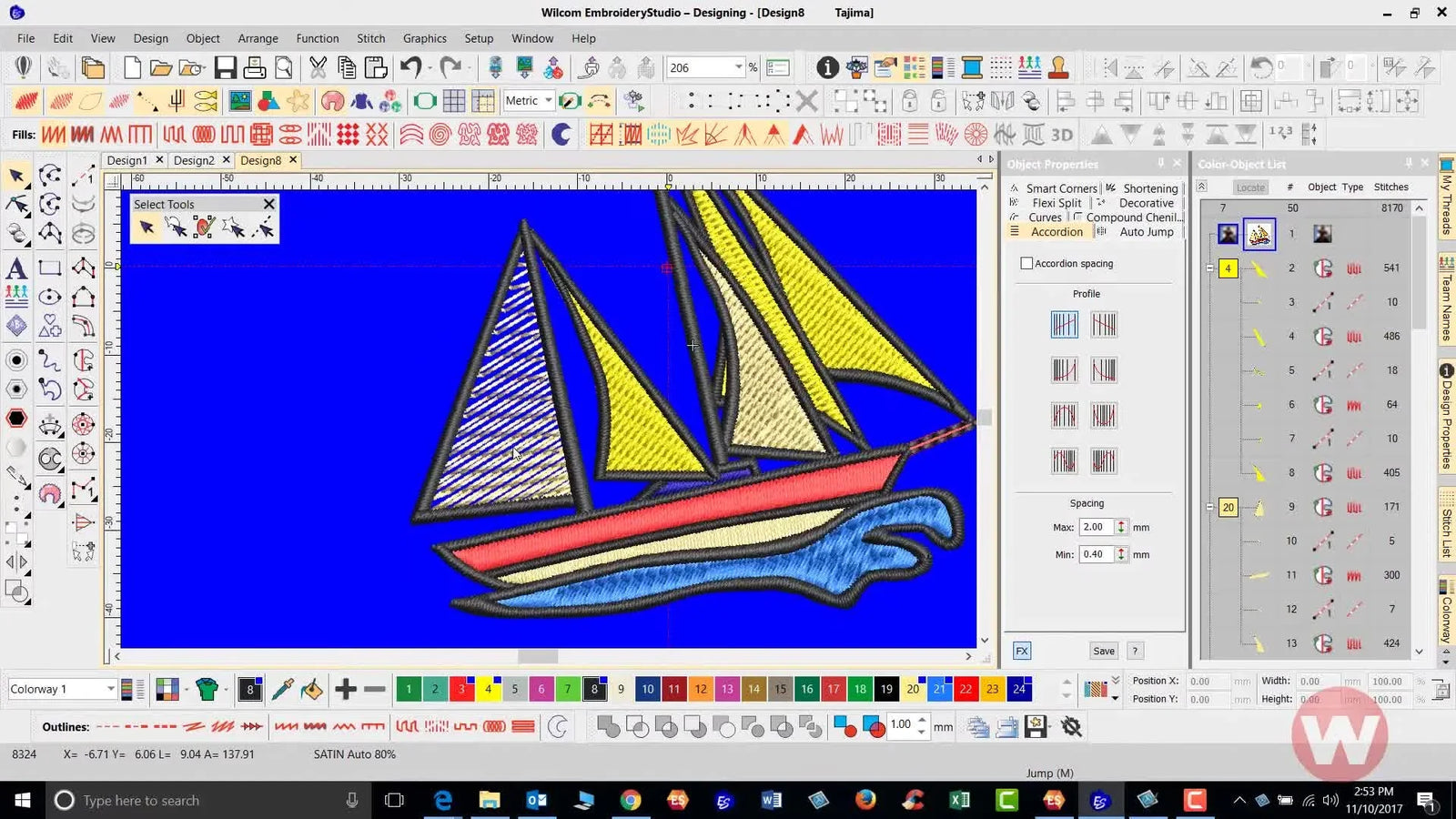

James applies this to Complex Fill objects (the sailboat). Here, the reality of the fabric becomes your biggest variable.

Visualization Trick

James changes the background display color in Wilcom. This is mandatory.

• Why: An open yellow fill looks distinct on a white screen background. But if you stitch that yellow fill on a white T-shirt, it will vanish. You must preview against a background color that matches your actual garment to see if the contrast holds up.




Production Reality: hoop Burn and Shift

Open fills on Complex Objects (large areas) are notorious for shifting. Because the density is low, the fabric has room to move. If your hooping is loose, the outline of the sail will not match the fill of the sail.

The Fix: This is a hardware issue, not a software issue. Traditional plastic hoops often leave "hoop burn" (shiny rings) on delicate performance fabrics when you tighten them enough to prevent shifting. Many professionals solving this distortion problem switch to magnetic embroidery hoops. These hoops use strong magnetic force to clamp the fabric without the friction-burn of plastic rings, ensuring the fabric stays drum-tight (essential for alignment) without damaging the fibers.

The Faster, Cleaner Blend: Wilcom Color Blending Tool (Bottom Layer Constant + Top Layer Increasing Linear)

James shows the dedicated tool which automates the manual duplicate process.

Ideal Settings for Beginners

1. Select Object.
2. Click Color Blending Icon.
3. Bottom Layer: Set to Constant spacing (e.g., 0.40mm). This creates a solid base.
4. Top Layer: Set to Increasing Linear profile. This fades the second color over the first.






Why Blends Fail: The "Muddy" Look

A blend fails when the two thread colors act like paint—but they aren't paint. They are solids.

• Contrast is Key: Blending Dark Blue into Black often just looks like a mistake. Blending Yellow into Red is vibrant.
• Alignment Risk: If your hoop slips, the top layer won't sit perfectly over the bottom layer. You will see gaps.

To maintain perfect alignment on multi-layer blends, consistent hooping pressure is non-negotiable. Using a hooping station for machine embroidery ensures that every garment is tensioned exactly the same way before it even touches the machine. This repeatability is how shops scale from one sample to 50 identical shirts.

Setup Checklist (Before Clicking "Stitch")

• Layer Logic: Is the lighter color on the bottom? (Usually safer).
• Spacing Values: Is the base layer tight enough (0.40mm - 0.45mm) to cover the garment?
• Top Spacing: Start the gradient spacing at 0.40mm and end at 2.00mm+ for a smooth fade.

Texture Without Heavy Fill: Wilcom Stippling Fill + Loop Spacing 2.5 mm

Stippling creates a meandering run stitch texture. It is excellent for "filling" an area without adding the weight of a solid block.

The Parameter that Matters: Loop Spacing

James changes the default Loop Spacing from 7.3mm (huge) to 2.5mm (tight).

• 7.3mm: Looks like loose scribbles. Good for quilting, bad for logos.
• 2.5mm: Creates a cohesive texture that looks intentional.

Stretchy Fabric Alert

Stippling on stretchy knits (like beanies or jerseys) is risky. The continuous running stitch can pull the fabric in odd directions, creating a puckered "brain" look.

• Prevention: Use a cutaway stabilizer (not tearaway).
• Hooping: The fabric must be neutral—not stretched, but not loose. This balance is hard to achieve with standard screw hoops. Beginners learning hooping for embroidery machine often over-stretch knits. Aim for "neutral tension"—where the fabric is flat but the ribbing isn't distorted.

Thicker Texture Lines: Stipple Backstitch and Stipple Stemstitch (Stitch Length 1.2 mm)

Standard running stitch stippling can look thin and "cheap," especially on fluffy fleece. James shows how to beef it up using Backstitch or Stemstitch.

Strength through Stitch Length

He sets the length to 1.2mm.

• Why: A short stitch length allows the machine to make tighter curves without the thread looking jagged.
• Visual: Backstitch creates a thicker, rope-like line that sits on top of the fabric pile rather than sinking into it.

Operation Checklist (Texture Fills)

• Stitch Type: Did you switch from Run to Backstitch for high-pile fabrics?
• Stitch Length: Is it short enough (1.5mm - 2.5mm) to turn corners smoothly?
• Density: If using standard Stipple, is the Loop Spacing tight enough to look like a fill?

Cross Stitch in Wilcom: Fabric Count 13.6 Stitches per Inch and Style Options

The Cross Stitch tool mimics hand embroidery.

Key Value: Stitches Per Inch (SPI)

James uses 13.6. This roughly mimics "14-count Aida cloth," a standard hand-embroidery fabric.

• Lower Number (e.g., 10): larger X's, blockier look.
• Higher Number (e.g., 16): finer X's, detailed look.

The Registration Trap

Cross stitch relies on a perfect grid. If the fabric shifts 0.5mm, the "X" won't close, and it will look messy. This is the ultimate test of your hooping. If you plan to sell cross-stitch designs, you cannot rely on "floating" fabric. You need a secure, mechanical hold. An embroidery hooping station effectively eliminates the variables of human hands, ensuring the grid stays square from the first stitch to the last.

The Trapunto “Clean Edge” Trick: Hide Travel Runs Under Open Tatami Fills

This is a subtle but professional separation between an amateur and a pro digitizer.

James shows how open Tatami fills expose the "travel runs" (the lines the machine takes to get from A to B).

• The Hack: Use the Trapunto tool.
• The Result: It forces the travel runs to the edge of the object, hiding them under the outline, rather than letting them cut across the middle of your see-through fill.

Always use Trapunto when your fill density is lighter than 0.60mm. It keeps the center clean.

A Decision Tree You’ll Actually Use: When to Keep It Hobby-Simple vs Upgrade for Production

Open fills, gradients, and cross-stitches are where hobby equipment hits its limit. Use this logic to decide if your struggle is skill-based or tool-based.

Decision Tree: Project Type + Volume → Workflow Upgrade

1. Are you stitching gradients/open fills on stable items (Towels, Canvas Bags)?
   • Yes: Standard hooping + Basic single-needle machine is fine. Focus on stabilizer.
   • No: Go to step 2.
2. Are you stitching on "Movement Prone" fabrics (Performance wear, Silky shirts, Knits)?
   • Yes: Friction hoops cause burn marks here. Upgrade to a magnetic embroidery hoop to secure fabric without crushing the fibers.
   • No: Go to step 3.
3. Are you stitching 10+ of the same logo with blends/alignment requirements?
   • Yes: Fatigue leads to alignment errors. A magnetic hooping station creates an assembly line, ensuring Logo #1 and Logo #50 are identical.
   • No: Stick to manual marking and careful measuring.

Comment-Driven Pitfalls (and the fixes that keep you moving)

“I can’t find the Accordion stitch on my toolbar.”

Cause: This is a "Level" issue. Accordion Spacing is often a paid "Element" in Wilcom. It is not standard in the basic tiers. Fix: Check your specific license level. You may need to purchase the "Shading and Open Fills Element."

“Can you blend 3 or 4 colors?”

Answer: Yes, but be careful. Risk: Each layer adds thickness. 4 layers of fill = heavy armor plating on a chest logo. Strategy: Avoid full overlaps. Use the "Profile" tool to make sure that where Color 3 fades IN, Color 2 has already faded OUT. Keep the total density low.

The Upgrade Path (No Hype): When Tools Solve Problems Digitizing Can’t

Digitizing is only 50% of the battle. The rest is physical execution. When your software preview looks perfect but your machine output is puckered or misaligned, you have likely outgrown your current setup.

If you are fighting with thick seams, hoop burn, or wrist pain from repetitive hooping, look into magnetic solutions.

Warning: Magnetic Hoop Safety. These are not fridge magnets. Industrial magnetic hoops can snap together with over 30 lbs of force. Pinch Hazard: Keep fingers clear of the edge. Medical Safety: Keep magnets away from pacemakers and implanted medical devices.

Finally, if you find yourself spending 40% of your time changing thread colors for these complex gradients, the bottleneck is your single-needle machine. This is the moment to consider a multi-needle machine (like the SEWTECH series). A 15-needle machine turns a "nightmare" 12-color gradient job into a "press start and walk away" profit center.

FAQ

• Q: In Wilcom EmbroideryStudio e4, why does underlay show through Accordion Spacing open fills as a visible grid or center line?
  A: Turn off all underlay for the shaded/open-fill object before applying Accordion Spacing, because default underlay is designed for dense top layers and will “ghost” through open density.
  • Open Object Properties → Underlay and uncheck all underlay (especially any center run).
  • Preview using Slow Redraw to confirm no underlay lines or hidden travel runs sit inside the open area.
  • Re-check the object type (Column C vs Complex Fill) because behavior differs between objects.
  • Success check: the preview looks flat with no cross-hatching, and the stitched gradient has no “scar line” down the middle.
  • If it still fails… use the Trapunto approach to force travel runs to the edge so the center stays clean.
• Q: In Wilcom EmbroideryStudio e4, how can a digitizer prevent long jump stitches from being visible across an open fill or gradient?
  A: Fix start/end points and pathing before stitching, because any long jump across an open area will show like a mistake.
  • Press H (Reshape) and move the Start (green diamond) and End (red cross) to logical positions that avoid crossing the open area.
  • Audit what will show through the open fill (garment color, backing color, or a solid fill underneath) and plan the path accordingly.
  • Use Slow Redraw to spot any travel lines that cross the see-through region.
  • Success check: the stitch simulation shows travel runs hugging edges or hidden under borders—not cutting through the middle.
  • If it still fails… use the Trapunto function to push travel runs to the object edge.
• Q: When stitching open fills on textured fabrics (pique polos or fleece), what consumable prevents stitches from sinking and the texture from poking through?
  A: Use a water-soluble topping on top of the fabric to keep open stitches from disappearing into the pile—this is common and not a digitizing mistake.
  • Place a sheet of water-soluble topping (Solvy) over the embroidery area before stitching.
  • Keep the open-fill density intentionally light, but stabilize the surface so the thread sits on top.
  • Test a small sample first on the same fabric texture to confirm coverage.
  • Success check: the gradient stays visible and clean, and the fabric pile does not “break through” between stitches.
  • If it still fails… reassess the fabric choice for that effect or adjust the design so the open area is less extreme.
• Q: On Wilcom EmbroideryStudio e4 gradients, what causes a “bulletproof” stiff middle when using Ctrl+D duplicate two-color shading with Opposite Accordion profiles?
  A: The middle gets too dense when both colors overlap heavily; increase maximum spacing so the layers breathe instead of stacking like armor.
  • Duplicate the object (Ctrl+D), change the second color, and set the second object to Opposite in Accordion settings.
  • Increase Maximum Spacing on both objects to reduce the overlap density in the center.
  • Listen for the machine “thud-thud-thud” sound during testing—this often signals excessive density.
  • Success check: the embroidered area drapes more naturally, and the blend looks clean rather than muddy or rigid.
  • If it still fails… reduce overlap area further by adjusting the fade profiles so Color 2 fades out before Color 3 fades in (when stacking multiple shades).
• Q: In Wilcom EmbroideryStudio e4 stippling fill, why does a logo look like loose scribbles, and what Loop Spacing setting makes stippling read like a real fill?
  A: Tighten Loop Spacing—7.3 mm looks like random scribbles, while 2.5 mm creates a cohesive texture that reads intentional.
  • Select Stippling Fill and change Loop Spacing from 7.3 mm to 2.5 mm.
  • Stitch a small test segment to verify the texture matches the logo style.
  • On stretchy knits, choose a cutaway stabilizer and keep hooping neutral (not stretched).
  • Success check: the stipple texture looks evenly distributed like a designed fill, not wide wandering lines.
  • If it still fails… switch to Backstitch or Stemstitch stipple for more presence on high-pile fabrics.
• Q: During open fills or long gradients, why can an embroidery machine run at 800–1000 SPM, and what needle-area safety rule prevents finger injuries?
  A: Long stitches often make the machine accelerate, so keep hands completely out of the needle area and never reach in to trim thread while running.
  • Stop the machine before trimming any thread wisps near the needle bar.
  • Expect faster motion on long-jump or long-stitch sections even if the design “looks light.”
  • Treat jump stitches as a pinch/strike hazard because they happen faster than reaction time.
  • Success check: all trimming and thread handling happens only when the machine is fully stopped and the needle is parked safely.
  • If it still fails… slow the machine for testing runs and review the design for unnecessary long moves.
• Q: When Wilcom EmbroideryStudio e4 open fills on large Complex Fill areas shift and cause outline-to-fill misalignment, when should a shop move from screw hoops to magnetic hoops or a hooping station?
  A: If low-density fills shift or plastic hoops cause hoop burn when tightened, upgrade the holding method first (magnetic hoop and/or hooping station) before blaming the digitizing.
  • Level 1 (technique): Re-hoop for drum-tight, even tension and avoid loose hooping on movement-prone fabrics.
  • Level 2 (tool): Use magnetic hoops to clamp securely without friction burn on delicate performance fabrics.
  • Level 2 (repeatability): Add a hooping station when producing multiples to keep tension consistent from garment to garment.
  • Level 3 (production): If time is lost to repeated alignment fixes or high color-change workloads, consider a multi-needle workflow upgrade.
  • Success check: the sail/fill (or any large open-fill area) stays registered with the outline from start to finish with no shifting.
  • If it still fails… reduce the size of open-fill regions or adjust the design strategy for that fabric’s movement level.
• Q: What magnetic hoop safety precautions prevent pinch injuries and medical-device risks when using industrial magnetic embroidery hoops?
  A: Treat industrial magnetic hoops as high-force clamps—keep fingers away from the closing edge and keep magnets away from pacemakers/implanted devices.
  • Separate and join hoop halves slowly with hands positioned away from the snap zone.
  • Warn nearby staff before placing the top ring so no one’s fingers are in the gap.
  • Keep magnetic hoops away from pacemakers and implanted medical devices per medical guidance.
  • Success check: hoop halves are assembled without any sudden finger pinch, and the operator maintains a consistent safe hand position every time.
  • If it still fails… change the handling routine (two-hand control, staged placement) before continuing production.
