Wilcom EmbroideryStudio e4 Graphic Digitizing Tools: The Fastest Way to Build Clean Shapes, Fix Holes, and Control Stitch Flow

If you’ve ever stared at Wilcom EmbroideryStudio e4 and thought, “I know what I want the stitches to do… I just can’t get there fast,” you’re exactly who the Graphic Digitizing toolbar was built for. But speed isn't just about software clicks; it's about confidence that what you create on screen won't destroy the garment on the machine.

This post rebuilds the full workflow shown in Wilcom’s tutorial through a 20-year production lens. We aren't just going to learn tools; we are going to learn "shop-floor logic"—how to ensure your digital designs survive the physical violence of a needle pounding fabric at 800 stitches per minute.

I will also guide you through the critical transition from "struggling hobbyist" to "efficient producer," addressing common pain points like hoop burn, bad registration, and production bottlenecks.

Find the Graphic Digitizing toolbar in Wilcom EmbroideryStudio e4 (and stop losing it mid-job)

The video starts with a relatable crisis: you accidentally close a toolbar, and your muscle memory breaks. In a high-pressure shop, this minor friction causes major frustration.

Restore it immediately:

1. Navigate: Go to Window > Toolbars.
2. Select: Check Graphic Digitizing.
3. Dock: Drag it to the side until it snaps into place.

The "Cognitive Ease" Setup: If you are working on a high-resolution monitor (4K), small icons are a recipe for eye strain and mis-clicks. Dock your toolbar vertically. This reduces mouse travel distance and anchors your visual attention, letting you focus on the design, not the interface.

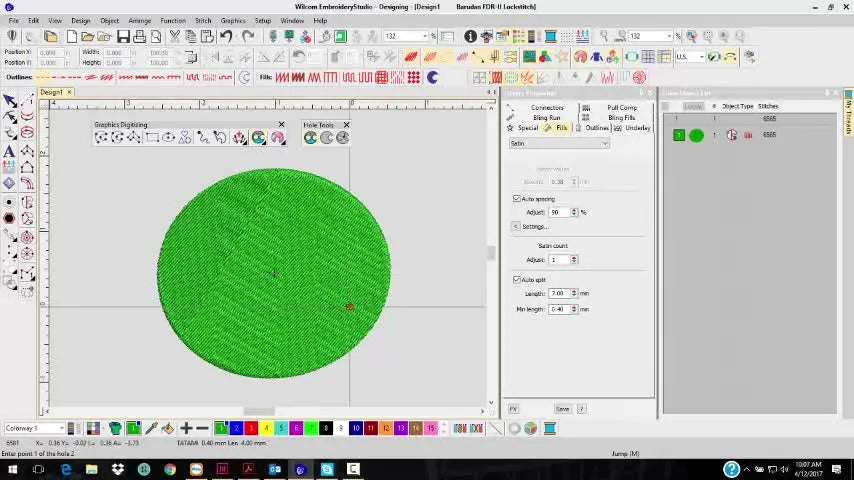

Open Shape Tool in Wilcom e4: draw clean lines fast (left-click corners, right-click curves)

The Open Shape tool is your primary weapon for "blocking out" a design. The secret to speed here is mastering the Input Method rhythm.

The Sensory Rhythm of Digitizing:

• Left-Click (Sharp): Think "Stop." Use this for hard corners. It places a square node.
• Right-Click (Flow): Think "Go." Use this for curves. It places a round node.
• Enter (Commit): Finish the segment.

Visual Check: By default, Wilcom assigns a Run stitch. You will see a thin line with needle penetration points. If the line looks "jagged" on curves, you likely used a Left-Click where a Right-Click was needed. Delete and redraw until the curve flows like water.

Satin Raised in Wilcom EmbroideryStudio e4: the “puffy foam look” that quietly quadruples stitch count

This is a danger zone for beginners. The "Satin Raised" stitch creates a 3D effect without using foam by layering stitches. It looks incredible on screen, but it is physically demanding.

The Hard Data (Video Facts):

• Satin Raised: 4414 stitches
• Regular Satin: 1216 stitches
• Increase: ~3.6x more thread.
• Underlay: 4 heavy layers of structure.


Expert Analysis & Safety Protocol: Satin Raised is essentially a "thread brick." It generates significant friction and heat.

• Beginner Sweet Spot: If you use this, slow your machine down. Do not run this at 1000 SPM. Start at 600-700 SPM to allow the thread to cool and the hook to clear.
• Material Danger: Do not put this on thin T-shirts (150gsm or less) or delicate knits. The density acts like a saw blade and can cut holes in the fabric boundary.

Warning: High stitch density creates immense needle heat. On synthetic fabrics (polyester/performance wear), this can melt the fabric or snap the thread. Always perform a Test Sew on a scrap piece of the exact same fabric with the exact same stabilizer before running production.

Strategic Use: Use for caps, heavy canvas bags, or jackets. Avoid for lightweight corporate wear unless you are using heavy cutaway stabilizer.

Closed Shape Tool in Wilcom e4: the moment fills “wake up” (because open objects can’t fill)

The Closed Shape tool is the bridge between a "line" and a "shape."

Action Steps:

1. Digitize: Place your points (Left/Right cadence).
2. Close: Press Enter. The software automatically connects the last point to the first.

The Logic: You cannot pour water into a bucket without a bottom. Similarly, Wilcom cannot apply a Tatami Fill or Satin Fill to an object unless the geometry is mathematically closed. If your fill icon is grayed out, your shape is likely still "Open."

Prep Checklist (The "Zero-Failure" Starts)

Before you begin heavy digitizing, run this 30-second physical and digital audit.

• Consumables Check: Do you have temporary spray adhesive (e.g., KK100) and Sharpie/Water Soluble Pen for marking?
• Needle Check: Is your needle fresh? A burred needle on a "Satin Raised" design guarantees a thread break.
• Format Check: Confirm you are saving as .EMB. This is the "Native" format that retains resizing intelligence. Do not work in .DST (Machine file).
• Stabilizer Strategy:
  • Stretchy Fabric (Polos/Knits): Cutaway Stabilizer (Absolute requirement).
  • Stable Fabric (Denim/Canvas): Tearaway Stabilizer.
• Toolbar Check: Ensure Graphic Digitizing toolbar is docked and visible.

The “duplicate-and-convert” border trick: faster than offsets for most everyday work

Beginners often use "Input C" or complicated offset tools to make borders. This method is cleaner and ensures the border actually touches the fill.

The Workflow:

1. Select: Right-click the filled object.
2. Duplicate: Choose Duplicate (Ctrl+D usually).
3. Convert: With the new copy selected, click Outline Satin.


Why this reduces "White Gaps": Mathematical offsets can push the border too far away. By duplicating the exact geometry, the border sits directly on the edge. However, purely relying on this relies on perfect physical hooping. If your fabric shifts, you will still see gaps—we will address the hardware fix for this in the overlap section.

Add Holes in Wilcom e4: the selection rule that trips everyone once

The most common frustration here is clicking the tool and having nothing happen.

The Iron Rule of Tools: Noun (Object) → Verb (Action). You must tell the software what you are modifying before you tell it how to modify it.

Action Steps:

1. Select the filled object (The Noun).
2. Click Add Holes (The Verb).
3. Digitize the shape of the hole.
4. Press Enter twice to confirm.


Sensory Feedback: When successful, you will see the stitch direction lines disappear from the hole area immediately.

Fill Holes overlap in Wilcom: the 0.80 mm setting that prevents ugly gaps

In the theory of software, edges touch perfectly. In the reality of physics, thread pulls fabric inward (Pull Compensation). Without overlap, you will get a "white gap" between the fill and the hole fill.

The "Safety Net" Setting:

1. Click Fill Holes.
2. Input Overlap: 0.80 mm.


Why 0.80 mm? This is a standard "Beginner Sweet Spot."

• < 0.40 mm: Risky. If the hoop loses tension, gaps appear.
• 0.80 mm - 1.0 mm: Safe. Covers minor shifting and pull.
• > 1.5 mm: Bulky. Can create a hard ridge where threads pile up.


Common Pitfall (The "Hoop Burn" Variable): If you set a 0.80 mm overlap and still see gaps, the issue is not software—it is likely your hooping. Traditional hoops rely on friction. If the fabric slips even 1mm, your registration ruins the design. This is a primary reason why professionals switch to high-friction tools like magnetic embroidery hoops, which clamp fabric uniformly without the "tug-of-war" that distorts the fiber before you even start sewing.

Negative overlap in Fill Holes: how to intentionally create a clean gap

Sometimes you want the gap, for example, to separate flower petals or text elements.

Action Steps:

1. Click Fill Holes.
2. Input Overlap: -0.80 mm (Negative value).


Visual Result: The new fill will shrink away from the border, leaving a clean channel of fabric showing through. This is excellent for ensuring legibility on small text backgrounds.

Stitch Angles in Wilcom e4: turn a “complex fill” donut into a flowing turning satin

A "Complex Fill" is static—it sews like a printer, line by line (unidirectional). This looks cheap on curved shapes like donuts or the letter "O".

The Transformation:

1. Select the donut object.
2. Click Add Stitch Angles.
3. Draw lines cutting across the shape (like slicing the donut).
4. Press Enter.


Sensory Check: Look at the screen simulation. A complex fill looks like a flat sheet of metal. A Turning Satin (after adding angles) reflects light differently, looking like a flowing ribbon.

Setup Checklist (Digital Quality Assurance)

• Wireframe Inspection: Toggle TrueView (usually 'T') OFF. Look for long jump stitches or weird connections.
• Angle Check: Did you add angles to all curved objects? (Letters O, C, U are prime candidates).
• Overlap Verification: Did you set overlap to at least 0.80 mm for multi-color fills?
• Density Audit: If using Satin Raised, have you alerted the machine operator (or yourself) to slow down?

Convert vector to stitches in Wilcom e4 (without hunting for a conversion button)

Many beginners confuse Bitmaps (JPG/PNG - pixels) with Vectors (AI/CDR/EPS - math). You cannot just "convert" a JPG perfectly without tracing. But a Vector line is ready to sew.

The Workflow:

1. Select the Vector Object (Green line in generated example).
2. Click Add Stitch Angles.
3. Draw your flow lines.
4. Press Enter.


File Format Hierarchy:

1. .EMB: The "Source Code." Contains vectors, stitch data, and object logic. Always save this.
2. .DST/PES: The "Machine Executable." Dumb data (XY coordinates). Only for the machine.
3. .JPG: The "Reference." Just a picture.

Rectangle, Ellipse, and Basic Shapes: the CorelDRAW-style shortcuts that save real time

These are your drafting speed tools.

Essential Key Commands:

• Perfect Shape: Hold Ctrl while dragging to create a perfect Square or Circle.
• Centered Shape: Just click to define the center, then drag for radius.


The production reality check: digitizing choices affect hooping time, sew time, and profit

As a Chief Embroidery Education Officer, I need you to understand that Digitizing is only 50% of the battle. The other 50% is "Hooping Physics."

You can have a perfect Wilcom file, but if your hoop leaves "hoop burn" (crushed velvet/shiny rings) or if your hands hurt from wrestling traditional clamps, your production will suffer.

The Logic of Tooling Up:

1. The Pain Point: You spend 5 minutes hooping a shirt, and the alignment is still crooked.
2. The Diagnosis: Human error is high with standard hoops.
3. The Solution:
   • Level 1 (Technique): Mark shirts with water-soluble pens and cross-hairs.
   • Level 2 (Workflow): A hooping station for machine embroidery standardizes placement. You slide the shirt on, the magnet locks it, and every chest logo lands in the exact same spot.
   • Level 3 (Efficiency): magnetic embroidery hoops remove the need to tighten screws. They simply "snap" together, holding thick jackets or delicate silks without forcing the fabric.

Warning: Magnetic Safety
Magnetic hoops are incredibly powerful. They can pinch fingers severely (blood blister risk) and disrupt pacemakers.
* Do not place near heart implants.
* Slide magnets apart; do not try to pry them directly up.
* Keep away from children.

Troubleshooting Wilcom e4 Graphic Digitizing Tools: symptoms, causes, fixes

When things go wrong, don't panic. Use this Low-Cost to High-Cost troubleshooting table. Always check the physical machine before blaming the software.

The upgrade path that actually makes sense (when software skill meets shop speed)

If you master these Wilcom tools, you will produce cleaner designs. But eventually, you will hit a ceiling where your machine or your wrists are the bottleneck.

When to upgrade your hardware:

• Scenario A: You are rejecting garments because of hoop marks.
  • Solution: Investigate how to use magnetic embroidery hoop tutorials. The magnetic force prevents the "crush" marks typical of double-ring hoops.
• Scenario B: You are doing 50 shirts a day and changing thread takes 40% of your time.
  • Solution: This is the trigger for a SEWTECH Multi-needle Machine. Moving from single-needle to 10+ needles automatically recoups time, allowing your Wilcom skills to actually generate profit.

Operation Checklist (The Final "Go" Check)

Always run this before the first stitch.

1. Placement: Is the design centered?
2. Clearance: Does the hoop clear the presser foot? (Trace the design!).
3. Bobbin: Is there enough bobbin thread for the full run?
4. Stabilizer: Is the Cutaway (for knits) or Tearaway (for wovens) securely hooped with the fabric?
5. Safety: Are fingers clear of the needle bar?

Decision tree: choose the right workflow from “digitizing on screen” to “sewing clean on fabric”

Start Here: You have a new logo to embroider.

1. Is it a Vector or Bitmap?
   • Bitmap (JPG): You must trace it manually (Open/Closed Shape Tools).
   • Vector (AI/Corel): Use Add Stitch Angles to convert immediately.
2. Does the design have fills with holes (e.g., Donut)?
   • Yes: Select Object → Add Holes → Fill Holes.
   • Critical Check: Set Overlap to 0.80mm.
3. What is the Fabric Type?
   • T-Shirt/Polo: Use Cutaway Stabilizer. Avoid "Satin Raised" unless design is small.
   • Jacket/Cap: Use Tearaway Stabilizer. "Satin Raised" is safe here.
4. Are you ready to sew?
   • Check: Export as .DST (or machine format).
   • Load: Use a Hooping Station or Magnetic Frame for perfect alignment.
   • Run: Watch the first 500 stitches. Listen for the rhythmic "thump-thump" (Good) vs "clack-clack" (Bad/Thread Break).

A quick note on “Where do I buy Wilcom e4?” (from the comments)

The comment thread includes an official response directing buyers to Wilcom’s regional sales contacts. If you’re purchasing software, always use official channels for licensing and support.

Mastering the Graphic Digitizing toolbar is step one. Step two is respecting the physics of the machine. When you combine clean digitizing with smart workflow tools like reliable hoops and stabilizers, you stop "fixing mistakes" and start "running production."

FAQ

• Q: How do I restore the Graphic Digitizing toolbar in Wilcom EmbroideryStudio e4 after it disappears mid-job?
  A: Re-enable the toolbar from the Wilcom menu and dock it back where muscle memory expects it.
  • Go to Window > Toolbars and check Graphic Digitizing
  • Drag the toolbar to the screen edge until it snaps (docks) into place
  • Dock vertically if icons feel too small on a high-resolution monitor to reduce mis-clicks
  • Success check: the Graphic Digitizing icons stay visible and do not float/vanish when switching tools
  • If it still fails: reset the workspace/layout in Wilcom (interface state may be stuck)
• Q: How do I use the Open Shape tool in Wilcom EmbroideryStudio e4 to draw clean curves instead of jagged lines?
  A: Use the correct input rhythm: left-click for corners, right-click for curves, then commit with Enter.
  • Left-click to place corner nodes (sharp changes)
  • Right-click to place curve nodes (smooth flow)
  • Press Enter to finish the segment
  • Success check: the default Run stitch preview shows a smooth curve; jagged curves usually mean too many left-click corners
  • If it still fails: delete the segment and redraw, replacing corner clicks with right-click curve points
• Q: Why does Wilcom EmbroideryStudio e4 gray out Tatami Fill / Satin Fill, and how do I fix an object that won’t fill?
  A: The shape is not closed—use the Closed Shape tool and press Enter to close the geometry.
  • Digitize the outline using the same left/right click cadence
  • Press Enter to automatically connect the last point to the first point
  • Re-apply the desired fill (Tatami or Satin)
  • Success check: fill tools become available and the object previews as a filled area (not just a line)
  • If it still fails: confirm the object is truly a single closed shape (not overlapping open segments)
• Q: In Wilcom EmbroideryStudio e4, why does Add Holes do nothing, and what is the correct selection order?
  A: Select the filled object first, then run Add Holes—the tool requires “Noun → Verb.”
  • Click to select the filled object you want to modify
  • Click Add Holes
  • Digitize the hole shape and press Enter twice to confirm
  • Success check: stitch direction lines immediately disappear inside the hole area
  • If it still fails: re-check that the base object is a filled object (not an open line) before using Add Holes
• Q: What Fill Holes Overlap value should I use in Wilcom EmbroideryStudio e4 to prevent white gaps around holes?
  A: Set Fill Holes > Overlap to 0.80 mm as a safe starting point for preventing gaps.
  • Click Fill Holes
  • Enter Overlap: 0.80 mm
  • Re-check the border-to-fill meeting points in simulation before exporting
  • Success check: the hole-fill stitches slightly cover into the surrounding area, with no visible “channel” that turns into fabric gaps
  • If it still fails: treat it as a hooping/registration problem (fabric shifting can defeat correct overlap settings)
• Q: How do I intentionally create a clean gap using negative overlap in Wilcom EmbroideryStudio e4 Fill Holes?
  A: Use a negative overlap (example: -0.80 mm) to pull the hole fill away and reveal a controlled fabric channel.
  • Click Fill Holes
  • Enter Overlap: -0.80 mm
  • Preview the channel width to confirm legibility for small elements
  • Success check: the fill clearly shrinks back from the edge, creating an even, consistent gap
  • If it still fails: reduce the negative value magnitude (too much shrink can look broken on small shapes)
• Q: What are the safety and production precautions when using Satin Raised in Wilcom EmbroideryStudio e4 to avoid thread breaks and fabric damage?
  A: Treat Satin Raised as a high-density “thread brick”: slow the machine down and avoid lightweight knits.
  • Slow the embroidery machine to 600–700 SPM when running Satin Raised (especially for beginners)
  • Avoid using Satin Raised on thin T-shirts/knits (example guidance in the post: 150 gsm or less is risky)
  • Test sew on scrap fabric with the same stabilizer before production
  • Success check: stitches form cleanly without repeated thread breaks, and the fabric edge does not show cutting/melting damage
  • If it still fails: change to a fresh needle (the post flags a burred needle as a common cause) and reduce density or switch to a regular satin approach
• Q: How do I reduce hoop burn, bad registration, and slow hooping time when moving from hobby work to production embroidery?
  A: Use a staged approach: improve marking and hooping technique first, then standardize placement with a hooping station, then consider magnetic hoops or a multi-needle machine when volume demands it.
  • Level 1: Mark placement with a water-soluble pen and cross-hairs; re-hoop until tension feels like a drum skin
  • Level 2: Use a hooping station to standardize garment placement and reduce human alignment error
  • Level 3: Use magnetic embroidery hoops to clamp uniformly (less tug-of-war than screw hoops), and upgrade to a SEWTECH multi-needle machine when thread changes become the main bottleneck (example scenario in the post: high daily shirt volume)
  • Success check: consistent placement across garments, fewer visible hoop marks, and fewer border gaps caused by fabric shift
  • If it still fails: review the operation checklist (trace for clearance, confirm stabilizer choice, and watch the first stitches) and reassess whether hoop slippage is still occurring
