Wilcom E4 Masterclass: The Zero-Headache Guide to Centering, Digitizing, and Production Safety

If you’ve ever sworn your logo was "centered" in the software—then watched in horror as the needle slammed into the plastic hoop frame—you are not alone. This is the "Phantom Center" effect, and it kills profit margins.

In Wilcom EmbroideryStudio e4, there are two different "centers" you must respect: the design’s own center and the production page (hoop) center. Misunderstanding the difference is the #1 cause of broken needles and ruined garments for beginners.

This guide rebuilds the workflow from the Wilcom America tutorial, but I am adding the shop-floor context that usually takes years to learn. We will cover why start/end points dictate your efficiency, how to lock your tracing bitmaps so they don’t drift, and how to engineer your stitches so your machine doesn’t sound like a jackhammer.

Stop Guessing: Page Center vs. Design Center (The "Red Crosshair" Rule)

In the workspace, you will see a red crosshair in the middle of the grid. This is the Page Center (0,0). It represents the absolute center of your embroidery hoop.

Your imported artwork or design often has its own center that does not match this crosshair. If you simply visually center the design on your screen without aligning it to the grid, you create a dangerous offset.

The Production Reality: When you load a file that is off-center into the machine, the pantograph (the arm moving the hoop) will travel to where it thinks the center is. If that travel distance exceeds the physical limit of the hoop, you get a "Frame Limit" error—or worse, the needle bar strikes the plastic frame.

If you run a commercial workflow, consistency is your safety net. Even if you are mastering hooping for embroidery machine techniques perfectly, a file that starts from a random coordinate will force your operator to manually jog the frame for every single shirt. That is 30 seconds of wasted time per run.

The 10-Second "0,0 Snap": Forcing Absolute Alignment

Here is the non-negotiable step for every file you create. This ensures the machine’s needle starts exactly where the hoop’s center marks align.

1. Select your entire design (Ctrl + A).
2. Look at the Property Bar at the top or bottom of your screen.
3. Locate Position X and Position Y.
4. Type 0 in the X box.
5. Type 0 in the Y box.
6. Press Enter.

Sensory Check: You should visually see the entire design "jump" so that the red crosshair sits directly in the middle of your logo. This is your "Safe Zero."

The "Needle Chase": Auto Start & End (Maintain Automatically)

Centering the artwork is only step one. Step two is telling the machine: "Regardless of where the last stitch ends, reset the needle to the center."

In Wilcom EmbroideryStudio e4:

1. Go to the Design menu.
2. Choose Auto Start & End.
3. In the dialog box:
   • Check Apply auto start & end.
   • Check Maintain automatically.
   • Crucial: Click the center dot on the grid icon.
4. Click OK.

Why this matters in production: Without this, the machine might finish a design at the bottom left corner. When you remove the hoop and load the next shirt, the needle is still in the bottom left. You then have to manually "chase" the center. By maintaining Auto Start/End, the machine always returns to the "Sweet Spot," ready for the next garment.

The "Hidden" Prep Pros Do Before Digitizing

Before you digitize a single stitch, you need a "Clean Cockpit." A cluttered or drifting workspace leads to alignment errors. Costly mistakes often happen because a panel slid 2mm while you were zoomed in.

Hidden Consumables for Prep:

• Water-Soluble Pen: Mark your physical fabric center to verify against your software center.
• Temporary Adhesive Spray (505): Essential for keeping backing from shifting during hooping.

Prep Checklist: The "Clean Cockpit" Routine

• Zero Check: Confirm Position X/Y are both set to 0.
• Return Logic: Open Design > Auto Start & End and confirm the center dot is active.
• Docker Control: Pin the Color-Object List open (using the thumbtack icon) so you can visualize layer order.
• Asset Review: Decide if your background image is just a reference or part of the print.
• Save Template: If you do this often, save these settings as your default .EMT template.


Lock the Bitmap (Shortcut K): The Anchor Move

Nothing is more frustrating than meticulously tracing a logo, only to realize your background image shifted five minutes ago, and now your outline is crooked.

The Fix:

1. Select your background bitmap.
2. Press K on your keyboard. (Mnemonic: K for Keep it there).
3. Alternative: Right-click the object in the list and select Lock.

Success Metric: Try to drag the image. It should not move. This converts your artwork from a "floating object" into a "digital drafting table."

Column B Digitizing: Engineering the Perfect Swoosh

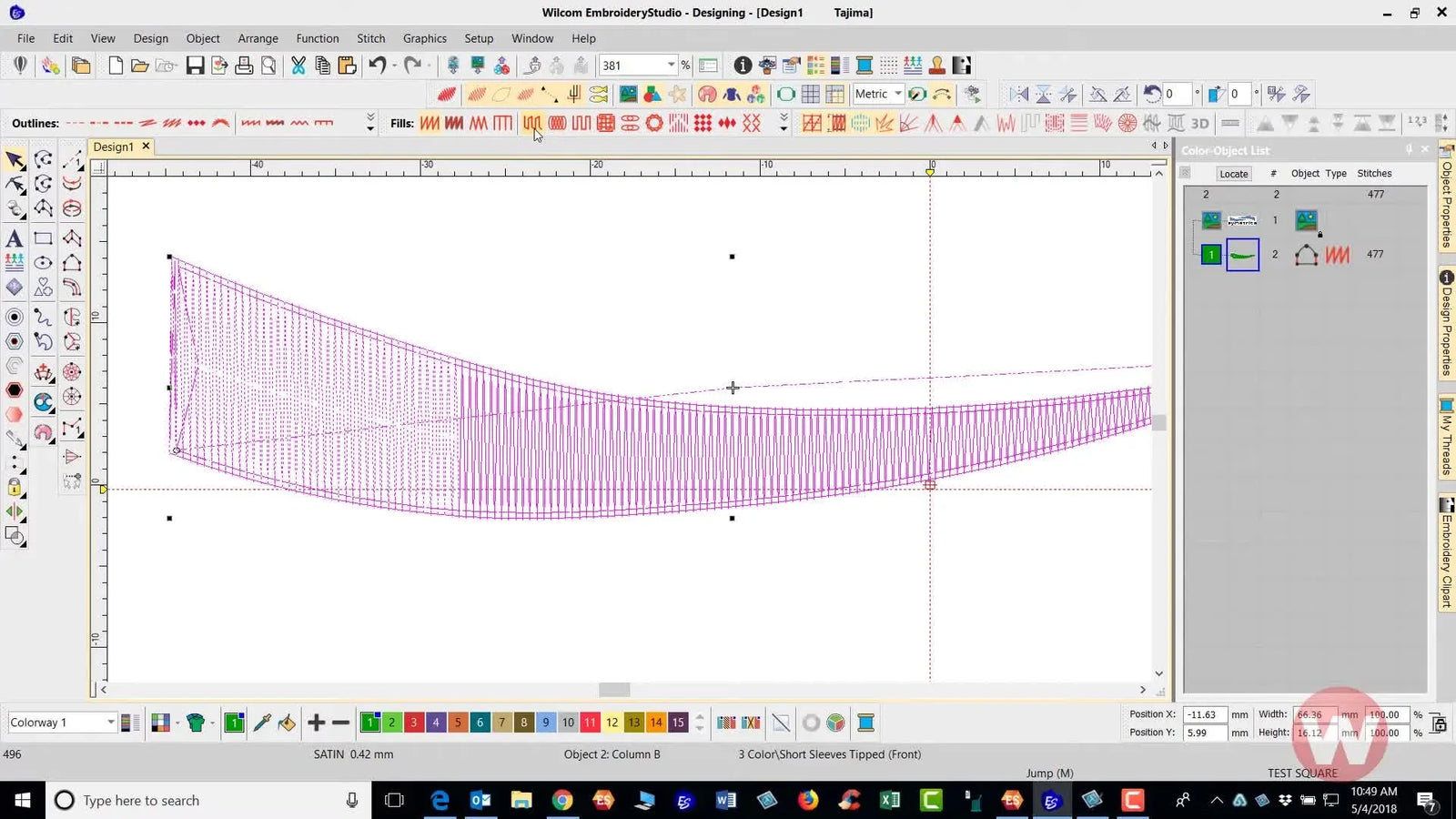

The instructor demonstrates using Column B to digitize a curved shape. Unlike a standard fill, Column B allows you to define the width changes as you go.

1. Select Column B.
2. Digitize Side A (the left bank of the river). Use Left Clicks for straight lines, Right Clicks for curves.
3. Press Enter.
4. Digitize Side B (the right bank).
5. Press Enter to generate the satin stitches.

Cognitive Chunking: Think of Column B as building a bridge. You build one side of the road, then the other, and the software lays the planks (stitches) between them.

Warning: Mechanical Safety
When test-stitching these designs, keep hands at least 4 inches away from the needle bar. If a Column B stitch is too wide (over 10-12mm), the needle can deflect, hit the needle plate, and shatter. A broken needle tip flies with the velocity of a small bullet. Always wear eye protection.

When Wilcom Shows "dotted lines": The 11mm Danger Zone

This is the most critical diagnostic skill in the video. The instructor toggles TrueView (T) off to reveal the raw stitch data.

• Solid Lines: Actual stitches.
• Dotted Lines: Jump stitches (needle movement without sewing).

He measures a span using the Measure Tool (M) and finds it is 11.43 mm long.

The Physics of Failure: Most commercial machines have a max stitch length of 12.1mm to 12.7mm. Standard machine speed (e.g., 800 SPM) creates momentum. If the pantograph tries to move 11.5mm between needle penetrations, the thread becomes loose and floppy (looping), or the machine slows down to a "thump-thump" crawl to avoid breaking the thread.

Sensory diagnosis: If your smooth machine suddenly sounds like a tractor, you likely have excessive stitch lengths.

The Fix: Converting Long Satins to Tatami Fill

If the shape is too wide for a Satin stitch, you must change the structural engineering.

1. Select the object with the long spans.
2. Click the Tatami icon (the woven mat look).

The Result: The software replaces the long, unstable loops with a series of shorter, interlocking stitches. This structure is bulletproof for uniforms and high-wear items.

Commercial Wisdom: Satin looks premium (glossy), but Tatami is durable. If the logo goes on a work jacket that will be washed 50 times, choose Tatami.

Duplicate + Mirror: The Speed Workflow (Ctrl+D)

Professional digitizers rarely draw the same thing twice.

1. Select your object.
2. Press Ctrl + D (Duplicate).
3. Use the Mirror Horizontal or Mirror Vertical buttons on the toolbar.
4. Drag perfectly identical geometry into place.

This ensures your design is mathematically symmetrical. In a production environment, symmetry suggests quality. This efficiency mirrors the physical floor workflow—just as upgrading to hooping stations standardizes your physical placement, using Mirror tools standardizes your digital geometry.

The Satin Solution: Auto Split (7.00 mm)

What if the client insists on the glossy Satin look, but the shape is 15mm wide? You use Auto Split.

1. Right-click the object > Object Properties.
2. Under the Satin tab, check Auto Split.
3. Set the length. The video uses 7.00 mm.

The Beginner Sweet Spot: I recommend setting Auto Split between 7mm and 8mm.

• < 7mm: Reads like a fill/Tatami (loses gloss).
• > 9mm: Risks snagging on zippers or jewelry (the "snag hazard").
• 7mm: The perfect balance of gloss and durability.

Setup Checklist: The "Stitch Physics" Review

• Visual Scan: Toggle TrueView (T) off. Do you see long dotted lines across filled areas?
• Measurement: Use (M) to measure the widest point. Is it over 7mm?
• Decision:
  • If < 7mm -> Standard Satin.
  • If 7mm - 12mm -> Auto Split Satin.
  • If > 12mm -> Tatami Fill (or risk machine damage).


Auto Fabric & Underlay: The Invisible Foundation

The instructor highlights a golden rule: Underlay must oppose the Top Stitch.

If your top satin stitch runs Vertical (North-South), your underlay must run Horizontal or Diagonal. If they run parallel, the top stitch will sink into the underlay, causing the fabric to "tunnel" or pucker.

Decision Tree: Fabric vs. Stabilizer Strategy

Stabilizer is not optional; it is the foundation. Use this chart to pair your digitized file with the right physical support.

The "Hoop Burn" Variable: Even with perfect underlay, standard friction hoops can crush delicate fabrics or leave shiny rings ("hoop burn"). This is a common pain point.

• Level 1 Fix: Steam the garment after embroidery to lift the fibers.
• Level 2 Fix: Switch to magnetic embroidery hoops. These use vertical magnetic force rather than friction, holding the fabric firmly without crushing the fibers. They are standard in high-volume shops for this reason.

Warning: Magnetic Safety
magnetic embroidery hoops differ from household magnets. They are industrial-strength.
1. Pinch Hazard: Never place fingers between the rings. They snap together with enough force to bruise or break skin.
2. Medical Devices: Keep at least 6 inches away from pacemakers.

The "No Surprises" Operating Routine: Final Export Check

You are ready to export to DST (or your machine's format). Do not skip this final pre-flight check.

Operation Checklist: Final Pass

• Jump Diagnostic: Toggle TrueView one last time. Are there jumps (dotted lines) inside solid objects? If yes, check your Start/End points for those segments.
• Center Lock: Is the design centered at X=0, Y=0?
• Start Point: Is the needle set to start at the center?
• Underlay Check: Did you verify the underlay angle is not parallel to the top stitch?
• Safety Zone: Did you run a "Trace" on the machine to ensure the needle won't hit the hoop?

The Upgrade Path: Moving from Hobby to Production

Once your digitizing is solid—your files are centered, your stitches are safe lengths, and your underlay is engineered—your bottleneck will shift. You will stop fighting the software and start fighting the clock.

This is the healthy evolution of an embroidery business. When you reach this stage, consider your hardware bottlenecks:

1. Placement Consistency: If you struggle to get logos straight on every shirt, a hoopmaster hooping station or similar jig system removes the guesswork.
2. Hoop Limitations: If you are tired of wrestling with thick jackets or dealing with hoop burn on expensive polos, the magnetic hoop ecosystem is the industry solution for speed and fabric safety.
3. Throughput: If your single-needle machine can't keep up with orders, the SEWTECH line of multi-needle machines allows you to queue colors without manual thread changes, turning output from a chore into a system.

A perfect file deserves a perfect stitch-out. Master the software first, then upgrade your tools to match your new efficiency.

FAQ

• Q: How do I prevent a Wilcom EmbroideryStudio e4 design from being “visually centered” but still hitting the hoop during machine trace?
  A: Force the design to the true hoop center by setting the design position to X=0 and Y=0 before exporting.
  • Select the full design (Ctrl + A) and type 0 into Position X and Position Y, then press Enter
  • Re-open the file after saving/exporting and re-check that X=0 and Y=0 did not drift
  • Run a machine Trace before stitching to confirm travel stays inside the physical hoop
  • Success check: the red page crosshair sits in the middle of the design and the hoop trace does not approach or strike the frame
  • If it still fails: confirm the file is aligned to Page Center (0,0) (not just the design’s own center) and re-check the hoop size selected in the production page
• Q: How do I set Wilcom EmbroideryStudio e4 Auto Start & End so the needle always returns to hoop center between garments?
  A: Turn on Auto Start & End with “Maintain automatically” and set the start/end to the center dot so the machine returns to the same reference point every time.
  • Go to Design > Auto Start & End
  • Check Apply auto start & end and Maintain automatically
  • Click the center dot on the grid icon, then click OK
  • Success check: after the design finishes, the needle returns to the center reference instead of stopping in a corner
  • If it still fails: verify Auto Start & End is still enabled after edits (some changes can require re-checking the dialog)
• Q: How do I stop Wilcom EmbroideryStudio e4 bitmap artwork from drifting while I digitize (Lock Bitmap shortcut)?
  A: Lock the background bitmap before tracing so the reference image cannot move out of alignment.
  • Select the bitmap and press K to lock it (or lock it from the object list)
  • Pin the Color-Object List so objects and layers stay easy to verify while working
  • Save a template if this is a repeat workflow so the “clean cockpit” setup is consistent
  • Success check: attempting to drag the bitmap does nothing and outlines stay aligned as you zoom/pan
  • If it still fails: confirm the correct object is selected (the bitmap, not the stitches) and lock it again from the object list
• Q: When Wilcom EmbroideryStudio e4 shows long dotted lines (jump stitches) around 11 mm, how do I fix the “tractor sound” and unstable stitching?
  A: Treat long dotted spans as a stitch-physics warning and redesign the area to reduce long stitch travel.
  • Toggle TrueView (T) off to see raw stitch data and identify long dotted lines
  • Measure the span with Measure Tool (M) and flag any very long movements (the blog example shows 11.43 mm)
  • Convert overly wide satin areas to Tatami to replace long loops with shorter interlocking stitches
  • Success check: the preview shows fewer long dotted spans and the machine runs smoothly instead of slowing to a heavy “thump-thump” sound
  • If it still fails: use Satin Auto Split for satin-look areas that must stay satin, and re-check start/end points that may be creating avoidable jumps
• Q: In Wilcom EmbroideryStudio e4, how do I keep a satin look on a wide shape without risking long unstable stitches (Auto Split 7.00 mm)?
  A: Use Satin Auto Split (the blog example uses 7.00 mm) so wide satins are broken into safer segments.
  • Right-click the satin object and open Object Properties
  • Under the Satin tab, enable Auto Split and set the split length (example: 7.00 mm)
  • Toggle TrueView (T) off and scan for long dotted spans that indicate risky travel
  • Success check: the satin remains glossy but no single span looks excessively long in the stitch view
  • If it still fails: convert the object to Tatami when the width is beyond safe satin behavior for the machine setup
• Q: What are the minimum safety rules for test-stitching wide Column B satin stitches in Wilcom EmbroideryStudio e4 workflows?
  A: Treat wide satins as a needle-deflection hazard and keep hands and eyes protected during test runs.
  • Keep hands at least 4 inches away from the needle bar during test stitching
  • Avoid pushing Column B satin widths into the “too wide” range (the blog warns about over 10–12 mm causing deflection risk)
  • Run a controlled test stitch and stop immediately if the machine begins hitting, clunking, or sounding abnormal
  • Success check: the machine runs smoothly with no metal-on-metal sound and no needle strike marks on the plate/frame
  • If it still fails: redesign the object using Auto Split or Tatami before running at production speed
• Q: How do I prevent hoop burn (shiny hoop rings) on delicate polos while still holding fabric firmly—standard hoops vs magnetic embroidery hoops?
  A: Start with a garment-recovery step, then upgrade to a holding method that reduces crushing force if hoop burn keeps happening.
  • Steam the garment after embroidery to lift fibers and reduce the visible ring
  • Switch to magnetic embroidery hoops to hold fabric with vertical magnetic force rather than friction pressure (often reduces crushing on delicate fabrics)
  • Standardize center marking on fabric (water-soluble pen) so lighter hoop pressure still places accurately
  • Success check: the fabric shows minimal or no shiny ring after stitching and the design stays stable without shifting
  • If it still fails: review stabilizer pairing (especially on stretchy knits) and consider a placement/hooping jig to reduce re-hooping and over-tightening
• Q: What are the key safety precautions for using industrial magnetic embroidery hoops in a production shop?
  A: Handle magnetic hoops as pinch-hazard tools and keep them away from medical devices.
  • Keep fingers out of the gap when closing the rings to avoid pinch injuries
  • Store and handle the rings deliberately so they do not snap together unexpectedly
  • Keep magnetic hoops at least 6 inches away from pacemakers
  • Success check: the hoop closes without finger contact in the pinch zone and operators can repeat the process safely without “snap surprises”
  • If it still fails: slow the handling routine down and assign one trained operator until the shop develops consistent, safe muscle memory
