Wilcom EmbroideryStudio e3 New Features That Actually Save Production Time (and Prevent Ugly Stitchouts)

If you digitize for real production, you already know the painful truth: “new features” only matter if they reduce machine stops, trims, thread changes, and rework.

Dean Rosco’s EmbroideryStudio e3 overview is packed with exactly that kind of value—workflow speed-ups plus a few deceptively powerful digitizing controls that can change how your designs sew.

One quick note from the comments: someone asked for a download link. Wilcom licensing and downloads vary by region and reseller, so the safest path is to get the installer and activation details directly through Wilcom or your authorized dealer—don’t gamble with random downloads that can break updates or licensing.

Start Clean: The “Open Template” Window That Prevents Wrong Machine Formats Before You Waste Time

In e3, the first improvement hits before you even digitize: the New Template / Open Template selection is consolidated into one central dialog where you choose fabric type, background/display colors, and the machine/file format output in one place (00:23–00:37).

That sounds small—until you’ve ever:

• built a design in the wrong machine format,
• previewed on the wrong fabric preset,
• or sent a file to production that wasn’t set up the way your shop actually stitches.

In a commercial environment, “template discipline” is how you avoid silent errors that only show up after the first sew-out.

The “Hidden” Prep pros do before they touch a stitch

Even though the video focuses on software, your template choices should reflect how the design will behave once it’s hooped and stitched.

Prep Checklist (Pre-Digitizing):

• Target Machine Format: Confirm specific output (e.g., DST, PES) in the template window to avoid reading errors later.
• Product Context: Define if this is for a flat garment, cap, bag, or patch. This dictates your "Pull Compensation" settings later.
• Production Volume: Is this a one-off or a 500-piece run? High volume requires efficient pathing (minimal trims).
• Client Mapping: Confirm the specific thread brand (e.g., Madeira, thread charts) to match your physical inventory.
• Hidden Consumables Check: Ensure you have temporary spray adhesive, water-soluble topping (for texture), and fresh 75/11 needles on hand before starting the project in software.

If you’re running a shop, this is also where you standardize: one template per common product line (tees, polos, hats, totes). Consistency here is what makes your results repeatable.

Stop Dragging Objects: Use “Sequence by Color” to Reduce Thread Changes Without Breaking the Design

The video shows a design with multiple objects and colors, and how e3 makes resequencing faster using the Resequence toolbar and Sequence by Color dialog (00:59–02:29).

Instead of dragging individual objects one-by-one, you can:

1. Select everything (Ctrl+A).
2. Click Sequence by Color.
3. Drag entire color rows to the order you want (Dean moves Green to the top).
4. Confirm, and the color object list updates.

This matters because color changes are not just “time.” They are risk. Every time your machine stops to change needles (or prompts you to change thread on a single-needle machine), three things happen:

1. Production Halts: You lose momentum.
2. Trim Risks: Every trim is a potential "bird's nest" or thread tail pulling out.
3. Registration Drift: The longer a garment sits in the hoop idle, the more chance it has to shift.




Pro tip from production reality: resequence with stitch logic, not just color logic

Color-first resequencing is great, but don’t let it create new problems:

• If a small detail relies on being stitched after an underlay-heavy area (for coverage), keep that logic.
• If you move a top layer earlier, you may expose it to distortion from later dense stitching.

A safe habit: resequence, then run a simulation (next section) and watch for “traveling” that creates long jumps or awkward trims.

Use Slow Redraw + TrueView Like a “Pre-Flight Check” (So the Machine Doesn’t Teach You the Lesson)

Dean demonstrates the improved Slow Redraw (Shift+R) and how TrueView gives a more realistic playback (03:10–03:59). The standout upgrade is the Stitch Range slider at the top: you can backtrack to a specific point (he targets the letter “L”) and replay from there.

This is one of those features that quietly saves money. Here’s how experienced digitizers use it:

• After resequencing, replay only the section where layers overlap.
• After editing a satin corner, replay only that letter.
• After adding offsets/borders, replay only the border sequence to check trims and overlaps.

What you’re looking for in the playback (Sensory Check)

Software simulation is visual, but you need to translate it into what you will hear and see on the machine:

• Sudden Direction Changes: These create a harsh "jerking" sound on the pantograph. Smooth out the pathing.
• Density Stacking: If you see dark, solid blocks layering 3-4 times in TrueView, imagine your needle hammering that spot. It will sound like a dull thud-thud-thud and may snap the needle or shred the thread.
• Long Jump Stitches: In the simulation, look for long straight lines connecting objects. In reality, these are loose loops waiting to snag on the presser foot.

Warning: Simulation is not a safety shield—always keep hands clear of the needle area during actual stitch-outs. Never reach in to trim a thread tail or adjust fabric while the machine is running. A 1000 SPM needle moves faster than your reflex.

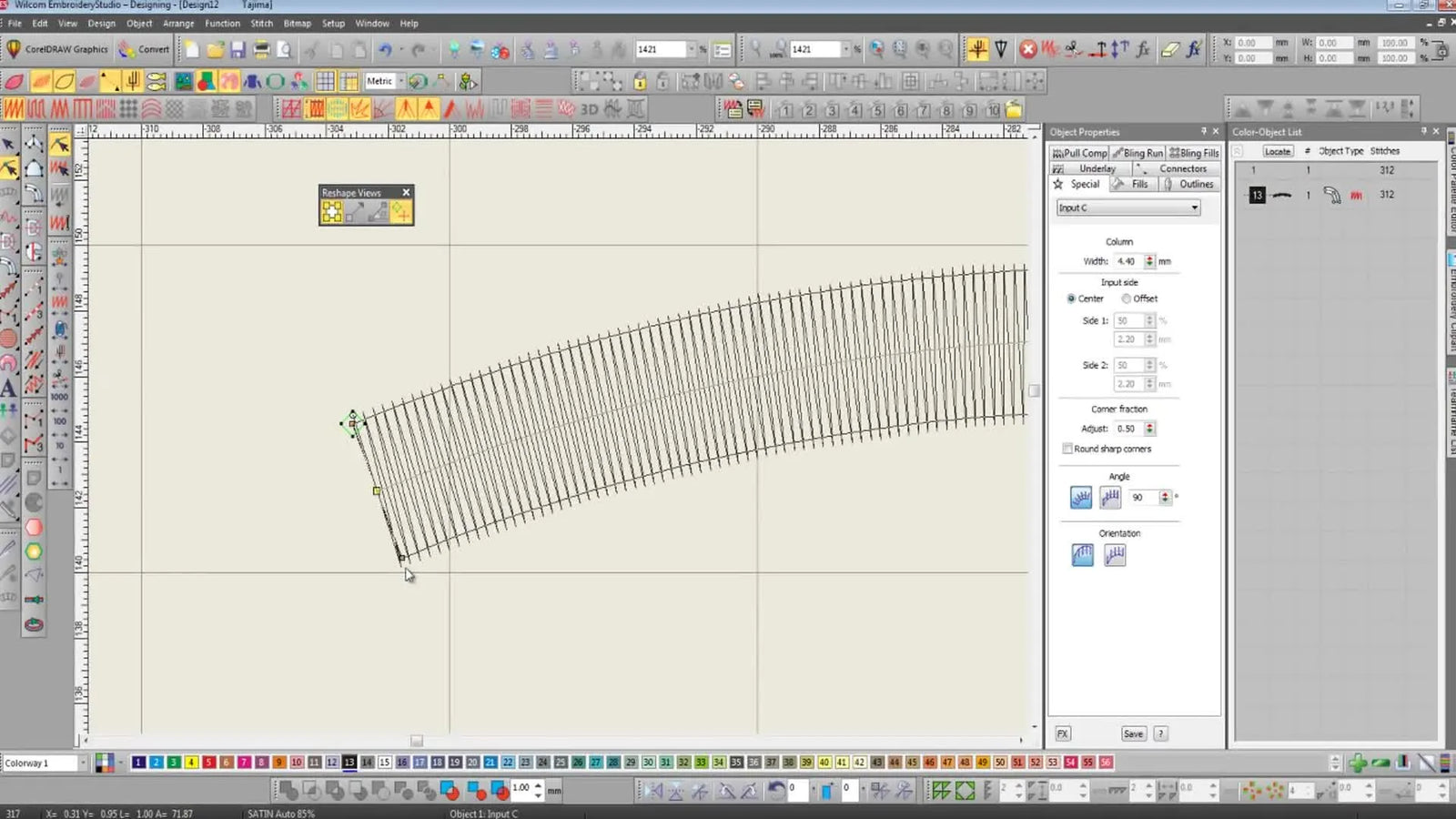

Fix Satin Gaps at Letter Intersections: Input C Slant Is the Difference Between “Okay” and “Professional”

The video nails a classic problem: where horizontal satin stitches meet vertical satin stitches at a 90° intersection (shown on a capital “A”), the stitches can pump apart and show fabric (04:00–05:05). Dean’s fix:

• Select the Input C object.
• Enter Reshape mode.
• Hold Shift and drag the angle handles to change stitch direction from 90° to a diagonal.

That diagonal “locks” the intersection better.

The “why” (Physics of the Pull)

In production, gapping at intersections is rarely just a “mistake.” It is physics. Satin stitches naturally pull the fabric together in the direction the stitch runs.

• A vertical column pulls the fabric inwards horizontally.
• A horizontal bar pulls the fabric inwards vertically.
• When they meet at 90°, they are literally pulling the fabric apart at the seam.

By changing the angle to a diagonal, you distribute that tension more evenly.

However, software settings can't fix loose fabric. If your actual hooping is weak, no amount of angle adjustment will save the design. This is why a proper embroidery hooping system is critical—the fabric must be "drum tight" (you should hear a thump when you tap it) so the software’s pull compensation works as predicted.

Fake a 3D Look Without Foam: Slanted Columns + Width Changes for Raised Borders

Dean shows how the new Input C slant capability can create stylized effects:

• An italic/slanted “S” generated from freehand input.
• A thick, beveled-looking border around a letter “E,” created with the automatic border tool and then adjusted for slant and width to mimic a raised 3D effect (05:06–06:07).




This is a smart “production-friendly 3D” approach because it avoids the hassle of 3D foam (puff), but you must respect the machine's limits.

Safety Limits for Faux-3D

• Max Width: Do not exceed 7mm–8mm satin width without engaging a "split satin" (auto-split) setting. Stitches wider than this are loose and snag easily.
• Density Warning: To get the raised look, you might be tempted to double the density. Don't. Instead, use a heavy underlay (see Section 7) to build the foundation. Over-density causes thread breaks and holes in the garment.

Multi-Level Break Apart: Edit One Letter Without Nuking the Whole Text Block

The Multi-level Break Apart feature is a quality-of-life upgrade that matters when you’re editing lettering for sew order, borders, or start points.

Dean demonstrates progressive break apart behavior (06:19–07:55):

1. First click: text block splits into lines.
2. Second click: line splits into words.
3. Third click: word splits into letters.
4. Final click: letter splits into primitive objects.




Why this matters: older workflows could explode text into a mess too early, and regrouping became a chore. This keeps surrounding elements intact while you surgically edit what you need.

Watch out: don’t break apart too early

Once you’ve broken text down to "primitives" (individual vectors), the text is no longer "text." You cannot change the font or fix a typo easily. A practical shop habit is:

• Finalize spelling and sizing first.
• Only then break apart to adjust specific kerning or stitch angles.

Underlay Angle Control (90° → 140°): The Loft Trick That Also Stabilizes Satin Behavior

Dean highlights a “can’t miss” feature: underlay stitches are no longer restricted to 90° to the baseline for zigzag underlay. He changes the zigzag underlay angle from 90° to 140° to create more loft (07:56–08:58). He also applies angle control to double zigzag, showing 118°.

The “why” behind the loft

Changing underlay angle creates a structural "truss" (like a bridge).

• Standard 90°: Holds the edges together.
• Angled (140°/118°): Creates a cross-hatch foundation that physically lifts the top satin stitches up. This improves coverage and gives a premium, rich look without adding extra top stitches.

Beginner Sweet Spot: If you aren't sure, try 135° to 145° for your underlay on simple satin columns. It usually provides better coverage than the default 90°.

Outlines & Offsets: Method 3 Is the “No-Bulk” Border Choice for Overlaps

Dean demonstrates Outlines and Offsets (08:59–11:59) by bordering overlapping squares using three methods. He calls out Method 3 as best for embroidery because it ignores hidden overlap areas—preventing bulk and avoids an “impression” from embroidery stitched underneath.

This is crucial. In embroidery, "bulk" is the enemy. Stacking stitches creates a hard, bulletproof feel that is uncomfortable to wear and breaks needles.

Setup Checklist (Before Generating Borders)

• Overlap Check: Identify where objects stack. If they overlap, use Method 3.
• Stitch Type: Decide if the border is a Run Stitch (thin line), Triple Run (bold line), or Input C (satin column).
• Color Stop: Decide if the border runs immediately after the object or at the very end of the design. (Running at the end is cleaner but risks registration errors if the fabric shifts).
• Proximity: If the border sits near small text (under 5mm), ensure the border won't "crowd" the letters and make them unreadable.

Build Professional “Echo” Borders Fast: 2.00 mm and 4.00 mm Offsets With Different Stitch Types

Dean then switches from outlines to offsets around the text “WILCOM.” The defaults and values shown:

• A Run stitch offset in blue at 2.00 mm from the outside of the red letters (11:05).
• Additional offsets can be added; he sets a green Motif Run offset 4.00 mm away (11:29).
• He adds a red Stem stitch offset and leaves it at 4.00 mm away from the motif run.


This is a powerful production tool because it turns what used to be manual border building into a controlled, repeatable system.

Visual Rule of Thumb

Why 2.00mm? In embroidery, gaps smaller than 1mm often get closed up by the "spread" of the thread.

• < 1.0mm gap: Looks like a mistake/poor registration.
• 1.5mm - 2.0mm gap: Looks like an intentional, clean "echo" effect.

Decision Tree: Fabric Type → Stabilizer Strategy (So Your Digitizing Choices Actually Sew the Same Way)

The video doesn’t cover stabilizers, but your digitizing decisions (underlay angle, border methods, satin slant) only pay off if the fabric is stabilized consistently.

Use this decision tree to match your digital settings to physical reality:

Decision Tree (Quick Reference):

1. Is the fabric stretchy (T-shirts, Performance Wear, Knits)?
   • Stabilizer: Cutaway (Must use 2.5oz or 3.0oz). Tearaway will fail and cause gaps.
   • Digitizing: Increase Pull Compensation (0.35mm - 0.40mm). Avoid heavy, dense borders.
2. Is the fabric light & unstable (Silk, Rayon, Thin Woven)?
   • Stabilizer: No-Show Mesh (Cutaway) + Temporary Spray Adhesive.
   • Digitizing: Use "Center Run" underlay to pin fabric first. Reduce density by 10-15%.
3. Is the fabric thick & textured (Hoodie, Fleece, Towel)?
   • Stabilizer: Tearaway is usually fine (2 layers). Must use "Topping" (Water Soluble) on top.
   • Digitizing: Use the Angled Underlay (140°) trick from Section 7 to lift stitches out of the pile.

If you’re producing at scale, this is where consumables become a system. A reliable stabilizer/backing choice is often the cheapest way to reduce rejects.

Where Software Meets Hooping: When a Magnetic Hoop Is the Real Upgrade

Digitizing improvements reduce risk, but hooping inconsistency can still ruin a perfect file—especially on stretchy garments, thick seams, or awkward items.

If your pain point is that you hated doing the job because the fabric slipped or the outer ring left "hoop burn" marks, it’s time to look at your hardware tools.

• Problem: Hoop burn or struggling to clamp thick jackets.
• Solution: magnetic embroidery hoops. These use magnets to clamp fabric without forcing an inner ring into an outer ring, eliminating resistance and burn marks.
• Problem: Crooked logos across a 50-shirt order.
• Solution: A machine embroidery hooping station. This standardizes placement so every shirt is hooped at the exact same coordinates, reducing operator fatigue and increasing speed.

Warning: Magnetic hoops contain powerful industrial magnets. Pinch Hazard: Keep fingers clear when magnets snap together—they can cause blood blisters or worse. Health Safety: Keep them away from pacemakers, ICDs, and other implanted medical devices.

Turning These e3 Features Into Shop Efficiency (Without Overcomplicating Your Process)

Here’s how I’d translate the video’s features into a repeatable production workflow:

1. Template first: Lock in fabric context and output format.
2. Import faster using the new top icons.
3. Resequence by color to reduce thread changes—then sanity-check stitch logic.
4. Slow Redraw in TrueView and use the stitch range slider to inspect only the risky sections (overlaps).
5. Fix satin intersections with Input C slant before you run fabric.
6. Use multi-level break apart only for surgical edits.
7. Tune underlay angles (140° / 118°) for loft on textured fabrics.
8. Generate borders with Method 3 to keep the design flexible and soft.

Operation Checklist (The Final "Go/No-Go")

Before you press "Start" on the machine:

• Pathing Check: Did you listen to the Slow Redraw? Are there any harsh direction changes?
• Color Logic: Minimized thread changes without ruining the layering?
• Density Check: Are overlap borders (Method 3) used to prevent bulletproof patches?
• Readability: Are offsets/borders at least 1.5mm–2.0mm away from text?
• Mechanical: Is the machine bobbin full? Is the needle fresh?

A practical “tool upgrade” path based on your bottleneck

If you are hitting a wall, identify the specific friction point:

• Digitizing is slow? Master the shortcuts (Break Apart, Templates).
• Hooping is painful? Upgrade to embroidery hoops magnetic to save your wrists and speed up thick garment loading.
• Production is too slow? If you are waiting on a single-needle machine to change colors, it might be time to look at a multi-needle commercial machine (like the SEWTECH catalog options) to regain your time.

Embroidery is a mix of art and engineering. Master the software logic first, but back it up with solid physical tools.

Referenced video features (recap): consolidated template selection, resequence by color, improved slow redraw with stitch range slider in TrueView, Input C slant via Shift in Reshape mode to fix gapping, 3D-style borders via slanted columns, multi-level break apart for text, underlay angle control (90°→140° and 118°), and outlines/offsets with Method 3 for overlap-safe borders plus 2.00 mm / 4.00 mm offset spacing.

FAQ

• Q: How do I prevent Wilcom EmbroideryStudio e3 designs from exporting in the wrong machine file format like DST vs PES during the New Template / Open Template step?
  A: Set the exact target machine/file format inside the New Template / Open Template dialog before digitizing anything.
  • Confirm: Choose the correct output format (for example DST or PES) in the template window before placing stitches.
  • Standardize: Create one template per common product line (tees, polos, hats, totes) so the setting is repeatable for every operator.
  • Recheck: Before saving the first production file, verify the format again to avoid “silent” read/compatibility issues later.
  • Success check: The saved file extension and the machine/software you load it into match with no “cannot read” or wrong-format prompts.
  • If it still fails… Get the installer/activation through Wilcom or an authorized dealer for your region; avoid random downloads that can break licensing/updates.
• Q: How do I reduce thread changes safely in Wilcom EmbroideryStudio e3 using “Sequence by Color” without causing new trims, long jumps, or registration drift?
  A: Use “Sequence by Color” to move whole color blocks, then sanity-check stitch logic with a simulation before stitching.
  • Do: Select all (Ctrl+A) → Sequence by Color → drag entire color rows into the desired order → confirm.
  • Simulate: Run Slow Redraw (Shift+R) and look specifically for long traveling lines or awkward trims created by the new order.
  • Protect layering: Keep stitch logic intact when needed (details that rely on underlay/coverage may need to remain later).
  • Success check: The playback shows fewer color stops with no new long jumps across open areas and no trim-heavy “ping-ponging.”
  • If it still fails… Undo/reorder one color at a time and replay only the risky overlap sections using the Stitch Range slider.
• Q: How do I use Wilcom EmbroideryStudio e3 Slow Redraw + TrueView Stitch Range slider as a pre-flight check to prevent needle snaps, thread shredding, and snagging jump stitches?
  A: Replay only the risky section using the Stitch Range slider, then fix what looks “harsh,” stacked, or overly long before sewing.
  • Backtrack: Drag the Stitch Range slider to the exact problem area (for example a letter corner or overlap) and replay from there.
  • Watch for: Sudden direction changes, dark stacked blocks (density stacking), and long straight jump lines between objects.
  • Adjust: Smooth the pathing, reduce risky overlaps, or re-sequence to eliminate unnecessary travel.
  • Success check: Playback looks smooth with no repeated heavy stacking in one spot and no long jump lines that would leave loose loops.
  • If it still fails… Run a real test sew-out on the correct stabilized fabric—simulation helps, but it is not a safety shield.
• Q: How do I fix satin gaps at 90° letter intersections in Wilcom EmbroideryStudio e3 using Input C slant (for example on a capital “A”)?
  A: Change the satin stitch direction from a hard 90° to a diagonal using Input C slant so the intersection “locks” instead of pumping apart.
  • Select: Click the Input C object at the intersection and enter Reshape mode.
  • Slant: Hold Shift and drag the angle handles to rotate the stitch direction diagonally through the join.
  • Verify: Replay that letter/section in Slow Redraw/TrueView to confirm coverage at the crossing point.
  • Success check: The simulated intersection shows no exposed fabric line where the vertical and horizontal satins meet.
  • If it still fails… Check hooping tension—loose fabric can defeat pull compensation; fabric should be drum-tight so the design behaves as expected.
• Q: What stabilizer setup should I use for stretchy T-shirts vs thin woven fabrics vs thick textured fleece when I want Wilcom EmbroideryStudio e3 pull compensation and underlay angle settings to sew consistently?
  A: Match stabilizer to fabric first, then tune digitizing—stabilizer inconsistency is a common reason “good files” sew poorly.
  • For stretchy knits (T-shirts/performance wear): Use cutaway (2.5oz or 3.0oz) and increase pull compensation to 0.35–0.40 mm; avoid overly heavy dense borders.
  • For light unstable wovens (silk/rayon/thin woven): Use No-Show Mesh (cutaway) plus temporary spray adhesive; use “Center Run” underlay and reduce density by 10–15%.
  • For thick textured goods (hoodie/fleece/towel): Use tearaway (often 2 layers) and add water-soluble topping; use angled underlay (around 140°) to lift stitches out of the pile.
  • Success check: After stitch-out, edges look covered (no gapping), fabric does not ripple, and details remain readable without sinking.
  • If it still fails… Keep the same file but change only one variable (stabilizer or topping) per test so the root cause is clear.
• Q: What are the key needle-area safety rules during high-speed embroidery stitch-outs (for example 1000 SPM) when trimming tails or adjusting fabric?
  A: Keep hands completely out of the needle area while the machine is running—never reach in to trim or adjust during motion.
  • Stop first: Pause/stop the machine before touching thread tails, fabric, or the hoop area.
  • Plan: Use simulation (Slow Redraw/TrueView) to reduce surprise trims and risky sections before stitching.
  • Stay clear: Treat the needle zone as a “no-hands” area at speed because the needle moves faster than reflexes.
  • Success check: No near-misses—operators are only handling thread/fabric when the machine is fully stopped.
  • If it still fails… Implement a shop rule: “hands off until stop,” and retrain operators—most injuries happen during “just a quick trim.”
• Q: When should a shop upgrade from technique tweaks to magnetic embroidery hoops or a multi-needle SEWTECH embroidery machine to reduce hoop burn, fabric slipping, and slow color changes?
  A: Use a tiered approach: optimize process first, then upgrade the tool that matches the bottleneck.
  • Level 1 (technique): Standardize templates, resequence by color, and pre-flight with Slow Redraw/TrueView to cut stops, trims, and rework.
  • Level 2 (tooling): If hoop burn, thick jackets, or fabric slipping is the pain point, magnetic embroidery hoops often reduce clamping struggle and help consistency.
  • Level 3 (capacity): If single-needle color changes are the main time loss, a multi-needle commercial machine (such as SEWTECH options) is often the practical next step.
  • Success check: Fewer machine stops and rehoops, less visible hoop burn, and steadier placement across a run (for example 50 shirts).
  • If it still fails… Add a hooping station to standardize placement coordinates—crooked runs are often a placement system issue, not a digitizing issue.
