Don’t Panic—Editing a Client Logo in Wilcom EmbroideryStudio e2 Is Normal Production Work

If you’re a shop owner or production digitizer, you know the uncomfortable truth: “digitized” rarely means “production-ready.” A file that looks perfect on your high-resolution monitor can turn into a bulletproof vest or a bird’s nest when you scale it down or switch from a stable denim to a stretchy polo.

This guide focuses on the Production Workflow: taking an existing asset and ensuring the best stitch-out in the least amount of time.

The Mindset Shift:

• Designers think in pixels and colors.
• Embroiderers think in density, angles, and compensation.

This workflow is ideal for those who aren't artists but are responsible for the final product. Your job is to make stitches behave using smart defaults, fast object edits, and logical sequencing.

The “Hidden” Prep Before You Touch Auto-Fabric Assistant: Know Your Physics

Before you click a single button in the software, you must assess the physical variables. Embroidery is 80% preparation and 20% stitching.

The Trinity of Stability

You must balance three forces:

1. The Design Density: How many needle penetrations per square millimeter?
2. The Fabric Structure: Is it stable (drills/canvas) or fluid (pique/jersey)?
3. The Hooping/Stabilization: Is the fabric held under tension like a drum skin?

If your hooping is weak, no amount of software editing will save you. This is where physical tools matter. When hooping becomes your bottleneck—especially on slippery performance wear—standard plastic hoops often fail to grip evenly. Many professionals turn to hooping stations to ensure consistent placement, but the real game-changer is often the hoop itself (more on this in the upgrade section).

Pre-Flight Checklist (Do this BEFORE software startup)

• [ ] Texture Test: Rub the fabric. Is it slippery? (Needs tighter hooping). Is it fuzzy/pile? (Needs water-soluble topping).
• [ ] Scale Verification: Are you shrinking the logo? (Risk: Text becoming illegible blobs).
• [ ] Substrate Logic: Are we stitching on a flat chest or a curved cap? (Curved surfaces require different sequencing to prevent "push" ripples).
• [ ] Consumable Check: Do you have the right needle? (Start with a 75/11 Sharp for wovens, or 75/11 Ballpoint for knits).
• [ ] Documentation: Do you need an Approval Sheet to get a "Yes" from the client before you burn thread?


Auto-Fabric Assistant in Wilcom EmbroideryStudio e2: The "Safe Mode" for Density

In the video, the workflow starts by ensuring “Use Auto-Fabric Assistant” is checked. This is your safety net.

• Scenario: The file was originally set for Pure Cotton (stable).
• Action: It is changed to Jersey (unstable/stretchy).

Why this matters: Fabrics like Jersey need Pull Compensation. As the needle creates stitches, it pulls the fabric inward. Without compensation, a circle becomes an oval, and outlines fail to line up with the fill (gap issues). Auto-Fabric Assistant automatically increases pull compensation (usually to 0.35mm - 0.40mm for knits) and adjusts density so you don't chop a hole in the delicate knit.

Expert Reality Check: Trust but Verify

Auto settings are a statistical average. They are a good starting point, but they don't know your specific machine.

Sensory Check: After the first test run, look at your satin columns. If they look "skinny" or if the white bobbin thread is showing on top edges, the Auto-Fabric Pull Compensation wasn't enough. Bump it up manually by 0.10mm.

To achieve consistent results across different garments without constantly tweaking software, standardized shops often lock in one variable: the hoop. Using reliable magnetic embroidery hoops across your machines allows the fabric to sit naturally without being "burned" or stretched by friction rings, making the Auto-Fabric settings more accurate.

Color Object List and Object Properties: The Production Command Centers

Stop looking at the design window. The Color Object List is your roadmap. It shows you the sequence of events.

• Goal: Reduce "Trims." Every time the machine trims the thread, it stops, cuts, moves, and restarts. This takes 6-10 seconds and leaves a potential loose tail.
• Action: Group same-colored objects together unless overlap rules prevent it.


The Object Properties panel is where you change the physics of specific shapes. This is where we stop treating the file as a picture and treat it as a series of instructions.

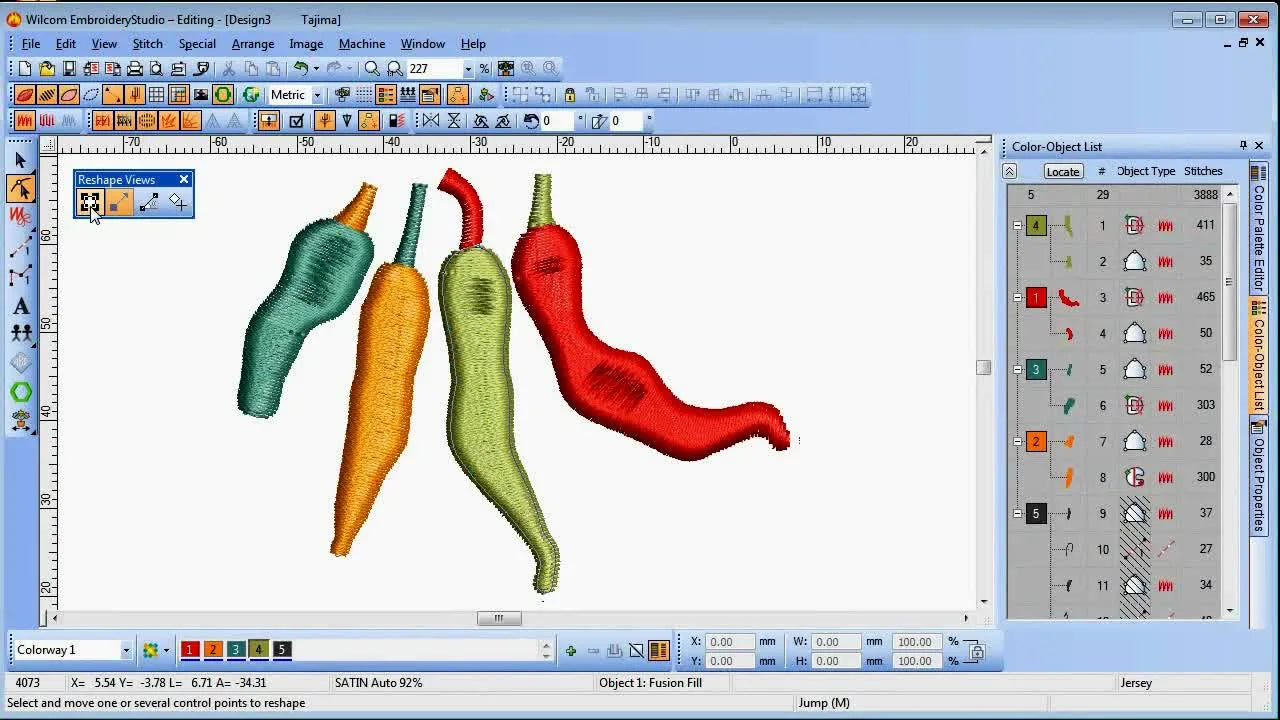

The Small-Object Rescue: Converting Fill to Satin

One of the most common failure points in resizing is Tatami (Fill) stitches becoming too small.

• The Problem: A Fill stitch relies on a pattern of needle penetrations. When you scale a design down by 50%, specific details (like the chili peppers in the video) become tiny. A Fill stitch in a 3mm wide object results in needle penetrations too close together, causing thread breakage or a "hard" cardboard feel.
• The Fix: Convert to Satin Stitch.


Step-by-Step Conversion

1. Select the Object: Highlight the small peppers.
2. Change Stitch Type: Switch from Tatami/Fill to Satin.
3. Activate Auto Split: If the satin is longer than 7mm, use Auto Split.
   • Why? Standard embroidery machines generally feature a max stitch length of 12mm, but anything over 7mm is prone to snagging on buttons or jewelry. Auto Split puts a hidden needle drop in the middle to anchor the thread without ruining the glossy look.
4. Reshape Angles: Use the Reshape Tool to fix the stitch angles.
   • Sensory Anchor: The stitch lines should flow like water through a pipe—perpendicular to the sides of the shape. If they run parallel, the stitch will be thin and ragged.


Warning: Mechanical Safety
When running test stitches on small objects, keep your fingers clear of the needle bar. A 1000 SPM (Stitches Per Minute) needle moves faster than your reflex. Always use tweezers to grab thread tails, never your fingers.

Entry/Exit Points: The "Travel" Theory

The video demonstrates adjusting green (Start) and red (End) crosses. This is critical for Pathing.

The Logic: Imagine walking through a house. You want to enter a room, do your work, and exit through the door closest to the next room.

• Bad Pathing: Trimming after every letter or object.
• Good Pathing: Moving the Exit point of Object A to be as close as possible to the Entry point of Object B.
• Result: Minimal jumps, fewer trims, and a cleaner backside of the embroidery.

Lettering That Actually Stitches: TrueType vs. Embroidery Fonts

The video adds “CUATRO HERMANOS” text.

The Trap: Beginners often use standard Windows TrueType fonts. The Reality: TrueType fonts are designed for print (ink). They have thin serifs and variable widths that do not translate well to thread. The Solution: Use Embroidery Fonts (like the Small Block2 shown in the video). These are "pre-digitized" alphabets where an expert has already determined the correct density and pull compensation for that specific shape.

Reshaping and Kerning:

• Baseline: Use the Reshape Tool to arc the text.
• Kerning (Spacing): Drag the diamond points to adjust space between letters.
• Sensory Check: Look at the letters A and V or T and A. Mathematically equal spacing looks wrong to the eye. Adjust them until the "volume" of white space between letters feels equal.


Visualization: The "Virtual Sew-Out"

Before you waste a $5 garment, visualize. The video uses Display Options to place the logo on a virtual polo.

This serves two purposes:

1. Client Approval: Clients have zero imagination. Show them the mockup.
2. Scale Check: seeing the logo on a torso helps you realize if it's too big (belly placement) or too small (lost on the chest).

Paperwork: The Production Worksheet

Navigating to File > Print Preview generates the Production Worksheet.

Why this is vital: This sheet tells your machine operator (or future you):

• Color Sequence: Which thread cone goes on Needle 1, 2, 3?
• Dimensions: Exact width/height for placement.
• Stitch Count: Used for billing and time estimation.

Cap Embroidery Survival: The "Center Out" Rule

Embroidery on caps is the ultimate test of a digitizer. The Challenge: A cap is not flat. It is a dome. As you sew, the fabric pushes away from the needle. If you sew from left to right, by the time you reach the right side, the fabric has bunched up, and your outline will be misaligned by millimeters.

The Fix:

1. Resize: Scale the logo down (Caps generally have a max height of 2.2 - 2.5 inches).
2. Sequencing: Change the Letter Sequence to Center Out.




By starting in the middle and sewing outward (like smoothing a sticker), you push the distortion to the edges where it disappears, rather than accumulating it in the design.

If dealing with caps is a daily frustration—slipping frames, broken needles, flagging fabric—it may not be your software. It might be your hardware. Upgrading to a specialized cap hoop for embroidery machine provides the mechanical tension needed to keep the curved front stable, allowing your software settings to actually work.

Stabilizer Decision Tree: Matching Chemistry to Physics

Wilcom tries to guess this for you, but you must know the rules. Use this Logic Tree:

1. Is the fabric stretchy (Jersey/Knit/Performance)?
   • YES: You MUST use Cutaway stabilizer. Tearaway will eventually fail, and stitches will distort after the first wash. Use Auto-Fabric set to "Jersey."
   • NO: Go to next.
2. Is the fabric a stable woven (Denim/Twill/Cap)?
   • YES: Tearaway stabilizer is usually fine. Use Auto-Fabric set to "Woven."
   • NO: Go to next.
3. Does the fabric have a pile/texture (Fleece/Towel)?
   • YES: Use a Water Soluble Topping so stitches don't sink and disappear.
4. Is the hooping leaving "burn marks" (shiny rings)?
   • YES: Standard hoops are crushing the fibers. Consider switching to embroidery hoops magnetic. They clamp without friction, preventing fabric damage on sensitive materials like velvet or performance dry-fit.

Warning: Magnetic Safety
Magnetic hoops use powerful industrial magnets. Pinch Hazard: Do not get skin caught between the magnets. Medical Warning: Keep at least 6 inches away from pacemakers or other implanted medical devices. Keep away from credit cards and mechanical watches.

Troubleshooting: From Symptom to Cure

The Upgrade Path: Scaling Your Production

Mastering Wilcom e2 is the software side of the equation. But as your volume grows, your limitations will shift from digitizing to mechanics.

If you find yourself spending 5 minutes hooping a shirt that takes 2 minutes to sew, your profit margin is dying on the prep table.

1. Level 1: Stability Upgrade. If you struggle with thick jackets or slippery polyesters, standard hoops are the enemy. High-quality magnetic frames solve the "pop-out" frustration instantly.
2. Level 2: Speed Upgrade. If you are doing team orders (50+ caps or shirts), single-needle machines become painful.
3. Level 3: Capacity Upgrade. Moving to a SEWTECH multi-needle machine or similar industrial platform allows you to stage the next garment while one is sewing, effectively doubling your output.

Final Operation Checklist:

• Fabric: Auto-Fabric Assistant set to actual material (e.g., Jersey).
• Small Details: Converted to Satin + Auto Split checked.
• Angles: Visually verified stitch flow.
• Pathing: Entry/Exit points aligned to minimize movement.
• Text: Readable font selected, Baseline shaped, Kerning balanced.
• Cap: Center-Out sequence enabled (if applicable).
• Visual: Mockup approved.
• Output: Machine file (DST/PES) + Production Worksheet printed.

You are now ready to hit "Start" with confidence. Listen for that rhythmic, consistent hum—that is the sound of good engineering.
