Wilcom EmbroideryStudio “Double Stitch” Panic? Fix Screen Calibration, Export DST for Tajima, and Duplicate Designs Without the Mess

The Ultimate Field Guide: From Wilcom Glitches to Perfect Production Runs

By the Chief Embroidery Education Officer

There is a specific kind of panic that sets in when you are staring at your monitor at 11:00 PM. The design looked perfect yesterday, but now, the stitches on the screen look "doubled," thick, and distorted. Or worse, you’ve just spent two hours digitizing a logo, walked over to your machine, plugged in the USB, and the screen says: "File Not Supported."

I have spent twenty years on the production floor, and I’ve seen seasoned operators tear their hair out over these exact moments. The fear is always the same: "Is my software broken? Is my machine dying? Did I just lose my work?"

Here is the truth: Embroidery is an experience-based science. It is a communication loop between your digital intent (Wilcom) and physical reality (your machine/fabric). When that communication breaks, it usually manifests as a display glitch or a file error.

This guide is your "White Paper" for stabilizing that workflow. We will rebuild the specific Wilcom fixes shown in the source video (EmbroideryStudio e4.2 / Wilcom 9 context), but we will go further. We will connect the software buttons to the physical hum of the machine, giving you the specific numbers, sensory checks, and safety protocols you need to move from panic to production.

Part 1: The "Digital Hallucination" (Why Wilcom Lies to You)

If your stitches suddenly look like they have been hit with a bold filter—thick, doubled, or horizontally stretched—your instinct is to start deleting objects or reducing density. Stop. Do not touch your stitch properties yet.

In 90% of these cases, the design data is flawless. The problem is a cognitive disconnect between Wilcom and your monitor. If Wilcom thinks your screen is 15 inches wide, but it is actually 24 inches, it will render the stitches incorrectly.

The Fix: Calibrating the "Digital Ruler"

The video demonstrates a critical fix within Hardware Setup. Here is the master-class breakdown of how to execute this, including the physical verification step most tutorials miss.

1. Navigate: Go to Special > Hardware Setup.
2. Select Type: Choose Display Monitor from the dropdown list.
3. The Sensory Check: Click Values. You will see a Width and Height in millimeters.
4. The Physical Truth: Take a physical plastic ruler. Hold it against your monitor.
5. Calibration: Wilcom usually provides a "Measure me" box or asks for the screen dimensions. Adjust the Width and Height (mm) values until the on-screen ruler matches your physical ruler exactly.

Note on Values:

• Video Example "Wrong" State: Width 200.00 mm / Height 100.00 mm (creates distortion).
• Video Example "Corrected" State: Width 400.00 mm / Height 250.00 mm.
• Your Reality: Your numbers will depend entirely on your specific monitor resolution and size. Trust the ruler, not the default numbers.

Success Metric: The Visual Snap

When you hit "OK," the change should be instant. The "doubled" blurred lines should snap into crisp, thin wireframes or realistic 3D renderings. If the design looks proportional—circles look like circles, not eggs—you have solved the issue without deleting a single stitch.

Part 2: The Language Barrier (DST vs. EMB)

The second most common source of frustration is the "File Not Supported" error. This is a language problem.

• EMB (The Architect's Blueprint): This is Wilcom’s native language. It contains object data, colors, vectors, and "intelligence." It is editable.
• DST (The Machine's G-Code): This is the Tajima format, the industry standard "Esperanto" that almost every commercial machine understands. It is dumb data—just X/Y coordinates for needle drops.

The Golden Rule: You draft in EMB. You export in DST.

The Export Workflow

1. Check: Ensure your design is centered (Start/End points at 0,0).

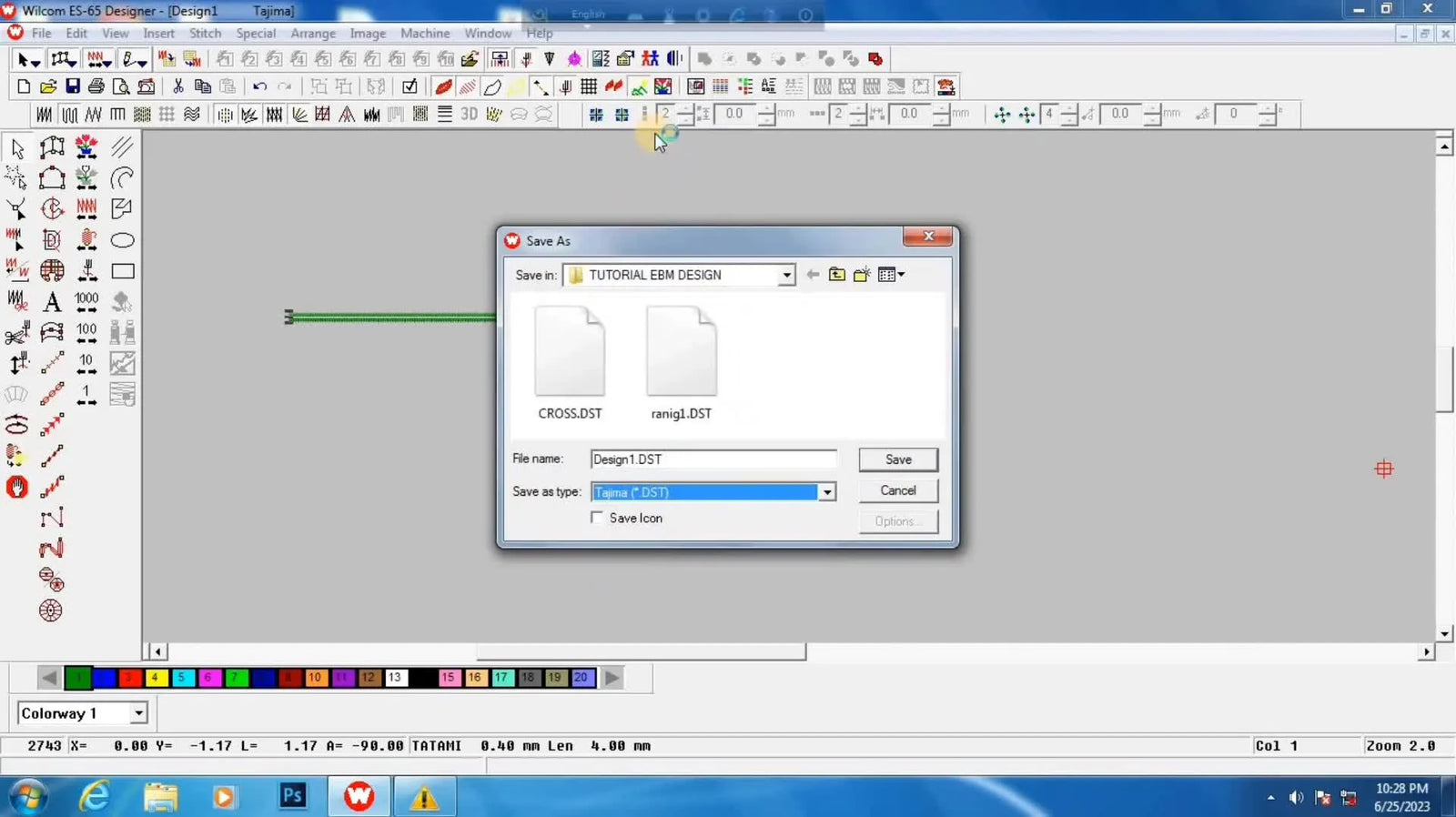

2. Execute: Go to File > Save As.
3. Selector: In Save as type, ignore the default. Scroll to Tajima (*.DST).
4. File Management: Name your files clearly. Project_Name_MASTER.emb vs Project_Name_RUN.dst.

If you are sending files to a client who specifically runs a tajima embroidery machine, they expect a clean DST. Sending them an EMB file forces them to do the conversion, introducing risk.

Hidden Consumable Alert: Flash Drives. A corrupted or cheap USB drive often masquerades as a "bad file." Use low-capacity (8GB or less), FAT32 formatted drives. They are more stable for embroidery machine logic boards.

Setup Checklist: The "Pre-Flight" Protocol

Before you even look at the machine, clear this list:

• [ ] Visual Calibration: Did I hold a ruler to the screen to confirm 1:1 scale?
• [ ] Center Check: Is the design center aligned to (0,0) in the software?
• [ ] Format Verification: Do I have the .EMB saved for edits and the .DST for the machine?
• [ ] Stitch Count Check: Does the DST stitch count match the EMB? (If it differs significantly, check export settings).
• [ ] Media Check: Is the USB drive empty of non-embroidery files to prevent machine confusion?

Part 3: From Software Perfection to Physical Reality

So, you have calibrated the screen and exported the perfect DST. You load it into the machine, press start, and... it looks terrible. Or it creates a "bird's nest."

This is where beginners panic and blame the software. But as an expert, you must look at the physics.

Wilcom controls the placement of the needle, but it cannot control the movement of the fabric. 90% of "bad digitization" complaints are actually hooping failures. This is the bridge between your computer and your finished product.

The "Hoop Burn" & Stability Crisis

Traditional plastic hoops rely on friction and brute force. You screw them tight, often stretching the fabric or leaving permanent "hoop burn" rings on delicate items like performance wear or velvet.

• Scenario: You are running a batch of 50 polo shirts.
• Pain Point: By shirt #10, your wrists hurt from tightening screws. By shirt #20, you notice "puckering" around the logo because the fabric wasn't tensioned evenly.
• The Upgrade Path: This is where professionals switch to a magnetic embroidery hoop.

Unlike friction hoops, magnetic hoops use vertical clamping force. They snap shut automatically, holding the fabric firmly without forcing it out of shape. For a shop scaling up, this is not a luxury; it is a time-management tool. If you are struggling with "flagging" (fabric bouncing up and down with the needle), a magnetic frame is often the immediate cure.

The Production Efficiency Loop (Copy/Paste vs. Hooping Stations)

The video highlights using Ctrl+D (Duplicate) instead of Copy/Paste to create arrays of designs in Wilcom. This is efficient software usage.

But how do you replicate that efficiency in the real world?

• Software: Ctrl+D creates a perfect array of 6 logos.
• Hardware: A hooping station for embroidery ensures those logos land in the exact same spot on every shirt physical shirt.

If your software array is perfect but your shirt placement varies by 1 inch, the software didn't fail—your process did. A hooping station is the physical "Grid Snap" tool.

Warning: Magnetic Safety
magnetic embroidery hoops for tajima and other commercial machines use extremely powerful Neodymium magnets.
* Pinch Hazard: Keep fingers clear of the mating surfaces. They snap shut with significant force.
* Medical Device Safety: Operators with pacemakers or ICDs must maintain a safe distance (usually 6-12 inches) from these magnets. Consult the manufacturer's safety manual immediately.

Part 4: The Empirical "Sweet Spot" (Data & Settings)

Beginners often ask for "the best settings." Experts know there is only a "safe range." Here are the conservative numbers you should use in Wilcom and on your machine to ensure success while you learn.

1. Speed (Stitches Per Minute - SPM)

• The Myth: "Run it at 1000 SPM to get done faster."
• The Reality: High speed increases vibration and thread tension variability.
• The Sweet Spot: 600 - 750 SPM.
• Sensory Anchor: Listen to your machine. At 600 SPM, it should sound like a rhythmic, steady thrum-thrum-thrum. If it sounds like a high-pitched whine or a chaotic clatter, slow down. Quality always beats speed re-runs.

2. Density (in Wilcom)

• Standard Tatami: 0.40mm spacing.
• Standard Satin: 0.40mm spacing.
• Safety Margin: Do not go tighter than 0.35mm unless you are using 60wt (thin) thread. Going tighter creates bulletproof patches that break needles.

3. Tension (The "H" Test)

• Turn your finished satin column over.
• Success Metric: You should see 1/3 top thread, 1/3 bobbin thread (white), and 1/3 top thread. If you see only top thread on the back, your top tension is too loose. If you see white bobbin thread on the top, your top tension is too tight.

Part 5: Decision Tree – When to Upgrade Your Workflow

Use this logic flow to determine if your problem is skill-based or tool-based.

Phase 1: The Symptom

• Issue: "My fabric has ring marks or is puckered around the stitches."
• Diagnosis: Hoop Burn / Poor Stabilization.

Phase 2: The Criteria (Volume & Type)

• Path A: Flats/Non-Elastic (Towels, Denim).
  • Solution: Use a standard hoop, but "float" the material (hoop the stabilizer, pin the fabric).
• Path B: Elastic/Delicate (Polos, Silk) & High Volume (10+ items).
  • Solution: Floating is too slow. You need a magnetic embroidery frame. It eliminates the "screw-tighten" distortion.

Phase 3: The Machine Type

• Scenario: You have a commercial machine (Tajima, Barudan, Brother multi-needle).
• Upgrade: Look for specific tajima frames or generic tajima embroidery hoops compatible with your machine's arm width (e.g., 360mm). Compatibility is key—measure your machine's arm width before buying.

Part 6: Structured Troubleshooting

When things go wrong, do not guess. Follow this sequence from Lowest Cost (check thread) to Highest Cost (Repairs).

Warning: Mechanical Safety
Never attempt to polish a burred needle. If a needle hits the hoop or bends, throw it away. A compromised needle can shatter at 800 SPM, sending metal shards into the hook assembly (expensive) or your eye (dangerous). Always wear basic eye protection when monitoring a run.

Operation Checklist: The "Go" Button Protocol

Run this mentally before every single start.

• [ ] Clearance: Is the hoop clear of the presser foot? (Trace the design!).
• [ ] Thread Path: Is the thread caught on a spool pin or tree?
• [ ] Bobbin: Is there enough bobbin thread to finish the run? (Visual check).
• [ ] Sound Check: Start the machine. Does the first 10 seconds sound rhythmic?
• [ ] Stability: Is the hoop "drum-tight"? (Tap it—it should create a dull thud, not a loose ripple).

Conclusion: Mastering the Loop

The difference between a hobbyist and a professional isn't just the machine they own; it's the process they trust.

When Wilcom looks weird, trust your calibration ruler. When the file won't load, trust the DST format. And when the sew-out puckers, look at your physical tools. Often, the barrier isn't your talent—it's that you are fighting friction with a plastic hoop when you should be using magnetism, or fighting file formats when you should be standardizing exports.

Take a breath. Check your calibration. Check your hoop. Press start.

FAQ

• Q: How do I fix Wilcom EmbroideryStudio e4.2 / Wilcom 9 stitches that look doubled, thick, or horizontally stretched on the screen after switching monitors?
  A: Calibrate the Wilcom Display Monitor settings—this is usually a screen scaling issue, not bad digitizing.
  • Go to Special > Hardware Setup > Display Monitor, then click Values.
  • Measure the on-screen ruler/box with a physical ruler and adjust Width/Height (mm) until they match 1:1.
  • Re-open the design view after clicking OK to force the refresh.
  • Success check: thin wireframes/3D stitches “snap” back to crisp lines and circles look round (not egg-shaped).
  • If it still fails: re-check the ruler measurement (trust the ruler, not default numbers) and confirm the correct monitor is selected in Hardware Setup.
• Q: How do I fix “File Not Supported” on a Tajima embroidery machine when the design was created in Wilcom (EMB file)?
  A: Export a Tajima DST run file—Tajima machines generally will not load Wilcom EMB working files.
  • Keep the editable master as .EMB, then use File > Save As and choose Tajima (*.DST).
  • Verify the design is centered (start/end aligned to 0,0) before saving the DST.
  • Use clear naming like Project_Name_MASTER.emb and Project_Name_RUN.dst to avoid loading the wrong file.
  • Success check: the Tajima screen lists the design and allows you to select it without the format error.
  • If it still fails: suspect the USB drive (use a low-capacity FAT32 drive and keep it free of non-embroidery files).
• Q: What USB flash drive setup helps prevent embroidery machine file loading problems that look like “bad DST files” on Tajima-style controls?
  A: Use a simple, stable USB setup—many “file” issues are actually USB compatibility or corruption problems.
  • Switch to a low-capacity flash drive (often 8GB or less) and format it FAT32.
  • Remove non-embroidery files from the drive so the machine menu stays clean.
  • Re-save/export the DST again to the fresh drive to eliminate copy corruption.
  • Success check: the machine consistently detects the USB and shows the DST file every time you insert it.
  • If it still fails: test a second known-good USB drive to confirm the issue is not the machine port or the original drive.
• Q: How do I stop birds nest thread jams (thread blob under the needle plate) on a multi-needle embroidery machine at the start of a run?
  A: Fully re-thread both top thread and bobbin—most birds nests come from missed threading steps or threading with the presser foot down.
  • Raise the presser foot UP before threading the top path so tension discs open.
  • Remove and re-insert the bobbin correctly, then re-thread from the beginning (do not “patch” the path).
  • Clean lint from the bobbin case daily to keep tension stable.
  • Success check: the first 10 seconds sound rhythmic and the underside shows controlled bobbin/top thread instead of a growing knot.
  • If it still fails: stop immediately and check tension/needle condition, then restart at a slower speed (within the safe range).
• Q: What is the correct embroidery tension “H test” result for satin columns, and how do I know the top tension is too tight or too loose?
  A: Use the back-of-satin “H test” as the visual standard: aim for 1/3 top thread, 1/3 bobbin thread, 1/3 top thread.
  • Turn the satin column over and inspect the backside thread balance.
  • If the back shows only top thread, tighten top tension (top tension is too loose).
  • If white bobbin thread shows on the top side, loosen top tension (top tension is too tight).
  • Success check: the backside consistently shows the 1/3–1/3–1/3 balance across the column length.
  • If it still fails: re-thread with presser foot up and confirm the bobbin area is clean of lint before adjusting further.
• Q: How do I reduce hoop burn rings and puckering on polos, silk, or other delicate/elastic garments during high-volume embroidery runs (10+ items)?
  A: Start with stabilization and hooping process control, then consider magnetic hoops if distortion keeps returning—this is usually a hooping failure, not a Wilcom problem.
  • Level 1 (technique): improve consistency—aim for “drum-tight” stability and avoid uneven screw pressure that stretches fabric.
  • Level 2 (tool): switch to a magnetic hoop/frame to clamp vertically and reduce fabric distortion from over-tightening.
  • Level 3 (capacity): if volume keeps increasing, a production-focused multi-needle workflow may be the next step after hooping is stable.
  • Success check: fabric stays stable during stitching (less flagging), and the finished logo perimeter lies flat without ring marks/puckers.
  • If it still fails: slow the machine into the conservative 600–750 SPM range and re-check hoop stability before changing density.
• Q: What safety precautions are required when using neodymium magnetic embroidery hoops/frames on Tajima-style commercial embroidery machines?
  A: Treat magnetic hoops as pinch-hazard tools and follow medical-device distance rules—these magnets can snap shut with significant force.
  • Keep fingers completely clear of the mating surfaces when closing the magnetic frame.
  • Maintain a safe distance if any operator has a pacemaker or ICD (follow the safety manual guidance).
  • Store magnetic hoops so they cannot slam together unexpectedly.
  • Success check: the hoop closes under control without finger contact and operators can work without “near-miss” pinch events.
  • If it still fails: stop using the magnetic hoop until the team has a clear handling routine and the manufacturer’s safety instructions are reviewed.
