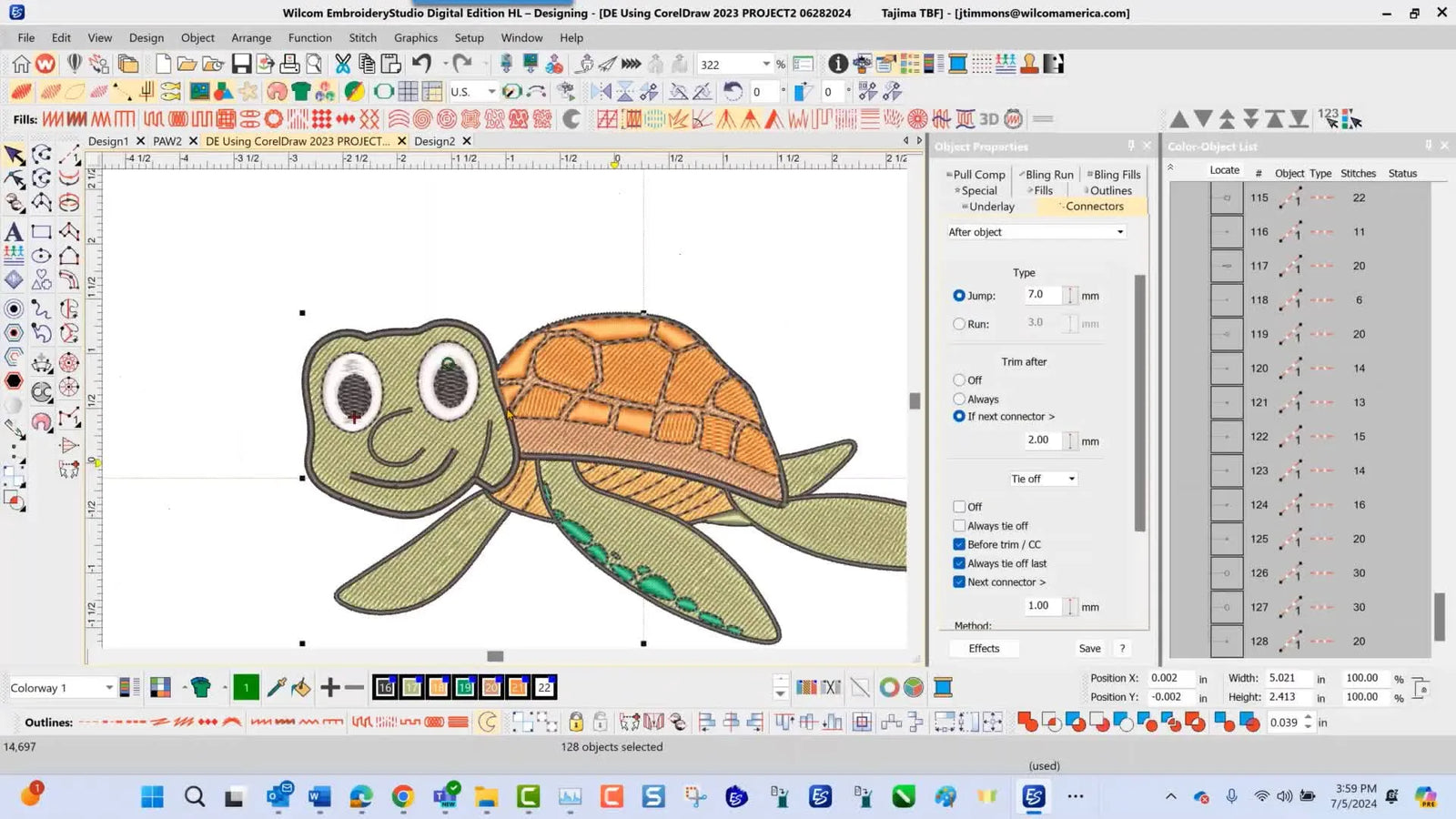

Wilcom EmbroideryStudio Digital Edition Auto-Digitizing: Turn a CorelDRAW Vector into Clean Stitches (and Catch the Underlay Trap Before It Costs You)

Auto-digitizing can feel like magic—right up until the first sew-out puckers, shifts, or looks “flat” because the structure underneath was never built. I have spent twenty years listening to the specific sound a machine makes when it's about to eat a garment—a rhythmic thump-thump that suddenly turns into a grinding crunch. That sound is usually the result of skipping the foundational steps in digitizing.

James Timmons’ workflow in Wilcom E4.2 is a solid, production-minded baseline: size the vector to the real finished embroidery size, prep it in the integrated CorelDRAW workspace, convert it to stitches, then run Stitch Player to see what your machine will actually do.

If you’re a shop owner or a working digitizer, that last part is where money is saved: Stitch Player is your cheap insurance policy against the chaos of physics.

The Calm-Down Moment: Wilcom EmbroideryStudio Digital Edition Auto-Digitizing Is Fast—But It’s Not “Production-Ready” Yet

Machine embroidery is an experience-based science. Beginners often feel a spike of anxiety when they hit "Auto-Digitize" because they don't know if the result is safe to sew. Let’s calibrate your expectations.

Auto-digitizing inside Wilcom EmbroideryStudio Digital Edition HL is absolutely useful when you start from a clean vector and you need a quick first pass. But you must treat the conversion as a rough draft, not a final deliverable. Think of it like a spell checker: it catches the obvious stuff, but it doesn't understand the context or the "feel" of the story.

Here’s the mindset that keeps you out of trouble and reduces user error:

• The conversion creates stitch objects quickly based on algorithms, not fabric physics.
• The conversion does not guarantee proper structure (especially underlay, which acts as the foundation of a house).
• Your job is to verify and prepare the design for production before it ever touches fabric.

That’s why James ends the workflow in Stitch Player—because the screen can lie, but stitch simulation exposes the truth. If you see long jumps or zero underlay in the simulation, your physical machine will likely suffer thread breaks or fabric puckering.

The “Finished Size First” Rule: Resizing the Vector in the Property Bar Before You Convert Anything

This is the single most common failure point for beginners. James starts with a vector turtle that measures 14.038 inches wide—far larger than the intended embroidery. He immediately corrects it by resizing the artwork to 5.0 inches wide using the Property Bar.

This is not a cosmetic step. It is a mathematical foundation. Stitch processing algorithms calculate density based on the size of the object.

• Scenario A: If you convert at 14 inches, the software creates thousands of stitches designed to cover a massive area. If you shrink that after conversion, you condense those thousands of stitches into a tiny 5-inch area. Result: Bulletproof density, broken needles, and a hole in your shirt.
• Scenario B: If you resize before conversion (as James does), the software calculates the correct stitch count for a 5-inch area.

What he does (exact workflow from the video):

1. Select: Use a selection box to select the vector artwork.
2. Locate: Look at the Property Bar (bottom right area in his view) and check the width.
3. Input: Highlight the Width field, type 5.0, and press Enter.
4. Verify: Confirm the artwork shrinks dramatically on the canvas.

Checkpoint (what you should see):

• Before: Width shows about 14+ inches (specifically 14.038 in).
• After: Width is 5.0 inches.

Expected outcome:

• Your vector is now the actual finished embroidery size you intend to stitch.

Why this matters in real production (the part people learn the hard way):

• Auto-digitizing decisions (like stitch type assignment—Satin vs. Tatami) are influenced by scale. A wide shape becomes a Tatami fill; a narrow shape becomes a Satin column. If you convert at the wrong size, you get the wrong stitch types.






Prep Checklist (before you touch “Convert Graphics to Embroidery”)

Before you move forward, clear the runway. A mistake here effectively ruins the flight.

• Dimension Check: Confirm the vector is already at the intended finished embroidery width (James uses 5.0 inches). Do not rely on your eyes; rely on the numbers in the Property Bar.
• Visibility Check: Make sure you can clearly see the Property Bar values before and after resizing. If the numbers didn't change, the object wasn't selected properly.
• Interface Zoom: If you’re working on a phone or small screen, zoom your interface so you can actually follow the cursor and menu clicks (a common viewer pain point).
• Consumables Stock (Hidden Requirement): Ensure you have the physical supplies ready for the eventual test:
  • Stabilizer: Is it Cutaway (for knits) or Tearaway (for wovens)?
  • Needles: Do you have a fresh 75/11 needle? A burred needle will shred thread regardless of how good the file is.
  • Temporary Spray Adhesive: for floating the garment if needed.
• Mental Prep: Plan to run Stitch Player after conversion—don’t skip it just because the stitches “look fine” in the design window.

Warning: Keep your hands and attention away from real machine hazards when you move from software to sampling. Commercial machines do not stop if your finger is in the way. Needles, trimmers, and moving frames can injure you severely. Always stop the machine before reaching into the sewing field, and follow your machine manual for safe test-sew procedures.

The CorelDRAW Balloon Switch: Moving from Wilcom Workspace to CorelDRAW 2023 Without Getting Lost

After resizing, James clicks the green CorelDRAW balloon icon in the top toolbar. The interface transforms from the Wilcom embroidery grid view to the CorelDRAW vector workspace.

For those new to Wilcom: This software is actually two programs running in a symbiotic relationship. You are toggling from the "Stitch Engine" to the "Graphics Engine."

What he does (from the video):

1. Action: Click the CorelDRAW balloon icon.
2. Wait: Let the workspace switch into CorelDRAW mode (this may take a second depending on your RAM).
3. Orient: Adjust the view so the design fits on screen (he mentions fitting it and using the mouse wheel to zoom out if needed).

Checkpoint:

• Menus and toolbars change to standard CorelDRAW vector tools (Pen tool, Shape tool, etc.).

Expected outcome:

• You’re now in the vector-editing environment where “Convert to Curves” is available.




Comment-based pro tip (visibility)

If you struggle to follow tutorials because the cursor is hard to see (especially on a phone), slow down playback and zoom the UI. In production, the same habit helps you avoid mis-clicks that create hours of cleanup. Precision is slow; mistakes are expensive.

The Greyed-Out “Convert to Curves” Problem: What Usually Blocks It in CorelDRAW Mode

In the video, James selects the design, goes to the Object dropdown, and chooses Convert to Curves.

Some viewers report the menu item is visible but not clickable (greyed out). This is a common frustration point that creates immediate cognitive friction. The comments suggest a common culprit: the artwork may be grouped, and you may need to ungroup it first.

Practical checks that often solve it (general guidance—your exact menu behavior may vary by version and file type):

• Ungroup First: If the design is grouped (CTRL+G often groups things), try ungrouping (CTRL+U), then reselect the distinct object.
• Selection focus: Make sure you truly have the vector object selected (click on the line, not the white space inside it).
• Format Check: If you imported artwork, confirm it’s editable vector data (SVG, AI, CDR) and not a locked bitmap or embedded image (JPG, PNG). Bitmaps cannot be legally "converted to curves" because they are pixels, not math.

One more reality check: software versions matter. James is using CorelDRAW 2023 inside the Wilcom environment, so if your interface looks different, it may be a version or edition difference.

The “Convert to Curves” Habit: Standardize the Vector So Wilcom Reads It Cleanly

James’ sequence in CorelDRAW mode is simple and correct:

1. Draw a selection box around the design.
2. Go to Object menu.
3. Click Convert to Curves.

Checkpoint:

• You can see the menu selection highlighting “Convert to Curves.”

Expected outcome:

• The vector is standardized for better editing capacity and more predictable conversion.

Why is this "White Paper" worthy? When you import vectors from different sources (Canva, Adobe Illustrator, unknown internet files), the "nodes" (the little dots that make up the shape) can be messy or twisted. "Convert to Curves" effectively explicitly tells the software: "Treat this as raw geometry." It strips away proprietary formatting that might confuse the Wilcom auto-digitizing engine.

The One-Click Draft: Using “Convert Graphics to Embroidery” to Generate Stitch Objects Fast

Now James clicks Convert Graphics to Embroidery on the top toolbar.

What happens (as shown):

• The software processes the vector shapes.
• It automatically assigns stitch types (Satins for narrow columns, Tatami fills for wide areas) based on shape width.
• The workspace transforms back into Wilcom EmbroideryStudio, and the turtle appears rendered in stitches.

Checkpoint:

• You see stitch texture/visualization on the design in Wilcom. It should look like thread now, not flat color.

Expected outcome:

• A fast, usable starting point for production prep.

This is where many shops get tempted to export and run it immediately. Don’t. What you have right now is a body without a skeleton.

Setup Checklist (right after conversion, before simulation)

• Mode Check: Confirm you’re back in the Wilcom EmbroideryStudio workspace and the design is now stitch-rendered.
• Visual Scan: Visually scan for obvious gaps, weird angles, or tiny details (smaller than 2mm) that may not translate well to thread. Small text often becomes a "bird's nest" of thread at this stage.
• Mental Shift: Remind yourself: auto-digitizing creates objects, but you still need to prepare the design for production. You are now the "Editor," not just the "Creator."

Stitch Player at 960 SPM: The Fastest Way to Catch Missing Underlay Before You Waste a Garment

James opens Stitch Player (play-button style icon), then speeds up the simulation. The video shows a Simulation Speed of 960 SPM (Stitches Per Minute).

Important Note on Speed: 960 SPM is a simulation speed here. In the real world:

• Commercial Machines: Can run 900–1200 SPM clearly.
• Beginner/Home Machines: Often struggle above 600–800 SPM without shredding thread.
• Sweet Spot: For your first test sew, run your physical machine between 600 and 700 SPM. Speed creates heat and friction; slow down to ensure success.

What he does (from the video):

1. Click the Stitch Player icon.
2. Increase the speed using the slider.
3. Watch stitch order and coverage as the design “sews” on screen.

Checkpoint:

• You see the turtle stitch out progressively in the simulation.

Expected outcome:

• You can spot structural problems early.

And James immediately spots the big one: no underlay stitches.

The Underlay Trap: Why Auto-Digitizing Often Looks Fine on Screen but Fails on Fabric

James calls it out plainly: the first thing he sees is that there are no underlay stitches, and that must be corrected before production.

From a production standpoint, underlay is not “extra.” It’s the structure. Imagine trying to paint a wall without primer, or building a house without a foundation.

• Without Underlay: The fabric shifts (push/pull effect), leading to gaps between outlines and fills. The embroidery feels limp.
• With Underlay: It stabilizes the fabric before the top stitches are laid down.

In the video’s troubleshooting notes, the fix is also clear: after conversion, you must manually edit object properties and add appropriate underlay (for example, edge run or tatami underlay) before running production.

If you’re trying to scale your workflow, this is the moment to build a repeatable habit:

1. Convert fast.
2. Simulate.
3. Add structure (Underlay).
4. Only then sample.

Comment-based “watch out” (what viewers asked for)

Multiple viewers asked to see how to add underlay after auto-digitizing. That’s a strong signal that many people are converting and then getting stuck at the production-prep stage. If you’re in that camp, don’t feel behind—this is exactly where digitizing becomes professional.

A Practical Decision Tree: When Underlay and Stabilizer Choices Should Change (Even If the Design Is the Same)

The video focuses on software, but production success depends on what happens when thread meets fabric. Use this decision tree as a shop-floor sanity check (general guidance—always confirm with your machine and material specs):

Decision Tree (fabric → stabilization approach):

1. Is the fabric stable and non-stretch (e.g., firm twill, denim)?
   • Yes: Often a standard Tearaway backing is enough, and underlay can be moderate (Edge run + weak Zigzag).
   • No: Go to #2.
2. Is the fabric stretchy, thin, or prone to distortion (e.g., T-shirts, Performance Knits)?
   • Yes: You MUST use Cutaway stabilizer. The fabric cannot support the stitches alone. You also need stronger underlay (Center run + Zigzag or Tatami) to lock the fabric to the backing.
   • No: Go to #3.
3. Is the fabric thick, textured, or compressible (e.g., heavy fleece, towels)?
   • Yes: You are fighting the "sink." You need a Water Soluble Topping so the stitches don't disappear. The underlay must be a full Tatami or heavy Grid to create a platform for the top stitches to sit on.
   • No: Default to a balanced underlay plan and test sew-out.

Where this ties back to your workflow: Stitch Player helps you see whether the conversion created only “top stitches.” If it did, assume you’ll need to add structure before you trust it on a real order.

Production Reality: Your Digitizing Choices Should Match Your Hooping Method and Machine Setup

Digitizing and hooping are not separate worlds. If your hooping is inconsistent, even a perfect file can stitch poorly.

If you are operating a standard single-needle machine or even a high-end tajima embroidery machine, your file may simulate beautifully on screen—but the real-world result still depends entirely on how consistently you clamp the garment. The "Push and Pull" physics of embroidery happen inside the hoop.

Here’s the shop-owner logic I use:

• If you’re sampling one piece for yourself, you can tolerate slower setup and manual adjustments.
• If you’re producing 20–200 pieces, hooping time, repeatability, and holding power become your primary profit levers.

That’s where tooling upgrades become a practical path, not a sales pitch.

The Hooping Bottleneck: When Traditional Tajima Hoops Start Costing You Time (and Wrist Pain)

If you’re using traditional tajima embroidery hoops (the classic screw-tighten plastic rings) for daily production, you already know the two hidden costs:

1. Hoop Burn: The friction marks left on delicate fabrics by the inner ring.
2. Operator Fatigue: The repetitive motion of tightening screws causes wrist strain over time.

For many shops, the first “real” productivity upgrade isn’t a new machine—it’s a better clamping workflow.

A simple benchmark you can use:

• If hooping is the slowest step in your order flow, fix hooping before you chase more designs.
• If you are rejecting more than 5% of shirts due to "hoop burn" or crooked alignment, your tool is the bottleneck.

This is where the industry represents a shift towards magnetic embroidery hoop systems. These frames use powerful magnets to clamp the fabric instantly without forcing it into a ring. This reduces "hoop burn" on sensitive materials and allows you to hoop thick items (like Carhartt jackets) that plastic hoops simply cannot grip. Evaluate them like a production tool: consistency, speed, and reduced rework.

Warning: Magnetic Frame Safety.
Magnetic frames are powerful industrial tools. Keep magnets away from pacemakers, insulin pumps, and implanted medical devices. Keep fingers clear when the top and bottom halves snap together to avoid severe pinching injuries. Handle with respect.

The “Why” Behind Better Results: Stitch Simulation + Consistent Clamping = Fewer Re-runs

James’ workflow ends with simulation for a reason: it’s the fastest way to prevent preventable failures.

In real shops, the most expensive mistakes are the ones you repeat:

• You convert a vector.
• You skip simulation.
• You stitch a sample.
• You discover missing structure (like underlay).
• You re-run, re-hoop, re-thread, and lose time.

When you combine Stitch Player discipline (Software QA) with consistent hooping (Physical QA), you reduce variability. That’s how you get predictable output across operators and across days.

If you’re still fighting garment movement, revisit your clamping method and workflow layout. Many teams pair a consistent clamping approach with an embroidery hooping station so placement becomes repeatable and training new staff is easier. The station ensures the logo is in the exact same spot on Shirt #1 and Shirt #50.

Troubleshooting the Two Most Common Failures in This Workflow (So You Don’t Spiral Mid-Order)

Symptom: “Design is too large for the hoop / Machine refuses file”

• Likely cause (from the video): The original vector was 14.038 inches wide, and it was converted without resizing.
• Fix (from the video): Resize first in the Property Bar—James types 5.0 into the width field and presses Enter.
• What success looks like: The design shrinks dramatically on the screen and fits within your specific machine’s embroidery field (e.g., 4x4 or 5x7).

Symptom: “Auto-digitized design looks flat / unstable / puckered”

• Likely cause (from the video): Missing underlay stitches after conversion. The fabric is pulling inward because nothing is holding it out.
• Fix (from the video): Manually edit object properties after conversion. Add Edge Run (for outline stability) or Tatami Underlay (for large fills) before production.
• What success looks like: Stitch Player shows structural stitches running before the colorful top-stitches appear.

Symptom: “Convert to Curves is visible but greyed out”

• Likely cause (from comments): The artwork may be grouped or is a bitmap.
• Fix (from comments): Ungroup it (CTRL+U). If it's a bitmap, you must trace it first.
• What success looks like: “Convert to Curves” becomes clickable and applies to the selected object.

The Upgrade Path That Actually Pays: Match Software Speed with Shop-Floor Throughput

Auto-digitizing is a speed tool. But speed only turns into profit when the rest of the workflow can keep up.

If your digitizing output is increasing thanks to Wilcom, but your production is bottlenecked by clamping and setup, consider upgrading the physical workflow:

1. Level 1: Stability. Use the correct stabilizers (cutaway for knits) and embroidery hooping station tools to standardize operator results.
2. Level 2: Hooping Speed. If you’re running a tajima embroidery frame setup and doing frequent heavy garment changes, magnetic frames can reduce clamp time by 30-40% and help minimize hoop marks on sensitive materials.
3. Level 3: Volume & Color. If you are scaling beyond hobby volume (doing 50+ shirts a week), a single-needle machine becomes the bottleneck because of manual thread changes. This is where a multi-needle platform (like our SEWTECH multi-needle embroidery machines) becomes relevant. They allow you to set up 10-15 colors at once, matching the complexity of the files you are now capable of creating.


Operation Checklist (the “don’t ship a bad file” routine)

• Scale Lock: Resize the vector to the true finished embroidery size before conversion (James: 5.0 inches).
• Vector Prep: Switch into CorelDRAW mode and run Object → Convert to Curves to clean the geometry.
• Conversion: Click Convert Graphics to Embroidery and confirm stitch objects appear back in Wilcom.
• Simulate: Run Stitch Player (James simulates at 960 SPM) and watch stitch order and coverage. Does it look solid?
• Structure Check: If underlay is missing, stop. Add it manually.
• Physical Test: Run a test sew on scrap fabric similar to your final garment. Listen to the machine. A smooth hum is good; a sharp clicking or grinding means check your tension/needles immediately.

FAQ

• Q: In Wilcom EmbroideryStudio Digital Edition HL auto-digitizing, when should the artwork be resized to the final embroidery size (for example, 5.0 inches wide)?
  A: Resize the vector to the true finished embroidery size before running “Convert Graphics to Embroidery,” or stitch density and stitch-type decisions can be wrong.
  • Select the full vector artwork with a selection box.
  • Type the target width (example shown: 5.0 in) into the Property Bar width field and press Enter.
  • Convert only after the size number changes in the Property Bar.
  • Success check: the width reads the final size (e.g., 5.0 in) and the artwork visibly shrinks on the canvas.
  • If it still fails: reselect the object (you may have selected empty space or only part of the graphic) and confirm the Property Bar values actually update.
• Q: In Wilcom EmbroideryStudio Digital Edition HL with CorelDRAW 2023 mode, why is “Object → Convert to Curves” greyed out and how can it be enabled?
  A: “Convert to Curves” is commonly greyed out because the selection is grouped or the artwork is a bitmap, not editable vector geometry.
  • Ungroup the artwork (often Ctrl+U), then reselect the actual vector object.
  • Click directly on the vector outlines, not the blank interior area.
  • Confirm the file is real vector data (SVG/AI/CDR) rather than a JPG/PNG bitmap.
  • Success check: “Object → Convert to Curves” becomes clickable and applies to the selected object.
  • If it still fails: assume the artwork is not editable vector in this environment and re-import a true vector source or trace/convert the bitmap into vector first.
• Q: After using “Convert Graphics to Embroidery” in Wilcom EmbroideryStudio Digital Edition HL, how can a user quickly verify the design is safe to sew before stitching on a real garment?
  A: Run Stitch Player immediately and treat the auto-digitized result as a rough draft until stitch simulation looks structurally sound.
  • Click the Stitch Player (play-button) icon and watch the sew sequence.
  • Scan for long jumps, odd stitch order, and areas that look unsupported.
  • Use simulation to catch problems before any real hooping or sampling.
  • Success check: the simulated stitch-out shows a logical order with no alarming jumps and coverage looks stable rather than “floating.”
  • If it still fails: stop and adjust object properties (especially underlay) before exporting or test sewing.
• Q: In Wilcom auto-digitizing, what should be done when Stitch Player shows no underlay stitches and the embroidery sew-out looks flat, unstable, or puckered?
  A: Add underlay manually in the object properties after conversion, because auto-digitizing may produce top stitches without the foundation.
  • Open the stitch object properties and enable appropriate underlay (for example, Edge Run for outlines or Tatami underlay for larger fills).
  • Re-run Stitch Player to confirm underlay stitches sew first, before the visible top stitches.
  • Match underlay strength to fabric behavior (stretchy/thin fabrics generally need stronger structure and support).
  • Success check: Stitch Player clearly shows underlay stitches laid down before the main fill/satin layers.
  • If it still fails: re-evaluate stabilizer choice (cutaway vs tearaway) and run a controlled test sew on similar scrap fabric before touching customer garments.
• Q: In a Wilcom auto-digitizing workflow, what stabilizer and topping choices are a safe starting point for knits, wovens, and thick pile fabrics before the first test sew?
  A: Use the fabric-based decision rule shown: tearaway often suits stable wovens, cutaway is required for stretchy/thin knits, and thick/texture fabrics often need water-soluble topping to prevent stitch sink.
  • Choose Tearaway when the fabric is stable and non-stretch (often firm twill/denim).
  • Choose Cutaway when the fabric is stretchy or thin (common for T-shirts/performance knits).
  • Add Water Soluble Topping when the fabric is thick or has pile/texture (common for fleece/towels).
  • Success check: the test sew holds shape with minimal puckering and stitches stay visible (not disappearing into the fabric).
  • If it still fails: strengthen underlay and repeat a test sew at a conservative machine speed before changing the design size or density.
• Q: When running the first physical test sew of an auto-digitized Wilcom design, what machine speed is a safe starting point compared with Stitch Player’s 960 SPM simulation?
  A: Keep the first real sew-out slower—often 600–700 SPM is a safer starting range—because simulation speed (e.g., 960 SPM) is not the same as real thread/fabric friction.
  • Set the machine speed down for the first sample, especially on home or beginner machines.
  • Listen for changes in sound as speed increases; friction and heat rise with speed.
  • Stop immediately if the machine sound turns sharp, clicky, or grindy and check needle and setup.
  • Success check: the machine runs with a smooth, steady hum and the sample completes without repeated thread breaks.
  • If it still fails: change to a fresh needle (a burred needle can shred thread) and confirm stabilizer/support are correct before attempting higher speeds.
• Q: What safety rules should be followed when moving from Wilcom software to a commercial embroidery machine test sew, and what extra safety warning applies to magnetic embroidery frames?
  A: Treat the machine and magnetic frames as industrial tools: keep hands out of the sewing field while running, and handle magnets to avoid pinch injuries and medical-device risks.
  • Stop the machine completely before reaching into the needle area, trimming area, or moving frame zone.
  • Keep attention on the sew field during testing; commercial machines may not stop in time to prevent injury.
  • Keep fingers clear when magnetic frame halves snap together; the pinch force can be severe.
  • Success check: the operator never reaches into the sewing area while the machine is moving, and magnetic frames are assembled without finger pinches.
  • If it still fails: pause production and follow the specific machine manual and workplace safety rules, especially if any operator uses a pacemaker or implanted medical device (magnets must be kept away).
