Wilcom EmbroideryStudio Advantages That Actually Save You Money: File Viewing, Stitch-Count Pricing, Lettering, and Operator Worksheets

If you have ever received a client’s DST file, stared at it on your computer screen, and felt that specific spike of panic—“Can I even open this safely? Is it going to break my needle or ruin this expensive jacket?”—you are standing exactly where every professional embroiderer started.

In the video, AMR (Aarohi Sewing Enterprises) breaks down the practical advantages of using professional digitizing software (specifically Wilcom EmbroideryStudio Digital Edition / Wilcom e4.5). He covers seeing designs, analyzing them for pricing, creating lettering, and converting formats.

But as someone who has spent two decades on the shop floor, I know that software is only half the battle. The other half is physical intuition. I am going to rebuild those steps into a shop-floor-ready workflow, adding the "sensory layer" that prevents birds' nests, needle breaks, and profit loss.

The Calm-Down Check: Why Wilcom EmbroideryStudio Is More Than “Just a DST Viewer”

When beginners ask for "something to open a DST file," they are usually asking for safety. In the video, AMR illustrates a critical first hurdle: without specialized software, Windows simply treats embroidery files as unreadable junk data.

A professional package like Wilcom isn’t just for viewing; it is your X-Ray machine. It allows you to see the "bones" of the design before you commit your machine.

• Visual Integrity: You can spot "long jumps" that might snag on a zipper or buttons.

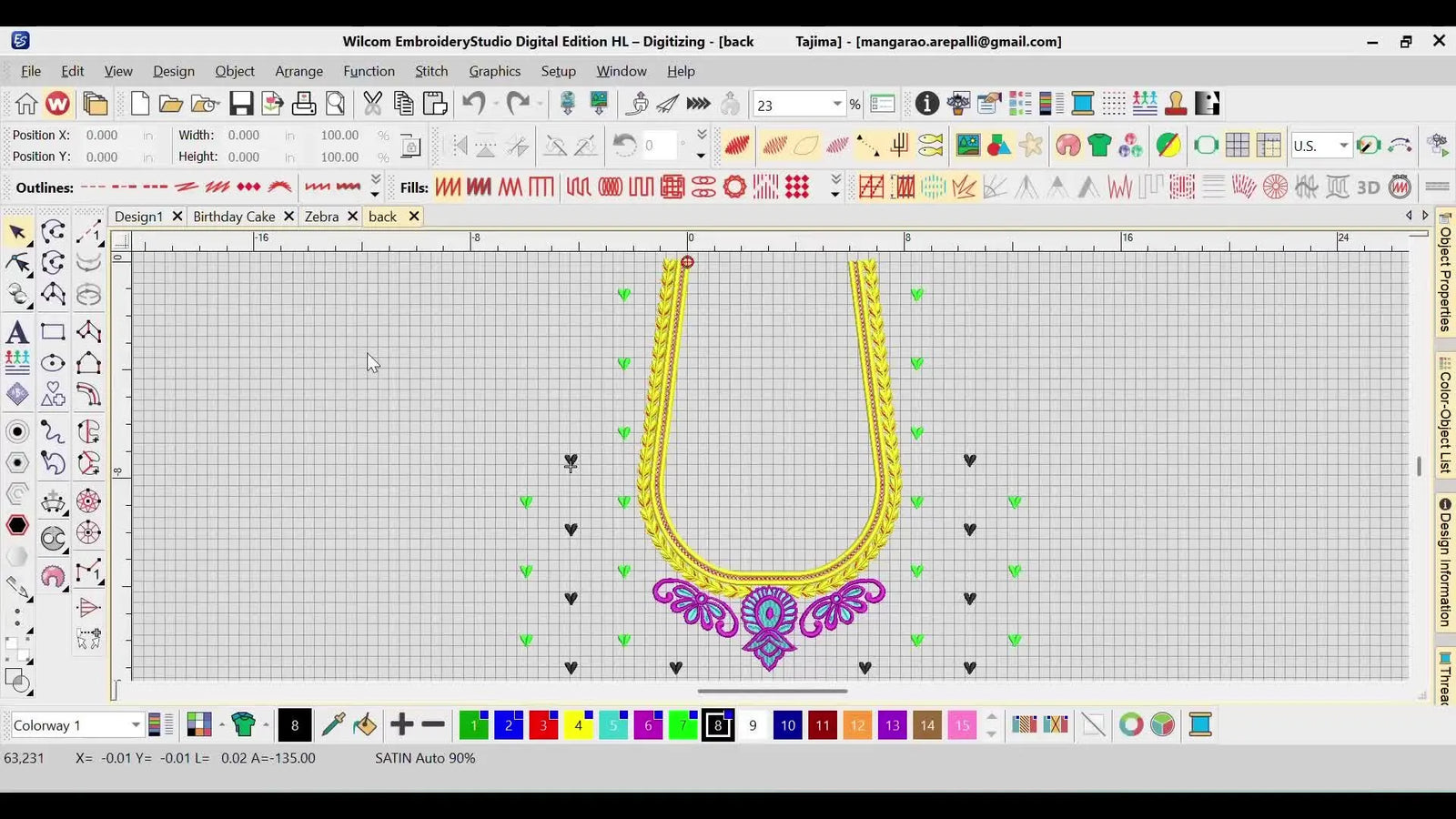

• File Relationships: AMR uses the example of a South Indian blouse set (Back, Front, Sleeves). Managing these as a group ensures the scale matches across all pieces.
• The "Thump" Factor: You can read the density. If a design looks like a solid black block on screen, it will sound like a jackhammer on your machine—a rhythmic thump-thump-thump that screams "needle break imminent."

If you’re running jobs for uniforms, caps, or bags, this preview stage is where you protect your equipment.

File Management That Doesn’t Break Your Brain: Previewing DST Files in Windows Explorer

AMR demonstrates a workflow that serves as a bridge between the digital world and the physical machine: viewing thumbnails directly in Windows Explorer.

Here is the "Clean Shop" protocol for file management to prevent sending the wrong file to the machine:

1. The Job Folder: Create one folder per Client.
2. The Sub-Structure:
   • 01_Received (The raw files).
   • 02_Working (Your Wilcom .EMB edits).
   • 03_Machine_Ready (The final .DST/.JEF exports).
3. The Thumbnail Scan: Before opening, scan the thumbnails. Does the "Left Chest" logo actually look like a left chest size (approx. 3.5 inches), or is it a huge back piece?

This is where embroidery digitizing software earns its keep. It turns a list of cryptic filenames (file_v2_final_REAL.dst) into a visual catalog, preventing the disaster of stitching a sleeve logo on a back panel.

The Pricing Truth Serum: Reading Stitch Count, Size, Colors, Stops, and Trims Before You Quote

AMR’s second advantage is the financial backbone of your business: detailed design analysis. In the interface, he reads specific data: 63,398 stitches, 43 trims, and precise dimensions.

How to Translate Data into "Machine Time"

Novices price by stitch count. Experts price by Risk and Time. Here is the empirical reality of those numbers:

• The Speed Myth: Your machine might say "1000 SPM" (Stitches Per Minute). In reality, after accounting for acceleration and deceleration, you will average 600-750 SPM.
• The Trim Tax: Every trim takes about 6-10 seconds (slow down, cut, tie off, move, speed up). A design with 43 trims (like AMR's example) adds huge overhead.
• The "Swap" Fatigue: High color changes mean manual intervention. If you are on a single-needle machine, 10 color changes is a nightmare. On a multi-needle machine, it's automatic.

Empirical Rule:

• Base Price: Per 1,000 stitches.
• Complexity Fee: If Trims > 15, add a surcharge.
• Hooping Fee: If the item is hard to hoop (like a finished bag or cap), add a flat setup fee.

Accurate Embroidery Cost Estimation prevents you from quoting a 20-minute job that actually takes an hour, destroying your hourly wage.

Warning: Never quote a rush job from a phone screenshot. Always demand the file. A "simple logo" can hide extreme density that will shred a T-shirt and snap needles.

The “Hidden” Prep Pros Do Before They Even Digitize or Convert a File

The video focuses on software, but the machine doesn't care about software; it cares about physics. Before you edit, convert, or print, you must perform the "Pre-Flight Check."

Prep Checklist (The "Do Not Skip" List)

1. Consumable Check:
   • Needle: Is it fresh? Use a 75/11 sharp for wovens, ballpoint for knits. Rub your fingernail on the tip—if it catches, toss it.
   • Bobbin: Is there enough standard 60wt bobbin thread? Look for the white thread showing about 1/3 in the center of a satin column test.
2. Obstruction Check:
   • Is the needle plate free of burrs? (Run a Q-tip over the hole; if it snags, polish it).
   • Is the bobbin case free of lint? (Blow it out).
3. File Reality Check:
   • Does the design fit within the safe area of your hoop (not just the physical edge)? Leave a 10mm buffer.

This is where Wilcom Embroidery Studio becomes critical—it allows you to visualize the hoop boundary on screen before you physically load the machine.

Clean Lettering in Wilcom: The Fastest Way to Add Names Without Re-Digitizing Everything

AMR demonstrates the Lettering tool: typing "AAROHI SEWING ENTERPRISES", generating stitches, and selecting the Block2 font.

The "Satin Column" Danger Zone

Lettering is the most common place for thread breaks. Why? Because as text gets smaller, the needle penetrations get closer together.

• Visual Check: Zoom in on the narrowest part of the letter (like the serifs on an 'I' or the curve of an 'S'). If the column width is under 1mm, a standard 40wt thread will struggle.
• Tactile Check: When stitching is done, run your finger over the text. It should feel smooth and raised. If it feels rough or "crunchy," your density is too high for the fabric.
• The 5mm Rule: For standard thread and needles, try to keep text above 5mm in height. Below that, you need a thinner needle (65/9) and thinner thread (60wt).


Monograms, Manual Punching, and Auto-Digitizing: Knowing When “Fast” Becomes “Expensive”

The video highlights Monogramming tools, Manual punching, and Auto-digitization. AMR correctly notes that auto-digitizing requires high-clarity artwork.

The "Auto-Digitizing" Trap

Auto-digitizing is seductive for beginners, but it often creates "bulletproof" embroidery—dense, stiff, and uncomfortable.

• When to use Auto-Digitize: High contrast, simple shapes, personal hobby projects.
• When to Avoid: Fine detail, small text, or commercial orders.
• The "Edit" Mindset: Treat auto-digitized files as a draft. You will likely need to reduce density and change stitch angles manually.

Many users search for how to convert image to embroidery file, hoping for a magical one-click solution. The heavy lifting isn't the conversion; it's the cleanup required to make that file sew smoothly without puckering the fabric.

Format Conversion Without Tears: DST to JEF (and Why “Unsupported File Format” Happens)

AMR touches on the compatibility issues between machines (DST, PES, JEF, XXX).

The "Source of Truth" Hierarchy

1. Format Rule: Always keep your working file (.EMB in Wilcom) separate from your machine file (.DST).
   • .EMB = Is smart. It knows what a "letter" is. You can resize it, and the density recalculates.
   • .DST = Is dumb. It is just coordinates. If you resize a DST by 20%, the stitches just get further apart (gaps) or closer together (bulletproof).
2. The Viewer Utility: Using a dedicated DST file viewer or full software ensures that when you convert to .JEF or .PES, the design stays centered and retains its colors.


The Operator Worksheet That Stops Costly Mistakes: Print Preview to PDF in Wilcom

AMR demonstrates generating a worksheet (Print Preview) with dimensions (Height 2.80 in, Width 2.99 in) and color sequence.

Setup Checklist: The "Flight Plan"

In a professional shop, the machine operator never guesses. They follow the worksheet.

1. Orientation: Is the top of the design actually at the top of the hoop? (Crucial for caps).
2. Color Swap: Does "Stop #1" map to "Needle #1"? On a single-needle machine, this is a manual thread change. On a multi-needle, you must program the screen.
3. Hoop Check: Does the worksheet say "150x150 hoop"? Ensure that specific hoop is physically locked in.

Tools that create embroidery production worksheet PDFs are indispensable. Print it out, tape it to the machine stand, and check off colors as they run.

Warning: Safety First. When changing threads or clearing a "bird's nest" (tangled thread) under the throat plate, always engage the machine's "Lock" mode or E-Stop. If your foot hits the start pedal while your fingers are near the needle bar, the injury will be severe.

The Fabric-to-Stabilizer Decision Tree That Keeps Your Stitching Looking Like the Screen

AMR lists various garments (blouses, kurtas, kids wear, T-shirts). The "secret sauce" that makes the same design work on all these is Stabilizer.

You cannot fight physics. Thread pulls fabric in. Stabilizer fights back.

Decision Tree:

1. Is the fabric stretchy? (T-shirt, Polo, Knit)
   • Logic: The fabric moves. You need a stabilizer that stays forever.
   • Selection: Cutaway Stabilizer (2.5oz). Do not use Tearaway; the stitches will pop when the shirt stretches.
   • Hooping: Do not stretch the shirt! It should lay neutral.
2. Is the fabric stable? (Denim, Canvas, Cap)
   • Logic: The fabric holds its own shape.
   • Selection: Tearaway Stabilizer. It supports the needle penetration, then vanishes.
3. Does the fabric have "fluff" or "pile"? (Towel, Velvet, Fleece)
   • Logic: Stitches will sink and disappear.
   • Selection: Add a Water Soluble Topping (Solvy) on top of the fabric to float the stitches.

The Upgrade Path That Actually Feels Like Relief: Hooping Speed, Consistency, and Scaling Orders

Once your software workflow is clean, your bottleneck will shift from the computer to your hands. Hooping is the most physically demanding and error-prone part of embroidery.

The Scenario: You have an order for 50 left-chest logos. The Pain: Your wrists hurt from tightening screws. You see "hoop burn" (shiny circular marks) on delicate polo shirts. You spend 3 minutes hooping and only 5 minutes stitching.

The Solution Hierarchy:

• Level 1: Better Material. Use a dedicated "Hoop mat" to grip the fabric better.
• Level 2: Tool Upgrade. Switch to magnetic embroidery hoops.
  • Why: They snap shut instantly. No screws. They hold fabric firmly without the friction burn of traditional rings. Even for home machines, these solve the "hoop burn" nightmare.
• Level 3: Production Upgrade. If you are doing commercial batches, traditional hoops are too slow. magnetic hoops for embroidery machines (like the MaggieFrame) allow you to hoop dense items (backpacks, winter jackets) that plastic hoops simply cannot grip.

If you find yourself constantly waiting on the machine or struggling with thick items, it might be time to look at SEWTECH multi-needle embroidery machines. Moving from a single needle (stop, re-thread, start) to a 10+ needle machine is the only way to make real profit on complex, multi-color designs like the ones AMR demonstrates.

Warning (Magnets): Magnetic hoops use powerful Neodymium magnets. They can pinch fingers severely. Keep them away from pacemakers and credit cards.

Operation Checklist (The "Green Button" Protocol)

1. Hoop Integrity: Is the fabric "drum tight"? Tap it. It should sound like a dull drum—taut, but not stretched to distortion.
2. Clearance: Rotate the handwheel manually (or use the "Trace" function) to ensure the needle bar won't hit the plastic hoop frame.
3. Watch the First Minute: Do not walk away! Most breaks happen in the first 500 stitches or during the first trim.

Quick Troubleshooting From the Video (Plus the Shop-Floor Fix)

Symptom 1: You can’t open the file/Unsupported Format.

• Fix: Use Wilcom to open the source, then Save As to your machine format. Pro Tip: If generic DST fails, try saving as an older version of DST (Tajma).

Symptom 2: Thread Shredding/Fraying.

• Fix: Do not blame the digitize yet.
  1. Change the needle.
  2. Check the thread path (is it caught on a spool cap?).
  3. Slow the machine down from 800 SPM to 600 SPM.

Symptom 3: Puckering (Fabric wrinkles around the design).

• Fix: Your stabilizer is too light, or your hoop was too loose. Use a heavier Cutaway and magnetic embroidery hoops for a stronger, more even grip.

The Real Payoff

AMR emphasizes licensed software for a reason: reliability. But the true professional level is reached when you combine that software visibility with physical control—understanding the needle, the stabilizer, and the hoop.

By implementing the Pre-Flight Check, using Worksheets, and upgrading your Hooping tools when volume increases, you move from "hoping it works" to "knowing it will stitch perfectly."

FAQ

• Q: What pre-flight checks should an operator perform on a Tajima-compatible DST job in Wilcom EmbroideryStudio before running the design on an embroidery machine?
  A: Do a quick “consumables + obstruction + hoop boundary” check before pressing Start; it prevents most bird’s nests and needle breaks.
  • Replace: Install a fresh needle (75/11 sharp for wovens, ballpoint for knits); discard any needle that catches a fingernail.
  • Clean: Check needle plate and bobbin area for burrs and lint (Q-tip snag test, then clean/polish).
  • Confirm: Load the design in Wilcom and verify the design stays inside the hoop safe area with a buffer (do not rely on the hoop’s physical edge).
  • Success check: The machine runs the first minute without abnormal “thump-thump-thump” hammering sounds and without thread shredding.
  • If it still fails: Re-check design density and trims in software before blaming the fabric or machine.
• Q: How can embroidery operators tell whether bobbin tension and bobbin thread balance are correct on a satin column test using standard 60wt bobbin thread?
  A: Aim for a balanced stitch where bobbin thread shows about one-third in the center of a satin column; that is a safe baseline.
  • Stitch: Run a small satin column test on the same fabric and stabilizer as the job.
  • Inspect: Look for consistent bobbin “peek” in the center rather than bobbin pulling to the top or top thread dominating the underside.
  • Adjust: If needed, re-thread and confirm the bobbin is correctly seated before changing anything else.
  • Success check: The satin column feels smooth and raised to the touch, not rough or “crunchy,” and the underside looks clean (no looping).
  • If it still fails: Change the needle first, then re-check the thread path for snag points.
• Q: What is the correct “drum tight” hooping standard for garment embroidery, and how can magnetic embroidery hoops reduce hoop burn on polo shirts?
  A: Hoop fabric taut but not stretched, and use even pressure; magnetic hoops often reduce hoop burn by gripping without screw friction.
  • Place: Lay the garment in a neutral state (especially knits); do not stretch the shirt to make it “tighter.”
  • Tap: Check for “drum tight” tension—taut and stable, but not distorted.
  • Upgrade: If hoop burn or inconsistent grip keeps happening, switch from screw hoops to magnetic hoops for faster, more even clamping.
  • Success check: After stitching, the fabric lays flat around the design with minimal shiny ring marks and no shifting during the first trims.
  • If it still fails: Increase stabilizer support (for knits, move to a heavier cutaway) before over-tightening the hoop.
• Q: How do you fix “Unsupported file format” when converting a DST design to JEF or PES for a specific embroidery machine?
  A: Open the source in professional software, export to the exact machine format, and keep a separate working file to avoid corrupted conversions.
  • Open: Load the design in Wilcom (or a dedicated DST viewer) instead of relying on Windows to interpret the file.
  • Save: Export to the target format (JEF/PES) and keep the editable working file separate from the machine file.
  • Retry: If a generic DST export fails, re-save as an older DST variant (often labeled Tajima) as a compatibility step.
  • Success check: The converted file previews centered, with the expected size and color sequence (no unexpected scaling or offset).
  • If it still fails: Ask for the original working file (for example, an EMB) rather than repeatedly converting a “dumb” stitch file.
• Q: What is the fastest shop-floor fix for thread shredding or fraying during a high-density DST run at 800 SPM on an embroidery machine?
  A: Treat thread shredding as a needle/path/speed issue first; slow down and remove friction points before re-digitizing.
  • Replace: Change to a fresh needle immediately (a worn tip can shred thread fast).
  • Check: Re-thread the entire path and confirm thread is not catching on spool caps or guides.
  • Reduce: Slow the machine from 800 SPM toward 600 SPM as a stabilization step.
  • Success check: Thread stops fuzzing near the needle eye and the first 500 stitches run without repeated breaks.
  • If it still fails: Inspect the design for extreme density (“solid black block” look in software) and consider density reduction.
• Q: What stabilizer should be used to stop puckering when embroidering a logo on knit T-shirts, and what hooping mistake makes puckering worse?
  A: Use cutaway stabilizer for stretchy knits and avoid stretching the shirt in the hoop; puckering is often stabilizer + hooping, not “bad thread.”
  • Choose: Use cutaway stabilizer (often 2.5 oz is a safe starting point for knits) rather than tearaway for T-shirts.
  • Hoop: Keep the knit neutral—do not “pull it tight” to make it look flat before stitching.
  • Support: Add a water-soluble topping on high-pile fabrics (towels/fleece), but do not rely on topping to fix knit stretch.
  • Success check: After stitching, the fabric around the design lies flat with minimal wrinkles when relaxed off the hoop.
  • If it still fails: Increase stabilizer support (heavier cutaway) and improve clamping consistency (magnetic hoops often help).
• Q: What safety steps should operators follow before clearing a bird’s nest under the throat plate or changing thread near the needle bar on an embroidery machine?
  A: Lock out motion first—engage Lock mode or E-Stop before hands go near the needle area.
  • Stop: Use the machine’s Lock mode or E-Stop before touching thread near the needle bar or throat plate.
  • Clear: Remove tangled thread carefully; clean lint from the bobbin area before restarting.
  • Verify: Manually rotate the handwheel or use Trace to confirm the needle path is clear of the hoop.
  • Success check: The machine restarts without immediate re-nesting and runs the first trims cleanly.
  • If it still fails: Re-check threading and bobbin seating; repeated nesting often indicates a threading path issue or debris in the hook/bobbin area.
• Q: What safety precautions are required when using neodymium magnetic embroidery hoops near pacemakers and when handling strong magnets on thick items like jackets and backpacks?
  A: Treat magnetic hoops as pinch hazards and keep them away from pacemakers and magnetic-sensitive items.
  • Keep away: Do not use magnetic hoops near pacemakers; keep magnets away from credit cards and magnetically sensitive devices.
  • Handle: Separate and close the hoop slowly to avoid finger pinches, especially when aligning thick seams.
  • Control: Maintain a firm grip during placement; magnets can snap shut unexpectedly.
  • Success check: The hoop closes without pinching fingers and the fabric is clamped evenly without shifting at startup.
  • If it still fails: Use a slower, two-handed placement method and confirm the hoop size and garment thickness are appropriate for the magnet strength.
