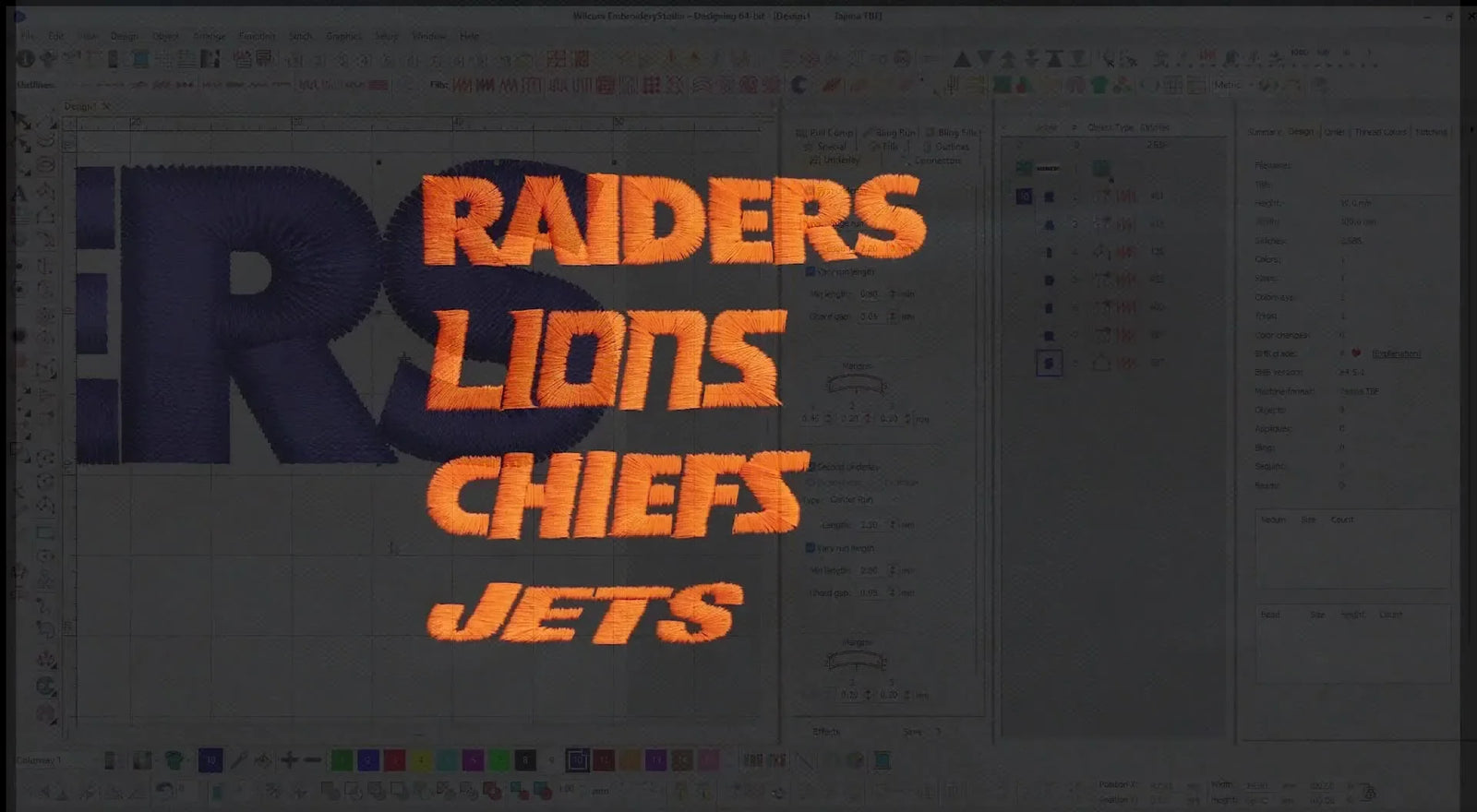

Wilcom E4.5 NFL Text Logos That Actually Stitch Clean: Column B, Complex Turning, and the One-Trim Workflow

If you’ve ever stared at a “perfect” Wilcom preview on your screen and then watched the real stitch-out come back with a fuzzy corner, a short-looking C, or a weirdly choppy satin turn—take a breath. Nothing is wrong with you. You are simply experiencing the gap between digital theory and physical reality.

Embroidery is physics. Fabric stretches, thread has tension, and machines vibrate. This is exactly why the workflow in this guide matters: we treat digitizing not as drawing, but as manufacturing engineering. We digitize with a production goal (one trim), we test on the real variable (polo fabric), and we correct for what the thread is actually doing rather than what the screen promises.

Set Wilcom EmbroideryStudio e4.5 Up Like a Production Digitizer (Not a Screenshot Artist)

The expert’s baseline target is simple and very “shop-minded”: about 1,500 stitches per logo and one trim total across the whole word. That’s not just a flex—on a real machine, trims are time, trims are risk, and trims are where thread issues like nesting (bird-nesting) love to show up.

Two practical constraints from the video drive the whole setup. You must respect these limits to ensure your machine runs smoothly:

• Logo width target: about 4 inches wide (standard left-chest size).
• Satin stitch length ceiling: keep satins under 9 mm. The host confirms a measured max stitch of 8.8 mm.

The "Why" Behind the 9mm Rule

Why stop at 9 mm? Most commercial embroidery machines slow down significantly for stitches longer than 5–6 mm. Once you cross 10–12 mm, the machine may automatically insert a jump stitch or unwanted needle penetrations (split satin) depending on your settings. Physically, a 9 mm loop of thread on a polo shirt is a snag waiting to happen—a customer catches it on a door handle, and your logo unravels. In production, a long satin that barely behaves on one sample becomes a disaster when you run 20 shirts at 800 stitches per minute (SPM).

The Hidden Prep That Saves You From Re-Digitizing Twice

Before you place your first node, do what experienced digitizers do: decide what you’re optimizing for.

• If you’re optimizing for clean corners and controlled stitch angles (crisp serifs), you’ll lean on Column B and manual angles.
• If you’re optimizing for speed on a stable shape (block letters), Complex Turning can be a win.
• If you’re optimizing for fewer trims and fewer jump stitches (bulk production), you’ll spend time in sequencing and Branching.

And if your end goal is apparel production, remember the physical side: the cleanest file still needs stable hooping. When you are learning the nuances of hooping for embroidery machine setups—especially on slippery performance polos—the fabric’s stretch and texture can exaggerate every digitizing decision. A sloppy hoop job creates "flagging" (fabric bouncing), which ruins satin lettering no matter how good your file is.

PREP CHECKLIST: The "Zero-Cost" Safety Net

Do this before you touch the keyboard.

• [ ] Confirm Max Width: Target ~4 inches. Use a ruler against your actual garment pocket/chest area to visualize it.
• [ ] Set Safety Ceiling: In Wilcom, check your connector settings. Ensure jumps trigger after 7mm, not before.
• [ ] The "Finger Test" on Consumables: Run your fingernail down the tip of your needle. If you feel a "click" or catch, throw it away. A burred needle shreds satin thread.
• [ ] Identify "Problem Letters": Mark letters with sharp serifs or tight corners (A, V, S, C) on your sketchpad. These need manual attention.
• [ ] Fresh Bobbin Check: Ensure you have a full, clean bobbin. A low bobbin changes tension mid-design, killing consistency.


Detroit Lions Text in Wilcom Column B: Control the Sharp “Wings” Without Overthinking It

For the Detroit Lions text, the host calls it “straightforward,” but there’s a key technique choice: Column B.

He digitizes the letter shapes by building Side A first, then Side B, and then manually adjusts stitch angles as he goes. That Side A/Side B approach is especially useful when the font has sharp tips and small wing-like serifs—because you’re controlling the "rails" and the direction, not letting automation guess.

Checkpoints (Sensory & Visual)

• Visual: Look at the wireframe view. Your satin columns should look evenly filled. If rails twist like a candy wrapper at the tips, the needle will drop in the same hole twice, causing a thread break.
• Geometric: Stitch angles should be perpendicular to the column direction where possible.
• Data: Design stats should land in the neighborhood of the benchmark (about 1,500 stitches and 1 trim).

Expected outcome: A clean, readable block-style word that doesn’t rely on fancy tricks—just solid satin control.

Kansas City Chiefs Letters: Use Complex Turning + Magic Cut When the Shape Wants It

On the Chiefs text, the host shifts tools depending on the letter's personality.

The C: Measure Satin Length Across the Curve

He explicitly checks the stitch length across the curved C and keeps it under 9 mm. If the letter gets too wide and creates long satins, he notes he may make the logo slightly smaller to stay within that limit. Beginner Tip: If you absolutely need a wide letter, use the "Auto Split" feature in Wilcom to break that long satin into two shorter, safer stitches.

The H: Complex Turning with Magic Cut for Stitch Angles

For the H, he uses Complex Turning to outline the whole shape, then relies on the Magic Cut tool to generate stitch angles automatically—followed by small manual adjustments.

This is a good “use automation where it’s strong” moment. Complex Turning is efficient on shapes that are stable and not overly fussy at the corners.

Warning: Mechanical Safety First
Keep hands and tools away from moving needles during stitch-outs. Never try to trim jump threads near an active needle bar—needle strikes can shatter the metal, sending flying fragments towards your eyes. Always Stop the machine completely, then cut.

Branching in Wilcom: Turn a Fussy Letter E Into One Object (And Protect Your One-Trim Goal)

Branching is one of the most production-relevant features shown in this workflow.

The host digitizes parts of the letter E, then applies Branching. This forces Wilcom to treat the separate segments as a single object—automatically calculating the pathing, underlay, and connections to eliminate jump stitches between the bars of the E.

Why does this matter beyond having a “clean file structure”?

1. Efficiency: Fewer jumps mean fewer machine slow-downs.
2. Quality: Every restart is a chance for the thread tension to wobble or a "bird's nest" to form under the throat plate.
3. Finish: You don't have to manually trim tails between the segments.

If you’re building team-name text for uniforms, this is where digitizing starts acting like manufacturing.

The “One Trim” Promise: Sequencing Start/Stop Points Until Trims Drop From 10 to 1

The video makes the goal very concrete: trims can start high (the host shows it starting around 10) and then he brings it down to 1 trim total by adjusting the entry and exit points of each letter object in the Sequence list.

This is not glamorous work, but it’s where profit is made in a commercial shop.

The Commercial logic:

• Every trim takes 6–10 seconds (slow down, cut, move, speed up).
• On a generic design with 10 unnecessary trims, you lose ~90 seconds per shirt.
• on 100 shirts, that is 2.5 hours of wasted machine time.

If you are running a business, this efficiency creates a need for better throughput. Many growing shops eventually hit a ceiling with single-needle machines and look at upgrading to multi-needle platforms like SEWTECH systems. Why? Because once your files are optimized (no trims!), the machine speed and needle capacity become the only remaining bottlenecks.

SETUP CHECKLIST: The Digital Pre-Flight

Do this before you export to DST.

• [ ] The Trim Audit: Open the "List" view. Are there trims between letters that touch or are close? Move entry/exit points to connect them. Target: 1 trim.
• [ ] The 9mm Police: Use the measure tool on your widest satin point. Measured 8.8 mm? Safe. Measured 11mm? Split it or shrink it.
• [ ] Sharp Angle Scan: Check the apex of A’s and legs of R’s. If angles twist sharply, smooth them manually.
• [ ] Underlay Check: Ensure "Edge Run" or "Center Run" is applied. Without this "foundation," your satin stitches will sink into the polo fabric.

Raiders Text Experiment: Splitting Letters Can Look Great in Software—and Still Stitch Ugly

This is the most valuable “avoid the trap” section of the video.

For the Raiders text, the host intentionally experiments:

• He breaks the R into three pieces (instead of the more typical two) to control sharp corners.
• He experiments on the A corner to try to blend the top.
• He splits the D into two objects.


Then, the stitch-out tells the truth.

What Went Wrong (The Symptom)

The top corner of the A becomes messy because there’s “too much going on”—too many conflicting stitch angles and joins fighting each other for space. On screen, it looks geometric. On thread, it looks like a knot.

The Lesson: Complexity increases risk. At readable sizes (left chest), a clean, traditional structure is stronger than complex segmentation.

Pro Tip: Viewers often ask for 3D puff techniques. Warning: If your basic satin text isn’t clean and flat, adding foam (3D Puff) will only magnify the flaws. Master the flat satin first.

The Reset That Fixes 80% of Ugly Satin Text: Re-Digitize the Raiders Letters the Traditional Way

The host doesn’t “patch” the messy A—he deletes the experimental segments and re-digitizes cleanly using traditional logic.

R: Treat it Like a "P" with a Leg

He simplifies the R by building it looking like a P first, then adding the leg. This creates a natural stress point that embroidery machines handle well.

A: Bridge vs. Full Overlap

He tries a "butt-up" join (where shapes touch), then realizes it's unsafe. He switches to taking the stitch coverage “all the way” to blend the connection.

He then uses Branching to make it behave as one piece. Expected outcome: The Raiders letters stitch cleaner, with a smoother A apex and a more confident R corner.

Push-Pull Compensation in Real Life: Why Curved Letters Must Be Taller

After the first stitch-out, the host spots uneven letter heights—especially where curved/open letters (C, O, S) look shorter than straight letters.

His fix is simple and measurable:

• He stretches curved letters vertically by about 0.2 mm to 0.4 mm (shown as a height adjustment) so they appear equal after stitching.


This is the heart of embroidery push pull compensation in practical lettering. Stitches running horizontally pull the fabric inward (shortening the letter). Curved shapes lack the structural vertical columns of an "H" or "N," so they succumb to this tension more easily.

The Mental Model:

• Straight letters (H, I, N): Hold their height well.
• Curved/Open letters (C, O, S): Visually "shrink."
• Correction: "Cheat" the geometry. Make C's and O's taller than their neighbors on the screen so they match on the shirt.

Test Stitch-Out on Polo Fabric: Bright Orange Thread Makes Problems Impossible to Ignore

The stitch-out is done on polo shirt fabric using super bright orange thread on black so imperfections jump out.

This is a professional testing habit. High-contrast thread reveals uneven satin density, angle conflicts, and gaps.

Decision Tree: Fabrics & Consumables

Don't guess. Follow the physics of the material.

Scenario: You are stitching on a Pique Knit Polo.

1. Select Stabilizer (Backing):
   • Rule: If the fabric stretches, the backing must NOT stretch.
   • Choice: Use Cut-Away stabilizer (2.5oz or mesh).
   • Avoid: Tear-away. It will disintegrate during stitching, causing the letters to warp.
2. Select Topping (Hidden Consumable):
   • Problem: Stitches sink into the "waffle" texture of the polo.
   • Solution: Use Water Soluble Topping (Solvy) firmly on top. It keeps the stitches lofted high.
3. Select Hooping Method:
   • Pain Point: Traditional plastic hoops can leave permanent "hoop burn" (shiny crushed fabric rings) on delicate polos. They are also hard to tighten consistently without stretching the fabric.
   • Upgraded Solution: This is where magnetic embroidery hoops shine. Because they clamp straight down rather than forcing an inner ring into an outer ring, they eliminate hoop burn and make hooping 3x faster.

Column B vs Complex Turning in Wilcom E4.5: Pick the Tool That Matches the Letter’s “Personality”

Here’s the practical takeaway from the four logos:

• Column B is best when you need deliberate control over rails and angles—sharp tips, traditional Roman fonts, and serifs.
• Complex Turning is efficient for blocky shapes where you want the software to propose angles, which you then refine.

The host uses both. A production digitizer isn’t loyal to a tool; they are loyal to the quality of the final stitch-out.

When “One Trim” Becomes a Business Advantage (And When to Upgrade Your Tools)

Once you can reliably digitize text logos with one trim and predictable stitch lengths, you will notice that digitizing isn't the problem anymore. The problem becomes the physical labor of running the job.

If you are hooping polos all day, your wrists will tell you where the bottleneck is. It's the loading, aligning, and re-hooping.

• Level 1 Fix: Use a magnetic hooping station to ensure your placement is identical every time.
• Level 2 Fix: Switch to generic magnetic embroidery hoop systems that snap on/off in seconds, reducing operator fatigue.
• Level 3 Fix: If your volume is hitting 50+ shirts a week, a single-needle machine is costing you money. Moving to a multi-needle machine (like SEWTECH platforms) allows you to queue colors without manual thread changes, leveraging your "one trim" optimized files for maximum speed.

Warning: Magnetic Force Hazard
Powerful magnetic hoops (like MaggieFrame or similar industrial types) are not fridge magnets. They can snap together with crushing force.
1. Pinch Hazard: Watch your fingers.
2. Medical Interference: Keep strong magnets at least 6 inches away from pacemakers or other implanted medical devices.

The Three Most Common Stitch-Out Problems (Symptom → Diagnosis → Prescription)

Run It Like a Shop: Final Operation Checklist

This is the part that separates hobby digitizing from client-ready output.

OPERATION CHECKLIST: The "Go / No-Go"

• [ ] The Fabric Match: Stitch a test on the actual fabric (or a scrap of it). Cotton t-shirts do not behave like polyester polos.
• [ ] The Contrast Test: Use a high-contrast thread (e.g., bright orange on black) for the test to expose flaws.
• [ ] Sensory Inspection: Run your fingers over the back of the embroidery. Is the bobbin tension smooth? Or is it knotty? (Knotty = Tension too loose up top).
• [ ] Alignment Check: If doing sleeves, consider using a specialized embroidery sleeve hoop to maintain straight lines on difficult tubular areas.
• [ ] Final Measure: Check the final width of the satin elements. Did they shrink too much? Adjust pull compensation if needed.


When you follow the exact loop shown here—digitize with intent, sequence for one trim, test on the real garment, and correct for physics—you stop guessing. You start engineering high-quality embroidery.

FAQ

• Q: In Wilcom EmbroideryStudio e4.5, why do satin stitches longer than 9 mm on polo lettering cause snags and ugly stitch-outs?
  A: Keep satin stitches under 9 mm because long satins on polos are unstable, can trigger unwanted machine behavior, and snag easily in real wear.
  • Measure: Use the Measure tool on the widest point of each satin column, especially on curved letters like C.
  • Adjust: If the satin measures over 9 mm, shrink the letter slightly or use Auto Split to divide the satin into shorter sections.
  • Prevent: Watch for designs that “barely behave” on one sample—those often fail when running multiple shirts at speed.
  • Success check: The longest satin measurement stays at or below 8.8–9.0 mm and the finished stitch-out has no loose loops you can catch with a fingernail.
  • If it still fails: Re-check stitch angles at turns and confirm underlay (Edge Run or Center Run) is enabled so satins do not collapse into the knit.
• Q: In Wilcom EmbroideryStudio e4.5, how do I reduce trims from 10 to 1 using Sequence entry/exit points for left-chest team-name text?
  A: Move entry and exit points in the Sequence so adjacent letters connect cleanly, targeting one trim for the entire word.
  • Audit: Open the List/Sequence view and identify trims occurring between letters that touch or sit very close.
  • Re-path: Change each letter’s start/stop (entry/exit) so the stitch path flows into the next letter instead of forcing a cut.
  • Re-check: After edits, confirm the design stats show the trim count dropping toward 1.
  • Success check: The machine runs the full word with one planned trim total and no frequent stop-cut-restart rhythm.
  • If it still fails: Use Branching on letters with internal separated bars (like E) so Wilcom treats them as one connected object.
• Q: In Wilcom EmbroideryStudio e4.5, how do I use Branching to digitize the letter “E” as one object and avoid jump stitches between the bars?
  A: Use Branching to merge separate E segments into a single connected object so Wilcom calculates pathing and connections without extra jumps.
  • Digitize: Create the E components (spine and bars) as needed for clean structure.
  • Apply: Use Branching to force the software to connect the segments into one logical object.
  • Verify: Review the stitch path to ensure connections replace jump stitches where possible.
  • Success check: The E stitches without trims between its bars and there are no loose jump threads to clip inside the letter.
  • If it still fails: Simplify the E structure (fewer separate pieces) and re-check sequencing so the entry/exit points do not force a jump.
• Q: In Wilcom EmbroideryStudio e4.5, why do curved letters like C, O, and S stitch shorter on polos, and how do I apply embroidery push-pull compensation?
  A: This is common on knit polos—stretch curved/open letters vertically by about 0.2 mm to 0.4 mm so they appear equal after stitching.
  • Identify: Compare curved letters (C/O/S) against straight letters (H/N/I) after a test stitch-out.
  • Compensate: Increase the height of the curved letters in small steps (0.2–0.4 mm shown in the workflow).
  • Re-test: Stitch again on the same polo fabric because fabric behavior is the real variable.
  • Success check: Curved letters visually match the height of straight letters on the finished shirt, not just on-screen.
  • If it still fails: Check hooping stability and topping use—excess fabric movement or sinking can mimic push-pull issues.
• Q: On a pique knit polo, what stabilizer and topping should be used to prevent satin text from sinking and getting fuzzy edges?
  A: Use non-stretch cut-away backing plus water-soluble topping to keep satin stitches sitting on top of the polo texture.
  • Backing: Choose cut-away stabilizer (often 2.5 oz or mesh) because the fabric stretches but the backing must not.
  • Topping: Apply water-soluble topping firmly on top to stop stitches from sinking into the “waffle” knit.
  • Confirm: Make sure underlay (Edge Run or Center Run) is turned on to build a foundation.
  • Success check: Satin edges look crisp, the fabric does not poke through, and the letters stay readable on the textured surface.
  • If it still fails: Re-check hooping (avoid over-stretching) and run a high-contrast test thread to spot gaps and angle conflicts.
• Q: During embroidery stitch-outs, why is it dangerous to trim jump threads near a moving needle bar, and what is the safe procedure?
  A: Never trim near moving needles—stop the machine completely first because needle strikes can shatter metal and send fragments toward your eyes.
  • Stop: Hit Stop and wait until all motion fully stops before putting hands/tools near the needle area.
  • Clear: Trim jump threads only when the needle bar is stationary and hands are well away from needle paths.
  • Resume: Restart only after confirming nothing is under the presser foot/throat area that could snag.
  • Success check: No needle contact with tools, no sudden “ping” sounds, and no unexpected thread breaks immediately after trimming.
  • If it still fails: Slow down the workflow—plan sequencing to reduce jumps/trims so there is less manual cutting during production.
• Q: What are the main safety hazards of industrial magnetic embroidery hoops, and how do I handle magnetic hoops to avoid injury or medical interference?
  A: Treat magnetic hoops as high-force clamps—keep fingers clear during closing and keep magnets at least 6 inches away from pacemakers or implanted devices.
  • Protect: Separate and close magnetic frames with controlled alignment to prevent sudden snap-together pinch injuries.
  • Position: Keep hands out of the “closing zone” and guide from the sides, not between the magnets.
  • Medical: Maintain a minimum 6-inch distance from pacemakers/implants and follow the device manufacturer’s guidance.
  • Success check: The hoop closes without finger pinches and fabric is clamped evenly without needing excessive force.
  • If it still fails: Switch to a slower, two-step handling routine (set bottom frame, then lower top frame carefully) and train operators before high-volume runs.
• Q: When stitching polo left-chest satin text, how do I choose between Level 1 technique fixes, Level 2 magnetic embroidery hoops, and Level 3 upgrading to a SEWTECH multi-needle embroidery machine?
  A: Fix quality first with settings and materials, then reduce hooping labor with magnetic hoops, and only upgrade to multi-needle when volume makes single-needle throughput the bottleneck.
  • Level 1 (Technique): Enforce the <9 mm satin rule, enable proper underlay, sequence for 1 trim, and test on the actual polo fabric with high-contrast thread.
  • Level 2 (Tooling): If hoop burn, inconsistent tension from over-tightening, or slow re-hooping is the pain point, use magnetic hoops and (when needed) a hooping station for repeatable placement.
  • Level 3 (Capacity): If optimized files still leave production limited by manual color changes and cycle time—often around 50+ shirts/week—consider a multi-needle platform like SEWTECH.
  • Success check: You can run multiple polos with consistent lettering quality and minimal stops for trims, re-hooping, or corrections.
  • If it still fails: Identify the true bottleneck (digitizing errors vs hooping instability vs operator time) before spending—test one improvement at a time.
