Why Shrinking an Embroidery Design Can Turn “Soft Petals” Into a Stiff Brick: Size vs. Stitch Density (Husqvarna Viking + Mega Hoop Demo)

The Calm-Down Truth About Embroidery Density: Your Machine Isn’t “Broken”—Your Resized File Is Overcrowded

If you’ve ever shrunk a design on your screen, hit "Start," and watched in horror as your embroidery turned into a bulletproof coaster, you are not alone. And more importantly—you are not crazy. In this breakdown, we analyze a critical demonstration by James Rogers, illustrating a fundamental law of embroidery physics that trips up every beginner: Density = Stitch Count ÷ Area.

Here is the scenario: You take a large cherry blossom design. You shrink it by 50%. You hit sew. The result is a stiff, lumpy mess that could deflect an arrow. Why? Because the stitch count remained exactly the same.

Think of it this way: Imagine a room that comfortably holds 100 people. Now, imagine shrinking that room to the size of a closet but forcing the same 100 people inside. That is exactly what happens to your thread. When you resize a design without "recalculating" stitches, you force the machine to pack thread into a space that physically cannot contain it. The result is "Density Overload"—a recipe for broken needles, shredded thread, and ruined garments.

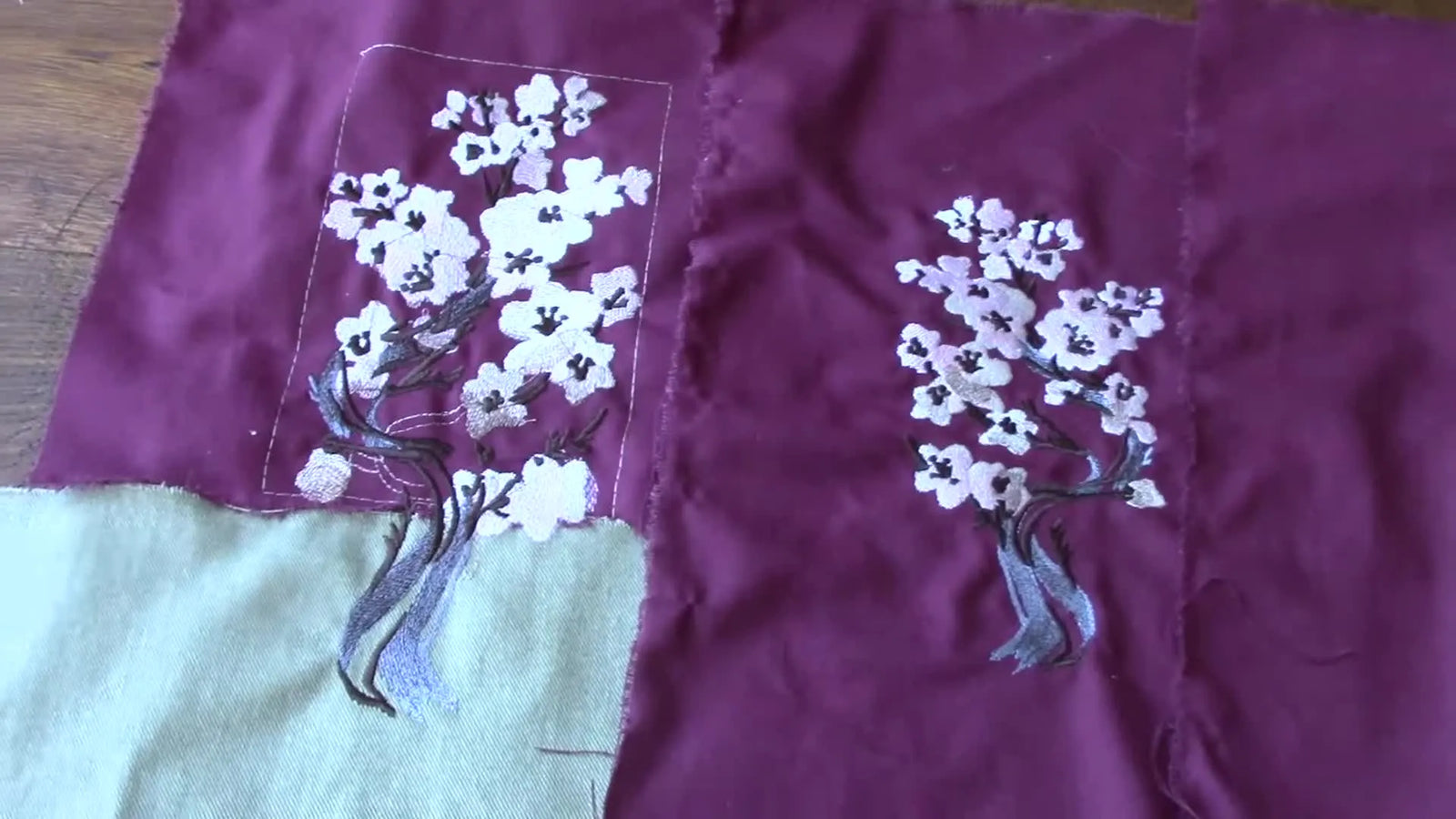

The Side-by-Side Experiment (Large/Medium/Small Stitch-Outs): How “Same Stitch Count” Changes Drape and Feel

The video provides the ultimate empirical evidence: three stitch-outs of the very same file, scaled to Large, Medium, and Small, laid out side-by-side.

• The Large Sample: The standard density (likely around 0.40mm to 0.45mm spacing) allows the fabric to breathe. It drapes naturally. It feels professional.
• The Medium Sample: It is passable, but you begin to feel rigidity. The "Push and Pull" forces are increasing.
• The Small Sample: This is the disaster zone. It is stiff, warped, and lumpy.

The Expert's Take: In professional digitizing, we adhere to a "10-20% Rule." You can usually scale a design up or down by 10-20% without changing the stitch count. Beyond that, the physics break down. The smallest sample in the video likely compressed the stitches so close (e.g., 0.15mm spacing) that the needle was practically drilling into the same hole repeatedly.

What experienced stitchers notice immediately

When a design enters the "Red Zone" of density, your senses should alert you before the machine even jams:

• Visual: The design looks "puffy" or 3D, but in a messy, uncontrolled way. Details like flower centers blur into a single blob of thread.
• Auditory: The machine sound changes from a rhythmic hum-hum-hum to a labored thud-thud-thud.
• Tactile: The fabric surrounding the embroidery puckers or wrinkles (the "bacon effect") because the dense thread is aggressively pulling the fabric inward.

The “Hidden” Prep Pros Do Before Resizing: Stabilizer, Fabric, and a Reality Check on What Density Will Do

Before you even touch your software, you must secure the physical foundation. High-density designs act like stress tests—they will expose any weakness in your stabilization or hooping.

Prep Checklist (Pre-Flight Protocol)

• Fabric Integrity: Identify your substrate. The video uses a maroon woven sample (cotton/linen blend), which is stable. If you were doing this on a stretchy t-shirt, a dense design would destroy it instantly without heavy stabilization.
• Stabilizer Selection:
  • Rule of Thumb: The denser the design, the stronger the stabilizer.
  • Action: Use a Cutaway stabilizer (2.5oz or 3.0oz). Tearaway is insufficient for high-density fills as it will perforate and separate during stitching.
• Needle Check: Is your needle fresh? A dull needle combined with high density causes "birdnesting." Use a Titanium-coated 75/11 or 90/14 topstitch needle to reduce friction.
• Hidden Consumable: Keep a can of fabric adhesive spray (temporary adhesive) handy. Floating a layer of stabilizer under the hoop can save a dense project if you notice shifting.

One practical note from the field: High density creates massive "pull" forces. If your hooping technique is weak, the fabric will slip. Traditional inner rings can sometimes leave "hoop burn" or fail to grip thick layers. For setups requiring maximum grip without fabric damage, a magnetic hoop for husqvarna viking works exceptionally well. The magnetic clamping force distributes pressure evenly, acting like 100 tiny fingers holding the fabric taut, which is essential when a dense design tries to pull it apart.

Flip It Over: The Backing “Mess” Is the Smoking Gun for Over-Density

The back of the embroidery never lies. In the video, the host flips the dense sample, revealing a chaotic "mound" of bobbin thread and stabilizer.

This visual cue—where the back looks significantly thicker and messier than the front—is the signature of thread displacement.

• The Physics: When a needle goes down, it has to put the top thread somewhere. If the previous stitches have already filled the space, the new thread has nowhere to go but to bunch up underneath or push neighboring threads outward.
• The Risk: This bunching raises the height of the embroidery height (the "Z-axis"). If it gets too high, it drags against the needle plate, causing skipped stitches or snapping the thread.

Warning: Mechanical Hazard. If you hear a sharp "crunch" sound, stop immediately. High-density stitching can deflect the needle, causing it to strike the metal throat plate. This can shatter the needle, sending shards flying, or burr the hook assembly. Always wear eye protection and keep hands clear.

The Paper Diagram That Explains Everything: “Converging Lines” and Why Shrinking Without Recalculating Fails

The host uses a pen-and-paper diagram to visualize "Convergence." This is the most valuable mental model for any digitizer or machine operator.

The "Traffic Jam" Analogy: Imagine three cars driving side-by-side on a highway (Large Design). They fit perfectly. Now, narrow that highway down to a single lane (Small Design) but keep all three cars side-by-side. They crash.

• Large Size: Stitches A, B, and C are 2mm apart. The needle penetrates cleanly.
• Small Size: Stitches A, B, and C are now 0.2mm apart. The needle is effectively piercing the thread of the previous stitch. This shreds the fiber and weakens the structure.

The physics behind the “stiff and lumpy” feel

• Thread Volume: Thread is not ink; it is a 3D object with mass and thickness.
• Accumulation: When you scale down 50%, you quadruple the density (because you reduce both X and Y axes).
• Rigidity: The thread build-up acts like a layer of glue, stiffening the fabric.

This density issue makes hooping difficult. If your hoop isn't holding the fabric with "drum-tight" tension, the needle will push the fabric down into the throat plate hole ("flagging"). This is where mastering hooping for embroidery machine technique becomes critical. If the fabric isn't secured against the pull of thousands of dense stitches, you will see gaps in the outline.

Linking Theory to Reality: Putting the Diagram Next to the Stitch-Out So You Can “See Density” Before You Sew

The video juxtaposes the diagram with the ruined sample. You must learn to "see" this result in your mind before you press start.

Expert Tip: Most embroidery software has a "3D Real View" or "Density Map" mode. Zoom in. If the simulation shows solid blocks of color with no visible texture, your real-world result will be a bulletproof patch.

• Safe Zone: You should see small gaps between stitch lines in the software simulation.
• Danger Zone: If the lines overlap heavily on screen, they will birdnest on the machine.

Setup That Prevents the Worst Failures: Hoop Stability, Backing Choice, and Why Dense Designs Expose Weak Hooping

The demonstration utilizes a Husqvarna Viking machine and a Mega Hoop. Large hoops are fantastic for production, but they introduce a new variable: Hoop Bounce.

Setup Checklist (The "Anti-Failure" Protocol)

• Hoop Tightness: Tighten the hoop screw until the fabric feels like a drum skin. When you tap it, it should make a light thumping sound.
• Inner Ring Secure: Ensure the inner ring hasn't popped up slightly at the corners (common in square hoops).
• Clearance Check: Ensure the large hoop travels without hitting walls or clutter.
• Support: For extra-large fields, use the extension table to support the hoop's weight.

The Production Reality: If you are struggling to get thick items or complex garments hooped tightly enough for dense designs, manual screw-tightening is often the bottleneck. It causes wrist fatigue and inconsistency. Many professionals dealing with these challenges switch to a mega hoop husqvarna compatible magnetic solution. Furthermore, using a hooping station for embroidery ensures that every garment is hooped with the exact same tension and placement, reducing the variable of human error when fighting high-density files.

Watch the Machine Struggle: The “Stitching in Place” Moment That Tells You Density Is Too High

In the footage, the machine tries to sew the small version. Watch closely. The needle bar is moving, but the pantograph (the arm moving the hoop) is barely shifting.

This is called "Drilling." The needle is entering the same coordinate multiple times.

• Heat Buildup: Friction heats the needle.
• Thread Breakage: The hot needle eye melts synthetic (polyester) top thread.
• Fabric Damage: You are essentially using a sewing machine to punch a hole through the fabric.

Sensory checks I trust

• The "Click": If you hear a sharp clicking noise, your needle is slightly hitting the throat plate due to deflection. STOP IMMEDIATELY.
• The "Groan": If the motor sounds deeper, it is fighting resistance.
• The "Shred": If you see fuzz accumulating at the needle eye, your thread is shredding from friction.

The Fix That Actually Works: Resize the Design *and* Reduce Stitch Density (Don’t Just Scale)

The solution is not magic; it is math. You must decouple "Size" from "Stitch Count."

The "Recalculation" Workflow

Depending on your software (Wilcom, Hatch, Embrilliance, etc.), this function might be called "Stitch Processor," "Keep Density," or "Density Recalculation."

1. Select the Design.
2. Enable "Recalculate Stitches": Ensure this box is checked before you drag the sizing handle.
3. Resize: As you shrink the design, watch the stitch count drop effortlessly.
   • Example: Large flower (10,000 stitches) $\to$ Resized 50% $\to$ Count should drop to approx 5,500 - 6,000 stitches.
4. Verify Density: Check the "Properties." Satin stitch spacing should arguably remain between 0.40mm and 0.45mm regardless of the design size.

Pro Move: If you sell embroidered goods, do not scale one master file. Digitize (or commission) three separate files: Small (Left Chest), Medium (Hat), and Large (Jacket Back). Each requires different underlay and density settings.

A Decision Tree You Can Use Every Time: Fabric + Stabilizer Choices When Density Goes Up

Don't guess. Use this logic flow to match your materials to the density of your design.

START: Is the design density High (>15,000 stitches in 4x4 area)?

• YES:
  • Fabric: Woven/Stable? $\to$ Use 2x layers of Cutaway.
  • Fabric: Knit/Stretchy? $\to$ Use Fusible Mesh + Heavy Cutaway. Do not use Tearaway.
  • Hooping: Must be tight. If fabric slips, upgrade to magnetic embroidery hoops to clamp fabric + stabilizer firmly without bruising.
• NO (Standard Density):
  • Fabric: Woven? $\to$ Tearaway represents a standard choice.
  • Fabric: Knit? $\to$ Cutaway is still required to prevent distortion.

Troubleshooting Dense, Downsized Designs: Symptom → Likely Cause → Fix You Can Try Today

A visual guide to diagnosing the mess in the video.

Warning: Magnetic Safety. SEWTECH and similar magnetic embroidery hoops use industrial-strength magnets (Neodymium). They carry a pinch hazard. Keep fingers clear when snapping them close. Do not place them near pacemakers or magnetic storage media (credit cards/hard drives).

The Upgrade Path That Makes This Problem Disappear Faster

Understanding density is the "Software" part of the equation. But if your business is growing, you will hit a "Hardware" ceiling. Fighting with density leads to physical fatigue and wasted inventory.

• The Problem: You spend 5 minutes fighting to hoop a thick jacket tight enough for a dense logo, only to get "hoop burn."
• The Criteria: If you are hooping more than 10 garments a week, or working with difficult materials (thick canvas, velvet, delicate performance wear).
• The Solution (Level 1): Better Stabilizer and spray adhesive.
• The Solution (Level 2): magnetic embroidery frame. These allow you to float, clamp, and adjust thick materials in seconds without the "screw-tightening" wrist pain.
• The Solution (Level 3): If alignment is killing your profit margin, a hoop master embroidery hooping station system (compatible with magnetic frames) standardizes placement, so your logo lands in the exact same spot on Shirt #1 and Shirt #100.

Operation Checklist (the “Don’t Waste a Saturday” final pass before you press Start)

• File Check: Did I confirm the stitch count dropped when I resized?
• Visual Check: Detailed "Print Preview" on screen—does it look like a solid block of color (Bad) or distinct lines (Good)?
• Needle: Is a fresh 75/11 or 90/14 installed?
• Bobbin: Do I have enough bobbin thread to finish? (Dense designs eat bobbins).
• Hoop: Is the fabric "drum tight"?
• Test: Have I run a test on scrap fabric first?

The Final Word: Embroidery is an interplay of tension, texture, and physics. When you cheat the physics by crushing stitches together, the physics fight back. Respect the density, upgrade your holding power when necessary, and always, always test before you sew the final piece.

FAQ

• Q: Why does a Husqvarna Viking embroidery design become “bulletproof” and stiff after resizing the file smaller in software?
  A: This is common—your machine isn’t broken; the design was shrunk but the stitch count stayed nearly the same, causing density overload.
  • Re-open the design and enable a resize option that recalculates stitches (often labeled “Recalculate Stitches / Keep Density / Stitch Processor”) before scaling down.
  • Re-check design properties after resizing; keep satin spacing roughly in the 0.40–0.45 mm range rather than compressing tighter.
  • Run a small test stitch-out on scrap before stitching the final garment.
  • Success check: the sewn sample should drape normally and feel flexible instead of board-like and lumpy.
  • If it still fails: digitize/obtain a separate “small size” file (left chest/hat) with adjusted underlay and density instead of scaling one master file.
• Q: What is the safest resizing range for Wilcom Hatch Embrilliance embroidery files before stitch density becomes a problem?
  A: Generally, keep resizing within about 10–20% unless stitches are being recalculated; beyond that, density can spike fast.
  • Limit quick “drag-to-resize” changes to ~10–20% when you are not sure stitches are being rebuilt.
  • Turn on stitch recalculation before resizing so stitch count drops as size drops.
  • Verify the stitch count actually decreases after resizing (it should not stay the same when size shrinks dramatically).
  • Success check: in software preview, you should still see visible stitch texture/gaps, not a solid block of fill.
  • If it still fails: create separate files for Small/Medium/Large applications rather than scaling one design.
• Q: What stabilizer and needle setup should be used for high-density embroidery on knit vs woven fabric to prevent birdnesting and puckering?
  A: Match support to density—high-density designs usually need cutaway, and a fresh needle reduces friction-related nesting.
  • Choose stabilizer: use cutaway (2.5 oz or 3.0 oz); avoid tearaway for high-density fills because it can perforate and separate.
  • For knits/stretch: use fusible mesh plus heavy cutaway (don’t rely on tearaway).
  • Install a fresh titanium-coated 75/11 or 90/14 topstitch needle to reduce shredding under dense stitching.
  • Success check: fabric around the design stays flatter (less “bacon effect”) and underside loops/birdnesting do not build.
  • If it still fails: re-thread the machine and re-check hoop tightness to reduce fabric flagging during dense areas.
• Q: How can Husqvarna Viking hooping be checked for “drum-tight” tension to stop fabric flagging on dense embroidery designs?
  A: Tight, stable hooping is the fastest fix—dense designs will expose any slipping or hoop bounce.
  • Tighten the hoop screw until the fabric feels like a drum skin.
  • Tap the hooped fabric lightly; listen/feel for a light “thump” rather than a soft, loose sound.
  • Inspect the inner ring corners to ensure the inner ring has not popped up slightly (common with square hoops).
  • Success check: during stitching, the fabric should not lift with the needle (“flagging”) and outlines should stay aligned.
  • If it still fails: add better stabilizer support and consider a clamping-style hooping method for more consistent grip on thick or tricky materials.
• Q: What does a thick, messy underside of bobbin thread on a Husqvarna Viking embroidery sample indicate about stitch density?
  A: A bulky, chaotic back is a strong sign of over-density and thread displacement—there isn’t enough space for new stitches to lay correctly.
  • Stop and evaluate the design size vs stitch count; don’t continue stitching a clearly overloaded sample.
  • Resize only with stitch recalculation enabled so stitch count drops appropriately.
  • Use stronger stabilization (cutaway) to resist the extra pull forces from dense fills.
  • Success check: the back should look controlled and not dramatically thicker/mounded compared with the front.
  • If it still fails: reduce density in digitizing or use a properly digitized file for the target size instead of scaling.
• Q: What are the mechanical warning signs of “drilling” on a Husqvarna Viking embroidery machine when a design is too dense after shrinking?
  A: If the needle moves but the hoop barely travels, stop—drilling creates heat, breaks thread, and can damage the machine.
  • Listen for a sharp “click” (possible needle deflection contacting the throat plate) and stop immediately.
  • Watch for fuzz at the needle eye (thread shredding from friction/heat), especially with polyester thread.
  • If the motor “groans” or sounds labored, pause and reassess density and stabilization before continuing.
  • Success check: normal stitching shows smooth hoop movement between penetrations and a steady, even machine sound.
  • If it still fails: reduce density via recalculation/digitizing and switch to a fresh needle before attempting again.
• Q: What safety precautions should be followed when using industrial-strength magnetic embroidery hoops to avoid pinch injuries and magnetic hazards?
  A: Magnetic hoops are effective but powerful—keep fingers clear during closing and keep magnets away from sensitive items.
  • Keep fingertips out of the closing path when snapping the magnetic parts together (pinch hazard).
  • Do not place magnetic hoops near pacemakers or magnetic storage media (credit cards/hard drives).
  • Clamp deliberately and slowly when positioning thick garments to avoid sudden snap closure.
  • Success check: fabric is held evenly without needing extreme screw-tightening and without visible hoop burn.
  • If it still fails: improve stabilizer/support first, then reassess whether the garment thickness/structure needs a different hooping approach.
