White Bobbin Thread on Top of Embroidery? The Baby Lock Flourish Bobbin-Case Fix That Actually Holds

Mastering Tension: How to Fix White Bobbin Thread Showing on Top (The Baby Lock Flourish Guide)

You know the feeling. You’ve spent twenty minutes carefully hooping a garment, you hit "Start," and for the first few minutes, the machine hums a rhythmic, reassuring song. But when you lean in to inspect the satin lettering, your heart creates a pit in your stomach.

There they are: tiny, jagged "salt sprinkles" of white thread poking through your beautiful dark letters.

In the embroidery world, we call this "bobbin show-through," and it is the single most common frustration for anyone moving from hobbyist to serious creator. It feels like a betrayal—like the machine is fighting you. But as someone who has trained thousands of embroiderers, I need you to know this: This is not a ghost in the machine. It is a physics problem. Specifically, it is a game of "Tug of War" between your top thread and your bobbin thread, and right now, your top thread is pulling too hard.

This guide rebuilds a proven workflow (specifically demonstrated on the Baby Lock Flourish, but the physics apply universally) to fix this issue permanently. We will move beyond "guessing" and into "calibrating."

The Diagnosis: Spotting the "White Dots" Before They Ruin the Batch

Before you grab a screwdriver, stop. We need to confirm the diagnosis.

The symptom is specific: White bobbin thread appearing on the top side of the fabric.

• Where: It usually hides in the sharpest corners of satin stitches, the tiny dot of an "i," or thin serifs on fonts.
• The Look: It doesn't look like a loop (which suggests a snag); it looks like a tight speck of white pepper.

The "Band-Aid" Trap: A common novice reaction is to switch to a black bobbin thread to match the top. While this hides the visual error, it does not fix the structural tension issue. If your tension is unbalanced, your embroidery will eventually pucker or unravel, regardless of the color. We are here to fix the root cause.

The Physics of Thread: The 40wt vs. 90wt Rule

Embroidery is a balance equation. To ensure the top thread wraps nicely around the edges of your design (hiding the bobbin thread underneath), we usually rig the game in favor of the top thread.

We do this by using different "weights" (thicknesses) of thread.

The Golden Ratio for Crisp Text

In this workflow, we use the industry-standard pairing:

• Top Thread: 40 wt (Standard Rayon or Polyester, e.g., Sulky or Isacord).
• Bobbin Thread: 90 wt (The Finishing Touch or similar lightweight bobbin thread).

Why this matters: Think of the 40 wt top thread as a thick rope and the 90 wt bobbin thread as a thin fishing line. Because the bobbin thread is thinner and lighter, it yields easier. This allows the top thread to pull the "knot" to the backside of the fabric, creating that flawless, puffy satin look on top.

If you are using 40 wt thread in your bobbin (perhaps leftover sewing thread), you have created an equal "tug of war." The top thread can't win, and the white bobbin thread will often be dragged to the surface.

Pro Tip: Keep a "Side Hustle" stash. While 90 wt is the gold standard for quality, stock some 40 wt pre-wound bobbins in black and navy. If you are on a tight deadline with a tricky navy shirt, matching the bobbin color is a valid emergency tactic—just don't make it your daily habit.

The "Pre-Flight": Variables You Must Clear Before Tuning

Novices touch the tension dial immediately. Pros check the "Path of Resistance" first. 90% of tension issues are actually physical obstructions, not dial settings.

1. The "Floss" Test

Lift your presser foot (this opens the tension discs). Re-thread your top thread. As you pull the thread through the path, it should feel smooth—no catching. Lower the presser foot and pull again. You should feel significant, steady resistance, like pulling dental floss between tight teeth. If you don't feel that grip, your thread isn't seated in the tension discs.

2. The Stabilizer Anchor

If your fabric is moving, your stitches will distort, mimicking tension issues.

• The Rule: If you are embroidering on a stretchy knit (t-shirt) or a loose weave and only using tear-away, the fabric will bunch. This bunching pushes the fabric up, meeting the needle halfway, and causing loose loops.

The Prep Checklist (Do OR Fail)

Perform this sequence exactly before running any test swatch.

• Top Thread Check: Verify you are using 40 wt quality thread (old thread becomes brittle).
• Bobbin Check: Verify 90 wt bobbin thread. Inspect the bobbin—is it wound evenly? If it looks spongy or loose, toss it.
• The Deep Clean: Remove the needle plate. Use a brush or air duster to remove lint from the bobbin case. Even a speck of lint the size of a grain of rice can throw off tension.
• Fresh Needle: Install a new 75/11 embroidery needle. A burred needle creates friction that drags bobbin thread up.
• Hoop Tension: Tap the hooped fabric. It should sound like a dull drum thud. If it ripples, re-hoop.


The "A" Test: A Scientific Method for Tension

Do not test on your final garment. Do not test with a giant floral design. You need a Control Group.

We use the "Letter A" method (or the letter "H" or "I").

1. Result 1: Standard Tension (e.g., 4.0).
2. Result 2: Adjusted Tension (e.g., 3.8).
3. Label them immediately.

Use a fabric scrap that matches your project (e.g., cotton canvas) and a permanent pen. Write the settings directly on the fabric next to the letter. This is the only way to catch the "Sweet Spot."

Reading the Bones: Interpreting Your Test Swatch

Look at the back of your satin column (the letter "I" or the legs of the "A").

• The Goal: You want to see 1/3 top thread, 1/3 white bobbin thread in the center, and 1/3 top thread. This determines that the knot is pulling correctly to the bottom.
• The Symptom: If you see a thin white line down the center (or no white at all), your top tension is too loose.
• The Symptom (Our current problem): If you see white dots on top of the fabric, the bobbin is too loose (or top is too tight).

In our specific case study with the Baby Lock Flourish, we are dealing with a bobbin case that is feeding thread too freely. We need to add drag to that fishing line.

The Mechanical Fix: Adjusting the Bobbin Case

Warning: Physical Safety

Warning: Before removing the bobbin case, turn off your machine. Dropping a screw or a screwdriver onto a running motherboard or moving sensor area is a $500 mistake. Also, ensure your needle is in the highest position to avoid scratching the hook assembly.

On the Baby Lock Flourish (and most drop-in bobbin machines):

1. Slide the plastic bobbin cover-plate off.
2. Flip the small latch/lever if present.
3. Gently lift the black/grey plastic bobbin case out of the metal raceway.

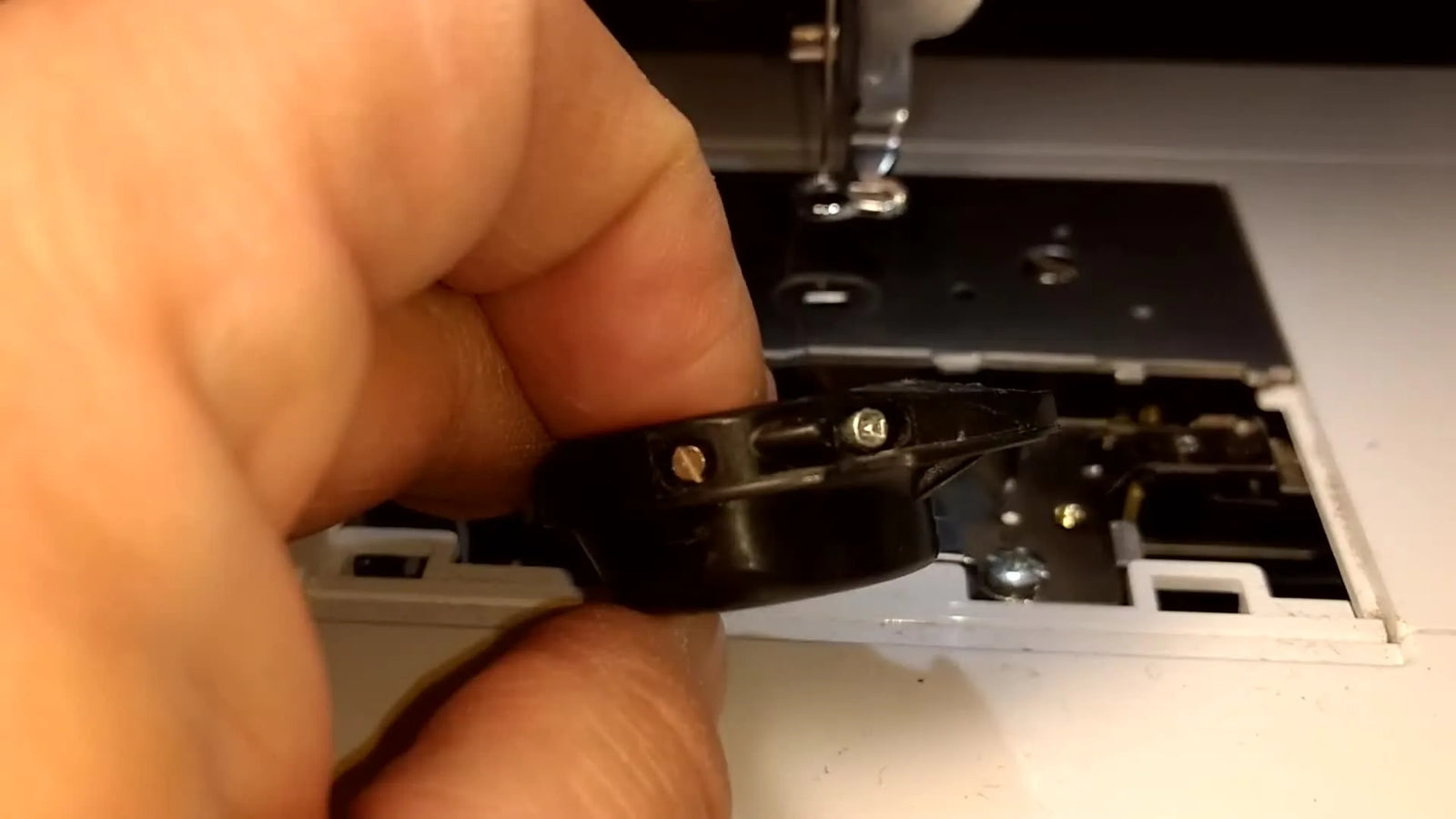

The Surgeon's Turn: The Flat-Head Screw

Hold the bobbin case in your hand. You will see two screws:

1. A Phillips-head (+) screw (usually painted with a sealant). DO NOT TOUCH THIS. This holds the case together.
2. A Flat-head (-) screw. This is your target.

The Adjustment Protocol: We are adjusting spring pressure. Imagine a clock face.

• To Tighten (reduce white showing on top): Turn the screw Clockwise (Right).
• Increment: Turn it only 5 to 10 minutes on the clock face. A tiny movement creates a massive change in drag.

Sensory Check: Hold the thread tail and suspend the bobbin case (over a soft surface like a pillow). bump your hand slightly. The bobbin case should drop a few inches and stop. If it races to the floor, it's too loose. If it doesn't drop at all, it's too tight.

The Re-Assembly: Aligning the Triangle

When putting the case back in, finesse is key. Force nothing. Look for the White Triangle (or arrow) on the bobbin case. Align it perfectly with the White Dot on the metal raceway of the machine.

• Auditory/Tactile Cue: It should settle flat. It usually has a slight "wiggle" room (about 1-2mm) inside the basket. That wiggle is normal; do not try to jam it tight.


The Stabilizer Decision Matrix

Sometimes, tension is fine, but the fabric is collapsing. Use this decision tree to ensure your foundation is solid before blaming the machine.

Decision Tree: Stabilizer Selection

Commercial Note: If you are struggling with "Hoop Burn" (the shiny ring left on fabric) on delicate dark fabrics, this is often caused by crushing the fabric fibers in a traditional hoop. Many professionals search for magnetic embroidery hoops to solve this. These hoops clamp the fabric without the friction-burn of inner/outer rings.

The Mid-Production Save: "Can I Switch Threads?"

You are halfway through a design and the bobbin runs out. Or worse, the white is showing and you need to save the garment now.

1. The Color Match: Yes, you can switch to a matching color bobbin (40wt or 60wt) mid-design. It is better to have a slightly bulkier back than a ruined front.
2. The Restart: If you run out of bobbin thread, replace it carefully. DO NOT un-hoop the fabric.
   • Clip the thread.
   • Change bobbin.
   • Back up the machine about 10–20 stitches to ensure the new stitches overlap the break point.


Troubleshooting Guide: Bird Nests vs. White Dots

Don't confuse these two enemies. They require opposite fixes.

• Enemy A: White Dots on Top.
  • Cause: Top tension too tight OR Bobbin tension too loose.
  • Fix: loosen top tension first. If that fails, tighten bobbin screw (Clockwise).
• Enemy B: Bird Nesting (Giant wad of thread underneath).
  • Cause: Zero top tension. The thread has likely popped out of the take-up lever or tension discs.
  • Fix: Do not touch the bobbin screw. Rethread the entire top path. Ensure the presser foot is UP when threading.


The Upgrade Path: Solving the "Human Factor"

As you move from doing one shirt a week to ten shirts a day, your wrists and patience will be the first things to break. Tension issues often arise because we get tired, hoop lazily, and stretch the fabric.

Scenario: The "Production Plateau" You are spending more time hooping and testing tension than actually embroidering.

• Level 1 Fix: Upgrade your needle and thread quality.
• Level 2 Fix (Efficiency): Switch to baby lock magnetic embroidery hoops. The magnetic locking mechanism ensures even tension across the fabric surface every time, reducing the variables that cause stitch distortion.
• Level 3 Fix (Scale): If you are fighting single-needle limitations (like changing colors manually), it may be time to look at multi-needle solutions like SEWTECH's commercial lineup or finding compatible mighty hoops for babylock to speed up your workflow. Even a simple hooping station for machine embroidery can standardize your placement, making tension issues easier to isolate.

Warning: Magnet Safety

Warning: Magnetic hoops contain powerful Neodymium magnets. Keep them away from pacemakers. They pose a severe pinch hazard—keep fingers clear of the snapping zone. Do not leave them on the machine when not in use, as long-term magnetism can theoretically affect sensitive stepper motors if placed directly on the housing (though rare, it's a best practice).

When to "Nuke It" (The Reset Protocol)

If you have adjusted the screw, changed the needle, and swapped the thread, and it still looks terrible: Stop. You have likely over-corrected.

The Reset Protocol:

1. Turn off the machine. Walk away for 10 minutes. (Frustration causes mistakes).
2. Reset the bobbin tension screw. Mark the original position before you start, or turn it back to where the screw head is flush (refer to your specific manual).
3. Load a standard "Test Design" (not your custom logo).
4. Use a stiff piece of felt or denim (easy variables).
5. Stitch.

This determines if the file is corrupted or the machine is physically out of sync.

Operation Checklist: The Daily Habit

Print this out and tape it to your wall.

Operation Checklist (End-of-Run)

• The 3-Stitch Rule: Watch the first 3 stitches. If the tail isn't pulled down, stop immediately.
• Listen: A rhythmic "Thump-Thump" is good. A metallic "Clack-Clack" means the needle is hitting the plate or the hoop.
• Inspect: Check the bobbin capacity before starting a dense block of text. Running out mid-letter is a recipe for alignment disaster.
• Maintenance: Add one drop of oil to the race (if your manual permits) every 8 hours of run time.

Embroidery is not magic; it is mechanics. The machine wants to stitch perfectly; it just needs you to clear the path. By mastering the 40/90 wt rule and the subtle art of bobbin tension, you stop fighting your machine and start creating with confidence.

FAQ

• Q: On a Baby Lock Flourish embroidery machine, what causes white bobbin thread dots showing on the top of satin letters?
  A: The fastest fix is to reduce the pull imbalance: the top tension is too tight and/or the bobbin tension is too loose.
  • Rethread the top path with the presser foot UP, then test again (thread must seat in the tension discs).
  • Lower the top tension slightly and stitch a small satin-letter test (do not change multiple variables at once).
  • If the dots persist, tighten the Baby Lock Flourish bobbin-case flat-head screw clockwise in tiny “5–10 minutes on a clock” increments.
  • Success check: on the design front, dark satin areas look solid with no “salt sprinkle” white specks, especially at corners and small dots.
  • If it still fails, deep-clean lint from the bobbin area and install a fresh 75/11 embroidery needle before adjusting further.
• Q: What is the correct 40 wt top thread and 90 wt bobbin thread pairing to prevent bobbin show-through on a Baby Lock Flourish?
  A: Use 40 wt embroidery thread on top and 90 wt lightweight bobbin thread underneath as the standard starting point.
  • Confirm the top spool is true 40 wt embroidery thread (old/brittle thread can behave like a tension problem).
  • Load 90 wt bobbin thread and reject bobbins that look spongy, loose, or unevenly wound.
  • Avoid using 40 wt in the bobbin for normal work, because it often makes the “tug of war” too equal and increases show-through.
  • Success check: satin columns look puffy/clean on top and the bobbin thread stays hidden except where normal pull-through is expected on the back.
  • If it still fails, run a labeled test swatch and then fine-tune tension rather than changing thread brands repeatedly.
• Q: How can a Baby Lock Flourish user do the “Floss test” to confirm the top thread is seated in the tension discs before adjusting dials?
  A: Do the floss test first—most “tension” issues are actually threading resistance problems, not settings.
  • Lift the presser foot (this opens the tension discs) and rethread the entire top path.
  • Pull the thread through: it should feel smooth with no catching.
  • Lower the presser foot and pull again: it should feel like dental floss between tight teeth (steady resistance).
  • Success check: with the presser foot down, the thread has clear, consistent “grip,” not a free-pull feeling.
  • If it still fails, rethread again slowly and check for any snag points or lint that could be blocking the path.
• Q: What is the correct hooping tension standard on a Baby Lock Flourish to avoid fabric movement that mimics tension problems?
  A: Hoop the fabric to a firm, even baseline—fabric drift can create loops and distortion that look like tension trouble.
  • Hoop the project so the fabric is flat and evenly supported with the chosen stabilizer.
  • Tap the hooped fabric surface to judge tightness before stitching.
  • Do not rely on stretchy fabric “feel”; make hooping consistent every time.
  • Success check: the hooped fabric gives a dull drum “thud” when tapped; if it ripples or waves, it is too loose.
  • If it still fails, switch to a more appropriate stabilizer (especially on knits) before touching bobbin adjustments.
• Q: How do you read the back of a satin stitch test on a Baby Lock Flourish to judge whether tension is balanced?
  A: Use the back-of-design “ratio” as the pass/fail indicator before changing hardware.
  • Stitch a small satin letter or column on matching scrap fabric (not the final garment).
  • Flip the swatch and inspect the satin column backing.
  • Aim for roughly 1/3 top thread, 1/3 bobbin thread in the center, 1/3 top thread across the width.
  • Success check: the bobbin thread forms a centered line on the back, and the top thread wraps both edges evenly.
  • If it still fails, adjust top tension first, then consider a small bobbin-case adjustment if the symptom is specifically white dots on top.
• Q: How do you safely tighten the Baby Lock Flourish drop-in bobbin case to reduce white bobbin thread showing on top, and which screw should not be touched?
  A: Power off the machine and adjust only the flat-head (-) tension screw in tiny increments—do not touch the sealed Phillips (+) screw.
  • Turn the Baby Lock Flourish OFF and raise the needle to the highest position before removing the bobbin case.
  • Remove the bobbin cover, lift out the bobbin case, and identify the two screws: avoid the Phillips-head screw that holds the case together.
  • Turn the flat-head screw clockwise by only “5–10 minutes on a clock,” then re-test.
  • Success check: the bobbin case “drop test” is controlled (it drops a few inches and stops when lightly bumped), and the stitch front shows fewer/no white specks.
  • If it still fails, reset toward the original screw position and return to cleaning, needle replacement, and controlled test stitching to avoid over-correction.
• Q: What is the safest productivity upgrade path for repeated tension and hooping variability on a Baby Lock Flourish, including magnetic embroidery hoop safety?
  A: Start by reducing variables (consumables), then improve consistency (magnetic hoops), then scale production (multi-needle) if volume demands it.
  • Level 1: Upgrade fundamentals—use reliable 40 wt top / 90 wt bobbin, a fresh 75/11 needle, and keep the bobbin area clean.
  • Level 2: Improve consistency—consider magnetic embroidery hoops to reduce uneven hoop pressure and hooping fatigue (a common source of distortion).
  • Level 3: Scale output—if constant re-hooping and manual color changes limit throughput, consider moving to a multi-needle embroidery machine for production work.
  • Success check: less time spent re-hooping and re-testing, and more consistent stitch quality across multiple garments in a row.
  • If it still fails, pause and use a reset-style test on stable fabric to separate machine setup issues from fabric/stabilizer and technique.
  • Magnet safety: keep magnetic hoops away from pacemakers, keep fingers clear of the snap zone (pinch hazard), and do not leave magnets resting on the machine when not in use.
