1. Introduction: Unlocking SmartStitch's Editing Potential

SmartStitch puts stitch editing at your fingertips—so you can fix small mistakes, refine quality, and customize designs without leaving the machine. In this guide, you’ll learn exactly where to find editing controls on the touchscreen (and in software), how to perform essential operations like stitch navigation, trims, and orientation, plus how to resize, rotate, and even combine designs. We’ll also point you to the right menus—think Settings → User Parameters → Embroidering Assistant—so you can move with confidence. Ready to edit smarter, not harder? Let’s dive in.

Table of Contents

• 1. Introduction: Unlocking SmartStitch's Editing Potential
• 2. Locating Stitch Editing Features: Navigation Guide
• 3. Basic Stitch Editing Operations: Step-by-Step Techniques
• 4. Troubleshooting Stitch Editing Access Issues
• 5. Benefits of Mastering Stitch Editing
• 6. Model Comparison: Editing Features Across SmartStitch Series
• 7. Beginner-Friendly Stitch Editing Tutorial
• 8. Conclusion: Elevating Your Embroidery Workflow
• 9. Frequently Asked Questions

2. Locating Stitch Editing Features: Navigation Guide

2.1 Control Panel Access Points

SmartStitch centralizes stitch editing on its touchscreen control panel, which varies by model (SmartStitch materials reference 7–12-inch displays; the SmartStitch site lists S1501 with a 10-inch panel). This is your hub for on-machine adjustments and live setup.

• Where to find advanced editing and setup:
  • Settings → User Parameters → Embroidering Assistant → Parameters
  • Here you’ll adjust stitch security, trims, display options, and more (Perplexity).
• On-screen design manipulation (no computer needed):
  • Resize, rotate, mirror, and flip designs directly on the panel (SmartStitch control panel page).
  • Touch gestures let you position designs like you would on a tablet (Perplexity).
• Orientation control with the F button:
  • Press the F button to flip orientation (including upside down and backwards). The direction the “F” faces indicates the orientation the machine will follow (Perplexity).
• Color and stitch navigation access:
  • Tap the top color display to access the full color palette used in the current design (Perplexity).
  • For navigation during stitching, use forward/back stepping or hold Stop to travel backward through the stitch sequence (Perplexity).
• Other key controls available on the panel (SmartStitch control panel page):
  • Stitch parameters: density, length, underlay, and thread tension.
  • Thread trimming settings.
  • Start/stop/pause and speed control.
  • Real-time progress, error messages, and maintenance/diagnostics.

Tip: If you can’t locate a setting, start in Settings → User Parameters → Embroidering Assistant. Most stitch-security and trimming options live there (Perplexity).

2.2 Software Integration: Hatch & File Management

When your edits are more involved—or you want library, layout, and format tools—use Hatch Embroidery Organizer 3 alongside your SmartStitch.

• Why Hatch Organizer 3 pairs well with SmartStitch (SmartStitch “Embroidery Software” page):
  • Manage a design library, preview, resize, recolor.
  • Duplicate, mirror, and rotate designs to create variations.
  • Combine existing designs into one.
  • Convert/export to your machine format and optimize color changes.
  • Select from a wide range of hoops or create your own.
• File formats and import paths:
  • SmartStitch supports common formats including DST, DSB, and PES (Perplexity).
  • Load designs via USB; in a SmartStitch 1201 walkthrough, the creator uses a USB stick to transfer files. They also note the 1501 may support wireless transfer (video).
• Workflow tip (Perplexity):
  • Quick edits (resize/orient/trim tweaks) are fast on-machine.
  • Complex edits (combination projects, library management, format conversion) are smoother in software, then sent to the machine via USB/network as supported.

3. Basic Stitch Editing Operations: Step-by-Step Techniques

3.1 Design Navigation & Stitch Adjustment

Use these core moves to get precise control before and during stitching.

• Move through stitches and colors (Perplexity):
• Step forward/backward in adjustable increments (default is often 10 stitches; you can change it).
• Fast-forward/reverse options help you traverse large sections; the interface uses one/two triangle icons for speed.
• Hold the Stop button to rewind through stitches until you reach your spot—handy after a thread break.
• Jump by color blocks to navigate complex multi-color designs quickly.

• Configure trims and thread security:
• Path: Settings → Parameters → Thread Trimming Parameters (Perplexity; YouTube “How to set trim stitches”).
• Jump and Trim Stitch number 2 → choose “Modify all” to apply to every needle (YouTube).
• Increase trim stitches (e.g., from three to four) if you need extra security after trims (YouTube).
• Adjust thread tail length (e.g., set to a longer length if you prefer easier handling during finishing) (YouTube).
• Set lock stitches at the beginning of the design and after trims to secure thread starts/changes (Perplexity; YouTube).
• Option: After a manual trim, choose whether the machine should remain on the current needle or move on (YouTube).

• Manage colors accurately:
• Tap the top color display to view and select all colors in the current design (Perplexity).
• If you change physical spools, update the color mapping in User Parameters → Embroidering Assistant Parameters for accurate on-screen representation (Perplexity).
• A recent SmartStitch update highlights the section you’re changing while assigning colors—making long color sequences easier to manage (YouTube upgrade tutorial).

• Confirm placement before stitching:
• Use setup mode to confirm you’re ready, re-center the design, and verify the selected frame (Perplexity).
• Heed overframe warnings and re-center to keep within the hoop boundary (Perplexity).

Pro tip: When adjusting density/length/underlay on the control panel (SmartStitch control panel page), make small changes, test on scrap, and check for puckering or loose coverage before production.

3.2 Practical Editing: Resizing, Rotating & Combining Designs

Turn separate elements into a polished, ready-to-stitch layout.

• Resize, rotate, mirror, flip on the panel:
• Use on-screen controls to scale and rotate designs (SmartStitch control panel page).
• For quick orientation flips (upside down/backwards), press the F button; the “F” shows the stitching direction (Perplexity).
• After significant resizing, review stitch parameters (density, underlay) to maintain coverage and quality (SmartStitch control panel page).

• Combine multiple designs on SmartStitch S1501 (YouTube “Learn How to combine designs”):
• Tap MultiDesign to enter the combining interface.
• Move patterns individually or as a group.
• Add letters; change letter size and density; reposition text.
• Save the combined design. You can also move and save the entire composition together.

• Common pitfalls and how to avoid them:
• Inconsistent parameters across needles: When changing trim/lock settings, choose “Modify all” so every needle follows the same rules (YouTube “How to set trim stitches”).
• Frame mismatch: Select the correct hoop before positioning; re-center to avoid overframe warnings (Perplexity).
• Color assignment drift: If you swap spools, update on-screen colors in User Parameters → Embroidering Assistant Parameters to keep previews accurate (Perplexity).

Want a smoother combo workflow? Build and test complex layouts in Hatch Organizer 3—combine, recolor, optimize color changes—then export to DST/DSB/PES and stitch on SmartStitch (SmartStitch “Embroidery Software” page; Perplexity).

4. Troubleshooting Stitch Editing Access Issues

4.1 Common Navigation Errors & Solutions

If stitch editing seems “missing,” it’s usually a navigation issue—SmartStitch spreads editing across the design preview/setup (“pink” setup screen) and the Settings hierarchy rather than one single button (Perplexity). - Can’t find trims, lock stitches, or thread tails? - Go: Settings → User Parameters → Thread Trimming Parameters (Perplexity; YouTube “How to set trim stitches”). - Jump and Trim Stitch → choose “Modify all” so every needle follows the same rule (YouTube). - Adjust values like: - Trim stitches per cut (e.g., change from three to four for extra security) (YouTube). - Thread tail length (e.g., set to your preference for finishing) (YouTube). - Lock stitches at start and after trims (YouTube; Perplexity). - After a manual trim, choose whether to stay on the same needle or move on (YouTube). - Editing controls hidden by mode - Enter setup (the “pink” prep interface) to access orientation, frame selection, and initial design adjustments (Perplexity). - Confirm you’ve completed the design origin/confirmation dialogs—those steps gate certain prep edits (Perplexity). - Stitch navigation not obvious - Use +/- to move stitch-by-stitch; the interface also supports bulk jumps by entering a stitch count (e.g., enter 700 to advance/rewind that many stitches) (Perplexity). - Colors help: completed areas appear full color; upcoming stitches appear pale (Perplexity). - When settings look “wrong” or missing - Restore user parameters or perform a factory reset per the operation manual to clear corrupted configuration data (Perplexity). - Then re-check Settings → User Parameters and reapply your trim/lock/tail preferences. - Error stops you from accessing editing - Main Axis 100 Error: Indicates the main shaft isn’t positioned correctly. Power-cycle first; if it persists, manually adjust the main shaft position, then restart (Perplexity). - Color-change code errors: Inspect thread path and sensor alignment; clear any misroutes, then resume. If unresolved, reset procedures or manufacturer support may be required (Perplexity). Quick tip: If you’re unsure where a setting lives, start at Settings → User Parameters. Most stitch-security, colors, and trimming options are centralized there (Perplexity).

4.2 System Conflicts & Recovery Protocols

Firmware or control software hiccups can temporarily “hide” features, re-label buttons, or move icons. SmartStitch provides a straightforward recovery path (YouTube “Smartstitch upgrade”): - Perform a full system upgrade - Insert USB → Parameters menu → System Management → Software System Upgrade → select the latest package on your USB → confirm → restart (YouTube). - Then go back to System Management → Updating Peripheral Equipment → pick the correct version for your head/controls → confirm → restart (YouTube). - Password changes after updates - On S1501, the upgrade may change the system password used for advanced settings. Note the on-screen new password before proceeding (YouTube). - On 1001 and 1201, the password stays the same (YouTube). - After upgrading, expect UI refinements - Labeled buttons in Stop Point Action and clearer names across menus (YouTube). - On S1501, the Trace button moved; verify its new location in Move Frame (YouTube). - Color assignment now highlights the section being changed—handy for long color sequences (YouTube). - If editing remains inaccessible after updates - Verify you’re in setup/edit mode (Perplexity). - Clear active errors (e.g., Main Axis 100) before attempting edits (Perplexity). - If the issue persists, reset user parameters/factory settings per the manual (Perplexity). - Inspect hardware basics: needle alignment, thread path clearance, and sensor function (Perplexity).

5. Benefits of Mastering Stitch Editing

5.1 Quality Enhancement Through Precision Control

SmartStitch lets you fine-tune the variables that make or break quality (SmartStitch control panel page; Perplexity):

• Dial in stitch parameters on the panel:
• Density for full, even coverage.
• Length to suit material thickness and detail.
• Underlay to stabilize fills and satin.
• Control thread tension to prevent puckering, thread breaks, or loose coverage (SmartStitch control panel page; Perplexity).
• Adjust speed for material/design complexity and monitor progress in real time so you can course-correct early (SmartStitch control panel page; Perplexity).

Result: crisp edges, smooth fills, fewer defects—and far less rework.

5.2 Error Reduction & Workflow Efficiency

Editing isn’t just creative; it’s preventive maintenance for your workflow (Perplexity):

• Automatic color change reduces manual thread-swapping errors on multicolor jobs (Perplexity).
• Power-off resume protects your position after interruptions, minimizing waste and re-stitching (Perplexity).
• Frame selection and overframe warnings help validate placement before you stitch (Perplexity).

Stability matters while you edit and stitch:

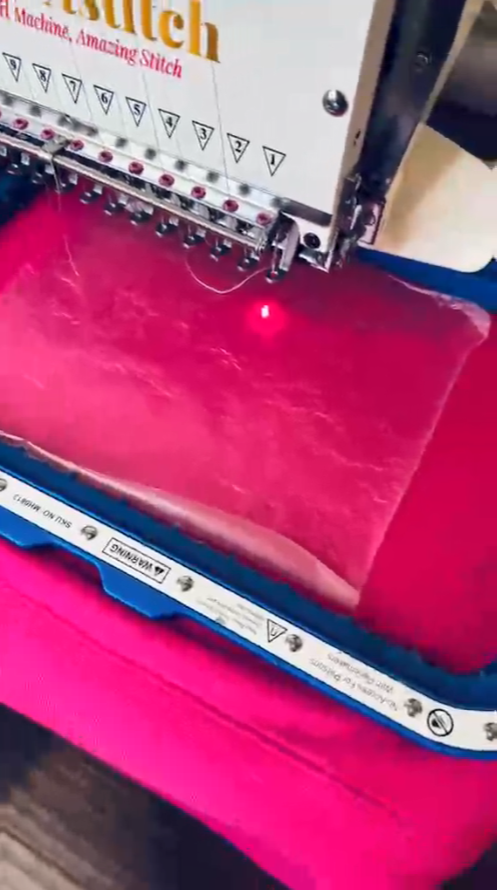

• Proper garment hooping minimizes fabric shift as you resize, rotate, or add lock/trim stitches. Sewtalent magnetic embroidery hoops hold fabric evenly and quickly without constant re-adjustments, helping reduce misalignment and defects. Users typically report large time savings in garment hooping and fewer do-overs thanks to stable fabric during stitching. Sewtalent offers:
• A powerful magnetic hooping system that adapts to various garment thicknesses with even tension and fewer hoop marks.
• Wide compatibility and multiple sizes for common garment work.
• Durability designed for high-volume production, supporting long-term cost efficiency.
• Important: Sewtalent hoops are for garment hooping, not for cap/hat hooping.

With stable hooping and well-set trims/locks, your SmartStitch edits translate into cleaner starts/ends and smoother color transitions.

5.3 Design Customization Freedom

SmartStitch’s editing tools expand your creative range:

• Combine and arrange designs on-machine (YouTube “Learn How to combine designs”):
• Use MultiDesign to add and move elements individually or as a group.
• Add lettering; adjust size and density; reposition and save the full composition.
• Lettering tools
• Edit size/density and placement directly on the panel for personalization (YouTube “Combine designs”).
• 3D puff integration for caps (YouTube “3D cap embroidery”):
• Input from USB → choose the cap driver → center and trace.
• Set color sequence and remember to set offset for 3D puff.
• Apply 3D puff foam with tape before stitching.
• Use directional buttons to fine-center if the needle isn’t aligned, and adjust speed as needed.
• Note: 3D cap workflows are cap-driver specific.

For larger or complex compositions, build in software (e.g., Hatch Organizer 3) and export to DST/DSB/PES for stitching on SmartStitch (SmartStitch software page).

6. Model Comparison: Editing Features Across SmartStitch Series

6.1 Interface Differences: S1201 vs S1501 vs Beast Series

Interface size and labeling affect how quickly you find and use edits:

• Touchscreen sizes and visibility
  • Sources reference 7–12-inch touchscreens across models (Perplexity). A SmartStitch page lists the S1501 with a 10-inch panel, while a user walkthrough notes the S1201 has a 7-inch screen (SmartStitch control panel page; YouTube 1201 walkthrough).
  • Practical takeaway: larger screens make on-panel editing (resize/rotate/color mapping) more comfortable; confirm your specific unit’s screen size in its manual or product page.
• UI refinements by update (YouTube “Smartstitch upgrade”):
  • Clearer button labels in Stop Point Action and related menus.
  • Trace button moved on S1501’s Move Frame screen.
  • Color assignment now highlights the current section during selection—very helpful for long sequences.
• Core editing controls remain consistent:
  • On-screen resize, rotate, mirror/flip, frame selection, and color mapping are accessible via the control panel across models (SmartStitch control panel page; Perplexity).

6.2 Performance Capabilities by Model Tier

Based on available specs and user resources (Perplexity; YouTube):

• S1201 (entry commercial):
  • 12 needles; embroidery area noted at 9.5" × 12.6" in available sources; 7-inch screen mentioned in a walkthrough video (Perplexity; YouTube 1201 walkthrough).
  • Up to 1200 spm, WiFi/USB transfer, supports DST/DSB, design memory up to 100 million stitches (Perplexity).
  • Described as having a gentler learning curve—good for moving from hobby to business (Perplexity).
• S1501 (advanced single-head):
  • 15 needles; larger embroidery area referenced at 20" × 14" in available sources (Perplexity).
  • Up to 1200 spm, WiFi/USB, DST/DSB, design memory up to 100 million stitches (Perplexity).
  • Positioned for users with regular orders; larger display and UI refinements can speed on-panel editing (Perplexity; YouTube upgrade).
• Shared automation and aids (Perplexity):
  • Laser positioning, automatic color change, and automatic thread trimming are present across models, supporting consistent editing-to-stitching workflows.
• S1001 mention
  • The system upgrade page lists the 1001 alongside 1201 and 1501, indicating consistent firmware support across tiers (YouTube upgrade). For detailed editing differences, consult each model’s manual.

Bottom line: Editing capabilities—resize, rotate, mirror/flip, trims/locks, stitch navigation—are fundamentally shared. Higher-tier models primarily improve usability (screen size, UI changes) and production flexibility (more needles, larger area), not the existence of core editing features.

7. Beginner-Friendly Stitch Editing Tutorial

7.1 Setup Fundamentals: From Hooping to First Edit

Follow this simple, start-to-finish path to your first clean edit on SmartStitch.

• Hoop the garment for stability
• For beginners, a stable fabric is everything. Sewtalent magnetic embroidery hoops hold garments evenly and quickly, helping reduce misalignment while you learn. They save significant hooping time compared with screw hoops and minimize hoop marks thanks to even holding pressure. Sewtalent offers multiple sizes for common garment work and is designed for garment hooping (not caps/hats).
• Load your design
• Insert a USB drive and select your file on the control panel. SmartStitch supports formats like DST/DSB/PES. A SmartStitch 1201 walkthrough shows USB transfer; the S1501 may support wireless transfer.
• Choose the correct frame, then center and trace in Move Frame. If you see overframe warnings, re-center or select the right frame before stitching.
• Map colors and preview
• Tap the top color display to view all colors used in the design. After a recent upgrade, the section you’re changing flashes while you assign colors—very helpful on long color sequences.
• Set trims and securing stitches (before stitching)
• Go to: Settings → User Parameters → Thread Trimming Parameters (YouTube lists this as option 6).
• Jump and Trim Stitch → number 2 → select “Modify all” so changes apply to every needle.
• Increase the securing stitches after trims (e.g., from three to four) for added security.
• Thread Tail Length → number 3 → choose a longer tail if you prefer easier handling.
• Lock stitches at the start and after trims so starts/changes are secured.
• Option: After a manual trim, choose whether the machine should remain on the current needle or move on.
• Orientation and placement
• Use the F button to flip orientation (including upside-down/backwards) and align to your hoop selection. Confirm placement in setup before stitching.
• Navigate stitches and test
• Use +/- for stitch-by-stitch moves; set jump increments for faster travel. Hold Stop to backtrack through stitches—handy after a thread break.
• Start at a moderate speed and test on scrap. If you resize significantly, review density/underlay on the panel to maintain coverage.

Note: The specific button locations may differ slightly across S1001/S1201/S1501. If you’re unsure where a setting lives, start with Settings → User Parameters; most stitch-security and trimming options are centralized there.

7.2 Avoiding Common Newbie Mistakes

• Skipping “Modify all”
• If you change trim or lock-stitch settings without “Modify all,” each needle may behave differently. Always apply changes across all needles in Thread Trimming Parameters.
• Confusing color vs stitch navigation
• Color-based navigation jumps by blocks; stitch-based navigation (+/- and settable increments) gives precise control for corrections. Use the right method for the task.
• Inadequate thread security
• On some fabrics or slippery threads, the default three securing stitches may be too light. Increasing to four or more (and enabling lock stitches after trims) helps prevent pull-out when separating sections.
• Stabilizer mismatches
• Tear-away works well for sturdy fabrics; cut-away is better for stretch materials. Test on scrap to confirm the best combination for your fabric and settings.
• Needle neglect and tension over-adjustment
• Dull or damaged needles cause thread breaks and poor quality—replace them proactively. If breaks occur, swap the needle before chasing tension. Avoid constant tension tweaks once your tests look balanced.
• Firmware/UI out of sync
• If your menus don't match tutorials, perform a system upgrade: Parameters → System Management → Software System Upgrade, then Updating Peripheral Equipment. On S1501 the system password may change after upgrade; note it. Clear active errors before editing.
• Frame and centering misses
• Select the correct hoop, center, and trace before you stitch. Heed overframe warnings—re-center to avoid hitting limits.

8. Conclusion: Elevating Your Embroidery Workflow

SmartStitch puts practical stitch editing a tap away. You now know where to set trims and lock stitches, how to navigate by color or stitch, and how to flip orientation with the F button. Start with stable hooping, confirm your frame and center, then apply “Modify all” for consistent results. Test on scrap, make small adjustments, and let the updated color-highlighting guide you. With a few confident moves, your edits translate into cleaner starts, fewer mistakes, and better-looking embroidery.

9. Frequently Asked Questions

9.1 Q: Can I edit stitches mid-embroidery?

- A: Yes—use stitch navigation to move precisely. Tap +/- to step stitch-by-stitch, adjust the jump increment for faster travel, and hold Stop to backtrack. For structural edits (orientation, trims/locks), pause and go to setup or Settings → User Parameters → Thread Trimming Parameters before resuming.

9.2 Q: Why can’t I find trim parameters?

- A: Go to Settings → User Parameters → Thread Trimming Parameters (noted as option 6 in a SmartStitch tutorial). In Jump and Trim Stitch (number 2), select “Modify all” so changes apply to every needle. You can also adjust Thread Tail Length (number 3), lock stitches at start and after trims, and behavior after manual trims there.

9.3 Q: Do all models have 3D viewing?

- A: The resources used here don’t confirm a universal on‑machine 3D view across all models. Core editing tools (resize/rotate/flip, trims/locks, stitch navigation) are consistent, but interface details can vary by model and update. For richer previews, use software such as Hatch Organizer 3 to preview and recolor designs, and check your model’s manual for display features.
