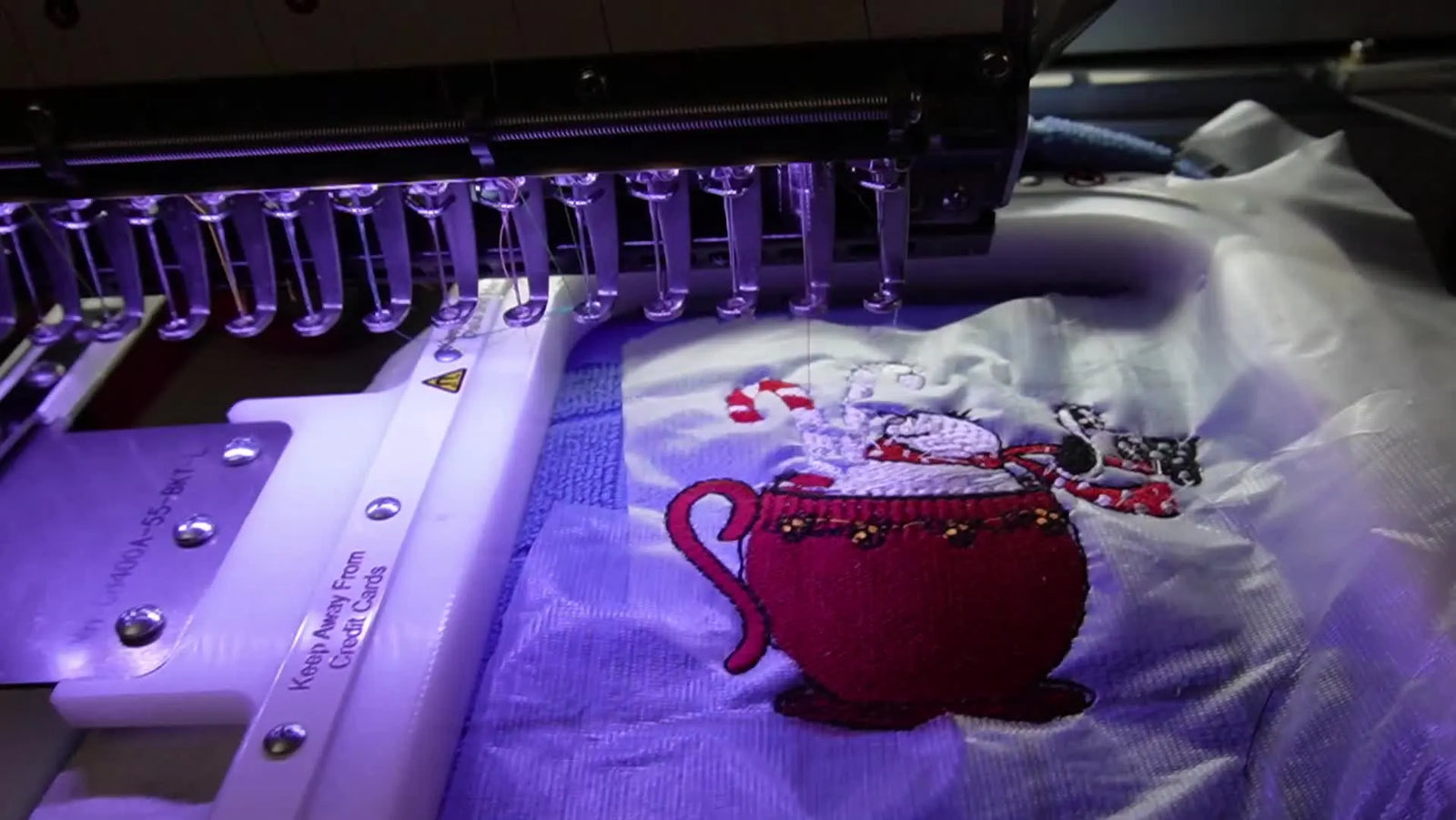

Waffle Weave Towel Embroidery on a Ricoma MT-1501: The Magnetic Hoop Method That Keeps Your Snowman Crisp (Not Sunk-In)

Holiday towels look simple—until you put a needle over that deep waffle weave and realize the fabric wants to swallow every satin stitch you paid for.

If you’re feeling that familiar panic ("What if it shifts? What if I stitch the towel to itself? What if the lettering sinks and looks fuzzy?")—good. That anxiety is your quality control kicking in. The secret to mastering textured towels isn't magic; it's physics. You need a stable base to stop the stretch, a magnetic grip to handle the bulk, and a "topping bridge" to keep stitches floating above the texture.

Below is a reconstruction of Tracy’s workflow, optimized into a shop-ready Standard Operating Procedure (SOP) that eliminates the guesswork.

The “Don’t-Panic” Primer: Why Waffle Weave Towels Misbehave Under the Needle

Waffle weave is mechanically unstable. It is designed to absorb water and stretch, which are the exact opposite of what we want for embroidery. That deep grid texture creates two specific headaches for digitizers and operators:

1. Stitch Sink (The "Vanishing" Act): Narrow satin columns and small lettering fall into the low spots of the weave, making edges look ragged or invisible.
2. Surface Drag: Unlike flat cotton, the loops in waffle weave can snag on a presser foot, causing the fabric to flag (bounce) or distort if not hoop-tensioned correctly.

Tracy’s approach works because she stabilizes from below (cutaway) to stop the stretch and supports from above (water-soluble topping) to create a smooth surface.

If you are running a commercial head like the ricoma mt-1501 embroidery machine, or looking to upgrade to a SEWTECH multi-needle setup, this workflow is critical. It transforms a "risky" substrate into a high-margin, repeatable product without turning setup into a 20-minute wrestling match.

Warning: Magnetic hoops contain powerful neodymium magnets. Keep fingers clear when the hoop snaps shut—it can pinch severely. Always keep these hoops away from pacemakers, implanted medical devices, and loose metal tools (like scissors or screwdrivers) that can jump toward the magnet.

The “Hidden” Prep Pros Do First: Supplies, Fabric Checks, and a Placement Plan

Tracy gathers everything before the machine is even turned on. This is "Mise-en-place" for embroidery. You need a Dollar Tree blue waffle weave towel, scraps of cutaway stabilizer, water-soluble topping, painter’s tape, pins, thread, and a vertical 8.875" x 6" magnetic hoop.

One detail that matters more than it sounds: she pre-marks the towel with painter’s tape to define the visual horizon. That single reference line prevents the most common towel mistake—beautiful stitching that is technically perfect but visually crooked.

If you are new to the mechanics of hooping for embroidery machine applications on towels, treat this prep phase like insurance: it is much cheaper than replacing a ruined garment.

Prep Checklist (do this before you touch the hoop)

• Fabric Audit: Confirm the towel is waffle weave (if the texture is deeper than 2mm, plan for two layers of topping).
• Stabilizer Prep: Cut/collect two pieces of cutaway scraps. They must be large enough to overlap by at least 1 inch in the center.
• Topping Prep: Tear two layers of water-soluble topping sized to cover the entire pantograph movement area.
• Marking: Apply a straight strip of blue painter’s tape on the towel where you want the design to begin.
• Consumables Check: Ensure you have fresh sewing pins and a temporary spray adhesive (optional but helpful) nearby.


Stop Wasting Stabilizer: Building a Solid Base with Scrap Cutaway in a Mighty Hoop

Tracy lays the bottom ring on a grid mat and spans the hoop opening with two scrap pieces of cutaway stabilizer.

The Physics of Scraps: You don't always need a virgin roll of backing. Tracy uses scraps, but notice the technique: she creates an overlap zone in the center.

• The Rule: The overlap must be substantial (1 inch or more).
• The Risk: If you barely touch the edges together, the needle perforation will separate them, creating a gap where the fabric will bubble.

Tracy notes there is about a 0.5-inch "dead zone" near the brackets that won’t stitch. As long as your stabilizer covers the actual stitch field, you are safe.

This is the exact moment where a magnetic hoop shines. With a traditional friction hoop, trying to hold two scraps of stabilizer while tightening a screw usually ends in frustration and shifting. With a mighty hoop or similar magnetic frame, the stabilizer stays exactly where you place it because the clamping force is vertical, not rotational.

Painter’s Tape Placement: Getting the Towel Straight Without Measuring Yourself Crazy

Tracy’s alignment method is fast, repeatable, and requires zero math.

1. She aligns the top edge of the hoop perfectly parallel with the painter’s tape line on the towel.
2. She aligns the side edge of the towel with the vertical side of the hoop.

That’s it. No rulers, no chalk, no guessing.

Why this works (The "Old Tech" Explanation): Towels are mass-produced soft goods; they often aren't perfectly square. If you measure from a hem that is skewed, your design will look crooked even if your math is right. Using the hoop edge as your visual reference aligns the design to the drape of the towel, ensuring it hangs straight.

For those researching how to use mighty hoop systems for consistent placement, this tape-and-edge method is the industry standard for speed.

The Magnetic Clamp Moment: Close the Hoop Safely and Keep Tension Even

Tracy places the top ring over the towel/stabilizer “sandwich,” adjusts slightly downward, then lets the magnets snap the frame together.

Sensory Check: The "Drum Skin" Myth

• Bad Tension: If you pull the towel until the waffle texture distorts or flattens out, you have over-stretched it. When you un-hoop later, the fabric will shrink back, and your design will pucker.
• Good Tension: The towel should be flat, smooth, and taut, but the texture should look natural. It should feel supported, not stressed.

Smoother Workflow: Allow the magnets to do the work. If you fight the hoop closed while the towel is bunched, you will trap wrinkles. Smooth the fabric with your palms outward from the center, then let the top ring snap down.

If you are doing this volume for holiday gifts, magnetic hoops are an ergonomic necessity. They reduce the repetitive wrist torque required to tighten screw hoops, which is a major factor in operator fatigue.

Warning (Mechanical Safety): Pins are sharp, invisible dangers. Always account for every single pin. Never place pins inside the inner hoop area where the presser foot can strike them. A needle hitting a hardened steel pin can shatter, sending metal shrapnel towards your eyes or into the machine's hook assembly.

The “Save-Yourself” Safety Move: Pin the Excess Towel So You Don’t Stitch It Shut

This is the step that separates professionals from frustrated hobbyists.

Tracy rolls up the extra towel length behind the hoop and pins it. The goal is to prevent the "fabric loop" from drooping under the needle plate.

The Horror Scenario: If loose fabric slides under the hoop arm while the machine is running, the needle will stitch the front of the towel to the back of the towel. There is no easy fix for this; usually, the item is ruined.

Practical Tip: Pin the excess material high and tight against the frame or the hoop brackets. Ensure the rolled fabric does not obstruct the Y-axis movement (front to back) of the machine.

Mounting the Hoop on the Ricoma MT-1501: Load Smoothly, Then Trace Like You Mean It

Tracy slides the hooped towel onto the machine arms until it clicks/locks into place. Then, she runs a trace (contour check).

The trace is not a formality—it is your final collision check.

• Listen: Listen for the hoop scraping against the machine arm.
• Watch: Watch the presser foot height. Is it catching on the waffle loops?
• Observe: Watch the needle bar (pointer) relative to the hoop's plastic edge.

When Tracy sees the needle path is too close to the side, she jogs the pantograph (using the arrow keys) to move the frame over, then traces again.

This is the mindset: Trace -> Adjust -> Trace again. On a multi-needle commercial machine, a hoop strike can break needle bars and damage reciprocating mechanisms.

The Trace-and-Adjust Habit: How to Avoid the "Too Close to the Hoop Edge" Scare

The video’s troubleshooting moment is gold: the first trace is too close for comfort, so Tracy re-centers.

The "Thumb Width" Rule: I teach new operators to leave at least a "thumb's width" (or roughly 10-15mm) of clearance between the design edge and the hoop's inner wall.

Why it matters on waffle weave: The towel surface is thick and spongy. As the embroidery foot presses down, it pushes fabric outward (the "push" effect). A design that looked safe during a static trace might creep 1-2mm closer to the edge during actual stitching.

If you are using mighty hoop for ricoma configurations or standard tubular hoops, tracing is also how you verify the hoop is seated square on the driver arms.

Two Layers of Water-Soluble Topping: The Simple Trick That Keeps Stitches Crisp on Waffle Weave

Tracy lays two layers of water-soluble topping (Solvy) over the hooped towel. She admits she could "probably" use one, but uses two "to be safe."

The Material Science: Waffle weave has deep "valleys." One layer of thin topping might be punctured and pushed down into those valleys by the needle penetrations.

• Layer 1: Acts as the structural floor.
• Layer 2: Acts as the smooth finish.

This sandwich ensures your satin stitches sit on top of the plastic, not deep inside the cotton loops. This is the difference between a professional crest and a fuzzy mess.

Consistency is Key: If you are building a repeatable workflow, do not guess. If you used two layers for the sample, use two layers for the production run.

Stitch-Out Reality Check: What to Watch While the Machine Runs (So You Catch Problems Early)

Tracy starts the machine and monitors the stitch-out. Do not walk away to get coffee during the first 500 stitches.

Sensory Monitoring:

• Audio: Listen for a rhythmic thump-thump-thump. A sharp clack usually indicates a needle deflection or a burr on the hook.
• Visual: Watch the top thread tension. It should look smooth. If you see loops popping up (birdnesting), stop immediately.
• Visual: Watch the topping. Is it tearing away too early? If so, pause and float another piece on top.

This is where a stable magnetic hoop setup earns its investment: the grip is strictly vertical, so there is less "flagging" (bouncing) of the fabric, which results in cleaner registration on outlines.

Setup Checklist (right before you press Start)

• Hoop seating: Push and pull the hoop gently to confirm it is locked onto the driver arms.
• Clearance: Design trace is completed and clears edges by at least 15mm.
• Fabric Control: Excess towel tail is rolled and pinned strictly away from the needle plate.
• Topping: Two layers of water-soluble film fully cover the target area.
• Pin Audit: Visually confirm ZERO pins are located in the stitch path.


Why This Snowman Looks Textured (In a Good Way): What the Design Is Doing for You

After stitching, Tracy points out that the design elements (cup, snowman) have dimension.

Digitizing for Texture: When selecting designs for waffle weave, choose files with:

1. Underlay: Heavy lattice or zigzag underlay is crucial to mat down the towel loops before the top stitching happens.
2. Density: slightly higher density helps cover the color of the towel below.
3. Scale: AVOID tiny text (under 5mm). Waffle weave simply cannot support micro-details. Stick to bold fonts and solid fills.


Decision Tree: Pick the Right Stabilizer + Topping Combo for Towels (So You Don’t Repeat the “Elf Sleeve” Fail)

Tracy mentions a previous failure (an elf sleeve) due to poor choices. Let's codify the logic so you don't repeat her mistake.

Use this decision tree to choose a towel recipe:

Start: What kind of towel are you stitching?

A) Waffle Weave / Deep Texture (The "Difficult" One)

• Backing: Heavy Cutaway (2.5oz or overlapping scraps). Never use Tearaway; the stitches will perforate it and the towel will stretch.
• Topping: 2 Layers Water-Soluble Film.
• Hoop: Magnetic Hoop (best for bulk) or Clamping Frame.

B) Flat Cotton / Flour Sack (The "Easy" One)

• Backing: Medium Cutaway or sturdy Tearaway (if design is light).
• Topping: 0-1 Layer (only needed if doing fine text).
• Hoop: Standard Tubular Hoop is fine.

C) Plush Terry Cloth (The "Bath Towel")

• Backing: Medium Cutaway.
• Topping: 1 Heavy Layer or 2 Thin Layers of Water-Soluble Film (essential to prevent loops poking through).
• Hoop: Magnetic Hoop (essential to avoid hoop burn on the pile).

If you are doing towels weekly, upgrading to magnetic embroidery hoops is less about "gear acquisition syndrome" and more about physics: they hold thick layers without crushing the fibers or requiring superhuman wrist strength.

The Upgrade Path That Actually Makes Sense: From One Gift Towel to Batch Production

Tracy’s finished towel looks clean, centered, and professional. The cutaway effectively stabilized the stretchy fabric, and the topping kept the stitches crisp.

Now, let’s talk about your growth path.

Level 1: The Hobbyist (1-5 Towels/Month)

• Tool: Single-needle machine, standard hoops.
• Method: Overlapped scraps (as shown), painter's tape alignment.
• Pain Point: Slow re-hooping; hoop burn marks on delicate fabrics.

Level 2: The Side Hustle (20-50 Towels/Month)

• Tool: Single or Multi-needle machine.
• Upgrade: Magnetic Hoops.
• Why: You need speed. Without screws to tighten, you can hoop a towel in 10 seconds vs. 60 seconds. Terms like magnetic hoops for embroidery machines become essential vocabulary here because they eliminate the "hoop burn" returns and allow you to hoop thick seams that standard hoops can't grip.

Level 3: The Production Shop (100+ Towels)

• Tool: SEWTECH Multi-Needle Machine + Magnetic Frame Stations.
• Why: You aren't paid to swap thread colors. You need a machine that runs 15 colors automatically while you prep the next hoop on a station. At this level, stabilizer is bought in rolls, not scraps, and efficiency is the only metric that matters.

Operation Checklist (Post-Flight)

• Verification: Check design integrity—no skipped stitches or looped thread.
• Cleanup: Tear away excess topping. Use a damp Q-tip or a mystical "tennis ball" (a damp piece of fabric) to dissolve the remaining bits of topping.
• Trim: Trim the cutaway backing on the reverse side, leaving about 1/2 inch margin around the design. Do not cut too close!
• Inspect: Check for any pin holes or hoop marks. Steam gently if necessary to relax the fibers.

Quick Troubleshooting: Symptoms → Likely Cause → Fix (Towel Edition)

Final Thoughts

Even though there aren’t viewer comments captured here, the most common towel question is always: "Why did my design shrink?"

The answer is almost always Hooping Tension vs. Stabilizer.

Tracy’s video demonstrates the winning formula: Don't fight the waffle weave. Support it from below, bridge it from above, and clamp it gently but firmly. If you adopt only two habits from this breakdown, make them these:

1. Trace like you are preventing a collision—because you are.
2. Control the towel tail every single time.

That is how you turn a cheap dollar-store towel into a premium custom product.

FAQ

• Q: What supplies must be prepared before hooping a waffle weave towel for embroidery on a Ricoma MT-1501?
  A: Prepare everything first: cutaway backing scraps, two layers of water-soluble topping, painter’s tape, pins, and the correct magnetic hoop size to avoid re-hooping and crooked placement.
  • Cut two cutaway scrap pieces large enough to overlap at least 1 inch in the hoop opening.
  • Tear two pieces of water-soluble topping that cover the full stitch/trace (pantograph) movement area.
  • Apply a straight painter’s tape line as a visual horizon before hooping.
  • Stage pins and (optionally) temporary spray adhesive within reach so nothing shifts mid-process.
  • Success check: the towel has a clear tape reference line and all stabilizer/topping pieces are ready before the hoop is opened.
  • If it still fails… re-check that the towel texture is deep waffle weave; deeper texture often needs two topping layers to keep details crisp.
• Q: How do I set correct hooping tension for a waffle weave towel in a magnetic hoop without distorting the texture?
  A: Hoop the towel flat and supported—never stretched—so the waffle texture stays natural and the design will not pucker after un-hooping.
  • Smooth the towel outward from the center, then let the magnetic frame clamp (do not pull hard while closing).
  • Avoid flattening the waffle grid; over-stretching causes shrink-back puckering after you un-hoop.
  • Keep the stabilizer base fully spanning the stitch field (including the overlap zone in the center).
  • Success check: the towel looks smooth and taut, but the waffle texture still looks “normal,” not flattened or warped.
  • If it still fails… rebuild the base with a larger overlap (1 inch or more); a weak overlap can separate under needle perforations and let the fabric bubble.
• Q: How do I align a waffle weave towel design straight using painter’s tape and a magnetic hoop (without measuring)?
  A: Use the hoop edges as your visual square: align the hoop’s top edge parallel to the painter’s tape line, then align the towel side edge to the hoop side.
  • Place painter’s tape on the towel where the design should start to create a clear horizon line.
  • Align the top edge of the hoop to the tape line, then align the towel’s side edge to the hoop’s vertical edge.
  • Ignore slightly skewed hems; align to how the towel will visually hang.
  • Success check: the towel sits in the hoop with the tape line visually parallel to the hoop edge (no “tilt” when you step back and look).
  • If it still fails… re-hoop and prioritize the tape-to-hoop alignment over measuring from a hem that may not be square.
• Q: How do I prevent stitching a waffle weave towel to itself when embroidering on a Ricoma MT-1501?
  A: Control the towel tail every time by rolling the excess behind the hoop and pinning it high and tight so nothing droops under the needle plate.
  • Roll the excess towel length behind the hoop (away from the stitch area).
  • Pin the rolled fabric to the frame/brackets so it cannot fall into the sewing field.
  • Confirm the roll does not block Y-axis travel (front-to-back movement).
  • Success check: during trace and first stitches, no loose towel fabric hangs below the hoop arm or near the needle plate.
  • If it still fails… stop immediately and re-pin higher/tighter; do not “hope it clears” once the pantograph starts moving.
• Q: How much clearance should be left between the embroidery design and the inner hoop wall when tracing on a Ricoma MT-1501?
  A: Leave at least a thumb’s width (about 10–15 mm) between the design edge and the hoop inner wall, then trace, adjust, and trace again.
  • Run a full trace as a collision check before stitching.
  • Jog the pantograph with the arrow keys if the trace is too close to any hoop edge, then re-trace.
  • Watch presser foot behavior on the thick waffle surface; thick fabric can “push” outward during stitching.
  • Success check: the traced needle path clears the hoop edge by ~10–15 mm all the way around with no scraping sounds or near-misses.
  • If it still fails… re-center the hoop on the driver arms and repeat the trace; a hoop strike can damage machine components.
• Q: Why do satin stitches and small lettering look fuzzy or “sink” into waffle weave towels, and what is the fastest fix?
  A: Use two layers of water-soluble topping as a bridge so satin stitches float above the waffle valleys instead of sinking into the texture.
  • Lay two full layers of water-soluble film over the hooped towel before stitching.
  • Ensure the topping covers the entire movement area so it doesn’t tear away early.
  • Stop early if topping is breaking down and float another piece on top rather than pushing through.
  • Success check: edges of satin columns look crisp and readable on the surface, not ragged or buried.
  • If it still fails… choose a bolder design (avoid tiny text under 5 mm) and prioritize designs with strong underlay; waffle weave cannot support micro-details reliably.
• Q: What are the key safety rules for using magnetic embroidery hoops and pins when hooping thick waffle weave towels?
  A: Treat magnetic hoops and pins as injury risks: keep fingers clear during closure, keep magnets away from medical implants and loose metal tools, and never allow pins in the stitch path.
  • Keep fingers out of the closing zone; the hoop can snap shut and pinch severely.
  • Keep magnetic hoops away from pacemakers/implanted devices and away from loose metal tools that can jump toward the magnet.
  • Account for every pin and never place pins inside the inner hoop area where the presser foot can hit them.
  • Success check: the hoop closes without trapped fingers, and a final “pin audit” confirms zero pins are in the stitch field before pressing Start.
  • If it still fails… remove all pins and re-secure the towel tail using a safer pin position higher on the frame/brackets, then re-trace before running.
