Vinyl ITH Cord Organizers on the Brother SE1900: Clean Lettering in Ink/Stitch, Zero-Wrinkle “Floating,” and a Faster Hooping Upgrade Path

If you’ve ever opened a travel pouch and found a spaghetti monster of charging cables, you already understand why In-The-Hoop (ITH) cord organizers are a justifiable project. They are fast, giftable, and genuinely useful—assuming you can stitch them without ruining your materials.

But here is the reality of working with vinyl on a single-needle machine like the Brother SE1900: Vinyl is unforgiving. Unlike cotton, needle holes in vinyl are permanent. There is no "rubbing it out." One slip during hooping, or one moment of drift during the stitch-out, and the piece is scrap.

This white paper rebuilds the workflow from the source video into a production-grade standard. We will cover customizing the PES file in Inkscape, the "Float + Tape" physics that keep vinyl flat, and the specific sensory cues (sounds and tactile feedback) that tell you your machine is running correctly.

The Physics of Vinyl: Why "Floating" is Non-Negotiable

To master this project, you must understand the material science. Vinyl and faux leather have high surface friction but low elasticity. If you try to hoop them traditionally (clamping the vinyl between the inner and outer rings), two things happen:

1. Hoop Burn: The clamp crushes the grain of the faux leather, leaving a permanent white ring or crease.
2. Drift: Because vinyl is thick, it often pops out of the hoop slightly during stitching.

The solution is the Floating Method. You hoop only the stabilizer, creating a tight "drum skin." Then, you attach the vinyl to the stabilizer. This isolates the hoop tension to the disposable stabilizer, leaving your expensive material pristine.

When pros search for a clean floating embroidery hoop technique, they aren't just looking for a shortcut; they are looking for the only safe way to stitch non-fibrous materials on a standard home machine.

Phase 1: The "Hidden Prep" & Consumables

Before you touch the software, you must eliminate physical variables. A successful vinyl run is 90% preparation and 10% stitching.

Materials & Tools Checklist

• Machine: Brother SE1900 (or similar 5x7 field machine).
• Hoop: Standard 5x7 hoop.
• Stabilizer: Medium-weight Tear-Away (2.0 - 2.5 oz).
  • Pro Tip: For heavier production, swap strictly to a "sticky back" tear-away to reduce tape usage.
• Material: Marine Vinyl or pliable Faux Leather.
• Adhesion: Painter’s Tape or Masking Tape (avoid Duct Tape if possible; it leaves gummy residue on needles).
• The "Hidden" Consumables:
  • Needles: Size 75/11 Sharp (or Universal). Avoid Ballpoint needles; they struggle to pierce vinyl cleanly.
  • Non-Stick Spray: (Optional but recommended) Odif 505 for tacking the back piece.
  • Scissors: Curved-tip snips (essential for flush cuts) + Precision straight shears.


Pre-Flight Inspection (The "Pilot's Walkaround")

Do not skip this. Most failures happen because of "invisible" issues.

1. Check the Bobbin: Is it at least 50% full? Running out of bobbin thread on a vinyl ITH project often ruins the waterproofing seal of the back layer.
2. Check the Needle: Run your fingernail down the tip. If you feel a "catch" or burr, replace it immediately. A burred needle will shred vinyl.
3. Clear the Path: Ensure your machine arm has clearance. Vinyl is stiff; if it drags against a wall or book, it will distort the design.


Phase 2: Digital Engineering in Inkscape + Ink/Stitch

The video demonstrates a powerful workflow: taking a blank template and customizing it. We aren't just placing text; we are engineering the file for structural integrity.

1. The Canvas Setup

• Action: Open Inkscape. Set your document properties to your hoop size (5x7 inches or 130mm x 180mm).
• Why: Visualizing the boundaries prevents the dreaded "Design exceeds embroidery area" error on the machine screen.


2. Strategic Placement (Corner Packing)

• Action: Import your blank .PES file. Immediately use arrow keys to shove it into a corner.
• Efficiency: By nesting three organics together, you reduce stabilizer waste by 60%. Rotate the third unit 90 degrees to fit the bottom edge.

3. Typography & Orientation (The cognitive trap)

This is where 50% of beginners fail.

• Action: Add your text ("Phone", "Charger") using Ink/Stitch > Lettering.
• The Orientation Rule: The text on the flap (bottom section of the object) must be rotated 180 degrees upside down.
• The "Fold Test": Visualize the organizer folding over. If the text is right-side up on the screen, it will be upside down on the finished product.

4. Simulation

• Action: Run Extensions > Ink/Stitch > Visualize > Simulator.
• Sensory Check: Watch the "travel lines" (the thin lines connecting letters). If you see excessive travel across the vinyl, you must plan to trim these manually, or the finished product will look messy.


5. File Export

• Action: Save as .PES (for Brother) or .DST (Industry Standard).
• Detail: Ensure your file name is short (e.g., CordOrg_5x7.pes). Old machines often truncate long filenames.

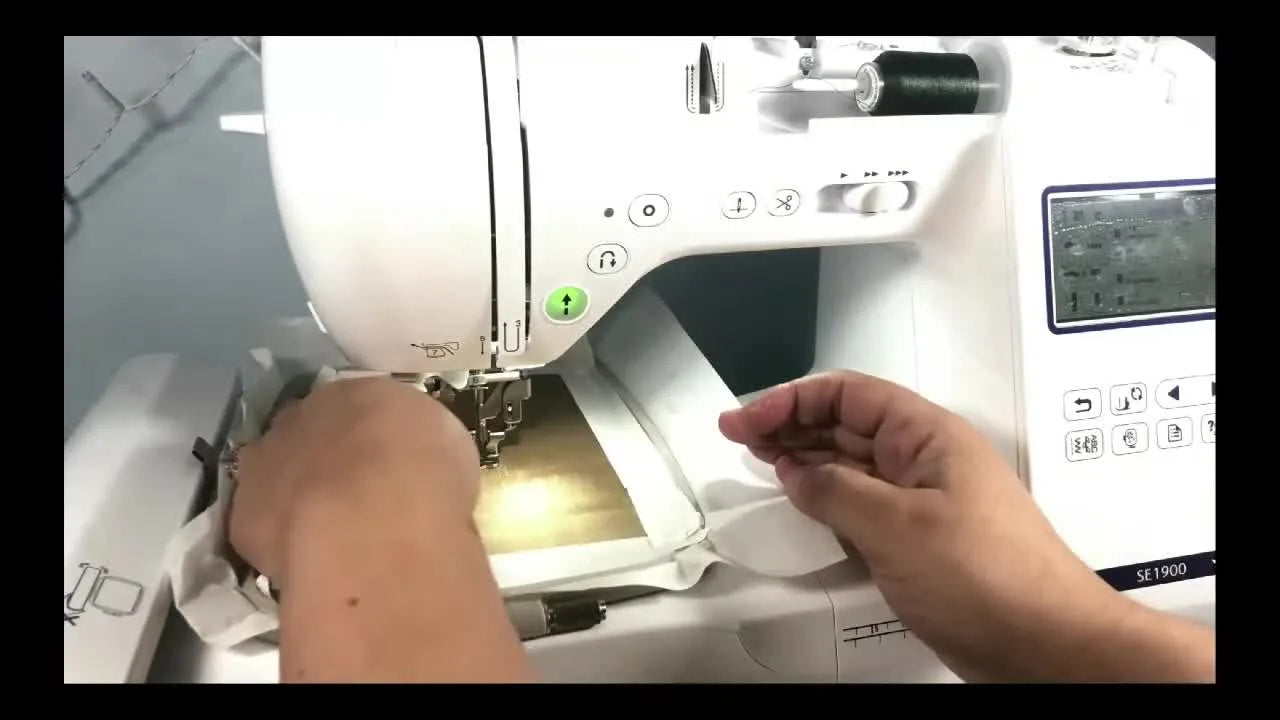

Phase 3: The Hooping Ritual (Float + Tape)

This physical setup determines the geometric accuracy of your stitch.

Step 1: Hooping the Stabilizer

Hoop your tear-away stabilizer.

• Tactile Check: Tap the stabilizer with your finger. It should sound like a drum skin—a distinct thump, not a wobble. If it’s loose, the vinyl will pull inward, ruining the outline.

Step 2: Floating the Top Material

Cut your vinyl slightly larger than the design area. Place it center-aligned on the hoop.

• The Taping Strategy: Secure all four corners and the midpoints.
• Tape Warning: Do not let tape enter the stitch path if possible. If you must tape over the stitch area, use masking tape (easy to pierce) rather than thick duct tape.


Safety Warning: Needle Clearance
When floating materials, your fingers are often closer to the active needle area than usual because you are smoothing the fabric. Keep hands outside the grey plastic hoop frame whenever the machine is powered on. A 900 stitches-per-minute needle does not stop for fingers.

Step 3: The "Under-Belly" Backing

• Action: Once the initial design and text are stitched, remove the hoop but do not un-hoop the stabilizer.
• Flip & Stick: Tape the backing vinyl to the underside of the hoop. Covers the bobbin thread.
• Adhesion: This is where a light mist of spray adhesive (hoop protected) or aggressive taping is vital. If this back piece droops, it will get caught in the machine's feed dogs.


Setup Checklist (Go/No-Go)

Before pressing the green button:

• Drum Test: Stabilizer is tight and drum-like.
• Clearance: Vinyl edges are taped down and won't snag on the foot.
• Orientation: The machine screen shows the design is centered (or correctly positioned).
• Bobbin: You have visually confirmed enough bobbin thread for the full run.
• Top Thread: Thread path is secure; presser foot is DOWN.


Phase 4: The Stitch-Out (Operational Discipline)

Load the file. Now, we manage the variables of speed and tension.

Speed Control: Finding the "Sweet Spot"

While the Brother SE1900 can run fast, vinyl generates heat when pierced quickly, which can cause the needle to stick or gum up.

• Recommended Speed: 400 - 600 SPM (Stitches Per Minute).
• Why: Slower speeds give the thread tensioner time to recover between distinct thick penetrations, resulting in cleaner text.

The "Thread Tail" Anchor

When you press start:

1. Hold the starter thread tail gently with your left hand.
2. Let the machine stitch 3-5 lock stitches.
3. Press Stop. Trim the tail close.

• Why: If you don't hold it, the tail often gets pulled underneath and forms a "birdnest" knot that bumps the vinyl up, causing skipped stitches.


Sensory Monitoring

• Sound: Listen for a rhythmic thwack-thwack. A sharp snap usually means a thread break. A grinding thud means the needle is struggling to penetrate multiple layers (change needle).
• Sight: Watch the fabric. Is it "flagging" (bouncing up and down with the needle)? If so, your stabilizer is too loose. Pause and re-tighten.

If you find yourself dreading the taping process, or if you are getting "hoop burn" despite your best efforts, this is usually the trigger point for tool upgrades. Many enthusiasts switch to a magnetic hoop for brother se1900 at this stage. The magnetic clamping force holds thick vinyl without the need for adhesive tape, solving both the residue issue and the shifting issue instantly.

Operation Checklist (Mid-flight)

• First Object: Text stitched clearly; no loops on top.
• Placement Step: Outline stitched without the vinyl shifting.
• Backing Step: Under-hoop vinyl was placed before the final satin/bean stitch run.
• Completion: Machine indicates "Finished" before lever is raised.

Phase 5: Finishing & Post-Processing

The difference between "homemade" and "handmade" is in the trimming.

De-Hooping and Jump Stitches

Remove the project. Tear away the stabilizer. Use your Curved Tip Scissors to trim the jump stitches flush against the vinyl.

• Tip: Briefly run a lighter flame (very quickly) over the thread ends to seal nylon threads—do not melt the vinyl!


The Surgical Cuts (Slits)

This is the high-risk moment.

1. Fold: Fold the tab in half to find the center of the buttonhole slit.
2. Snip: Use small sharp scissors.
3. Stop: Cut inside the stitched rectangle. Do not cut the threads.


Perimeter Trimming

Trim around the outer edge, leaving a uniform 1/8th inch (3mm) border. Long, confident scissor strokes create a smoother edge than hacking away with small bites.

Troubleshooting: The "Why Did It Fail?" Matrix

Use this table to diagnose issues immediately.

Decision Tree: Material & Tool Selection

Follow this logic path to choose the right setup for your specific project.

• Scenario A: Soft/Stretchy Faux Leather
  • Stabilizer: Cut-Away (Mesh) to prevent distortion.
  • Hooping: Float + Aggressive Tape.
  • Needle: 75/11 Ballpoint (maybe) or Sharp.
• Scenario B: Stiff Marine Vinyl (The Standard)
  • Stabilizer: Tear-Away (Medium Weight).
  • Hooping: Float + Tape.
  • Needle: 80/12 Sharp.
• Scenario C: Waterproof Canvas
  • Stabilizer: Tear-Away.
  • Hooping: Can often be standard hooped (test for burn).

Level Up: Crossing the Production Bridge

Once you master the technique, you will hit a new ceiling: Efficiency.

Level 1: The Hobbyist (Current State)

You are using tape, tear-away, and a single-needle machine. This is perfect for 1-5 items.

• Cost: Low.
• Time: High (Taping takes longer than stitching).

Level 2: The Enthusiast (Tool Upgrade)

If you are making sets for craft fairs (20-50 units), taping becomes a physical health hazard (Repetitive Strain Injury).

• Solution: magnetic hoop for brother.
• Logic: A brother 5x7 magnetic hoop uses strong magnets to clamp the vinyl instantly. No tape residue, no "hoop burn" from friction, and setup time drops from 3 minutes to 15 seconds.
• Trigger: If you spend more time prepping than stitching, get the hoop.

Warning: Magnetic Field Safety
Magnetic Hoops contain powerful neodymium magnets. They can pinch fingers severely if allowed to snap together. Keep away from:
* Pacemakers and ICDs.
* Magnetic storage media (Credit cards, Hard drives).
* Small children.

Level 3: The Business (Machine Upgrade)

If you are receiving orders for 100+ items, the bottleneck is the single needle. Every color change requires you to stop, unthread, and rethread.

• Solution: SEWTECH Multi-Needle Machines.
• Logic: These machines allow you to load 10-15 colors at once. You press "Start" and walk away to prep the next hoop. This is how you reclaim your time and turn a profit.

Summary: Personalizing ITH organizers is about respecting the physics of vinyl. Float your material, anchor it securely (with tape or magnets), slow your machine down, and trim with surgical precision. Master these steps, and the "spaghetti monster" of cables doesn't stand a chance.

FAQ

• Q: What is the safest way to embroider marine vinyl or faux leather on a Brother SE1900 without permanent hoop burn?
  A: Use the floating method: hoop only the stabilizer, then tape the vinyl on top so the hoop never crushes the vinyl surface.
  • Hoop: Tighten medium-weight tear-away stabilizer until it is very firm.
  • Float: Place vinyl centered on the hooped stabilizer and tape all four corners plus the midpoints.
  • Avoid: Keep tape out of the stitch path when possible; prefer masking/painter’s tape over duct tape to reduce residue.
  • Success check: Tap the hooped stabilizer and listen for a “drum skin” thump (not a wobble).
  • If it still fails: Switch to sticky-back tear-away or consider a magnetic hoop to reduce shifting and prep time.
• Q: How can a Brother SE1900 user prevent birdnesting at the start of an ITH vinyl cord organizer stitch-out?
  A: Re-thread correctly and anchor the top thread tail for the first lock stitches to stop the knot from forming under the throat plate.
  • Re-thread: Raise the presser foot and re-thread the top path from scratch.
  • Anchor: Hold the starting thread tail, stitch 3–5 lock stitches, then stop and trim the tail close.
  • Confirm: Verify the presser foot is DOWN before starting the run.
  • Success check: The first stitches lie flat with no thread “blob” or bump forming under the vinyl.
  • If it still fails: Inspect the bobbin and bobbin area for a threading issue and restart with a clean, correctly seated bobbin.
• Q: What needle should a Brother SE1900 use for stitching vinyl ITH projects to avoid shredding and ugly holes?
  A: Start with a 75/11 sharp (or universal) needle because it pierces vinyl cleanly; avoid ballpoint needles on vinyl.
  • Inspect: Run a fingernail lightly down the needle tip and replace immediately if a burr or “catch” is felt.
  • Match: Use the recommended 75/11 sharp for most vinyl; move up only if penetration is clearly struggling.
  • Monitor: Listen for a grinding “thud,” which can indicate the needle is fighting the material stack.
  • Success check: The machine sound stays rhythmic and the stitch line looks clean without tearing or ragged holes.
  • If it still fails: Slow the stitch speed and reduce thickness layers where possible (especially during dense areas like text).
• Q: How can a Brother SE1900 user stop outline misalignment (registration loss) when floating vinyl with tape in the 5x7 hoop?
  A: Increase stabilization and anti-slip control first (more secure taping and/or sticky stabilizer), then escalate to a magnetic hoop if shifting continues.
  • Tape: Secure all four corners and the midpoints; prevent edges from lifting and snagging.
  • Stabilize: Keep the tear-away stabilizer hooped extremely tight before adding vinyl.
  • Upgrade: Switch to sticky-back tear-away to reduce reliance on tape and improve hold.
  • Success check: The placement/outline stitches land exactly on top of the earlier stitch path with no “shadow” offset.
  • If it still fails: Consider a magnetic hoop for faster, more consistent clamping of thick materials.
• Q: How can a Brother SE1900 user prevent the underside backing vinyl from drooping and getting caught during an ITH vinyl project?
  A: Keep the stabilizer hooped, then tape the backing vinyl firmly to the underside (or lightly tack it) so it cannot sag into the machine path.
  • Remove: Take the hoop off the machine but do not unhoop the stabilizer.
  • Flip: Tape the backing vinyl to the underside so it fully covers the bobbin-thread area.
  • Secure: Use strong taping or a light mist of spray adhesive with the hoop protected.
  • Success check: Before stitching resumes, the underside backing stays flat with no loose edge hanging below the hoop.
  • If it still fails: Add more tape coverage at the edges and re-check machine clearance to ensure nothing drags the vinyl.
• Q: What stitch speed should a Brother SE1900 use for embroidering vinyl to reduce heat, gumming, and messy text?
  A: Run slower—about 400–600 stitches per minute—because vinyl can heat up and resist clean penetration at high speed.
  • Set: Reduce speed before starting the main run, especially for dense text areas.
  • Listen: Stop immediately if a sharp “snap” (thread break) or sticky/pulling sound appears.
  • Clean: If adhesive buildup occurs, clean the needle with alcohol and switch away from duct tape.
  • Success check: Text stitches look crisp with stable tension and the needle motion sounds steady and rhythmic.
  • If it still fails: Replace the needle and reassess taping/adhesion methods to minimize adhesive transfer.
• Q: What safety precautions should a Brother SE1900 user follow when floating vinyl with tape and when using a magnetic embroidery hoop?
  A: Keep hands outside the hoop frame during stitching, and treat magnetic hoops as pinch hazards that must be kept away from sensitive devices and children.
  • Hands: Smooth and tape materials with power off whenever possible; keep fingers outside the plastic hoop frame when powered on.
  • Clearance: Ensure the vinyl does not drag on nearby objects (walls/books) that can pull it into the needle area.
  • Magnet safety: Handle magnets slowly to prevent snapping; keep away from pacemakers/ICDs and magnetic storage media.
  • Success check: The stitch-out runs without needing hands near the needle zone and the hoop/material stays stable without manual “holding.”
  • If it still fails: Pause the machine, power down, and correct tape placement or material clearance before restarting.
