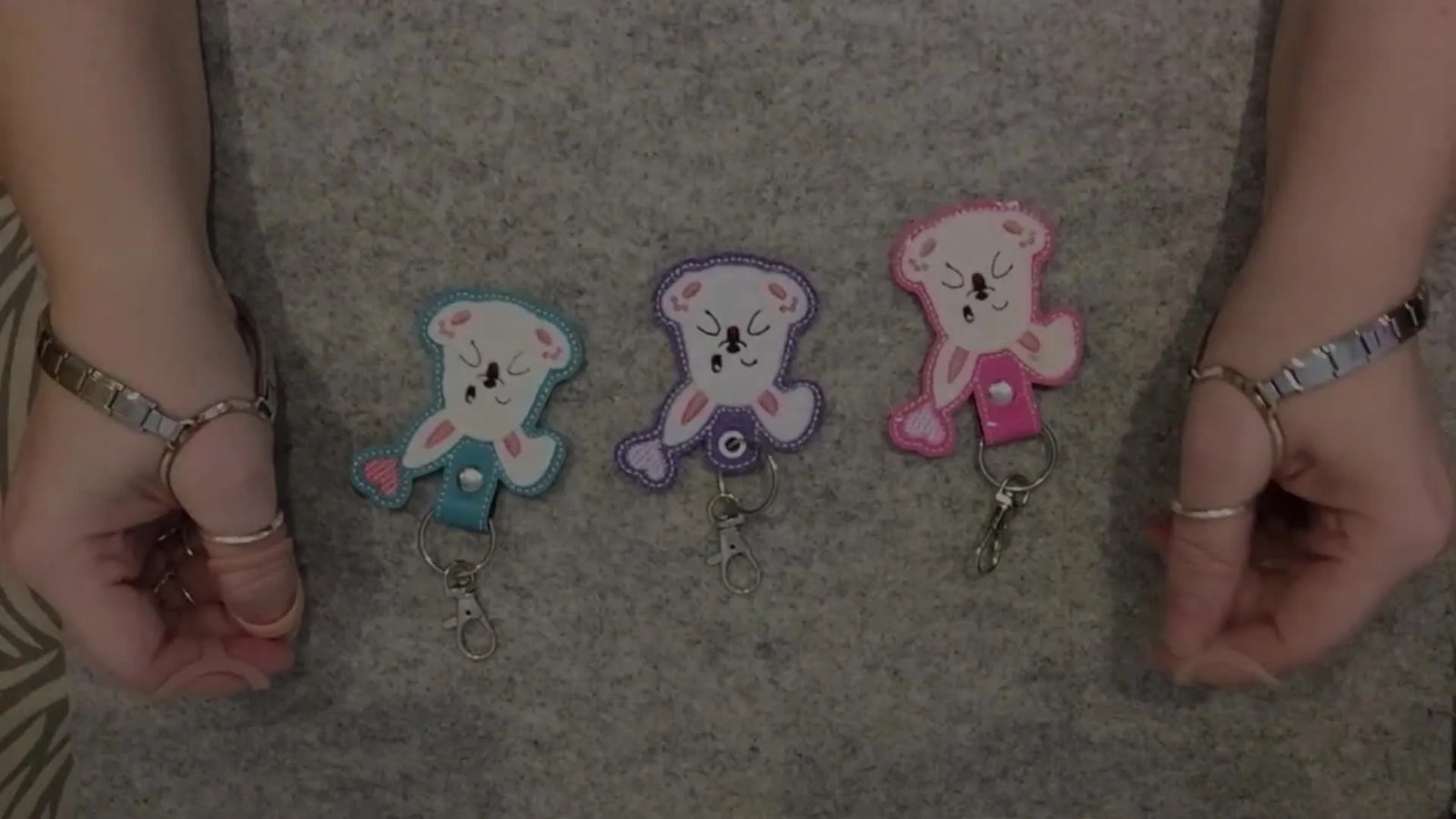

Vinyl Bunny Snap Tabs That Don’t Shift: A Clean In-the-Hoop Key Fob Workflow From Placement Stitch to Perfect Rivets

Mastering ITH Vinyl Snap Tabs: A Zero-Failure Guide for Precision & Profit

If you’ve ever watched an in-the-hoop (ITH) project stitch beautifully… and then the vinyl shifts 1mm to the left, the holes look ragged, or the rivet post is the wrong length, you know the specific frustration of "small project, big failure."

Snap tabs are deceptively simple. However, because we are dealing with non-fibrous materials (vinyl) that do not "heal" from needle punctures, there is zero margin for error. As someone who has overseen thousands of production hours, I can tell you that success with vinyl isn't about luck; it's about physics.

You must respect two non-negotiable rules: Placement stitches belong on the stabilizer (not the material), and vinyl must be secured as if it were a high-speed production run.

The Calm-Down Primer: Why ITH Snap Tabs Go Sideways on Marine Vinyl

Marine vinyl is an excellent material because it doesn't fray, but it introduces a specific variable: Planar Drag.

Unlike cotton, vinyl creates friction against the presser foot. As the foot lifts and lowers, it can micro-shift the top layer if it isn't anchored perfectly. This creates "creeping," where your final outline stitch misses the raw edge of the applique.

The method detailed here works because it isolates the geometry. We establish the "map" on the stabilizer first, then introduce the material.

Expert Insight: If you are using a standard plastic hoop and find yourself constantly fighting hoop burn (the ring marks left on vinyl) or struggling to clamp thick layers, you are encountering a hardware limitation. This is the exact scenario where professionals switch to floating embroidery hoop techniques or magnetic systems to eliminate hoop burn entirely.

Materials Needed for Snap Tab Key Fobs (Marine Vinyl + Raw-Edge Applique)

The difference between a "craft project" and a "retail product" often lies in the spec sheet. Here is the verified loadout for this Bunny Snap Tab:

Core Equipment

• Machine: Husqvarna Viking (or any SEWTECH-compatible home/commercial machine).
• Hoop: Standard 5x7 embroidery hoop.
• Needle: 75/11 Sharp or Topstitch Needle (Avoid Ballpoint; they struggle to pierce vinyl cleanly).

Consumables

• Stabilizer: Lightweight Tearaway (2 steps lighter than what you use for shirts).
• Front Vinyl: Turquoise Marine Vinyl (approx. 0.8mm - 1.0mm thickness).
• Backing Vinyl: Black Marine Vinyl.
• Applique Fabric: White Velvet or Minky (Must be non-fraying).
• Adhesive System: Odif 505 Temporary Spray + Painter's Tape (Blue) or Medical Tape.

The "Hidden" Consumables (Do not start without these)

• Isopropyl Alcohol: To clean gummed-up needles from the adhesive spray.
• Non-Stick Needles: Optional, but a lifesaver for adhesive-heavy projects.

Hardware Specs

• D-Ring: 3/4 inch with Clasp.
• Rivets: Double Cap. Crucial Dimension: 9mm Cap with a 6mm-8mm Post. (Too long, and the rivet bends; too short, and it won't snap).
• Tools: Curved Applique Scissors, Japanese Screw Punch (Brass), Rivet Press or Hand Setter.


Pro tip from the comments: Start with files, not software

One user asked: "Do I need digitizing software to start?" My Verdict: No. Master the physics of the machine first. Buy tested files. Digitizing is a separate discipline (Drafting); Embroidery is the discipline of Engineering. Learn to drive the car before you try to build the engine.

The “Hidden” Prep That Makes Vinyl Snap Tabs Look Store-Bought

Before you touch the interface, we must stabilize the environment. Vinyl has "memory"—if it was rolled up, it wants to curl.

Prep Checklist (Pre-Flight):

• Flatten Materials: If vinyl is curled, warm it slightly with a hair dryer and press flat under a book for 10 minutes.
• Check Bobbin: Ensure you have at least 50% bobbin remaining. Running out mid-border stitch ruins the waterproof seal of the vinyl.
• Clean the Hook: Remove the needle plate and check for lint. Vinyl dust is heavy and sticky.
• Tool Staging: Place your applique scissors and tape on the right side of the machine. Do not cross your arms over the moving needle bar to reach tools.


Why this prep matters

If the vinyl is slightly domed (convex) when taped down, the needle will push the air bubble down before penetrating. This causes the vinyl to slide forward. We use adhesive and tape to ensure the vinyl and stabilizer act as a single unit.

The Production Reality: If you are doing runs of 50+ keychains, taping every single piece becomes a bottleneck. This is when shops upgrade to magnetic embroidery hoops. These allow you to "slap and stick" materials instantly without screw-tightening, keeping constant tension without the forearm fatigue.

Hooping Lightweight Tearaway Stabilizer First

We never hoop the vinyl directly for snap tabs. We "float" the project.

1. Action: Secure only the lightweight tearaway stabilizer in the 5x7 hoop.
2. Sensory Check (Tactile): Tap the stabilizer. It should sound like a tight drum skin (Thump-Thump), not a loose paper bag (Crinkle-Crinkle).
3. Action: Load the file and run Color Stop 1 (Placement Stitch).


Checkpoint: You now have a stitched outline on the stabilizer. This is your "landing zone." Success Metric: The stitch is balanced, with no looping on top.

Warning: Safety First. Keep fingers at least 2 inches away from the foot during operation. If a needle hits the hoop or a hard rivet, it can shatter, sending shrapnel toward your eyes. Always wear eyewear when embroidering hard materials.

Locking Down Turquoise Marine Vinyl With Odif 505 + Tape

Now we build the foundation layer.

1. Action: Take the hoop OFF the machine (never spray near the machine gears).
2. Action: Lightly mist the back of the turquoise vinyl with Odif 505.
3. Action: Place the vinyl over the placement stitches.
4. Action: Tape the four corners.
5. Setting Adjustment: Lower your machine speed. For vinyl, reduce speed to 600 SPM (Stitches Per Minute). High speed creates needle heat, which melts the vinyl and gums up the thread.


Checkpoint: The vinyl is immovable. Commercial Note: If you find 505 spray messy or inconsistent, many high-volume shops switch to a sticky hoop for embroidery machine. These sticky-backed stabilizer systems hold small items aggressively without spray, saving cleanup time.

Raw-Edge Applique Bunny Ear: Texture Control

We are using a Triple Bean Stitch for the edge. Unlike a Satin stitch, which perforates the vinyl like a stamp (leading to tearing), the Bean stitch is decorative but structural.

1. Action: Run the ear placement stitch.
2. Sensory Check (Visual): Look at your white velvet. Brush it with your thumb. Orient the "nap" (the fuzzy direction) so it runs down the ear for the best light reflection.
3. Action: Float the velvet over the ear area, tape, and stitch the Triple Bean tack-down.




Checkpoint: The stitch path is solid. The velvet is pinned flat.

Trimming the Applique Like a Pro

This step separates the amateurs from the pros.

1. Action: Remove the hoop (or slide it forward if your machine allows).
2. Action: Use Curved Applique Scissors. Place the "spoon" (curved) blade underneath the velvet, riding on top of the vinyl.
3. Action: Trim within 1mm-2mm of the stitch line.
4. Sensory Check: You should hear a crisp slicing sound. If you hear a "crunch," you are cutting the stitches. Stop immediately.


Success Metric: The edge is clean with no "hairy" strands poking out.

Running the Rest of the Bunny Design

Repeat the process for the second ear, then let the machine run the fills (Eyes, Nose, Pads, Heart).

Design Note: Notice the foot pads. While not anatomically correct for a bunny, these "embellishment anchors" help secure the vinyl layers together in the center, preventing the layers from ballooning (puffing up) later.

Adding the Black Backing Vinyl: The Blind Step

We are now sandwiching the stabilizer.

1. Action: Remove the hoop from the machine. Flip it over.
2. Action: Spray Odif 505 on the right side (texture side) of the black vinyl? NO. Spray the back (smooth side) of the black vinyl.
3. Action: Place the black vinyl against the underside of the stabilizer.
4. Action: Tape all four sides securely.
5. Sensory Check (Tactile): Rub your hand firmly over the tape. If it feels loose, add more tape. If this sheet falls off inside the machine, it can jam the Y-axis motor.


The Final Triple Bean Border Stitch

This stitches through: Front Vinyl + Velvet + Stabilizer + Back Vinyl.

1. Action: Re-attach hoop. Ensure the wire handles of the hoop clip are clear of the vinyl.
2. Action: Run the final border stitch.
3. Observation: Watch the feed. Ensure the backing vinyl doesn't catch on the throat plate of the machine.


Checkpoint: Flip the hoop. The bobbin thread should look as clean as the top thread. If you see "eyelashes" (loops) on the bottom, your top tension was too loose for the thickness of the sandwich.

Cutting Out the Bunny Snap Tab

1. Action: Unhoop everything. Tear away the stabilizer.
2. Action: Use long-blade scissors for the perimeter.
3. technique: Keep the scissors stationary and rotate the vinyl into the blade. This creates smooth curves rather than jagged "stop-start" marks.
4. Margin: Leave a uniform 2mm-3mm border of vinyl outside the stitch line.


Clean Holes Every Time: The Japanese Screw Punch

Do not use a leather punch that requires a hammer; it distorts the vinyl. Use a rotary screw punch.

1. Action: Position the punch over the indicated hole markers.
2. Action: Press down firmly.
3. Sensory Check (Auditory/Tactile): You will hear/feel a Grind-Pop. That pop is the tool cutting through the bottom layer.
4. Result: You should have a perfect cylinder of waste material removed.


Rivets + 3/4" D-Ring Clasp: The Structural Assembly

1. Action: Slide the D-ring onto the tab before riveting. (We've all forgotten this once).
2. Action: Push the rivet Post (male part) through the back.
3. Action: Snap the Cap (female part) on top.
4. Sensory Check (Auditory): Listen for a distinct soft Click. This means the internal ridges have engaged.
5. Action: Compress using a dedicated press or hand tool.




Visual Check: Look at the rivet from the side. Is the cap crooked? If yes, the post hole was too small or the post was too long. It must sit flush.

The Split Ring Hack

If you are attaching keys to a tight split ring:

• Tip: Use a standard office staple remover to wedge the ring open. This saves your fingernails and prevents scratching the powder coating on the ring.


Troubleshooting Vinyl ITH Snap Tabs: The "Why is this happening?" Matrix

Decision Tree: Fabric Type vs. Stabilization Strategy

Use this logic flow to choose your method:

1. Is the material compressible (Fleece/Cotton)?
   • Yes: Hoop normally.
   • No (Vinyl/Leather): Float Only.
2. Is the Machine Speed > 800 SPM?
   • Yes: High risk of needle heat.
   • Action: Slow down or use Titanium Needles.
3. Are you making 1 unit or 100 units?
   • 1 Unit: Standard Hoop + Tape is fine.
   • 100 Units: Tape is too slow. Pivot to hooping station for machine embroidery + Magnetic Hoops.

Context: When scaling up, consistency is king. Using a hoop master embroidery hooping station ensures every single bunny lands in the exact same coordinate on the vinyl, reducing waste by up to 20%.

The Upgrade Path: Moving from Hobby to Production

Snap tabs are the perfect "Gateway Product." They sell fast, but they expose the limits of single-needle home machines quickly.

The Friction Point: Breaking your workflow to change thread colors 6 times for a $5 item destroys your profit margin.

The Solution Ladder:

1. Level 1 (Technique): Use Floating to stop hoop burn. Cost: $0.
2. Level 2 (Tooling): Upgrade to SEWTECH Magnetic Hoops.
   • Why: Drastically faster hooping. No screw tightening. Zero hoop burn on sensitive vinyl.
   • Result: 30% faster prep time.
3. Level 3 (Machinery): Upgrade to a Multi-Needle Machine (e.g., SEWTECH Commercial Models).
   • Why: Set 10 colors at once. Press "Start." Walk away.
   • Result: You are now a business owner, not a machine operator.

Warning: Magnetic Hoop Safety
Magnetic hoops use industrial-grade magnets with extreme clamping force.
* Pinch Hazard: They can snap stuck instantly. Keep fingers clear of the mating surfaces.
* Medical Risk: Keep at least 6 inches away from pacemakers and ICDs.
* Electronics: Do not place smartphones or credit cards directly on the magnets.

Operation Checklist: Your Flight Plan

Print this and tape it to your machine table.

• Prep: Hoop Tearaway Stabilizer.
• Step 1: Stitch Placement Guide on Stabilizer.
• Step 2: Float & Tape Front Vinyl (Speed < 600 SPM).
• Step 3: Stitch Design & Applique Placement.
• Step 4: Place Velvet -> Tape -> Triple Stitch -> Trim.
• Step 5: Stitch Details (Eyes/Nose).
• Step 6: REMOVE HOOP. Float Backing Vinyl on underside -> Tape Securely.
• Step 7: Run Final Outline.
• Finish: unhoop, cut margin, punch hole, set rivet.

By following this embroidery hooping station logic—even without the station itself—you build muscle memory that guarantees quality. Consistency isn't an accident; it's a habit.

FAQ

• Q: How do I hoop lightweight tearaway stabilizer correctly for ITH vinyl snap tabs in a 5x7 embroidery hoop to prevent shifting?
  A: Hoop only the lightweight tearaway stabilizer “drum tight,” then float the vinyl on top—do not hoop vinyl directly.
  • Action: Hoop the tearaway stabilizer only and tap-test the tension before stitching.
  • Action: Stitch Color Stop 1 (placement stitch) on the stabilizer to create a precise landing zone.
  • Success check: The stabilizer sounds like a tight drum skin (“Thump-Thump”), not a loose “Crinkle-Crinkle,” and the placement stitches look balanced with no loops on top.
  • If it still fails: Reduce machine speed for vinyl work and secure the vinyl with more temporary adhesive plus corner taping.
• Q: How can I stop marine vinyl from creeping or shifting 1mm during ITH snap tabs when using Odif 505 temporary spray and tape?
  A: Treat marine vinyl like a production run—adhere lightly, tape firmly, and slow the machine down to reduce drag.
  • Action: Remove the hoop from the machine before spraying; lightly mist the back of the front vinyl with Odif 505.
  • Action: Place vinyl over the placement stitches and tape all four corners so the vinyl cannot micro-shift.
  • Action: Lower embroidery speed to about 600 SPM to reduce needle heat and drag-related creeping.
  • Success check: The vinyl feels immovable when you try to nudge it with a fingertip and the outline stitch lands consistently on the raw edge.
  • If it still fails: Add more secure taping/adhesive coverage or move to a no-screw clamping approach (magnetic hoop style) to increase holding consistency.
• Q: What is the correct way to add backing vinyl on the underside for ITH vinyl snap tabs so the backing does not fall off and jam the embroidery machine?
  A: Flip the hoop, spray the correct side, and tape aggressively—backing vinyl must be mechanically secured before the final border stitch.
  • Action: Remove the hoop from the machine, flip it over, and spray Odif 505 on the back (smooth side) of the backing vinyl (not the textured/right side).
  • Action: Place the backing vinyl against the underside of the stabilizer and tape all four sides tightly.
  • Success check: A firm hand rub over the tape feels fully stuck with no lifting edges, and the backing does not sag or peel when the hoop is tilted.
  • If it still fails: Add more tape coverage along the full edges (not just corners) before restarting to avoid the sheet dropping into the machine path.
• Q: How do I diagnose and fix bird’s nest thread nesting underneath during ITH vinyl snap tabs (front vinyl + stabilizer + backing vinyl sandwich)?
  A: Stop, remove the nest safely, and re-thread—nesting commonly comes from threading issues or the vinyl sandwich lifting.
  • Action: Stop the machine immediately and cut the nest away carefully to avoid bending the needle.
  • Action: Re-thread the top path and bobbin, then restart from a safe point if the design allows.
  • Action: Re-tape the backing vinyl tightly to the hoop underside so the sandwich cannot lift during stitching.
  • Success check: The underside after stitching shows clean, even bobbin lines (no “eyelash” loops) and the fabric stack stays flat through the border stitch.
  • If it still fails: Increase the security of the underside taping and verify top tension is not overly loose for the thickness of the sandwich.
• Q: What needle type should be used for marine vinyl ITH snap tabs to avoid ragged holes and poor piercing?
  A: Use a 75/11 Sharp or Topstitch needle and avoid ballpoint needles for vinyl.
  • Action: Install a 75/11 Sharp or Topstitch needle before starting vinyl runs.
  • Action: Keep isopropyl alcohol ready to clean adhesive buildup off the needle during adhesive-heavy sessions.
  • Success check: Needle penetrations look clean (not torn or ragged) and the stitch line stays crisp without skipped-looking perforations.
  • If it still fails: Slow the machine down further to reduce heat and consider a non-stick needle if adhesive is gumming the needle frequently.
• Q: What are the key safety steps to prevent needle breakage injuries when embroidering ITH vinyl snap tabs with hard hardware nearby (rivets, D-rings)?
  A: Keep hands clear and treat hard materials as a shatter risk—needle strikes can send fragments.
  • Action: Keep fingers at least 2 inches away from the presser foot while the machine is running.
  • Action: Never embroider over hard rivets/D-ring hardware; complete stitching first, then punch holes and set rivets afterward.
  • Action: Wear eye protection when stitching hard/non-fibrous materials where needle deflection is more dangerous.
  • Success check: Stitching runs without needle strikes, and hands never cross into the needle travel zone during operation.
  • If it still fails: Stop and re-check placement steps and tool staging so trimming/taping can be done with the hoop removed, not near a moving needle.
• Q: What magnetic hoop safety rules should be followed when using industrial magnetic embroidery hoops to speed up ITH vinyl snap tab production?
  A: Magnetic hoops clamp with extreme force—prevent pinch injuries and protect medical devices and electronics.
  • Action: Keep fingers away from the mating surfaces when closing a magnetic hoop to avoid pinch hazards.
  • Action: Keep magnetic hoops at least 6 inches away from pacemakers and ICDs.
  • Action: Do not place smartphones or credit cards directly on the magnets.
  • Success check: The hoop closes without finger contact in the clamping zone, and the workholding is consistent without over-tightening marks.
  • If it still fails: Switch back to floating + tape until safe handling becomes routine, then reintroduce magnetic hoop workflows gradually.
