Uncrating a Ricoma MT-2002 Without Regret: The Safety Bolt, the Hoop Reality, and a Setup Routine That Saves Needles

A two-head commercial machine arriving on a freight truck is exciting—right up until you realize the crate is taller than you are, the machine is top-heavy, and one forgotten shipping bracket can turn “setup day” into “service call day.”

This guide rebuilds the unboxing and initial setup of the Ricoma MT-2002 (2 head / 20 needle) into a clean, repeatable routine. We will move beyond the basic manual to discuss the feel of a correct setup, the safety margins you need, and the tooling upgrades that separate hobbyists from production shops.

Delivery Day with an R+L Carriers Freight Crate: Move the Ricoma MT-2002 Like It’s Top-Heavy (Because It Is)

The video starts exactly where most problems begin: the freight truck leaves, and you’re staring at a massive wooden crate sitting on your shop floor. This unit weighs roughly 500kg (1100 lbs) fully crated.

What the creator does: He uses a pallet jack to maneuver the crate into the workshop. He emphasizes that you need help because the unit is massive, and the center of gravity is deceptively high due to the embroidery heads.

My 20-year shop rule for freight day

Even if you’ve moved equipment before, treat this like a controlled lift, not a casual push. When moving a top-heavy machine, momentum is your enemy.

• Clear the Path: Remove cords, scrap bins, and stabilizer rolls. You need 360-degree clearance.
• The "Slow-Motion" Rule: Move at half the speed you think is necessary. If the pallet jack wheels hit a concrete seam too fast, a top-heavy crate can tip.
• The "Spotter" Protocol: If you are alone, stop. A second set of hands to steady the crate is cheaper than a replacement stand or a crushed toe.

Warning: Mechanical Hazard. Crates, heavy pry bars, and pallet jacks generate immense force. Always wear heavy-duty work gloves to prevent splinters and crushed fingers. Use ANSI-rated eye protection when prying metal clasps—snapped metal bands can fly like shrapnel.

Prep Checklist (before you touch a single latch)

• Pallet Jack Verified: Test the hydraulics (lift/lower) and steering before loading the heavy crate.
• Route Cleared: Minimum 4-foot width clearance from door to final location.
• Tools Staged: Hammer, crowbar/pry bar, and box cutter.
• Assembly Tools: Metric Allen key set (2mm-10mm) and an adjustable wrench.
• Safety Gear: Gloves and eyewear on.
• Helper Confirmed: Do not attempt uncrating solo.

(That last one is not optional if you value your back.)

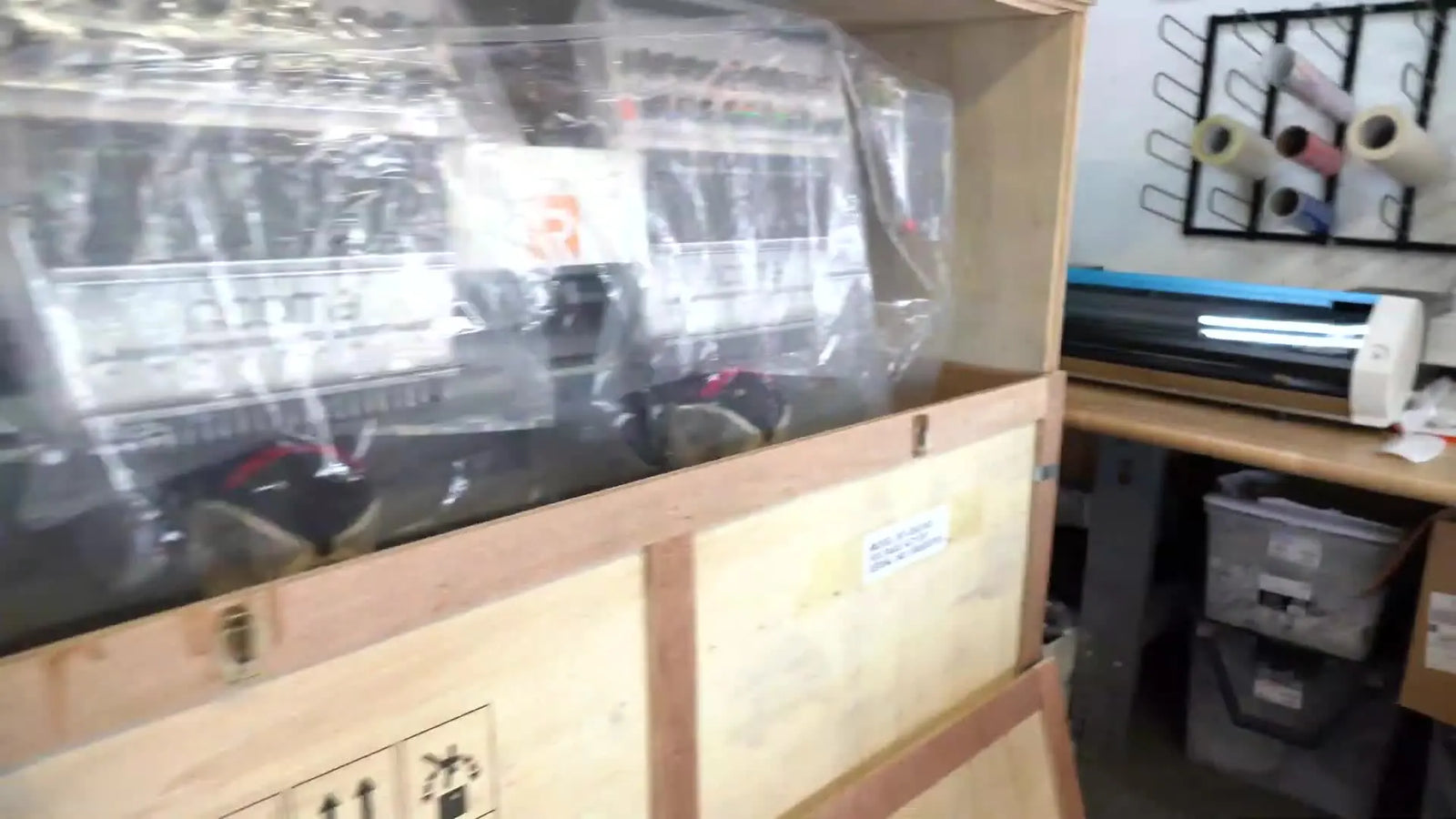

The Crate Comes Apart Faster When You Remove the Top Early: A Clean Uncrating Order That Saves Your Shoulders

The creator dismantles the crate by unlatching the metal clasps and removing the wooden panels. He removes the side panels first, then struggles with the top panel because of the height—then admits he would have taken the top off sooner.

What to copy from the video:

• Use a hammer and prying tools to unlatch the metal clasps.
• Expect the top panel to be the heaviest and most awkward part if you leave it for last.


A safer, less frustrating uncrating sequence (based on what went wrong)

You can keep the same tools and still make the job easier by following the "Gravity Assist" method:

1. Stabilize: Ensure the crate is flat on the floor, not floating on the pallet jack.
2. Top-Down Attack: Loosen the clasps on the top panel first while the side walls still support it.
3. Lift Off: With a helper, lift the top panel off immediately. This lowers the center of gravity for the remaining wood.
4. Sides Down: Remove side panels one by one.
5. De-plastic: Remove the plastic wrap slowly. Sensory Check: As you pull the plastic, feel for resistance—do not yank, as plastic often snags on thread stand eyelets or tension knobs.

The goal is simple: don’t force an overhead lift after you’ve already removed the structure that made it stable.

Why this matters for machine health (not just comfort)

A tall crate encourages awkward angles. Awkward angles lead to sudden drops, and sudden drops can transmit shock into the casting. You may not see damage immediately, but vibration issues and needle bar alignment headaches often start with rough handling during unboxing.

The One Red Bracket You Must Remove Before Power-Up: The Ricoma MT-2002 Shipping/Security Bolt “Needle Offset” Trap

This is the most important technical moment in the entire setup. If you fail here, you will damage the X/Y motors before you sew a single stitch.

The creator points out a red/orange fixed block (security bracket or "shipping lock") on the pantograph rail. The warning label is explicit: remove the bolt or you will offset the needles.

Step-by-step: removing the security bracket (exactly as shown)

1. Locate the Bracket: Identify the bright red/orange block on the pantograph rail (the moving horizontal arm).
2. Select Tool: Use the correct size Allen key (usually 4mm or 5mm). Sensory Check: The bolt should turn with firm resistance but should not feel "gritty."
3. Remove Fully: Unscrew the bolts completely and remove the bracket.
4. Store: Tape this bracket to the back of the machine stand. You will need it if you ever move shops.

Checkpoint: Gently push the pantograph arm by hand (machine OFF). It should glide left and right smoothly with minimal resistance. If it feels stuck or makes a grinding sound, you missed a lock.

Expected outcome: You’ve eliminated the “needle offset” risk and motor burnout risk.

Warning: Do not power the machine on with the shipping/security bracket installed. The motors are high-torque; they will try to move the pantograph, fight the bracket, and strip your belts or burn out the drivers instantly.

The “why” behind the warning (what experienced techs see)

Shipping locks exist because the pantograph assembly sits on sensitive rails. During a truck ride, vibrations can ruin the calibration. The lock freezes the arm. However, once powered on, the machine attempts a "Home" sequence where it seeks its limits. If the lock is there, the collision is violent.

The Smartphone Photo Habit That Prevents Hours of Guesswork: Document Ricoma Threading and Tension Before You Touch Anything

Right after removing the shipping bracket, the creator does something I wish every new shop owner did: he takes close-up photos of the thread path, needle setup, and tension knobs exactly as they arrived from the factory.

What to photograph (copy the creator’s approach)

• Upper Thread Path: Focus on how the thread twists around the tension posts.
• Tension Knobs: Note the number of threads visible on the stud or the position of the knob line.
• Needle Orientation: Look at the eye of the needle. It should be slightly canted to the right (about 5 degrees), not perfectly straight.

He also mentions: “Take note of what’s greased and what isn’t.” Grease attracts lint; knowing where it belongs helps you clean efficiently later.

Why this saves you money

When you’re new to a multi-needle platform, it’s easy to “improve” something that wasn’t broken. Photos give you a reset point. If you later chase thread breaks, looping, or inconsistent tension, you can compare your current setup to the factory baseline.

In a production environment, print these photos and tape them inside your supply cabinet. This is your "Golden Sample" for training new operators.

What’s Actually in the Ricoma MT-2002 Crate: Madeira Thread Kit, Bobbin Winder, Tools, Otto Cap Samples—and the “Two of Everything” Reality

The creator unboxes the included accessories and calls out what’s inside:

• A Madeira thread starter kit (Usually 5000m cones).
• A dedicated bobbin winder.
• A tool box with replacement parts (screwdrivers, snips, grease).
• Stabilizer samples.
• Otto Cap sample hats and catalogs.




He makes a practical point: because it’s a two-head machine, you’ll need two of everything. He specifically mentions needles (20 needles per head means 40 needles total).

The inventory mindset that keeps you from stalling on day one

Unboxing is not entertainment—treat it like receiving inventory for a business.

1. Open Every Box: Do not assume the label matches the content.
2. The "Hidden" Consumables: You likely need to buy machine oil, spray adhesive, and double-sided tape immediately, as these are rarely included in sufficient quantities.
3. Needle Audit: Industrial needles (usually system DBxK5) break. If you have 40 installed, you should have at least 100 spares on the shelf immediately.

Setup Checklist (after unboxing, before your first stitch)

• Safety First: Security bracket removed and pantograph moves freely by hand.
• Documentation: Photos taken of factory thread path and tension knobs.
• Power Check: Ensure voltage matches your wall outlet (110V vs 220V) before plugging in.
• Consumables: Thread kit, bobbins, and spare needles verified.
• Stabilizer: Samples identified (know your Cutaway from your Tearaway).

Gen 2 Ricoma Tubular Hoops vs Magnetic Hoops: Don’t Let Hooping Become Your Bottleneck

The creator unboxes and inspects the standard tubular hoops and highlights the “Gen 2” hoop mechanism, noting it’s different from older factory hooping systems. He also says he ordered Mighty Hoops, but they haven’t arrived yet.

What the video shows (and what it implies)

• The Learning Curve: The Gen 2 hoop attachment mechanism uses metal clips. You must hear a definitive "Click" (Auditory Anchor) to know it is locked. If it slides without clicking, you will crash the machine.
• The Friction: Even experienced owners plan to add magnetic hoops because traditional screw-tightening hoops vary in tension, leading to inconsistent quality.

If you’re currently researching ricoma embroidery hoops, understand that the "best" hoop isn't just about size—it's about how much pain it causes your wrists. The primary cause of "hoop burn" (permanent rings on fabric) is the need to over-tighten tubular hoops to prevent slipping.

The physics of hooping (why fabric shifts)

Traditional hoops require muscle to create friction. If you tighten the screw too much, you crush the fibers (hoop burn). If you tighten too little, the fabric "flags" (bounces) during stitching, causing bird-nesting.

Magnetic systems solve this by using vertical clamping force rather than friction. If you are doing production runs of 50+ shirts, upgrading to magnetic embroidery hoops is necessary to save your operator's wrists and ensure consistent tension without the "drum skin" struggle.

Magnetic hoop safety note (read this even if you’ve used magnets before)

Warning: Magnetic Safety. Industrial magnetic hoops snap together with approx. 30lbs+ of force. Pinch Hazard: Keep fingers strictly on the handles, never between the rings. Medical Hazard: Keep magnets away from pacemakers, insulin pumps, and credit cards.

A natural upgrade path (tooling without the hard sell)

Start with the Gen 2 hoops to learn the basics. Identify where you struggle:

• Scenario: Are you struggling to hoop thick jackets?
• Criteria: If you spend more than 2 minutes hooping a single item, you are losing money.
• Solution: Upgrade to Magnetic Hoops. They self-adjust to thickness. For scaling production further, consider SEWTECH Magnetic Hoops which perform similarly to premium brands but offer excellent ROI for growing shops.

If you’re comparing magnetic hoops for embroidery machines, focus on clamp strength and bracket compatibility. A loose magnet causes registration errors.

The Hooping Decision Tree: Match Fabric + Stabilizer Before You Blame the Machine

The video includes stabilizer samples but doesn’t go deep on selection. In real shops, stabilizer choice is where quality is won or lost.

Here’s a simple decision tree to prevent your first design from puckering:

Decision Tree (Fabric → Stabilizer)

1. Is the fabric stretchy (T-shirts, Polos, Hoodies)?
   • Yes: Use Cutaway (2.5oz minimum).
   • Why: Knits stretch. Stabilizer must stay forever to support the stitch.
   • No: Go to #2.
2. Is the fabric stable (Woven shirts, Denim, Canvas)?
   • Yes: Use Tearaway.
   • Why: The fabric supports itself; stabilizer just creates a temporary platform.
   • No: Go to #3.
3. Is it a Cap (Hat)?
   • Yes: Use Cap Backing (Heavy Tearaway).
   • Action: Ensure the sweatband is pulled back and not sewn into the design.

Sensory Check: When hooped with stabilizer, tap the fabric. It should sound like a dull drum thud. It should feel taut, but the fabric weave should not look distorted or stretched open.

“Two Heads” Means Two Workflows: Build a Production Setup That Doesn’t Waste Your Second Head

A two-head machine is not just “twice as fast.” It’s twice the opportunity for small inconsistencies to multiply. If Head 1 has tension at 110gf and Head 2 is at 140gf, your customer will notice the difference.

• Standardize: Hoop both garments exactly the same way.
• Organize: Keep thread cones in identical color order on both heads.
• Consolidate: If you’re shopping for ricoma embroidery machines to scale, realize that scaling requires process, not just power.

The ergonomic truth nobody tells you

Hooping is repetitive. If your wrists hurt, your quality drops. Many shops add a dedicated machine embroidery hooping station to ensure every shirt is hooped at the exact same chest placement (e.g., center of hoop is 7 inches down from shoulder seam). This consistency is what allows you to use a multi-head machine effectively.

If you eventually outgrow the MT-2002, looking into high-efficiency SEWTECH Multi-Needle Machines can provide the industrial durability needed for 24/7 operation cycles.

The “Mighty Hoops Backorder” Moment: How to Evaluate Alternatives Without Guessing

The creator notes his Mighty Hoops are not yet arrived. This is a common industry bottleneck.

If you’re specifically looking at mighty hoop for ricoma, you might find long lead times. Do not let this stop your production.

• Compatibility: Ensure any magnetic hoop you buy is bracketed for "Ricoma 360" or the specific spacing of your machine arm (usually 360mm, 400mm, or 500mm spacing).
• Starter Kits: Many users search for a ricoma mighty hoop starter kit to solve all problems at once. Focus on the 5.5x5.5 inch (13x13cm) size first—this handles 90% of left-chest logos.

Troubles You Can Prevent on Day One: Symptoms, Causes, Fixes (Straight from the Video)

The video includes two early “gotchas” that are worth turning into a structured troubleshooting table.

Your First-Day Operating Routine: From Crate to Controlled Test Readiness (Without Rushing)

The video stops at unboxing. That’s the right place to pause. Rushing to stitch usually leads to a bird's nest (thread jam) that breaks your confidence.

Here’s your "Pro-Level" routine to finish the day:

1. Environment: Crate debris cleared. Floor swept. Machine locked on stand wheels.
2. Safety: Red security bracket is in your "Do Not Lose" box.
3. Baseline: Photos of threading are saved.
4. Lubrication: Add one drop of sewing machine oil to the rotary hook raceway (consult manual for exact spot). Sensory Check: The hook should spin silently.
5. Dry Run: With no thread and no needle, run a design trace to ensure the pantograph moves smoothly.

Operation Checklist (end-of-day “ready for next step”)

• Clean: Area free of nails and plastic.
• Safe: Shipping brackets removed.
• Stocked: Needles, bobbins, and stabilizer accessible.
• Plan: You know which hoop (Gen 2 or Magnetic) you will use for your first test.

The Upgrade That Actually Moves the Needle: Faster Hooping, Cleaner Results, and a Real Production Path

On day one, the “upgrade” isn’t a fancy add-on—it’s removing friction.

• Level 1 (Technique): Use the right stabilizer. Don't cheap out here.
• Level 2 (Tooling): If hooping takes too long, switch to SEWTECH Magnetic Hoops to speed up loading times and reduce operator fatigue.
• Level 3 (Capacity): As you master the MT-2002, remember that efficiency scales. If you find yourself consistently backed up, adding more heads or dedicated SEWTECH production units is the mathematical path to profit.

The best setup day ends quietly: the machine is safe, documented, inventoried, and staged. Your first stitch will happen tomorrow, on your terms, with full confidence.

FAQ

• Q: What must be removed on a Ricoma MT-2002 before powering on to avoid “needle offset” and X/Y motor damage?
  A: Remove the red/orange pantograph shipping/security bracket completely before any power-up.
  • Locate the bright red/orange fixed block on the pantograph rail and remove its bolt(s) with the correct Allen key.
  • Push the pantograph gently by hand with the machine OFF to confirm nothing is still locked.
  • Store the bracket taped to the back of the stand so it is available for future moves.
  • Success check: The pantograph glides left/right smoothly with minimal resistance and no grinding sound.
  • If it still fails: Stop and re-check for any remaining shipping lock points; do not attempt a “Home” sequence until the rail moves freely.
• Q: How should a Ricoma MT-2002 crate be moved off a freight delivery to prevent tipping a top-heavy machine?
  A: Move the Ricoma MT-2002 crate as a controlled, slow lift with a spotter because the center of gravity is high.
  • Clear a 360° path and maintain at least 4-foot route clearance from the door to the final location.
  • Move at “slow-motion” speed on the pallet jack, especially over concrete seams and thresholds.
  • Use a helper as a spotter to steady the load and call out hazards.
  • Success check: The crate stays level and stable with no sway when the pallet jack stops/starts.
  • If it still fails: Stop immediately and reposition—do not “power through” bumps or tight turns.
• Q: What is the safest uncrating order for a Ricoma MT-2002 tall wooden crate to avoid a difficult overhead lift?
  A: Remove the top panel early (top-down) while the side walls still support it.
  • Set the crate flat on the floor (not floating on the pallet jack) before prying panels.
  • Loosen the top-panel clasps first, then lift the top off with a helper to lower the center of gravity.
  • Remove side panels one by one, then pull plastic wrap slowly to avoid snagging on thread stand eyelets or knobs.
  • Success check: The top panel comes off without a strained overhead lift, and plastic unwraps without sudden snags.
  • If it still fails: Pause and add a second person—forcing an awkward lift risks drops and shock to the machine casting.
• Q: What photos should be taken on a Ricoma MT-2002 before changing threading or tension settings?
  A: Take close-up “factory baseline” photos of the Ricoma MT-2002 threading and settings before touching anything.
  • Photograph the full upper thread path, especially how thread wraps around tension posts.
  • Photograph tension knob positions (the visible threads on the stud or knob reference position).
  • Photograph needle orientation as installed so there is a reset point if troubleshooting starts later.
  • Success check: The photos clearly show each guide/tension point and can be used to recreate the same path exactly.
  • If it still fails: Re-take photos with better lighting/closer focus before making adjustments—baseline documentation is the fastest way back to “known good.”
• Q: What stabilizer should be used first on a Ricoma MT-2002 to prevent puckering on T-shirts, woven shirts, and caps?
  A: Match fabric type to stabilizer before blaming the Ricoma MT-2002 for puckering.
  • Use cutaway (about 2.5oz minimum) for stretchy knits like T-shirts, polos, and hoodies.
  • Use tearaway for stable wovens like woven shirts, denim, and canvas.
  • Use cap backing (heavy tearaway) for hats and keep the sweatband clear of the sew area.
  • Success check: When hooped with stabilizer, the fabric feels taut and tapping it sounds like a dull drum “thud” without the weave looking overstretched.
  • If it still fails: Re-hoop and re-check stabilizer choice before changing machine settings—hooping/stabilizer errors often mimic “tension problems.”
• Q: How can Ricoma MT-2002 Gen 2 tubular hoops be confirmed as locked to prevent hoop slip or a crash?
  A: Treat the Ricoma MT-2002 Gen 2 hoop clip lock as a required “click-to-confirm” step every time.
  • Attach the hoop and listen/feel for a definitive click that confirms the metal clip mechanism is fully engaged.
  • Gently test for slide play before starting—if it slides without locking, stop and re-seat the hoop.
  • Standardize the attachment routine across both heads so one head is not “less locked” than the other.
  • Success check: The hoop does not shift when lightly tugged and the lock engagement is repeatable with a clear click.
  • If it still fails: Do not run the design—re-check the hoop seating and attachment points until the lock engages reliably.
• Q: When does upgrading to magnetic embroidery hoops make sense for a Ricoma MT-2002 to reduce hoop burn and speed production?
  A: Upgrade to magnetic embroidery hoops when traditional Ricoma MT-2002 tubular hooping forces over-tightening (hoop burn) or takes longer than about 2 minutes per item.
  • Diagnose the pain point: If fabric is slipping, operators often over-tighten; if wrists hurt, quality and consistency drop.
  • Try Level 1 first: Improve hooping technique and match stabilizer correctly to reduce flagging and bird-nesting.
  • Move to Level 2 tooling: Use magnetic hoops to clamp vertically and self-adjust to thickness for more consistent holding.
  • Success check: Hooping time drops and fabric holds taut without crushed fiber rings while stitching stays stable (less flagging).
  • If it still fails: Verify bracket compatibility and clamp security—an insecure mount or weak hold can still cause registration errors.
