Unboxing the SmartStitch S1501 Without Regrets: Stand Assembly, Safe Lifting, and a Rock-Solid Bolt-Down

The "Zero-Panic" Setup Guide: Unboxing & Mounting Your SmartStitch S1501 Like a 20-Year Veteran

A 15-needle commercial head landing in your home studio is a paradox: it is the most exciting day of your career, and simultaneously, the most terrifying. If you are staring at that crated beast and thinking, "I’m going to drop it, scratch it, or break a sensor before I even thread a needle," pause. Take a breath.

That fear is good. It means you respect the equipment.

As someone who has trained hundreds of operators, I know that the difference between a "hobbyist" setup and a "professional" installation isn't about physical strength—it's about leverage, order of operations, and knowing where the hidden risks live.

In this guide, we are rebuilding the standard setup flow. We aren’t just moving a machine; we are commissioning a production unit. I will walk you through the lifting, aligning, and bolting with the "sensory cues" that videos often miss—the sounds, feels, and visual checks that tell you the job is done right.

Unboxing the SmartStitch S1501: It’s Not Christmas, It’s a Safety Inspection

The video shows the machine arriving heavily protected, followed by the dramatic lifting of the thick plastic dust cover. It looks satisfying, but here is the reality: static-charged heavy plastic loves to grab tension knobs and thread break sensors.

When you remove that cover, do not yank it like a tablecloth trick.

The "Sensory" Unbagging Method:

1. Lift Vertical: Pull the plastic straight up, not back.
2. Listen: If you hear a "twang" or "snap," stop immediately. You may have snagged a thread guide or a tension spring.
3. The "Comb" Check: Once the bag is off, run your eyes down the thread tree and tension assemblies. Do the springs sit straight? Did a knob get bent in shipping?

Treat this moment as your first maintenance check. By verifying the condition of the smartstitch s1501 now, you establish a baseline for "normal." If something looks bent, photograph it immediately before moving the machine an inch.

Rule #18: "Limber Up" – The Physics of Moving 200 lbs Through a Doorway

The video captures a universal truth: moving a commercial machine through a residential doorway is a game of inches. With one person gripping the front base and another on the rear, you are navigating a 200 lb (approx. 90 kg) object that is top-heavy and wider than it looks.

"Limber Up" isn't a joke—it's safety protocol. A cold muscle tears; a warm muscle adapts. But beyond stretching, you need a flight plan.

Key Professional Modifications:

• The "Clear Path" Rule: Before you lift, walk the route. Remove the rug that slides. Move the doorstop. Ensure the rolling office chair is in another room.
• Establish a "Caller": The person walking backward commands the move. They say "Step," "Slow," or "Tilt." The person walking forward stays silent and listens.
• Watch the "Head" Clearance: The machine is tall. While watching your feet, don't forget the thread tree clearance at the top of the door frame.

Warning: CRUSH & PINCH HAZARD. A commercial embroidery head is heavy enough to crush bones. Never place fingers under the base to "scoot" it. Pick it up fully, or don't move it. Wear closed-toe shoes—dropping a machine on a sandal-clad foot is a career-ending injury.

Space Planning: The "Closet Door" Error & The Pantograph Swing

In the video, the machine lands on a table, only for the owners to realize it blocks a closet door. This is the single most common mistake in home studios: planning for the storage footprint, not the working footprint.

Unlike a domestic machine, commercial embroidery machines carry a large moving pantograph (the X-Y drive arm) that pushes backward and wide during stitching.

The "Production Zone" clearance test:

1. Rear Clearance: Can the pantograph move fully back (for hat embroidery or large jackets) without hitting the wall? You typically need 12-18 inches behind the machine.
2. Hooping Station: Can you stand to the left or right of the machine to load a garment without twisting your spine?
3. Maintenance Access: Can you roll the stand out to oil the rotary hook or change a bobbin without crawling?

If you place the machine in a corner, you are strangling your workflow. The machine needs to breathe.

The Hidden Prep: Tools, Lighting, and The "No-Drama" Bolt Plan

The transition from "let's move it" to "let's mount it" is where frustration usually sets in. You do not want to be holding a heavy machine while searching for a wrench.

Prep Checklist: The "Pre-Flight" Essentials

• Verify Hardware: Count your bolts and washers. Place them in a magnetic bowl or a designated tray, not loose on the floor.
• Lighting: This is the secret weapon. Place a headlamp or a phone flashlight on the floor pointing up at the stand's underside. You cannot align black metal holes against black metal slots in the dark.
• Kneeling Pad: You will be on your knees adjusting bolts. A gardener’s pad or a folded towel prevents you from rushing the job due to knee pain.
• Consumables on Hand: Have a rag and some machine oil ready. Sometimes shipping grease needs a quick wipe before assembly.


Lifting onto the Stand: Center Mass & Controlled Descent

The goal here is precision, not speed. When lifting the machine from the temporary table to the wheeled stand, your objective is to land the rubber feet as close to the mounting holes as possible on the first try.

The "Hover and Drop" Technique:

1. Lock the casters on the stand. Kick them twice to check.
2. Lift the machine directly up to clear the table.
3. Shuffle sideways until you are over the stand.
4. Pause. The "Caller" confirms alignment visually.
5. Lower slowly. Do not drop it. You should feel the rubber feet settle.

If you are new to a 15 needle embroidery machine, you will be surprised by the center of gravity—it is forward-heavy due to the needles/head. Compensate for this by keeping your grip firm and your stance wide.

The Alignment Ritual: The "Spotter" and The "Nudger"

This is the hardest part of the physical setup: lining up four threaded holes on the machine base with four slots on the stand. The video demonstrates the correct solution: brute force fails here; communication wins.

The Protocol:

• Person A (The Spotter): Lies on the floor looking up through the stand’s slots.
• Person B (The Nudger): Stands at the machine, hands on the base (not the control panel!).
• The Dialogue: "Rotate clockwise one inch." "Slide toward me one centimeter."

Sensory Check: As the Spotter, you are looking for "Daylight." You want to see the specific gleam of the threaded hole perfectly centered in the stand’s slot. If you can only see half a moon of thread, do not insert the bolt. You will strip the threads.

Why "Tiny Moves" Matter: Friction is your enemy. A 90 kg machine wants to stay put. If you shove it, it jumps. Use steady, increasing pressure until it slides just enough.

Bolting Down: The "Finger-Tight" Rule to Save Your Casting

The most expensive mistake you can make during assembly is cross-threading a mounting bolt. A steel bolt entering an aluminum casting at the wrong angle acts like a drill bit—it will destroy the threads instantly.

The "Soft Touch" Sequence:

1. Hand Start Only: Make the Spotter insert the bolt and twist it with fingers only.
2. The "Reverse Turn" Trick: Turn the bolt counter-clockwise (left) first until you feel a distinct "click." That is the threads dropping into alignment. Then turn right to tighten.
3. Resistance Check: If the bolt fights you, stop. Back it out. Re-align the machine. A bolt should spin freely for several turns.
4. Pattern Tightening: Once all four bolts are hand-tight, use the Allen wrench. Tighten in an X-pattern (Front-Left, Rear-Right, etc.) to seat the machine evenly.


Setup Checklist: Validation Before Power-Up

Your machine is mounted. You are sweating. But you aren't done. Use this checklist to confirm the physical integrity of your setup before you plug in a power cord.

Setup Checklist (Post-Mounting)

• The Rock Test: Grab the stand and give it a firm shake. The machine and stand should move as one solid unit. There should be no "clunking" sounds.
• Underside Clearance: Verify that all four bolts are tight and washers are compressed.
• Caster Locks: unlock the wheels, roll the unit to its final position, and re-lock them.
• Loop Check: Ensure the power cable and foot pedal cable are not pinched between the stand and the wall.
• Access: Can you freely walk around the machine to access the thread tree?
• Hydraulics: If your stand has adjustable height, ensure the locking pins are fully engaged.


Listening to Your Machine: The Sound of Stability

Why are we so obsessed with bolting it down? Because vibration is the enemy of stitch quality.

A loose single head embroidery machine will vibrate at high speeds (1000+ SPM). This vibration can cause:

1. False Thread Breaks: The sensors get shaken and trigger incorrectly.
2. Poor Registration: Outlines don't line up with fills.
3. Noise: A rattling machine causes operator fatigue.

Sensory Calibration: When you eventually run your first design, listen. A well-mounted machine makes a rhythmic "thump-thump-thump" sound. A poorly mounted machine makes a hollow, rattling "clack-clack-clack." Trust your ears.

Troubleshooting: When "Real Life" Happens

The video highlighted two common snags. Let's formalize the fix so you don't panic.

Decision Tree: Stabilizers, Hoops, and The Path to Profit

The setup is done. Now the real work begins. New owners often ask, “What settings should I use?” purely based on software. But embroidery is physics. It starts with how you hold the fabric.

The "Safe Start" Decision Tree:

• Scenario A: Rigid Fabric (Denim, Canvas, Twill)
  • Stabilizer: Tearaway (2 layers crossed).
  • Hoop: Standard plastic hoop.
  • Risk: Low. Good for your first test run.
• Scenario B: Stretchy Fabric (T-shirt, Polo)
  • Stabilizer: Cutaway (No exceptions). Use spray adhesive or magnetic checking to secure.
  • Hoop: Critical Point. Standard hoops can leave "hoop burn" (shiny marks) or stretch the fabric if tightened too much.
  • Pro Tip: This is where skill is tested. Do not pull the fabric like a drum skin—keep it neutral.
• Scenario C: Thick/Tubular Items (Jackets, Bags)
  • Stabilizer: Heavy Cutaway.
  • Hoop: Standard hoops often fail here; they pop off (the "bird's nest" nightmare).

This leads us to the most significant "Tool Upgrade" conversation you will have in your first year.

The "Natural" Upgrade: Why Magnetic Hoops Are a Production Necessity

Once your machine is bolted down, you will discover that the machine is fast, but you are slow. A 15-needle head finishes a logo in 5 minutes, but it might take you 5 minutes to hoop the next shirt perfectly.

If you struggle with:

1. Hand Pain: Wrists hurting from tightening hoop screws.
2. Hoop Burn: Permanent rings on delicate polos.
3. Slippage: Thick jackets popping out of the frame.

This is the commercial trigger point. Many operators using the smartstitch 1501 platform migrate to industrial magnetic frames (like the smartstitch mighty hoop ecosystem or similar generic magnetic options).

Why Upgrade? It is not about "being fancy." It is about grip consistency. Magnetic hoops clamp instantly with uniform pressure. They don't stretch the fabric, and they don't pop off. If you are doing a run of 50 shirts, a magnetic hoop turns a 4-hour job into a 3-hour job.

Warning: MAGNET SAFETY. Industrial magnetic hoops are incredibly powerful. They can pinch fingers severely (blood blister hazard). Keep them away from pacemakers, insulin pumps, and credit cards. Never leave them accessible to children.

Operation Checklist: Your "First Run" Rhythm

You are ready to stitch. Do not rush to the complicated jacket back. Start small.

Operation Checklist (Day 1 Routine)

• Re-Torque: After moving the stand to its final spot, check the bolts one last time. Vibration loosens metal.
• Thread Path: Ensure no thread cones are crossing or catching on the rack.
• Needle Check: Are the needles inserted correctly? (Scarf to the back).
• Lubrication: Add a drop of oil to the rotary hook raceway (consult your manual for the exact spot—usually every 4-8 hours of run time).
• Test Design: Run a simple block font name on a piece of felt or denim. Watch the tension. Listen to the sound.


The Finish Line: Stability is a System

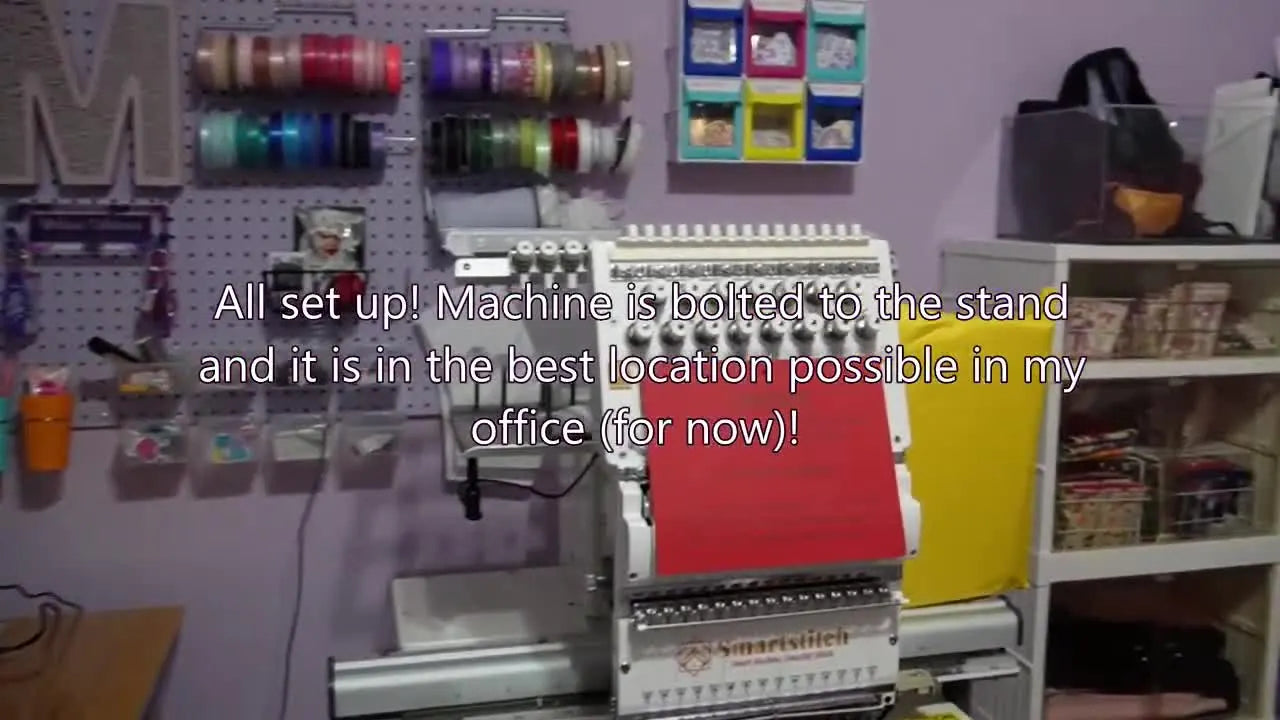

The video ends with a satisfying “All set up!” and a machine that looks ready for business. It is a great feeling. But remember: the machine is only one part of the system. The stand (stability), the hoop (holding), and the stabilizer (structure) are the other three legs of the table.

Your next steps for success:

1. Master the "Standard" Hoops first. Learn the feel of fabric tension.
2. Listen to your machine. Learn its happy sounds.
3. Identify Bottlenecks. If you find yourself dreading the hooping process, looking into mighty hoops for smartstitch embroidery machine or compatible magnetic frames is the logical professional step.

You have unboxed a beast. You have moved it safely. You have bolted it down with precision. Now, threaded properly and stabilized correctly, it is time to make it pay for itself.

FAQ

• Q: How do I remove the SmartStitch S1501 shipping plastic cover without snagging tension knobs or thread break sensors?
  A: Remove the plastic straight up and stop the moment any snagging sound happens—rushing this step is what bends small parts.
  • Lift vertical (up), not backward, so the plastic does not hook onto the thread tree or tension assemblies.
  • Listen for a “twang” or “snap,” then pause immediately and check for a caught spring or guide before continuing.
  • Inspect the thread tree and each tension assembly for anything sitting crooked or bent, and photograph any damage before moving the machine.
  • Success check: No snapping sounds during removal, and all tension springs/knobs look straight and symmetrical.
  • If it still fails… Cut the plastic away in smaller sections instead of pulling harder, and re-check every sensor area you passed.
• Q: How much clearance does a SmartStitch S1501 commercial embroidery machine need behind the pantograph to avoid hitting the wall during stitching?
  A: Plan for a real working footprint, not a storage footprint—leave about 12–18 inches of rear clearance so the pantograph can travel fully.
  • Measure the space behind the SmartStitch S1501, not just the table/stand size, before final placement.
  • Test full backward travel clearance (especially important for larger items like hats or jackets) before bolting down.
  • Ensure a hooping/loading lane on the left or right so garments can be loaded without twisting your body.
  • Success check: The pantograph can move fully back without touching the wall or furniture, and doors/closets can still open.
  • If it still fails… Relocate the stand now; stitching in a cramped spot often leads to bumped carriage movement and ruined garments.
• Q: What is the safest way to lift a 15-needle SmartStitch S1501 onto a wheeled stand without tipping or dropping the embroidery head?
  A: Use a controlled “hover and drop” with locked casters and one clear caller—precision matters more than speed.
  • Lock the stand casters and physically kick-check them before lifting so the stand does not roll away mid-lift.
  • Lift straight up to clear the table, shuffle sideways over the stand, then pause while the caller confirms alignment.
  • Lower slowly until the rubber feet “settle”—do not drop the machine onto the stand.
  • Success check: The machine lands without a bounce, and all feet sit flat with no rocking before bolting.
  • If it still fails… Reset and try again with smaller moves; forward-heavy balance is common on 15-needle heads, so widen stance and keep grips on the base (not the control panel).
• Q: How do I align SmartStitch S1501 base holes to the stand slots without stripping threads when the bolts won’t start?
  A: Do not force bolts—use a spotter to find “daylight,” then start every bolt by hand using the reverse-turn “click” method.
  • Assign roles: one person looks up through the stand slots (spotter) while the other makes tiny nudges at the base.
  • Center the threaded hole in the slot—if only a “half-moon” is visible, re-nudge before inserting any bolt.
  • Start bolts finger-tight only; turn counter-clockwise until a clear “click,” then tighten clockwise.
  • Success check: Each bolt spins freely for several turns by hand before any wrench is used.
  • If it still fails… Back out the bolt and re-align; resistance usually means cross-thread risk, and forcing it can damage the casting.
• Q: Why does the SmartStitch S1501 last mounting bolt not go in after three bolts are tightened on the stand?
  A: Loosen the other three bolts (do not remove them) so the machine can “relax,” then align the fourth hole and re-tighten in an X-pattern.
  • Loosen the three installed bolts just enough to allow slight movement.
  • Nudge the machine until the fourth hole lines up, then hand-start the fourth bolt.
  • Tighten all four bolts in an X-pattern to seat the base evenly.
  • Success check: All four bolts start by hand and tighten evenly, and the base sits flush with no twist.
  • If it still fails… Re-check that the stand casters are locked and the machine did not drift during tightening.
• Q: How do I tell if a SmartStitch S1501 single head embroidery machine is mounted stable enough to prevent vibration and false thread breaks?
  A: Use the rock test and the sound test—stability should feel solid and sound rhythmic, not hollow and rattly.
  • Shake the stand firmly; the machine and stand should move as one unit with no clunking.
  • Verify all four mounting bolts are tight and washers are compressed before powering up.
  • During the first test stitch, listen for a steady “thump-thump-thump,” not a loose “clack-clack-clack.”
  • Success check: No wobble when pushed, and stitching sounds consistent without rattling.
  • If it still fails… Level the stand using shims under caster wheels or adjust leveling feet (if equipped), because uneven floors often create wobble.
• Q: What is the safest way to handle industrial magnetic hoops used with the SmartStitch S1501 to avoid finger pinches and device interference?
  A: Treat industrial magnetic hoops as pinch hazards and keep them away from sensitive medical devices and cards—control the snap, don’t let it slam.
  • Separate and join the magnetic hoop parts with fingers kept out of the clamp path to avoid blood-blister pinches.
  • Store magnetic hoops away from children and keep them controlled on the work surface so they cannot jump together unexpectedly.
  • Keep magnetic hoops away from pacemakers, insulin pumps, and credit cards as a strict safety habit.
  • Success check: The hoop closes under control with no sudden snap onto fingers, and the fabric is clamped evenly.
  • If it still fails… Slow down and reposition hands before closing; if hand pain or repeated pinches continue, consider using a consistent handling routine and dedicated storage spot to prevent accidental contact.
