Delivery day feels like Christmas—right up until you realize a commercial embroidery crate is taller than your garage clearance, heavier than a compact car, and poses a genuine rigging challenge.
If you are unboxing a new multi-needle machine at home, your goal isn’t to "get it running fast." Your goal is to get it running correctly—without crush injuries, bent thread stands, or a first stitch-out that destroys your confidence.
This guide rebuilds the workflow of uncrating and commissioning, adding the veteran-level checks that manuals often skip. We will cover the specific sensory cues (what you should see, hear, and feel) to ensure your machine starts its life as a profit generator, not a repair project.
Delivery Day Reality Check: Moving a Freight Crate to Your Garage Without Panic
The video begins with the arrival of a freight truck and a forklift offloading a massive wooden crate. The immediate real-world issue is obvious: the crate is often too tall for standard residential garage doors, making positioning critical before you even crack the seal.
When that crate containing a holiauma 15 needle embroidery machine hits your driveway, you must treat this as a rigging operation, not a simple parcel delivery.
What the video shows (and what implies risk):
- The crate weighs significantly more than it looks (often 400+ lbs).
- It requires a pallet jack or a team of 3-4 people to move safely.
- The machine is bolted to the pallet structure, meaning it is top-heavy but anchored.
Warning: Physical Safety Hazard. Freight crates are held together with steel straps (which can slash like a razor when cut) and pressurized nails.
* Wear heavy leather gloves and closed-toe shoes.
* Keep children and pets inside.
* Never place fingers under the crate edge when lowering it.
* Do not cut metal banding until the crate is immobile and you are standing to the side.
Pro Tip (Logistics): Measure your garage door height minus the pallet height. If the crate is too tall, you must uncrate the machine in the driveway. Check the weather forecast; if rain is expected, have a tarp ready.
The “Tab-and-Panel” Uncrating Method: Opening the Crate Without Splintering
In the video, the crate is opened by prying up metal locking tabs along the edges using a flathead screwdriver and a hammer. This is the industry-standard "knock-down" crate design.
Do not use a crowbar to rip the wood panels apart. Violent prying creates shockwaves that can crack plastic machine covers or misalign the delicate tension base assembly.
The Safe Sequence:
- Locate the Tabs: Walk the perimeter and identify the metal tongues clamping the plywood.
- The "Pop" Sound: Insert a flathead screwdriver under the tab and twist. You should hear a metallic pop or ping as the tab releases. If you have to fight it, you are digging into the wood—adjust your angle.
- Lift Vertical: Tap the screwdriver handle with a hammer to straighten the tabs fully vertical (90 degrees).
- Remove the Lid First: Inspect for any loose accessories sitting on top before lifting the lid.
Expert "Why": These tabs allow the crate to be reused or re-secured if you find damage and need to refuse delivery. Destroying the crate eliminates your return shipping container.

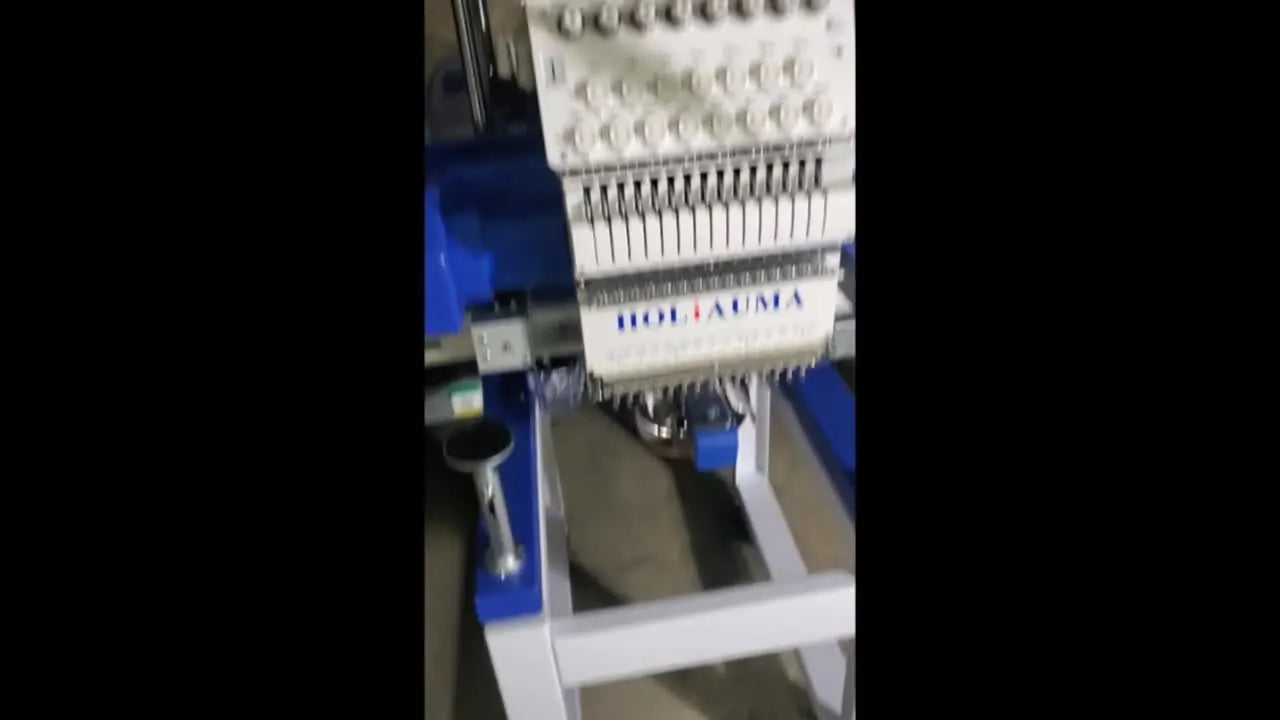

The First Look at the 15-Needle Head: What to Inspect While It’s Still Wrapped
The creator inspects the embroidery head through the plastic shrink wrap. He notes the cap driver is effectively pre-installed and a test cap is attached—a sign of factory verification.
Transitioning from home gear to a 15 needle embroidery machine can be intimidating. Use this moment to perform a "Plastic-On Inspection."
Sensory Inspection Checklist (Do this before cutting the wrap):
- Visual: Look at the thread stand guides. Are they bent? Look at the plastic housing around the control panel. Any stress cracks?
- Tactile: Gently wiggle the tension knobs through the plastic. They should feel firm, not loose or rattling on their posts.
- Check the Needle Bar: Ensure the needles are parallel. A bent needle bar cluster indicates the crate was dropped.
Hidden Trap: Do not use a box cutter to slice the shrink wrap off the head. One slip can sever the tension springs or scratch the touch screen. Use blunt-nose snips or unwind the plastic by hand.
The “It’s Bolted Down” Moment: Why the Machine Won’t Lift Out
The video explicitly notes the machine is bolted to the pallet frame and "not coming out tonight." Commercial machines are anchored to the crate floor to prevent tipping during ocean transit.
The Protocol:
- Locate the Anchor Bolts: These are usually under the machine's rubber feet or securing the metal stand to the wood.
- Unbolt: You need a socket wrench set. Do not use pliers; you will strip the bolt heads.
- The Lift: Do not lift by the embroidery head or the thread stand. These are not structural. Lift only by the solid metal casting under the base.
Business Reality: The creator needed neighbors to help lift. If you plan to scale your business, consider upgrading to a machine setup with heavy-duty casters or buying a hydraulic lift table to save your back.
The Hidden Prep Nobody Wants to Do: Inventory Every Accessory First
The video shows boxes tucked into crate crevices: power cords, bobbin winders, and toolboxes. The creator later admits, "I gotta thread the whole thing."
The Golden Rule of Prep: Do not turn the machine on until you have accounted for every bolt, hoop, and screw. Missing a specific metric screw for the stand assembly will halt your setup for days.
Prep Checklist (The "Missing Items" Scan)
- Power Cord: Verify the plug shape matches your wall outlet. Commercial machines sometimes ship with different regional plugs.
- Hoop Brackets: Locate the two metal arms that attach hoops to the pantograph. These are often wrapped separately in brown paper and thrown away by accident.
- Spare Parts Bag: Look for extra reciprocators, screws, and rubber dampers. Put these in a labeled jar immediately.
-
Hidden Consumables: Most crates do not include these essentials. Ensure you have:
- Machine Oil (Clear sewing machine oil).
- Applicator Pen or needle-nose oiler.
- Temporary Adhesive Spray (e.g., 505).
- Curved-tip Tweezers (for threading).
The Included Tool Kit: What You Got vs. What You Need
The creator opens the zippered tool case containing blue-handled screwdrivers, wrenches, and snips. While sufficient for assembly, they are rarely ergonomic for daily production.
Level 2 Tool Upgrade: To reduce frustration during maintenance, add these to your shop immediately:
- Headlamp: You cannot thread needles 10 through 15 without direct light.
- Long-Neck Magnetic Pickup Tool: You will drop a needle screw into the needle plate. This tool retrieves it.
-
High-Quality Thread Snips: The enclosed scissors illustrate a basic cutting edge. Dull scissors fray thread, making it impossible to thread the needle eye.
Lula Tubular Hoops Unboxed: The "Hooping Trap" That Kills Profit
The video reveals a box of standard tubular hoops (green and blue distinct sizes). The creator counts them out.
For new owners, mastering hooping for embroidery machine tasks is the single biggest barrier to profit. Standard tubular hoops require significant hand strength and precise tension adjustment for every new garment thickness.
The Physics of Failure: If you pull the fabric "drum tight" (a common myth), the fabric stretches. When you un-hoop, the fabric relaxes, and your design puckers. If it's too loose, you get registration errors.
Decision Tree: Fabric vs. Stabilizer Strategy
Stop guessing. Use this logic flow:
-
Is the fabric stretchy? (T-shirts, Performance Wear)
- Yes: Cutaway Stabilizer (2.5oz - 3oz). No exceptions.
- Why: The fabric structure cannot support the stitches; the backing must become the structure.
-
Is the fabric stable? (Denim, Canvas, Twill)
- Yes: Tearaway Stabilizer (medium weight).
- Why: The fabric is strong enough; the backing simply prevents shifting.
-
Is the fabric textured? (Terry cloth, Fleece, Pique Polo)
- Answer: Add Water Soluble Topping (Solvy) on top.
- Why: Prevents stitches from sinking into the pile.
Upgrade Path: Solving the Hoop Burn Pain
- Trigger: You notice "hoop burn" (shiny rings) on dark fabrics, or your wrists hurt after hooping 20 shirts.
- Criteria: If hooping takes you longer than 2 minutes per shirt.
-
Options:
- Level 1: Loosen the outer ring slightly and use more spray adhesive.
- Level 2 (Tool Upgrade): Switch to Magnetic Hoops. These self-adjust to fabric thickness, eliminate hoop burn, and clamp instantly.
- Level 3 (Scale): For industrial use, SEWTECH Magnetic Hoops (compatible with these multi-needle machines) allow for rapid, repeatable production without manual screw tightening.
Warning: Magnet Safety Hazard.
Rare-earth magnets in commercial hoops are incredibly powerful.
* Pinch Hazard: Do not put fingers between the magnet and the frame; it can break skin.
* Pacemakers: Keep magnetic hoops at least 6 inches away from cardiac devices.
The External Bobbin Winder: Tension is Everything
The video highlights the standalone bobbin winder. The creator notes its use for color-matching bobbins to top thread—a valid technique for free-standing lace or reversible items.
The "Spider Scale" Test: Most external winders run too fast and too loose out of the box.
- Sensory Check: Squeeze a wound bobbin. It should feel like a rock, not a sponge. If it's spongy, the thread will snag.
-
The Drop Test: Hold the bobbin by the thread tail. It should hang. If you jerk it gently, a few inches of thread should release. If it unspools uncontrollably, it's too loose. If it won't drop at all, it's too tight.
HoliAuma vs. a 2006 SWF: The Maintenance Reality
The video compares the new machine to an older SWF workhorse. The creator intends to keep using the SWF because he knows it inside out.
For users familiar with a swf machine, the transition usually involves learning a new interface but similar mechanics. The pivotal factor isn't the brand badge—it's parts availability.
Expert Advice: Before you run your business on this new machine, locate the "Emergency Kit" suppliers. Who sells the rotary hook? Who sells the needle bar reciprocator? If you can't find these parts online today, you have a vulnerability.
First Power-On Anxiety: The "Pre-Flight" Check
The creator admits hesitation: "I don't even know if I should turn it on yet." This is a healthy fear.
When upgrading your single head embroidery machine setup to a multi-needle beast, do not rush to hit "Start."
Setup Checklist (The "Do Not Explode" Check)
- Oil the Hook: Commercial machines generally require one drop of oil on the rotary hook raceway every 4 hours of operation. Do this first.
- Clear the Path: Ensure the pantograph (the moving arm) has 2 feet of clearance on all sides. It moves fast and hits hard.
- Thread Tree: Thread one needle completely. Pull the thread at the needle eye. You should feel smooth, consistent resistance (like flossing teeth), not jerky snags.
-
Voltage: Confirm your shop/home voltage matches the machine label (110V vs 220V).
Test Stitch Footage: Analyzing the Sound
The video ends with the machine stitching a colorful "H".
What to Listen For (Sensory Diagnostics):
- Good Sound: A rhythmic, dull thump-thump-thump. This is the sound of the needle penetrating correctly.
-
Bad Sound: A sharp clack-clack or metallic ping.
- Clack: Often means the hook timing is slightly off or the needle is hitting the hoop.
- Ping: The needle is deflecting off the needle plate hole (check for bent needles).
Beginner Speed Limit: The machine can do 1000+ SPM (Stitches Per Minute). Do not run your first tests at max speed. Set it to 600-700 SPM. This is the "Sweet Spot" for observing thread behavior and catching errors before they cause damage.
The Advanced Test Stitch: Preventing the "Flagging" Effect
The video moves to a complex floral design on blue fabric.
Common Issue: Flagging. This occurs when the fabric lifts up with the needle on the up-stroke because it's not held down firmly enough. This causes bird nests (tangled thread) underneath.
How to Spot It: Watch the fabric around the needle foot. If it bounces up and down like a trampoline, your stabilization is too weak or your hoop is too loose.
Commercial Pivot: If you cannot stop the fabric from bouncing despite tight hooping, your tools are limiting you.
- Action: Upgrade to Magnetic Hoops (such as SEWTECH frames). The continuous magnetic grip eliminates the "gaps" in tension that screw-tightened hoops create, solving the flagging issue instantly on difficult fabrics.
-
Scale: If your volume increases to hundreds of logos a week, consider that SEWTECH Multi-Needle Machines are designed with reinforced pantographs specifically to handle the drag and weight of continuous heavy hooping production.
Cap Driver + Factory Test Cap: The Ultimate Stress Test
The video shows a black cap pre-sewn in the crate.
If you are trying to setup your cap hoop for embroidery machine hardware, understand that hats are the hardest item to sew.
The "Two-Finger" Rule for Caps: Once the cap is on the driver, push on the front seam with two fingers. If the cap buckles or slides, it is too loose. It must be rigid.
- Adjustment: Tighten the cap strap buckle/band until you physically struggle to latch it. It needs to be tighter than a human head.
Real Talk: Do not sell caps to customers until you have ruined at least 10 practice hats. The learning curve is steep.
Importing & The Hidden Costs of "Direct Buy"
The comments discuss the price (approx. $6500) including ISF and import fees.
The Budget Reality: Purchasing direct from overseas offers savings but demands logistics management.
- Port vs. Door: "Free shipping" often means "Free to the Port." You are responsible for the "Last Mile" trucking, which can cost $300-$800.
-
Customs Broker: You legally need a broker to file the ISF paperwork before the ship leaves China. Failure to file results in a $5,000+ fine.
Conclusion: Turning a Crate into a Business
The creator’s journey from unboxing to first stitch is a microcosm of the embroidery business: 80% preparation, 20% execution.
Your bottleneck will almost never be the stitching speed of the machine. Your bottleneck will be how fast you can hoop and how quickly you can solve a thread break.
Operation Checklist (The Daily Habit)
- Oil: One drop on the hook.
- Thread Check: Check the thread path for lint buildup at the tension disks.
- Needle Check: Run your fingernail down the needle tip. If it catches, throw the needle away. A $0.20 burred needle causes $20 ruins.
- Hoop Integrity: Check that your initial hoop/magnet choice is secure.
- Test Sew: Always run a 2-inch test swatch on scrap fabric before touching the customer's expensive jacket.
Treat this machine with the respect a 400lb industrial tool deserves, upgrade your ancillary tools (lights, magnetic hoops, oils) to professional standards, and the machine will pay for itself. Treat it like a toy, and it will become an expensive coat rack.
FAQ
-
Q: What uncrating safety steps should be followed when cutting steel banding on a commercial multi-needle embroidery machine freight crate?
A: Treat the steel banding like a spring-loaded blade and only cut it when the crate is fully stable.- Wear heavy leather gloves and closed-toe shoes, and keep children/pets away.
- Position the crate so it cannot shift, then stand to the side before cutting the straps.
- Open the crate using the locking tabs (flathead screwdriver + hammer) instead of ripping panels to avoid shock damage.
- Success check: The banding releases without whipping, and the crate does not move when tension is released.
- If it still fails… stop and get help from the freight driver or additional adults; do not improvise with unstable leverage.
-
Q: How should the “tab-and-panel” knock-down crate be opened to avoid damaging a new multi-needle embroidery machine control panel and tension assembly?
A: Release the metal locking tabs cleanly instead of prying the wood apart with force.- Walk the perimeter and locate every metal tab before removing any panel.
- Insert a flathead screwdriver under each tab and twist for a metallic “pop,” then tap the tab to 90° upright with a hammer.
- Remove the lid first and check for loose accessories sitting on top before lifting anything.
- Success check: Tabs release with a clear metallic pop/ping and panels lift off without splintering or violent flexing.
- If it still fails… change the screwdriver angle; if the tool is digging into wood, the tab is not being lifted correctly.
-
Q: What inspections should be performed on a new multi-needle embroidery machine while the head is still shrink-wrapped to catch shipping damage early?
A: Do a “plastic-on inspection” before cutting any wrap so shipping damage is documented and nothing gets scratched.- Visually check thread stand guides for bends and look for stress cracks around the control panel housing.
- Gently wiggle tension knobs through the plastic; they should feel firm, not loose or rattly.
- Check that needles look parallel; a visibly skewed cluster can indicate impact during transit.
- Success check: No bent guides, no cracks, and the tension controls feel solid through the wrap.
- If it still fails… pause uncrating and document immediately; avoid cutting wrap with a box cutter—use blunt-nose snips or unwrap by hand.
-
Q: What accessories and consumables should be inventoried before first power-on of a new multi-needle embroidery machine to prevent setup delays?
A: Do not power on until every included part is accounted for and basic consumables are ready.- Locate power cords, hoop brackets (the two metal arms), the spare parts bag (screws/dampers/reciprocators), bobbin winder, and tool kit—crates often hide items in crevices.
- Confirm the plug type matches the wall outlet before planning a first run.
- Stage essentials that may not be included: clear machine oil + applicator, temporary adhesive spray (e.g., 505), and curved-tip tweezers for threading.
- Success check: All critical hardware is found and staged, and nothing needed for assembly is “missing” mid-build.
- If it still fails… re-check brown paper wrapping and crate corners; small parts are commonly mistaken for packing and thrown away.
-
Q: How can embroidery hooping tension be chosen to prevent puckering, registration errors, and hoop burn when using standard tubular hoops on garments?
A: Avoid “drum-tight” hooping; stabilize correctly and aim for secure hold without stretching the fabric.- Match stabilizer to fabric: cutaway for stretchy garments, tearaway for stable fabrics, and add water-soluble topping for textured fabrics.
- Reduce hoop burn risk by loosening the outer ring slightly and using more temporary adhesive spray to control shifting.
- Keep the goal as “held flat, not stretched,” especially on knits that relax after un-hooping.
- Success check: After un-hooping, the design stays flat without puckering, and no shiny rings appear on dark fabric.
- If it still fails… move to a tool upgrade: magnetic hoops often clamp evenly across thickness changes and can reduce hoop burn and repeatability issues.
-
Q: How can flagging (fabric bouncing) be diagnosed during a multi-needle embroidery machine test stitch to prevent bird nests underneath?
A: Watch the fabric at the needle; if it lifts like a trampoline, improve hold-down and stabilization before increasing speed.- Observe the area around the presser foot during stitching; flagging shows as visible up-down fabric motion on the up-stroke.
- Tighten the hooping method and strengthen stabilization when the fabric is not being held firmly enough.
- Consider a magnetic hoop if screw-tightened hoops leave uneven grip that allows bouncing on difficult fabrics.
- Success check: Fabric stays flat under the foot with minimal bounce, and the underside remains clean without tangled nests.
- If it still fails… stop the run and reassess hoop security and backing choice; do not continue at high speed while nesting is forming.
-
Q: What bobbin tension checks should be used on an external embroidery bobbin winder to prevent snagging and unstable stitch formation?
A: Wind bobbins firmly and verify with a squeeze test and a controlled drop test before sewing.- Squeeze the wound bobbin; it should feel like a rock, not a sponge.
- Perform the drop test: hold by the thread tail; a gentle jerk should release a few inches—not a free-spool and not completely locked.
- Re-wind if the bobbin feels soft or if the thread dumps off uncontrollably.
- Success check: The bobbin is firm to the touch and releases thread in a controlled way during the drop test.
- If it still fails… slow down and re-check winder tension settings; many winders run too fast and too loose out of the box.
-
Q: What magnetic hoop safety rules should be followed to avoid pinch injuries and pacemaker risks when using rare-earth magnetic embroidery frames?
A: Keep fingers clear during closure and keep magnetic hoops away from cardiac devices.- Keep hands out of the gap when bringing the magnet to the frame; magnets can clamp instantly and break skin.
- Place the hoop on a stable surface before separating or re-attaching magnets to prevent sudden snapping.
- Keep magnetic hoops at least 6 inches away from pacemakers and similar medical devices.
- Success check: The hoop closes without any finger contact in the pinch zone and the magnet seats cleanly without snapping onto tools or hardware nearby.
- If it still fails… change handling technique—set one side first and lower the magnet slowly; do not “drop” the magnet into place.
