The Definitive Guide to Setting Up Your 10-Needle Embroidery Machine: From Unboxing to Production Ready

Author: Chief Embroidery Education Officer Reading Time: 12 Minutes Difficulty: Intermediate (Professional Focus)

A brand-new multi-needle machine can feel intimidating—especially when it’s a heavy, vibration-prone 10-needle head sitting on a stand for the first time. If you are staring at a sea of blue tape, cardboard, a yellow warning tag, and a mysterious red bracket, take a breath.

As someone who has trained operators on shop floors for two decades, I can tell you this: The machine is not the variable; you are. Nothing in this setup process is technically "hard," but several steps are absolutely non-negotiable. Missing a detail here doesn't just mean a failed stitch; it means potential damage to the pantograph, lost hardware, or a stressful service trip later.

This white paper walks you through the unboxing-and-setup flow for the Baby Lock Venture 10-needle (architecture shared by similar Brother 10-needle models). I will add the "Shop Floor Protocols"—the hidden checkpoints experienced owners use to guarantee stability and longevity—because the machine doesn’t care if you’re a beginner, but your wallet definitely will.

Phase 1: The Foundation – Locking the Head to the Stand

The first move is simple physics: get the machine onto a firm, stable table designed for the weight (approx. 90-100 lbs) and the high-frequency vibration of operating at 1,000 stitches per minute (SPM). In professional setups, the machine is placed on a dedicated stand with shelves and side hooks for frames. Note the front cutout on the table—this is critical for tubular embroidery (finished caps, tote bags) allowing the item to hang freely.

Time Estimate: 45–60 minutes for stand assembly (first time) / 10 minutes for machine placement.

The Procedure: Anchoring the Beast

1. Lift and Position: This is a two-person lift. Place the machine feet into the designated recesses on the table top.
2. Engage the Locking Latches: You are looking for two specific anchor points—one on the front right and one on the back left.
3. The Sensory Check: These latches clamp the machine legs to the table. You should feel a distinct resistance as the latch closes, followed by a mechanical "lock" feeling.

The "Shop Floor" Wiggle Test

This isn’t just "nice to have." A multi-needle head produces enough torque that an unsecured setup will creep across the surface over time.

• Action: After latching, place one hand firmly on the machine bed (not the plastic casing) and give it a firm shake.
• Success Metric: The machine and table should move as a single solid unit. If the machine rocks independently of the table, your latches are not seated, or the feet are not leveled.

Warning: Physical Safety Hazard
This machine is top-heavy and dense. When positioning it on the stand, keep fingers clear of "pinch points" between the rubber feet and the table surface. Never attempt to "catch" a falling machine—reset your grip and lift with your knees, not your back.

Prep Checklist (Before you touch a screwdriver)

• Stability: The stand is assembled, sitting on a level floor, and does not wobble.
• Anchors: Locking latches are engaged (front right, back left) and passed the "Wiggle Test."
• Parts Management: A Ziploc bag is labeled "Transport Hardware" and taped to the stand (do not skip this).
• Tools: The included screwdriver and coin/disc tool are within arm's reach.
• Access: You have clear clearance behind the machine (at least 2 feet) to access rear screws.


Phase 2: Internal Safety – The "Red Bracket" Protocol

Before you remove any brackets or swing any arms, strip the visible packaging: blue tape, cardboard spacers, and the accessory box secured during shipping.

That yellow warning tag hanging near the screen isn’t decoration—it is a mandatory "contract" between you and the manufacturer. It states that the machine is currently physically locked to prevent damage.

The Rookie Error: New owners often get excited, toss these "extra metal pieces," and later discover those parts are required for safe transport to service. Without them, a simple car ride to the repair shop can knock your needle bars out of alignment.

Removing the Red Transport Brackets

This is the most critical disassembly step. These brackets lock the 10-needle head to the main chassis.

What you are looking for:

• Red metal brackets mounted on the needle bar case.
• A metal tab that hooks inside the machine head (pay attention to this geometry).


The Removal Protocol:

1. The Unscrew: Use the specific screwdriver provided. Turn counter-clockwise.
2. The Extraction: Pull the bracket away gently. Sensory Cue: You will feel it unhook from the internal chassis. Do not yank it; effortless removal indicates you have the right angle.
3. The Archive: Immediately place the screws and the brackets into your labeled Ziploc bag.


Why this matters (The "Why"):

If you are setting up a brother 10 needle embroidery machine or similar platform in a shared workspace, labeling that baggie is vital. If you accidentally power on the machine with these brackets still attached, you risk burning out the stepper motors that drive the X/Y movement or stripping the needle bar drive gears.

Warning: Protect the Technician
Use the screwdriver with control—do not slip near the needle area or strike painted surfaces. A stripped screw head here is a nightmare to drill out later.

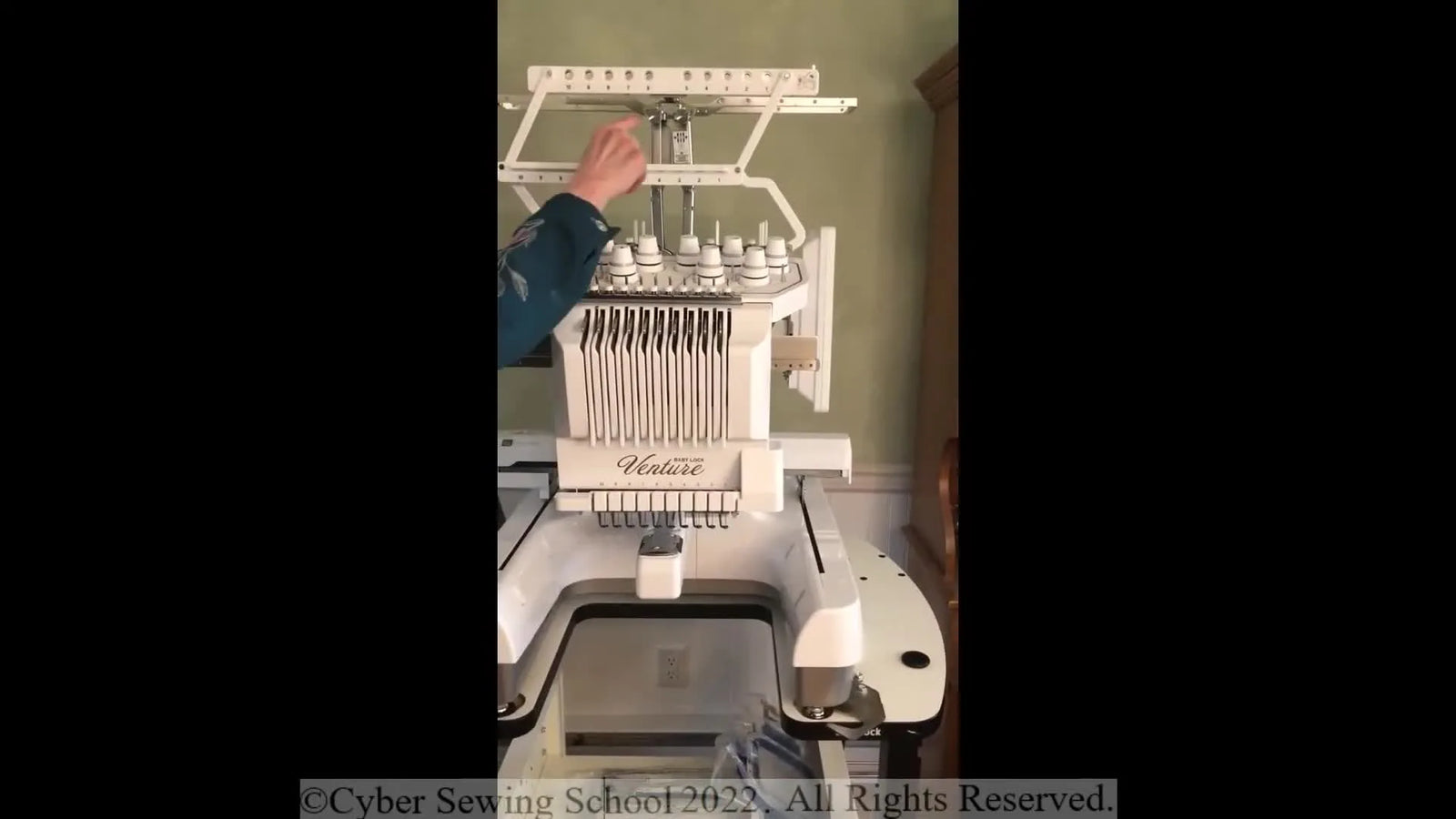

Phase 3: The Feed Path – Telescopic Thread Stand

Next, we establish the thread path geometry. The telescopic thread stand must be fully extended to ensure the thread flows off the cone without drag.

The Problem with "Good Enough"

If this stand is not fully locked, it can slowly collapse or tilt due to vibration. A collapsed stand changes the angle of entry into the tension disks.

• Result: Variable tension, thread breaks, and looping.


The Setup:

1. Lift: Pull the telescopic rod structure upward.
2. Align: Locate the locking pins on the vertical rods relative to the holes in the mounting bracket.
3. The Snap: Press until it snaps into place.
   • Sensory Anchor: Listen for a sharp, metallic "click." If it feels mushy, it is not seated.
4. Secure: Tighten the locking collar screws at the top of the center pole to keep the tree fully extended.




Expert Insight: A thread stand that creeps downward is a silent killer of stitch quality. If you troubleshoot "tight tension" issues later, check this stand first. If you are new to a baby lock 10 needle embroidery machine, this is the first place to prevent "mystery tension" frustration.

Phase 4: Ergonomics & Workspace – Screen and Guides

We now move to the back of the machine to adjust the Human-Machine Interface (HMI) and the spool staging area.

1. Screen Arm Configuration

• Action: Loosen the hinge screws, swing the arm forward to your operating position.
• Calibration: Re-tighten the screws, but do not over-torque.
• Sensory Anchor: Tighten until you feel resistance, then add a 1/4 turn. You want the screen stable, but adjustable if you change standing positions.


2. Rear Thread Guide Platforms

• Action: Loosen the locking screw, swing the platforms outward to create a wide "V" shape.
• Why: This spacing separates the thread cones, preventing "thread kissing" (where strands tangle between cones) during high-speed operation.


Phase 5: Vibration Damping – The "Hidden" Component

Near the end of setup, you may find a loose black plastic disc on the table. Do not throw this away.

The Physics of Resonance

This is a vibration/noise dampening pad. It belongs under the height-adjustable feet of the machine.

• Action: Tilt the heavy machine head slightly backward (requires strength) to lift the front feet. Slide the disc underneath.
• Benefit: It decouples the machine's frequency from the table, reducing noise and preventing the "walking" phenomenon.


If you plan to add heavy accessories like hooping stations later, getting this base stability right is prerequisite No. 1.

Phase 6: Commercial Upgrade Logic – From "Setup" to "Workflow"

Once the machine is physically set up, the hardware is ready. But are you ready? The bottleneck in embroidery is rarely the machine's stitching speed (1000 SPM); it is the operator's Hooping Cycle Time.

A common mistake for new owners is to rely solely on the standard plastic hoops provided. While functional, they are the primary cause of "Hoop Burn" (permanent rings on fabric) and operator fatigue (Carpal Tunnel symptoms).

When to Upgrade: The Diagnosis

Use this logic to determine if you need to upgrade your tools immediately or later.

Scenario A: The "Hoop Burn" Struggle

• Trigger: You are embroidering on delicate performance wear, velvet, or dark pique knits.
• Symptoms: Ring marks that won't steam out; fabric sliding during stitching.
• The Upgrade: A magnetic embroidery hoop.
• Why: Magnetic hoops use vertical magnetic force rather than friction to hold fabric. This eliminates ring marks and holds slippery fabrics securely without over-stretching them.

Scenario B: The Production Bottleneck

• Trigger: You have an order for 50 left-chest logos.
• Symptoms: You spend 3 minutes hooping for a 2-minute stitch file. Your machine is sitting idle.
• The Upgrade: A second set of hoops or a specialized magnetic hoop for brother compatible frame.
• Why: Reduced strain on wrists means you can maintain speed for hours. Magnetic frames allow you to "slap and go," cutting hooping time by 40-50%.

Scenario C: Scaling for Profit

• Trigger: You are turning away orders because you cannot stitch fast enough with one head.
• Symptoms: You are working until 2 AM.
• The Upgrade: This is the pivot point where businesses move from "craft" to "scale." Considerations for a second multi-needle machine (like the high-ROI SEWTECH multi-needle machines) become a financial necessity to double throughput without doubling labor.

The Decision Tree: Fabric vs. Stabilizer vs. Hoop

New users struggle here. Use this simplified decision matrix for your first test runs:

Warning: Magnetic Field Safety
Professional magnetic hoops contain Neodymium magnets. They are incredibly powerful.
1. Medical Device Risk: Keep at least 6 inches away from pacemakers.
2. Pinch Hazard: When snapping hoops together, keep fingers clear. The magnets will snap shut with force capable of causing blood blisters.

Phase 7: The "Missing" Consumables

Your machine comes with the basics, but it lacks the "Secret Sauce" of professional shops. Before you start your first project, ensure you have:

1. 75/11 Ballpoint Needles: The machine likely comes with sharps. For knits (t-shirts), you must use ballpoints to avoid cutting holes.
2. Temporary Spray Adhesive (e.g., 505): Essential for floating fabric or securing backing.
3. Curved Embroidery Scissors: For snipping jump threads cleanly.
4. Tension Gauge: Eventually, you will need to learn to set tension numerically (usually 100g-120g for top thread).
5. Stabilizer "Library": Do not buy just one roll. Buy a starter pack of Cut-away, Tear-away, and Water Soluble Topping.

Quick Answers: The "Day 2" Questions

Q: How do I enlarge a monogram letter?

• A: Be careful. If you enlarge a letter by more than 20% on the screen, the density drops (stitches get too far apart). It is better to resize in digitizing software that recalculates the stitch count.

Q: Which magnetic hoop fits my machine?

• A: Compatibility is based on the arm width. Owners frequently search for specific babylock magnetic hoop sizes like 5x5 or 8x13. Always verify the connector type matches your specific 10-needle model arm.

Q: What speed should I run?

• A: The machine can do 1000 SPM. Do not do this yet. Set your speed to 600-700 SPM for the first 10 hours of operation. Break in the machine, let the grease distribute, and give yourself reaction time to hit "Stop" if something sounds wrong.

Operation Checklist: The "Go/No-Go" Flight Check

Before you press the start button for the very first time, pass this final audit:

• Structural: Machine is seated; latches engaged; standard "Wiggle Test" passed.
• Shipping locks: All red brackets and screws are removed and stored in the labeled bag.
• Geometry: Thread stand is fully telescoped and clicked; thread guides formed into a "V".
• Dampening: Vibration pads are under the feet.
• Clearance: X/Y carriage arm enters the machine clearance zone without hitting walls or clutter.
• Safety: You are wearing closed-toe shoes (dropping a hoop on a toe hurts).

Congratulations. You haven't just unboxed a machine; you've commissioned a workstation. You have eliminated the mechanical variables. Now, the art begins.

FAQ

• Q: How do I confirm the locking latches on a Baby Lock Venture 10-needle (Brother-style 10-needle platform) are seated correctly on the stand so the machine does not “walk” during stitching?
  A: Lock both latches (front right and back left) and pass the firm “Wiggle Test” before powering on.
  • Engage: Close the front-right latch and the back-left latch until they feel mechanically locked.
  • Shake: Place a hand on the metal machine bed (not the plastic cover) and give a firm shake.
  • Success check: The machine and stand move as one solid unit with no independent rocking at the feet.
  • If it still fails: Re-seat the rubber feet into the stand recesses and re-latch; confirm the stand itself is level and not wobbling.
• Q: What should I do if a Baby Lock Venture 10-needle embroidery machine still has red transport brackets installed and I am tempted to turn the power on?
  A: Do not power on the Baby Lock Venture 10-needle until every red transport bracket and its screws are removed and saved.
  • Locate: Find the red metal brackets on the needle bar case and identify the hooked tab that sits inside the head.
  • Remove: Unscrew counter-clockwise and pull the bracket out gently so it unhooks at the correct angle (do not yank).
  • Success check: No red brackets remain on the head, and all removed brackets/screws are stored together in a labeled bag for future transport/service.
  • If it still fails: Stop and re-check for any remaining shipping tape/cardboard spacers and review the yellow warning tag instructions before attempting power-up.
• Q: How do I stop thread breaks and looping caused by a collapsing telescopic thread stand on a Baby Lock Venture 10-needle embroidery machine?
  A: Fully extend and lock the telescopic thread stand so it cannot creep down under vibration.
  • Lift: Pull the telescopic rod structure upward to full height.
  • Seat: Align the locking pins with the holes and press until it snaps into place.
  • Tighten: Secure the locking collar screws at the top of the center pole.
  • Success check: A sharp metallic “click” is heard/felt during seating, and the stand stays fully extended after the machine vibrates.
  • If it still fails: Re-seat the pins (a “mushy” feel usually means it is not locked) and re-check thread path angle into the tension area.
• Q: How should the rear thread guide platforms be positioned on a Baby Lock Venture 10-needle embroidery machine to prevent “thread kissing” between cones at high speed?
  A: Swing the rear thread guide platforms outward into a wide “V” so thread cones are separated.
  • Loosen: Back off the locking screw on each platform.
  • Spread: Swing both platforms outward evenly to create a wide V shape.
  • Re-tighten: Tighten only to firm resistance (avoid over-torquing hardware).
  • Success check: Thread paths do not touch or tangle between neighboring cones while running.
  • If it still fails: Reduce operating speed temporarily and re-check cone spacing and thread routing consistency across all needles.
• Q: Where does the loose black plastic disc go during Baby Lock Venture 10-needle setup, and what problem does it prevent?
  A: Place the black disc under the height-adjustable feet as a vibration/noise dampening pad to reduce “walking.”
  • Identify: Treat the disc as a required component, not packing material.
  • Install: Carefully tilt the machine head enough to lift the front feet and slide the disc underneath (use safe lifting and keep fingers clear).
  • Repeat: Ensure the pad is correctly positioned under the intended foot area before lowering the machine back down.
  • Success check: The machine runs with less noise/vibration transfer and is less likely to creep across the table over time.
  • If it still fails: Re-check that the locking latches are engaged and the stand is stable on a level floor.
• Q: What is a safe starting speed for the first 10 hours on a Baby Lock Venture 10-needle embroidery machine, and why should I avoid 1000 SPM at the beginning?
  A: Start at 600–700 SPM for the first 10 hours to break in the machine and give yourself reaction time.
  • Set: Choose 600–700 SPM for early runs, even though the machine is capable of 1000 SPM.
  • Listen: Pay attention to any unusual sounds so you can stop quickly if something is off.
  • Ramp: Increase speed only after you are confident the setup is stable and operation feels predictable.
  • Success check: The machine runs smoothly without “surprise” noises and you feel you can reach Stop in time during a problem.
  • If it still fails: Re-audit the go/no-go checklist items (shipping locks removed, thread stand locked, guides in a V, dampening pads installed).
• Q: When should an operator upgrade from standard plastic hoops to magnetic embroidery hoops on a Baby Lock Venture 10-needle embroidery machine to reduce hoop burn and improve production workflow?
  A: Upgrade to magnetic embroidery hoops when hoop burn, fabric shifting, or hooping time becomes the bottleneck; start with technique first, then tools, then capacity.
  • Level 1 (Technique): Match stabilizer to fabric type and avoid over-tightening/over-stretching delicate or knit fabrics.
  • Level 2 (Tool): Use magnetic hoops for delicate/performance fabrics to reduce ring marks and for repetitive left-chest work to cut hooping time.
  • Level 3 (Capacity): If orders outgrow one head’s output and you are working excessively late, consider adding another multi-needle machine as the next step.
  • Success check: Hoop marks are reduced, fabric holds securely without slipping, and hooping time no longer exceeds stitch time on repeat jobs.
  • If it still fails: Add a second set of hoops to keep the machine running while you prep the next garment, and reassess stabilizer choice for the fabric category (woven/knit/delicate).
