Ultimate Organ Needles Chart: Size Conversion and Selection Guide

1. Introduction to Organ Needles and Their Importance in Sewing

Organ needles sit at the heart of clean stitching—especially in machine embroidery—because the wrong size or point type can cause skipped stitches, thread breaks, or visible fabric damage. Their dual numbering system, standardized globally, makes selection fast and repeatable. In this guide, you’ll decode metric-to-US size conversions, see a practical chart, and learn how to match needle types to fabrics and threads. We’ll also cover specialty options for embroidery and heavy-duty sewing so you can choose confidently and stitch with precision.

Table of Contents

• 1. Introduction to Organ Needles and Their Importance in Sewing
• 2. Decoding the Organ Needle Size Conversion System
• 3. Organ Needle Types and Application-Specific Selection
• 4. Practical Needle Selection Guide for Optimal Stitching
• 5. Machine Compatibility and Brand Conversions
• 6. Conclusion: Mastering Organ Needle Selection
• 7. Frequently Asked Questions (FAQ)

2. Decoding the Organ Needle Size Conversion System

2.1 Metric vs. US Sizing Explained

Organ uses a dual system shown as two numbers separated by a slash (for example, 90/14). The first is the European/Number Metric (NM) size; it represents the needle’s diameter in hundredths of a millimeter measured above the scarf or short groove. A size 100 equals 1.00 mm in diameter. The second is the US/Singer size; smaller numbers indicate finer needles and larger numbers indicate thicker needles. Typical US sizes span 8–20, with broader historical ranges also noted. Organ’s sizing aligns with Singer’s system, simplifying cross-brand selection.

2.2 Comprehensive Size Conversion Chart

The table below consolidates frequently used Organ sizes with US equivalents, recommended thread sizes, and actual needle diameters. A popular all-around choice for general fabrics is 75/11.

Tip: In everyday projects, sizes 60, 70, 75, 80, 90, and 100 cover most needs, with 75/11 commonly favored for standard garments.

2.3 Historical Context of Needle Standardization

Before modern standards, more than 40 incompatible needle sizing systems existed. Industry consolidation in the 1940s–1950s led to today’s dual labeling. The NM metric system provides a precise, manufacturing-friendly reference by measuring diameter above the scarf; the US/Singer number preserves familiar regional conventions. Together they make cross-referencing simple and accurate.

3. Organ Needle Types and Application-Specific Selection

3.1 Universal and Specialty Needles for Fabric Types

- Universal (130/705 H, regular point): A reliable multi-purpose pick for wovens like poplin, linen, and broadcloth. Common sizes: 80/12 or 90/14 for medium-weight fabrics.

- Ball Point/Jersey (130/705 H SUK, medium ball point): Designed to part fibers in knits—single jersey, fleece—rather than pierce them. For knits, choose 70/10 or 75/11; use 90/14 on heavier jerseys.

- Stretch/Super Stretch (HAx1 SP, medium ball point with special scarf): Built to reduce skipped stitches on highly elastic materials (Lycra/Spandex). Typical choices: 75/11 for super stretch; 90/14 when the knit is thicker or denser.

- Microtex/Sharp (130/705 H M): A slim, acute point for fine or tightly woven fabrics (silk, chiffon, microfiber). Sizes 60/8 or 70/10 are excellent for delicate work; 75/11 where a touch more penetration is needed.

- Jeans/Denim (130/705 H J, slim sharp point): Optimized for denim, canvas, and coated fabrics. Use 90/14 for midweight denim; step up to 100/16 for thicker denim or multiple layers.

- Leather (130/705 H LL, cutting point): Creates clean, consistent holes in leather and suede. Select sizes according to thickness; leave adequate spacing to avoid cutting out your stitch path.

Size guidance above aligns with the principle: use the smallest needle that delivers clean penetration and stable stitches for the fabric at hand.

3.2 Embroidery-Specific Needles and Advanced Features

- Embroidery (130/705 H EB, light ball point + larger eye): Enlarged eye and optimized scarf support multi-directional stitching and a wide range of decorative threads while helping to reduce skipped stitches.

- Embroidery Anti-Glue (130/705 H E-LP): LP coating minimizes adhesive build-up when using sprays, fusibles, or hook-and-loop backings; helps maintain stitch quality and can extend service life compared with common embroidery needles.

- Metallic Thread Needle (130/705 H MF, light ball point with extra-long eye): A longer, larger eye eases the stress on metallic threads and reduces shredding.

- Titanium/PD (130/705 H PD): Titanium-nitride surface for increased wear resistance in heavy-duty and embroidery use.

How hooping stability supports embroidery threads

- Using a stable hooping setup helps keep fabric tension even so the hook can catch consistent loops—critical with rayon, polyester, and metallic threads.

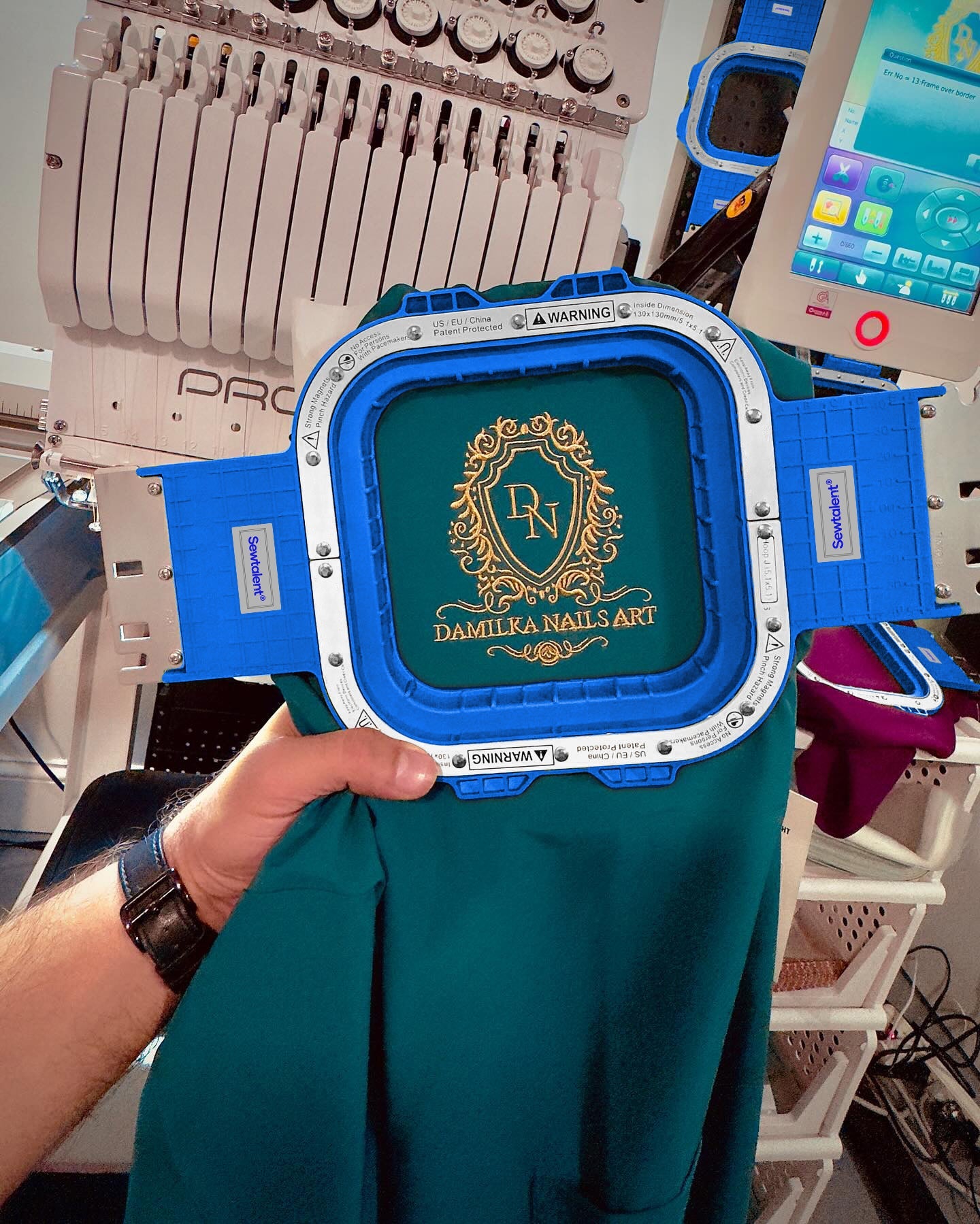

- For garment embroidery, Sewtalent magnetic embroidery hoops can make hooping faster and help maintain uniform tension across fabric layers. They use high-strength magnets and user-friendly reference lines to speed alignment, can reduce hooping time markedly, and help mitigate hoop marks on finished garments. Sewtalent offers more than 17 hoop sizes and broad machine compatibility; note that Sewtalent hoops are designed for garment hooping (not caps/hats).

3.3 Heavy-Duty Solutions: HLx5 System for Industrial Use

- HLx5 (flat shank, heavy-duty domestic/quilting): Built for hard, thick, or multi-layer materials where standard 15x1 needles may bend or break—great for multi-ply quilting, denim, leather-like materials, and heavy embroidery.

- Color-coded sizes (shank colors) make at-a-glance identification straightforward: 9/65 Bronze, 10/70 Red, 11/75 Purple, 12/80 Blue, 14/90 Brown, 16/100 Green, 18/110 Silver, 20/125 Yellow.

- Available in sharp and ball point, hard chrome finishes, and PD titanium coatings. PD (Perfect Durability) titanium finishes have shown the ability to retain shape and dimensions significantly longer than standard coatings in factory tests, which helps reduce defects from dulled points and supports long runs on abrasive or dense materials.

Selecting HLx5 when multi-layer penetration and needle stability are non-negotiable can improve consistency and reduce downtime on heavy-duty jobs.

4. Practical Needle Selection Guide for Optimal Stitching

4.1 Matching Needle Size to Fabric Weight

Use the smallest needle that still penetrates cleanly and forms stable stitches. Pair common fabrics with Organ types and sizes below.

Reference sources: Organ Needle-Index guidance on each needle type, plus quick-range size cues for fabric weights (lightweight 60/8–70/10; medium 80/12–90/14; heavy 100/16–110/18; extra‑heavy up to 130/21).

4.2 Thread-to-Needle Compatibility Principles

Thread size and needle size move together: thicker thread needs a larger needle eye. Thread “weight” systems are inverse—lower numbers often mean thicker thread.

• Quick matching (industrial thread sizes)
• 33: use about 80/12–100/16
• 46: use about 90/14–100/16
• 69: use about 100/16–130/21
• 92: use about 110/18–130/21
• 138: use about 140/22–160/23 (for extra‑heavy applications)

• Embroidery-specific cues
• Fine embroidery threads (40–60 wt): 75/11–80/12; Embroidery 130/705 H EB is a good match (larger eye).
• Standard embroidery (30–40 wt): 80/12–90/14.
• Metallic threads: 130/705 H MF (extra‑long/large eye) helps reduce shredding.
• Adhesives/fusibles: 130/705 H E‑LP (Anti‑Glue LP coating) minimizes residue and helps prolong service life.

Why hoop tension matters for embroidery threads - Even hoop tension with proper embroidery hoop sizes keeps loop formation consistent so the hook can reliably catch the top thread—especially critical with rayon, polyester, and metallics. For garment embroidery, Sewtalent magnetic embroidery hoops help maintain uniform, repeatable hoop tension across layers, speed alignment with reference lines, and can reduce visible hoop marks. Sewtalent offers 17+ hoop sizes for broad machine compatibility and is intended for garment hooping (not caps/hats).

4.3 Troubleshooting Common Stitching Issues

• Skipped stitches
  • Likely causes: needle too small; wrong point for fabric; worn needle; adhesives interfering.
  • Fixes:
    • On knits/elastic: switch to Super‑Stretch HAx1 SP or Jersey SUK; the special scarf/ball point helps loop formation and reduces skips.
    • For embroidery with adhesives: use Embroidery Anti‑Glue 130/705 H E‑LP.
    • Increase one needle size if thread is thick for the current eye.
    • Replace dull/bent needles—worn needles cause skips and fabric damage.
• Thread shredding/breakage
  • Likely causes: eye too small; metallic thread stress; glue buildup.
  • Fixes:
    • Move to a larger eye: Embroidery 130/705 H EB or Metallic 130/705 H MF.
    • For thicker threads (e.g., #69/#92), select 110/18–130/21 as appropriate.
    • Use Anti‑Glue (E‑LP) when using sprays, fusibles, or hook‑and‑loop backings.
• Fabric damage, runs, or puckering
  • Likely causes: point style mismatch; needle too large; worn tip.
  • Fixes:
    • Knits: choose Ball Point/Jersey SUK to part fibers, not cut them.
    • Fine/tight weaves: Microtex 130/705 H M’s slim point helps reduce puckering; its design helps protect high-density materials from wrinkles.
    • Leather: use 130/705 H LL cutting point for clean, consistent holes.
    • Always use the smallest needle that still penetrates cleanly.
• Needle bending/breakage in multilayers
  • Likely causes: demanding multi‑ply seams with a standard 15x1.
  • Fixes:
    • Move to HLx5 for quilting/heavy duty; available in sharp/ball point and PD (titanium) for increased wear resistance.

5. Machine Compatibility and Brand Conversions

5.1 Janome-Organ Needle Conversion Chart

The following equivalences are published for Janome color‑coded needles and Organ systems:

Source: Janome/Organ conversion guidance.

5.2 Universal HAx1 System for Domestic Machines

Most modern home sewing machine for embroidery and embroidery machines use the flat‑shank 130/705H system (also written HAx1 or 15x1). Packages often show dual sizes like 90/14 (metric/US).

Broad compatibility: the 130/705H system is widely used across major domestic brands, including Brother, Baby Lock, Janome, Juki, New Home, Simplicity, White, and Singer.

Always confirm your machine’s manual. Some models require different systems (for example, Janome 1600DB/1600DBX do not use standard HAx1).

Specialized exceptions: Coverstitch/overlock machines often require ELx705 and are not appropriate for normal domestic 130/705H needles, per Organ’s guide.

6. Conclusion: Mastering Organ Needle Selection

Make needle choice a habit, not a guess. Match fabric weight to size (60/8 for sheers through 130/21 for extra‑heavy), choose the right point type for the material, and pair thread size to the needle’s eye. Use conversion charts to cross brands and confirm machine systems (130/705H for most home machines). Replace worn needles promptly. Do this, and your embroidery quality naturally levels up.

7. Frequently Asked Questions (FAQ)

7.1 Q: How often should I change needles?

A: Start each new project with a fresh needle. Organ notes that worn, blunt, or bent needles can cause skipped stitches, thread breakage, and even fabric damage. If you notice any of those symptoms mid-project, replace the needle immediately. Store used and new needles in their original boxes to avoid mix-ups.

7.2 Q: Why does my needle keep breaking?

A: Common reasons include:

• Needle size too small for your thread or material. Match thicker threads to larger needles (for example, industrial #69 often pairs with 100/16–130/21; #92 with 110/18–130/21).
• Using a standard 15x1 for multi‑layer or heavy work. For demanding, multi‑ply jobs, switch to HLx5 heavy‑duty (available in sharp and ball point, with chrome or PD/titanium coatings).
• Wrong needle system. Coverstitch/overlock machines typically require ELx705 rather than 130/705H (HAx1/15x1).
• Worn or damaged needles. Replace promptly; dull or bent needles are more likely to snap.

7.3 Q: Can I use Organ needles in vintage machines?

A: Many domestic vintage machines use the flat‑shank 130/705H (also written HAx1 or 15x1), which Organ supplies in a wide range of sizes and points. Always confirm your machine’s manual because some models and specialty machines use different systems (for example, ELx705 for coverstitch). Never substitute systems that your machine does not specify.

7.4 Q: What do the two numbers mean on a needle (e.g., 90/14)?

A: The first number is the metric NM size (needle diameter in hundredths of a millimeter; 100 equals 1.00 mm). The second is the US/Singer size. Lower numbers are finer; higher numbers are thicker. Organ’s sizing aligns with Singer’s system.

7.5 Q: Are Organ and Singer sizes equivalent?

A: Yes. The sizing systems align across Organ and Singer. You’ll typically see US sizes 8–20 and their corresponding metric sizes (60–200).

7.6 Q: Which Organ needle should I use for knits, denim, leather, or fine fabrics?

A: Match point type to fabric:

• Knits: Jersey 130/705 H SUK (medium ball point) or Super‑Stretch HAx1 SP for highly elastic materials.
• Denim/Canvas: Jeans 130/705 H J (slim sharp).
• Leather/Suede: Leather 130/705 H LL (cutting point).
• Fine/Tight Weaves: Microtex 130/705 H M (slim sharp).

Choose the smallest size that penetrates cleanly and forms stable stitches.

7.7 Q: What should I use for embroidery and metallic threads?

A: For general embroidery, use 130/705 H EB (light ball point with a larger eye). For metallic threads, use 130/705 H MF (extra‑long, larger eye) to reduce shredding. When adhesives are involved, 130/705 H E‑LP (Anti‑Glue) helps minimize residue and maintain stitch quality.

7.8 Q: When should I consider titanium (PD) or Anti‑Glue (LP) finishes?

A: Choose PD (titanium‑nitride) when you need increased wear resistance—long runs, abrasive or dense materials, or heavy‑duty/embroidery use. Choose E‑LP (Anti‑Glue) when using sprays, fusibles, or hook‑and‑loop because it reduces glue buildup and can extend service life compared to common embroidery needles.
