Ultimate Guide to Assembling and Using the Q-Zone Hoop Frame

1. Introduction to the Q-Zone Hoop Frame System

The Q-Zone Hoop Frame is a game-changer for quilters seeking professional results without dedicating their entire studio to a massive frame. Designed as a space-efficient solution, this innovative system lets you tackle projects of any size—from cozy crib quilts to sprawling king-size masterpieces—all within a compact 4.5-foot footprint. The secret? Zone-to-zone quilting. By breaking your quilt into manageable sections, the Q-Zone makes large-scale projects possible even in the smallest of sewing spaces.

In this guide, you'll discover everything you need to know about the Q-Zone Hoop Frame: from step-by-step assembly and essential tool checklists, to expert tips on fabric tensioning, zone progression, and advanced free-motion techniques. We'll also preview the frame’s technical features, compatibility details, and troubleshooting advice to ensure your quilting journey is smooth from start to finish. Whether you’re just starting out or looking to streamline your workflow, this guide will help you unlock the full potential of your Q-Zone Hoop Frame.

Table of Contents

• 1. Introduction to the Q-Zone Hoop Frame System
• 2. Comprehensive Assembly Guide
• 3. Mastering Quilting Techniques
• 4. Technical Specifications and Features
• 5. Purchasing and Comparison Analysis
• 6. Troubleshooting and User Experiences
• 7. Complementary Tools for Textile Artists
• 8. Conclusion and Next Steps
• 9. Frequently Asked Questions

2. Comprehensive Assembly Guide

2.1 Pre-Assembly Preparation and Tool Requirements

Before diving into assembly, preparation is key. Begin by verifying every part against the inventory checklist provided with your Q-Zone Hoop Frame—missing components can stall your progress. Essential tools include Allen wrenches (3mm and 4mm), open-end wrenches (10mm, 13mm, 14mm, and 17mm), and a two-foot level for precise alignment. Having an assistant is highly recommended, especially when raising the assembled frame to its upright position. Machine compatibility checks are crucial at this stage. The Q-Zone accommodates both domestic and longarm machines, but setup differs: home machines require a top plate carriage and must fit within the frame’s throat space limits (up to 19 inches). Measure your machine’s throat space—the distance from the needle to the back of the machine—to determine the correct slot positions and ensure a seamless fit. Planning ahead here saves headaches later.

2.2 Step-by-Step Frame Leg and Rail Installation

Leg Assembly: Start with either leg (the right leg is commonly demonstrated). Using a 3mm Allen wrench, loosen the two set screws under the front section and slide out the front rail holder. Choose the slot based on your machine’s throat space:

• For machines with throat space over 16", use the second slot.
• For machines under 16", use the first slot.

Retighten the set screws to secure the rail holder.

Corner Brackets and Table Supports: Loosely install the A-side and B-side corner brackets onto the leg assemblies using M6 x 10mm connector bolts and a 4mm Allen wrench. Attach the table support assemblies to these brackets, again leaving bolts loose for adjustments. Once all supports are in place, systematically tighten every bolt to ensure stability.

Track Alignment and Carriage Installation: Install the channel lock onto the bottom carriage, then place the carriage onto the frame tracks. Proper track alignment is essential for smooth machine movement—use your level to ensure the tracks are perfectly aligned. Roll the carriage from side to side, tightening connector bolts as you go to eliminate wobble.

Rail Installation: Remove the plastic covers and loosen bolts with the larger Allen wrench. Install the hoop front rail and the long back rail, ensuring pegs align with rail holes. Secure with corner covers and thumb screws. Adjust the rail height so the back rail sits just over a finger’s width above the sewing machine bed, and the front rail aligns evenly with the bed.

Bungee Mounts and Final Adjustments: Slide bungee mounts onto the holders on both sides of the frame—these will help manage fabric tension during quilting. For frames equipped with QuiltMotion, follow the specific belt tensioning procedures outlined in the accessory manual.

Leveling the Frame: Use a 13mm box end wrench to adjust the leveling feet. Counterclockwise lowers the frame; clockwise raises it. Test by gently releasing your machine in each corner—adjust until it remains stationary. Lock the feet in place once the frame is level.

Quality Check: Before starting your first real project, practice with scrap fabric to identify any needed adjustments. This trial run helps you get comfortable with the frame and ensures everything is functioning smoothly.

2.3 Video Tutorial Resources for Visual Guidance

For those who prefer learning by watching, the Grace Company offers a comprehensive suite of official video tutorials. These videos provide step-by-step demonstrations that complement the printed instructions, making complex assembly processes much more approachable.

Core Assembly Videos: The primary tutorial walks you through leg assembly, rail positioning, and proper slot selection based on machine size. You’ll see exactly how to use the Allen wrenches, align the tracks, and install the carriage and channel locks.

Advanced Setup and Belt Tensioning: Specialized videos cover the Q-Zone Hoop Frame Pro’s belt tensioning system, showing how to attach belt brackets, adjust tension with ratchet knobs, and check for proper alignment. These visuals are invaluable for ensuring smooth machine movement and preventing common setup errors.

Machine-Specific and Accessory Tutorials: There are dedicated videos for both Grace Q’nique longarm machines and domestic machines, including top plate carriage installation and Sure Stitch Regulator attachment. You’ll also find detailed guides on encoder wheel installation and fabric leader setup.

Fabric Loading and Usage Demonstrations: Tutorials show how to attach and align quilt layers using cloth leaders, achieve “bouncy tight” tension, and use bungee clamps effectively. Watching the step-by-step process of rolling, clamping, and tensioning fabric can demystify the entire setup.

Professional Tips: Many videos recommend having a helper for certain steps, especially when lifting the frame upright. You’ll also find troubleshooting advice and tips for maintaining your frame in top condition.

These video resources are your visual roadmap to a successful assembly and setup, ensuring you can approach your first quilting project with confidence.

3. Mastering Quilting Techniques

3.1 Fabric Placement and Tension Management

The foundation of beautiful quilting starts with precise fabric placement and tension control. Begin by preparing your quilt sandwich: cut your backing and batting at least 10 inches larger than your quilt top, then fold and mark the center of each layer for alignment. Attach the quilt layers to the cloth leaders, aligning center marks to ensure everything stays square.

Pin or baste from the center outward to the edges, maintaining even coverage and preventing shifting. When mounting the sandwich on the frame, use the back, front, and side fabric clips to secure each layer—smooth out wrinkles as you go. The Q-Zone’s bungee clamps are your secret weapon for side tension: slide the bungee mounts onto the holders, attach the clamps to the fabric’s edge, and pull tight until you achieve that “bouncy tight” feel—not too stiff, not too loose. Always clamp from the center outward for straight, even tension.

3.2 Zone-to-Zone Quilting Methodology

Zone-to-zone quilting is where the Q-Zone truly shines. Instead of wrestling with an entire quilt at once, you work in manageable sections, or zones. After completing the first zone, release the fabric straps, remove bungee clamps, and reposition the quilt for the next section. Secure, tension, and tack down the new area before resuming quilting. This systematic progression—moving left to right, top to bottom—ensures you cover the entire quilt without ever needing a full-length frame.

Maintaining pattern continuity is all about careful alignment and consistent tension. Advanced users recommend leaving the needle down when shifting zones to keep your place, and practicing with test fabric to perfect your technique. Efficiency metrics from real-world testing show that even within a compact 4.5-foot space, users can complete extensive quilting sessions—sometimes emptying entire bobbins in a single go.

3.3 Advanced Free-Motion Techniques

Ready to level up? The Q-Zone Hoop Frame empowers you to explore professional-grade quilting and embroidery machine techniques, pantograph work, and even computerized designs with QuiltMotion technology. The dual-track system and smooth carriage movement give domestic machines longarm-like mobility, making intricate stippling, sharp patterns, and edge-to-edge quilting not just possible, but efficient.

With QuiltMotion, you can program complex patterns that maintain continuity across zones, letting the system handle placement and scale as you advance the quilt. Table inserts and upgraded accessories further stabilize the frame for ruler work and precision stitching. Speed controllers and stitch regulators help maintain consistent stitch length and quality, even as you tackle large projects.

In short, the Q-Zone transforms home quilting into a professional-grade experience—delivering speed, accuracy, and creative freedom, no matter your workspace size.

4. Technical Specifications and Features

4.1 Adjustable Frame Parameters

The Q-Zone Hoop Frame is engineered for versatility and ergonomic comfort, making it a standout choice for quilters with limited space who still demand professional results. Let’s break down its key adjustable parameters:

Dimensional Characteristics:

• Width: The frame measures a compact 4.5 feet (54 inches) across, dramatically smaller than the sprawling 10- to 14-foot frames found in traditional longarm setups. This means you can fit the Q-Zone into spaces no larger than a standard desk, yet still tackle king-size quilts using its innovative zone-to-zone quilting method.
• Height Adjustment: One of its most user-friendly features is the adjustable leg height, which ranges from 32 to 42 inches. This 10-inch span allows you to tailor the frame’s working height to your own comfort, whether you prefer to quilt while sitting or standing. The adjustment is simple: use a 13mm box-end wrench to rotate the leveling feet—counterclockwise to lower, clockwise to raise—until the frame matches your ideal elbow height.
• Depth Range: The frame’s depth is also adjustable, spanning from 37 to 42 inches. This flexibility accommodates different machine sizes and workspace layouts, ensuring you can position your machine for optimal reach and movement.
• Quilting Area: Despite its modest footprint, the Q-Zone offers a generous 48-inch maximum quilting area per zone. This enables you to work on everything from small crib quilts to ambitious king-size projects by advancing your quilt through successive zones.

Ergonomic Benefits:

The ability to fine-tune both height and depth means you can reduce physical strain during long quilting sessions. Whether you’re perched on a stool or standing for better leverage, the frame adapts to your workflow. The lightweight aluminum construction keeps the frame stable without being cumbersome, and the leveling feet ensure it sits evenly on any surface—carpet, hardwood, or tile.

In short, the Q-Zone’s adjustability is like having a custom-tailored workspace, letting you quilt comfortably and efficiently, no matter your studio size.

4.2 Machine Compatibility and Rail Systems

Quilters love the Q-Zone Hoop Frame for its remarkable flexibility with a wide range of sewing and quilting machines. Here’s what sets it apart:

Machine Support:

• Domestic and Longarm Machines: The frame accommodates both domestic sewing machines and longarm quilting machines with throat spaces up to 19 inches. This means you can start with your current machine and upgrade later without needing a new frame.
• Carriage System: For domestic machines, a specialized carriage system transforms your standard sewing machine into a free-motion quilting powerhouse. The carriage features top handlebars for smooth, multidirectional movement—think of it as giving your home machine the glide of a professional longarm.
• Rail Height Specifications: The Q-Zone’s rails are thoughtfully engineered for precise machine alignment. The back long rail should sit just over a finger’s width above your machine’s bed, while the front long rail aligns flush with the bed. This ensures smooth fabric flow and prevents interference as you quilt.

G-Series Track System:

• The frame uses the G-Series track and carriage system, which is designed for precision and stability. The dual and single wheel tracks provide smooth, controlled motion across the quilting surface, making even intricate free-motion work feel effortless.
• For machines with throat spaces over 16 inches, the front rail holder features a second positioning slot, while smaller machines use the first slot. This adjustability ensures a snug, stable fit for a variety of machine sizes.

Accessory Compatibility:

• The Q-Zone supports a range of add-ons, including QuiltMotion for computerized quilting, table inserts for added stability, and cloth leaders for easy fabric loading. Optional casters can be added for mobility, and bungee clamps help maintain perfect fabric tension.

Summary Table: Q-Zone Hoop Frame Core Specs

With its robust compatibility and thoughtful engineering, the Q-Zone Hoop Frame is ready to support your quilting ambitions—no matter which machine you use or how you like to work.

5. Purchasing and Comparison Analysis

5.1 Where to Buy and Accessory Options

Ready to bring the Q-Zone Hoop Frame into your studio? Here’s what you need to know before making your purchase:

Authorized Retailers:

You’ll find the Q-Zone Hoop Frame at a variety of specialized sewing and quilting retailers across the United States. Notable dealers include Chattanooga Sewing Machines (which often bundles a free 5-foot light bar), Sew Silly by Sharon, Ken’s Sewing Center, Montavilla Sewing Centers, Sewing Parts Online, and Close To Home Sewing Center. Each retailer may offer different promotions, so it pays to shop around for the best deal.

Current Pricing:

The standard retail price for the Q-Zone Hoop Frame is $1,799.95, but most retailers offer significant discounts. Embroidery machines on sale typically range from $1,259 to $1,799, with some dealers including bonus accessories like light bars in promotional packages.

Accessory Options:

• Pro Upgrade Package: For those seeking enhanced stability and smoother machine movement, the Pro Upgrade ($449.95) adds a dual-track system and table inserts, further boosting the frame’s performance.
• Standard Accessories: Every Q-Zone comes with quilter’s clips and bungee clamps for easy fabric management and tension control.
• Optional Add-Ons: Table inserts, cloth leaders, casters for mobility, and light bar systems (with true-color LEDs and adjustable height) are all available to customize your setup.

Warranty Details:

The Q-Zone Hoop Frame includes a limited 1-year manufacturer’s warranty covering the frame structure and included accessories. Quilting machines themselves are sold separately and carry their own warranties.

In summary, the Q-Zone offers a flexible, upgradeable foundation for your quilting journey, with a range of accessories to suit both beginners and seasoned pros.

5.2 Competitive Advantages Over Other Frames

So, how does the Q-Zone Hoop Frame stack up against the competition? Let’s take a closer look:

Space Efficiency:

Unlike traditional longarm frames that eat up 10 to 14 feet of floor space, the Q-Zone’s compact 4.5-foot width is a game-changer for home studios. It fits where others can’t, yet still enables you to quilt king-size projects using its zone-to-zone method.

Cross-Brand Machine Compatibility:

The Q-Zone is designed to work with a wide range of domestic and longarm machines (up to 19-inch throat space), making it a versatile investment. You’re not locked into one brand or forced to buy a new frame if you upgrade your machine.

Dual-Track Stability:

With the Pro Upgrade, the dual-track system delivers superior stability and smoother machine movement, rivaling the feel of much larger, professional frames. Adjustable leveling feet and robust aluminum construction further enhance stability, even on uneven floors.

Ease of Assembly and Use:

While some assembly is required, the Q-Zone’s modular design and clear instructions make setup manageable for most users. The frame’s ergonomic adjustability means you can quilt comfortably, whether sitting or standing.

Value Proposition:

The Q-Zone delivers professional-grade quilting capabilities at a fraction of the price—and footprint—of traditional systems. Its upgrade path allows you to expand your setup as your skills and ambitions grow, all while maintaining a manageable investment.

What’s the trade-off?

While you can quilt any size on the Q-Zone, larger projects require shifting the quilt through multiple zones, which takes a bit more time and patience compared to quilting on a full-length frame. But for most home quilters, the space and cost savings far outweigh this minor inconvenience.

In short, the Q-Zone Hoop Frame is a smart, flexible, and space-conscious solution for anyone looking to elevate their quilting game without taking over their entire studio.

6. Troubleshooting and User Experiences

6.1 Common Issues and Maintenance Protocols

Even the best quilting frames need a little TLC. Here’s how to keep your Q-Zone running smoothly and troubleshoot common hiccups or find embroidery machine repair near me:

Frame Leveling:
A level frame is essential for consistent quilting and to prevent your machine from drifting. Use the adjustable leveling feet and a two-foot level to ensure the frame sits evenly on your floor. Adjust each foot with a 13mm wrench—counterclockwise to lower, clockwise to raise—until the machine stays put in every corner. Once level, lock the feet in place.

Structural Stability:
During assembly, tighten all bolts progressively in stages, not all at once. This avoids stress points and ensures uniform rigidity. If you notice any wobbling, double-check that every connection is snug.

Rail Height and Machine Positioning:
Set the back long rail just over a finger’s width above your machine bed, and align the front rail flush with the bed. For domestic machines, center the machine on the carriage and use the included clamps to secure it. Ensure there’s enough clearance between the needle bar and the back rail to avoid interference.

Fabric Tension and Loading:
Achieving perfect fabric tension can be tricky at first. Use the included bungee clamps and quilter’s clips to keep layers taut and square. If you see puckering or distortion, check your loading sequence and make sure you’re pre-tensioning the fabric before securing it to the frame.

Thread Tension:
If the top thread shows on the backing, increase top tension by half a turn. If bobbin thread appears on the quilt top, adjust accordingly. Always test on scrap fabric before starting your main project.

Channel Lock Adjustments:
The channel locks help you quilt straight lines. If they’re not gripping properly, adjust the rubber foot by twisting it until it presses firmly against the track. Periodically check and retighten the hex nuts to prevent loosening over time.

Pre-Operation Inspection Checklist:

• Verify all bolts and connections are tight.
• Check rail alignment and height.
• Ensure adequate machine-to-frame clearance.
• Practice on scrap fabric to test tension and setup.

By following these protocols, you’ll keep your Q-Zone in peak condition and avoid most operational headaches.

6.2 Real-World Performance Feedback

What do real users say about the Q-Zone Hoop Frame? Let’s dive into the feedback from quilters who’ve put it to the test:

Space Efficiency:
Users consistently rave about the Q-Zone’s compact footprint. At just 54 inches wide, it fits into sewing rooms where traditional frames simply won’t go. Optional casters make it easy to roll out of the way when not in use.

Machine Compatibility:
Quilters appreciate the frame’s ability to accommodate both domestic and longarm machines up to 19 inches. The carriage system is praised for securely holding machines while allowing smooth, free-motion movement.

Performance and Versatility:
Many users report successfully quilting edge-to-edge on everything from crib to king-size quilts. The elastic clip and bungee system for fabric management is highlighted as both space-saving and user-friendly.

Learning Curve:
New users find the Q-Zone an accessible entry point to frame quilting. Video tutorials help flatten the learning curve, and most report completing their first projects with minimal frustration. Some mention that larger quilts require patience, as shifting zones adds extra steps, but the trade-off is worth it for the space saved.

Durability and Build Quality:
Feedback on construction quality and customer service is overwhelmingly positive. The frame is described as sturdy and well-built, though some users note that certain clamps can be tight and require a bit of muscle to adjust.

Operational Limitations:
A few users wish for more controls on the frame’s handlebars, as using a floor pedal for machine control can be less convenient. This can be remedied with a stitch regulator (sold separately), though it’s an additional investment.

Cost-Effectiveness:
For many, the Q-Zone represents an affordable alternative to full quilting systems. One user summed it up: “It’s not expensive and the sale price makes it very affordable. I paid much more for my new sleeper sofa that probably won’t be used but once a year.”

Overall Satisfaction:
Despite a few workflow compromises for larger projects, most users are delighted with their purchase—especially those with limited space. As one reviewer put it: “I love the QZone and would gladly buy it again,” recommending it for anyone who wants more than free-motion quilting on a domestic machine.

Bottom line?
The Q-Zone Hoop Frame delivers on its promise: professional-level quilting in a space-conscious, cost-effective package. If you’re looking to maximize your quilting potential without maxing out your studio, the Q-Zone is a smart, satisfying choice.

7. Complementary Tools for Textile Artists

7.1 Enhancing Garment Embroidery Efficiency

If you’ve ever wrestled with fabric tension during machine embroidery, you know the struggle is real. Traditional plastic hoops demand endless screw-tightening and constant vigilance to prevent slippage—especially when you’re working with thick fabrics, tricky seams, or garments with buttons and zippers. The result? Frustration, wasted time, and sometimes even ruined projects.

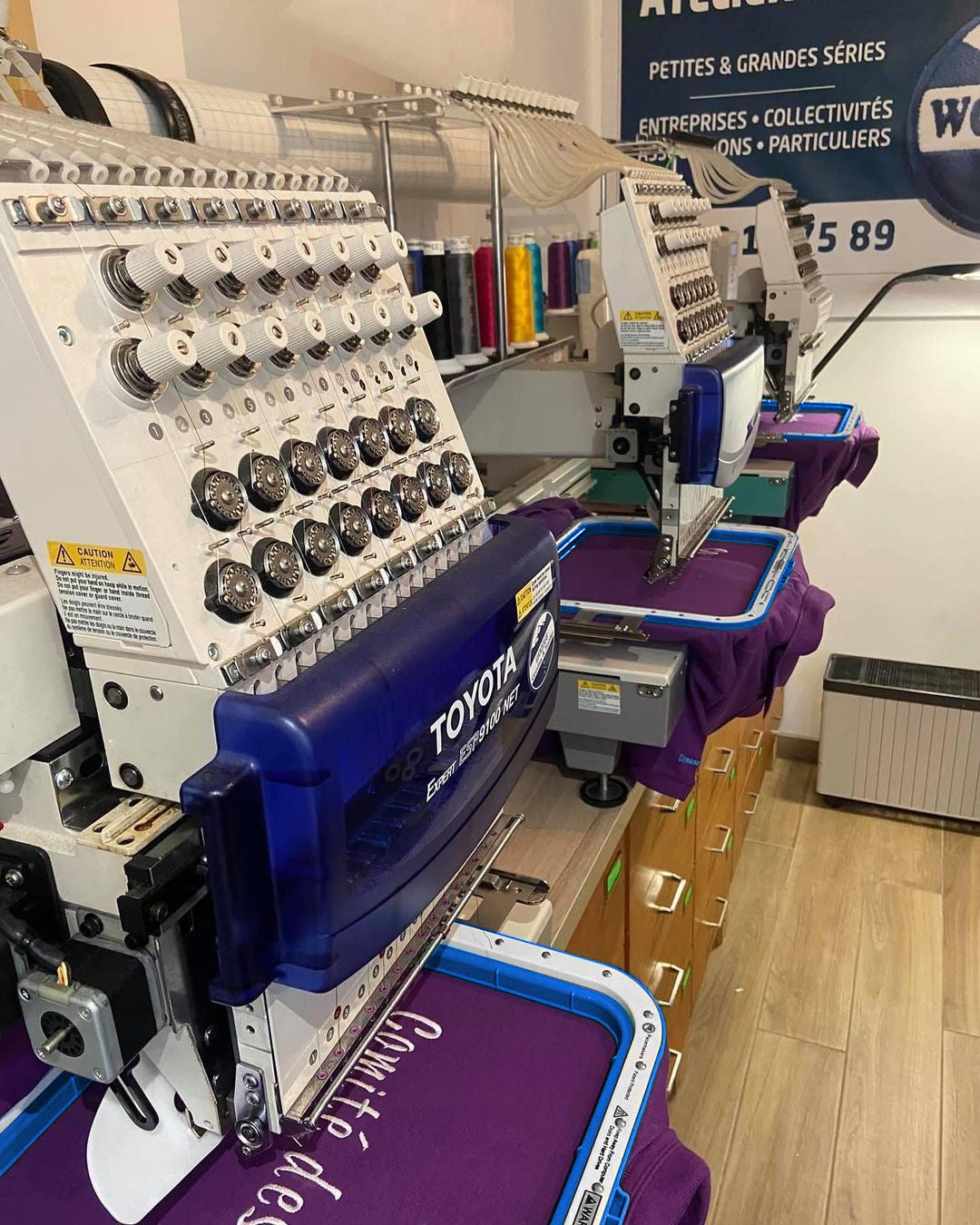

Enter the Sewtalent magnetic embroidery hoop frames—a true game-changer for garment embroidery. Unlike old-school hoops, Sewtalent uses a powerful magnetic clamping system that automatically adapts to fabric thickness, holding everything from delicate silks to bulky sweatshirts with even, reliable tension. No more fiddling with screws or worrying about uneven pressure causing hoop burn or misalignment.

The magic is in the magnets. With just a simple snap, your fabric is secured—saving you up to 90% of the time you’d spend hooping with a traditional frame. Imagine prepping a stack of t-shirts for embroidery: what used to take three minutes per shirt now takes just thirty seconds. Multiply that by dozens (or hundreds) of garments, and you’re looking at massive time and labor savings.

Sewtalent’s hoops also feature textured surfaces and reference lines for precise placement, making it easy to align your design every time. The result? Consistently crisp, professional embroidery—without the stress. Whether you’re a solo creator or running a busy shop, Sewtalent magnetic hoops help you work faster, smarter, and with greater confidence.

7.2 Sewtalent's Industrial-Grade Durability

Let’s talk longevity. In a world where plastic hoops crack, warp, or lose grip after a few months of heavy use, Sewtalent stands out for its industrial-grade durability. What’s the secret? It starts with materials: Sewtalent hoops are crafted from high-end plastics—think the same stuff used in aircraft interiors and automotive engine parts. This isn’t your average hobby-shop plastic; it’s engineered for strength, toughness, and heat resistance.

But that’s just the beginning. Sewtalent packs each hoop with N50-grade rare-earth magnets—about 15% to 20% more than competing brands. This means not only stronger holding power but also a longer-lasting magnetic force that doesn’t fade with time. Rigorous impact and angle pressure tests show Sewtalent hoops lasting up to 40 times longer than ordinary plastic or lower-grade magnetic hoops.

What does this mean for your bottom line? Fewer replacements, less downtime, and more consistent results. For high-volume embroidery businesses, the cost savings add up fast—Sewtalent hoops pay for themselves in reduced labor and material waste, often within just half a year. Even for individual creators, investing in a hoop that outlasts the competition means more time creating and less time troubleshooting.

In short, Sewtalent isn’t just another hoop—it’s a long-term partner in your embroidery journey, built to withstand the demands of daily production and deliver flawless results, project after project.

8. Conclusion and Next Steps

The Q-Zone Hoop Frame has redefined what’s possible for quilters working in small spaces, thanks to its space-saving design and innovative zone-to-zone quilting method. As you embark on your quilting journey, remember: practice on scrap fabric first to dial in your setup before tackling a prized project. And if you’re looking to expand your creative toolkit, consider exploring complementary tools like Sewtalent magnetic embroidery hoops for garment projects. With the right frame and the right accessories, your textile artistry can reach new heights—efficiently, confidently, and with a lot more fun along the way.

9. Frequently Asked Questions

9.1 Q: What is the typical assembly time for the Q-Zone Hoop Frame, and do I need special tools?

A: Most users can assemble the Q-Zone Hoop Frame in a few hours using the included Allen wrenches and standard open-end wrenches (10mm, 13mm, 14mm, and 17mm). Having a two-foot level and an extra set of hands can make the process smoother.

9.2 Q: What is the maximum quilt size I can complete on the Q-Zone Hoop Frame?

A: The Q-Zone Hoop Frame supports king-size quilts and beyond, thanks to its zone-to-zone quilting system. You work in sections, repositioning the fabric as you go, so there’s no upper limit on quilt size—just your ambition!

9.3 Q: Is my sewing or quilting machine compatible with the Q-Zone Hoop Frame?

A: The frame accommodates both domestic and longarm machines with throat spaces up to 19 inches. Check your machine’s throat measurement and follow the frame’s slot guidelines for a perfect fit.

9.4 Q: How do I solve fabric tension problems or puckering while quilting?

A: Use the included bungee clamps and fabric clips to maintain even, “bouncy tight” tension across your quilt. Always clamp from the center outward and adjust as needed. Practicing on scrap fabric can help you fine-tune your setup.

For more in-depth answers and troubleshooting, refer to the comprehensive assembly and quilting technique sections above.
