Ultimate Bobbin Tension Chart: Master Machine Embroidery with Perfect Stitches

1. Introduction: Why Bobbin Tension is the Heart of Quality Embroidery

Balanced tension is what turns thread into flawless embroidery. When bobbin and upper threads meet cleanly inside the fabric, you get crisp edges, smooth fills, and durable stitches. When they don’t, you see looping, thread breaks, and puckering. Most issues are solved by the upper tension, but the bobbin side is the quiet 10% that can make or break results on any machine type, including the best embroidery machines. In this guide, you’ll learn the core principles, proven gram-force standards, how to adjust bobbin tension step by step, and how to test and troubleshoot for different fabrics and threads.

Table of Contents

• 1. Introduction: Why Bobbin Tension is the Heart of Quality Embroidery
• 2. Bobbin Tension Fundamentals: The Science Behind Perfect Stitches
• 3. Step-by-Step Bobbin Tension Adjustment Guide
• 4. Troubleshooting Common Bobbin Tension Problems
• 5. Thread-Specific Tension Settings: Polyester vs. Rayon vs. Metallic
• 6. Mastering the TOWA Gauge for Precision Measurements
• 7. Pro Tips for Consistent Tension in Production Environments
• 8. Conclusion: Your Path to Perfect Stitches
• 9. FAQ: Expert Answers to Common Bobbin Tension Questions

2. Bobbin Tension Fundamentals: The Science Behind Perfect Stitches

2.1 The Tug-of-War Principle: How Threads Interlock in Fabric

Think of tension like a friendly tug-of-war between the upper and bobbin threads. Each side applies controlled resistance so the lock forms within the fabric layers rather than pulling to one surface. When the balance is right, you’ll see an even “signature” on the back of a satin stitch: about one-third bobbin thread centered and one-third of the top thread on each side. If the top thread is too loose, loops form on the underside; if the bobbin side is too strong (or the top too tight), bobbin thread shows on the top. This equilibrium delivers uniform stitch formation, prevents puckering, and reduces thread breaks across designs and garments.

2.2 Quantitative Standards: Optimal Grams and Measurement Methods

• Common gram-force targets (direct bobbin case measurement):
  • General embroidery: 18–22 grams (Madeira)
  • Caps/thicker applications: up to 25 grams (Madeira)
  • Some machines: up to 30 grams (Madeira)
  • Brother service guidance: 15–30 grams, with 22 grams as an ideal midpoint (Brother)
  • Commercial recommendations: 25–35 grams in some operations (Perplexity Q&A)
• How you measure matters:
  • Direct at the bobbin case with a gauge (e.g., TOWA) provides the baseline most guides reference (Madeira, Brother).
  • Through-machine readings (pulling thread near the needle) read higher because of added friction; a 35–45 g through-machine reading can correspond to roughly 25 g at the bobbin case (Perplexity Q&A).
  • Technique counts: insert the case correctly in the gauge, pull the thread smoothly and steadily for stable readings (Brother), and use consistent test fabric/thread.

Use these ranges as starting points, then validate balance with a stitched test pattern (e.g., an “H” or “I” test) and the one-third/one-third/one-third check on the fabric’s underside (Madeira, Brother).

3. Step-by-Step Bobbin Tension Adjustment Guide

3.1 Essential Tools: Tension Gauges and Preparation Checklist

What to have on hand:

• Bobbin tension gauge (e.g., TOWA) for precise gram readings (Madeira, Superior Threads).
• Small flat-head screwdriver for the bobbin case’s slotted adjustment screw (Madeira).
• Test fabric and stabilizer matching your project, with contrasting top/bobbin threads for visibility (Madeira/Superior approach).
• Lint remover: a small brush or the corner of backing to clean under the bobbin case tension spring (Brother).

Before you adjust:

• Clean the bobbin case, especially under the tension spring, to remove lint or debris that can skew readings (Brother).
• Consider marking the starting screw position (so you can return to baseline) or keeping a spare “baseline” bobbin case as a failsafe (Wonderfil, Superior Threads).
• Wind and insert the bobbin correctly; the thread should feed smoothly and, on many Brother setups, the bobbin spins clockwise when viewed from the backside (Brother).

3.2 The Precision Adjustment Process: Clockwise vs. Counterclockwise

Mechanics:

• Locate the larger slotted screw on the bobbin case; that’s the tension adjuster (Madeira).
• Clockwise (right) tightens; counterclockwise (left) loosens. Righty-tighty, lefty-loosey (Perplexity Q&A, Madeira).
• Work in very small increments: about 1/8–1/4 turn (Madeira/Perplexity Q&A) or “5-minute” steps on a clock face (Wonderfil).

What not to touch:

• Do not adjust the Phillips-head screw; it serves other functions (Perplexity Q&A).

Test after each micro-adjustment:

• Gauge method: measure in grams with smooth, steady pulls for consistent readings (Brother).
• Drop test (front-loaders): the case should descend slowly when suspended by its thread tail; no movement indicates too tight, free-fall suggests too loose (Perplexity Q&A).
• Stitch test: sew a simple satin “H” or “I” test and inspect the underside for the one-third/one-third/one-third distribution (Brother, Madeira).

Fine-tune until the gauge target and the stitched visual both confirm balance. Then, if needed, dial in the upper tension to perfect the stitch (Superior Threads, Madeira).

3.3 Machine-Specific Techniques: Front-Loading vs. Top-Loading Systems

Front-loading (removable metal bobbin case):

• Remove the case, clean under the tension spring, adjust the slotted screw in tiny increments, and test via gauge or drop test (Brother, Perplexity Q&A).
• Many service guides recommend setting the bobbin first because one bobbin serves all needles on multi-needle machines (Perplexity Q&A).

Top-loading (drop-in) systems:

• Access is from the needle plate area; identify the slotted tension screw, sometimes color-marked for easy recognition (e.g., a green-marked screw on some cases) (Wonderfil).
• Adjust in the same tiny increments and verify by stitching tests or through-machine readings if you don’t have direct-case access (Perplexity Q&A).

Practical cues across both:

• Pull smoothly for any gauge reading; “jumpy” needles on the gauge can indicate a bad or uneven bobbin (Brother).
• If loosening top tension to stop looping causes breaks on sensitive threads, consider loosening both top and bobbin slightly to re-balance the “tug-of-war” at a lower overall tension (Superior Threads).

4. Troubleshooting Common Bobbin Tension Problems

4.1 Diagnosing Symptoms: From Looping to Bird’s Nests

Use contrasting threads (one color on top, a different color in the bobbin) and sew a short satin “H/I” test to make tension behavior obvious (Madeira, Superior Threads). Then match what you see to the fixes below.

Pro tip: Most problems start on the top side—fix upper tension and threading first. Then set the bobbin with a gauge to a known baseline before fine-tuning (Madeira, Brother, Superior Threads).

4.2 Advanced Fixes: When Standard Adjustments Fail

• Environment and consistency
• Tensions drift with thread, lint, and even temperature changes; recheck after notable shifts in conditions (Superior Threads).
• Take short breaks when chasing a problem—fresh eyes prevent over-adjusting (Perplexity Q&A).
• Bobbin state matters
• As a bobbin empties, tension delivery can change; inspect both sides periodically and consider swapping to a fresh bobbin before critical details (Handi Quilter).
• Clean under the bobbin tension spring
• Loosen the slotted screw until the spring lifts about 1 mm, sweep a piece of backing or a business card under the spring to remove lint, then reset and recheck tension (Brother; Perplexity Q&A).
• Anti-spin (“no-backlash”) spring alignment
• Check this at every bobbin change. Adjust so the spring contacts the bobbin evenly; many setups aim for the bobbin to sit about 0.5 mm proud of the case when checked upside down (Brother). A poorly set anti-spin spring can cause start-up loops or erratic backstitching.
• Verify the case with a gauge
• Insert bobbin correctly (many Brother setups pull clockwise viewed from the back), measure with smooth, steady pulls. A “bouncy” gauge needle suggests a bad or uneven bobbin—replace it (Brother).
• When to replace parts
• If you’ve cleaned, reset the anti-spin spring, and made micro screw changes without reaching stable readings, the bobbin case may be worn—replace it, or search for embroidery machine repair near me for professional assistance (Perplexity Q&A).
• Keep a baseline
• Mark your original screw position and/or keep a spare “baseline” bobbin case so you can revert quickly (Wonderfil).

5. Thread-Specific Tension Settings: Polyester vs. Rayon vs. Metallic

5.1 Weight Matters: Tension Adjustments for Different Thread Sizes

Start from known standards, then tune on fabric with contrasting threads:

• Bobbin starting ranges (case-measured with a gauge)
  • General embroidery: 18–22 g (Madeira)
  • Caps/thicker applications: up to 25 g; some machines up to 30 g (Madeira)
  • Some commercial operations: 25–35 g (Perplexity Q&A)
• Typical top-thread pairings
  • 40 wt top paired with 60 or 90 wt bobbin is common and helps the lock form cleanly inside the fabric (Perplexity Q&A).
• Top-thread guidelines by fiber (for balance context)
  • Rayon: ~100–120 g top tension (Madeira)
  • Polyester: ~120–150 g top tension (Madeira)
• How weight affects adjustments
  • Heavier top threads and decorative fibers often need the upper tension reduced to avoid drag and breakage, especially when bobbin is finer (Superior Threads). After you set the bobbin to baseline (e.g., ~18–22 g), balance with the top until the underside shows the 1/3–1/3–1/3 distribution.
  • Finer top threads generally run at lower top tension. Keep the bobbin at a stable baseline and validate by stitching; adjust top tension to re-center the lock (Perplexity Q&A; Madeira).

Always stitch-test your exact thread/fabric/stabilizer stack. Through-machine pulls will read higher than case measurements; for example, a 35–45 g through-machine reading can correspond to roughly 25 g at the bobbin case (Perplexity Q&A).

5.2 Specialty Threads Guide: Metallic, Nylon, and Cotton

• Metallic
  • Reduce upper tension to protect the metal-wrap surface and prevent breaks; confirm the 1/3–1/3–1/3 balance on the back (Superior Threads).
  • If loosening the top eliminates breaks but creates loops underneath, ease both bobbin and top slightly to keep a lower, balanced “tug-of-war” (Superior Threads).
• Nylon
  • Strong, low-stretch nylon often runs at relatively higher tensions compared with some decorative fibers (Perplexity Q&A). Set the bobbin to a known baseline, then raise upper tension gradually while monitoring stitch balance.
• Cotton
  • Cotton’s grabby surface can pucker if tensions are too high. Lower upper tension, ensure correct stabilizer, and verify even hooping to keep fabric flat (Perplexity Q&A; Madeira).
• Stabilization matters: where magnetic hoops help

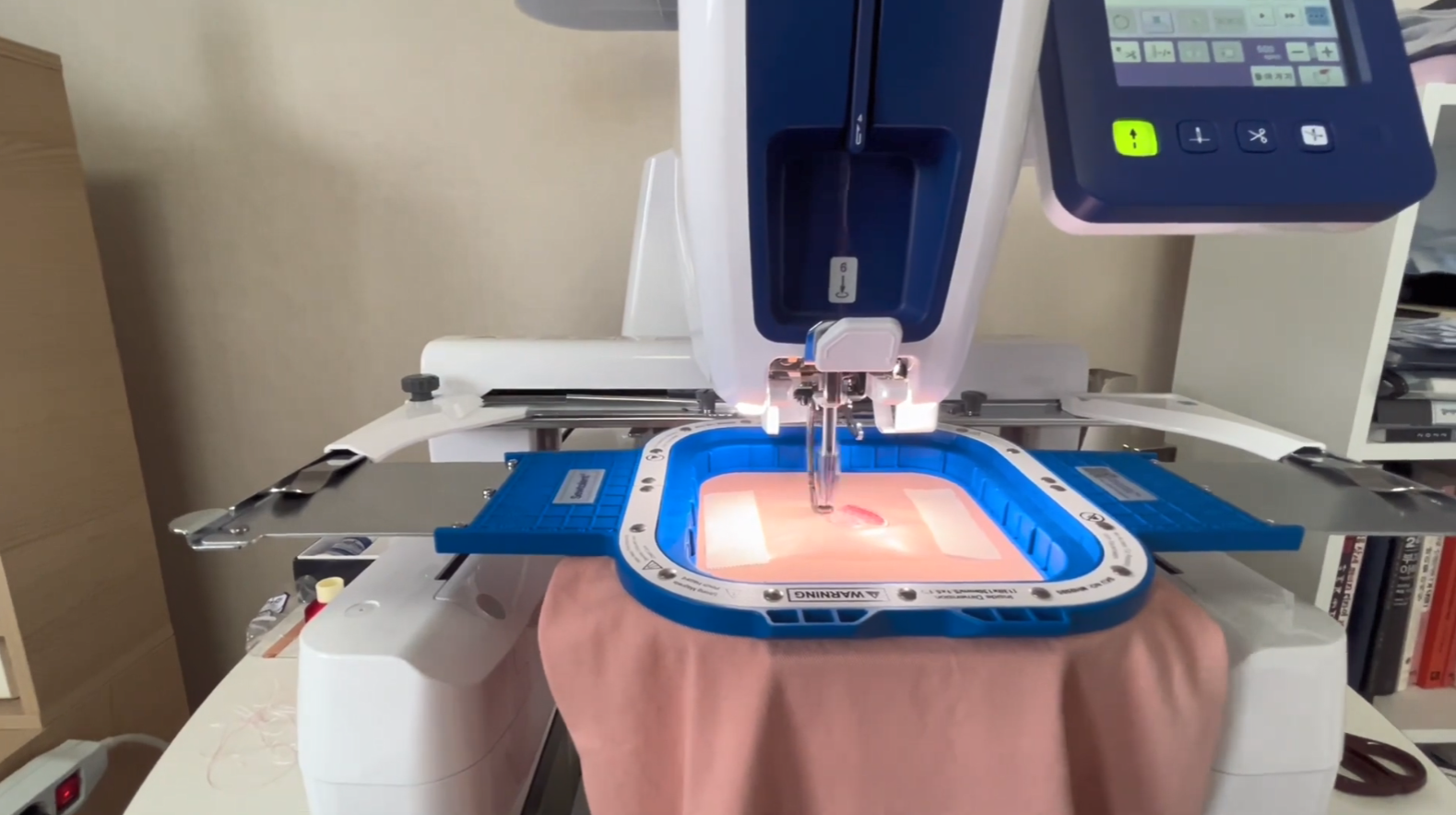

  • On delicate or tricky fabrics, even hoop pressure can prevent puckering and false “tension” symptoms. Sewtalent magnetic embroidery hoops hold fabric evenly across the sewing field, reduce hoop marks, and make repeatable setup easier—so you can run lower, safer thread tensions without fabric shift (Sewtalent brand guide). Note: Sewtalent hoops are designed for garment embroidery hooping, not caps.

6. Mastering the TOWA Gauge for Precision Measurements

6.1 Calibration Techniques: From Setup to Accurate Readings

Follow a consistent, repeatable process:

• Prep and cleanliness
• Clean the bobbin case first; a brush, backing corner, or even a business card can dislodge lint under the tension spring (Brother; Perplexity Q&A).
• Insert the bobbin correctly
• Thread direction matters. On many Brother setups, the bobbin turns clockwise when viewed from the back of the case (Brother). Seat the case fully in the gauge until it clicks/notches in (Perplexity Q&A).
• Threading path in the TOWA
• Route under the first pulley, over the second, and around the measuring hook/arm as specified for your model. Keep the gauge flat on a stable surface (Perplexity Q&A).
• The pull
• Pull horizontally, smoothly, at about 1 inch per second (Perplexity Q&A).
• Take three measurements and average them; erratic/bouncy needles point to lint, a damaged bobbin, or a worn case (Perplexity Q&A; Brother).
• Adjusting the case
• Use only the slotted tension screw; tiny changes go a long way. Clockwise tightens, counterclockwise loosens. Avoid the Phillips screw—it serves other functions (Madeira; Perplexity Q&A; Brother).
• Validate by stitching
• After hitting your target on the gauge, sew a quick satin test and check that “thirds rule” on the underside to confirm balance (Madeira, Brother).

6.2 Interpreting Results: Gram Force vs. Millinewtons

• Units and typical ranges
• Digital TOWA models commonly read in gram force (gf); analog models often use millinewtons (mN) (Perplexity Q&A).
• Embroidery bobbin case starting points: ~22–25 gf (most machines), with multi-needle systems sometimes running higher (about 25–40 gf depending on thread/machine) (Perplexity Q&A).
• Longarm quilting often targets higher mN values; many setups fall roughly in the 150–250 mN range (Perplexity Q&A).
• Reading behavior and quality checks
• Smooth, steady readings indicate healthy mechanics. Jumpy or fluctuating readings signal debris under the spring, a misshapen bobbin, or case wear—clean, replace the bobbin, or swap the case as needed (Brother; Perplexity Q&A).
• Through-machine vs. case readings
• Expect higher numbers when pulling near the needle due to added friction. A through-machine pull around 35–45 g can correspond to ~25 g at the bobbin case (Perplexity Q&A; see Section 2.2).
• Tolerances and documentation
• For production consistency, keep readings within tight bands (e.g., ±5% of your target) and log the result with bobbin case IDs and thread/fabric notes (Perplexity Q&A). This speeds repeat setups and stabilizes quality over time.

Calibrate periodically, especially if temperature/humidity swing or if your gauge has taken a knock. Measurement discipline plus stitched verification delivers the “perfect stitch” far more reliably than guesswork (Perplexity Q&A; Madeira; Brother; Superior Threads).

7. Pro Tips for Consistent Tension in Production Environments

7.1 Documentation Systems: Creating Your Tension Reference Log

Tension consistency is a measurement discipline. Build a simple, repeatable log so any operator can reproduce yesterday’s stitch quality on today’s shift.

• What to record for each run
• Date, operator, machine/needle ID
• Bobbin case ID and anti‑spin spring status
• Bobbin gauge reading (gf) and three-pull average at a smooth ~1 inch/second (TOWA method)
• Thread data: top/bobbin fiber and weight (e.g., 40 wt top with 60/90 wt bobbin is common)
• Fabric/stabilizer stack and hooping notes
• Upper tension baseline and micro-adjustments taken
• Visual check: the one‑third/one‑third/one‑third stitch “signature” on the underside

• How to capture readings with less guesswork
• Measure at the bobbin case with a TOWA gauge for a true baseline; pull smoothly and average three readings. Erratic needles often indicate lint or a bad bobbin (Brother; Perplexity Q&A).
• Start from known ranges (e.g., ~18–22 g for general embroidery; up to ~25 g for caps/thicker work) and confirm balance by stitching, not by numbers alone (Madeira; Perplexity Q&A).

• Make tests repeatable on fabric
• Hoop and stabilize the same way every time. Even, consistent hooping prevents false “tension” symptoms like puckering or stitch drag.
• On delicate or tricky garments, magnetic embroidery hoops can hold fabric more evenly across the sewing field and reduce hoop marks. Sewtalent magnetic hoops are designed for garment embroidery hooping and help standardize setup for tension testing; they’re not for caps. Their even holding pressure supports lower, safer thread tensions without fabric shift (Sewtalent; Madeira/Superior approach).

Suggested log template

A disciplined log—paired with stitched verification—lets you reproduce results fast, reduce downtime, and train new operators with confidence on industrial embroidery machines (Perplexity Q&A; Madeira; Brother; Superior Threads).

7.2 Preventative Maintenance Routines

Consistency starts with clean, healthy mechanics. Build these checks into your daily/weekly rhythm.

• At every bobbin change (Brother)
• Anti‑spin spring (“no‑backlash”): Inspect and align so it contacts the bobbin evenly; many Brother setups target the bobbin sitting about 0.5 mm proud of the case when checked upside down. Re‑bend in two places if needed, reinsert, and recheck.
• Clean under the bobbin tension spring: Loosen the slotted screw until the spring lifts ~1 mm, sweep a piece of backing under the spring to remove lint, retighten, and re‑measure.
• Verify bobbin direction and smooth feed: On many Brother cases, the bobbin turns clockwise when viewed from the back. Replace jumpy/uneven bobbins.

• Daily tension verification
• Use a gauge for the bobbin (smooth, steady pull). Measure, adjust in tiny increments (1/8–1/4 turn), and stitch‑test for the one‑third/one‑third/one‑third underside (Madeira; Brother; Perplexity Q&A).
• If loosening top tension to protect a sensitive thread causes looping underneath, slightly lower both top and bobbin to re‑balance at a gentler overall level (Superior Threads).

• Weekly system hygiene (Brother; Superior Threads)
• Thread path and check springs: Rethread completely, verify the thread is seated between tension disks, and confirm the check spring returns to the stop plate. If needed, adjust the check spring a modest 1/8–1/4 turn.
• Pre‑tensioners and guides: Clean and restore to baseline so sensor wheels turn reliably.
• Environment: Temperature, humidity, and lint change tension behavior—recheck after notable shifts.

• Smart spares and safeguards
• Keep a marked “baseline” bobbin case you never adjust for fast recovery (Wonderfil).
• Only adjust the slotted screw on the bobbin case; avoid the Phillips screw (Madeira; Perplexity Q&A).
• When standard cleaning and micro‑adjustments fail to yield stable readings, replace a worn bobbin case (Perplexity Q&A).

8. Conclusion: Your Path to Perfect Stitches

Balanced tension isn’t magic—it’s measurement plus small, deliberate moves. Set the bobbin with a gauge, verify by stitching, then fine‑tune the top so threads meet inside the fabric. Start from known gram‑force ranges, adjust in tiny increments, and always test on your actual fabric and stabilizer. Keep a simple log, clean the bobbin case often, and mind thread‑specific nuances. Do this, and most “mystery” stitch issues disappear before they slow you down.

9. FAQ: Expert Answers to Common Bobbin Tension Questions

9.1 Q: How often should I check bobbin tension?

A: Before each project, whenever you change thread types, and during long production runs—e.g., after 8+ hours of continuous stitching. Also recheck at every bobbin change and after cleaning under the bobbin tension spring (Brother; outline guidance).

9.2 Q: Can I use the same tension for all fabrics?

A: No. Dense, tough fabrics like denim typically need higher overall tension than delicate fabrics like silk. Always hoop/stabilize correctly and stitch‑test on your actual fabric, then adjust in small steps (Madeira; Superior Threads).

9.3 Q: Why does tension change mid-embroidery?

A: Common culprits include lint under the bobbin tension spring, bobbin depletion (the last 10% can behave differently), and temperature/humidity shifts. Pause to clean, insert a fresh bobbin, and re‑verify with a gauge before resuming (Brother; Handi Quilter; outline guidance).
