Type with Clipart in Embird Editor: Map PES Designs to Your Keyboard (and Stop Rebuilding the Same Layouts)

The "Zero-Friction" Workflow: Mapping Clipart to Keys in Embird (And Why Folder Hygiene Saves Needles)

If you have ever built a custom birthday shirt layout the "manual" way—insert a name, hunt for a generic dragon file, merge it, nudge it, realize the size is wrong, delete it, and start over—you know the pain isn’t the editing. The pain is the friction. It’s the constant context switching between your creative flow and your file explorer.

Donna’s Embird Editor trick solves this by treating embroidery designs like a font. By using the Insert Ready-Made Alphabet Text tool, you can map a folder of standard embroidery files (like PES clipart characters) to keyboard letters. Once mapped, you don’t "import" a dinosaur; you simply type "D".

However, software is only half the battle. As someone who has overseen thousands of production runs, I know that a perfect software layout can still result in a bird's nest on the machine if the physical physics aren't respected.

In this guide, we will walk through the exact Embird workflow, but we will also layer in the shop-floor protocols—folder hygiene, correct stabilization, and hoop logic—that ensure your design runs as smoothly on the fabric as it does on the screen.

The Concept: Turning "Files" into "Keystrokes"

In Embird Editor, the Insert → Ready-Made Alphabet Text function opens a character-mapping interface. Most people only use this for font packs. However, the software is agnostic; it doesn't care if the file is a letter "A" or a complex floral motif.

By mapping a folder of design files to keys, you create a system where pressing "A" inserts a specific design automatically. This is the difference between a hobbyist hunting for files and a production digitizer building repeatable layouts.

Why this matters for production: When you reduce the number of clicks required to build a design, you reduce the margin for error. But before we touch the keyboard, we must maximize our success rate by preparing the physical environment.

Warning (Machine Safety): Never assume a design "looks fine" on screen without checking its physical properties. A design that is too dense for your fabric can cause needle deflection (where the needle hits the throat plate) or shred the thread. Always match your file size to your hoop size before you map it.

Phase 1: The "Hidden Prep" (Folder Hygiene)

Donna identifies the single biggest point of failure: Folder Pollution.

Embird is a literal machine; it will do exactly what you tell it. If you tell it to map a folder that contains PES, JEF, and DST files all mixed together, it will map duplicates. If you mix varied sizes (2-inch and 5-inch versions) in one folder, it will map both to the same key.

The "One Folder, One Truth" Rule

To create a system you can trust blindly during a rush order, you must restructure your source files on your hard drive.

1. Isolate by Format: Create a folder specifically for your machine's native language (e.g., "Monsters_PES").
2. Isolate by Size: This is the critical step. Create sub-folders like "Monsters_4x4" and "Monsters_5x7".

In the video, Donna navigates to a "Cute Monsters" set and filters to PES.

The Trap: Donna’s test set contains both 4x4 and 5x7 versions in the same folder. This confuses the mapping engine, causing it to stack two designs on top of each other.

The Fix:

• Make one folder per size (4x4, 5x7).
• Map each size folder as its own distinct "alphabet" in Embird.
• Name them clearly: "Monsters 4x4" and "Monsters 5x7".

This ensures that when you select the "4x4" alphabet, it is physically impossible to insert a file that is too large for a brother 4x4 embroidery hoop. You are designing with safety rails.

Prep Checklist: Data Hygiene

• Format Audit: Create a clean folder containing ONLY your machine's format (e.g., .PES).
• Size Segregation: Split designs into sub-folders based on their finished bounds (4x4 vs 5x7).
• Naming Convention: Rename folders to include the size (e.g., "Robots - 4in").
• Corrupt File Check: If a file thumbnail doesn't generate in Windows, remove it; it may crash the mapper.

Phase 2: Mapping the "Alphabet" in Embird

With clean data, the setup is mechanical. Here is Donna’s exact workflow:

1. Go to Insert → Ready-Made Alphabet Text.
2. Click the small folder icon with a plus sign (Add newly made alphabet to list).
3. In the dialog, click Add Folder.
4. Browse to your sanitized design folder (e.g., "Cute Monsters – PES – 4x4").
5. Critical Step: Ensure the format filter matches your files (Donna selects PES).
6. Click OK.

Once confirmed, Embird populates the character grid.

Sensory Check (Visual): Look at the grid. Do you see crisp, single thumbnails for each letter/key?

• Success: One design per box.
• Fail: Stacked images, "ghost" images, or blank boxes. This means you skipped the Prep Checklist.

Setup Checklist: The Connection

• Module Check: Verify you are in Embird Editor (the composition tool), not Manager.
• Mapping Verification: Open the tool and confirm the grid matches your folder content.
• Target Selection: Decide your hoop size NOW. If you map the 5x7 folder but try to squeeze it into a small hoop, you will face density issues later.

Phase 3: The "Double Monster" Trap & The Workflow Fix

Donna demonstrates a classic symptom of poor folder hygiene: she inserts a monster, and two versions appear on the workspace—a small one hidden inside a large one.

The "Quick" Fix (Reactive)

Donna fixes this by clicking the unwanted 5x7 version and pressing Delete. This works for a one-off project.

The "Pro" Fix (Preventative)

In a production environment, "deleting mistakes" is wasted motion. By separating your folders by size (Phase 1), you eliminate this step entirely.

Why this matters for your equipment: If you accidentally leave a 5x7 design in a layout meant for a 4x4 hoop, and then simply "shrink" it to fit, you are dangerously increasing the stitch density. A design meant to have 20,000 stitches at 7 inches tall will become a solid bulletproof block at 4 inches. This breaks needles and creates stiffer embroidery that feels like cardboard.

If you are swapping between hoop sizes often—perhaps utilizing a brother 5x7 magnetic hoop for larger adult garments and a standard hoop for infant items—keeping your mappings separated by size prevents you from forcing the wrong design into the wrong hoop.

Phase 4: Composing Text and Graphics (The "David" Project)

The power of this workflow is combination speed. After inserting a monster via the "Monster" mapping, Donna switches the source to a "Spooky Font" folder and types David.

Expert Insight on Stitch Order: Donna adjusts the order, which is vital. Generally, you want your design to flow logically to prevent fabric shifting.

• Rule of Thumb: If the graphic is a background element, stitch it first. If the graphic is a standalone element next to text (like this project), stitch the element that provides the most stability first. Often, stitching the dense text first can pucker the fabric slightly; stitching a large reliable fill pattern first can sometimes "tack down" the stabilizer more effectively. However, for visual layering, ensure the foreground object is last.

Phase 5: The "Runaway String" Error

Donna intentionally triggers a common frustration.

1. She has "David" typed in the text box.
2. She switches back to the Monster mapping to add a graphic.
3. Embird maps the letters D-A-V-I-D to the Monster folder, inserting five monsters.


The Fix:

• Re-open the tool.
• Clear the text box completely.
• Type a single letter (Donna uses "G") corresponding to the specific design you want.
• Click OK.




Phase 6: 3D Preview: Your Virtual Sew-Out

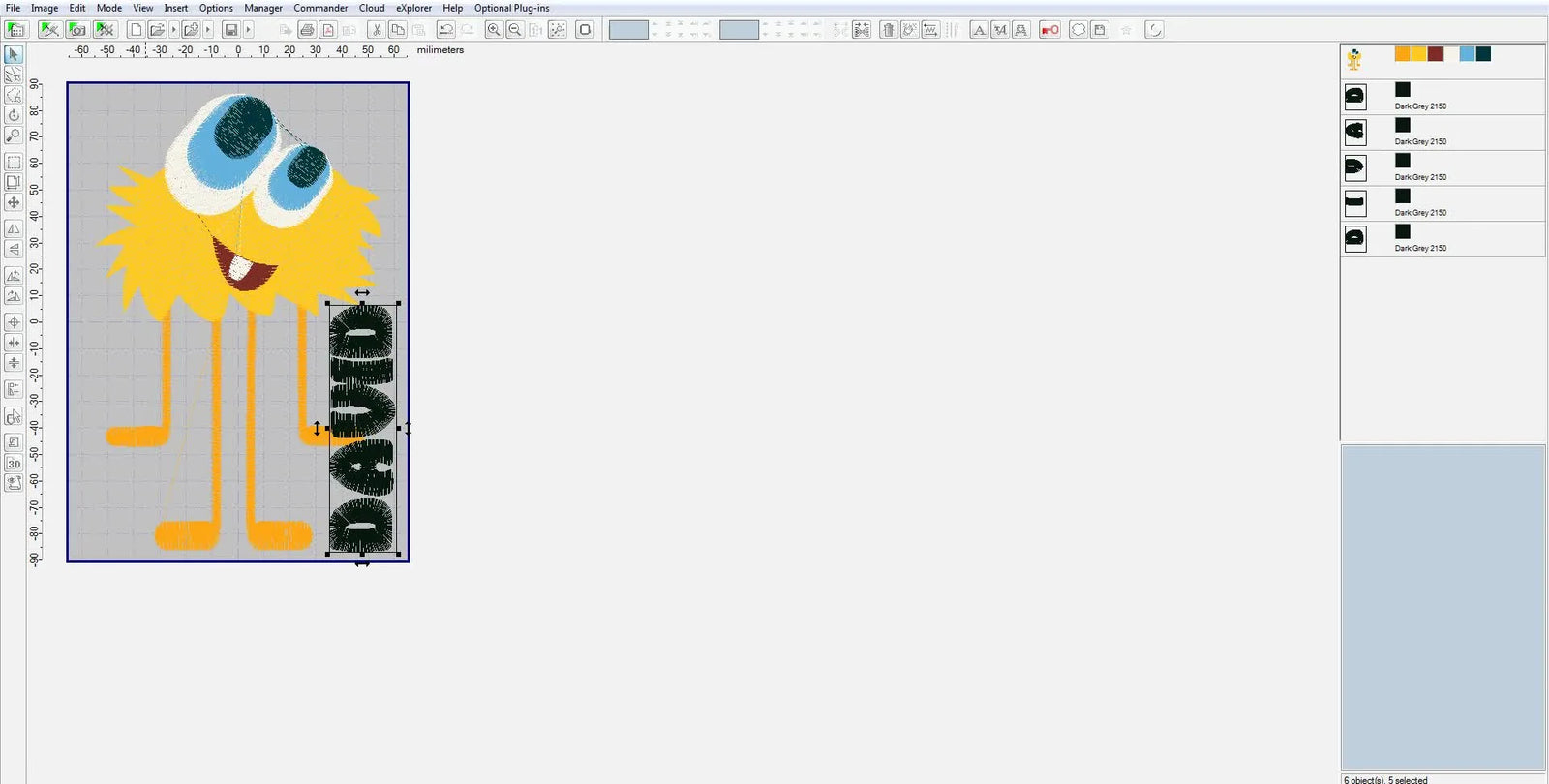

Donna rotates the text using Rotate Left (90°) and switches to 3D Matte view.

Sensory Anchor (Visual): Don't just look at the colors. Look at the density.

• Does the lettering look like a solid block of color? Good.
• Do you see the background grid showing through the stitches? That indicates a potential gap or under-density issue.
• Do the stitches look piled high and jagged? That indicates over-density (danger of needle break).

The "Resizing" Third Rail

Donna notes a gap after resizing and wisely advises against it.

The Physics of Resizing: When you resize a standard stitch file (not a native object file) by more than 10-20%, you ruin the integrity of the stitch.

• Upsizing: Spreads stitches apart, revealing the fabric (gaps).
• Downsizing: Crams stitches together, causing thread nests and stiff designs.

The Solution: Do not resize. Map the 2-inch folder, the 3-inch folder, and the 4-inch folder separately. Choose the right size before you type.

Phase 7: The Physical Decision Tree (Fabric, Hoop, & Stabililzer)

You have the perfect file. Now, how do you ensure it sews perfectly? The software cannot feel the fabric; you must make these decisions.

Use this decision logic before you clamp the hoop.

Decision Tree (Fabric → Stabilizer → Hooping Strategy)

1. Is the fabric unstable/stretchy (T-shirt, Hoodie, Performance knit)?
   • Stabilizer: Cutaway (Mesh) is mandatory. Tearaway will result in distorted text.
   • Needle: Ballpoint (75/11).
   • Hooping Risk: Stretching the fabric while hooping ("Drum Skin" is bad for T-shirts; it should be neutral tension).
2. Is the fabric stable (Denim, Canvas, Towel)?
   • Stabilizer: Tearaway is usually sufficient.
   • Needle: Sharp or Universal (75/11 or 90/14 for denim).
3. Are you experiencing "Hoop Burn" (shiny rings from clamp pressure)?
   • Diagnosis: The friction of standard plastic hoops crushes delicate fibers (velvet, performance wear).
   • Solution: Switch to a magnetic embroidery hoop. The vertical magnetic hold secures the fabric without the friction-twist motion that causes burn.
4. Is alignment slowing you down?
   • Diagnosis: If you spend 5 minutes aligning a chest logo, you are losing money.
   • Solution: Use a hooping station for embroidery to standardize placement.

Phase 8: Commercial Logic & Tooling Upgrades

As you master this Embird workflow, your design speed will increase. Suddenly, the bottleneck isn't the computer—it's the machine setup.

The "Pinch Point": When to upgrade your Hoops

If you are doing production runs of 10+ items, standard plastic hoops become a liability. They fatigue your wrists and leave marks.

• The Upgrade: magnetic embroidery hoops for brother (and other brands) allow you to hoop a garment in seconds.
• The Check: Listen for the solid clap of the magnets engaging. It secures the backing and fabric instantly without pulling.

Warning (Magnet Safety): Industrial magnetic hoops are extremely powerful.
1. Pinch Hazard: Keep fingers clear of the mating surface. The magnets snap together with significant force.
2. Medical Devices: Maintain a safe distance from pacemakers and sensitive electronics.

The "Volume Point": When to upgrade your Machine

If you find yourself constantly changing thread colors or waiting for a single needle to finish, you have outgrown a single-needle workflow.

• The Logic: A multi-needle machine (like the SEWTECH solutions or similar industrial models) allows you to set up 6-15 colors at once.
• The Math: If a design has 5 color changes, a single-needle machine requires 5 manual interventions. A multi-needle machine runs the whole job uninterrupted while you hoop the next shirt.

Hidden Consumables Checklist: Don't let a $5 item stop a $500 job.

• Temporary Spray Adhesive (505): Essential for floating fabric on magnetic hoops.
• Spare Bobbin Case: Lint builds up here. Keep a clean spare.
• Titanium Needles: They stay cooler and sharper during long runs.

Operation Checklist: The "Go/No-Go" Sequence

Perform this mental check before pressing the green button.

• File Integrity: Did you insert the correct size mapping (no resizing in editor)?
• Ghost Check: Is the text box clear of previous letters?
• Stitch Order: Does the background stitch before the foreground text?
• Hoop Clearance: Does the design fit safely within the sewing field (leave 1/2" margin)?
• Bobbin Check: Do you have enough bobbin thread to finish the run? (Visual check: is the spool low?)
• Stabilizer Match: Are you using Cutaway for knits?

Troubleshooting Guide: The 3 Most Common Errors

By treating your digital files with the same discipline as your physical tools, you turn a frustrating game of "file hunt" into a streamlined production line. Clean folders lead to clean maps; clean maps lead to fast layouts; and smart tooling—like proper machine embroidery hoops—ensures the final result stays profitable.

FAQ

• Q: How do I stop Embird Editor “Ready-Made Alphabet Text” from inserting two designs for every key when mapping PES clipart folders?
  A: Rebuild the source folder so it contains one format and one finished size only, then re-map the alphabet.
  • Separate files by size into dedicated folders (for example, 4x4 in one folder and 5x7 in another).
  • Keep only one machine format per mapping folder (for example, PES only) to avoid duplicates.
  • Re-open Insert → Ready-Made Alphabet Text and add the cleaned folder again.
  • Success check: each grid box shows one crisp thumbnail (no stacked/ghost images).
  • If it still fails: remove any file that does not generate a thumbnail on your computer and re-map.
• Q: How do I fix the Embird Editor “Ready-Made Alphabet Text” problem where typing one letter inserts a whole string of unwanted clipart designs?
  A: Clear the Ready-Made Alphabet text box completely before typing the single key you want.
  • Open Insert → Ready-Made Alphabet Text.
  • Backspace until the text box is empty, then type only one character (the mapped key).
  • Click OK to insert just that one design.
  • Success check: only one design appears on the workspace (not multiple characters worth of designs).
  • If it still fails: close and reopen the dialog and verify you selected the correct mapped “alphabet” folder.
• Q: How much can Embird Editor resize a stitch-based embroidery design before gaps, distortion, or thread nesting becomes likely?
  A: As a safe rule in Embird Editor, avoid resizing stitch files more than about 10–20%; insert the correct size file instead.
  • Delete the resized object that looks gappy or overly dense.
  • Insert the correct size from a size-specific mapped folder (for example, map 2-inch, 3-inch, and 4-inch folders separately).
  • Use 3D preview to evaluate density before you sew.
  • Success check: stitches look even (not showing background grid from under-density, and not piled/jagged from over-density).
  • If it still fails: stop and choose a different size file rather than forcing a heavy downsize.
• Q: What is a safe Embird Editor workflow to prevent needle deflection, needle breaks, or thread shredding when a design is too dense for the fabric?
  A: Decide hoop size and design size first, and do not “shrink to fit” dense designs into smaller hoops.
  • Select the mapping folder that matches the intended hoop size before placing any artwork.
  • Avoid downscaling a larger design into a smaller hoop area because density increases.
  • Use 3D preview to spot over-density signs before sending the file to the machine.
  • Success check: the design looks balanced in 3D (not like a thick, jagged “bulletproof” block).
  • If it still fails: choose a lighter design version or a properly sized file; generally, match design size to hoop size rather than forcing it.
• Q: What stabilizer and needle setup is a safe starting point for embroidery on T-shirts, hoodies, and other stretchy knits to reduce puckering and distortion?
  A: For stretchy knits, cutaway (mesh) stabilizer with a ballpoint 75/11 needle is a safe starting point, and hoop with neutral tension.
  • Use cutaway stabilizer (mesh) instead of tearaway for knits.
  • Install a ballpoint needle (75/11) and avoid stretching the garment while hooping.
  • Keep the fabric “neutral” in the hoop rather than drum-tight.
  • Success check: after stitching, letters stay square and the knit does not ripple or wave around the design.
  • If it still fails: reassess hooping tension and stabilizer support; follow the machine manual for needle selection if the fabric is unusually thick or specialty knit.
• Q: How do I reduce hoop burn (shiny clamp rings) on delicate garments when using standard plastic embroidery hoops?
  A: Switch to a magnetic embroidery hoop to reduce friction and twisting pressure that crushes fibers.
  • Identify hoop burn by shiny rings that match the hoop edge after stitching.
  • Use magnetic holding force to secure fabric without the same clamp-twist friction of plastic hoops.
  • Combine with correct stabilizer so you are not over-tightening to “compensate.”
  • Success check: fabric comes out without shiny compression rings where the hoop contacted the garment.
  • If it still fails: reduce handling and test on a scrap; some delicate fabrics may still mark, so adjust process based on fabric behavior.
• Q: What are the key safety precautions for industrial magnetic embroidery hoops to prevent finger pinch injuries and device/electronics issues?
  A: Treat magnetic embroidery hoops as a pinch hazard and keep them away from pacemakers and sensitive electronics.
  • Keep fingers clear of the mating surfaces before bringing the hoop halves together.
  • Let the magnets “clap” together under control rather than snapping unpredictably.
  • Maintain a safe distance from pacemakers and sensitive electronics.
  • Success check: magnets engage with a firm, controlled snap and no fingers are ever between the halves.
  • If it still fails: slow down the handling sequence and reposition your grip so hands never cross the closing path.
