Turn Janome CM17 “Border” Fonts into Perfect Circular Frames (Without Digitizing Software Headaches)

The "Hidden" Circle Tool: How to Master Border Fonts on the Janome CM17

If you’ve ever stared at your screen thinking, “I just need a simple circular border—why does this feel like a complex digitizing project?”, take a breath. You are not alone. Most beginners overcomplicate this by looking for a "Shape Tool."

On the Janome Continental M17 (CM17), the secret weapon is hiding in plain sight: Font Arcing. The machine categorizes icons (chickens, holly, bells) as "text." This means you can manipulate a row of chickens exactly like you manipulate the alphabet—bending, arcing, and mirroring them into a perfect frame for quilt labels or patches.

This guide will take you from "fiddling with settings" to "production-ready borders," ensuring you protect your fabric and your sanity along the way.

The Mental Shift: It’s Not a Picture, It’s a "Letter"

To master this technique, you must understand how the machine "thinks." The CM17 has two specific font categories that act as design elements:

1. “Border” Mode: Contains icons like flowers, birds, and musical motifs.
2. “Normal Sew” Mode: Contains utility-style decorative stitches (ticks, leaves, geometric lines).

The Unlock: Because the CM17 treats these icons as Text Characters, it grants you access to the ABC Layout Tools. You aren't just placing a picture; you are "typing" a border. This unlocks the Arcing Tool, which is usually unavailable for standard embroidery designs.

Phase 1: The "Hidden" Prep Pros Do (Hoop & Stabilization)

Before you touch the screen, you must stabilize your physical foundation. A perfectly digitized circle will stitch out like an oval (or a potato) if your hooping is weak.

The Physics of the Hoop

For a circular border, you need a hoop large enough to handle the full diameter plus a safety margin. Sharyn relies on the SQ28d (280×280 mm) hoop.

Sensory Check: When you hoop your fabric, tap the surface. It should sound like a dull thud, similar to a tight drum skin, but the fabric grain must remain straight. If you pull it so tight that the weave looks distorted (like a grid turning into diamonds), you have "hoop burn" waiting to happen.

The Stabilizer Decision Tree:

• Scenario A: Rigid Fabric (Denim/Quilt Sandwich)
  • Solution: Tearaway stabilizer is usually sufficient.
  • Upgrade: If you hate hoop marks on delicate quilt blocks, pros often switch to a janome magnetic hoop setup. The magnets clamp without crushing the fibers.
• Scenario B: Stretchy Fabric (T-shirts/Knits)
  • Solution: Fusible No-Show Mesh (Cutaway). No exceptions.
  • Why: The needle perforations on a dense border will cut a hole in the knit if it isn't permanently supported.
• Scenario C: High-Pile (Towels/Velvet)
  • Solution: Use a water-soluble Topping (Solvy) to keep the stitches from sinking into the pile.

Prep Checklist:

• Hardware: Confirm the correct needle is installed (Size 75/11 usually works well; switch to Ballpoint for knits).
• Hoop: Ensure you are using the SQ28d or equivalent large square frame on your janome embroidery machine.
• Consumables: Have your bobbin filled (white for standard, matching color if the design is freestanding lace-style).
• Safety: Ensure the embroidery arm has clear space to move—these large hoops swing wide!


Phase 2: Building the "Text" String

Now, let's build the raw material for your border.

1. Navigate to the Border font category.
2. Select an Icon (e.g., the chicken).
3. Tap to Fill: Tap the icon repeatedly to create a line.
   • Pro Tip: Create a rhythm. Try "Chicken A, Chicken B, Chicken A" for visual interest.
4. Audit the Line: If you have a "lonely" icon at the end that breaks the pattern, delete it now. When we mirror this later, any asymmetry will look like a mistake at the join point.

Concept: Think of this string as the "radius" of your circle. The longer the string, the larger your final circle can be.

Phase 3: Orientation & The 270° Rotation Trick

This is the step that confuses 90% of beginners. By default, the input line might appear vertical. While the machine doesn't care, your eyes do. It is incredibly difficult to judge spacing on a vertical line.

The Fix:

1. Go to the Edit screen.
2. Select Rotate.
3. Type in or dial to 270 degrees.

Why: This rotates the entire string so it sits horizontally in front of you. Now, you can clearly see the spacing and rhythm of the icons. It turns a "vertical list" into a "horizon line."

Warning (Mechanical Safety): When working with large hoops like the SQ28d on the CM17, the pantograph (arm) movement path is extensive. Keep hands clear of the hoop area while the machine calibrates or stitches. A fast-moving hoop can cause painful finger pinches against the machine body.

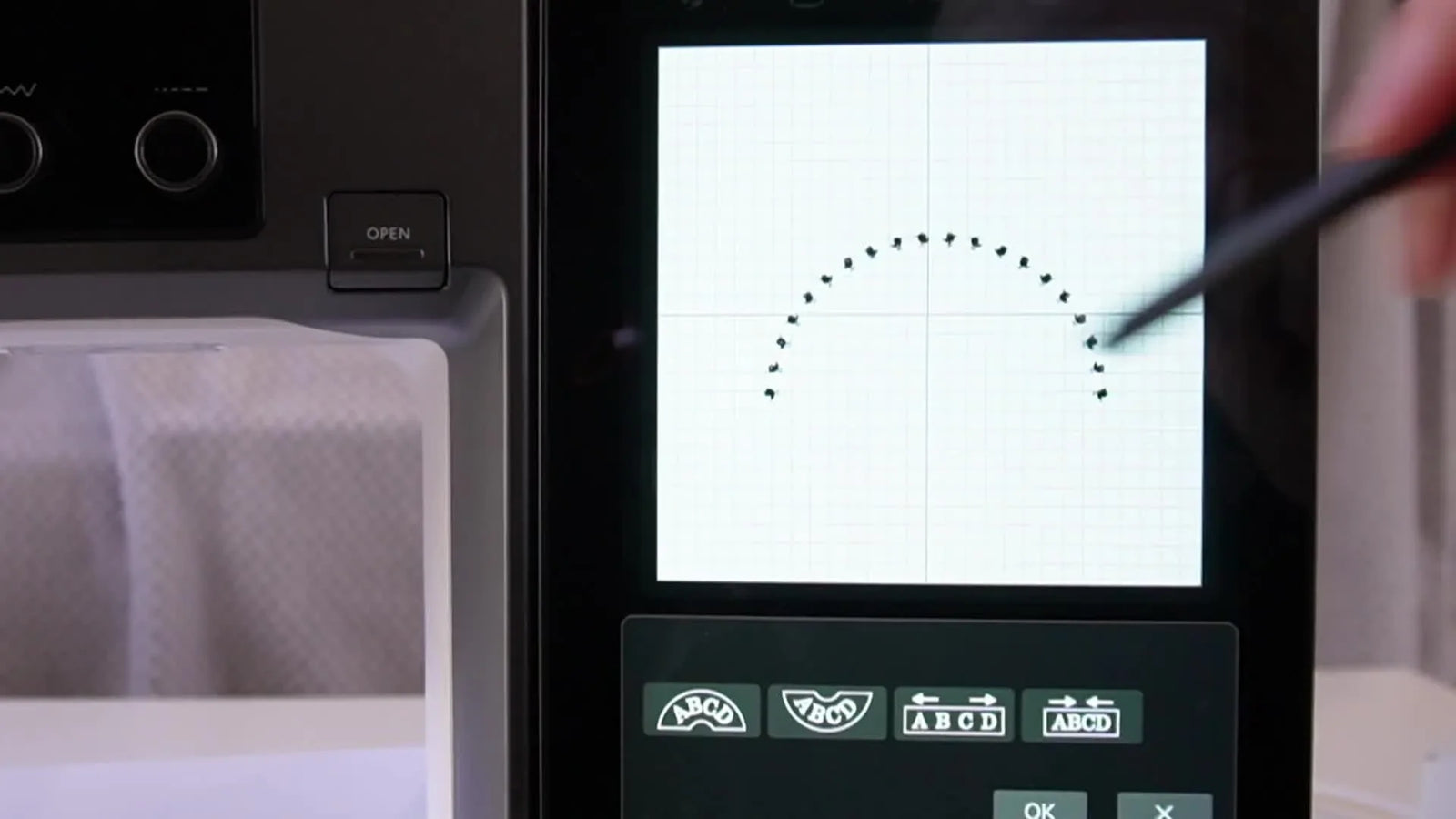

Phase 4: The Arcing Magic (Bending the Line)

With your line horizontal, it’s time to bend it.

1. Open the ABC Layout Menu.
2. Select the Arcing Tool.
3. Curve It: Use the Top Curve or Bottom Curve option (Sharyn shows a semi-circle).
4. Adjust Radius: Use the slider/knob to tighten or widen the arc.

Visual Success Metric: Look for the icons to fan out evenly. If they are bunching up and overlapping at the corners, your arc is too tight for the number of icons you chose. Delete one icon and try again.

Phase 5: Mirror & Join (Closing the Loop)

You now have a semi-circle (like a rainbow). To make a frame, we need the bottom half.

1. Copy the arced object.
2. Flip Vertical: Use the Flip Vertical Axis tool. This turns the rainbow into a "u-shape."
3. Drag & Drop: Move the new copy down until the ends satisfy the "Kiss Rule."

The "Kiss Rule": Zoom in on the screen to 400%. The last icon of the top arc and the first icon of the bottom arc should have the exact same spacing as the icons in the middle of the string.

• Too close: It looks like a cluster.
• Too far: It looks like a gap.

Troubleshooting alignment: If the ends don't meet symmetrically (e.g., the left side touches but the right side has a gap), select the bottom copy and Flip Horizontally. This mirrors the spacing "quirks" of the original line, often snapping the geometry back into a perfect circle.

Troubleshooting Guide: Why Your Circle Isn't Circular

Even with the best tools, physics happens. Here is how to fix common geometric failures.

Phase 6: Stitch-Like Borders (The "Normal Sew" Category)

If you don't want chickens or holly, switch to the Normal Sew font category. These motifs (bunting, leaves, geometry) look like traditional sashiko or decorative machine stitching.

Application: This is a goldmine for quilt labels. It creates a frame that looks "hand-finished" rather than "digitized."

• Size Logic: To change the size of your circle here, you don't change the "font size." You change the number of icons in your string.
  • More icons = Larger circumference.
  • Fewer icons = Smaller circumference.


Phase 7: Centering Text (The Finishing Touch)

Now that your frame is built, place your cursor in the dead center.

1. Switch to a Script Font.
2. Type your label (Name, Date, "Made with Love").
3. Check Breathing Room: Ensure there is at least 10mm of negative space between your text and the inner edge of the border.
   • Why: If the text touches the border, the eye perceives it as "crowded" and amateur.
   • Correction: If it fits too tightly, shrink the text size by 10% or choose a thinner font.


Decision Tree: Choosing Your Tools for Production

Designing the circle is 50% of the work. The other 50% is mechanical execution. If you intend to make these in batches (e.g., 20 team patches or 5 quilt labels), your choice of hoop will dictate your fatigue level.

Decision Tree: Do I stick with the stock hoop or upgrade?

1. Low Volume (1-2 items/month):
   • Tool: Standard plastic hoop included with your machine.
   • Technique: Use the "floating" method (hoop stabilizer, spray adhesive, stick fabric on top) to avoid hoop burn.
2. Medium Volume / Delicate Fabric:
   • Pain Point: Hoop burn or difficulty clamping thick quilts.
   • Tool: Sewtech Magnetic Hoop.
   • Why: Magnetic hoops hold uniform tension without the "unscrew-tighten-pray" cycle. They are searchable online under terms like magnetic embroidery hoops and are compatible with many Janome models.
3. High Volume (Production Run):
   • Pain Point: Speed and placement consistency.
   • Tool: Hooping Station + Multi-Needle Machine.
   • Why: If you are scaling up, consistent placement is key. Using an embroidery hooping station ensures every logo lands in the same spot, reducing rejects.

Warning (Magnetic Safety): Magnetic hoops use industrial-strength neodymium magnets. Keep them away from pacemakers, insulin pumps, and credit cards. Do not let your fingers get pinched between the magnets—they snap together with tremendous force.

Setup Checklist: The Pre-Flight Protocol

Do not press "Start" until you pass this check.

Setup Checklist:

• Hoop Size: Confirmed SQ28d (or appropriate size) in machine settings.
• Design Center: Is the design centered in the hoop? (Check the crosshair on screen).
• Rotation: Is the design rotated correctly for the fabric orientation?
• Join Check: Did you visually inspect the top and bottom joins at 400% zoom?
• Needle Path: Did you run a "Trace" (basting outline) to ensure the needle won't hit the hoop frame?
• Bobbin: Is there enough bobbin thread for a dense border? (Running out mid-border is a nightmare to fix invisibly).


The "Why" Behind Hooping Physics

Why do circles often turn into ovals? Drag. As the machine moves the pantograph, the weight of a heavy quilt block drags against the movement.

• The Fix: Support your fabric. Do not let the heavy quilt hang off the table. Use a table extension or holding clips.
• The Tool: This is another area where janome hoops tailored for quilting (like the magnetic ones) shine—they provide a flat, firm grip that resists drag better than standard rings.


Operation Checklist: During the Stitch

Embroidery is not "set it and forget it" for borders.

Monitoring List:

• First 100 Stitches: Watch the tie-in stitches. If the thread pulls a "birdnest" underneath, stop immediately.
• Sound Check: Listen for a rhythmic thump-thump. A sharp clack usually means a needle is dull or hitting a hard spot in the stabilizer.
• Fabric Watch: Place your hand gently on the hoop edge (keep fingers away from needle!). Can you feel the vibration? It should feel solid. If the fabric is "bouncing" (flagging) up and down with the needle, your stabilizer is too thin.


From Hobby to Production: Scaling Up

This technique on the CM17 is fantastic for custom, one-off projects. However, if you find yourself creating hundreds of these circular patches, you may hit the limits of a flatbed single-needle machine.

When efficiency becomes the priority, professionals upgrade to a multi-needle setup—often searched for as an embroidery hoop machine capable of handling tubular goods. These machines allow you to hoop faster (often with specialized hooping stations) and stitch continuously without changing threads manually.

But for the creative sewist, mastering this "Border Font" hack on your Janome transforms the machine you already own into a custom label factory.

Final Tip: Save your successful layouts into the machine's internal memory. Naming them "CIRCLE-TEMPLATE-5INCH" allows you to pull up a perfectly aligned frame instantly, leaving you to just swap out the center text for the next project.

FAQ

• Q: How do I prevent hoop burn when stitching circular border fonts on the Janome Continental M17 (CM17) with the SQ28d hoop?
  A: Use firm-but-not-crushed hooping and switch to a magnetic hoop when fabric marks keep happening—this is common on delicate fabrics.
  • Hoop: Tap the hooped fabric and aim for a dull “thud” while keeping the fabric grain straight (no diamond-shaped distortion).
  • Reduce pressure: Avoid over-tightening the standard hoop; consider the floating method (hoop stabilizer, lightly adhere fabric on top) for delicate surfaces.
  • Upgrade option: Use a magnetic hoop to clamp evenly without crushing fibers when hoop marks are your recurring pain point.
  • Success check: After unhooping, the fabric weave looks normal and the border stitches stay round instead of pulling into an oval.
  • If it still fails: Re-check stabilizer choice and support the fabric weight so drag doesn’t distort the circle.
• Q: What stabilizer should I use on the Janome Continental M17 (CM17) for a dense circular border on knits, towels, or denim?
  A: Match stabilizer to fabric type first, because dense borders amplify distortion and sinking.
  • Choose for rigid fabrics (denim/quilt sandwich): Start with tearaway; switch methods if hoop marks bother you.
  • Choose for knits (T-shirts/stretch): Use fusible no-show mesh cutaway—no exceptions for dense borders.
  • Choose for high-pile (towels/velvet): Add water-soluble topping to stop stitches from sinking.
  • Success check: The border looks even with no tunneling on knits and no “sunken” stitches on towels.
  • If it still fails: Stop and strengthen stabilization (fusible support or stronger adhesion) before restitching.
• Q: Why does a border-font circle on the Janome Continental M17 (CM17) stitch out as an oval instead of a true circle?
  A: Reduce drag and re-balance the design arc-to-length relationship—circles turn into ovals most often from fabric drag and mismatched arc settings.
  • Support: Keep heavy quilt blocks fully supported (don’t let fabric hang off the table while stitching).
  • Rebuild: Shorten the icon string slightly (remove a couple of icons) and re-apply the arcing tool if the radius looks forced.
  • Verify: Use trace/basting outline to confirm the design sits correctly in the hoop before committing.
  • Success check: The stitched border measures visually symmetrical and the top/bottom curves look equally “round,” not stretched.
  • If it still fails: Switch to a firmer hooping method (often magnetic clamping helps) and reduce movement stress by improving fabric support.
• Q: How do I use the 270° rotation trick on the Janome Continental M17 (CM17) to space border icons evenly before arcing?
  A: Rotate the border-font icon string to 270° so the line sits horizontally, making spacing mistakes easier to see and fix.
  • Edit: Open the Edit screen, choose Rotate, and set rotation to 270 degrees.
  • Audit: Delete any “lonely” end icon that breaks the rhythm before you arc (asymmetry becomes obvious at the join).
  • Arc: Apply the arcing tool and loosen the radius if icons bunch at the ends.
  • Success check: The icons “fan out” evenly with no overlaps at the arc corners.
  • If it still fails: Remove one icon and re-arc; tight arcs with too many icons cause corner crowding.
• Q: How do I close the loop cleanly when mirroring a border-font semi-circle on the Janome Continental M17 (CM17)?
  A: Copy, flip vertically, then align the ends using the “Kiss Rule” at high zoom—most join gaps come from misjudged spacing.
  • Copy: Duplicate the arced semi-circle, then apply Flip Vertical Axis to form the bottom half.
  • Align: Zoom to 400% and adjust position so the join spacing matches the spacing between icons in the middle.
  • Correct asymmetry: If one side meets but the other gaps, flip the bottom copy horizontally to mirror spacing quirks.
  • Success check: The join point is visually indistinguishable from the rest of the pattern (no cluster, no gap).
  • If it still fails: Rebuild the original icon string more symmetrically before mirroring.
• Q: What should I watch for during the first 100 stitches on the Janome Continental M17 (CM17) to prevent birdnesting under a circular border?
  A: Stop immediately if you see thread nesting under the fabric early—dense borders get worse fast if the start is messy.
  • Observe: Watch tie-in stitches closely for the first 100 stitches and pause at the first sign of looping underneath.
  • Listen: A steady rhythmic “thump-thump” is normal; a sharp “clack” often means a dull needle or hitting a hard stabilizer spot.
  • Stabilize: If the fabric bounces (flagging), upgrade to stronger stabilization before continuing.
  • Success check: The underside shows clean, controlled stitching rather than a growing wad of thread.
  • If it still fails: Re-hoop with better stabilization and confirm the correct needle type (ballpoint for knits) before restarting.
• Q: What safety precautions should I follow when using the SQ28d large hoop on the Janome Continental M17 (CM17) and when using magnetic embroidery hoops?
  A: Keep hands clear during arm movement with large hoops, and treat magnetic hoops as pinch hazards and medical-device hazards.
  • Large-hoop safety: Keep fingers away from the hoop area during calibration and stitching because the hoop swing path is wide and fast.
  • Trace first: Run a trace/basting outline to confirm the needle path won’t hit the hoop frame.
  • Magnetic safety: Keep magnetic hoops away from pacemakers/insulin pumps and avoid placing them near credit cards; never let fingers sit between magnets.
  • Success check: The machine completes tracing without contacting the frame, and hands never enter the hoop swing zone.
  • If it still fails: Pause the job, reposition the hoop/fabric for clearance, and re-run trace before pressing Start.
• Q: When should a Janome Continental M17 (CM17) user upgrade from a standard hoop to a magnetic hoop, or from a single-needle workflow to a multi-needle embroidery machine for circular patch runs?
  A: Upgrade based on the pain point: fix technique first, then improve hooping consistency, then scale the machine only when volume demands it.
  • Level 1 (Technique): Use floating, correct stabilizer selection, and 400% join inspection to reduce rejects on small batches.
  • Level 2 (Tool): Move to a magnetic hoop when hoop burn, thick quilts, or inconsistent clamping is slowing you down.
  • Level 3 (Production): Consider a hooping station and multi-needle machine when you are running batches and thread changes/placement consistency become the bottleneck.
  • Success check: Your reject rate drops and you can repeat placement and circle geometry without “fiddling” each time.
  • If it still fails: Standardize a saved circle template name and repeat the same hoop/stabilizer combo before changing more variables.
