Turn Any SVG into a Clean Appliqué + Stitch File in PE Design 11 (and Export an FCM for Brother ScanNCut Without the Usual Headaches)

If you’ve ever opened an SVG in PE Design 11 and thought, “Why is everything black, scrambled, and ready to stitch in the worst possible order?”—you’re not alone. The panic is real, but the fix is procedural.

Think of an SVG as raw digital clay. It isn't a brick yet. Your job is to mold that raw data into a structured stitch plan. Once you learn the sequence, you can turn a single SVG into (1) a machine-ready embroidery file and (2) a clean cut file for Brother ScanNCut—without re-drawing a single line.

This guide reconstructs Michelle Gil Martin’s workflow in PE Design 11 with added sensory cues and safety guardrails to protect your machine and your fingers. We will import text, organize the mess, build an appliqué heart, and texturize leaves specifically for fickle materials like marine vinyl.

Calm the Chaos: Why SVG Files Import “All Black” (The Cognitive Shift)

When you import an SVG, PE Design 11 performs an "auto-punch." It recognizes the vector shapes but blindly assigns them default attributes—usually a standard fill in black.

The Mindset Shift: Do not treat the imported file as a "design." Treat it as a skeleton.

• Vector Art (SVG): Mathematical shapes.
• Embroidery (PES): A physical roadmap for a needle penetrating matter.

The software gives you the skeleton; you must add the muscles (stitch angles, densities, and colors). Don't panic when you see the "black blob." It is normal.

The “Hidden” Prep Pros Do First: Physical & Digital Checks

Before you touch a single stitch setting, we must secure the foundation. Beginners skip this and pay for it later with broken needles.

1. Software Context: Confirm you are in PE Design 11 (required for the ScanNCut tab).

2. Material Physics: Michelle mentions marine vinyl.

• Why this matters: Vinyl is unforgiving. It does not "heal" like cotton. Every needle penetration is a permanent hole. If your design is too dense, you will create a perforated stamp that tears out.
• Strategy: We will eventually lower density to roughly 60-70% of standard coverage (approx. 0.6mm - 0.8mm spacing).

3. Workflow Upgrade (The Hooping Bottleneck): If this is a one-off project, standard hooping is fine. However, vinyl is slippery and notoriously difficult to hoop tightly without leaving "hoop burn" (shiny rings caused by friction).

• Trigger: If you are struggling to clamp thick vinyl or getting hoop marks.
• Solution: This is where a hooping station for embroidery or a magnetic frame becomes essential. They hold the material flat without the crushing force of an inner ring, preserving the vinyl's surface.


Prep Checklist (Pre-Flight)

• Software: PE Design 11 is open.
• Import: Select "Import from Vector Image."
• Visual Check: Accept that the design appears as a black silhouette.
• Material Plan: If using Vinyl, plan for Cutaway stabilizer (to prevent tearing) and a 75/11 Sharp needle (to pierce cleanly).
• Consumables: Have your spray adhesive (e.g., 505) and appliqué scissors ready.


Resize with Intention: The "6-Inch" Rule

Michelle resizes the SVG to approximately 6 inches immediately after import.

The Golden Rule of Resizing: Always resize outlines before you apply stitch properties. If you add a complex satin stitch and then shrink the design by 50%, the density remains, turning your embroidery into a bulletproof patch that will snap needles (typically hearing a loud THUD-CRUNCH sound).

Resize the raw vectors first. Then, the software will calculate stitches based on the new geometry.

Fix the “Black Blob”: Switching to Outline View

You cannot edit what you cannot see. Michelle’s first tactical move is to Turn Fill Stitch OFF.

• Action: Select the object → Shapes Tab → Set Fill to "Not Sewn" (or click the 'OFF' icon).
• Visual Anchor: You should now see the "wireframe"—crisp outlines of the heart, flower, and leaves.
• Benefit: This cures "selection panic." You can now see the "dancing red ants" (selection marquee) clearly around individual shapes.


Sequence Surgery: Logical Reordering

Embroidery is a game of layers. Standard SVGs often import transparently random orders. We must enforce physical logic using the Sewing Order Pane.

The Logic:

1. Bottom Layer First: The Heart (Appliqué background).
2. Middle Layer: The Flower (Detail).
3. Top Layer Final: The Leaves (Overlay).

Why Leaves Last? In this design, the leaves curl over the flowers. If you stitch leaves first, the flower fill will crush the leaf definition. Stitching leaves last ensures crisp, dimensional edges.

• Action: Drag and drop the layers in the Sewing Order pane until they match the sequence above.


Trust But Verify: The Simulator

Sensory Step: Watch the "Stitch Simulator." Don't trust your drag-and-drop skills blindly. Run the simulator at high speed. You are looking for "The Flow":

• Does it jump erratically?
• Does it cover something it shouldn't?

If you catch a mistake here, it costs zero dollars. If you catch it on the machine, it costs fabric, thread, and time.

The Appliqué Shortcut: Using the Wizard

Michelle selects the heart shape and clicks Appliqué Wizard.

This tool automatically generates the "Holy Trinity" of appliqué:

1. Placement Line: (Single run) Shows you where to put the fabric.
2. Tack Down: (Double run/E-stitch) Secures the fabric.
3. Satin Cover: (Zig-zag column) Finishes the raw edge.

Expert Tip for Vinyl: In the Wizard settings, ensure the Cover Stitch Density is not too high. Standard satin is often 0.4mm spacing. For vinyl, consider easing this to 0.5mm to avoid cutting the shape out entirely.

Warning: Physical Safety
Appliqué requires your hands to be in the "Red Zone" (near the needle) to place fabric and trim edges.
* Never trim fabric while the machine is idle but not locked.
* Keep fingers away when pressing the start button.
* Technicians see more finger injuries from appliqué trimming than any other process.

Texturizing the Flower: Direction is Everything

A flat fill stitch looks like a sticker. To make it look like embroidery, Michelle adds Direction.

1. Select Flower Segment: Change to Fill Stitch.
2. Color: Pink.
3. The Secret Sauce: Change the Sewing Direction (Angle).
   • Set petals to flow toward the center.
   • This makes light hit the thread differently on each petal, creating a "shimmer" effect that adds 3D depth without adding stitches.




Vinyl Defense Strategy: Airy Leaves & Spiral Fills

Vinyl hates density. To save the project, Michelle alters the leaf settings.

1. The Stitch Type: Decorative Fill (Spiral).

• Why: Standard Tatami fills punch thousands of holes in a grid. Spirals are organic and spread the needle penetrations out.

2. The Density Drop:

• She significantly Reduces Density.
• Sensory Check: You should be able to see the vinyl color peeking potentially through the stitches. It should look "lacy," not solid. This prevents the vinyl from curling up like a potato chip.

3. The Outline: Triple Stitch (Bean Stitch).

• Standard run stitches disappear on vinyl. A triple stitch (forward-back-forward) sits proudly on top of the surface, establishing a clear border.






The ScanNCut Link: The "Appliqué Material" Trigger

If you own a Brother ScanNCut, this step is non-negotiable.

You must assign a specific color property called “Appliqué Material” to the layer you want the machine to cut.

• Action: Go to the Color/Thread Chart.
• Select: Special colors -> "Appliqué Material."

If you skip this, your ScanNCut will stare blankly at the file, not knowing which line is the cut line.

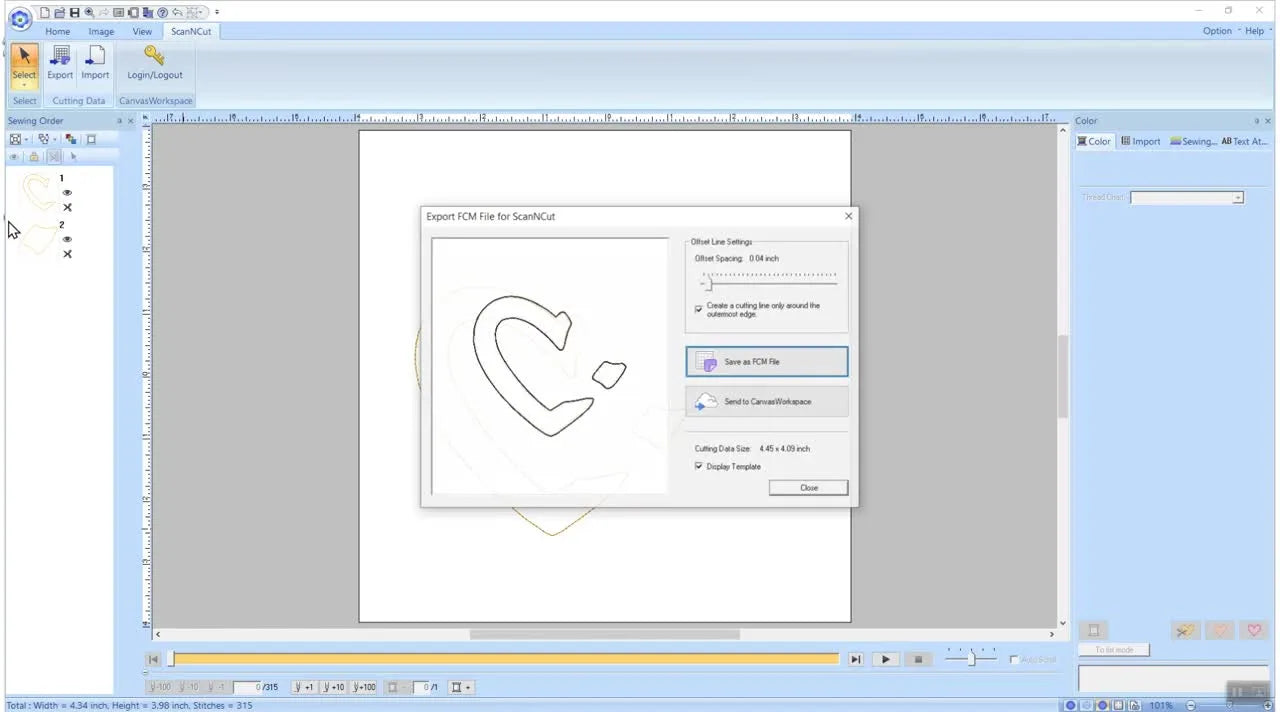

Exporting the Clean FCM (The Surgery)

You cannot send an embroidery file to a cutter. You need a geometry file (FCM).

Method:

1. Save your Master Embroidery text file (.PES).
2. Delete almost everything. Remove the flower fills, the leaves, and the satin stitches.
3. Keep Only the Appliqué Placement Line (Heart Outline).
4. Export: Go to ScanNCut Tab -> Export FCM.

This ensures your cutting machine cuts only the shape of the heart, not the shape of the internal flower details.

Setup Checklist (ScanNCut Export)

• Master Save: Saved the full .PES embroidery file first?
• Purge: Deleted all stitch data except the outline?
• Type: Selected FCM format.
• Offset: Decided on offset? (Michelle skips offset here because she uses spray baste, which requires an exact match).

Decision Tree: The Physical Workflow (Hooping Strategy)

Software is only half the battle. Your hooping choice dictates whether you get a perfect heart or a distorted oval.

Scenario A: You are stitching on Marine Vinyl.

• Risk: Classic hoops leave permanent "burn" rings. Slippage causes gaps between the outline and the fill.
• Standard Tool: Standard hoop with 3M vet wrap on the inner ring (DIY fix).
• Pro Upgrade: magnetic embroidery hoops. These hold firmly without the "pinch" that crushes vinyl grain. Essential for premium results.

Scenario B: You are using a Brother Machine (e.g., SE1900, PE800, Luminaire).

• Compatibility: Not all magnetic hoops fit all arms.
• Search: Look specifically for a magnetic hoop for brother compatible with your specific slide-on mechanism.

Scenario C: You are doing Production (50+ Patches).

• Pain Point: Repeatedly screwing and unscrewing a hoop causes wrist strain (Carpal Tunnel is the embroiderer’s enemy).
• Solution: hooping stations combined with magnetic frames allow you to hoop the next garment while the machine is running.

Warning: Magnetic Safety
Pinch Hazard: Magnetic hoops snap together with surprising force (enough to bruise a finger or crack a fingernail).
Medical: Powerful magnets can interfere with pacemakers. Keep them at least 6 inches away from implanted medical devices.

Troubleshooting: Why Did It Fail?

Step-by-step diagnosis for common beginners' hell.

The "Tool Upgrade" Path: When to Spend Money

You can digitize perfectly, but if your physical tools fight you, the result will look amateur.

• Level 1 (Skill): Master the software described above. Use spray baste.
• Level 2 (Stability): If you hate "hoop burn" on vinyl, a hoopmaster hooping station system (or similar fixture) paired with magnetic hoops eliminates the physical variable of human error.
• Level 3 (Capacity): When you are spending more time changing thread colors than stitching, it is time to look at multi-needle machines (like the SEWTECH promoted lines). But first, learn how to use magnetic embroidery hoop systems on your single needle—it’s the cheapest efficiency upgrade you can make today.

Final Operation Checklist

• Import: Vector imported and resized to ~6".
• Cleanup: Fill view OFF; outlines visible.
• Order: Heart → Flower → Leaves.
• Stitch: Appliqué Wizard applied; Fills directional; Leaves density reduced (-30%).
• Cut File: "Appliqué Material" color set; FCM exported.
• Physical: Hoop tight (drum sound) or Magnet locked; New Needle installed.


FAQ

• Q: Why does an SVG import as an “all black blob” in Brother PE-Design 11, and how can the shapes be edited?
  A: This is normal—PE-Design 11 auto-assigns a default black fill on import, so switch to outline editing first.
  • Turn Fill Stitch OFF: Select the object → Shapes tab → set Fill to “Not Sewn” (OFF).
  • Use the wireframe to click individual parts instead of guessing through the solid fill.
  • Success check: Crisp outlines are visible and the selection marquee clearly wraps only the intended shape.
  • If it still fails: Re-import using “Import from Vector Image” and confirm the file is actually SVG (not a raster image renamed).
• Q: What is the safest resizing workflow after importing an SVG in Brother PE-Design 11 to avoid needle breaks from excessive density?
  A: Resize the raw vector outlines first, before applying satin/fill properties, so stitch calculations match the final size.
  • Resize immediately after import (before running Appliqué Wizard or adding fills).
  • Avoid shrinking a finished satin/fill object, which can make stitches overly dense.
  • Success check: Stitches preview cleanly without looking “bulletproof” or overly packed when you simulate.
  • If it still fails: Rebuild the stitch properties after resizing (remove and reapply the stitch type/settings).
• Q: How can Brother PE-Design 11 sewing order be fixed when an imported SVG stitches in a scrambled sequence (heart, flower, leaves)?
  A: Reorder the layers in the Sewing Order pane to match physical layering: Heart → Flower → Leaves.
  • Drag-and-drop objects in the Sewing Order pane into the correct sequence.
  • Run the Stitch Simulator at high speed to verify the stitch “flow” doesn’t jump or crush details.
  • Success check: Simulator shows the heart base first, flower detail next, and leaves stitching last without covering leaf definition.
  • If it still fails: Turn fills to “Not Sewn” temporarily so the correct objects are easier to identify and move.
• Q: What Brother PE-Design 11 appliqué settings help prevent marine vinyl from being perforated or “cut out” by satin stitches?
  A: Reduce appliqué cover stitch density—vinyl needs more spacing so the needle holes don’t turn into a tear line.
  • Use Appliqué Wizard to generate placement line, tack down, and satin cover.
  • Increase cover stitch spacing from typical satin to about 0.5 mm (often up to 0.6 mm) for vinyl.
  • Success check: The vinyl edge stays intact and does not separate or “fall out” after the satin cover finishes.
  • If it still fails: Reduce overall stitch density further (vinyl often needs ~60–70% coverage) and confirm a 75/11 Sharp needle is installed.
• Q: How can embroidery “birdnesting” under the needle plate be fixed during appliqué on Brother-style single-needle embroidery machines?
  A: Rethread correctly with the presser foot UP and reseat the bobbin so the thread is in the tension spring.
  • Rethread the top thread with presser foot UP to ensure the thread enters the tension path.
  • Remove and reinstall the bobbin, making sure it seats into the tension spring (listen/feel for the “click”).
  • Success check: The next test stitches form cleanly on top with no wad of thread building underneath.
  • If it still fails: Stop immediately, clear the thread jam fully, then restart from a slow test run before returning to full speed.
• Q: What safety steps reduce finger-injury risk during Brother PE-Design 11 appliqué trimming at the embroidery machine?
  A: Treat trimming as a high-risk step—lock down the machine state and keep hands out of the needle “red zone” when starting.
  • Stop the machine fully before placing fabric or trimming; never trim while the machine is idle but not locked.
  • Keep fingers clear when pressing Start (hands move away first, then start the stitch-out).
  • Success check: Hands are never near the needle when motion begins, and trimming happens only when the machine is safely stopped.
  • If it still fails: Slow the workflow down—appliqué injuries usually come from rushing the placement/trim step.
• Q: When marine vinyl keeps slipping or getting “hoop burn,” how should the embroidery hooping workflow be upgraded (skill → tool → capacity)?
  A: Start with technique and stabilization, then upgrade hooping tools if vinyl still marks or shifts, and only then consider production hardware.
  • Level 1 (Technique): Use cutaway stabilizer and spray baste (e.g., 505); aim for firm, even hooping without over-crushing vinyl.
  • Level 2 (Tool): Switch to a magnetic embroidery hoop/frame to hold vinyl flat with less pinch force and less surface marking.
  • Level 3 (Capacity): If time is being lost to repetitive hooping/thread changes, consider a hooping station and eventually a multi-needle machine for throughput.
  • Success check: The outline-to-fill alignment stays tight with no shiny hoop rings on vinyl after stitching.
  • If it still fails: Recheck stabilizer choice (cutaway, not tearaway) and confirm the fabric is not creeping during the placement/tack-down steps.
