Turn Any Embird Design into a 5x7 ITH Mug Rug That Actually Finishes Clean (No Surprise Hoop-Size Fail)

Mug rugs look simple on Pinterest—until you stitch one.

That’s when reality hits: the satin border doesn’t quite cover the raw fabric edge, the design suddenly triggers a "Hoop Size Exceeded" error, or your "easy" appliqué project turns into a trimming nightmare where your scissors get caught in the tack-down stitches.

This isn't necessarily a skill issue; it's a workflow issue.

In this Embird workflow (based on the techniques taught by Donna from Thread Treasure Designs), we aren't just drawing a rectangle. We are engineering a production-grade 5x7 In-The-Hoop (ITH) template. You will learn to build a base, convert it into a professional appliqué with a calculated satin edge, split the stitch phases, merge an external design, and—crucially—reorder the sequence so the final border hides every sin underneath it.

Whether you are making one for a friend or fifty for a craft fair, this guide bridges the gap between "homemade" and "shop-ready."

Calm the Panic: A 5x7 Embird Mug Rug Is Just Shapes + Sequence (Not Magic)

If you’ve ever watched an ITH stitch-out and thought, “Why is it stitching the border now?”, you are experiencing sequence confusion. Most frustration with ITH projects comes from not understanding the "layers of operation."

Donna’s approach is refreshingly practical because it mimics how a machine actually thinks. We start with a rectangle that fits a standard 5x7 hoop (130 × 180 mm), but we plan the Satin Width (4.0 mm) immediately. Then, we force Embird to generate the three distinct phases required for appliqué:

1. Placement Line: Tells you where to put the fabric.
2. Tack-Down Line: Secures the fabric so you can trim it.
3. Cover Stitch: The final satin column that hides the raw edge.

Once you can visualize these phases in the Editor, you gain control over the trimming timing.

The Mindset Shift: You are not just digitizing a single mug rug. You are engineering a Repeatable Chassis—a master template that can accept almost any small design you merge into it later.

The “Hidden” Prep Before You Click Anything in Embird Digitizing Tools

Donna jumps right into Digitizing Tools, but as an experienced operator, I know that the decisions you make before you open the software determine whether your stitch-out lays flat or puckers like a raisin.

What you’re really building (The Physical Sandwich)

A mug rug is an engineering challenge because it is a "sandwich." You are typically combining:

• Layer 1: Stabilizer (Base)
• Layer 2: Batting (Middle volume)
• Layer 3: Backing Fabric (Bottom)
• Layer 4: Top Fabric (Appliqué)

This thickness creates distinctive physical problems. Thick sandwiches resist being clamped in traditional plastic hoops. They often suffer from "Hoop Burn"—permanent rings pressed into the fabric—or they pop out of the hoop mid-stitch because the inner ring can't grip the bulk.

Pro Tip: If you plan on doing this often, this is where terms like magnetic embroidery hoops become relevant to your workflow. Unlike the friction-fit of standard hoops, magnetic systems clamp straight down, accommodating the thickness of batting without distorting the fabric weave or causing hand strain.

Prep Checklist (Do this BEFORE digitizing)

• Confirm Constraints: Your target is a 5x7 hoop (130 × 180 mm).
• Decide Orientation: Will the rug be horizontal (landscape) or vertical? (Donna sets it horizontally).
• Select Finish Style:
  • Satin: Stitched over the edge (requires precise sizing).
  • Binding: Stitched raw, bound with bias tape manually later.
• Determine Border Width: A 4.0 mm satin stitch is the "Sweet Spot." It is wide enough to cover slight trimming errors but not so wide that it tunnels (puckers) the fabric.
• Check Consumables: Do you have sharp appliqué scissors (duckbill preferred) and temporary spray adhesive (e.g., 505 spray) to hold the batting?
• Plan the Canvas: Decide if your merged design will sit Left, Right, or Center to leave clearance for that 4.0 mm border.

Warning: Blade Safety. Trimming appliqué requires placing your hands inside the hoop area while the frame is attached. Always stop the machine completely. Do not rely on a "pause" button if your foot could accidentally hit the pedal. Trimming involves sharp points near tensioned fabric—take your time.

Lock the 5x7 Hoop Workspace in Embird (130×180 mm) So You Don’t Digitize “Too Big”

Donna starts in the Embird Digitizing Tools menu. Her first move is to set the hoop to 130 × 180 mm (5x7) and check the Horizontal box so the workspace is sideways.

This visual anchor is critical. By seeing the actual boundaries of the 130x180mm field, you prevent the "Creo Paradox"—creating a design that looks great on screen but physically hits the plastic frame of your machine.

The Safety Rule: Never digitize to the exact millimeter of your limit. A 180mm wide design in a 180mm hoop is a recipe for needle strikes. We need a "Buffer Zone."

Draw the Rectangle Fast—Then Resize Like a Pro So the Satin Border Still Fits

Donna uses the Rectangle tool to drag out a basic shape. She doesn't wrestle with the mouse to get the size perfect visually. She draws it rough, then uses the Transformation Window to type in exact coordinates.

She sets the rectangle width to 170.0 mm.

Why 170 mm when the hoop is 180 mm? Let's do the embroidery math:

• Hoop Width: 180 mm
• Design Width: 170 mm
• Buffer: 10 mm total (5 mm on each side)

However, we are about to add a 4.0 mm satin stitch. That satin stitch sits on the line, meaning it pushes out 2.0 mm and in 2.0 mm.

• Clearance Calculation: 5 mm buffer - 2 mm (half satin width) = 3 mm of true safety clearance.

This 3mm gap is your insurance policy. It accounts for the fabric pulling in (push/pull compensation) and ensures your machine foot doesn't slam into the hoop edge.

Duplicate the Shape and Convert It to Appliqué (4.0 mm Satin) Without Losing Control

Donna copies the rectangle and pastes it directly on top of the original. She changes the color (from blue to purple). This isn't for aesthetics; it's a visual coding system to separate the "Base" from the "Border."

She opens Parameters, selects Applique, and inputs Satin Width = 4.0 mm.

The Density Variable: For a standard mug rug, standard density (auto) is usually fine. However, if using very fluffy fleece or thick terry cloth, you might want to slightly lower the density (e.g., from 4.0 lines/mm to 3.5 lines/mm) to prevent the thread from cutting the fabric.

At this stage, your file contains:

1. Object A (Base): The reference geometry.
2. Object B (Appliqué): The object that generates the satin edge.

Real Talk on Hoop Stability: When stitching this satin border through multiple layers of batting and fabric, a standard hoop can sometimes "pop" or loosen, causing the rectangle to warp into a trapezoid. If you struggle with keeping thick items square, researching proper hooping for embroidery machine techniques is vital. However, if technique doesn't solve it, the issue is often the tool itself—standard inner rings taper, pushing the fabric out. This is why pros switch to magnetic clamps for multi-layer geometry.

Add a Motif Fill (Stars) and Layer It Correctly So It Stitches Before the Border

Donna selects an area on the left and applies a Motif Fill (a star pattern). She changes it to pink and moves the appliqué portion "to front."

This teaches us the Law of Containment:

• Decorative Fills (Stars/Stippling): Must stitch inside the tack-down line.
• Satin Border: Must stitch last to cover the edges of the decorative fill.

If you have raw edges of stippling peeking out from under your border, it is because your fill extended too far, or your border was too narrow. In this logical workflow, by placing the appliqué "to front," we are visually confirming that the border sits on top of the stars.

Compile into Embird Editor, Then Use “Separate All Colors” to Reveal Placement + Tack-Down + Cover Stitch

Donna saves her working file ("test") and clicks Compile and put into Editor.

Currently, the software sees the appliqué as one "smart object." But your machine needs individual commands. In Editor, she right-clicks the design and selects Separate All Colors.

This is the magic moment. The single "Appliqué Object" explodes into its component parts:

1. Color 1: Placement Line (Run Stitch) – "Put fabric here."
2. Color 2: Tack-Down Line (Run/Zigzag) – "Sew fabric down."
3. Color 3: Satin Border (Column) – "Cover the edge."

Now you can insert things between these steps.

Sensory Check: When you run the separation, look at the stitch count. A simple placement line should be very low (e.g., 300 stitches). The satin border will be high (e.g., 3000+ stitches). If the counts look wrong, you may have separated the wrong object.

The Stitch-Order “Truth”: Trim After Tack-Down, Then Let the Satin Border Hide the Edge

This is where 90% of beginner mug rugs fail.

A clean edge relies on The Trim Window: The moment of time after the Tack-Down stitch but before the Satin Cover stitch.

Donna’s workflow creates this window visibly in the object list.

Setup Checklist (Before merging new designs)

• Verify Objects: Do you see three distinct events for the border (Placement, Tack, Cover)?
• Check Gaps: Zoom in closely on the corners. Does the satin stitch turn the corner cleanly without gaps?
• Identify the "Stop": Your machine must stop after the Tack-Down to allow you to trim. Ensure your machine is set to stop for color changes (most are by default).
• Consumables Check: Do you have Curve-tipped Squeeze Scissors or Double-Curved applique scissors? Trying to trim batting close to the stitch with standard straight paper scissors is a recipe for cutting your tack-down thread.


Merge an External .PES Design (Cocktail Glass) and Place It in the Open Area

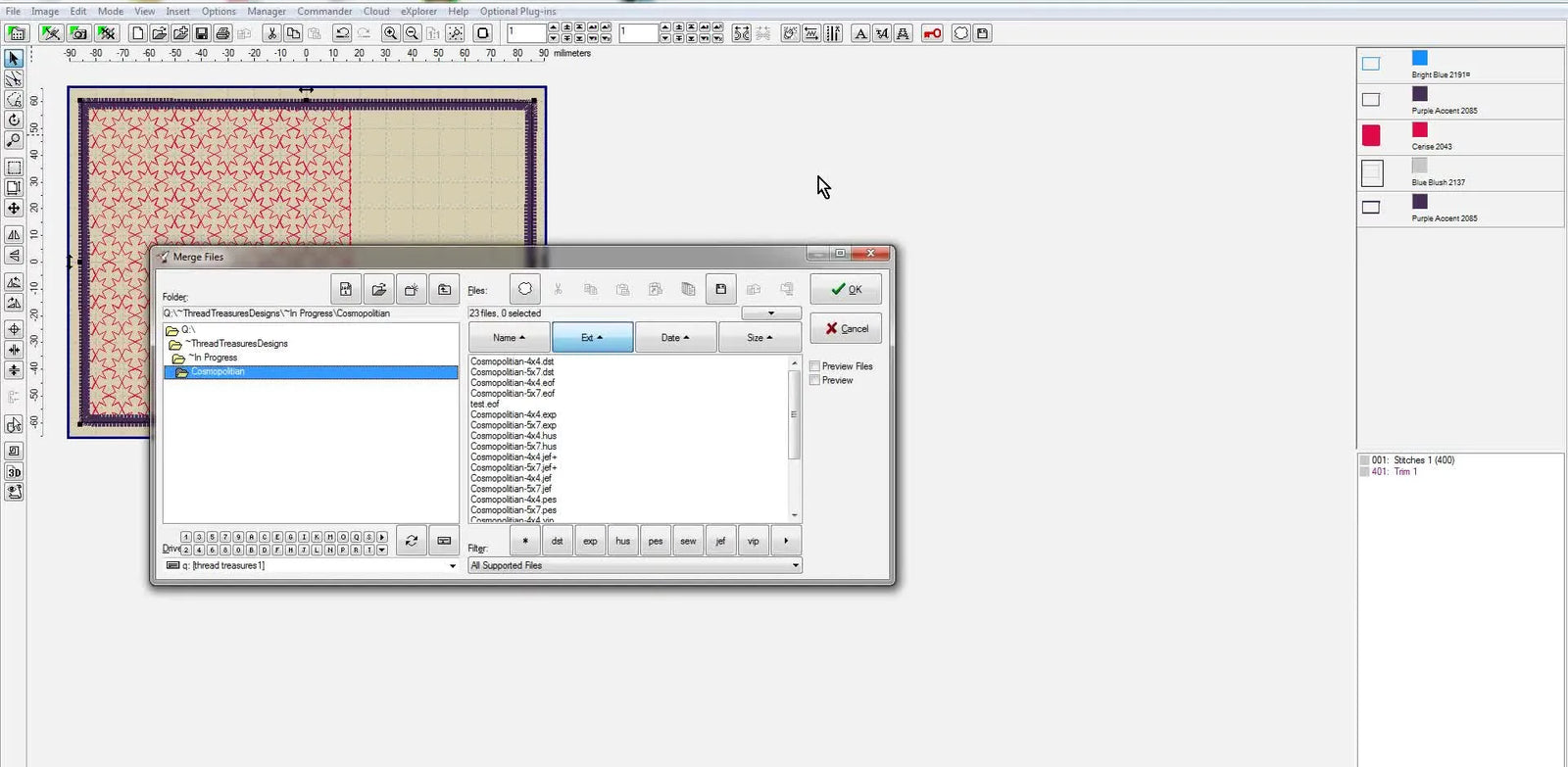

Donna uses File → Merge to import a pre-made embroidery design (Cosmopolitan.pes). She drags it into the empty space on the right side of the layout.

This demonstrates the power of the Template Approach. You can save your "5x7 Mug Rug Base" file separately. Next week, you can open it, merge a Christmas Tree, save as "Christmas Rug." The week after, merge a Birthday Cake. The engineering of the border never has to be redone.

Advanced Note on Splitting Colors: A viewer asked: “Is there a way to separate out parts of a design that are the same color?” Donna confirms: Yes, but it requires manual intervention. If a merged design has text and a graphic in the same color block (e.g., Black), the machine treats them as one continuous run. To separate them, you must use the Editor's split tools to isolate the stitches. If you are building production files, try to use source designs that have clean, logical color stops.

Reorder the Object List So the Merged Design Stitches Before the Final Satin Border

Donna notices the merged cocktail glass appears at the bottom of the list. This is a fatal error. If left here, the machine will stitch the border, and then try to stitch the cocktail glass, possibly sewing over the satin edge or distorting the frame.

The Fix: She drags the cocktail glass object up in the list.

The Correct Sequence Template:

1. Placement Line (Base Fabric + Batting)
2. Tack-Down Line
3. [STOP MACHINE] -> TRIM Batting/Fabric
4. Merged Design (Cocktail Glass / Logo / Name)
5. Background Motifs (Stippling / Stars)
6. Final Satin Border

By moving the design before the border, the satin stitch acts as the final "Seal of Approval," locking everything down and hiding any pull distortion that occurred during the complex interior stitching.

The “Why It Works” Layer Logic: Edge Coverage, Fabric Control, and Fewer Ugly Surprises

Donna’s sequence isn't arbitrary; it's physics.

1. The Anchoring Effect

The satin border is dense. It tightens the fabric (Pull Compensation). If you stitch it first, your fabric becomes a drum skin. When you then stitch a heavy fill inside (like the cocktail glass), the fabric wants to push out. This conflict creates ripples. By stitching the interior first, the fabric is still relaxed. The border then acts as a final clamp.

2. The Material Variable

Batting compresses. Top fabric shifts. Backing stretches. Stabilizer is your only defense against this chaos.

• Auditory Check: When hooping, tap the stabilizer. It should sound like a tight drum ("thump-thump"). If it sounds loose or paper-thin, your satin border will likely pull the fabric out of alignment.

The "Shift" Problem: Even with perfect digitizing, if your hoop loses tension during the 30 minutes of stitching, the outline won't match. This is the primary reason professionals invest in embroidery hoops magnetic. The magnetic force provides consistent, non-slip pressure around the entire perimeter, which is critical when the needle is hammering thousands of satin stitches into a thick stack of batting.

3. Visual "Intentionality"

If a design overlaps the border slightly, it looks like a mistake. If the border overlaps the design slightly, it looks like "layering." Always prioritize the border as the top-most visual layer.

Stabilizer Decision Tree for ITH Mug Rugs (Fabric → Backing Choice)

Use this logic to select your hidden consumables.

Troubleshooting: Symptoms → Likely Cause → Fix

Warning: Magnetic Safety. If you choose to upgrade to magnetic hoops, be aware of pinch hazards. The magnets used in commercial-grade frames (like Sewtech's) are extremely powerful industrial magnets. Keep them away from pacemakers, and keep fingers clear of the snapping zone.

The Upgrade Path: When a Template Becomes a Workflow

Once you have built this base file, you have unlocked a production capability. You can now produce themed mug rugs for every holiday without re-digitizing the structure.

However, as you move from "making one" to "making twenty," your bottleneck will shift from software to hardware.

• Level 1 (Hobby): You fight with the screw on your standard hoop to get the batting in. It takes 5 minutes to hoop.
• Level 2 (Pro-Sumer): You realize time is money. You need consistent tension without the hand strain.

This is where a magnetic embroidery hoop becomes a logical tool upgrade. By simply snapping the magnets down, you secure the thick sandwich instantly. For users of brands like Brother or Babylock who do frequent ITH work, a specifically compatible magnetic hoop for brother machine can reduce hooping time by 50% and virtually eliminate hoop burn, making those satin borders crisp and straight every time.

Operation Checklist (Your Stitch-Out Rhythm)

Print this out and keep it by your machine for the first run.

1. PREP: Load bobbin (match color to top if backing is visible). Install new needle (75/11 or 90/14 depending on thickness).
2. HOOP: Hoop stabilizer (Drum tight). Float batting/fabric if preferred, or hoop all layers if using magnetic frame.
3. RUN 1: Stitch Placement Line.
4. ACTION: Lay fabric/batting over the line. Use a shot of 505 spray to prevent shifting.
5. RUN 2: Stitch Tack-Down Line.
6. STOP & TRIM: Remove hoop (keep fabric in!). Trim excess fabric close to the tack-down line (leave ~1-2mm).
7. RUN 3: Stitch Merged Design (Cocktail Glass).
8. RUN 4: Stitch Motif Fills (Stars/Stippling).
9. RUN 5: Stitch Final Satin Border.
10. FINISH: Remove from hoop, tear away excess stabilizer/trim jump threads.

If you prefer a binding finish rather than satin, simply stop the machine before Step 9, remove the project, and apply binding tape manually. Donna’s file structure gives you that choice!

FAQ

• Q: How do I prevent a 5x7 (130×180 mm) Embird ITH mug rug design from triggering a “Design too large / Hoop Size Exceeded” error on a 180 mm hoop?
  A: Keep a buffer by sizing the base rectangle to about 170 mm wide before adding the satin border.
  • Set the hoop workspace to 130×180 mm and choose the correct orientation (horizontal/vertical) before drawing.
  • Resize the rectangle using exact values (not “eyeballing”) and avoid digitizing to the hoop’s exact limit.
  • Account for satin width: a 4.0 mm satin stitch extends outward from the line, so leave real clearance at the edges.
  • Success check: In the workspace view, the entire border—including satin—sits inside the hoop boundary with visible margin on both sides.
  • If it still fails: Reduce the rectangle slightly more to rebuild a safer buffer zone before compiling.
• Q: In Embird Editor, how do I create separate Placement Line, Tack-Down Line, and Satin Cover Stitch steps for an appliqué mug rug border?
  A: Compile into Editor, then use “Separate All Colors” to explode the appliqué into three stitch phases.
  • Compile the design from Digitizing Tools into Embird Editor.
  • Right-click the design and choose “Separate All Colors” to reveal the phases.
  • Confirm the three events exist in order: Placement (run), Tack-Down (run/zigzag), Satin Border (column).
  • Success check: Stitch counts look logical—placement is low, satin is much higher (often thousands).
  • If it still fails: Verify the correct appliqué object was selected before separating, then repeat the separation.
• Q: How do I fix messy appliqué edges on an Embird 5x7 ITH mug rug when raw fabric still shows after the satin border stitches?
  A: Trim in the correct window and use a 4.0 mm satin width to cover small trimming errors.
  • Stop after the Tack-Down line and trim the fabric/batting close to the tack-down—leave about 1–2 mm.
  • Use curve-tipped squeeze scissors or double-curved appliqué scissors to avoid cutting the tack-down stitches.
  • Keep the satin border as the final step so it hides the trimmed edge.
  • Success check: After the satin border, no raw edge is visible and the border fully covers the appliqué edge around corners.
  • If it still fails: Re-check stitch order (tack-down must come before cover stitch) and confirm the satin width is set to 4.0 mm.
• Q: In Embird, how do I reorder a merged .PES design (like a cocktail glass) so it stitches before the final satin border on a 5x7 ITH mug rug?
  A: Move the merged design earlier in the object list so the satin border stitches last.
  • Merge the external .PES file and position it in the open area inside the border.
  • In the Editor object list, drag the merged design above the final satin border step.
  • Keep the trim window intact: Placement → Tack-Down → STOP/TRIM → Merged Design → Motifs → Final Satin Border.
  • Success check: A slow preview shows the merged design finishing before the satin border begins.
  • If it still fails: Look for any border-related steps sitting above the merged design and move them back to the end.
• Q: What is a reliable “drum tight” hooping success standard for stabilizer when stitching a thick ITH mug rug sandwich (batting + fabrics)?
  A: Hoop the stabilizer tight enough that it sounds and feels like a drum; loose stabilizer is a common cause of puckering.
  • Hoop stabilizer first and ensure it is evenly tensioned before adding batting and fabrics (float or hoop layers as preferred).
  • Tap the hooped stabilizer to check tension before stitching.
  • Use temporary spray adhesive (e.g., 505) to keep batting/fabric from shifting during placement and tack-down.
  • Success check: A firm “thump-thump” sound when tapped, with no slack ripples across the hooped area.
  • If it still fails: Re-hoop and reduce bulk under the inner ring (thick sandwiches often slip in standard hoops).
• Q: What needle and border-density quick fixes help prevent needle breaks when stitching a dense satin border on a thick ITH mug rug?
  A: Reduce friction and deflection: clean adhesive buildup and use an appropriate needle (often Topstitch 90/14 for thicker stacks).
  • Clean the needle if spray adhesive residue is present (adhesive gum can increase drag and heat).
  • Switch to a stronger needle when stitching through multiple layers (Topstitch 90/14 is a common fix for thick borders).
  • If stitching on fluffy fleece/terry, consider slightly lowering satin density to reduce cutting and stress (adjust cautiously).
  • Success check: The satin border runs without “popping” sounds, shredding, or repeated breaks in the same area.
  • If it still fails: Re-check hoop stability—border breaks often happen when the project shifts or the hoop loosens mid-run.
• Q: What is the safest trimming procedure for ITH appliqué mug rugs when trimming inside the hoop area after the tack-down line?
  A: Stop the machine completely before trimming and only trim during the tack-down-to-cover-stitch window.
  • Stop the machine fully (do not rely on “pause” if there is any risk of accidental pedal press).
  • Keep hands clear of needle path and trim slowly with appliqué scissors designed for close trimming.
  • Trim only after the tack-down line is finished and before the satin cover stitch starts.
  • Success check: The fabric is trimmed evenly around the tack-down line with no cut stitches and no loose flaps.
  • If it still fails: Improve access by repositioning the hoop for visibility, and switch to curve-tipped scissors to prevent snagging.
• Q: When should an embroidery user upgrade from a standard screw hoop to a magnetic embroidery hoop for thick 5x7 ITH mug rugs, and what magnetic safety precautions matter?
  A: Upgrade when thick “sandwich” projects repeatedly cause hoop burn, slipping, or slow painful hooping; handle magnets as a pinch hazard.
  • Diagnose first: If careful hooping still leaves ring marks, loosening, or warping during long satin borders, the hooping tool is the bottleneck.
  • Use a magnetic hoop to clamp straight down and maintain more consistent pressure on bulky batting layers.
  • Keep fingers out of the snap zone and keep strong magnets away from pacemakers.
  • Success check: The project stays square through the full stitch-out, hooping time drops, and hoop burn is reduced.
  • If it still fails: Re-check stabilizer choice and stitch sequence (interior stitches first, border last) before assuming a hardware issue.
