Turn Any Brother Luminaire XP2 Design into Appliqué—Without Software (and Without the Usual Trimming Headaches)

Appliqué is one of those techniques that looks like it requires complex digitizing software—until you realize your Brother Luminaire XP2 can generate the appliqué sequence for you right on the machine.

If you’ve ever felt that little spike of panic—“Wait… did I just start the main design before I placed the appliqué fabric?”—you’re not alone. The Luminaire’s built-in Appliqué feature is powerful, but it has one specific operational architecture that trips up even experienced stitchers: the machine adds the appliqué steps to the end of the stitch list.

In this walkthrough, I’ll rebuild Sue’s exact on-screen workflow (letter “B” and a complex house design), then add the shop-floor details that keep appliqué clean: hooping tension physics, stabilizer logic, trimming strategy, and how to avoid "hooper's fatigue" when you’re managing multiple placements.

Don’t Panic: The Brother Luminaire XP2 Appliqué Button Really Can Do the Heavy Lifting

Sue’s demo is a perfect reminder of a truth I’ve taught for 20 years: most “advanced” embroidery results come from sequence control and fabric control, not magic settings.

On the Brother Luminaire XP2 (Luminaire 2), the built-in Appliqué tool is essentially an automation script. It takes a standard embroidery design (a letter, a motif, even a complex multi-color design) and generates the classic three-step appliqué structure:

1. Placement Line (Run Stitch): A single run stitch that outlines the shape directly on your stabilizer/base fabric. Purpose: To show you exactly where to lay your appliqué fabric.
2. Tack-Down (Run or Double Run): A stitch that secures the appliqué fabric to the base. Purpose: To hold the fabric flat so you can trim the excess.
3. Cover Stitch (Satin/Blanket): The final dense border. Purpose: To hide the raw edges and provide the finished look.

That means you can create appliqué directly on the machine screen—no external software required—as long as the design is in a format the machine can read and display.

The “Hidden” Prep Before You Touch Edit Mode: Fabric, Stabilizer, and Hooping Tension That Prevents Wavy Satin

The video focuses on the screen steps (as it should), but 90% of appliqué failures make a sound before they happen—usually the sound of fabric slipping because the foundation wasn't solid.

Here’s what experienced operators quietly check first:

1. The "Drum Skin" Tension Test Your base fabric needs to be taut, but not stretched to the point of distortion. Tap the hooped fabric. It should sound like a dull thud (good) rather than a high-pitched ping (too tight) or a loose rattle (too loose).

• The Risk: Appliqué borders are usually satin stitches. Satin has a heavy "pull compensation." If your fabric is loose, the satin stitch will pull the fabric inward, creating gaps (tunneling) between the border and the appliqué fabric.

2. The Stabilizer Foundation You are about to add a second layer of fabric and a dense border to your base.

• Rule of Thumb: If wearing it (t-shirt), use Cutaway. If displaying it (towel/bag), you might get away with Tearaway, but Cutaway is safer for appliqué to prevent the heavy satin border from tearing out the stabilizer.

3. The Hooping Mechanism If you’re doing repeated appliqué (placement → tack → trim → finish), you will be handling the hoop extensively. Taking it off the machine, putting it on a table to trim, and snapping it back in. Traditional friction hoops rely on tightening a screw. This often leads to "hoop burn" (permanent rings on delicate fabric) or wrist fatigue. One workflow upgrade that helps many Luminaire owners is using magnetic hoops for brother luminaire. These clamp the fabric firmly without the friction burn, and they make the "pop off, trim, pop on" process roughly 40% faster. In production, consistent hoop tension is your primary quality control.

Warning: Keep fingers, hair, and loose sleeves away from the needle area during test runs and especially during satin borders. Satin stitches run at high density; if a loop of thread catches a ring or finger, the machine's torque is strong enough to cause serious injury.

Prep Checklist (Do this once, prevent three ruined shirts)

• Consumables: Fresh needle installed? (Size 75/11 is a standard "safe bet" start).
• Scissors: Do you have double-curved appliqué scissors? (Trying to trim with straight scissors invites disaster).
• Adhesive: Do you have a can of temporary spray adhesive (KK100/505) or a glue stick for positioning the appliqué fabric?
• Base Fabric: Pressed flat? No wrinkles locked into the hoop inner ring.
• Stabilizer: Cut larger than the hoop? (Don't scrimp here).
• Appliqué Fabric: Pre-cut oversized? (It should extend at least 1 inch past the design edge).


Load the Design on the Brother Luminaire XP2, Then Commit to Edit Mode Before You Appliqué It

Sue starts with a built-in letter: she goes into the letters, selects a “B,” sets it into the hoop, and immediately goes to Edit.

That order isn't just a suggestion; it's physics.

Why? Because once you press the Appliqué button, the machine generates a border based on the current size of the design. If you resize the "B" after generating the appliqué, the relationship between the border and the letter might skew. You want your size and placement decisions made first.

In the demo, the letter “B” design size is shown as 5.77" x 4.42".

Practical advice from the field:

• Size Matters: If you shrink a design too much (below 2 inches), the turn radius on the satin stitch becomes very tight. This increases needle heat and thread breakage.
• Fabric Thickness: If you plan to use a thicker appliqué fabric (like felt or twill), don't shrink the design. You need that border width to cover the thick edge.

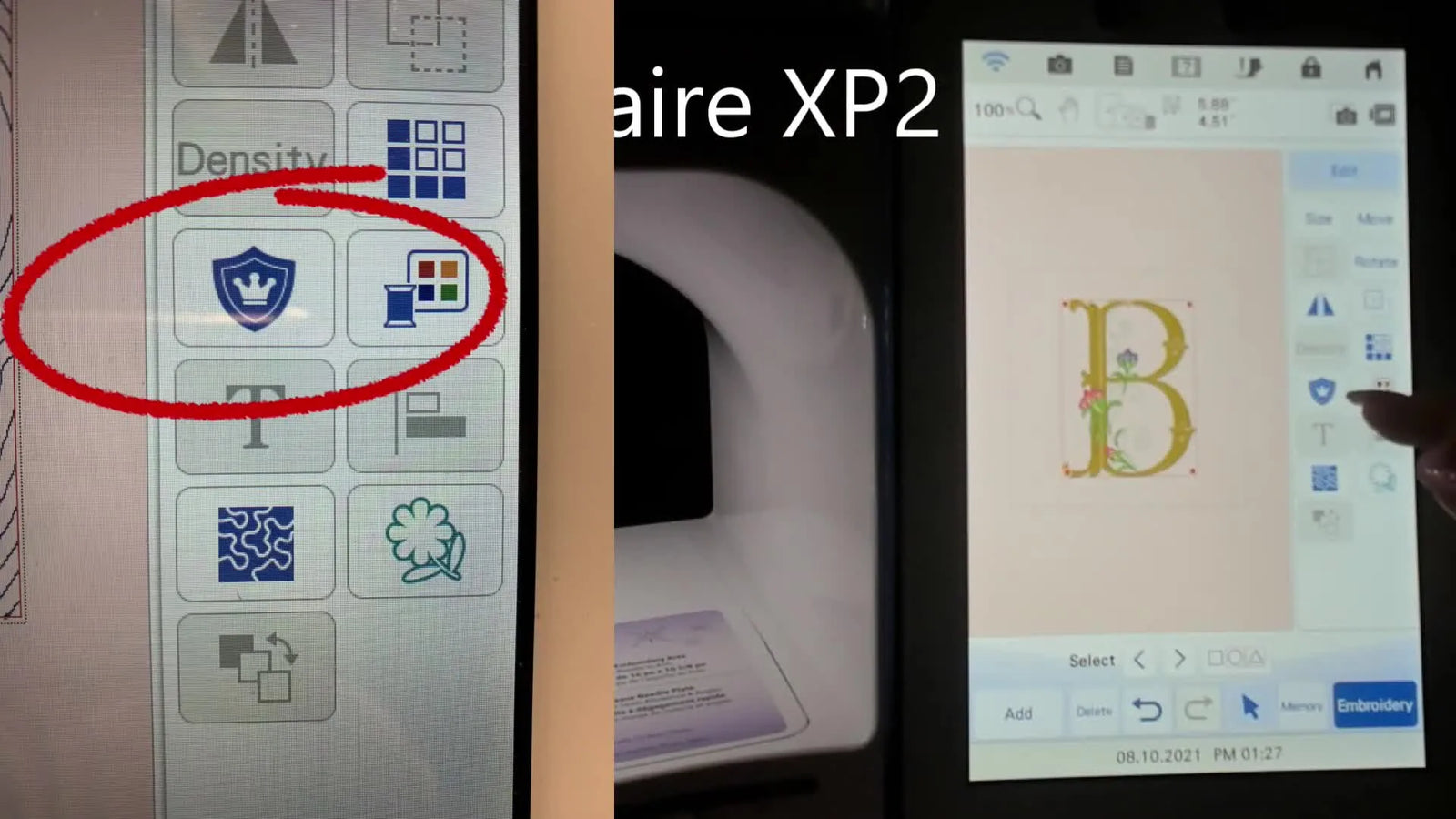

Find the Shield Icon: Using the Brother Luminaire XP2 Appliqué Tool Without Guesswork

On the Luminaire XP2, the Appliqué function is inside Edit mode and is shown as a shield/patch-style icon.

Sue’s key point is refreshing: you don’t “build” appliqué manually here—you click the tool and the machine generates the steps. This automation removes the need to manually duplicate the object and convert line types, which is how we used to have to do it in old digitizing software.

This is also why people comment things like “I always forget my machine can do that.” It’s not that it’s hard—it’s that it’s tucked into the interface.

Dial in the Appliqué Border Distance (0.220" vs 0.400")—And What That Number Really Changes

Once the Appliqué tool is activated, the machine shows a Distance setting. This controls how far the satin border sits from the original edge of the letter.

In the video:

• The initial distance shown is 0.220" (approx 5.5mm).
• Sue increases it to 0.400" (approx 10mm) to create a wider outline around the letter “B.”

What you see on screen is exactly what you’ll feel in stitching:

1. The "Forgiveness" Factor:
   • Higher Distance (0.400"+): Creates a "cloud" or "bubble" effect around the letter. It is very forgiving. If your trimming is messy, the wide spacing helps hide it.
   • Lower Distance (0.100" - 0.200"): Hugs the letter tightly. Looks sharp and professional, but requires precise trimming.
2. The Tension Risk:
   • If you choose a tight distance on a standard brother 8x8 embroidery hoop and your fabric isn't stabilized perfectly, the satin stitch will pull against the letter, potentially creating gaps.

Beginner Sweet Spot: If you are new to appliqué, set the distance between 0.250" and 0.300". This gives you enough room to trim without slicing the placement stitches, but isn't so wide that it looks disconnected.

The Stitch-Order Trap: Brother Luminaire XP2 Adds Appliqué Steps at the End (So You Must Jump There First)

This is the “make or break” moment Sue calls out. It is the single most common reason for ruined appliqué projects on this machine.

The Logic: The machine assumes you want to embroider the letter "B" first, and then put a patch around it. The Reality: Usually, you want the fabric down first, and the "B" stitched on top of the appliqué fabric.

Sue uses the stitch navigation arrows (up/down) on the embroidery screen to move through steps. Her method is simple and effective:

1. Use the arrows to jump to the end of the sequence.
2. Then go back a step or two until you see the appliqué-related steps (Placement, Tack, Satin).

Visual Cue: Look for the stitch count. If step 1 has 4,000 stitches, that's the letter fill—DON'T START. If step 1 has 150 stitches, that's a run line—START.

Read the Color/Step List Like a Pro: Trim, Placement, Tack-Down, Satin (and When to Stop the Machine)

Sue points out the appliqué components in the step list. To master this, you need to understand the Rhythm of Appliqué:

1. The "Placement" Step (Machine stops automatically if programmed colors differ):
   • Action: Stitch the outline on the stabilizer/base.
   • Check: Is the bobbin thread looking good?
2. The "Stop & Place" Moment:
   • Action: Spray back of appliqué fabric lightly. FLOAT it over the placement lines.
   • Tip: Do not hoop the appliqué fabric! Just lay it flat.
3. The "Tack-Down" Step:
   • Action: Machine stitches a simple run around the shape to lock the fabric.
   • Sensory Check: Watch for "bubbles" of fabric pushing in front of the foot. If you see this, pause and smooth it out (safely).
4. The "Trim" Moment (Crucial):
   • Action: Remove hoop (or slide it forward). Use curved scissors.
   • Technique: Pull the excess fabric slightly up and glide the scissors. Trim as close to the stitches as possible without cutting the thread. A 2mm margin is ideal.
5. The "Satin Finish":
   • Action: The machine covers the raw edge.
   • Speed: Slow down! Drop your speed to 600 SPM for the satin border to ensure crisp corners.

Then (as Sue demonstrates) you can return to the beginning and stitch the rest of the design (the fill of the Letter B).

This is also where hooping comfort becomes a real issue. Appliqué forces extra handling—especially trimming—so if you’re doing a lot of pieces, hooping stations can reduce the “where did I put my spray / why is this crooked” chaos and keep your workflow consistent.

Setup Habits That Prevent Misalignment: Hoop Size Check, Fabric Coverage, and a Clean Restart

Sue reminds viewers to make sure the correct hoop size is on the machine. On the screen during editing, the hoop size display is visible (shown as 9.5 x 9.5 on the interface in the demo).

Even when software is perfect, appliqué fails for physical reasons. Here is the Trinity of Alignment Failure:

1. The "Hoop Drift": You took the hoop off to trim. When you put it back, did it click all the way in? Listen for the definitive "Click." If it's slightly off, your satin border will be 2mm to the left, ruining the shirt.
2. The "Fabric Shift": Standard hoops depend on friction. During the trimming process, you might push on the fabric. If it slips inside the hoop even 1mm, the registration is lost.
3. The "Restart Error": Forgetting which step you were on after re-attaching the hoop.

If you’re doing repeated appliqué and you notice hoop marks or inconsistent tension, many shops move to magnetic embroidery hoops because the strong magnetic force holds the fabric sandwich (Fabric + Stabilizer + Appliqué Fabric) with zero slippage, yet releases instantly for adjustments. It’s not mandatory—but it’s a common “I wish I did this sooner” upgrade for anyone doing batch work.

Warning: Magnetic Hoop Safety. If you use magnetic frames, keep magnets away from pacemakers, implanted medical devices, and mechanical watches. These magnets are industrial strength—be mindful around phones, credit cards, and small tools (scissors) that can snap toward the magnet. Always slide the magnets off; don't pry them. They can pinch skin severely.

Setup Checklist (Before you press the Green Button)

• Hoop Recognition: Does the screen match the physical hoop attached?
• Floating Support: Is the stabilizer completely supporting the embroidery area? (No "floating" corners).
• Fabric Margin: Is your appliqué patch at least 1 inch larger than the design on all sides?
• Bobbin Check: Do you have enough bobbin thread to finish the satin border? (Running out inside a satin column is a nightmare to fix).
• Step Verification: Are you 100% sure you are starting on the "Placement Line" step?


When the Design Is “Too Smart”: Complex House Appliqué, Processing Time, and Distance Limits

Sue repeats the same workflow on a complex house design loaded from memory. In the video:

• The house design size is shown as 7.02" x 6.84".
• The machine takes a moment to “think” while generating the border.
• Sue notes the distance can hit a limit on complex shapes.

Why does this happen? This is the machine protecting you. If a design has deep crevices or sharp interior angles (like the eaves of a house), expanding the border (Distance) might cause the satin stitch to overlap itself or create impossible geometry.

What to do when the machine locks the Distance:

1. Accept the Limit: The machine calculates the safe zone.
2. Change Your Fabric Strategy: If the machine forces a tight border, you cannot rely on a wide margin of error for trimming. Use a fabric that doesn't fray (like Felt or Heat Transfer Vinyl) or apply a fusible backing (like HeatnBond Lite) to your appliqué fabric before cutting. This ensures that even if your trim is imperfect, it won't fray out from under the narrow border.


Decision Tree: Stabilizer Choices for Appliqué Borders (So Satin Doesn’t Ripple)

Use this logic to make the right choice before you hoop.

1. What is the physical nature of your Base Fabric?

• Stable Woven (Quilting Cotton, Canvas, Denim):
  • Primary Choice: Tearaway (Medium Weight).
  • Condition: If the design is very dense (>10k stitches), switch to Cutaway or float a second layer of Tearaway.
• Unstable Knit (T-shirt, Polo, Sweatshirt, Jersey):
  • Primary Choice: Cutaway (No-Show Mesh or 2.5oz).
  • Reason: Knits stretch. Satin borders pull. Without Cutaway, you will get "puckering" (ripples) around the appliqué.
• High Loft (Towel, Minky, Fleece):
  • Primary Choice: Cutaway + Water Soluble Topping.
  • Reason: The Topping prevents the satin stitches from sinking into the loops of the towel (disappearing).

2. How wide is the satin border?

• Narrow (<3mm): Requires precise trimming. Standard stabilization.
• Wide (>5mm): High stitch count triggers high pull force. Use heavier stabilizer or a magnetic hoop to resist the "draw in."

3. Are you doing multiple placements?

• Yes: Avoid Tearaway. The perforation from the first appliqué might weaken the stabilizer for the second one nearby. Use Cutaway.


Comment Questions, Answered Like a Shop Owner: “Does My Brother Machine Have This?” and “Can I Do Shoes?”

A few recurring questions show up whenever people see Luminaire features like this.

“Is this on both Luminaire models, or do I need an upgrade?” The video demonstrates the feature on the Brother Luminaire XP2 (Luminaire 2). Most high-end Brother machines (Stellaire, Luminaire series) share this "My Design Center" or Edit-mode logic. Check your manual for "Appliqué Creator."

“Can I do it on another Brother machine (like a different model)?” If your screen doesn't have the "Shield" icon in Edit mode, you aren't out of luck—you just need to change tactics. You will need to use software (like PE-Design 11 or Embrilliance) to generate the appliqué steps on your computer, then transfer the file to the machine.

“Can you embroider shoes with the XP2?” The comment is a great reminder: the machine’s feature set is only half the story—hooping and access are the other half. Shoes are a specialty setup because of clearance and the inability to "hoop" them flat.

• The Problem: You cannot stick a sneaker in a standard 5x7 hoop.
• The Solution: You need specialized clamping systems.
• The Strategy: When hooping/clamping is the bottleneck (and it often is for items like shoes, bags, or caps), many operators look at hooping for embroidery machine mechanics as a separate skill set. You generally don't do "Appliqué" on shoes using the method described here; you use direct embroidery with high-clearance clamps.


The Upgrade Path That Actually Makes Sense: When Magnetic Frames Beat “White-Knuckle Hooping”

Appliqué is deceptively labor-heavy. Let's look at the movement economy:

1. Stitch Placement.
2. Stop. Place Fabric.
3. Stitch Tack-down.
4. Stop. Remove Hoop (or slide out).
5. Trim Fabric.
6. Re-insert Hoop (Risk moment!).
7. Stitch Satin.

That stop-and-go cycle is exactly where hooping fatigue and misalignment creep in.

• Level 1 (Hobbyist): If you are doing one pillowcase a month, standard hoops and patience are fine.
• Level 2 (The "Side Hustle"): If you are doing 20 team shirts with appliqué numbers, the standard hoop screw will hurt your wrist, and the risk of "hoop burn" on the shirts is real. This is where it’s worth evaluating whether a magnetic frame would pay for itself.

Many shops choose magnetic embroidery hoops for brother because they allow you to hoop faster, but more importantly, they maintain perfect tension consistency across the whole run. The magnets hold the fabric sandwich flat without the "tug and screw" distortion.

And if you’re comparing options, look for compatibility and repeatability first. A brother magnetic embroidery frame becomes a workflow tool—not just a "nice-to-have"—when appliqué becomes a product line you sell.

Operation Checklist (The sequence that prevents 90% of appliqué mistakes)

• Step 1: Generate appliqué in Edit mode after sizing/positioning the design. (Do not resize after generation).
• Step 2: In Embroidery mode, check the stitch count. Navigate to the placement line (low stitch count) first.
• Step 3: Stitch Placement → Place floating fabric → Stitch Tack-down.
• Step 4: STOP. Remove hoop/slide tray. Trim smoothly with curved scissors. Leave 1-2mm.
• Step 5: Re-attach hoop. Verify the "Click."
• Step 6: Stitch Satin border. (Consider slowing machine speed to 600 SPM for quality).
• Step 7: Return to the beginning of the design to stitch any interior fill elements.

FAQ

• Q: How do I stop the Brother Luminaire XP2 Appliqué Creator from stitching the main letter fill before the appliqué placement line?
  A: On the Brother Luminaire XP2, the Appliqué steps are added to the end of the stitch list, so you must navigate to the end and start on the low-stitch placement run first.
  • Jump to the end of the stitch sequence, then step backward until the appliqué Placement/Tack/Satin steps appear.
  • Verify the first step you will run is a low stitch-count run line (not thousands of stitches of fill).
  • Stitch Placement → place floating appliqué fabric → stitch Tack-down → trim → then stitch Satin.
  • Success check: The first stitched line is a simple outline on the base fabric/stabilizer, not a dense fill area.
  • If it still fails: Stop immediately, return to the stitch list, and re-select the appliqué Placement step before restarting.
• Q: What is the correct order to resize or move a design when using the Brother Luminaire XP2 Appliqué tool in Edit mode?
  A: Resize and position the design first, then generate appliqué—do not resize after the Brother Luminaire XP2 creates the appliqué border.
  • Set final size and placement in Edit mode before pressing the shield/patch Appliqué icon.
  • Generate appliqué only after the design is exactly where you want it in the hoop.
  • Avoid shrinking very small; tight turns can increase thread breaks (generally).
  • Success check: The appliqué border preview stays perfectly aligned to the design outline after generation because no resizing happened afterward.
  • If it still fails: Cancel the appliqué, undo changes, re-size/re-position, and regenerate the appliqué steps.
• Q: How do I set the Brother Luminaire XP2 Appliqué “Distance” (0.220" vs 0.400") to avoid trimming errors and wavy satin borders?
  A: Use a wider Distance for trimming forgiveness and a mid-range Distance as a safe starting point; tighter Distance demands cleaner trimming and stronger stabilization.
  • Start around 0.250"–0.300" if new to appliqué for a balance of coverage and control.
  • Increase toward 0.400" if trimming accuracy is a problem and you want a wider outline look.
  • Keep Distance tighter only if you can trim very close and your fabric/stabilizer foundation is solid.
  • Success check: After trimming, the satin border fully covers the raw edge with no fraying or visible cut gaps.
  • If it still fails: Improve stabilization (often Cutaway for knits) and slow down for the satin border.
• Q: How do I hoop fabric for Brother Luminaire XP2 appliqué to prevent puckering, tunneling, and “hoop burn” marks?
  A: Hoop the base fabric taut but not stretched, and focus on consistent tension—appliqué satin borders pull hard and will show weak hooping immediately.
  • Tap-test the hooped fabric for “drum skin” tension: firm dull thud, not a loose rattle and not a high-pitched over-tight ping.
  • Use stabilizer sized larger than the hoop and press fabric smooth so no wrinkles get locked under the inner ring.
  • If repeated removals for trimming cause marks or fatigue, consider a magnetic frame workflow (often faster and more consistent, depending on fabric).
  • Success check: The satin border stitches lay flat without ripples and the fabric surface shows minimal ring impression after unhooping.
  • If it still fails: Switch stabilizer type/weight (Cutaway is often safer for appliqué) and re-check that fabric did not slip during trimming.
• Q: What stabilizer should I use for Brother Luminaire XP2 appliqué satin borders on t-shirts, towels, and stable woven fabric?
  A: Match stabilizer to fabric stretch and loft—appliqué borders are dense, so choose the option that resists pull force.
  • Choose Cutaway (often no-show mesh/2.5oz) for knits like t-shirts and polos to prevent rippling.
  • Choose Cutaway plus water-soluble topping for towels/minky/fleece so satin stitches don’t sink into the pile.
  • Use medium Tearaway for stable wovens when density is moderate; switch to Cutaway or add support if the design is very dense.
  • Success check: After stitching, the border stays smooth and the fabric does not distort or wave around the appliqué edge.
  • If it still fails: Add more stabilization (second layer or heavier option) and reduce speed for the satin finish.
• Q: Why does the Brother Luminaire XP2 limit the appliqué Distance or pause while generating appliqué on complex shapes like a house design?
  A: The Brother Luminaire XP2 may limit Distance on complex designs to prevent the satin border from overlapping itself or creating impossible geometry.
  • Accept the Distance limit the machine calculates for deep angles and tight interior corners.
  • Change the appliqué fabric strategy when the border must be tight: choose non-fraying materials like felt/HTV or add a fusible backing before cutting (generally).
  • Trim more carefully because you have less border “coverage” margin.
  • Success check: The machine completes border generation and the satin border stitches without stacking/overlaps in tight corners.
  • If it still fails: Use a simpler shape, reduce complexity, or generate appliqué steps with external software instead of on-machine.
• Q: What safety checks should I follow when stitching Brother Luminaire XP2 appliqué satin borders and when using magnetic embroidery hoops?
  A: Keep hands and loose items away from the needle area during satin borders, and treat magnetic hoops as industrial-strength pinch hazards.
  • Keep fingers, hair, sleeves, and jewelry clear—satin borders run dense and torque can pull items in quickly.
  • Slow the machine for the satin finish (a common safe practice is reducing speed for control) and stay present at the machine.
  • If using magnetic hoops, keep magnets away from pacemakers/implants, mechanical watches, phones, and cards; slide magnets off rather than prying.
  • Success check: No thread snags, no fabric grabbing, and magnets can be removed without sudden snapping or pinching.
  • If it still fails: Stop the machine, power down before clearing jams near the needle area, and review the machine manual for safety procedures.
