Turn Any Appliqué PES into a ScanNCut Cut File (Without Embroidery Software) — and Make the Pieces Actually Fit

Appliqué is supposed to feel satisfying—place fabric, stitch, trim, finish. It’s the closest embroidery gets to quilting.

But when your design doesn’t come with pre-cut SVG files, that satisfaction turns into a bottleneck. You find yourself hunched over the hoop with curved scissors, holding your breath, trying to hand-cut shapes without snipping the base fabric or leaving jagged edges. It turns a 20-minute project into an hour of stress.

If you are staring at a Brother ScanNCut and thinking, “I just want the fabric pieces to fit perfectly,” you are in the right place. We are going to bypass the need for expensive computer software. Instead, we will use the embroidery file itself to teach the ScanNCut exactly where to cut—so the fabric matches the placement stitches by definition.

The Calm-Down Truth: Your Appliqué Design Already Contains the Cut Shape (It’s Just Hiding in the Placement Line)

Before we touch a single button, we need to align your mental model with how the machine thinks. Every traditional appliqué embroidery file is built in layers, and the sequence is rigid. This is not just art; it is engineering.

1. Placement Line (Run Stitch): The roadmap. It tells you exactly where the fabric should live. This is our target.
2. Tack-down Stitch (Run or Zigzag): The anchor. It holds the fabric down so you can trim (or in our case, where the pre-cut fabric sits).
3. Final Stitch (Satin/Blanket): The finish. This covers the raw edges.

The ScanNCut warning that resulting files have “no cutting line data” is scary the first time you see it. It triggers that “I broke it” feeling. But it is a lie—or at least, a misunderstanding. The machine sees stitches, not vectors. However, the machine’s processor is smart enough to trace the geometry of those stitches and extract a path.

One sentence that saves a lot of frustration: You are not trying to cut the pretty stitches—you are trying to cut the first stitch.

If you are building a workflow around hooping for embroidery machine efficiency, this method is one of the cleanest ways to reduce re-hooping, re-trimming, and those heartbreaking “why is my edge showing?” moments.

The “Hidden” Prep Pros Do Before Touching the Screen (So You Don’t Waste an Hour)

Amateurs rush to the screen. Pros prep the station. Before you turn on the machine, set yourself up like you are going to do a production run of 50 patches, even if you are only doing one.

What you need (The Hardware)

• Brother ScanNCut (SDX Series recommended): For the auto-blade feature.
• Stylus: Do not use your fingers. Fingers are oily and imprecise on small touchscreens.
• USB Drive: Containing your .PES embroidery design file.
• ScanNCut Cutting Mat: Standard tack (Purple/Green depending on fabric weight).
• Fabric: The material you want to turn into an appliqué.
• HeatNBond Lite: Crucial. This turns floppy fabric into stiff "paper-like" material the cutter can handle.

Hidden Consumables (The things beginners forget)

• Sharp Weeding Tool or Spatula: To lift the cut fabric without fraying edges.
• Brayer (Roller): To press the fabric firmly onto the mat. Air bubbles = ragged cuts.
• Scrap "Test Fabric": A 3x3 inch piece of the exact same material setup to test blade depth if necessary.

Warning: Blade Safety. Keep your fingers clear of the blade path and never reach under the carriage while the ScanNCut is moving. The torque in these servo motors is higher than you think—treat it like a power tool, because it is.

Prep Checklist (Do not skip)

• File Logic: You know the design has distinct appliqué layers (Placement / Tack-down / Final).
• Zero Resize Rule: You are committed to not resizing the design on the ScanNCut. (If you resize here, it won't match the embroidery file. Resize before puting on USB if needed).
• Fabric Bonded: HeatNBond Lite ironed onto the back of your appliqué fabric, paper liner removed (usually).
• Mat Hygiene: The cutting mat is sticky enough to hold the fabric flat. If it leaves residue on your finger, it's dirty; if it doesn't grab, it's dead.


Importing a PES File on Brother ScanNCut SDX325 Without Getting Lost in Menus

On the ScanNCut touch screen, we need to navigate to the source.

1. Tap Retrieve Data.
2. Choose the USB icon (looks liek a memory stick).
3. Use the side arrows to scroll and locate your design file (the video example is “TurkeyTrivetPotholder.PES”).
4. Tap the file so the thumbnail appears.

This is the moment where many people assume they need expensive software like PE-Design or brilliance. You don’t—because you are about to convert stitch data into editable paths directly on the hardware.

Beating the “This Pattern Does Not Contain Cutting Line Data” Pop-Up (And Why It’s Safe to Ignore)

When you tap the appliqué shield (the icon representing converting data), the ScanNCut will almost certainly throw a warning message:

• “This pattern does not contain cutting line data for appliques.”

Do not panic. In the video, Becky simply taps OK and continues.

Here is the practical reason that works: The file creates a "container" for the data. It’s telling you, "Hey, I don't see a vector line here." You are essentially saying, "I know, I'm about to show you which stitches to use as the vector."

Lock the Size, Then Switch to Final Stitches View (The One Tap That Makes Everything Visible)

This is the failure point for 80% of users. If you change the size here, your cut fabric will be too big or too small for the stitched outline.

1. On the edit screen, verify the size matches the embroidery file (e.g., 6.93 x 6.93 inches). Do not touch the +/- buttons.
2. Tap the Object Edit button (the icon usually looks like a square with a cursor or shapes).
3. Look for the view options. Choose the right-most option that looks like zigzag lines or a filled shape—this is the Final Stitches view.
4. Tap OK.

Why “Final Stitches” view matters: By default, the machine might show you a simplified outline. "Final Stitches" view forces the screen to render the internal geometry of the layers. Without this, you cannot see the difference between the placement run stitch and the satin finish stitch.

The Big Unlock: Ungrouping the Design Elements So You Can Grab the Placement Line

If everything stays grouped, the design behaves like a single sticker—you move one part, everything moves. We need to dismantle it.

1. Tap the Grouping icon (often looks like three connected squares/red boxes).
2. Go into Edit.
3. Tap the grouping icon again to ungroup into individual paths. You'll know it worked when the big red box around the whole design disappears and becomes separate boxes.
4. Tap the background (empty space) to deselect everything.

Sensory Check: You should now be able to tap a single line on the screen and see only that line turn red. If everything turns red, you are still grouped.

The Money Step: Sorting Placement vs Tack-Down vs Final Stitches (So Your Cut Pieces Fit the Placement Line)

This is the heart of the method. We need to perform digital surgery. You will likely see three or more lines for each appliqué object (e.g., three circles for a sun).

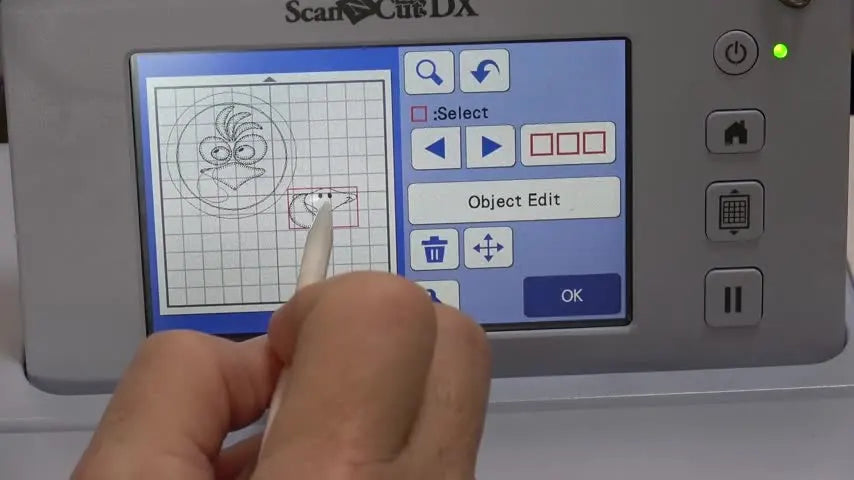

In the video, Becky physically touches and drags them apart on the grid so she can visually identify them. This is the safest way to learn.

The Sort Protocol: Keep vs. Kill

• KEEP: The Placement Line. This is usually the first stitch in the sequence, often a single run stitch.
• DELETE: The Tack-down line.
• DELETE: The Final Stitch line (thick satin, blanket stitch, or decorative details).

Becky’s workflow is simple and effective:

1. Drag the candidate for "Placement" to a safe corner (the “Keep” area).
2. Drag the other matches to a “Trash” area or hit the trash can icon immediately.


How to identify the placement line when lines look similar

On a small screen, a run stitch and a tack-down stitch look identical. Use these cues:

• Visual Density: The Final Stitch often looks thick, like a zigzag or solid bar. It may contain extra details (like eyes or a smile). Delete this immediately.
• Relative Size: On the background circle example, Becky points out a double line. The Placement line is usually the smaller/inner line.
• Logic: The Tack-down (second stitch) is often digitized slightly larger or inside the placement to catch raw edges. But we want the precise boundary defined by the digitizer at the start.

Why not the Tack-down? A viewer asked, “Why wouldn’t you use the tackdown line—wouldn’t that guarantee the final stitches catch?” The Expert Answer: You never know how the digitizer built the tack-down. Some digitizers make it inset (smaller), some make it zigzag (wider). The Placement Line is the only constant definition of the shape's boundary. Stick to the Placement Line for consistent production results.

Group the “Keepers,” Delete the Trash Pile, and Save a Clean Cut File to Machine Memory

Once you have performed surgery and isolated only the single-run placement lines:

1. Use the drag-to-select box (multi-select tool) to draw a box around only the keeper elements in your safe corner.
2. Group them together. This ensures their relative positions stay locked.
3. Drag-to-select the remaining trash pile and Delete it.

Success Metric: The screen should look "empty" except for the thin outlines of your appliqué shapes.

Saving:

1. Tap Save.
2. Choose the Machine icon (saves to local memory).
3. Write it down. The machine generates a generic name like M000044. Write "Turkey Pot Holder - M000044" on a sticky note or your project sheet. Trust me, you will not remember this number in 20 minutes.


Setup Checklist (Ready to Cut)

• Size Lock: Design height/width was never changed.
• Layer Isolation: Each appliqué object (e.g., the beak, the feathers) is reduced to one single path.
• Trash Clear: All satin stitches and detail stitches are deleted.
• Grouping: The remaining cut lines are grouped so they maintain alignment.
• File Saved: You have the file number written down.

Cutting the Fabric on a ScanNCut Mat: HeatNBond Lite, Scanning the Mat, and Avoiding the “Shift” Trap

After saving, Becky returns home to the cutting phase. This is where physical materials matter.

The digital file is perfect, but if your fabric wrinkles on the cutting mat, the cut will be garbage.

The Role of HeatNBond Lite: The video tip emphasizes ironing HeatNBond Lite to the back of your fabric. Do not skip this.

• Why? It turns fabric into a stable, paper-like sheet.
• Result: The blade cuts a crisp line without dragging threads.
• Bonus: It allows you to iron the appliqué onto the base fabric later, preventing shifting during the tack-down stitch.

The Scan Process:

1. Stick your bonded fabric anywhere on the cutting mat. Use a brayer to ensure 100% adhesion.
2. Load the mat.
3. Tap Scan Background.
4. The screen will show a photo of your mat with the fabric on it.
5. Retrieve your saved file (M000044) and drag the cut lines over the fabric image on the screen.

This visual alignment reduces waste to near zero. You can use weirdly, irregularly shaped scraps and fit the cut perfectly.

The “Will the Final Stitch Catch?” Question—How to Prevent Edge Peek Without Guessing

One of the deepest fears in machine appliqué is "Edge Peek"—where the white stabilizer or base fabric shows between the appliqué fabric and the satin stitch.

If you cut exactly to the placement line, will the satin stitch cover it?

• In theory: Yes. A good digitizer creates the satin stitch to overlap the placement line by 1-2mm on both sides.
• In reality: Fabric shifts.

A simple, low-stress test method

Rather than ruining your final garment:

1. Cut one piece from scrap fabric using your new ScanNCut file.
2. Hoop a scrap of stabilizer.
3. Run the embroidery machine: Stitch Layer 1 (Placement).
4. Lay your cut piece inside the lines.
5. Skip Layer 2 (Tack-down) for a moment and verify visual fit.
6. Run Layer 3 (Satin). Does it cover?

The "Fabric Shift" Factor

If the test covers, but the real garment fails, the problem is hooping. If your base fabric (the t-shirt) moves inside the hoop while stitching, the target moves. The cut piece stays still, but the machine stitches somewhere else.

This is where equipment selection becomes a diagnostic tool. If you are constantly fighting hoop burn or fabric creep on thick items like towels or hoodies, magnetic embroidery hoops can be a legitimate upgrade. Unlike friction hoops that distort the fabric grain when tightened, magnetic hoops clamp straight down, keeping the placement line exactly where the digitizer intended it.

Warning: Magnetic Hazard. Industrial magnetic hoops are incredibly powerful. Keep them away from pacemakers, ICDs, and other implanted medical devices. Do not let the inner and outer rings snap together on your fingers—pinch injuries are real and painful.

Decision Tree: Fabric Type → Backing/Stabilizer Strategy for Cleaner Appliqué

Use this logic flow to determine your consumable setup. The cut file is only as good as the stabilization under it.

START: What material are you cutting?

• Standard Cotton / Quilting Weight?
  • Action: Use HeatNBond Lite effectively.
  • Base Stabilizer: Standard Tear-away (for woven base) or Cut-away (for knit base).
• Twill / Canvas (for Patches)?
  • Action: Bonding is optional if the twill is stiff, but recommended for accuracy.
  • Base Stabilizer: Heavy Cut-away or Filmoplast (Sticky back). Twill is heavy; if the base is weak, the outlines will register poorly.
• Stretchy Knits / Performance Wear?
  • Action: Mandatory HeatNBond Lite to stop the knit from curling when cut.
  • Base Stabilizer: No-Show Mesh (Cut-away). Never use Tear-away on knits.
  • Hooping: Do not stretch the garment.
• Batting (for "Puff" effect)?
  • Action: Becky advises against cutting batting on the sticky mat directly as it leaves a mess.
  • Alternative: Trim batting in the hoop manually, or sandwich it between fabric layers before cutting.

File Format Reality Check: PES, JEF, and “Will This Work on My Machine?”

Let’s clarify the ecosystem confusion found in the comments:

• “I have a Janome (.JEF), can I do this?”
• “Does this need a special ScanNCut model?”

The Rule of Thumb:

1. The Embroidery Machine: Doesn't care. It runs whatever format it runs (PES, JEF, DST).
2. The ScanNCut: Cares deeply. It reads .PES files natively for this conversion trick.

Practical Takeaway: To use this workflow, your embroidery file must be in PES format for the ScanNCut to read it.

• If you buy a design, download the .PES version for the ScanNCut.
• If you have a Janome machine, put the .JEF file on the embroidery machine, but put the .PES file on the ScanNCut. The geometry is the same.

For workshops running a multi-needle commercial setup, creating a standard library of .PES files for cutting ensures that any operator can prep fabric, regardless of which machine stitches it.

The Production Upgrade Path: When This Workflow Saves Enough Time to Justify Better Hooping Tools

This ScanNCut method is a "Time Saver." But there is a difference between saving time on a hobby and increasing throughput in a business.

Here is the graduation path I see in real shops:

1. Phase 1 (Manual): Scissors. Slow, high error rate.
2. Phase 2 (This Method): ScanNCut. Fast prep, precise cuts.
3. Phase 3 (The Bottleneck Moves): You cut fast, but hooping takes forever.

When you reach Phase 3, you stop looking at cutting tools and start looking at hooping tools.

• Pain: "I spend more time wrestling the hoop than stitching."
  • Solution: A brother magnetic hoop style frame allows for "drop and snap" hooping.
• Pain: "My alignment is always crooked on the chest pocket."
  • Solution: A hooping station for machine embroidery. This ensures every shirt is hooped at the exact same coordinate, matching the precision of your laser-cut appliqué pieces.
• Pain: "I can't produce enough to pay for my time."
  • Solution: Volume. Moving from a single-needle to a SEWTECH multi-needle machine allows you to preload colors and run faster.

If you are looking for compatible gear, searching for magnetic embroidery hoops for brother is often the gateway to finding accessories that fit your specific machine model (like the PE800, NQ1700E, or Stitch Express).

Troubleshooting the Three Most Common ScanNCut Appliqué Cut-File Problems

1. "Pattern does not contain cutting line data"

• Symptom: You tap the file and get the scary error.
• Cause: No vector data exists (normal for embroidery files).
• Fix: Tap OK. Go to Object Edit to view stitch data. Converting stitches to paths happens in the edit screen.

2. "Why are there multiple outlines for one piece?"

• Symptom: You see three circles for one sun shape.
• Cause: Appliqué = Placement + Tack-down + Final.
• Fix: Use the decision matrix. Keep the Placement Line (First/inner). Delete the others.

3. "The machine cut through my mat!"

• Symptom: The blade went too deep.
• Cause: Blade depth set too high (older models) or pressure too high (SDX models).
• Fix: For bonded cotton, standard "Auto" usually works. If manual, start at depth 3-4. Always do a test cut on a scrap corner first.

Operation Checklist (The Final Flight Check)

• File Logic: You are using the specific file number you saved earlier (e.g., M000044).
• Adhesion: Fabric is brayered down and heat-bonded.
• Scan: You have scanned the background and visually dragged the cut shape onto the fabric image.
• Blade Check: The blade holder is clean (no lint inside).
• Test: You have mentally confirmed: "I am cutting the placement line size, not the full satin size."

The Payoff: Perfect-Fit Appliqué Pieces Without Software (and Less Anxiety)

The reason this method feels so good is simple: you are cutting from the placement line itself. You are using the architect's blueprint to cut the lumber.

That is why viewers describe it as “straightforward,” “exactly what I needed,” and “no more anxiety.” When your cut pieces finally fit, appliqué stops being the stressful part of the project and becomes the creative part.

If you want to keep upgrading the workflow after you master this, focus on the two places that still steal time: stabilization and hooping. That is where better backing choices, cleaner process discipline, and finding the right embroidery hoops for brother machines can turn a clever trick into a reliable production routine.

FAQ

• Q: Why does Brother ScanNCut SDX show “This pattern does not contain cutting line data for appliques” when importing a .PES embroidery file?
  A: Tap OK—this warning is common because a .PES file contains stitches, not vector cut lines, and ScanNCut can still trace the stitch geometry in edit mode.
  • Open: Tap Object Edit and switch to a stitches-rendered view so the stitch paths become selectable.
  • Proceed: Continue into editing where you can isolate the correct stitch layer to use as the cut path.
  • Success check: The design displays as selectable stitch paths/objects you can tap individually (not a single uneditable “sticker”).
  • If it still fails: Confirm the file on the USB is actually .PES (ScanNCut relies on .PES for this conversion workflow).
• Q: How do Brother ScanNCut SDX users prevent appliqué fabric from cutting the wrong size after importing a .PES file?
  A: Do not resize on the ScanNCut—lock the design at the exact embroidery-file dimensions before doing any editing.
  • Verify: Check the on-screen height/width matches the embroidery file (example shown: 6.93 x 6.93 in) and do not touch +/- scaling.
  • Edit: Perform ungrouping and layer deletion only after size is verified.
  • Success check: The cut fabric drops cleanly inside the placement stitches during a test stitch-out without forcing or buckling.
  • If it still fails: Resize the design before putting it on the USB (in whatever tool created/edited the embroidery file), then re-import and keep ScanNCut at 100%.
• Q: How do Brother ScanNCut SDX users ungroup a .PES appliqué design so only the placement line can be selected?
  A: Use the Grouping tool to ungroup until individual stitch paths highlight one-at-a-time.
  • Tap: Open the Grouping icon and choose Edit, then tap the grouping icon again to Ungroup.
  • Deselect: Tap empty background space and then tap one line to confirm single-object selection.
  • Success check: Tapping one outline turns only that outline red; the whole design does not highlight as one big red box.
  • If it still fails: Repeat ungrouping—some designs require multiple ungroup steps before individual elements separate.
• Q: Which stitch line should Brother ScanNCut SDX users keep for appliqué cutting: placement line, tack-down line, or final satin/blanket stitches?
  A: Keep only the Placement Line (first run stitch) and delete tack-down and final stitches for consistent fit.
  • Identify: Delete the thick, dense satin/blanket elements first (they are easiest to spot).
  • Compare: When two thin outlines look similar, keep the smaller/inner outline as the placement line (common cue shown in the example).
  • Organize: Drag the “keeper” placement lines to a safe corner, move “trash” lines away, then delete.
  • Success check: The screen looks “almost empty” except for thin, single-path outlines of each appliqué piece.
  • If it still fails: Separate the lines by dragging them apart on-screen to visually compare size/density before deciding what to keep.
• Q: How do Brother ScanNCut SDX users stop fabric from shifting or cutting ragged on the ScanNCut mat when making appliqué pieces?
  A: Stabilize and bond the appliqué fabric, then press it flat—wrinkles and air bubbles are the main cause of bad cuts.
  • Bond: Iron HeatNBond Lite to the back of the appliqué fabric to make it “paper-like” for cleaner cutting.
  • Press: Use a brayer/roller to fully adhere fabric to the cutting mat (air bubbles = ragged edges).
  • Align: Use Scan Background and drag the cut lines onto the fabric photo to avoid waste and misplacement.
  • Success check: Cut edges lift cleanly with a spatula/weeding tool without fraying or stretched corners.
  • If it still fails: Check mat condition—if it won’t grab the fabric flat, the mat may be dirty or worn out.
• Q: How can Brother ScanNCut SDX users prevent “edge peek” in machine appliqué when cutting from the placement line?
  A: Do a quick scrap test stitch-out—edge peek is usually fabric shift/hooping movement, not the cut file itself.
  • Test: Cut one scrap piece using the saved cut file, hoop a stabilizer scrap, and stitch the Placement layer first.
  • Place: Lay the pre-cut piece inside the placement stitches and visually confirm fit before committing to the finish.
  • Finish: Run the satin/blanket layer and check coverage at curves and points.
  • Success check: The final stitch fully covers the raw edge with no base fabric/stabilizer showing.
  • If it still fails: Re-check hooping and stabilization—if the base fabric creeps in the hoop, the stitches move while the cut piece does not.
• Q: What safety rules should Brother ScanNCut SDX users follow when cutting appliqué fabric, and what extra safety rule applies to industrial magnetic embroidery hoops?
  A: Treat the ScanNCut blade and strong magnetic hoops like power tools—most injuries happen during “quick” adjustments.
  • Avoid: Keep fingers away from the blade path and never reach under the carriage while ScanNCut is moving.
  • Control: Lift cut pieces with a spatula/weeding tool instead of digging with fingertips near the blade area.
  • Magnet rule: Keep industrial magnetic embroidery hoops away from pacemakers/ICDs and prevent the rings from snapping together on fingers.
  • Success check: Hands stay clear during motion, and hoop rings are brought together slowly and deliberately without pinch points.
  • If it still fails: Pause the machine first—do not troubleshoot while anything is moving, and follow the machine manual for handling procedures.
• Q: When does appliqué production shift from “skill fixes” to upgrading tools like magnetic embroidery hoops or a multi-needle embroidery machine?
  A: Upgrade in layers—optimize technique first, then upgrade hooping, then upgrade machine capacity when hooping becomes the time bottleneck.
  • Level 1 (Technique): Improve prep discipline—bond fabric, don’t resize, isolate placement lines, and use background scanning to reduce waste.
  • Level 2 (Tooling): Consider magnetic embroidery hoops when fabric creep, hoop burn, or slow hooping is causing misalignment or rework.
  • Level 3 (Capacity): Consider a multi-needle embroidery machine when cutting is fast but color changes/throughput limits prevent profitable volume.
  • Success check: Time per item drops without increasing re-hoops, misalignment rejects, or edge-peek rework.
  • If it still fails: Track where minutes are lost (cutting vs hooping vs stitching) and address the biggest bottleneck first rather than changing everything at once.
