Turn a Name Snowflake into Real Free-Standing Lace in Floriani Total Control U (Without the “Lettuce” Disaster)

Mastering Free-Standing Lace: From "Lettuce" Fails to Structural Art (A Floriani Workflow)

Free-standing lace (FSL) is the ultimate test of an embroiderer’s patience and physics knowledge. It looks magical on screen—delicate, intricate, floating on air. But the moment you rinse away the stabilizer, reality hits. Without the proper structural engineering, that beautiful snowflake transforms into a soggy, distorted "lettuce leaf" that refuses to lie flat.

As someone who has seen thousands of lace projects fail on the production floor, I can tell you: FSL is 40% digitizing, 60% physical setup.

This guide rebuilds Brad Martin’s Floriani Total Control U workflow, creating a "Name Snowflake" that actually holds together. But we are going deeper than the software. We will integrate the shop-floor discipline—hooping physics, needle choices, and safe-zone parameters—that prevents you from wasting expensive thread and stabilizer.

The Physics of Failure: Why Lace Collapses

Brad’s core lesson distinguishes between "decorative stitches" and "structural stitches." On standard fabric, the cloth holds the stitches. In FSL, the stitches must hold each other.

If your software generates beautiful islands of embroidery that don’t physically interlock, they will simply float away down your sink drain when the Water-Soluble Stabilizer (WSS) dissolves.

The "Continuous Path" Rule

To succeed, you must mimic a spiderweb. You need:

1. Anchors: Heavy underlay that acts as rebar.
2. Beams: Continuous run lines (grids) that connect everything.
3. Locks: A satin border to seal the edges so the grid doesn’t unzip.


Your Objective Data Points for Success:

• Structure: Satin text with an internal "skeleton" (Underlay).
• Foundation: A cross-hatched grid created from continuous run lines.
• Finish: A verified satin binding.

The "Hidden" Prep: Consumables & The Physics of Hooping

Before we touch the software, we must secure the physical environment. FSL is unforgiving because there is no fabric to absorb distortion.

1. The Stabilizer (The Foundation)

You are stitching on Water-Soluble Stabilizer (WSS).

• Avoid: Thin, plastic-wrap style films (like Solvy) for the base. These are toppings. They will perforate and rip under the needle count of FSL.
• Use: Fibrous/Fabric-type WSS (often called "Badgemaster" or fabric-type water-soluble). Ideally, use two layers, cross-grained (one vertical, one horizontal) for maximum stability.

2. The Hoop (The Tension Trap)

This is where most beginners fail. You need the WSS to be "drum tight," but traditional hoops have a flaw: to get it tight, you have to pull. Pulling WSS stretches it. When you un-hoop, it snaps back, and your round snowflake becomes an oval.

The Commercial Upgrade Path: If you struggle with "Hoop Burn" or distortion on delicate WSS, this is the trigger point for a tool upgrade. Terms like magnetic embroidery hoops are your gateways to understanding efficient production. Unlike friction hoops that drag the material, magnetic frames clamp straight down. This secures the slippery WSS without distorting the grain, ensuring your geometry stays perfect from machine to sink.

Warning: Magnetic Safety. If you upgrade to a high-end clamping system, be aware that industrial magnets are powerful. They create a severe pinching hazard. Never place your fingers between the magnets as they snap shut, and keep them away from pacemakers or sensitive electronics.

3. Needle & Thread

• Needle: Use a size 75/11 Sharp (not Ballpoint). You want to pierce the stabilizer cleanly, not push it aside.
• Bobbin: CRITICAL: Use the same thread in the bobbin as on top. FSL is visible from both sides. Using white bobbin thread will ruin the back of your ornament.

Prep Checklist (Do NOT skip)

• Stabilizer: 2 layers of fibrous WSS, hooped drum-tight but unstretched.
• Bobbin: Wound with matching top thread color.
• Needle: Fresh 75/11 Sharp installed.
• Units Check: Confirm software is in Metric (mm). (Crucial for the 6.5mm vs 0.25" issue later).
• Safe Format: Confirm you can save/export a .PES file (required for the workaround).


Step 1: Structural Text Setup in Floriani

Brad starts by typing the name (e.g., "Meadow"). Standard text settings will fail here because they rely on fabric for support. We must engineer the text to stand alone.

The "Rebar" Adjustment

Select your text and open the Properties box. You are changing the Underlay—the hidden stitches under the satin.

• Action: Change Underlay Type from Parallel to ZigZag.
• Data Point: Change Density to 1.0 mm (or 0.75 mm for a stiffer letter).
• Why? Standard parallel underlay is like two rails. ZigZag is like a truss bridge. It prevents the satin column from collapsing into a flat, floppy mess once the stabilizer is gone.

Sensory Check: Look at the stitch preview. You should see a distinct "ladder" pattern running up the center of the letters before the satin covers it.

Pro Tip: If you are using slippery rayon thread or thinner 60wt thread, decrease that density value to 0.6mm to add even more structure.

Step 2: The Snowflake Geometry

Brad uses the Circle Template tool to create the radial symmetry.

• Action: Select Text -> Circle Template.
• Settings: Count: 8 | Angle: 180°.


Visual Check: Ensure the letters overlap slightly at the center or touch. If they are floating apart, they will fall apart.

Step 3: The PES Workaround (Unlocking the Outline Tool)

Here is a quirk of Floriani Total Control U: You cannot run "Create Outlines" on active text objects. You must "bake" the design into stitches first.

1. Save As: Save the file as a machine format (Brad uses snowflake.pes).


2. Re-Open: Open that .PES file.
3. Check: Ensure "Convert to Outlines" is ticked in the opening dialog.


What just happened? The software now sees the text as vector shapes rather than fonts. You may see some odd "split lines" in the letters—ignore them. We only need the outer shape.

Step 4: Creating the Lace "Container"

We need a border that encapsulates the entire design to hold the lace grid.

• Action: Select All (Ctrl+A) -> Click Create Outlines.
• The Critical Number: Set spacing to 6.5 mm (approx 1/4 inch).




Troubleshooting: The "Giant Circle" Bug

If your outline looks like a giant balloon or circle instead of hugging the letters:

• Diagnosis: Your software is likely set to Inches, but you typed 6.5. An offset of 6.5 inches is huge.
• The Fix: If in standard units, use 0.25 (Quarter inch). If in Metric, use 6.5.

Visual Check: You should see a "bubble" outline hovering evenly around your text.

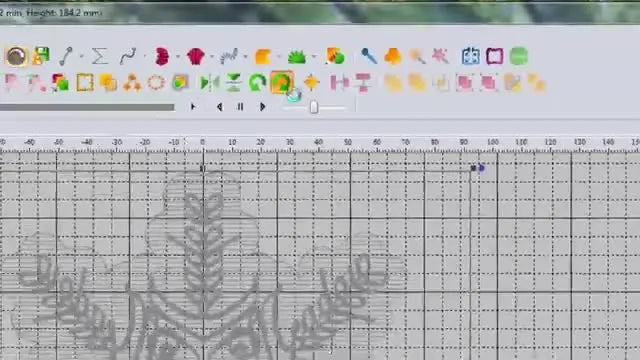

Step 5: Engineering the Grid (The "Wave Fill" Hack)

Brad pulls a genius move here. He uses Wave Fill, not for the wave look, but because Wave Fill has zero travel stitches and zero underlay. It is pure, clean line work.

1. Action: Select the new Outline Artwork -> Apply Wave Fill (Purple Star Icon).


2. The Engineering Fix: Select the Shape Tool (Node editor). You will see a curved line running through the shape (the Inclination Line).
3. Action: Delete the curved nodes or straighten the line perfectly horizontal.


Why Straighten? We want structural beams, not decorative waves. Straight lines provide the highest tensile strength with the least amount of thread.

Step 6: Density and Flow Control

We don't want a solid block of thread; we want a net.

• Action: Change Density (Spacing) to 3.0 mm.
• Action: Move the Start Point to the top and Stop Point to the bottom.


Sensory Check: In the 3D preview, verify there are no "Jump Stitches" (dotted lines) cutting across the grid. It should be one continuous snaking line.

Setup Checklist (Grid Phase)

• Outline artwork converted to Wave Fill.
• Inclination line straightened (Horizontal).
• Spacing set to 3.0 mm (Safety Zone: 2.5mm - 3.5mm).
• Start/Stop points aligned to prevent jumps.

Step 7: Cross-Hatching for Strength

A series of horizontal lines is just a harp; it has no side-to-side stability. We need a mesh.

• Action: Duplicate the Grid Object.
• Action: Rotate the duplicate 90°.


Result: You now have a perpendicular cross-hatch grid. This is the industry standard for FSL foundations because it locks movement in both X and Y axes.

Step 8: The "Lock-Down" Border

FSL edges are vulnerable. If a thread creates a loose loop on the edge, it can snag and unravel.

• Action: Copy the original Outline shape again.
• Action: Convert to Satin Stitch / Steel Stitch.
• Settings: Set Underlay to ZigZag with a density of 0.75 mm.


Expert Note: Do not make this border too narrow. A width of 3.0mm to 4.0mm is safe. Too thin (under 2.5mm), and it won't grab the grid lines securely.

Step 9: Re-Sequencing (The Foundation Rule)

You cannot build a roof before the floor. The software might put the grid last because you created it last. You must move it.

• Action: In the Sequence View, drag both Grids and the Border to the TOP (Start) of the list.


Correct Sew Order:

1. Horizontal Grid
2. Vertical Grid
3. Satin Border (Locks the grid)
4. Text/Snowflake (Sits on top of the locked grid)


Decision Tree: The Tools for Mass Production

Start here to determine if your current setup is ready for a batch of 50 ornaments.

START: Are you stitching multiple FSL items for sale/gifts?

• No (Just one for fun):
  • Use standard hoop.
  • Action: Tighten screw with a screwdriver (gently) to ensure "drum skin" tension.
  • Risk: Minor distortion is acceptable.
• Yes (Batch Production):
  • Constraint: Hand hooping WSS 50 times hurts wrists and causes inconsistency.
  • Do you have a Multi-Needle Machine?
    • Yes: Use the included frames. Consider upgrading to a magnetic embroidery frame designed for tubular arms to speed up reload times.
    • No (Single Needle): This is the bottleneck. The friction of standard hoops ruins WSS.
    • Solution: Search for embroidery hoops magnetic compatible with your specific machine model. They allow you to "slap and go" without adjusting screws, keeping the WSS tension identical on every ornament.
    • Future Scale: If you find yourself spending more time changing thread colors than stitching, this is the trigger to look at a SEWTECH multi-needle embroidery machine. The ability to preset 6-10 colors transforms FSL from a chore into a profit center.

Troubleshooting: The "FSL Emergency Room"

When things go wrong, use this hierarchy. Fix the physical first—it's cheaper than re-digitizing.

Warning: Mechanical Safety. FSL involves high stitch counts in concentrated areas. If your machine sounds like it is hammering or struggling to penetrate, STOP. You may have a "bird's nest" (thread ball) forming under the throat plate. Continuing to sew can bend the needle bar or throw off the timing.

The Upgrade Path: From Hobby to Production

Once you master the digital workflow of the "Name Snowflake," the constraint moves to the machine.

• Level 1 (Hobby): You master the 2-layer WSS setup and precise hooping.
• Level 2 (Pro-sumer): You integrate a hooping station for machine embroidery or magnetic hoops to eliminate reject rates caused by hoop burn and slippage.
• Level 3 (Business): You move to a multi-needle platform where you can load 6 different thread colors and let the machine run the grid, border, and text without you babysitting every spool change.

Final Verification Checklist (The "Go/No-Go" Flight Check)

• Sew Order: Grid First -> Border -> Text.
• Grid Structure: Straight lines, perpendicular cross-hatch, 3.0mm spacing.
• Border: Satin stitch is wide enough (3-4mm) to bite into the grid.
• Hooping: Stabilizer is taut, thread is matched in the bobbin.
• Test Run: Run ONE test piece. Rinse it. Dry it. Only then do you commit to the batch.

Treat FSL like building a bridge—structure comes first, beauty follows. Now, go stitch something that withstands the water!

FAQ

• Q: How do I hoop fibrous water-soluble stabilizer (WSS) for free-standing lace (FSL) without stretching and getting “lettuce edges” after rinsing?
  A: Hoop WSS drum-tight but unstretched—stretching during hooping is the #1 cause of wavy “lettuce” lace after the stabilizer dissolves.
  • Use two layers of fibrous/fabric-type WSS and place them cross-grain (one vertical, one horizontal).
  • Hoop by tightening evenly; avoid pulling the WSS like fabric while you seat the inner ring.
  • Consider clamping-style magnetic hoops/frames if friction hoops keep dragging and distorting the WSS.
  • Success check: Before stitching, the WSS feels like a drum skin and the grain lines look straight (not “pulled” into an oval).
  • If it still fails: Increase structural support in the design (ZigZag underlay for satin text around 1.0 mm) and re-test one piece.
• Q: For free-standing lace (FSL) ornaments, why must the bobbin thread match the top thread, and what should I do if bobbin thread shows on top?
  A: Match the bobbin thread to the top thread because FSL is visible from both sides, and then rebalance tension if bobbin shows on top.
  • Wind the bobbin with the same thread used on top for that ornament (do this before the run, not after problems start).
  • Loosen top tension slightly if bobbin thread is popping to the top; aim for balanced tension rather than a fabric-style test.
  • Reseat the bobbin and rethread the top path to eliminate simple threading errors (common, don’t worry).
  • Success check: On stitched satin edges, thread wraps look evenly split on the sides rather than one color dominating the top.
  • If it still fails: Stop and check for a developing thread ball (“bird’s nest”) under the throat plate before continuing.
• Q: In Floriani Total Control U, how do I fix the “Create Outlines” limitation on active text for a free-standing lace (FSL) name snowflake?
  A: Use the PES workaround—save to a machine format, reopen it, and convert to outlines so Floriani treats the text as shapes instead of editable fonts.
  • Save the design as a .PES file.
  • Re-open the .PES and enable the “Convert to Outlines” option in the opening dialog.
  • Ignore any odd split lines inside letters; only the outside shape is needed for the lace container.
  • Success check: “Create Outlines” becomes available and produces an offset border around the lettering.
  • If it still fails: Confirm the file actually reopened as the stitched/outlined version (not the original editable text file).
• Q: In Floriani Total Control U, why does “Create Outlines” produce a giant balloon circle around the design, and how do I correct the outline spacing value?
  A: The “giant circle” happens when the units are mismatched—typing 6.5 in Inches creates a massive offset, so use 0.25 in Inches or 6.5 mm in Metric.
  • Check the software units setting before entering the spacing value.
  • Enter 6.5 mm if working in Metric, or enter 0.25 if working in Inches.
  • Re-run “Create Outlines” after correcting the units/value.
  • Success check: The outline “bubble” hovers evenly around the text instead of expanding into a huge circle.
  • If it still fails: Reconfirm the units didn’t switch during file reopen and that the spacing field is the outline offset (not a different parameter).
• Q: In Floriani Total Control U free-standing lace (FSL), how do I build a strong grid foundation using Wave Fill without jump stitches?
  A: Use Wave Fill as clean line work, straighten the inclination line, and set spacing to create a continuous cross-hatched net.
  • Apply Wave Fill to the outline artwork (using it for structure, not for decorative waves).
  • Use the shape/node tool to delete curved nodes and make the inclination line perfectly horizontal.
  • Set spacing (density) to 3.0 mm and adjust start/stop points top-to-bottom to avoid travel stitches.
  • Duplicate the grid and rotate the duplicate 90° to create cross-hatching for X/Y stability.
  • Success check: The preview shows one continuous snaking line with no dotted jump lines cutting across the grid.
  • If it still fails: Recheck start/stop points and keep spacing within the 2.5–3.5 mm safety zone.
• Q: What is the correct stitch sequence order for free-standing lace (FSL) so the lace does not separate in the sink?
  A: Stitch the foundation first—grid first, then satin border to lock it, then the decorative/text layer on top.
  • Move the horizontal grid to the top of the sequence list.
  • Place the vertical grid next.
  • Stitch the satin border third so it “bites” into and locks the grid.
  • Stitch the text/snowflake last so it sits on a stabilized foundation.
  • Success check: After rinsing, the lace stays as one piece and the border holds the grid edges without unzipping.
  • If it still fails: Ensure design elements overlap/touch (especially at the center) so nothing becomes a floating “island.”
• Q: What machine-safety steps should I follow during high stitch count free-standing lace (FSL) to avoid needle bar damage from a bird’s nest under the throat plate?
  A: Stop immediately if the machine sounds like it is hammering or struggling—continuing through a bird’s nest can bend parts or affect timing.
  • Pause the run the moment you hear harsh penetration sounds or see thread bunching.
  • Inspect under the throat plate area for a forming thread ball before restarting.
  • Replace the needle with a fresh 75/11 Sharp if the needle has been stressed or deflected.
  • Success check: The machine returns to a smooth, consistent stitch sound and the underside is not packing thread.
  • If it still fails: Recheck threading/tension balance and reduce risk by doing a single test piece before committing to a batch.
• Q: For batch-producing 50 free-standing lace (FSL) ornaments, when should I upgrade from a standard friction hoop to magnetic hoops/frames or a multi-needle embroidery machine?
  A: Upgrade when repeatability and changeover time become the bottleneck—first eliminate hooping inconsistency with magnetic clamping, then consider multi-needle capacity if color changes dominate labor time.
  • Level 1: Improve technique—use two cross-grained layers of fibrous WSS and consistent drum-tight hooping (no stretching).
  • Level 2: Upgrade tooling—use magnetic hoops/frames to clamp straight down and keep identical tension across dozens of reloads.
  • Level 3: Upgrade production—move to a multi-needle machine if you spend more time changing thread colors than stitching.
  • Success check: Reject rate drops (less distortion/hoop burn), and each ornament stitches with the same geometry from hoop to sink.
  • If it still fails: Re-audit the physical checklist (WSS type, matching bobbin thread, fresh 75/11 Sharp) before changing digitizing settings.
