TruEmbroidery 3 Modify for Mac: Edit Smarter, Stitch Cleaner, and Stop the Breaks Before They Start

If you have ever opened an embroidery file on your Mac and thought, “This should stitch fine… why does it keep breaking thread, gapping on knits, or shifting in the hoop?”—you are not alone. In my 20 years on the shop floor, I have learned that embroidery is 20% software and 80% physics. The screen gives you a preview, but the machine gives you the truth.

TruEmbroidery 3 Modify for Mac is built for that exact moment of truth: you already have custom designs, you don’t necessarily want to digitize from scratch, but you must control how those stitches interact with real, unpredictable fabric.

This guide follows the feature path of the TruEmbroidery 3 Modify ecosystem, but I am going to translate it into a masterclass workflow: not just what to click, but how to listen to your machine, what "drum-tight" actually feels like, and how to safely navigate the variables that usually ruin a garment.

Start Calm: TruEmbroidery 3 Modify for Mac Is an Editing Tool—Not a Magic Wand

TruEmbroidery 3 Modify for Mac sits inside the TruEmbroidery 3 Elite software family and focuses on reshaping and restyling designs you already own—thread charts, object editing, specialty fills, density checks, compensation, resizing, and basting lines.

However, we need a mindset shift immediately. Software edits do not replace good hooping and stabilization—they support it. You cannot software-engineer your way out of a loose hoop. When you pair clean stitch logic (software) with stable physical mechanics (hooping), you stop chasing problems mid-run and start producing commercial-grade results.

The “Hidden” Prep Before You Touch a Single Stitch: Threads, Fabric, and a Reality Check

Before you edit anything, decide what you are editing for. A design digitized for a stable denim jacket will often pucker or gap if stitched directly onto a stretchy performance tee. The physics are different.

The Sensory Check: Pick up your target fabric. Stretch it. Does it bounce back instantly (high elastin)? Does it distort and stay distorted?

• High Stretch: Requires a "Cutaway" stabilizer and higher pull compensation in the software.
• Low Stretch: "Tearaway" might suffice, with standard compensation.

If you are building a scalable workflow that includes physical tools like an embroidery hooping station, this is where the consistency pays off. By standardizing your placement method early, you ensure that the software edits align perfectly with the garment's grain.

The Hidden Consumables: Before starting the software, ensure you have these physical essentials at hand:

• Temporary Adhesive Spray (e.g., KK100): For floating fabrics.
• New Needles: 75/11 Ballpoint for knits, 75/11 Sharp for wovens. A dull needle renders all software settings useless.
• Bobbin Tension Gauge: To verify the "tow-truck" resistance of your bottom thread.

Prep Checklist (Verify Physical & Digital Alignment):

• Fabric Diagnosis: Confirm stretch factor (Stable vs. Stretchy).
• Size Reality: Is the design size (e.g., 91.4 mm x 86.4 mm) physically compatible with your hoop's actual sewing field, not just the outer frame?
• Hoop Strategy: Decide if you need a standard hoop or if you should upgrade to a magnetic frame to avoid "hoop burn" on delicate fibers.
• Thread Match: Ensure your physical thread rack matches the brand selected in the software (e.g., Sulky Rayon 40).


Thread Database Selection (Sulky Rayon 40): Get Color Mapping Right the First Time

In the walkthrough, the workflow is straightforward:

1. Open the thread palette / thread database.
2. Scroll to the manufacturer list and select “Sulky Rayon 40.”
3. Use the search bar to find a specific color (e.g., Nile Green).
4. Apply it so the design element updates.

Why This Matters: Rayon and Polyester reflect light differently. Rayon has a high, silky sheen; Polyester is more durable but slightly flatter. If your software simulation is set to Rayon but you stitch with Poly, the contrast and depth you see on screen will not match the final product.

Pro Tip: If you run multiple brands (e.g., Sulky for heirlooms, Robison-Anton for sportswear), stick a physical label on your machine or thread rack indicating which chart the current file is mapped to. "Eyeballing it" is the fastest way to get rejected orders.

Object Editing + Pattern Fill Angle (270°): Make Texture Look Intentional, Not Accidental

The software demonstrates selecting petal objects and changing the Pattern Fill angle to 270 degrees. It then applies a woven-style pattern from a grid of 250+ textures.

The Physics of Stitch Angles: Stitch angle is not just aesthetic; it is structural.

• The Problem: If your stitch angle runs parallel to the fabric grain (warp/weft), the stitches can nest between the fabric threads, disappearing or causing puckering.
• The Fix: Changing the angle (like the 270° shown) forces the thread to lay across the grain, creating a platform that sits on top of the fabric.

Sensory Anchor: When you run your finger over the finished embroidery, it should feel slightly raised and smooth, not embedded into the shirt. If it feels rough or sunken, your angle or density is fighting the fabric grain.

Convert to Specialty Fills (QuiltStipple + MultiWave): When a Fill Type Fixes a Stitching Problem

The video uses the Convert dropdown to transform standard Tatami fills into QuiltStipple or MultiWave fills.

In the trenches, we use specialty fills to solve "Bulletproof Patch Syndrome." High-density standard fills can make a flexible shirt feel like it has a piece of cardboard glued to it.

• QuiltStipple: Creates open, meandering lines. Great for background texture without stiffness.
• MultiWave: Adds movement and follows the contour of the shape.

Risk Assessment: While these fills reduce stiffness, they often require better stabilization because there is less thread locking the fabric in place. If you see the fabric rippling between the waves, your stabilizer is too light.

Control Strip + Ghost Mode: The Fastest Way to Catch Placement Mistakes Before You Waste a Shirt

The integrated control strip and ghost mode allow you to isolate layers.

The "Z-Layer" Logic: Embroidery builds from the bottom up. Ghost mode helps you verify that your underlay (the foundation) isn't poking out from under your top stitching.

• Check: Use Ghost Mode to view only the underlay. Does it stop 1-2mm inside the outline? If it touches the edge, you will have unsightly "whiskers" on your final patch.


Design Separator: Split Oversized Designs for Multi-Hooping Without Guesswork

The Design Separator is your bridge between hobby limits and commercial aspirations. It splits large designs (e.g., a giant floral vine) into labeled sections ("1" and "2").

The Friction Point: Splitting the file is easy. Re-hooping the fabric perfectly straight to match those split files is the nightmare of every embroiderer.

• The Solution: This is where precision tools are mandatory. A hoop master embroidery hooping station allows you to ensure that when you move from hoop 1 to hoop 2, the shirt remains perfectly square.
• The Optimization: If you find yourself splitting designs often for production runs, the time cost of re-hooping destroys profit. This is the "Criteria" for upgrading to a larger field machine (like a SEWTECH multi-needle) or using high-grip magnetic hoops that allow for faster adjustments without un-screwing and re-screwing frames.


Border/Appliqué Preferences (Running Stitch Length 2 mm): Small Number, Big Impact

The preference dialog shows a Running Stitch Length of 2 mm for borders.

Why 2 mm? A 2 mm stitch is the "Goldilocks" zone—tight enough to hold curves smoothly, but long enough so it doesn't perforate the fabric like a postage stamp.

Warning: Mechanical Safety
When testing border or appliqué sequences, keep your fingers well clear of the needle bar. Appliqué stops involve hands-in-hoop trimming. Always engage the machine's "Lock" mode (if available) before putting scissors near the needle to prevent accidental pedal presses.

Cutwork Setup (2 Needles + Secure Points 30 mm): Make the File Behave Like a Cutwork File

The Cutwork tab settings (2 needles, Secure Points enabled, 30 mm distance) are critical for structural integrity.

The Physics: Cutwork literally removes the fabric stability. The "Secure Points" act like the little plastic tabs that hold model car parts in a frame. Without them (or if they are too far apart), the fabric edge flaps around, and your satin stitch will miss the edge entirely, leaving a raw, fraying mess.

Density Advisor Heat Map: The Cleanest Way to Prevent Thread Breaks Before Stitch-Out

The Density Advisor acts as an X-Ray for your design. It flags "Very Dense" areas (orange/red) where multiple layers of thread overlap.

The Horror Scenario: If you ignore high density:

1. Auditory Cue: You will hear a rhythmic thump-thump-thump as the needle struggles to penetrate the thread mass.
2. Failure: The needle acts like a friction saw, heating up and snapping the thread (or breaking the needle itself).
3. Bird's Nest: The bobbin thread tangles into a knot the size of a marble under the throat plate.

The Fix: Use the tool to "Reduce to Light" or "Average." Note: Do not panic if the on-screen preview looks thin. Real thread has volume (loft). A "Light" density on screen often looks perfect and plush on fabric.

Compensation Adjustment (Compensator Value 5): Close Gaps on Knits and Fleece Without Overstuffing

The video increases the Compensator Value to 5. This is vital for knits, fleece, and pique (polo shirts).

The "Push/Pull" Phenomenon:

• Pull: As stitches form, they pull the fabric in slightly.
• Push: The bulk of the thread pushes the fabric out slightly.
• Result: Without compensation, a circle becomes an oval, and outlines fail to meet the color fill (leaving a white gap).

The Hardware Upgrade: Compensation fixes the symptom, but hoop grip fixes the cause. Traditional inner/outer rings struggle to hold thick fleece without popping loose or causing "hoop burn" (permanent crushing of the fibers). Many professionals switch to magnetic embroidery hoops for these fabrics. The magnets provide vertical clamping force that secures the thickness without distorting the weave, allowing you to use less compensation and get a truer stitch.

Resizing with Density Recalculation (Pattern Sensitivity 5): Resize Without Creating a Brick

The software allows resizing with density recalculation.

The 20% Rule: In the physics of embroidery, you can typically scale a design safely by ±20%.

• Shrinking > 20%: Details merge. Adjust density down.
• Growing > 20%: Fills become sparse (you see fabric between lines). Adjust density up.
• Pattern Sensitivity 5: Keeps the texture logic intact while the size changes.

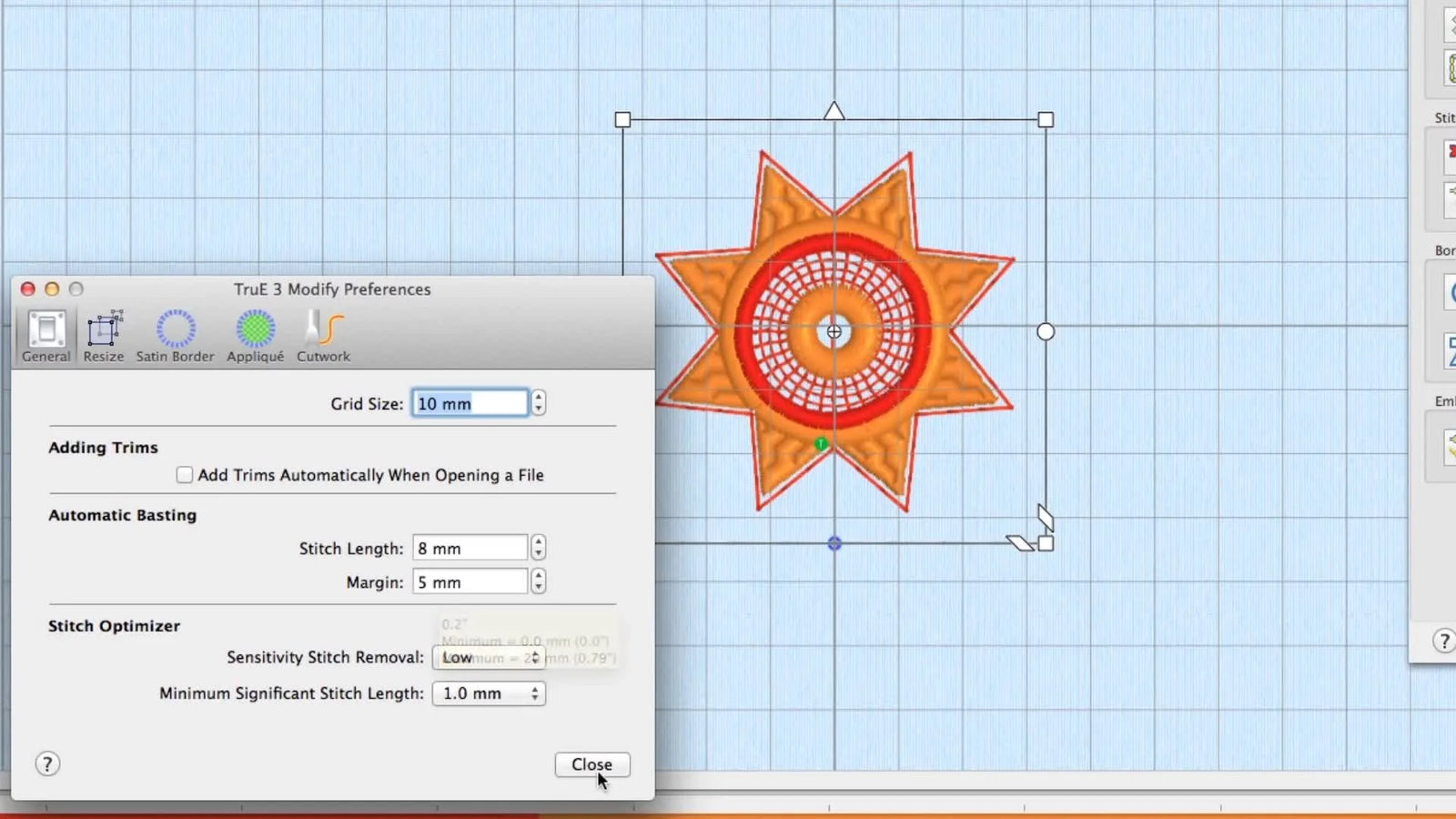

Add a Basting Line (8 mm Stitch Length, 5 mm Margin): The Cheap Insurance Against Hoop Shift

Adding a Basting Line (8 mm stitch, 5 mm margin) is the cheapest insurance policy you buy. This runs a temporary rectangle around your design before the main sewing starts.

Why You Need It:

1. Fixation: It locks the fabric to the stabilizer one final time.
2. Visual Confirmation: If the basting line looks crooked, stop immediately. You just saved the shirt.

Addressing the "Floating" Method: Many shops float items (hooping just the stabilizer and spraying the garment on top). If you float, a basting line is mandatory to prevent shifting. However, for items that are difficult to hoop traditionally, learning how to use magnetic embroidery hoop systems can revolutionize your workflow. They allow you to clamp the actual garment quickly without the wrestling match of traditional frames, offering better security than floating alone.

Warning: Magnet Safety
Professional magnetic hoops use strong Neodymium magnets.
* Pinch Hazard: They snap together instantly. Keep fingers away from the contact zone.
* Electronics: Keep them at least 6 inches away from computerized machine screens, pacemakers, and magnetic credit cards.

Setup Checklist (The "Pre-Flight" Check):

• Density Audit: Did you run the Heat Map? Are all "Red" zones resolved?
• Compensation: Is it set to >0 for knits (e.g., Value 5)?
• Basting: Is the basting box active?
• Needle Check: Is the needle straight, sharp, and tightly screwed in?
• Bobbin: Is there enough bobbin thread for the full job? (Visual check: is the spool full?)


Troubleshooting the Real-World Problems: Symptom → Likely Cause → Fix You Can Trust

When things go wrong, do not guess. Follow this diagnostic path from Hardware (Cheap/Fast) to Software (Deep/Slow).

Pro Tip: If you are constantly seeing outlines drift, your hooping method is likely the culprit. Consistent tension is key. A generic hooping for embroidery machine technique often relies on hand strength, which varies. Using a station or magnetic system standardizes that tension.

Stabilizer Decision Tree for Tricky Fabrics (So Your Software Fixes Actually Hold)

Software cannot fix what the stabilizer fails to support. Use this Logic Tree:

1. Is the fabric stretchy? (T-Shirt, Jersey, Lycra)

• YES: Use Cutaway Stabilizer. (Tearaway will eventually allow the stitches to distort).
  • Upgrade Check: Use a ballpoint needle.
• NO: Go to step 2.

2. Is the fabric thick/lofty? (Towel, Fleece, Velvet)

• YES: Use Tearaway (Bottom) + Water Soluble Topping (Top).
  • Reason: The topping prevents stitches from sinking into the pile.
  • Upgrade Check: Use a Magnetic Hoop to avoid crushing the nap of the fabric ("hoop burn").

3. Is the fabric unstable or slippery? (Silk, Rayon)

• YES: Use Fusible No-Show Mesh.
  • Reason: Adheres to the fabric to stop sliding.

The Upgrade Path That Actually Makes Sense: When Software Isn’t the Bottleneck Anymore

In the video, the path is TruEmbroidery 3 Modify -> Elite. But in your shop, the path involves hardware.

The Commercial Tipping Point:

• If your struggle is files: Use the software tools (Density Advisor, Compensation).
• If your struggle is "Hoop Burn": Traditional rings squeeze fabric circles that won't iron out. Solution: Upgrade to Magnetic Hoops (Home or Industrial fit). They clamp flat, eliminating the burn mark.
• If your struggle is "Time": Digital editing is fast, but changing threads 15 times for one logo is slow. If you are doing runs of 10+ shirts, a single-needle machine is your bottleneck.

The Scale-Up Solution: When precise placement and speed become your primary issues, a dedicated magnetic hooping station solves the alignment problem. But if you are tired of babysitting thread changes, consider moving to a multi-needle platform (like SEWTECH's commercial line). This allows you to set up 10-15 colors, press start, and walk away—turning your "hobby" time into profitable production time.

Operation Checklist (Final "Go" Decision):

• The Clearance Test: Trace the design area (Trial Key). Does the foot hit the hoop edges?
• The Sound Check: Listen to the first 500 stitches. A smooth hum is good. A slapping or grinding noise requires an immediate Stop.
• The Watch: Watch the registration on the first color change. If it is off by >1mm, stop and check hooping tightness.


If you build your workflow in this order—Physics (Stabilizer/Hoop) -> Software (Edits/Density) -> Verification (Basting/Trace)—you will spend less time picking out bird nests and more time delivering professional embroidery.

FAQ

• Q: What physical prep items should be ready before editing a design in TruEmbroidery 3 Modify for Mac to prevent thread breaks and shifting?
  A: Prepare needles, adhesive, and bobbin checks first—software edits cannot rescue unstable stitching.
  • Replace the needle: use 75/11 Ballpoint for knits and 75/11 Sharp for wovens.
  • Keep temporary adhesive spray available if floating fabric onto hooped stabilizer.
  • Verify bobbin tension with a gauge so the bottom thread has consistent “tow-truck” resistance.
  • Success check: the first stitches run with a smooth, steady hum (not thumping), and the fabric does not creep in the hoop.
  • If it still fails: run the Density Advisor heat map and reduce any red/orange high-density zones.
• Q: How can TruEmbroidery 3 Modify for Mac users confirm an embroidery hoop setup is “drum-tight” enough to stop design shifting before stitch-out?
  A: Use a basting line and stop immediately if the basting rectangle shows placement problems.
  • Add a basting line: 8 mm stitch length with a 5 mm margin around the design.
  • Trace the design area (trial/trace) to confirm the presser foot clears the hoop edges.
  • Stop and re-hoop if the basting box looks crooked or not centered where expected.
  • Success check: the basting rectangle is straight/square and the fabric stays flat without ripples as stitching begins.
  • If it still fails: switch to a more appropriate stabilizer (often cutaway for stretch) and avoid “ghost floating” without basting.
• Q: How do TruEmbroidery 3 Modify for Mac users prevent thread breaks caused by very dense stitch areas using the Density Advisor heat map?
  A: Reduce density in flagged red/orange zones before stitching to prevent needle heat and friction snaps.
  • Run Density Advisor and locate “Very Dense” hot spots.
  • Use the tool to reduce those areas to “Light” or “Average.”
  • Re-check any overlap zones where multiple layers stack (common around borders and fills).
  • Success check: during stitching there is no rhythmic thump-thump-thump and thread does not start fraying or snapping in the same spot.
  • If it still fails: change to a new needle first, then inspect for tension that is too tight.
• Q: How do TruEmbroidery 3 Modify for Mac users fix gaps on knit shirts or fleece using Compensation Adjustment (Compensator Value 5)?
  A: Increase compensation to close outline-to-fill gaps, then address hoop grip if gaps keep returning.
  • Set the Compensator Value to 5 as shown for knits/fleece/pique.
  • Stitch a small test to confirm outlines meet fills without “white halos.”
  • Improve fabric hold if slipping is visible; many shops switch to magnetic hoops on thick/lofty fabrics to clamp without distortion.
  • Success check: outlines land cleanly on the edge of the fill with no visible fabric gap around curves.
  • If it still fails: confirm stabilizer choice (often cutaway for stretch) and re-check hoop tightness before increasing compensation further.
• Q: What is the safest stitch length setting for borders/appliqué in TruEmbroidery 3 Modify for Mac, and how can operators avoid needle-bar injury during trimming?
  A: A 2 mm running stitch is a safe, clean starting point, and hands must stay clear during appliqué stops.
  • Set Running Stitch Length to 2 mm for borders so curves hold without perforating fabric.
  • Keep fingers away from the needle bar when trimming during appliqué stops.
  • Engage the machine “Lock” mode (if available) before bringing scissors near the needle area.
  • Success check: border curves look smooth (not jagged) and fabric is not perforated like a postage stamp.
  • If it still fails: slow down and test the border sequence on scrap to confirm stop points and trimming clearance.
• Q: What magnetic hoop safety rules should embroidery operators follow when using strong neodymium magnetic embroidery hoops?
  A: Treat magnetic hoops like a pinch tool and keep them away from sensitive electronics.
  • Keep fingers out of the contact zone—magnets can snap together instantly.
  • Keep magnetic hoops at least 6 inches away from computerized machine screens, pacemakers, and magnetic credit cards.
  • Close the frame slowly and deliberately to control alignment and avoid sudden slams.
  • Success check: the hoop closes without pinching incidents, and the machine screen behaves normally (no glitching from being too close).
  • If it still fails: switch to a controlled setup method (slower handling, clearer workspace) before resuming production.
• Q: When TruEmbroidery 3 Modify for Mac users keep splitting oversized designs with Design Separator, what is the best upgrade path: technique changes, magnetic hoops, or a multi-needle machine?
  A: Start with placement control, then upgrade hooping hardware, and only then consider production equipment if time is the bottleneck.
  • Level 1 (technique): standardize re-hooping alignment so section “1” and “2” stay perfectly square.
  • Level 2 (tool): use higher-grip hooping solutions (often magnetic hoops) to speed adjustments without repeated loosening/tightening.
  • Level 3 (capacity): move to a larger-field, multi-needle platform when frequent multi-hooping and thread-change babysitting destroy profit on runs.
  • Success check: the second hoop registers within about 1 mm at the first color change and outlines do not drift between sections.
  • If it still fails: stop and verify hooping tightness and stabilization before assuming the split file is the problem.
