Treasure Chain Stitch Machine “Spa Day”: The No-Panic Maintenance Routine That Keeps a Singer 114w103-Style Clone Sewing Smooth

Mastering the Mechanical "Spa Day": A 20-Year Expert's Guide to Servicing Treasure Chain Stitch Machines

Chain stitch machines have a way of making even confident stitchers nervous: one odd sound, one stiff spot in the handwheel, and suddenly you’re imagining broken gears and impossible timing resets.

Take a breath. The video you just watched is a perfect example of what I’ve seen for 20 years on the shop floor: 90% of “scary” vintage machine problems are not catastrophic—they’re dirt, dried oil, and neglected lubrication.

If you can work methodically, you can give a Treasure chain stitch embroidery machine (Singer 114w103 / Cornely-style family) a restoration that rivals professional service. This guide will walk you through the process using Sensory Diagnostics—using your eyes, ears, and fingertips to ensure the machine is brought back to smooth, reliable stitching without risking damage.

The Calm-Down Check: Inspecting a Treasure Chain Stitch Embroidery Machine Before You Touch a Screw

Before you pick up a screwdriver, we need to establish a baseline. The host does something I wish every owner would copy: a "Low-Impact Visual Audit." We aren't checking if it works; we are checking if it's safe to work on.

The "Good Health" Sensory Checklist:

• Visual Scan (The Teeth): Look at the worm gears (the spiral gears). You want to see presence and integrity. A chip is bad; a missing tooth is a showstopper. In the video, the mechanism is dirty but intact.
• Tactile Check (The Handwheel): Turn the handle gently. Does it feel "buttery" or "gritty"? The host describes this machine as "well bedded in," meaning smooth resistance. Grittiness feels like sand trapped in the metal—if you feel this, stop turning.
• The "Grime" Factor: Factory grime (fluff, hair, black sludge) is actually a good sign—it means the machine was used, not sitting in a damp barn rusting.

Why this matters: If the machine moves smoothly despite the dirt, your goal is Restoration (Cleaning), not Rebuilding (Engineering). This drastically lowers the difficulty level. We are simply removing the "grinding paste"—the dangerous mix of lint and old oil that eats metal.

Warning: Mechanical Safety. Before touching any internal mechanism, completely disconnect the machine from its motor or treadle belt. Vintage linkages have high torque and can pinch fingers or pierce skin instantly if the handwheel is bumped.

The “Hidden” Prep Pros Never Skip: Tools, Consumables, and a Clean Work Zone

Preparation is 80% of the job. The video lays out a practical kit, but I will categorize them by function so you understand why you need them.

The "Surgical" Tool Kit

• Torque Tools: Screwdrivers (hollow-ground tips preferred to prevent stripping vintage screws) and Pliers.
• Chemistry:
  • Sewing Machine Oil (Clear): For sliding parts (shafts, bars).
  • White Lithium Grease: For meshing parts (gears/cogs). Do not swap these.
  • Wire Wool: For surface rust removal on non-moving parts (face plates).
• Debridement (Cleaning):
  • Stiff brush (toothbrush style).
  • Pipe cleaners (crucial for looper holes).
  • Interdental brushes (the dentist kind—for tiny "nipple" gaps).
  • Cotton buds/Q-tips.
• Hidden Consumables (Pro Additions):
  • Replacement Check Spring: These are brittle; have one ready.
  • Masking Tape: To tape screws to the bench so they don't roll.

The "Screw Safety" Protocol

The host employs a technique that prevents the #1 disaster in machine repair: The Orphan Screw. She stores screws back in their original holes immediately after removing the part. Use this method. Vintage machines often use non-standard threads; if you mix up two similar-looking screws, you can strip a $200 casting.

Prep Checklist (Pre-Flight):

• Lighting: Ensure you have a bright, direct light source (phone torch or desk lamp).
• Surface: Clear a stable table; lay down a white towel (makes dropped dark screws visible).
• Documentation: Take a photo of the assembly before you touch the screwdriver.
• Buffer: Prepare a rolled cloth or soft block for the machine neck (see next section).

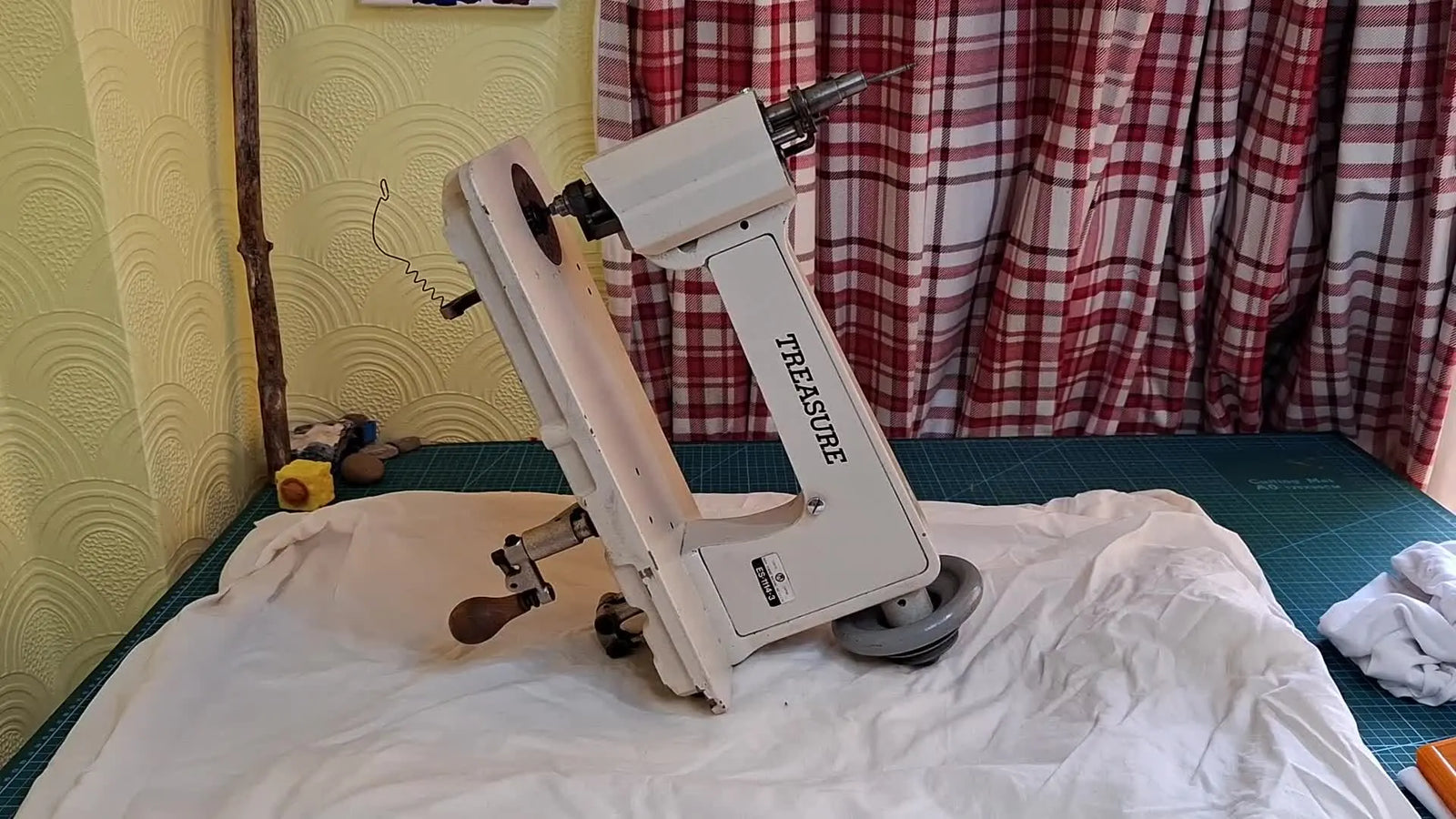

Don’t Bend the Needle Bar: The Safe Way to Lay a Treasure Chain Stitch Machine on Its Side

This is the most critical physical maneuver in the entire process. Improperly laying a machine down is the primary cause of bent needle bars.

The host places a soft roll (duct tape wrapped in cloth) under the neck (the arch) before tipping the machine.

The Physics of the Tip:

• The Risk: These machines are top-heavy and asymmetrical. If laid flat, the weight typically rests on the needle bar assembly or the fragile looper mechanism.
• The Solution: The neck support creates a "bridge," suspending the delicate moving parts in the air while the heavy casting takes the weight.

Expected Outcome: The machine should clear the table surface by at least 1 inch at the head.

Warning: Never lay the machine flat on its back without neck support. Even a gentle drop can bend the main shaft or needle bar linkage, turning a cleaning job into a $500 repair.

Opening the Front Cover Plate and Side Plate Without Drama (Treasure ES-1114-3)

We are now opening the hood. The video identifies two access points: the face cover and the side plate.

Front Protective Face Cover

1. Locate: The single large screw at the top.
2. Action: Loosen (often just a half-turn is needed if it's a keyhole slot, otherwise remove).
3. Removal: Pull the plate up and over.
4. Inspection: You will see the worm gear. Look for "dryness"—if the grease looks like dried earwax, it's old.

Side Plate Inspection

With the machine strictly supported on its side:

1. Remove the large side plate screw.
2. Sensory Check: Look at the springs and shafts. Do they look rusty (red/brown) or just oily (black)? Oily grime is fine; rust requires wire wool.

Expert Note: If you encounter a screw that refuses to turn, do not force it. Apply a drop of penetrating oil and wait 30 minutes. Breaking a screw head here is a nightmare.

Removing the Needle Bar, Claw Presser Foot, and “Nipple” Attachment (and Not Losing Screws)

Chain stitch machines use a "Nipple" (the small cone the needle passes through) to control the thread loop. This area collects the most compacted lint.

Needle Bar Removal (Treasure Specifics)

The Treasure 114 setup is slightly different from standard Singers due to its taping/cording clearance.

1. Identify: Find the connector block on the needle bar.
2. Action: Slacken the small set screw. Do not remove it completely—just enough to release the grip.
3. Extraction: Pull the needle bar straight up. It should slide with hydraulic resistance (like a syringe). If it binds, check for burrs.
4. Security: Tighten the screw back into the block immediately.

Presser Foot & Nipple Removal

• Claw Foot: Loosen the back screw. Use pliers if finger-strength fails, but grip the screw head, not the shaft.
• The Nipple: Undo the front screw.
  • Pro Tip: Note the size of the hole in the nipple. Larger holes are for coarser yarn; smaller for fine thread. Ensure you reinstall the correct one for your intended project.

The Circular Face Plate Trick: Finding the “Knobble” Screw and Keeping the Nut With the Plate

Many novices give up here because they can't figure out why the circular plate won't budge.

The Secret Fastener: There is a "knobble" screw effectively hidden underneath the plate assembly.

• Locate: Feel under the plate for the protrusion.
• Action: Loosen it.
• Removal: Jiggle the circular plate. It fits tightly.
• Discipline: Keep the securing nut threaded onto the screw or taped to the plate. This nut is easily lost in carpet.

Expected Outcome: You now have full visual access to the "Looper" (the hook that spins underneath). This is the "Engine Room" of the stitch.

The Looper Housing Clean-Out: Pipe Cleaner “Swizzle” and Why Thread Path Cleanliness Fixes Rough Movement

This is the most satisfying part of the process. We are clearing the arteries of the machine.

The "Swizzle" Technique

1. Bulk Removal: Use the stiff brush to flick out the "felt"—compacted lint that looks like fabric.
2. The Channel: Insert a pipe cleaner down the central looper hole.


3. Action: Rotate and plunge ("swizzle") the pipe cleaner.
4. Verification: Pull it out. If it comes out black/grey, repeat until it comes out clean.

Why this fixes drag: In the video troubleshooting, "rough thread movement" is a key complaint. The thread travels through the machine axis. If this channel is narrowed by 20 years of lint, the thread friction increases, causing skipped stitches and snapping. Cleaning this path is often the magic fix for "bad tension."

The “If It’s Not Broken” Rule: Deep Cleaning Without Turning It Into a Full Rebuild

The host adheres to the Golden Rule of Mechanics: Disturb as little as possible.

We are removing contaminants, not components. Taking apart the complex timing gears of a Cornely-style machine is a task for a master mechanic.

Tools for the Deep Clean:

• Cotton Buds: Reach behind gears.
• Interdental Brushes: Clean the teeth of the gears without disassembling them.
• Cloth: Wipe the main shafts.


The Chemistry of Wear: The host mentions removing the "grinding paste." This is vital. Old oil traps silica (dust). When gears mesh with this paste, they essentially sandblast each other. You must wipe away old grease completely before adding new grease.

Refurbishing the Tension Unit: Cleaning Tension Discs and Replacing the Wire Check Spring

Tension isn't magic; it's friction. If the friction is inconsistent, the stitch is ugly.

1. Disassemble: Unscrew the tension nut. Lay parts in order (Nut -> Spring -> Cup -> Disc -> Disc).
2. Clean: Polish the inner faces of the tension discs with a cloth.
   • Sensory Check: Run your fingernail over the disc surface. If you feel a "click" or scratch, the disc needs replacing or polishing with fine crocus cloth. Rough discs shred thread.
3. Spring Replacement: The check spring (the little wire loop) controls the slack. If it's bent or snapped, replace it now.

Expected Outcome: When reassembled, pulling thread through the discs should feel like pulling dental floss—smooth, consistent resistance, no snagging.

Oil vs. Lithium Grease: Where Each One Belongs on a Chain Stitch Embroidery Machine

Using the wrong lubricant is worse than using none. The video outlines the binary rule used by professionals.

The Lubrication Logic Decision Tree:

Application Technique:

• Grease: Apply a pea-sized amount to the gear teeth. Turn the handwheel to distribute. Do not pack it full.
• Oil: One drop on every oil point and moving joint. Wipe away excess. Excess oil attracts new lint immediately.

Reassembly and the Felt Test Stitch: Proving the Service Worked

Reassembly is the reverse of disassembly. Once built, we test. Do not start on an expensive jacket. We use the "Lab Rat" material: stiff felt.

The Test Rig:

• Thread: Tex 27–30 (Standard embroidery weight).
• Needle: Size 4 (Standard nipple match).
• Material: Blue Felt (stable, non-stretch).

Setup Checklist (The "all-clear" before power)

• Fasteners: Check all screws are tight (finger-tight + 1/8th turn).
• Clearance: Turn handwheel slowly by hand for one full revolution. Listen for clicking or metal-on-metal scraping.
• Path: Ensure no pipe cleaner fuzz remains in the looper.
• Drag Test: Pull thread through the needle by hand. It should flow freely.

Expected Outcome: A uniform chain stitch. If the loops are skipping, check your needle height. If the thread snaps, check the tension discs again.

Troubleshooting the Three Most Common “After Service” Symptoms (and the Fast Fix)

Even after a spa day, issues arise. Here is the rapid-response guide based on the video:

A Decision Tree for Stabilizers and Hooping When You Move From Freehand Chain Stitch to Modern Embroidery Orders

While this guide focuses on the vintage mechanics of freehand machines, the principles of fabric control are universal. A perfectly serviced machine will still produce puckered garbage if your stabilization strategy is weak.

When you transition from "practicing on felt" to "production on garments," use this logic flow:

The Fabric-Stabilizer-Hoop Logic Flow:

1. Analyze the Fabric:
   • Is it Knitted/Stretchy (T-Shirt/Polo)?
     • Risk: Fabric moves while stitches land, causing distortion.
     • Rx: Cut-away Stabilizer (Permanent support). Do not rely on tear-away alone.
   • Is it Woven/Stable (Denim/Canvas)?
     • Risk: Needle deflection on thick grains.
     • Rx: Tear-away Stabilizer is usually sufficient.
2. Analyze the Hoop Strategy:
   • Is hoop burn (shiny marks) a risk?
     • Yes (Velvets, Dark Polos): Avoid standard clamped hoops.
     • Solution: This is where efficient shops switch to modern tools. To solve hoop burn, many pros switch to magnetic embroidery hoops. The magnetic force distributes pressure evenly, unlike the "pinch" of a screw hoop, reducing garment damage.

Why this matters now: You just spent hours servicing your machine to get a perfect stitch. Don't let a bad hoop job ruin that precision.

The Upgrade Path I’d Recommend After You’ve Mastered Maintenance (Without Buying Stuff You Don’t Need)

Once your machine is mechanically sound (clean, lubricated, flowing), your next bottleneck will not be the machine—it will be workflow.

In my 20 years of teaching, I see users master the repair, but fail at the production. They spend 2 minutes stitching and 10 minutes struggling to hoop the next shirt.

The "Pain-Point" Upgrade Diagnosis

Pain Point 1: "My wrists hurt and I can't align logos straight."

• Diagnosis: You are fighting physics with manual hooping.
• The Prescription:
  • Level 1: Use temporary spray adhesive.
  • Level 2 (The Pro Fix): Invest in a defined embroidery hooping station. A station forces the hoop to stay square while you load the shirt.
  • Level 3 (Speed): Combine a station with a magnetic hooping station. Terms like magnetic embroidery hoop are your gateways to understanding efficient production. They allow you to "slap and snap" garments in seconds rather than minutes.

Pain Point 2: "I have an order for 50 shirts and my vintage machine is too slow."

• Diagnosis: You have outgrown the "Freehand" capacity.
• The Prescription:
  • Keep the Treasure machine for unique, artistic chain stitch work (its specialty).
  • For the bulk logos, look into SEWTECH multi-needle machines. These are designed for scale.
  • Note: Even on multi-needle machines, the efficiency of hooping stations remains critical.

Warning: Magnet Safety. If you upgrade to magnetic embroidery hoops, be aware they use powerful Neodymium magnets.
* Pinch Hazard: They snap together with enough force to bruise skin. Handle with care.
* Medical Safety: Keep them at least 6 inches away from pacemakers or insulin pumps.
* Electronics: Keep away from credit cards and phone screens.

The “Last 5 Minutes” That Protect Your Service Work: What to Do After the Test Stitch

A spa day isn’t complete until you confirm stability.

Operation Checklist (Post-Service Validation):

• The "Second Sample": Stitch a second line. Was it identical to the first? (Consistency check).
• Auditory Scan: Listen for a rhythmic "thump-thump" (good) vs a sharp "click" (bad—something is hitting).
• Hygiene: Wipe off any excess oil from the needle bar—gravity will pull it down onto your fabric if you don't.
• Lockdown: Re-check the face plate nut. Vibration loosens fasteners quickly after reassembly.

The Takeaway: A Clean Thread Path and Correct Lubrication Beat “Mystery Fixes” Every Time

This Treasure chain stitch machine service is a textbook routine: Inspect first, neck support always, deep clean the looper, floss the tension, and grease the gears.

By following this sensory guide, you haven't just "cleaned" a machine; you've reset its mechanical clock. And remember, when your volume grows and the manual work becomes the bottleneck, modern tools like hooping stations and magnetic embroidery hoops are there to take the physical strain out of your newfound productivity.

Happy stitching.

FAQ

• Q: What should be checked on a Treasure chain stitch embroidery machine worm gear before servicing to avoid a “missing tooth” failure?
  A: Do a no-tools visual scan first; any missing worm gear tooth is a stop-and-seek-help condition, but dirt with intact teeth is usually serviceable.
  • Inspect: Look directly at the worm gears for tooth presence and chips.
  • Turn: Rotate the handwheel gently only if rotation feels smooth (not gritty).
  • Stop: Disconnect the motor/treadle belt before putting fingers near linkages.
  • Success check: Gear teeth look continuous and the handwheel turns “buttery,” not sand-gritty.
  • If it still fails… Stop turning immediately if grittiness is felt; contamination may be acting like grinding paste and needs cleaning before further motion.
• Q: How do you safely lay a Treasure chain stitch embroidery machine on its side without bending the needle bar?
  A: Support the machine neck with a soft roll before tipping; never let the weight rest on the needle bar or looper area.
  • Build: Make a firm soft roll (cloth-wrapped block/roll) to act as a neck “bridge.”
  • Place: Position the support under the neck/arch, then tip the machine onto its side slowly.
  • Verify: Ensure delicate parts (needle bar/looper area) are suspended and not touching the table.
  • Success check: The machine head clears the table surface by about an inch and nothing fragile is bearing weight.
  • If it still fails… Reposition the neck support; do not proceed until the machine is stable and clearance is obvious.
• Q: What is the “orphan screw” prevention method when removing plates on a Treasure ES-1114-3 chain stitch machine?
  A: Put each screw back into its original hole immediately after removing a part to avoid mixing non-standard vintage threads.
  • Remove: Take off one plate/component at a time.
  • Return: Thread the screw back into the same hole right away (or tape it to the part if needed).
  • Document: Photograph assemblies before loosening multiple fasteners.
  • Success check: No loose “mystery screws” remain on the bench during reassembly.
  • If it still fails… If a screw won’t turn, add penetrating oil and wait ~30 minutes; forcing it risks a broken head.
• Q: How do you fix rough or jerky thread feed on a Treasure chain stitch embroidery machine after cleaning and reassembly?
  A: Treat it as friction first; re-clean the tension discs and re-swizzle the looper hole until the thread path is genuinely clear.
  • Floss: Pull alcohol-soaked fabric through the tension discs to remove invisible varnish/rust.
  • Re-swizzle: Run a pipe cleaner through the looper channel, rotating and plunging until it comes out clean.
  • Re-test: Pull thread by hand through the system before sewing.
  • Success check: Hand-pulled thread feels smooth and consistent (no snagging), and stitching stops skipping/snapping.
  • If it still fails… Re-check the tension disc surfaces for scratches (fingernail “click”) and confirm no pipe-cleaner fuzz remains in the looper.
• Q: Where should sewing machine oil vs white lithium grease be applied on a Treasure chain stitch embroidery machine to avoid drag and noise?
  A: Use white lithium grease on gear teeth and clear sewing machine oil on sliding shafts/bars; swapping them often makes performance worse.
  • Grease: Apply a pea-sized amount to gear teeth and turn the handwheel to distribute (do not pack gears full).
  • Oil: Place one drop on each oil point and moving joint on shafts/bars; wipe excess immediately.
  • Clean: Remove old grease/oil “grinding paste” before applying fresh lubricant.
  • Success check: The machine runs quieter and the handwheel turns smoothly without gritty resistance.
  • If it still fails… Investigate for debris lodged in gear teeth (a common cause of grinding after cleaning) and pick it out with a toothpick.
• Q: What should a Treasure chain stitch embroidery machine test stitch setup include to confirm servicing success before sewing garments?
  A: Use a controlled “lab rat” test: Tex 27–30 thread, size 4 needle, and stiff felt, then verify smooth handwheel rotation and consistent stitch formation.
  • Check: Tighten fasteners (finger-tight + 1/8 turn) and rotate the handwheel one full revolution by hand first.
  • Listen: Confirm there is no clicking or metal-on-metal scraping before powering.
  • Stitch: Run a test on stiff felt rather than an expensive garment.
  • Success check: A uniform chain stitch forms and the machine sound is rhythmic (not sharp clicking).
  • If it still fails… If loops skip, re-check needle height; if thread snaps, re-check the tension discs and thread path cleanliness.
• Q: How should hoop burn risk be reduced on dark polos or velvet when moving from freehand chain stitch work to garment embroidery production?
  A: Avoid high-pressure clamped hoops on hoop-burn-prone fabrics; magnetic embroidery hoops often reduce marks by distributing pressure more evenly.
  • Identify: Treat velvets and dark polos as high hoop-burn risk materials.
  • Adjust: Reduce reliance on screw-clamped hoop pressure where possible.
  • Upgrade: Consider magnetic embroidery hoops when hoop burn is consistently damaging garments.
  • Success check: Finished garments show fewer shiny ring marks while fabric remains controlled during stitching.
  • If it still fails… Reassess stabilizer choice for the fabric type (stretch knits often need cut-away) and confirm the fabric is not shifting during stitching.
• Q: What is the magnet safety checklist when using magnetic embroidery hoops to improve hooping speed and reduce hoop burn?
  A: Treat magnetic hoops as pinch-hazard tools and keep them away from medical devices and sensitive electronics.
  • Handle: Keep fingers clear when closing magnets; they can snap together hard enough to bruise.
  • Separate: Store and open magnets with controlled leverage, not by pulling straight together.
  • Protect: Keep magnets at least 6 inches away from pacemakers or insulin pumps.
  • Success check: Hooping becomes faster without finger pinches or accidental magnet “slams.”
  • If it still fails… If magnets feel hard to control, slow down the closing motion and reposition hands; do not let the rings “jump” together uncontrolled.
