Trapunto vs Faux Trapunto on a Janome Embroidery Machine: The Puff, the Trim, and the Time You’ll Never Get Back

If you’ve ever finished a “Trapunto” block and thought, “Wait… that’s it?”—you’re not alone. Sharon’s demo is honest in the way good shop-floor teaching always is: the puff can be beautiful, but the trimming time is real, and on some designs, the payoff is subtle.

Machine embroidery is often sold as "push-button magic," but those of us with years on the production floor know it is actually a discipline of physics and friction. When you introduce thick batting layers into a hoop, you change the physics. The machine has to work harder, the hoop has to grip tighter, and your room for error shrinks.

In this post, I’ll walk you through both methods:

• Traditional in-the-hoop Trapunto (extra batting layers, tack-down, trim, then cover with top fabric)
• Faux Trapunto (skip the Trapunto color and stitch the design normally)

Along the way, I’ll add the “missing” pro context—specific speeds, tension checks, and physical handling tips—that keeps you from wasting batting, cutting stitches, or fighting thick layers in the hoop.

Trapunto embroidery quilt blocks: what “puffed” really means when the Janome screen shows two colors

Sharon points out a simple tell: her design filenames include a “T” when they’re meant to be Trapunto-friendly. On the machine, the design is split into two colors:

• Color 1 (Blue): the Trapunto tack-down outline (the area that will be puffed).
• Color 2 (Red): the decorative stitching that creates the finished flower look.

That two-color structure matters because it gives you a clean choice:

• Option A: Do the blue outline, add loft, trim, then cover and stitch red.
• Option B: Or skip blue and go straight to red for a faster, flatter block.

One practical note if you’re running a janome embroidery machine in a quilting workflow: the “puff” is not magic—it’s just controlled thickness. Your results depend more on batting loft + how well the layers stay put than on any special digitized setting.

The Physics of the "Puff"

To get a true 3D effect, you need contrast between tight stitching and loose areas. The "Red" layer usually has a higher stitch density to compress the background, forcing the "Blue" area to pop up. If your tension is too loose, the background won't compress, and the Trapunto will look flat.

The “hidden prep” before you stitch: stabilizer, batting scraps, and why thick layers fight your hoop

Trapunto is a hooping stress test. You’re stacking batting, sometimes floating fabric, and then trimming close to stitches. The prep is where 90% of failures—like shifting layers or broken needles—are prevented.

What Sharon is building in the hoop (layer logic)

From her demo, the Trapunto stack follows this specific order:

1. Stabilizer: She implies a standard tear-away or cut-away (for quilting, a medium-weight cut-away is safer to prevent distortion).
2. One layer of wadding/batting clamped in the hoop as the base layer.
3. Two extra layers of wadding/batting floated under the needle area (not hoop-sized—just big enough to cover the flower).
4. After trimming, she lays teal top fabric over the puffed area and stitches the final color.

She also mentions a fabric-saving habit: moving the design area toward the top of the hoop so she can reuse more fabric below.

Hidden Consumables You Will Need

• Temporary Spray Adhesive (e.g., 505): Essential for keeping floated layers from sliding.
• New Needle: Use a Topstitch 90/14 or Titanium-coated needle. Thick batting dulls needles fast; a burred point will snag your puff.
• Curved Appliqué Scissors: Don't attempt this with straight scissors; you will cut your base fabric.

Prep checklist (do this before the hoop goes on the machine)

• Confirm the design is the Trapunto version (filename includes “T,” machine shows Blue then Red).
• Clean the bobbin area: Thick batting creates massive lint. Open the plate and brush it out now.
• Cut batting “float pieces” only as large as needed to cover the puff area plus 1 inch margin.
• Stage your trimming tools: curved-tip embroidery scissors and a flat surface/cutting mat nearby.
• Plan your handling: Clear a flat space where the hoop can rest. You cannot trim accurately while the hoop is attached to the machine arm.


Warning: Curved embroidery scissors are sharp enough to slice stitches, fabric, and fingers in one slip. Keep the hoop flat on a stable surface, cut with the blades nearly parallel to the fabric, and lift the batting slightly as you cut. Never “stab” downward near the tack-down line.

Cotton vs wool batting for Trapunto: why your loft looks disappointing (and it’s not your machine)

Sharon calls it out plainly: she used cotton wadding, and the Trapunto effect wasn’t very obvious. Her fix is equally plain: wool wadding (or polyester high-loft) gives better results.

Here’s the practical takeaway based on material science:

• Cotton Batting (The Pancake): Fibers are dense and interlocking. Once compressed by the presser foot, they stay compressed. Good for flat, traditional quilts, poor for 3D puff.
• Wool/Poly Batting (The Sponge): Fibers have memory. They compress under the foot but spring back up.

Expert Rule of Thumb: If you want the puff to be visible from across the room, you must use a high-loft polyester or wool baton for the "float" layers, even if your base layer is cotton.

Traditional Trapunto in the SQ14b hoop: the exact sequence Sharon uses (with checkpoints)

Sharon’s hoop is labeled SQ14b, and the design size shown is 139 × 139 mm.

1) Select the Trapunto design and confirm the two-color plan

On the screen, verify:

• Design file has the “T”.
• There are 2 colors (Color 1 tack-down, Color 2 final).

Checkpoint: Check your speed settings. For the tack-down phase on thick batting, lower your machine speed to 400-500 SPM. High speed here causes the foot to bounce, leading to skipped stitches.

2) Build the Trapunto batting stack

She places:

• One layer of wadding as the base.
• Two extra layers floated under the needle area.
• Tip: Use a light mist of spray adhesive between these layers so they don't slide apart during the first fast movements of the hoop.

Expected outcome: Under the presser foot, you can see multiple batting layers stacked. The foot should glide over them, not plow through them. If it plows, raise your presser foot height (if your machine allows electronic adjustment) to roughly 2.0mm - 2.5mm.

3) Stitch Color 1 (Blue) to tack down the puff area

Run the first color. This stitches the outline through the batting stack.

Sensory Check: Listen to the sound. A rhythmic "thump-thump" is normal. A loud "clack-clack" means the needle is struggling to penetrate—check for a bent needle immediately.

Checkpoint: The outline should be continuous and clearly defines the area you’ll keep.

4) Trim the top two batting layers—without removing the hoop

This is the heart of her method: she does not unhoop. She moves the entire hoop to a cutting surface and trims away the top two layers, leaving the base layer intact.

Her technique nuance is gold:

• She holds the scissors pretty much horizontal (flat to the surface).
• She rotates the hoop instead of twisting her wrist into awkward angles.
• She doesn’t chase perfection: “Close enough is good enough.”




Checkpoint: You should see the puff shape emerging. Ensure you have not nicked the base stabilizer or base wadding.

5) Accept “imperfect” trimming (within reason)

Sharon nicks a few threads and leaves some extra batting fuzz at the edge—and she’s calm about it. This is okay because the final satin stitch (Color 2) is usually wide enough to cover small errors.

Expected outcome: The trimmed area looks slightly rough, but the tack-down outline still defines the puff zone.

6) Lay the top fabric over the trimmed puff and “babysit” the start

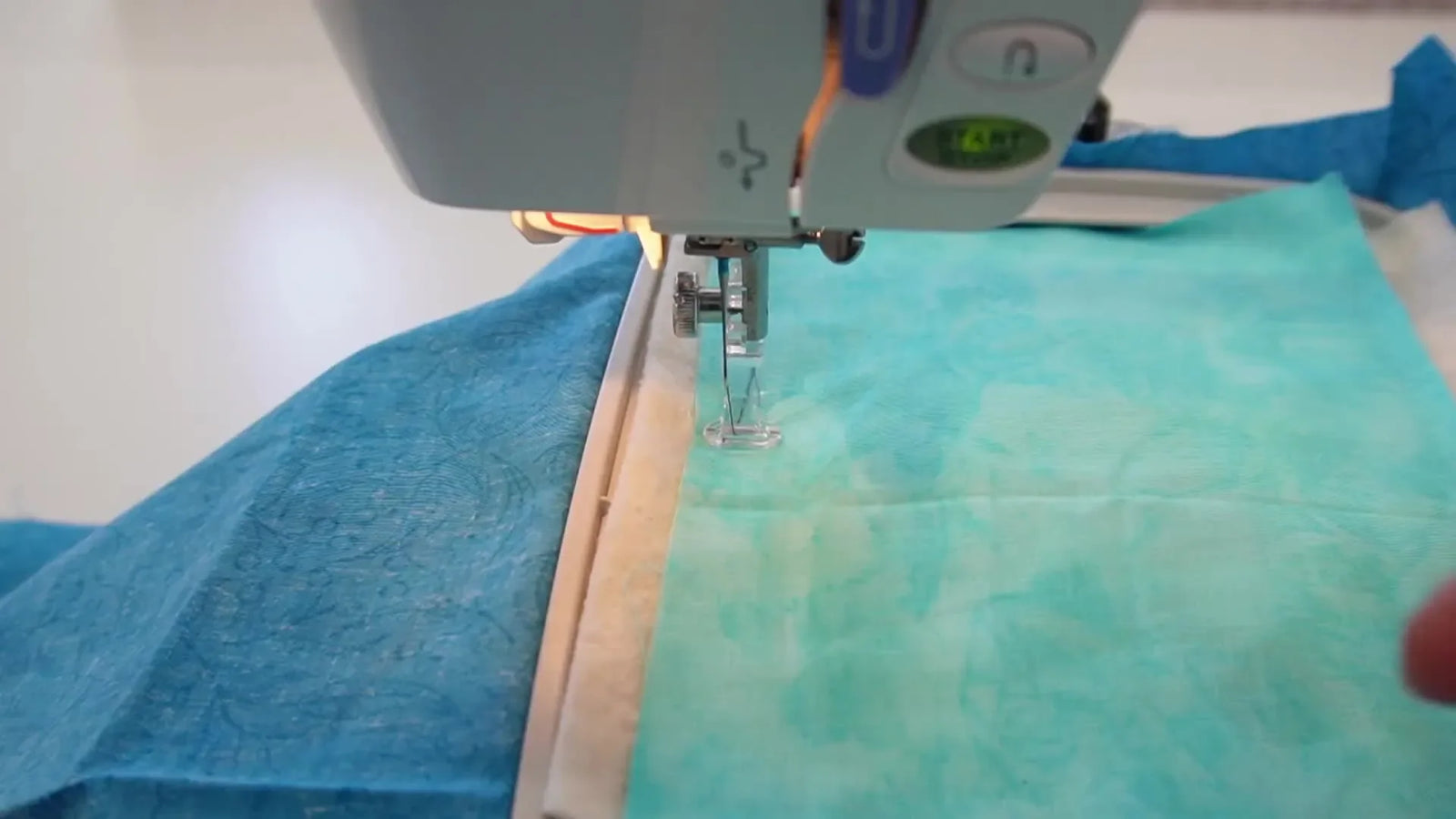

Back at the machine, she lays the teal fabric on top (floated, not hooped).

Critical Action: Do not walk away. Hold the fabric flat (keep fingers 2 inches away from needle) or use painter's tape to secure the corners.

Checkpoint: Once the machine completes the first few lock stitches of Color 2, the fabric is anchored. You can relax your hands—but stay alert for shifting wrinkles.

Operation checklist (traditional Trapunto run)

• Before Color 1: Confirm the presser foot height is raised to accommodate the stack.
• After Color 1: Remove hoop carefully; do not pop the inner ring loose. Place on flat mat.
• Trimming: Trim ONLY the float layers. Verify base layer is uncut.
• Before Color 2: Float top fabric. Double-check: Is the fabric right-side up?
• During Stitching: Watch for "flagging" (fabric bouncing up and down). If this happens, slow the machine down further.

The trimming “physics” that keeps you from cutting stitches: rotate the hoop, not your hand

Sharon’s trimming move—turning the hoop on the mat—works because of biomechanics.

In practice, two things happen when you try to turn your wrist:

1. Angle of Attack Changes: Your wrist twists, dipping the scissor point downward. This is the #1 cause of cutting the base fabric or the tack-down stitches.
2. Fatigue: Trimming is repetitive. Wrist twisting leads to strain quickly.

The Pro Technique: Keep your scissor hand rigid and flat, resting on the table. Use your non-dominant hand to spin the hoop like a steering wheel, feeding the fabric into the scissors.

Faux Trapunto on a Janome-style interface: how Sharon skips Color 1 and goes straight to Color 2

Sharon’s second method is the production time-saver: stitching the same design without the Trapunto outline.

Her machine behavior is quirky (and very real-world):

• To advance to Color 2 (Red), she touches Color 1 on the screen to skip it.
• Warning: On some machines, pressing a color brings up a palette; you may need to look for a button labeled "+/-" or a "needle with arrow" icon to skip forward.




If you’re shopping for accessories like janome 500e hoops, this is where consistency matters: skipping colors is easy when your hooping is stable and your layers don’t creep.

Setup for the faux method (as Sharon describes it)

She sets up “like a regular square”:

• Backing (Stabilizer)
• Wadding (Main layer)
• Top fabric

All hooped together or floated.

Then she stitches only the red part.

Expected outcome: You get the same decorative flower stitching, but the surface is flat. This is often perfectly acceptable for wall hangings or items that won't be touched often.

Trapunto vs faux results: when the extra batting is worth it (and when it’s not)

Sharon’s verdict on this specific design is refreshingly blunt: the slowest part is trimming, and the puff wasn’t very obvious—especially with cotton wadding.

Use this decision rule:

• High ROI (Return on Investment): Designs with large, open spaces, fat lettering, or simple geometric shapes (hearts, stars). Trapunto shines here.
• Low ROI: Designs with intricate fills, tiny scrolls, or dense sketching. The detail stitching crushes the batting anyway, so the trimming effort is wasted.

Decision tree: choose batting + method based on the look you want and the time you have

Use this quick decision tree before you stitch the first block:

1. Do you need high-impact 3D texture?
   • YES: Use Traditional Method AND Wool/Poly Float Layers.
   • NO: Go to step 2.
2. Is this a production run (10+ blocks)?
   • YES: Use Faux Method. The time savings (approx 5-8 mins per block) outweighs the subtle texture difference.
   • NO: If this is a showpiece, stick to Traditional.
3. What batting do you have?
   • Cotton Only: Use Faux Method (Trapunto result will be disappointing).
   • Wool/Poly: Traditional Method is viable.

Stop wasting batting: Sharon’s scrap-saving trick (and how to make it sewable)

Trapunto creates a dramatic-looking “donut” of waste batting—two layers removed, with only the center used.

Sharon’s fix:

• Cut the leftover batting into straight sections.
• Butting vs. Overlapping: When reusing scraps, butt the edges together tightly; do not overlap them (which creates a ridge) or leave a gap (which creates a divot). You can zigzag stitch them together on a sewing machine to create a "frankenn-batting" sheet.




Measuring and planning the final project: why Sharon checks 35 cm / 14 inches before committing

At the end, Sharon measures her Air Threader 2000 cover plan and notes it’s about 35 cm (around 14 inches) wide. She checks how that width lands across her block layout and decides she’d rather add sashing than have the cover land awkwardly “halfway into the third square.”

The Lesson: Measure your final appliance/pillow/table before you digitize or arrange blocks. Standard blocks come in 5x5, 6x6, 8x8. Usually, you need sashing (border strips) to make the math work for real-world objects.

The upgrade path when thick quilt sandwiches make hooping slow (and your hands do too much work)

Sharon’s demo works with a standard hoop, but Trapunto is exactly the kind of job where hooping friction shows up. You are asking a plastic inner ring to friction-fit inside an outer ring with 4+ layers of material in between.

This often leads to:

1. "Hoop Burn": Shiny, crushed marks on the fabric from the pressure.
2. Pop-outs: The inner ring shoots out mid-stitch because the screw wasn't tight enough.
3. Wrist Pain: The physical force required to tighten the screw while pushing the ring down.

If you find yourself "wrestling" the hoop or getting inconsistent tension, it’s worth considering magnetic hoops for janome embroidery machines.

Here’s the practical logic for upgrading:

• Scene trigger: You are doing a quilt block set with thick batting. You dread the hooping step. You notice your fabric is skewed/stretched after hooping.
• Judgment standard: If you cannot tighten the hoop screw enough to hold the fabric without distorting the weave, the standard hoop mechanism is failing your material thickness.
• The Solution: A janome 550e magnetic hoop or similar magnetic embroidery hoops for janome 500e uses vertical magnetic force rather than horizontal friction.
  • Level 1: Use clamps/clips on your standard hoop (Cheap, partial fix).
  • Level 2: Upgrade to a Magnetic Hoop. You simply lay the quilt sandwich over the bottom frame and drop the magnetic top frame. No friction, no burn, zero adjustments for thickness.
  • Level 3: Use a hooping station for embroidery alongside the magnets to ensure every quilt block is perfectly centered.

Warning: Magnetic hoops utilize industrial-strength neodymium magnets. They can pinch fingers severely. Keep them away from pacemakers, ICDs, and magnetic storage media. Always slide the magnets apart; do not try to pull them directly off.

Final setup checklist (so the machine run feels boring—in a good way)

Prep Phase:

• Machine cleaned and oiled.
• New 90/14 needle installed.
• Bobbin wound with appropriate weight thread (usually lighter weight for quilting).

Design Phase:

• Confirm hoop size matches Design Size (SQ14b / 140x140).
• Verify Color 1 is Tack-down, Color 2 is Detail.

Hooping Phase:

• Batting floats cut to size (plus margin).
• Hoop tension checked (if using standard hoop) OR Magnets secured (if upgrading).
• Top fabric verified right-side up.

The results you should expect (and the “no regrets” way to choose)

Traditional Trapunto gives you dimension, but it charges a tax in trimming time. Faux Trapunto gives you speed and consistency.

If you are a beginner, fear often stems from the unknown. Remove the unknown by doing a test block. Stitch one block as Traditional (using the floats) and one block as Faux. Put them on a table and step back 3 feet.

If you can't see the difference from 3 feet away, give yourself permission to use the faster Faux method. Embroidery is meant to be enjoyed, not endured. Choose the method that keeps you stitching.

FAQ

• Q: On a Janome embroidery machine Trapunto design that shows two colors (Blue then Red), how can a user skip the Blue tack-down and stitch only the Red decorative layer?
  A: Use the machine’s color-selection screen to advance to Color 2 (Red) before stitching.
  • Tap the Color 1 (Blue) block on the screen and follow the machine’s “advance/skip” behavior (some interfaces open a palette first).
  • Confirm the display now highlights Color 2 (Red) as the active step before pressing Start.
  • Slow down and watch the first stitches so the fabric does not creep at the start.
  • Success check: The machine begins stitching the decorative Red layer immediately, with no Blue outline stitched on the block.
  • If it still fails: Look for a “+/-” or “needle with arrow” style skip/advance icon on the Janome interface and follow the on-screen sequence for color changes.
• Q: For traditional in-the-hoop Trapunto on a Janome embroidery machine, what stabilizer + batting layer stack prevents shifting and distortion?
  A: Build the hoop as a controlled stack: stabilizer + one hooped base wadding, then float only the extra loft layers under the needle area.
  • Hoop stabilizer with one base wadding/batting layer for structure (a medium-weight cut-away is often safer for quilting to reduce distortion).
  • Float two extra batting “scraps” only under the puff area (not full-hoop size), and keep them from sliding with temporary spray adhesive.
  • Plan a flat trimming station so the hoop can be moved off the machine arm without unhooping.
  • Success check: During Color 1 stitching, the outline stays aligned and the layers do not creep or ripple as the hoop changes direction.
  • If it still fails: Reduce speed for the tack-down phase and re-check that the floated pieces extend at least about 1 inch beyond the puff area.
• Q: On a Janome embroidery machine doing Trapunto with thick batting, what stitching speed and presser-foot clearance should be used to reduce skipped stitches and foot bounce?
  A: Lower speed for the tack-down and ensure the presser foot clears the batting stack instead of plowing into it.
  • Set tack-down (Color 1) speed to about 400–500 SPM when stitching through thick batting.
  • Increase presser foot height (if the machine supports electronic adjustment) to roughly 2.0–2.5 mm so the foot glides over the stack.
  • Listen for the needle/foot sound and stop immediately if penetration sounds harsh.
  • Success check: The tack-down outline stitches as a continuous line without gaps, and the machine sound stays rhythmic rather than “clacking.”
  • If it still fails: Replace the needle and confirm the batting layers are not too bulky for the chosen design density.
• Q: When trimming Trapunto batting inside the hoop after Color 1 on a Janome embroidery machine, how can a user avoid cutting the tack-down stitches or base fabric?
  A: Trim with the hoop flat on a table and rotate the hoop, not the wrist, using curved appliqué scissors kept nearly parallel to the fabric.
  • Move the hooped project to a stable cutting surface while keeping it hooped (do not pop the inner ring loose).
  • Trim ONLY the floated top batting layers, keeping scissor blades almost horizontal and lifting batting slightly as you cut.
  • Rotate the hoop like a steering wheel to maintain a safe cutting angle around curves.
  • Success check: The puff area is exposed and the tack-down outline remains intact, with the base wadding/stabilizer un-nicked.
  • If it still fails: Stop and switch to curved-tip appliqué scissors; straight scissors make accidental “stab” cuts much more likely.
• Q: For Trapunto quilt blocks on a Janome embroidery machine, why does cotton batting often look flat, and what batting choice creates a more visible puff?
  A: Cotton wadding compresses and stays compressed, so use wool or high-loft polyester for the floated layers when a strong 3D effect is the goal.
  • Keep cotton as the base layer if desired, but choose wool/poly high-loft for the extra “float” layers that create the puff.
  • Compare one test block with cotton float layers vs wool/poly float layers before committing to a full set.
  • Step back and judge from viewing distance rather than inches away.
  • Success check: The puff is visible from across the room, not only when viewed close-up.
  • If it still fails: Consider switching to the faux method for dense designs where the decorative stitching compresses the loft anyway.
• Q: On a Janome embroidery machine running Trapunto with floated top fabric for Color 2, how can a user prevent the floated fabric from wrinkling or shifting at the start?
  A: “Babysit” the first lock stitches of Color 2 by holding the fabric flat (hands safely away) or securing corners so the needle anchors it cleanly.
  • Lay the top fabric right-side up over the trimmed puff area (floated, not hooped).
  • Hold fabric flat with fingers at least 2 inches from the needle, or tape the corners to reduce creep.
  • Do not walk away until the first few lock stitches are complete and the fabric is captured.
  • Success check: After the initial stitches, the fabric stays smooth with no diagonal pulls or puckers as the hoop changes direction.
  • If it still fails: Slow the machine further and watch for “flagging” (fabric bouncing); flagging often means the setup needs less speed and more control at the start.
• Q: When thick quilt sandwiches cause hoop burn, hoop pop-outs, or wrist pain on a Janome embroidery machine, how should a user decide between standard-hoop fixes, a magnetic hoop upgrade, or a multi-needle production upgrade?
  A: Use a tiered approach: improve technique first, then upgrade hooping stability with a magnetic hoop if friction hooping is the limiting factor, and consider a multi-needle machine only when throughput becomes the main constraint.
  • Level 1 (technique): Reduce stack bulk where possible, use spray adhesive for floated layers, and verify hoop tension without distorting the weave.
  • Level 2 (tool): Move to a magnetic hoop when the standard hoop cannot clamp thick layers without burn, distortion, or pop-outs.
  • Level 3 (capacity): Consider a multi-needle setup when repeated quilt-block runs make changeovers and handling time the biggest bottleneck.
  • Success check: Hooping becomes consistent—no shiny burn marks, no mid-stitch pop-outs, and the block stays square after unhooping.
  • If it still fails: Treat repeated pop-outs as a clamping/hooping limitation (not a digitizing issue) and prioritize stabilizing the hooping method before changing design settings.
