Toyota Expert ESP 9100 NET Optional Hoops: The 7-in-1, Belt Clamp, and Carpet Master Setup That Saves Jobs (and Needles)

If you run a Toyota Expert ESP 9100 NET long enough, you eventually meet the “hard-to-hoop” jobs: tote bags that won’t sit flat, karate belts that creep under the presser foot, and floor mats that laugh at normal backing.

These are the jobs that either (1) make you money because competitors avoid them, or (2) cost you money because one small mistake turns into a bent needle, a frame strike, or a ruined customer item.

In my twenty years on the shop floor, I’ve learned that machine embroidery is an "empirical science"—it’s about feel, sound, and physics as much as software settings. This tutorial-style post rebuilds the exact workflow shown for three optional attachments—the 7-in-1 hoop, the karate belt/dog collar holder, and the Carpet Master—and adds the sensory checks and safety margins that keep the machine safe and the stitchout predictable.

Calm the Panic First: Toyota Expert ESP 9100 NET Specialty Hoops Are “Different,” Not “Dangerous”

Specialty hoops feel risky to new operators because they don’t behave like a standard tubular hoop. There is no inner ring snapping into an outer ring. The good news is: the Toyota Expert ESP 9100 NET is perfectly capable of running them—as long as you mark your sewing field, clamp correctly, and respect the hardware.

One mindset shift I teach operators: with unconventional frames, your first goal isn’t “start stitching.” Your first goal is to prove the sewing area is safe and the material can’t drift. We are trading the friction grip of a standard hoop for adhesive grip or mechanical clamping.

If you’re shopping or comparing setups for toyota embroidery machines, realize that these attachments are exactly the kind of add-on that turns a general-purpose machine from a hobby tool into a problem-solver for profitable, high-margin niche items.

The “Hidden” Prep That Prevents Frame Strikes: 7-in-1 Hoop + Peel-and-Stick Backing Done Right

The 7-in-1 hoop is designed to hold items like bags and pockets using peel-and-stick backing under the frame window. It relies entirely on chemical adhesion to hold the fabric against the needle's drag.

What the video does (and you should copy)

1. Remove the paper from the peel-and-stick backing.
2. Place the backing underneath a frame window with the sticky side facing up.
3. Make sure it’s even and flat on the backside.
4. Manage excess backing by pulling it off or wrapping it around the top of the frame.

This is the part many people rush—and it’s where most “mystery shifting” starts. If the backing is wrinkled or not seated flat, the adhesive contact becomes uneven, and the fabric will "micro-walk" during stitching.

Expert insight: why “flat on the backside” matters

With adhesive hooping, the backing is acting like a temporary “tabletop.” Any ripple becomes a spring. When the needle penetrates, the fabric/backing stack compresses and rebounds. It’s like trying to write on paper floating in a swimming pool. This tiny movement is enough to:

• distort outlines,
• cause registration drift (gaps between outlines and fill),
• or pull the fabric toward the densest stitch area.

If you’re used to a sticky hoop for embroidery machine, the principle is similar: consistent contact pressure beats brute force.

Prep Checklist (7-in-1 Hoop)

• Consumables Check: Ensure your peel-and-stick stabilizer is fresh; stale adhesive loses grip.
• Backing paper removed; sticky side facing up under the frame window.
• Tactile Check: Rub the backside of the backing. It should feel taut like a drum skin, with zero bubbles or ripples.
• Excess backing either removed cleanly or wrapped so it won’t snag on the pantograph arm.
• Fabric surface linter/brushed so it attaches to glue, not dust.
• You can visually confirm the backing through the metal frame window.


Make the Bag Behave: Hooping a Tote on the 7-in-1 Hoop Without Crooked Logos

Once the backing is on, the video shows a simple but critical move:

1. Lay the bag/fabric flat.
2. Press it firmly onto the exposed sticky backing.
3. Keep it even and straight.

Here’s the real-world trap: bags often have seams, thickness changes, and handles that pull the panel off-grain. If the bag is fighting you, don’t “force straight” by stretching—reposition and re-press so the fabric sits naturally. If you stretch it to stick it, it will puck back to its original shape the moment the adhesive gives way.

The must-do safety move: create a visible sewing boundary

Because this hoop isn’t a conventional ring, the video instructs you to:

• Run your finger firmly along the inner edge of the metal frame window to create a visible crease/indentation on the stabilizer.

That indentation is your “no-go line.” It’s how you avoid driving the needle or presser foot into metal.

Warning: A frame strike can break needles and shatter the rotary hook, costing hundreds in repairs. Before you stitch, confirm the design stays inside the indented boundary. Reduce your machine speed (Beginner Sweet Spot: 400-600 SPM) for the first run to ensure safety.

Mounting the 7-in-1 Hoop on Toyota ESP 9100 NET: The Lock-In Check You Should Never Skip

The video mounts the 7-in-1 hoop like this:

1. Slide the metal brackets of the hoop onto the tubular arms.
2. Slide until they lock into place.

My shop rule: after it “clicks,” do a gentle two-direction wiggle test. You’re not trying to loosen it—you’re confirming it’s fully seated. You should hear a distinct metallic clack when it seats.

Setup Checklist (Mounting on tubular arms)

• Hoop brackets aligned with the tubular arms before sliding.
• Auditory Check: Listen for the sharp "click" of the locking mechanism.
• Tactile Check: Perform a quick wiggle test. It should feel solid, with no "play" or half-engaged wobble.
• Fabric/bag bulk is positioned so it won’t snag on the machine head or table during travel.
• Indented sewing boundary is still visible and clear after mounting.


The Belt Clamp That Stops Webbing Creep: Karate Belt / Dog Collar Holder Setup That Actually Holds

This attachment is for heavy webbing items—karate belts, dog collars, and backpack straps—where traditional hooping is slow or impossible because the material is too thick for inner/outer rings.

The video’s workflow:

1. Loosen the tension knobs.
2. Slide the belt through the guides.
3. The presenter prefers working between either the top two or the bottom two screws to keep the belt straight.
4. Pull across, lift, and slide through again until it’s woven through.
5. Keep it straight and even.






The real failure mode: “It looked tight… until the needle started.”

Webbing slippage usually isn’t dramatic. It’s a slow creep that ruins alignment by the end of the name or rank. By the time you notice the text is slanting, the item is ruined.

The video’s fix is direct:

• Manually tighten the knurled knobs on both sides to clamp the belt down firmly.


Pro tip (from years of production): clamp for motion, not for looks

A belt can look centered and still be under-clamped. What matters is whether it can resist the machine’s repeated needle penetrations and thread pull.

Your checkpoint before mounting: The Pull Test. Grab the belt and try to slide it through the clamp with moderate force. It should feel laid in concrete. If you can move it by hand, the needle will move it during the stitchout. Tighten it again.

If you’re building a repeatable workflow, think in terms of an embroidery hooping system: consistent loading tension is what makes repeat orders (like a dojo requesting 50 belts) match perfectly every time.

Mounting the Belt Clamp Like a Tubular Hoop: Keep the “Straight Path” Mentality

The video notes the belt clamp mounts on the machine just like a conventional tubular hoop.

That’s true mechanically—but operationally, treat it like a long, narrow runway:

• Keep the belt path straight.
• Keep excess belt controlled so it doesn’t drag or catch on the table. Use clips or tape if necessary to manage long dangling ends.

Operation Checklist (Belt clamp run)

• Belt woven through guides between the top two or bottom two screws (keeps it straight).
• Knurled knobs tightened firmly on both sides.
• Physical Test: Belt cannot be slid by hand after tightening.
• Clearance Check: Excess belt/collar length is rolled or managed so it won’t snag during travel.
• Visual Check: First few stitches observed closely to confirm zero creep.

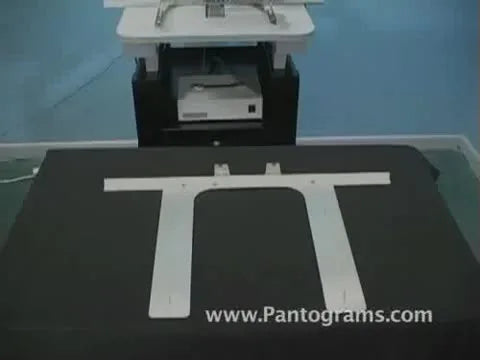

Carpet Master Hoop for Floor Mats & Upholstery: The Spike Hooping Method (and How Not to Bleed)

The Carpet Master is built for carpets, floor mats, and upholstery—materials that are thick, textured, and often rubber-backed. Standard hoops would pop off; adhesive frames wouldn't stick. The solution is mechanical "bite."

The video’s hooping method:

1. Place the large U-shaped frame over the floor mat.
2. Press down firmly so the sharp spikes engage the carpet material.
3. The presenter emphasizes: know where the spikes are so you don’t hurt yourself.
4. No backing is required when using these materials.


Warning: The Carpet Master spikes are extremely sharp. Keep fingers away from the spike line when pressing down. Do not "palm slam" the frame—use controlled pressure. If you slip, you want to stop, not puncture your hand.

Expert insight: why “no backing” can work here

On dense pile or stiff mat material, the substrate itself acts as its own stabilizer. The spikes anchor the frame physically to the mat structure. In many cases, adding backing can actually create a slippery interface or prevent the spikes from biting as deeply as they need to.

That said, material behavior varies. In general, always follow your machine manual and test on a scrap or a non-customer piece when possible. Hidden Consumable: Keep a water-soluble topping handy. If the carpet pile is deep, the stitches might sink. A layer of topping keeps the thread floating on top for visibility.

The Non-Negotiable Machine Change: Removing Toyota ESP 9100 NET Tubular Arms for Carpet Master

Unlike the other two attachments, the Carpet Master requires a machine configuration change. You need clearance.

The video shows:

1. Loosen the screws on the standard tubular arms.
2. Slide the entire arm assembly off the machine bed.




Why this matters (and why you shouldn’t “make it fit”)

Operators sometimes try to improvise mounting to avoid disassembly time. That’s how frames get misaligned, and misalignment is how you get:

• travel restriction (the frame hits the machine body),
• unexpected contact,
• or stitch fields that don’t match what you think you mounted.

If you’re doing this often in production, this is where workflow design matters: set aside a dedicated time block (e.g., "Carpet Fridays") so you’re not swapping hardware back and forth all day.

Installing the Carpet Master Frame: The 2-Notch Alignment + 2mm Allen Wrench Lockdown

The video’s installation steps:

1. Slide the Carpet Master frame directly into the pantograph slots.
2. Align with the two notches (it only fits one way).
3. Secure using a 2mm Allen wrench.


Checkpoint: what “correctly seated” feels like

When the notches are aligned, the frame should seat cleanly without forcing. If you feel resistance, stop and re-check alignment—forcing hardware is how threads strip and parts deform.

If you’re comparing embroidery machine hoops for specialty work, this is the dividing line between “accessory” and “system”: a true system mounts repeatably and locks down without guesswork.

Setup Checklist (Carpet Master)

• Tubular arms removed completely.
• Frame slid into pantograph slots.
• Visual Check: Two notches aligned perfectly.
• Tool Check: 2mm Allen wrench used to tighten securely (hand-tight + 1/4 turn; do not over-torque).
• Consumable: Water-soluble topping availble if pile is deep.

Needle Choice for Carpets and Upholstery: The Sharp Titanium 90/14 Rule

The video is blunt here:

• A standard needle will not work with carpets, floor mats, or upholstery.
• Use a Sharp Titanium 90/14 needle.


Why this needle matters (the physics in plain English)

Dense pile and tough rubber backings increase specific friction. Result: Heat. A standard chrome needle can overheat, deflect (bend), or dull in minutes—leading to skipped stitches, thread shredding, or breakage.

Titanium-coated needles resist heat buildup and surface abrasion. A "Sharp" point (as opposed to Ballpoint) cuts clean holes through the rubber backing rather than trying to push fibers aside. Sweet Spot: Slow your machine down. Friction generates heat; speed generates friction. Dropping to 500-600 SPM on mats can save you three needle changes per hour.

Decision Tree: Which Holding Method Should You Use (7-in-1 vs Belt Clamp vs Carpet Master vs Magnetic Hoops)?

Use this quick decision tree to choose the safest, fastest path:

1) Is the item thick pile / floor mat / upholstery and can tolerate spikes?

• YES → Use Carpet Master (spike hooping, no backing) + Sharp Titanium 90/14.
• NO → Go to 2.

2) Is the item long, narrow webbing (karate belt, dog collar) that must stay perfectly straight?

• YES → Use Karate Belt / Dog Collar Holder and clamp firmly.
• NO → Go to 3.

3) Is the item a bag/pocket panel that can lay flat onto adhesive backing?

• YES → Use 7-in-1 hoop + peel-and-stick backing + finger-indent boundary.
• NO → Consider a Level 2 Tool Upgrade:
  • For hard-to-hoop garments or delicate fabrics where clamp pressure leaves marks (hoop burn), a magnetic hoop/frame is the industry standard solution. Magnetic frames reduce hoop burn and dramatically speed up the loading process since you aren't fighting screws.

Warning (Magnetic Safety): If you upgrade to magnetic hoops/frames, keep powerful magnets away from pacemakers and implanted medical devices. Never let magnetic frames snap together uncontrolled—pinch injuries are a real hazard in the shop.

Troubleshooting the “Scary Moments”: Symptoms → Likely Cause → Fix You Can Do Today

The Upgrade Path (Without the Hard Sell): When Accessories Become Profit Multipliers

If you’re doing occasional specialty items, these attachments already expand what you can accept.

However, if you find yourself doing these jobs weekly—or attempting to fulfill orders of 50+ items—your bottleneck becomes loading time and repeatability, not stitch speed.

Here’s the practical upgrade logic I use with shop owners:

• Scenario trigger: You are spending 5 minutes hooping a bag that takes 2 minutes to sew.
• Judgment standard: If Setup Time > Run Time, you are losing profit margin.
• Options:
  • Level 1 (Consumables): Better sticky backing or spray adhesive.
  • Level 2 (Tooling): For industrial multi-needle production, SEWTECH Magnetic Frames can cut loading time by 30-40% and reduce operator wrist strain (carpal tunnel is a real risk with screw hoops).
  • Level 3 (Capacity): If you are consistently turning away large volume orders, a productivity-focused platform like SEWTECH Multi-needle Machines offers the stability needed for continuous production of heavy items.

And don’t ignore consumables: stable results on odd items often come down to the right thread and stabilizer pairing. Always keep heavy-duty cutaway stabilizer and high-sheen polyester thread in stock for these rugged applications.

If you’re building a production bench, searching for a hooping station for machine embroidery can also reveal tools to help standardize placement and reduce operator variability—especially when multiple people run the same jobs.

Final Reality Check: What “Success” Looks Like on These Three Attachments

• On the 7-in-1 hoop, success is: fabric adhered flat (drum-tight sound), boundary indented, and the design stays safely inside the window.
• On the belt clamp, success is: belt stays straight, cannot be slid by hand after tightening, and the first stitches show zero creep.
• On the Carpet Master, success is: spikes bite evenly, the frame mounts in the two notches without forcing, and the Sharp Titanium 90/14 needle penetrates cleanly without drama.

If you treat each attachment like a system—with prep, checkpoints, and the right needle—you’ll stop “hoping it works” and start running these tough jobs with confidence.

FAQ

• Q: How do I prevent a needle strike on a Toyota Expert ESP 9100 NET when using the 7-in-1 hoop?
  A: Create a visible “no-go” sewing boundary on the stabilizer before stitching, then keep the design fully inside that boundary.
  • Trace: Run a finger firmly along the inner edge of the metal frame window to leave a clear indentation line.
  • Verify: Check the entire design stays inside the indented boundary before pressing start.
  • Slow down: Run the first pass at a safe starting point of 400–600 SPM to confirm clearance.
  • Success check: The indentation line is clearly visible after mounting, and the needle/presser foot never approaches the metal edge during the first stitches.
  • If it still fails: Stop immediately, replace the needle, re-hoop, and reduce the design size or reposition the layout to stay inside the window.
• Q: Why does fabric shift on a Toyota Expert ESP 9100 NET 7-in-1 hoop with peel-and-stick backing even when the fabric looks stuck?
  A: Uneven adhesive contact (wrinkles/bubbles) causes “micro-walking,” so make the sticky backing drum-tight and keep the surface clean before pressing the fabric down.
  • Seat: Place peel-and-stick stabilizer sticky-side up under the frame window, and ensure it is even and flat on the backside.
  • Smooth: Rub the backside to remove bubbles/ripples and eliminate any “spring” in the backing.
  • Clean: Brush/lint the fabric surface so it bonds to adhesive, not dust.
  • Success check: The backing feels taut like a drum skin with zero ripples, and outlines/fills stay registered (no drift or gaps).
  • If it still fails: Replace stale peel-and-stick stabilizer (adhesive may be weak) and re-press the fabric without stretching it.
• Q: How do I confirm the Toyota Expert ESP 9100 NET 7-in-1 hoop is fully locked onto the tubular arms before running a job?
  A: After the hoop “clicks,” do a quick two-direction wiggle test to confirm the brackets are fully seated and stable.
  • Align: Start with hoop brackets aligned squarely to the tubular arms before sliding on.
  • Listen: Slide until a distinct metallic click/clack is heard.
  • Test: Wiggle gently in two directions to confirm no play or half-engaged wobble.
  • Success check: The hoop feels solid with no movement, and the locking sound was clear during installation.
  • If it still fails: Remove and remount the hoop, then re-check that bulky fabric is not interfering with seating or travel.
• Q: How do I stop a Toyota Expert ESP 9100 NET karate belt/dog collar holder from letting webbing creep during stitching?
  A: Clamp for motion, not appearance—tighten both knurled knobs firmly and pass the Pull Test before mounting.
  • Weave: Thread the belt through the guides, working between either the top two or bottom two screws to keep the path straight.
  • Tighten: Turn both knurled knobs down firmly to lock the webbing.
  • Test: Perform the Pull Test—try sliding the belt by hand with moderate force.
  • Success check: The belt cannot be slid by hand, and the first few stitches show zero creep or slant.
  • If it still fails: Tighten again (some operators use pliers gently if finger-tight is not enough) and manage loose belt length so it cannot tug during travel.
• Q: What is the safest way to use the Toyota Expert ESP 9100 NET Carpet Master hoop spikes on floor mats without hand injuries?
  A: Keep hands off the spike line and press with controlled force—never “palm slam” the Carpet Master frame.
  • Position: Place the U-shaped frame over the mat and visually confirm where the spike line sits.
  • Press: Apply controlled downward pressure so spikes bite evenly into the material.
  • Protect: Keep fingers on the outer rim/handle areas, not near the spikes.
  • Success check: The frame feels evenly anchored with no rocking, and hands never cross the spike zone during pressing.
  • If it still fails: Stop and reposition the mat/frame rather than forcing it—forcing increases slip risk and puncture risk.
• Q: Why does a Toyota Expert ESP 9100 NET Carpet Master setup require removing the tubular arms before installation?
  A: The Carpet Master needs clearance and correct alignment, so remove the tubular arms to prevent travel restriction and accidental contact.
  • Remove: Loosen screws on the tubular arms and slide the entire arm assembly off the machine bed.
  • Install: Slide the Carpet Master frame into the pantograph slots and align the two notches (it fits one way).
  • Lock: Tighten using a 2mm Allen wrench (hand-tight plus a small extra turn; avoid over-torquing).
  • Success check: The frame seats cleanly without forcing, the two notches align perfectly, and the hoop travels without hitting the machine body.
  • If it still fails: Stop and re-check notch alignment—do not force hardware if resistance is felt.
• Q: What needle and speed should be used on a Toyota Expert ESP 9100 NET when embroidering floor mats with the Carpet Master hoop?
  A: Use a Sharp Titanium 90/14 needle and slow down to reduce heat and breakage on dense mats and rubber backings.
  • Swap: Install a Sharp Titanium 90/14 needle (standard needles are not suitable for this work).
  • Slow: Run mats at 500–600 SPM to reduce friction heat.
  • Support: Keep water-soluble topping available if the pile is deep so stitches do not sink.
  • Success check: The needle penetrates cleanly with stable stitching (no shredding, skipping, or frequent breaks) and the thread remains visible on top of pile.
  • If it still fails: Stop and inspect for needle damage/heat issues, then re-test on a non-customer piece and follow the machine manual for material-specific limits.
• Q: When should a Toyota Expert ESP 9100 NET operator switch from specialty attachments to magnetic hoops/frames for hard-to-hoop items?
  A: Upgrade when loading time is consistently longer than sew time, especially on items where clamp pressure marks fabric or hooping is slow and inconsistent.
  • Measure: Time the setup—if setup time is greater than run time, profit margin is being lost.
  • Try first: Improve consumables (fresh sticky backing, appropriate stabilizer) and refine the boundary/lock-in checks.
  • Upgrade tooling: Use magnetic hoops/frames to speed loading and reduce hoop burn on delicate or difficult items.
  • Success check: Loading becomes repeatable and faster, with fewer placement errors and less fabric marking.
  • If it still fails: Review safety practices—keep magnets away from pacemakers/implanted medical devices and prevent frames from snapping together uncontrolled to avoid pinch injuries.
