Topaz 50 Embroidery Mode Without the Panic: Edit View vs Stitch Out View, Plus the Settings That Save Your Stitch-Out

Here is the calibrated, expert-level guide for the Husqvarna Viking Topaz 50.

If you’ve ever stared at your Husqvarna Viking Topaz 50 screen thinking, "I know the design is in here somewhere… now what?", you’re not alone. The Topaz 50 is friendly once you understand one key truth: you’re really working in two different worlds—the Edit View (where you act as the Architect) and the Stitch Out View (where you act as the Factory Manager).

This post rebuilds that workflow into a repeatable, fail-safe routine you can use every time—especially when you’re tired, rushing, or trying to stitch a larger design (like the built-in bird-and-flower sample) without wasting expensive garments.

The Two-Screen Habit on the Husqvarna Viking Topaz 50: Edit View Keeps You Safe, Stitch Out View Gets You Paid

On the Topaz 50, Edit View is your "Planning Room." This is where you choose and adjust the design (move/rotate/scale) without risk. Stitch Out View is the "Production Floor"—once you are here, the machine is armed and ready to fire.

Here’s the mindset that prevents most beginner mistakes:

• Edit View = Decisions (Layout, size, orientation).
• Stitch Out View = Execution (Holding the fabric stable, verifying placement, managing thread behavior).

If you’re new to husqvarna viking embroidery machines, this separation is the difference between "I think I pressed something wrong" and "I know exactly where I am and what the machine is about to do."

Load Designs on the Topaz 50 the Fast Way: Flower Icon vs Folder Icon (Built-In vs USB)

To bring a design onto the screen, you simply choose the source. Think of these as your digital libraries:

• Tap the Flower icon to access the built-in designs (your reliable practice library).
• Tap the Folder icon to access external designs from a USB stick (your custom creative files).

The video shows that the built-in library contains 159 designs. You can scroll through them and select one to load it into Edit View.

The “Hidden” Prep That Makes Loading Designs Feel Effortless (and Prevents Re-hooping)

Before you even touch the screen, do a quick reality check. Most "my design doesn't fit" or "why is it crooked" problems are really hoop + stabilizer + marking problems that show up later.

Hidden Consumables You Need Needed (But Manuals Forget to Mention):

• Temporary Spray Adhesive (e.g., 505): Essential for floating fabric.
• Water Soluble Pen: For marking your center crosshairs.
• Fresh Topstitch or Embroidery Needles (Size 75/11): A dull needle is the #1 cause of shredding.

Prep Checklist (Complete this BEFORE selecting a design):

1. Check the Hardware: Confirm which hoop allows you enough "sewing margin." The video example shows a 360x200 hoop reference.
2. Mark the Target: Physically mark a crosshair (+) on your fabric with a water-soluble pen. Don't guess.
3. Audit the Bobbin: Look at your bobbin. Is it at least 40% full? Running out of bobbin thread mid-design is a workflow killer.
4. Calibrate the Input: Keep your stylus handy. Your finger is often too broad for the Topaz screen; a stylus ensures you hit the specific icon, not the one next to it.

That last point sounds trivial, but clean, precise inputs reduce accidental toggles—especially when you’re moving between Edit View and Stitch Out View.

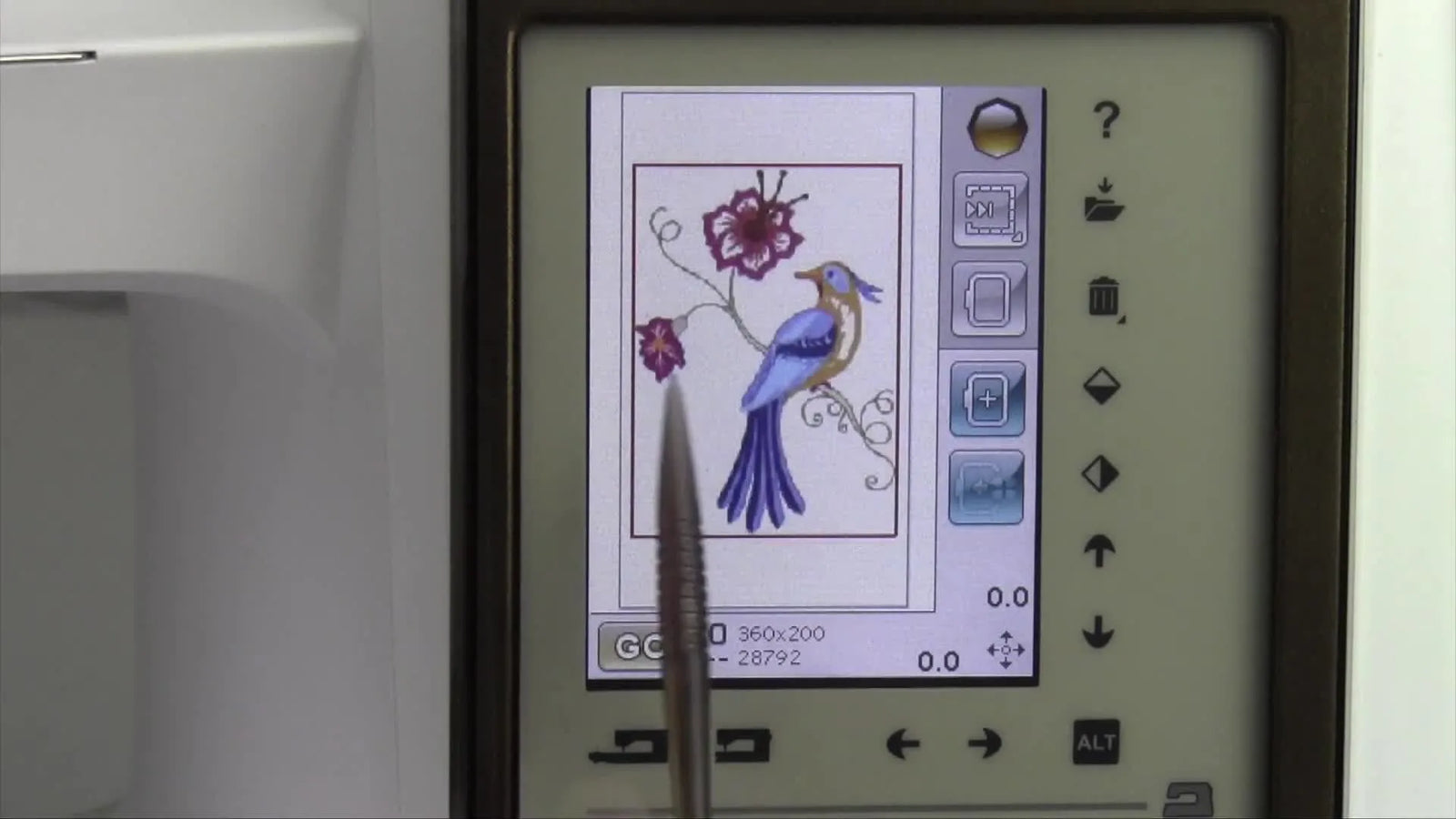

Edit View on the Topaz 50: Use Alt for Rotate + Scale Before You Ever Hit GO

Once the design is loaded, you’re in Edit View. This is where you can:

• Move the design on the digital grid.
• Tap Alt to access tools like rotate and scale/sizing.

The key is timing: do your layout changes here. Once you commit to stitch-out, you want to be thinking about stability and verification, not redesigning.

Why edits belong in Edit View (the physics behind it)

Fabric behaves like a flexible sheet under tension. When you rotate/scale late—or keep bouncing between screens while the hoop is already mounted—you increase the odds that your "mental map" of placement no longer matches the real hoop orientation.

In practice, that’s how you end up with:

• A design that technically fits the hoop, but lands too close to an edge, causing the foot to hit the frame (the dreaded "clunk-grind" sound).
• A beautiful fill that finishes… and then the outline misses by a hair.

If you are doing hooping for embroidery machine projects regularly, treat Edit View as your "architect's desk" and Stitch Out View as the "job site." You don't redraw the blueprints while the cement is pouring.

The GO Button Moment: Switching the Topaz 50 from Edit View to Stitch Out View Without Regrets

To start the embroidery phase, press GO (bottom left). The video shows that pressing GO transitions you into Stitch Out View and effectively "locks in" your edits.

Warning: Mechanical Safety Zone
Keep fingers, tools, and loose sleeves away from the needle area and the moving embroidery arm immediately when you enter Stitch Out View. The machine usually performs a "calibration movement"—moving the hoop to corners and center rapidly. A stylus or scissors left on the throat plate can become a dangerous projectile.

Setup Checklist (Execute immediately AFTER pressing GO):

1. Listen for the Click: Confirm the hoop is attached and fully seated. You should hear a distinct click or snap. If it slides in silently, it might not be locked.
2. The "Drum Skin" Test: Tap the hooped fabric gently. It should sound taut, not dull or floppy.
3. Clear the Runway: Ensure the space behind the machine is clear so the embroidery arm doesn't hit a wall or coffee cup during its travel.
4. Commitment Check: Make sure you aren't starting a 60-minute design 10 minutes before you need to leave. Stopping mid-design risks alignment errors.


The Basting Box on the Topaz 50: The One Tap That Stops Fabric Drift Before It Starts

In Stitch Out View, you can toggle a basting stitch (shown as a dotted square icon). When enabled, the machine stitches a perimeter basting box around the design area first, temporarily tacking the fabric to the stabilizer.

This is one of the most underrated features for beginners. It solves the issue of "slippage." Even if you hooped tight, the needle's repeated penetration pushes fabric around. Basting acts as physical anchors.

Use basting to prevent:

• Wavy outlines.
• Gaps between fill and border (registration errors).
• "Why does it look skewed when my hoop was straight?"

If you are using husqvarna embroidery hoops, basting is a great "insurance policy," especially for floating items like towels or bulky jackets where you can't hoop the fabric directly.

Pro tip from the field: Is it tension or stability?

If you’re dealing with frequent thread tearing/shredding, don't immediately blame tension. Fabric shifting creates "flagging" (bouncing fabric), which deflects the needle and snaps the thread. Enable the basting box. If the thread stops breaking, your problem was stability, not tension.

Color Blocks + the Topaz Sampler Booklet: How to Track Thread Choices Like a Pro

In Stitch Out View, the right side shows the color block list in the order the design will stitch.

The video also shows using the Topaz Sampler booklet that came with the machine to reference the built-in design’s color information.

Build this "Workshop Habit":

• Log Changes: If you swap "Pale Pink" for "Neon Green," write it down on a piece of scrap paper.
• Record Success: If a design stitches out perfectly, tape a distinct snippet of the thread next to the design number in a notebook.
• Customer QA: If stitching for clients, these notes defend you against "this isn't the color I asked for."

Design Positioning on the Topaz 50: Check Top-Left, Bottom-Left, and Center Before You Stitch

Design Positioning is the feature that separates professionals from gamblers. The video demonstrates using the four-way arrows to move the needle (without stitching) to key reference points:

• Top-left corner
• Bottom-left corner
• Center


This is your verification step. If you marked your fabric with a crosshair, you use this to align the digital center with your physical ink mark.

A simple placement routine that prevents 80% of "oops" stitch-outs

1. Center Check: Move needle to Center position. Does it hover directly over your ink mark?
2. Safe Zone Check: Move needle to Top-Left. Are you at least 1 inch away from a bulky button, zipper, or the hard plastic of the hoop?
3. Span Check: Move needle to Bottom-Right. Does the design stay on the stabilizer?

When running embroidery hoops for husqvarna viking in a busy workflow, checking these bounds is faster than unpicking 500 stitches, and infinitely cheaper than ruining a garment.

Top Tension on the Topaz 50: Fix Bobbin Thread Showing on Top (Start from 2.8 and Go Down)

The video shows the tension setting in Stitch Out View adjusted down to 2.8. This is a specific troubleshooting adjustment for a common problem.

Standard tension is usually between 3.0 and 4.6. However:

• The Problem: You see white bobbin thread poking up on the top (colorful) side of the design.
• The Diagnosis: The Top Thread is winning the tug-of-war too easily. It is too tight, pulling the bobbin up.
• The Fix: Lower the top tension number. This relaxes the top thread, allowing the knot to be pulled to the back.


The video demonstrates tapping Alt to find tension controls and using the minus button to lower the value.

Thread Tension Sensory Check

Unsure if your tension is right before you sew? Pull the top thread through the needle (presser foot DOWN).

• Too Loose: Feels like pulling a loose hair (no resistance).
• Too Tight: Feels like dragging a heavy box; the thread might curl or snap.
• Just Right: Feels like pulling dental floss—smooth, consistent resistance.

Thread Tearing: The Troubleshooting Hierarchy

A viewer asked about constant thread tearing. Before adjusting internal settings, check the "Cheap & Easy" culprits first:

1. The Path (Free): Rethread completely. Make sure the thread is deep inside the tension discs.
2. The Needle ($1.00): Change it. Even a microscopic burr will shred rayon thread instantly.
3. The Speed (Time): Slow down. High speed = high friction.

Generally, if thread tearing starts suddenly on a machine that was sewing fine, I suspect thread path or needle condition before I suspect a tension failure.

Stitch Count Reality Check on the Topaz 50: 523 Stitches in Color 1, 28,792 Total

The video highlights stitch count key data:

• 523 stitches in the current color block.
• 28,792 total stitches in the design.

Translation: At 800 stitches per minute (SPM), a 28,000-stitch design is roughly 35-45 minutes of machine time, plus thread changes.

The "Don't Leave It Overnight" Rule

The video gives a hard-earned warning: Do not leave a project hooped overnight.

The Physics of Failure: Fabric is elastic (viscoelastic). When stretched in a hoop, it slowly relaxes over hours. If you stitch the outline today and the fill tomorrow, the fabric will have shifted microscopically. The result? Outlines that don't match the fill.

Production Rule: If you start a design, finish it. If you must stop, un-hoop it and accept that you will likely need to start over on a new piece of stabilizer.

When You Need to Back Up or Move Stitch-by-Stitch: Using Alt Controls in Stitch Out View

The video notes that in Stitch Out View, tapping Alt reveals controls to back up stitches or go forward stitch-by-stitch.

Use Case: Your thread breaks. You re-thread, but there is a gap in the design. Use the "Step Back" arrow to reverse about 10-20 stitches into the existing embroidery so the new thread overlaps the old one perfectly.

Exiting Stitch Out View Cleanly: The Return Arrow That Takes You Back to Edit View

To toggle back to Edit View, the video shows pressing the return arrow.

This is your "Abort Mission" button. Use it when:

• You realize you loaded the wrong file.
• You need to resize the design because it hit the "Safe Zone" limits during your position check.

Troubleshooting the Topaz 50 Stitch-Out: Symptoms → Likely Cause → Fix

Topaz 50 acting up? Scan this table before you call a technician.

Watch out: "I'll just stop at the color change."

Stopping at a color change feels logical, but the fabric doesn't care about color blocks—it cares about time under tension. Minimize the time the fabric sits hooped.

Decision Tree: Stabilizer + Hooping Choices That Prevent Rework

Use this logic flow before you hoop up for a long design.

1. What is the fabric structure?

• Stretchy (T-Shirt/Polo): You MUST use Cutaway stabilizer. Tearaway will eventually distort, ruining the design after one wash.
• Stable (Denim/Canvas): Tearaway is acceptable.
• Slippery (Satin/Performance): Use Mesh Cutaway + Spray Adhesive.

2. Is hooping causing you pain or quality issues?

• The Pain: Hooping requires significant hand strength and precision. If you struggle to get the screw tight, or if the "Hoop Burn" marks are ruining delicate fabrics.
  • Solution: This is the primary trigger to upgrade to a magnetic hoop for husqvarna viking. Magnets apply purely vertical pressure, eliminating the friction burn of traditional hoops and saving your wrists.
• The Scale: Are you embroidering 50 logos on the left chest?
  • Solution: A dedicated embroidery hooping station ensures every logo is in the exact same spot, reducing the mental load of measuring every shirt.

Warning: Magnetic Compatibility & Safety
For the Machine: Ensure the magnetic hoop is specifically rated for the Topaz 50 arm weight limit.
For You: Magnetic hoops are powerful. Pinch Hazard! Keep fingers clear when snapping the frame shut. Keep away from pacemakers and magnetic media.

The Upgrade Path That Actually Makes Sense: Fix the Workflow First, Then Buy Tools for Speed

Once you can confidently load designs, verify placement, and manage basic tension, you are ready to look at efficiency.

Here are the practical benchmarks for upgrading your gear:

1. Level 1: The "Clean Result" Upgrade (Stabilizer & Hoops)
   If your designs are puckering, verify you are using the correct stabilizer. If traditional hoops are leaving permanent marks on velvet or performance wear, a magnetic embroidery hoop is the industry standard fix.
2. Level 2: The "Volume" Upgrade (Multi-Needle Machines)
   The Topaz 50 is a fantastic single-needle machine. However, if you are changing thread colors 15 times per shirt for an order of 20 shirts, you are losing hours of profit.
   • Trigger: When you start turning down orders because you "don't have time."
   • Solution: This is when commercial setups like SEWTECH multi-needle machines become viable—they hold all 15 colors at once, allowing you to press GO and walk away.

Operation Checklist (End-of-Run Habits)

• [ ] Log Tension: Did you change it to 2.8? Write that down on your design sheet.
• [ ] Clear the path: Remove the bobbin case and check for lint build-up (every 3-5 bobbins).
• [ ] Un-hoop immediately: Eliminate fabric stress.
• [ ] Basting removal: Snip the basting stitches before washing away any stabilizer markings.

If you build this routine, the Topaz 50 stops feeling like a mystery touchscreen and starts feeling like a predictable partner—one screen for decisions, one screen for execution, and a stitch-out that looks exactly the way you pictured it.

FAQ

• Q: What supplies should be prepared before loading a design on a Husqvarna Viking Topaz 50 to prevent re-hooping and crooked placement?
  A: Prepare the “hidden consumables” first so the Husqvarna Viking Topaz 50 workflow stays stable and predictable.
  • Gather temporary spray adhesive (e.g., 505), a water-soluble marking pen, and a fresh embroidery/topstitch needle size 75/11.
  • Mark a clear center crosshair (+) on the fabric before touching the screen.
  • Audit the bobbin and start only if the bobbin is at least about 40% full.
  • Success check: the fabric has a visible center mark, the needle is new, and the bobbin will not run out mid-design.
  • If it still fails… re-check hoop size/margin choice before resizing or rotating the design on-screen.
• Q: How can Husqvarna Viking Topaz 50 users confirm the embroidery hoop is attached and fabric is hooped correctly right after pressing GO (Stitch Out View)?
  A: Use a fast “lock + tension + clearance” check immediately after pressing GO on the Husqvarna Viking Topaz 50.
  • Listen for a distinct click/snap when attaching the hoop; do not accept a silent slide-in.
  • Tap the hooped fabric and aim for a “drum-skin” feel (taut, not dull/floppy).
  • Clear space behind the machine so the embroidery arm cannot hit a wall, cup, or tools.
  • Success check: the hoop is locked (audible click) and the fabric feels taut with free arm travel.
  • If it still fails… stop and re-seat the hoop; do not continue if the hoop feels loose.
• Q: How do Husqvarna Viking Topaz 50 users enable the basting box to stop fabric drift, wavy outlines, and registration gaps?
  A: Turn on the basting stitch (dotted square icon) in Husqvarna Viking Topaz 50 Stitch Out View before starting the main design.
  • Toggle the basting box so the machine stitches a perimeter first to tack fabric to stabilizer.
  • Use basting especially for floated items (towels, bulky jackets) where the fabric is more likely to shift.
  • Treat basting as a stability test when thread breaks: stability problems can mimic tension issues.
  • Success check: a clean perimeter basting box forms and the fabric does not creep during stitching.
  • If it still fails… revisit hooping and stabilizer choice; drifting usually points to stability, not only tension.
• Q: How do Husqvarna Viking Topaz 50 users fix “bobbin thread showing on top” and what tension value is a safe starting point?
  A: Lower the Husqvarna Viking Topaz 50 top tension number; 2.8 is shown as a working troubleshooting example.
  • Open Stitch Out View tension controls (via Alt) and step the tension down gradually (for example, toward 2.8–3.2).
  • Re-test on a sample rather than a garment until the stitch balance improves.
  • Use the “pull feel” check with presser foot DOWN: aim for smooth, consistent resistance (like dental floss).
  • Success check: bobbin thread stops popping to the top surface and the top stitching looks clean.
  • If it still fails… rethread the top path and change the needle first; sudden issues are often threading/needle, not internal tension.
• Q: What safety steps should Husqvarna Viking Topaz 50 users follow when switching into Stitch Out View to avoid needle-area accidents?
  A: Keep hands and tools away the moment Husqvarna Viking Topaz 50 enters Stitch Out View because the machine can move the hoop quickly for calibration.
  • Remove stylus, scissors, and any loose tools from the throat plate/needle area before pressing GO.
  • Keep sleeves, hair, and fingers clear during the initial rapid hoop movement.
  • Pause and reset if anything is near the moving arm or needle area before continuing.
  • Success check: the machine completes its calibration movement without hitting any object and nothing is near the needle/arm travel path.
  • If it still fails… power down and clear the area; never try to “catch” or hold the hoop while the arm is moving.
• Q: How should Husqvarna Viking Topaz 50 users prevent gaps between outline and fill caused by fabric creep, especially when pausing mid-design?
  A: Do not leave a project hooped overnight on the Husqvarna Viking Topaz 50; finish the design in one run whenever possible.
  • Plan time realistically before starting long stitch counts so the design is not stopped mid-way.
  • Use the basting box to reduce shifting during the run.
  • If you must stop, un-hoop instead of leaving fabric under tension for hours (expect you may need to restart cleanly later).
  • Success check: outlines stay aligned with fills and the design does not look skewed across sections.
  • If it still fails… treat it as a stability/hooping issue first, not a design file issue.
• Q: When should Husqvarna Viking Topaz 50 users upgrade from technique fixes to a magnetic hoop or to a multi-needle machine for efficiency?
  A: Upgrade in layers: fix stability/workflow first, then choose a magnetic hoop for hooping pain/hoop burn, and consider a multi-needle machine when color changes kill profit.
  • Level 1 (technique): use correct stabilizer for the fabric type and add basting to prevent drift before buying new gear.
  • Level 2 (tool): choose a magnetic hoop when traditional hooping causes hoop burn, requires too much hand strength, or ruins delicate fabrics.
  • Level 3 (capacity): consider a multi-needle machine when frequent thread changes on repeated orders cause you to lose hours or turn down jobs.
  • Success check: you can complete designs with consistent placement and minimal re-hooping before scaling production.
  • If it still fails… track the exact failure (drift, tension, hoop marks, time loss) so the next upgrade targets the real bottleneck.
