Tie-Ins, Tie-Outs, and the “Bad Frog” Test: Digitizing Lock Stitches That Don’t Unravel (or Waste Trims)

If you’ve ever finished a stitch-out that looked fine—then watched a single loose end get tugged and the whole area start to unzip—this is almost never “bad luck.” It’s usually a digitizing decision: missing or poorly placed tie-ins/tie-outs, plus pathing that forces unnecessary trims.

In the video, the instructor proves it with a simple, brutal demo: two designs that look identical on screen, but one is digitized for success and the other is edited for failure. The difference shows up the moment you touch the thread.

Below is the same lesson rebuilt into a shop-ready workflow you can repeat on any file (letters, logos, patches, left-chest, even dense outlines). I’ll keep it practical, but I’ll also explain the “why,” because once you understand the mechanics, you stop chasing random fixes.

Tie-Ins and Tie-Outs in Embroidery Legacy software: the tiny “insurance policy” that stops designs from unraveling

Tie-ins (tie-on) and tie-outs (tie-off) are locking stitches placed at the start and end of an object. Without them, the top thread and bobbin thread may not lock securely into the fabric at the moment the object begins or ends—so the thread tail can be pulled and the stitching can unravel.

The video makes a key point that many operators miss: modern machines may add a couple of securing stitches automatically, but that “assist” is not a substitute for proper tie logic inside the design file. If the file is weak, the stitch-out is fragile.

What you’re really doing with ties is giving the machine a controlled, repeatable way to “catch” the bobbin and anchor the thread before the visible stitches matter. Think of it like a knot at the end of a hand-sewing thread, but engineered for speed.

The Sensory Check: When a machine executes a tie-in correctly, you should hear a distinct, rapid thump-thump-thump in one spot before the pantograph starts moving for the main fill. If the machine instantly takes off running, your tie-ins might be missing or too weak.

The “None” setting trap: why Tie On/Tie Off = None looks harmless in the software (until you touch the thread)

In the video, the instructor selects a satin column object and shows the properties panel where Tie On and Tie Off are set to None. The path visualization shows a start point at the top and an end point at the bottom. With no tie-out at the end, the thread can simply hang there.

That’s the failure mode: the object may stitch, but it’s not anchored the way you think it is.

A practical way to think about it:

• No tie-in: The first visible stitches can be pulled out like a loose tooth before the thread is truly locked by the rotary hook.
• No tie-out: The last stitching sequence acts like an open zipper. One snag in the wash, and the entire column unspools.

This is why “it stitched fine” is not the same as “it will survive handling, washing, and wear.” Commercial embroidery must survive the washing machine, not just the hoop.

The “Hidden” prep before you edit Tie On/Tie Off: check thread behavior, underlay, and what the machine will actually do

Before you change anything, do a quick reality check. This prevents you from “fixing” a design that’s actually failing for a different reason (like density, underlay, or stabilization).

Prep Checklist (do this before editing ties):

• Identify Object Type: Confirm if you are editing a satin column, fill, or run. Satin columns unravel easiest; fills are generally more robust but still need anchoring.
• Check Underlay: Look for underlay settings. While underlay helps stabilize the fabric, do not rely on it as a locking mechanism.
• Locate Start/Stop Points: Visualize exactly where the machine stops. Is it on a sharp corner? Is it in the middle of a fill?
• Zoom to Wireframe: Zoom in until you see individual stitch points. You need to see the geometry of the lock.
• Check "Hoop Hygiene": Even perfect ties fail if the fabric flags (bounces) in the hoop.

A Note on Hooping: If you’re also thinking about physical consistency (registration, distortion, edge quality), remember: even perfect digitizing can be ruined by unstable fabric. In real shops, this is where hooping for embroidery machine becomes the make-or-break skill—because a design that’s “digitized right” still needs stable tension and backing to stitch right. If your fabric sounds like a "thud" rather than a "drum" when tapped, tighten it before accusing the software.

Basic vs. Triangle tie-ins in Embroidery Legacy: choose the lock stitch that matches the stitch width (not your mood)

The video demonstrates two tie methods inside the object properties:

• Basic tie: Small back-and-forth stitches that follow the general direction of the stitching. It is discreet and standard.
• Triangle tie: A more pronounced triangular/arrowhead motion that uses movement in multiple directions (X and Y axis).

The instructor’s practical recommendation is clear:

• Leave the default at Basic for general use, especially for standard lettering and outlines.
• Use Triangle when you want a stronger catch—often on wider areas (he specifically mentions fills as a place he might use it).

The Physics of the Lock: Why triangle holds better: Machines lock thread more reliably when there’s movement across both axes. The change in direction forces the top thread to twist around the bobbin thread more aggressively.

The "Danger Zone": However, be careful with Triangle ties on narrow columns (under 1.5mm width). The geometry of a triangle tie requires space. If you force it into a 1mm column, the needle penetrations will be too close together, leading to thread breaks or a visible hard knot that feels like a pebble under your finger.

The stop-point move that makes your satin columns look expensive: bury tie-outs inside the column, not on the tip

This is the most valuable “small move” in the whole lesson for elevating quality from "homemade" to "professional."

In the video, the tie-out is sitting at the very top edge of a satin column—exactly where your eye goes on a crisp letter or shape. The instructor uses the reshape/edit tool and drags the Stop point (red square node) down into the body of the satin column.

Expected outcome: The tie-out happens inside existing stitches. The lock is buried under the previous layer of satin thread, eliminating the visible "nipple" or bump at the sharp point.

This matters most on:

• The top serifs of an “I” or “L”
• Sharp satin tips on floral leaves
• Small lettering (under 10mm) where any bump reads as messy

Checkpoint: After moving the stop point, switch to a 3D/preview view and look for the lock. It should be visually sunken into the satin, not sitting on the outline like a wart.

Width, pull compensation, and tie choice: use the 4.4 mm satin column example as your reality check

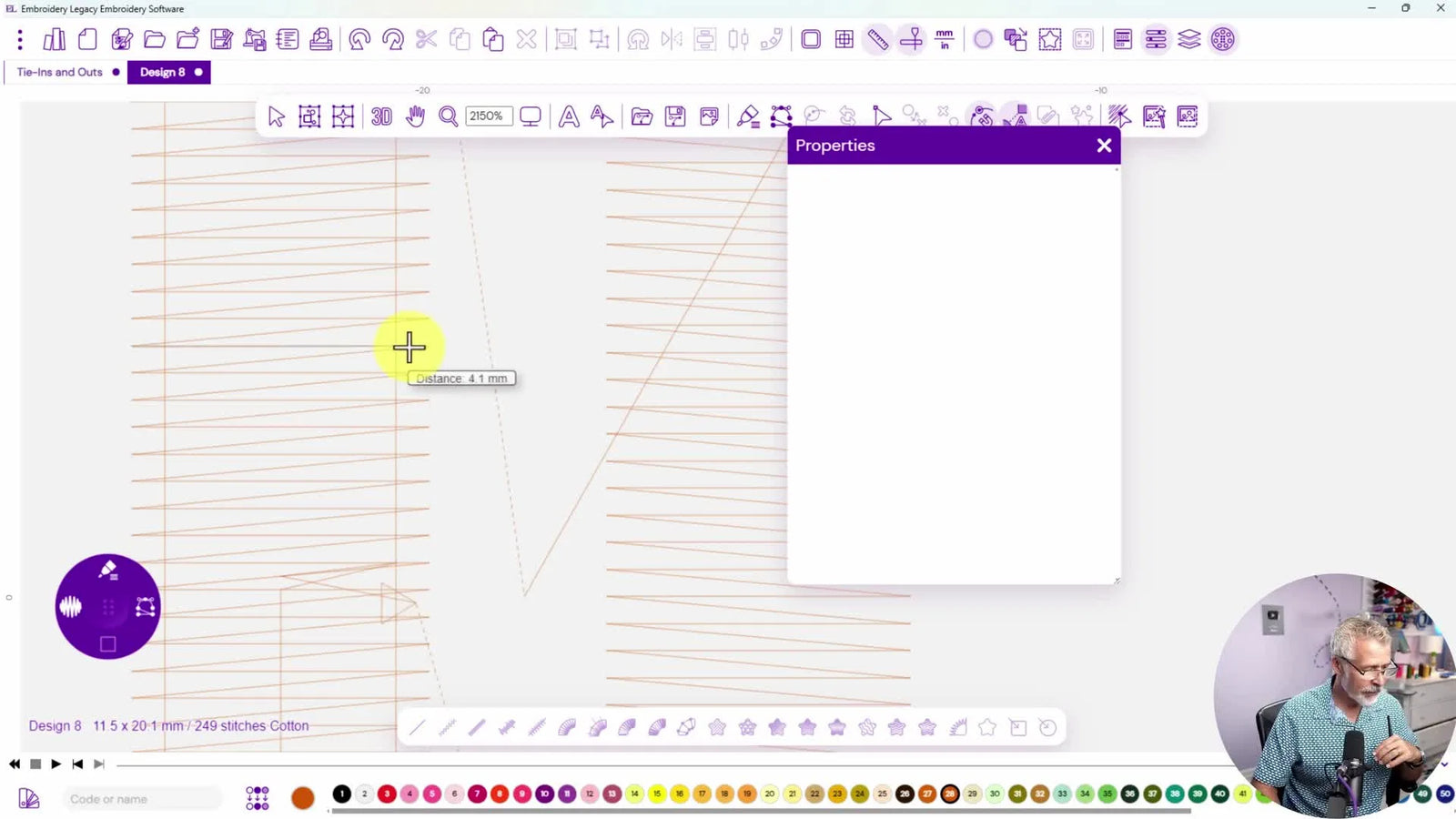

The video shows a satin column measuring 4.4 mm total width with pull compensation (a 4.0 mm column plus 0.2 mm pull compensation on each side). That’s a healthy width where a triangle tie can physically fit without sticking out.

The instructor also notes that if the column were around 1 mm, that triangle tie would likely be ineffective or visually problematic—so a classic/basic tie would be the safer choice.

General Shop Rules for Safety:

• Wide (>3mm): Safe for Triangle ties. Great for towels or heavy fleece where stitches sink in.
• Narrow (<1.5mm): Stick to Basic ties. Triangle ties here risk needle deflection.

If you’re building files for different fabrics, remember that pull compensation and stabilization work together. Fabric that stretches or shifts will exaggerate lock visibility and edge distortion. This is where a stable hooping workflow and consistent backing selection matter as much as the tie method. A perfectly digitized tie on a loose hoop will still look sloppy.

The “Bad Frog” experiment: how missing ties and bad pathing create trims, jumps, and real-world failure

The instructor duplicates a frog design and creates two versions:

• Good version: Tie-ins/tie-outs enabled, travel runs used to connect areas.
• Bad version: Ties removed, travel stitches deleted, forcing jumps/trims between objects.

Then he toggles the stitch view to show connectors. The bad version is covered in trim markers (little “X”/scissor indicators), while the good version stays clean and connected.

The Commercial Impact of Trims: This is not just about speed, though speed matters. Excessive trims create:

1. Birdnesting Risks: Every trim requires a cut, a tie-off, and a restart. These are the three moments a machine is most likely to jam.
2. Tail Cleanup: A design with 50 trims means the operator spends 5 extra minutes manually trimming tails with snips.
3. Visual Clutter: "Un-trimmed" thread tails often poke out after washing if the trim settings aren't perfect.

If you run a shop, this is where time becomes money. Reducing trims by using travel runs increases your profit margin per hour.

Travel runs under outlines: the cleanest way to reduce trims without changing what the customer sees

The video’s best production-friendly tactic is using travel runs (running stitches) hidden under future elements—especially outlines.

In the frog example, the black border around the design is used as a “cover layer.” The digitizer can travel underneath areas that will later be covered by that border, connecting objects without trimming.

Expected outcome: The design looks identical on screen and on the machine preview, but stitches faster and cleaner because it avoids stop-start cycles.

The Production Reality: This technique requires trust in your registration.

• If your fabric is unstable (like a thin performance knit), hidden travel runs can "peek out" if the outline shifts by even 1mm.
• If your hooping is solid and backing is correct (Cutaway for knits!), travel runs become nearly invisible and extremely reliable.

For operators doing repeated setups, a dedicated embroidery hooping station can reduce handling distortion and keep placement consistent—especially when you’re running the same left-chest logo all day. Consistent hooping means your outlines land exactly where they should, covering those travel runs perfectly.

The slow redraw ritual: catch sequencing mistakes before you waste thread, backing, and a blank garment

The instructor turns on 3D and runs a Slow Redraw / stitch player before sending the file to the machine.

This is not optional if you care about consistency. You are looking for logical errors that static images hide.

The Redraw Interrogation:

• "Is that a Jump?" Watch the dotted lines. Are they crossing open fabric?
• "Is the Tie Buried?" Watch the needle point finish a column. Does it bury the lock before the outline covers it?
• "Is the Sequence Smart?" Are you stitching center-out (good for caps) or jumping left-to-right randomly (bad for puckering)?

A slow redraw is also how you catch “looks fine in objects list” problems—like a stop point sitting on a letter tip or a connector line crossing an open area.

Setup checkpoints that prevent real machine headaches: trims, locks, and what your multi-needle will do at speed

Even though the lesson is software-based, the stitch-out proves the point: the machine will faithfully execute whatever you digitize.

Setup Checklist (before export and stitch-out):

• Tie-in Verification: Confirm every object (especially satins) has Tie On/Tie Off enabled.
• Geometry Check: Scan for narrow satin columns (<1.5mm) and ensure they are NOT using Triangle ties.
• Stop Point Audit: Ensure stop points on sharp lettering tips are moved inward by 2-3 overlapping stitches.
• Trim Count: Toggle connectors view. If the screen looks like a spiderweb of trims, use travel runs to reduce them.
• Speed Limit: For the first test run, reduce machine speed (SPM) to 600-700. Watch the tie-ins engage. Once proven, you can ramp up to production speeds (800-1000+).

If you’re running a multi-needle setup in production, trims and restarts are where you lose time and invite thread issues. When you’re ready to scale, a high-value upgrade path is moving repetitive work onto a reliable multi-needle platform like SEWTECH. Generally, multi-needle machines reduce changeover time and keep output steady, and pairing them with magnetic embroidery hoops significantly speeds up hooping while reducing "hoop burn" marks on sensitive fabrics.

Warning: Needle Safety: Keep hands, tweezers, and snips away from the needle area during operation. Needle strikes happen faster than human reaction time. A broken needle at 1000 SPM can become a sharp projectile. Always power down or engage "E-Stop" before clearing thread nests or reaching under the presser foot.

Troubleshooting tie-ins, tie-outs, and trims: symptom → cause → fix (the same logic the video demonstrates)

Here are the exact failure modes shown in the video, translated into a fast diagnostic table you can use on any file. Start with the cheapest fix (software/checking) before changing expensive hardware part.

1) Symptom: Embroidery falling apart / thread unravels when pulled

• Likely Cause: Tie-ins/Tie-outs missing (set to "None").
• Fix: Enable Basic ties in properties.
• Pro Tip: Don't let the presence of underlay fool you. Underlay stabilizes fabric; it does NOT lock the thread. You still need a tie.

2) Symptom: Visible bumps/knots at the tips of letters

• Likely Cause: Tie-out placed at the very edge because the digital "Stop" node is on the tip.
• Fix: Drag the Stop node 1-2mm back into the column body.
• Watch Out: On micro-text (under 5mm), use Center Walk underlay instead of ties if possible, or use the lightest tie setting available.

3) Symptom: Excessive trims (and messy back of garment)

• Likely Cause: Poor pathing; machine trims after every single object.
• Fix: Add travel runs under upcoming outlines to connect segments continuously.
• Business Reality: If you spend 2 minutes trimming tails on a $10 patch, you just lost your profit. Digitizing for fewer trims protects your margins.


Stabilizer decision tree for clean lock stitches: match fabric + backing so ties stay hidden and edges stay crisp

Tie-ins/tie-outs are tiny, but they’re still stitches—and stitches react to fabric movement. If the fabric shifts, locks become visible, outlines wobble, and travel runs can print through.

Use this decision tree as a starting point (always confirm with your stabilizer supplier and your machine manual).

Decision Tree (Fabric → Stabilizer/Backing choice):

1. Is the fabric stretchy (knits, polo shirts, performance wear)?
   • Action: Use Cutaway stabilizer (2.5oz or 3.0oz).
   • Why: Knits move. Tearaway will disintegrate and let the fabric stretch, breaking your locks.
2. Is the fabric stable woven (canvas, twill cap, denim)?
   • Action: Tearaway is usually fine.
   • Why: The fabric supports itself.
3. Is the fabric lofty or textured (fleece, towels, velvet)?
   • Action: Use Soluble Topper on top + Cutaway/Tearaway on back.
   • Why: The topper keeps the stitches (and the tie-ins) from sinking into the pile and disappearing.
4. Is this a patch on a stable base (like felt)?
   • Action: A firm heavy tearaway or specific badge backing keeps edges sharp.

If you’re seeing registration drift or “wavy” satin edges even with correct ties, the fastest fix is usually not another software tweak—it’s improving stabilization and hooping tension. For high-volume work, a hooping station for embroidery machine helps you apply consistent tension and placement across operators, which directly improves how clean your tie-outs look.

Warning: Magnet Safety: If you use magnetic hoops/frames, keep magnets away from pacemakers, insulin pumps, and other implanted medical devices. Be mindful of pinch points—industrial strength magnets can snap together with enough force to injure fingers.

The production-friendly upgrade path: when better digitizing should trigger better hooping tools (and when it shouldn’t)

Digitizing fixes like ties and travel runs reduce failures, but they also expose bottlenecks:

• You stitch faster (fewer trims), so hooping becomes the slow step.
• You get cleaner results, so hoop marks and placement inconsistency become more noticeable.

Here’s a practical “scene trigger → decision standard → option” path that keeps upgrades logical:

1. Scene Trigger: You’re doing repeated orders (logos, team wear, patches) and hooping is slowing you down.
   • Decision Standard: If hooping time per item is consistently longer than the actual stitch time, you are losing throughput.
   • Option: Add a hooping workflow tool like a magnetic hooping station. This aligns the hoop automatically, ensuring your carefully digitized travel runs land exactly where intended every time.
2. Scene Trigger: You’re getting "hoop burn" (shiny rings) or distortion on delicate fabrics like performance polos.
   • Decision Standard: If you find yourself loosening the hoop tension to avoid marks (risking flagging), you’re trading one problem for another.
   • Option: Use a magnetic embroidery frame. These use downward magnetic pressure rather than friction, holding fabric securely without crushing the fibers.
3. Scene Trigger: You’re ready to move from “one-off hobby” to “repeatable production.”
   • Decision Standard: If you are frustrated by changing thread colors constantly and babysitting every trim, your output is capped by your manual labor.
   • Option: Consider a multi-needle machine upgrade (SEWTECH is positioned as a high-value productivity step). A multi-needle machine handles color changes automatically, allowing you to walk away and focus on the next setup.

A quick note on the comments: viewers asking about affordability and waiting for sales is real-world shop math. The best way to justify any upgrade is to time your current process for one typical job (hooping + stitch + cleanup) and compare it to the minutes saved when trims drop and hooping speeds up. If the minutes saved per piece multiply into real weekly hours, the upgrade pays for itself.

Operation checklist: the final “don’t waste a blank” routine before you stitch the real garment

This is the checklist I’d want any operator to follow before running a customer item—because it prevents the exact failures shown in the frog demo.

Operation Checklist (right before the real stitch-out):

• Test Swatch: Always run a swatch on scrap fabric similar to the final garment.
• Tension Check: Pull the top thread gently near the needle. It should feel like flossing teeth—some resistance, but smooth. If it's loose, your ties won't hold.
• Tie Verification: Watch the first few stitches of the test. Did you hear the lock?
• Trim Audit: Did the machine trim where expected? Did the travel runs stay hidden?
• The "Tweezers Test": After the test stitch-out, take a pair of tweezers and gently tug on a thread tail in a non-critical area. If it starts to unzip, the file acts like the "bad frog" and needs editing.
• Consumables Check: Have your "Hidden" kit ready: sharp appliqué scissors, a lighter (to quickly singe fuzzy thread tails), and a seam ripper (just in case).

The video’s final proof is simple: the “bad” frog can be pulled apart with tweezers, while the properly digitized version holds. That’s the standard you’re aiming for—designs that don’t just look good on screen, but that can survive the life of the garment.

FAQ

• Q: In Embroidery Legacy software, why does a satin column unravel when the thread tail is tugged after stitching?
  A: Enable Tie On and Tie Off (do not leave them set to “None”) so the start and end of the object are locked.
  • Open the object properties for the satin column and set Tie On/Tie Off to a locking option (often Basic is the safest default).
  • Recheck the start and stop points so the lock stitches happen in a stable area, not on an exposed edge.
  • Success check: at the start you should hear a fast “thump-thump-thump” in one spot before the pantograph starts moving for the main stitches.
  • If it still fails: run the “tweezers test” on a test swatch—if it starts to unzip, re-audit ties on every satin object (do not rely on underlay as a lock).
• Q: In Embroidery Legacy software, how can a digitizer prevent visible knots or bumps at the tips of satin lettering caused by tie-outs?
  A: Move the Stop point inward so the tie-out is buried inside the satin column instead of sitting on the tip.
  • Select the satin object and use the reshape/edit tool to locate the Stop node (red square).
  • Drag the Stop node down into the body of the column by about 2–3 overlapping stitches so later stitches cover the lock.
  • Success check: in 3D/preview the lock should look sunken/hidden inside the satin, not like a raised “nipple” on the edge.
  • If it still fails: reduce how aggressive the tie is on small lettering, and re-check hoop stability because fabric flagging can make any lock look bigger.
• Q: In Embroidery Legacy software, when should Basic tie-ins vs Triangle tie-ins be used to avoid thread breaks on narrow satin columns?
  A: Use Triangle ties only when stitch width can physically fit the triangle motion; use Basic ties for narrow satins (especially under 1.5 mm).
  • Measure the satin width and identify any narrow columns before choosing the tie method.
  • Choose Basic for narrow columns (<1.5 mm) to avoid needle penetrations being too close and causing breaks or hard knots.
  • Reserve Triangle for wider areas (often wide satins or fills) where the multi-direction lock can sit cleanly.
  • Success check: the lock holds when lightly tugged, and the lock does not feel like a hard “pebble” under a fingertip.
  • If it still fails: check pull compensation and fabric stability, because distortion can make locks expose and increase break risk.
• Q: In Embroidery Legacy software, how do missing travel runs and bad pathing create excessive trims, birdnesting risk, and messy backs on multi-needle embroidery machines?
  A: Re-path the design to connect areas with travel runs (hidden under future elements) so the machine trims less often.
  • Toggle the connectors/trims view and look for a “spiderweb” of trim markers between objects.
  • Add travel runs to connect segments, especially where an upcoming outline/border will cover the travel stitch.
  • Test with a slow redraw/stitch player to confirm the connectors stay under cover layers and do not cross open fabric.
  • Success check: the trim markers drop dramatically, and the stitch player shows continuous stitching with fewer stop-start cycles.
  • If it still fails: improve hooping tension and stabilization—poor registration can make hidden travel runs “peek out” if outlines shift.
• Q: What stitch-player checks in Embroidery Legacy software catch jump stitches, unburied tie-outs, and bad sequencing before wasting a blank garment?
  A: Always run Slow Redraw/3D preview and verify jumps, ties, and sequence logic before exporting to the machine.
  • Play the design slowly and watch dotted connector lines for jumps crossing open fabric.
  • Stop at satin endings and confirm the tie-out is buried before the next cover layer stitches.
  • Review sequence flow to avoid random left-to-right stitching that can increase puckering risk.
  • Success check: the stitch player shows no unnecessary jumps, and tie-outs finish inside areas that get covered by subsequent stitches.
  • If it still fails: reduce test speed to about 600–700 SPM for the first run so tie behavior can be observed clearly.
• Q: What are the safest needle-area steps when clearing thread nests or trims on a multi-needle embroidery machine running at 800–1000+ SPM?
  A: Do not reach near the needle while the machine is running—power down or engage E-Stop before clearing nests, snips, or tweezers work.
  • Stop the machine and wait for full motion stop before bringing hands or tools near the needle area.
  • Remove thread nests carefully with tools only after the machine is powered down/E-Stopped.
  • Restart at a reduced speed for the next test segment so you can confirm ties and trims behave correctly.
  • Success check: hands never enter the needle zone during motion, and the next restart stitches cleanly without immediate re-nesting.
  • If it still fails: inspect the file for excessive trims and weak tie logic, because frequent stop-start cycles are a common trigger for jams.
• Q: What magnet safety rules should operators follow when using magnetic embroidery hoops/frames in a production shop?
  A: Treat magnetic hoops as industrial-strength magnets: keep them away from implanted medical devices and protect fingers from pinch points.
  • Keep magnetic hoops/frames away from pacemakers, insulin pumps, and other implanted medical devices.
  • Separate and handle magnets slowly and deliberately to avoid snap-together finger injuries.
  • Store magnets with spacers/controlled placement so they cannot slam together unexpectedly.
  • Success check: hooping is controlled with no sudden magnet “snap,” and operators can repeat placement without hand strain.
  • If it still fails: switch to a more controlled hooping workflow (often a dedicated station) so alignment is repeatable without rushing.
