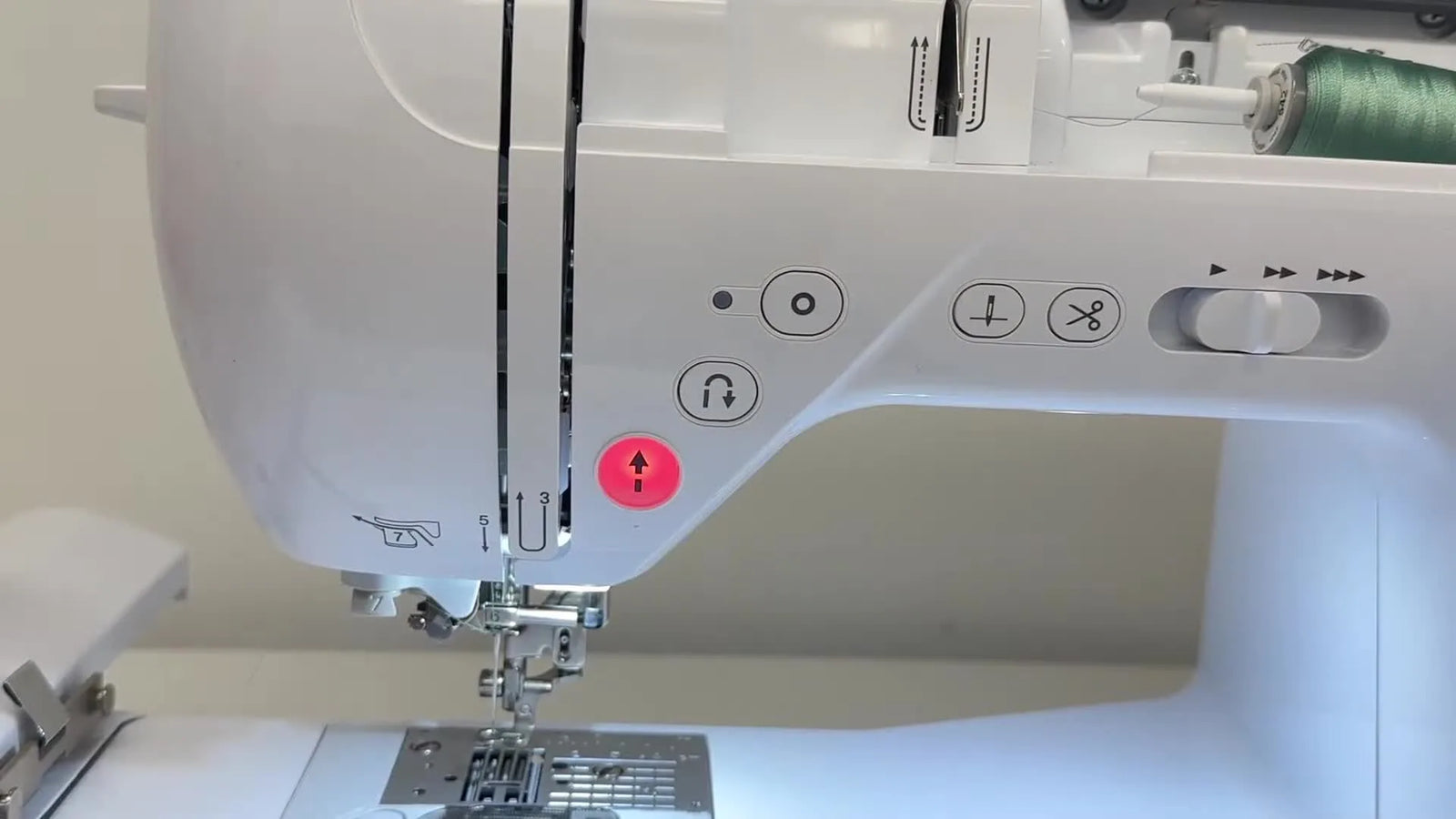

Threading the Brother SE2000 Without the Usual Headaches: From Spool Pin to Bobbin “Pop-Up” (and the Fixes That Actually Work)

If you’ve ever stared at your Brother SE2000 and thought, “I’m one wrong move away from breaking something,” you’re not alone. In my 20 years of embroidery education, I’ve seen this look on thousands of faces. I’ve watched beginners do everything almost right—then the machine refuses to pull up the bobbin thread, the needle unthreads after 30 seconds, or the auto threader feels “blocked.”

Here is the truth: Machine embroidery is an experience science. It’s not just about where the thread goes; it’s about the tension (how tight it feels), the sound (the click of the levers), and the sequence.

This post rebuilds the full threading sequence into a master-class protocol. You’ll get clear checkpoints, sensory anchors (what to feel and hear), and the specific parameters that prevent 90% of threading drama on this specific brother sewing and embroidery machine.

The Calm-Down Primer: What “Threading Problems” Usually Really Mean on a Brother SE2000

When a student brings me a "broken" machine, it is almost never broken. Most threading failures on the Brother SE2000 stem from three mechanical realities:

1. The "Floss" Error: The upper thread never fully seated deep into the tension discs. It looks threaded, but it’s floating on top.
2. The Presser Foot Trap: The presser foot was down during threading (locking the tension discs) or up during threading (blocking the needle threader). Timing is everything.
3. The Bobbin "Catch": The bobbin is installed, but the thread isn’t engaged in the tension spring slit, meaning the needle can’t generate the friction needed to lift the loop.

So if you’re feeling intimidated (a very common comment from new owners), good news: this is mechanical and repeatable. You don’t need "magic hands." You need a consistent routine grounded in physics.

The “Hidden” Prep Pros Do First: Spool Orientation, Covers, and a 10-Second Sanity Check

Before you touch guide #1, we must stabilize the physics of your thread delivery. If the thread fights the spool, tension becomes inconsistent, and needles break.

Spool placement (the under-feed rule)

Place your thread spool on the horizontal spool pin.

• The Golden Rule: Make sure the thread unwinds from the bottom of the spool, not the top.
• Why? Thread has a natural twist. Unspooling from the bottom aligns with the machine's path, reducing the "pigs-tailing" that causes snaps. Use a spool cap that matches the diameter of your spool exactly—too small, and thread catches on the spool notch; too large, and the thread drags.


Prep checklist (do this every time)

• Needle Check: Is your needle fresh? If you can't remember when you changed it, change it now. A 75/11 embroidery needle is your standard baseline.
• Hardware Check: Confirm the spool cap is pressed firmly against the spool so there is no gap.
• Visual Map: Locate the solid arrows on the machine casing (ignore dotted lines; those are for winding bobbins).
• Bobbin Door: If you’ve been struggling to open the bobbin cover, do not force it. Slide the latch to the right and lift gently. Plastic fatigue is real.

End-of-Prep Checklist: Spool feeds from bottom, cap is tight, needle is fresh (75/11 recommended), bobbin area clear of lint.

Route the Upper Thread Through Guides 1–4: The Take-Up Lever “Capture” That Makes or Breaks Everything

This is the "Black Triangle" of embroidery—where most failures occur. We are going to prioritize tension control.

What to do (upper path 1–4)

1. Stance: Hold the thread spool with your right hand. Do not let go. Keep a slight resistance on the thread—imagine you are flossing teeth.
2. Guide #1: With your left hand, bring the thread over to #1 and under the small metal plate.
3. Guide #2: Pull the thread down the right channel. Keep holding the thread taut with your right hand! This forces the thread deep into the internal tension discs.
4. Guide #3 (The U-turn): Follow the arrow down, loop under the U-turn, and come up the left channel.
5. Guide #4 (The Take-Up Lever): Go up and "hook" the thread into the metal take-up lever from right to left.


The critical checkpoint: “Did I actually hook the take-up lever?”

The take-up lever is the heartbeat of the machine. It moves up and down rapidly to pull the stitch tight.

Sensory Check (The "Click"):

• Listen: You might hear a faint metallic snick.
• Feel: Pull the thread gently forward and backward. Does it move freely? Re-do it. It should feel captured—like it is inside a closed eyelet. You should NOT be able to pull it straight out toward you.

The Consequence: If the thread rides in front of this lever:

• You will see massive loops on the back of your fabric.
• The machine will make a clunking sound immediately.
• The needle will unthread instantly.


Nail Guides 5, 6, and 7 at the Needle Bar: The Tiny Latch That Stops “Needle Unthreading in 30 Seconds”

Gravity is working against you here. Once you come down toward the needle, we need to restrain the thread to prevent it from whipping around.

What to do (needle bar guides)

• Guide #5: Pass the thread behind the horizontal bar above the needle.
• Guide #6 (CRITICAL): This is the tiny wire loop/bar directly on the needle clamp. You must slip the thread behind this wire.
• Guide #7: There isn't always a 7 on every sub-model, but ensure the thread is centered directly in front of the needle groove.


Why guide #6 matters more than it looks

That tiny latch acts as a vibration damper. Without it, when the machine hits 400 or 600 stitches per minute (SPM), the thread creates a "whip" effect that pulls it right out of the needle eye.

Pro Tip: If your eyesight struggles here, use the white background of a business card behind the needle bar to see the wire clearly.

Use the Brother SE2000 Automatic Needle Threader Without Jamming It (Presser Foot Down, Firm Lever)

This mechanism is delicate plastic and thin metal. Brute force will break it ($50+ repair). Finesse will make it work forever.

Warning: Safety First! Keep fingers clear of the Start/Stop button while threading. Ideally, use the "Lock" screen mode if your SC2000 supports it to prevent accidental activation. The needle moves faster than your reflexes.

The correct sequence

1. LOWER the Presser Foot: This is non-negotiable. Lowering the foot creates the necessary tension on the thread so the hook can grab it. If the foot is up, the thread is too loose.
2. The "7" Shape: Pull the thread through guide 7 (the plastic notch on the left side of the machine) and cut it using the built-in side cutter. This leaves the exact length of thread needed.
3. The Press: Push the threader lever down firmly (one smooth motion) until it rotates all the way.
4. The Release: Let the lever rise up slowly.


Expected outcome

You should see a small loop of thread pulled through the eye of the needle to the back.

If the needle threader feels blocked or “doesn’t work”

• Symptom: The lever stops halfway or feels like it hit a wall.
• Cause: Your needle is not in the highest position.
• Fix: Press the "Needle Up/Down" button once or twice to ensure the needle is at its absolute structural zenith.

Finish the Upper Thread: Pull the Loop Through and Park the Thread Tail Correctly

Do not start sewing yet.

1. Gently pull the loop from the back of the needle until the tail comes free.
2. Raise the presser foot.
3. Pass the thread through the slit in the embroidery foot and underneath it towards the back of the machine.


Metric: You want about 4-5 inches (10cm) of tail. Too short, and it pulls out on the first stitch. Too long, and it gets caught in the embroidery.

Install the Drop-In Bobbin the Brother SE2000 Way: The “P” Orientation and the Tension Slit

Bottom thread issues account for 50% of "bad stitching."

Open the bobbin area

Slide the cover release to the right. Lift the cover.

Bobbin orientation (the “P rule”)

Use only Class 15 / SA156 clear plastic bobbins. Metal bobbins will damage the magnetic braking system in this machine.

• Hold the bobbin up. The thread should hang down from the left side.
• It should look like the letter "P". If it looks like a "q", flip it over.


Warning: Magnet Safety. If you stick a metal bobbin in here, the machine's magnetic sensors may misread, and the added weight will disrupt the tension calibration. Stick to the manufacturer-specified plastic bobbins.

Seat the bobbin and engage the tension path

1. Drop the bobbin in.
2. The Finger Hold: Place your right index finger on top of the bobbin to stop it from spinning.
3. The Drag: With your left hand, pull the thread into the slit (tension spring) and around the curved path.
4. Sensory Check: You should feel a slight, smooth drag—like pulling a ribbon across a package edge. If it pulls effortlessly, it missed the tension spring.


The Cutter Slot

Pull the thread through the path until it reaches the built-in cutter at the end of the raceway. Cut it there. This creates the perfect tail length for the "automatic" pickup (though I recommend manual pickup for precision—see next section).

Draw Up the Bobbin Thread (The Part That “Lost Me at the End”): Handwheel Direction, Thread Tails, and the Loop Pop-Up

Many manuals say you don't need to do this step on modern machines ("just start sewing"). Experience tells me otherwise. Drawing up the bobbin thread manually prevents the "bird's nest" (a giant knot of thread) on the bottom of your first stitch.

The exact motion

1. Hold the Upper Thread: Hold the upper thread tail with your left hand. Do not pull tight, just hold it so it doesn't get sucked in.
2. The Handwheel Rule: Always turn the handwheel on the right side TOWARD YOU (Counter-Clockwise). Never turn it away from you—this messes up the timing gears.
3. The Cycle: Turn the wheel one full rotation. The needle goes down, hooks the bobbin thread, and comes up.
4. The Catch: You will see a loop of the bobbin thread emerge through the needle plate.


Expected outcome

Use a pair of tweezers (or the tip of scissors) to sweep under the presser foot and pull both the top and bottom tails clear to the back.

Quick Setup Habits That Prevent Birdnests and False “Tension Problems”

Stop touching the tension dial! 99% of "tension issues" are threading issues. Leave the top tension at the default (usually 4.0 or the central dot) until you have ruled out everything else.

Setup checklist (Pre-Flight)

• Upper Thread: Seated deeply in tension discs (felt the drag?) and captured by the take-up lever.
• Needle: Thread is behind guide #6 (the wire).
• Tails: Both threads are under the foot and pulling to the back (5 inches / 12cm).
• Bobbin: "P" orientation confirmed.
• Clearance: The hoop is attached, and the arm has space to move without hitting a wall or coffee cup.


Troubleshooting the Brother SE2000 Thread Path Like a Technician: Symptom → Likely Cause → Fix

Don't guess. Use this diagnostic matrix. Start with the cheapest fix (re-threading) before moving to expensive fixes (repairs).

The Fabric-to-Stabilizer Decision Tree Beginners Wish They Had (So Threading Isn’t Blamed for Everything)

If your threading is perfect but your embroidery looks puckered or distorted, the fault lies in your "sandwich" (Fabric + Stabilizer). No amount of tension adjustment fixes bad stabilization.

Decision Tree: Choose stabilizer/backing before your first stitch

1. Is the fabric stretchy? (T-shirts, Polos, Hoodies, Knits)
   • Verdict: Cut-Away Stabilizer.
   • Why: Stitches cut fabric fibers. If the fabric stretches, the hole expands. Cut-away creates a permanent skeleton.
   • Action: Use fusible cut away stabilizer or spray adhesive with standard cut-away.
2. Is the fabric stable? (Denim, Canvas, Towels)
   • Verdict: Tear-Away Stabilizer.
   • Why: The fabric holds its own shape. The stabilizer is just temporary scaffolding.
3. Is the fabric fluffy/textured? (Towels, Fleece, Velvet)
   • Verdict: Add a Water Soluble Topper.
   • Why: Stitches sink into the fluff and disappear. The topper keeps stitches floating on top.

Hidden Consumable: Keep a can of temporary spray adhesive (like 505) or use a glue stick for the edges. It stops fabric from shifting inside the hoop.

When You’re Ready to Stop Fighting Hoops: A Practical Upgrade Path for Brother SE2000 Owners

Threading gets you running. Hooping is what determines whether your embroidery looks professional—and whether you enjoy the process or dread it.

If you are a hobbyist doing one towel a month, the standard plastic brother se2000 hoops are adequate. However, if you find yourself hitting these specific pain points, it is time to upgrade your tooling:

• The "Hoop Burn" Struggle: You tighten the screw so much it leaves permanent white rings on delicate items.
• The "Thick Item" Battle: You can't close the hoop over a thick Carhartt jacket or a layered quilt.
• The Production Fatigue: You are making 20 items for a team, and your wrists hurt from screwing/unscrewing hoops.

The Solution: Upgrade to Magnetics. Professionals switch to a brother se2000 magnetic hoop (often available as the magnetic hoop for brother SE series) because it uses strong magnets to clamp fabric instantly without the "screw-tightening" friction. This eliminates hoop burn and handles varying thicknesses automatically.

Warning: Magnetic Hoop Safety. These magnets are industrial strength. Keep them away from pacemakers. Watch your fingers—they snap together with significant force (pinch hazard). Keep away from credit cards and hard drives.

If your volume increases further (e.g., small business orders), consider a hooping station for embroidery machine. This ensures that every logo is placed in the exact same spot on every shirt, reducing the "human error" of crooked alignment.

The JPEG Question (and Why It Came Out Horrible): What Digitizing Really Is for Embroidery Files

"I loaded a JPEG of my dog, and the machine just made a blob."

This is the #1 expectation gap. Machine embroidery is not printing.

• JPEG/PNG: A map of colored pixels.
• PES/DST File: A map of X/Y coordinates for needle movement.

Your machine cannot read a JPEG. It needs a digitized file. Auto-digitizing software (one-click conversion) often produces poor results—messy stitch angles, bulletproof density (too thick), and jump stitches everywhere.

Recommendation: For your first month, buy or download professionally digitized designs tested for an embroidery machine for beginners. Learn how good designs behave. When you are ready to create your own, invest in proper software and expect a 6-month learning curve, or hire a professional digitizer for complex logos.

Operation Checklist: The 30-Second “Ready to Stitch” Routine That Prevents Re-Threading

This is your Pilot's Pre-Flight check. Do not press "Go" without it.

1. Clearance: Hoop is cleared of walls/objects.
2. Threads: Top and bobbin threads are pulled to the back and have slack.
3. Foot: Presser foot is confirmed DOWN (Green light on button).
4. Speed: For your first layer, set the machine speed slider to Medium (around 400-500 SPM). High speed increases tension variables; stabilize the run first, then speed up.
5. Scan: Check your screen. Are you using the correct foot (usually the "Q" foot)?

End-of-Operation Checklist: Press Start. Watch the first 100 stitches. If it sounds smooth (rhythmic thumping, no grinding), you are clear to walk away for a moment. Happy stitching!

FAQ

• Q: How do I correctly orient and install a Class 15 / SA156 bobbin in a Brother SE2000 drop-in bobbin case to avoid loops on top of the fabric?
  A: Install the bobbin in the “P” orientation and make sure the thread is pulled into the tension slit before cutting the tail.
  • Use only clear plastic Class 15 / SA156 bobbins (avoid metal bobbins in this machine).
  • Place the bobbin so the thread hangs from the left side (looks like a “P,” not a “q”).
  • Hold the bobbin down with a finger, then pull the thread firmly into the slit and along the curved path.
  • Success check: You feel a slight, smooth drag when pulling the bobbin thread; it should not pull out with zero resistance.
  • If it still fails: Re-seat the bobbin and re-thread the slit again—most “top loops” happen when the thread missed the tension spring path.
• Q: How do I stop bird’s nest tangles (loops on the bottom) on a Brother SE2000 right at the first stitches?
  A: Re-thread the upper path and manually draw up the bobbin thread before pressing Start—this is the most reliable fix.
  • Re-thread the top thread with the presser foot UP so the thread seats deeply into the tension discs, then confirm the thread is hooked into the take-up lever.
  • Hold the upper thread tail, then turn the handwheel TOWARD YOU (counter-clockwise) one full rotation to bring up the bobbin loop.
  • Pull both thread tails under the foot and park them to the back (about 4–5 inches / 10 cm).
  • Success check: The first stitches sound smooth (no clunking) and the underside shows normal stitching, not a wad of loose loops.
  • If it still fails: Stop and re-check that the upper thread is actually captured by the take-up lever (it should not pull straight out toward you).
• Q: How do I confirm the Brother SE2000 upper thread is seated in the tension discs and captured by the take-up lever (Guide #4) so the needle won’t unthread?
  A: Keep light resistance on the thread while threading and verify the take-up lever “captures” the thread instead of letting it ride in front.
  • Hold the thread with slight tension (“floss” feel) as you pull down the right channel and back up the left channel.
  • Hook the thread into the take-up lever from right to left—do not skip this step.
  • Gently tug the thread forward/back to confirm it feels captured rather than freely sliding out toward the front.
  • Success check: You may hear a faint metallic “snick,” and the thread cannot be pulled straight out toward you from the take-up lever.
  • If it still fails: Fully re-thread Guides 1–4 again; “looks threaded” often means the thread is floating above the tension discs.
• Q: Why does the Brother SE2000 needle unthread after 30 seconds, and how do I fix the needle bar guide wire step (Guide #6)?
  A: Make sure the upper thread is slipped behind the tiny wire loop on the needle clamp (Guide #6), which damps vibration at speed.
  • Re-thread the last section near the needle and deliberately place the thread behind the small wire loop on the needle clamp.
  • Confirm the thread is centered and aligned with the needle path before using the needle threader or threading by hand.
  • Use a white card behind the needle bar if visibility is poor.
  • Success check: The machine can run at embroidery speed without the thread “whipping” out of the needle eye.
  • If it still fails: Replace the needle (a fresh 75/11 embroidery needle is a safe baseline) and re-check the take-up lever capture.
• Q: How do I use the Brother SE2000 automatic needle threader without jamming or forcing the lever?
  A: Lower the presser foot, put the needle at the highest position, then press the threader lever in one smooth, firm motion—never brute-force it.
  • LOWER the presser foot first so the thread has the correct tension for the hook to grab.
  • Press the Needle Up/Down button until the needle is at its highest position before engaging the threader.
  • Pull thread into the threader guide and use the built-in cutter to get the correct thread length, then push the lever down firmly and release it slowly.
  • Success check: A small loop of thread appears through the needle eye that you can pull through to the back.
  • If it still fails: Stop forcing the lever and re-check needle position; “blocked halfway” is commonly the needle not at the structural top.
• Q: What needle-related safety steps should Brother SE2000 owners follow during threading and needle-threader use to avoid injury or damage?
  A: Keep hands clear of any start control and never force plastic mechanisms—safe threading is slow, deliberate, and controlled.
  • Keep fingers away from the Start/Stop button while working near the needle area.
  • Move the needle using the Needle Up/Down button or handwheel (toward you only) rather than touching the needle.
  • Do not force the automatic threader lever; stopping halfway usually indicates needle position is wrong, not “stuck parts.”
  • Success check: The threader lever moves smoothly through its full travel and the needle area stays under full control (no accidental motion).
  • If it still fails: Pause and re-check the sequence (needle highest + presser foot down), then consult the machine manual for any model-specific lock/safety mode.
• Q: When should a Brother SE2000 owner upgrade from standard screw-tightened hoops to a magnetic embroidery hoop, and what is the safest upgrade path for productivity?
  A: Upgrade to a magnetic hoop when hoop burn, thick items, or repetitive hooping fatigue becomes the limiting factor—start with technique, then tooling, then machine capacity.
  • Level 1 (technique): Reduce over-tightening and stabilize fabric correctly so hooping pressure does not need to be extreme.
  • Level 2 (tooling): Switch to a magnetic hoop when hoop burn marks, thick jackets/quilts, or wrist fatigue from screw hoops keeps happening.
  • Level 3 (capacity): If order volume grows (many repeat items), consider a hooping station for consistent placement and, when needed, a multi-needle machine for throughput.
  • Success check: Fabric is clamped securely without white hoop rings, and thick items can be hooped consistently with less effort.
  • If it still fails: Treat magnets as industrial-strength—avoid pinch points and keep magnets away from pacemakers, cards, and sensitive electronics; if alignment is the issue, add a hooping station before changing machines.
