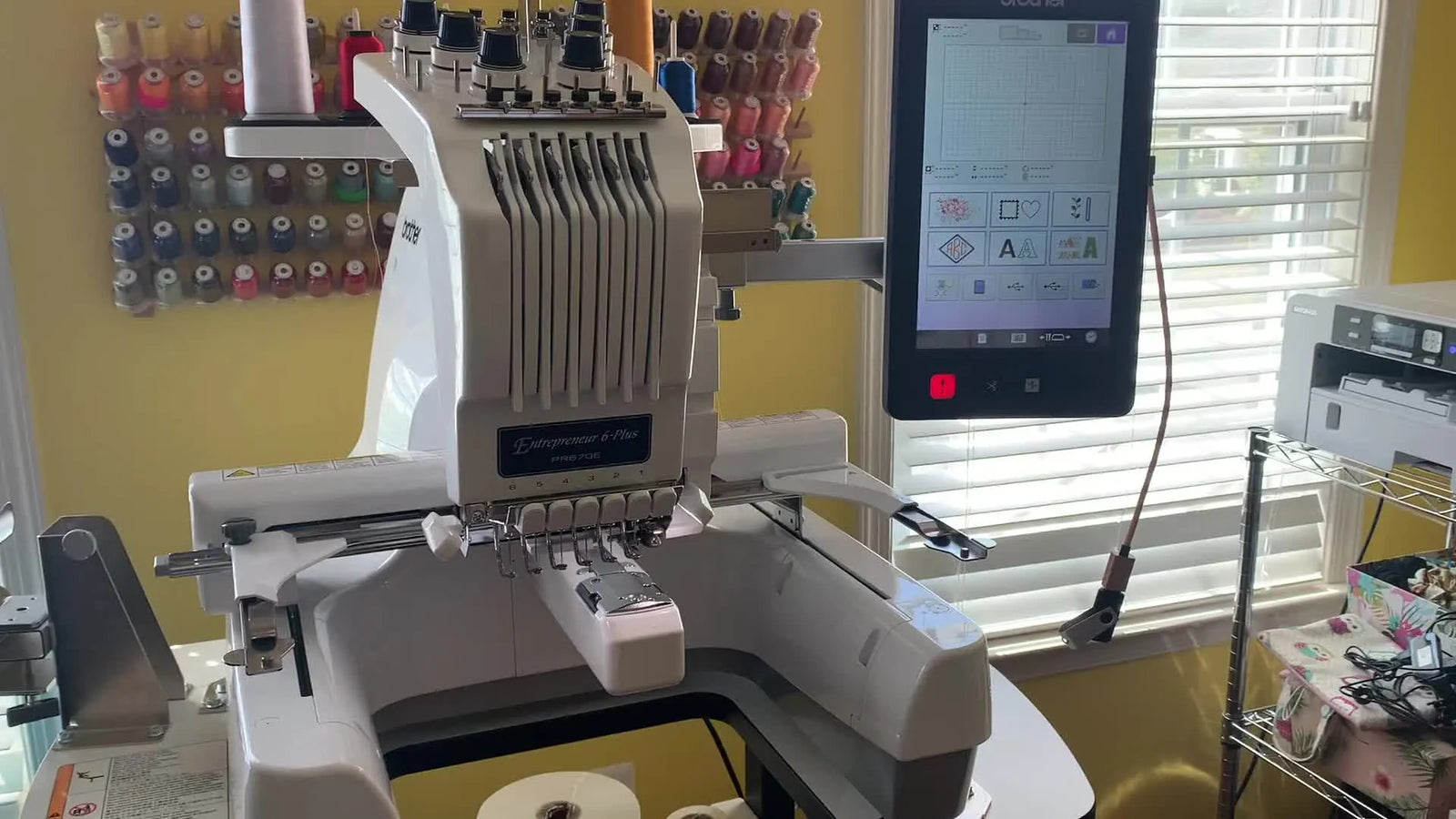

Threading the Brother PR670E Entrepreneur 6-Plus Without Tears: The Sensor Latch, the Zigzag Path, and a Faster Color-Change Trick

Master the Brother PR670E: The Ultimate Threading & Setup Guide for Production Success

If you have ever stared at a multi-needle head and thought, "I followed the manual, so why is it shredding thread?", you are in good company. Multi-needle machines like the Brother PR670E Entrepreneur 6-Plus are engineering marvels, but they are unforgiving of "almost correct" setups.

In the world of commercial embroidery, precision is the only shortcut. A single missed guide or a thread riding on top of a tension disk rather than inside it will stop your production cold.

In this guide, we are not just going to thread Needle 1. We are going to rebuild your entire threading workflow based on 20 years of floor experience. We will move from basic mechanical setup to advanced troubleshooting, and finally, look at how to break through production bottlenecks with the right tools.

Zero Friction: Why the PR670E is "Picky" (And Why That Protects You)

The PR670E is designed with a series of "tripwires"—sensors and check-springs intended to detect problems before they ruin a $50 jacket or a customer's cap. When the machine refuses to sew, it isn’t being dramatic; it is protecting the garment.

If you are transitioning from a single-needle home machine to a brother pr670e embroidery machine, the threading path will feel complex. This is normal. Your goal isn't speed; it's muscle memory.

The Golden Rule of Speed:

• Novice Velocity: Keep your machine at 500–600 SPM (Stitches Per Minute) when testing a new threading path.
• Pro Velocity: Only jump to 800+ SPM once you have verified the thread path is stable. Speed magnifies tension errors.


1. The Physical Prep: Aligning the Supply Chain

Before you touch a thread connection, you must prepare the machine's "supply chain"—the thread stand. This is the most overlooked cause of thread breakage.

The Telescopic Arms: Geometry Matters

Shipping configurations often leave the thread tree arms folded inward. If you run large 5,000-meter cones with the arms folded, the thread pulls at a sharp angle, hits the stand, and snaps.

Action Plan:

1. Locate the knob on the rear thread stand.
2. Loosen and spread the metal arms outward until they lock into the "V" shape.
3. Verify vertical alignment: The thread should travel from the center of the cone straight up to the guide hole without dragging against the cone's top rim.

Hidden Consumable Alert: If you are using slippery thread (like Rayon) that pools at the base of the cone, use a Thread Net. It adds just enough friction to prevent the thread from falling under the cone and snapping.

Prep Checklist: The "Pre-Flight" Inspection

Do not proceed until you check off these 5 items:

• Stand Geometry: Rear arms are fully extended and locked.
• Cone Seating: Cones are pushed down fully on the pins; heavy cones are stable.
• Tool Readiness: Scissors and the white stylus tool are within reach (do not use fingers for deep internal guiding).
• Bobbin Check: Open the bobbin case. Is it free of lint? A grain of dust here ruins top tension.
• Needle Integrity: Run your fingernail down the needle tips. If you feel a burr, replace the needle immediately.

Warning: Mechanical Safety
Keep fingers, long hair, jewelry, and loose sleeves away from the needle bars and the take-up levers while the machine is active. The take-up levers move deceptively fast and can cause serious injury. Always use the stylus tool when guiding thread near the needle bar specifically to keep your hands outside the "danger zone."

2. The Logic of the 6-Needle Manifold

The numbers 1 through 6 are not suggestions. The PR670E uses a specific manifold where the upper guide holes shift geometry to feed into a central tension system.

• Needle 1: Far right thread path.
• Needle 6: Far left thread path.
• The Trap: Users often cross paths (e.g., putting Thread 3 through Guide 4). This creates friction burns as threads rub against each other inside the head.


3. The Thread Breakage Sensor: The "Click" You Must Hear

This is the single most critical step in the entire process.

As you bring the thread down from the pre-tensioner toward the main tension knob, there is a small metal sensor latch. This latch tells the machine if the thread is intact.

• The Action: You must pull the thread firmly UNDER this metal latch.
• The Sensory Anchor (Auditory): Listen for a faint metallic tick or click as the thread slides completely under the latch.
• The Consequence: If the thread rides on top of this latch, the machine assumes the thread is broken and will stop every few seconds, or later cause a "bird nest" because the upper tension is effectively zero.


4. The Perfect Threading Path: A Sensory Walkthrough

We will reconstruct the path for Needle 1. The physics remain the same for all six needles.

Step A: The Pre-Tensioner (Back to Front)

1. Feed from the cone through the rear hole of the stand arm.
2. Feed through the front hole directly above the needle.
3. Descend into the pre-tension guide.
   • Check: The thread should be taut and straight, not twisted around the metal bar.

Step B: The Main Tension Assembly (The "Dental Floss" Feel)

1. Slide the thread under the Sensor Latch (confirm the click).
2. Wrap the thread Clockwise around the white tension knob.
   • Note: It must go between the tension disks, not sit on top.
3. Verify Resistance (Tactile): Hold the thread above the knob and pull gently from below. You should feel smooth resistance, similar to pulling dental floss. If it feels loose or weightless, it is not seated in the disks.

Step C: The Take-Up Lever (The Zigzag)

1. Guide the thread along the arrow path: Down, then Up.
2. Hook the Take-Up Lever from Right to Left.
3. Pull straight down into the needle bar guide.
   • Visual Check: Ensure the thread is securely in the eyelet of the lever, not caught on the arm behind it.

Step D: The Vertical Slot (The Precision Gap)

1. Insert the thread into the vertical slot guide above the needle.
2. Avoid the Void: There is often a gap between the plastic casing plates. Ensure the thread is in the metal guide, not slipping into the plastic housing gap.


Setup Checklist: The Tension System

• Path: Thread travels Back-to-Front through the upper tree.
• Sensor: Thread is physically UNDER the metal sensor latch.
• Tension: Thread is wrapped CLOCKWISE and seated deep in the disks.
• Lever: Thread hooked Right-to-Left in the Take-Up Lever.
• Housing: Thread is in the guide slot, not lost inside the machine casing.

5. The LCD & Auto-Threader: Trust but Verify

The PR670E’s auto-threader is reliable, but it requires the correct digital setup.

1. Select the needle icon on the LCD screen.
2. Highlight the exact needle you are threading (e.g., Needle 1).
3. Press the "Threader" button (the machine will move the head into position).


The Mechanical Action

1. Hook the thread under the guide forks on the threader mechanism.
2. Cut the excess using the side cutter on the left of the mechanism.
   • Why: A long tail can get caught in the first stitch, causing a pull-out.
3. Press the button to execute the cycle.




The "Tug Test" (Crucial)

Do not assume it worked just because the machine moved.

• Action: Gently pull the loop of thread at the back of the needle eye.
• Success Metric: The tail should pull through freely. If it feels stuck or drags the needle, the threader forks may be bent, or the thread is caught.

Troubleshooting Tip: If you see "Comment-based pro tips" suggesting the threader is failing, 90% of the time the needle is slightly bent. Change the needle first before adjusting the threader mechanism.

6. Production Efficiency: The "Tie-On" Method

If you are running a specific brother 6 needle embroidery machine setup for a large order, you do not want to re-thread the entire path for every color change. Use the "Tie-On" method, but do it safely.

1. Cut the old thread at the cone.
2. Place the new cone on the stand.
3. Knot: Use a tight Square Knot (Reef Knot) to join the old and new threads. It must be small and tight.
4. Pull: Unthread the needle eye manually. Pull the thread from the needle bar area until the knot passes through the tension disks and reaches your hand.
5. Cut & Thread: Cut off the knot before it goes through the needle eye.
   • CRITICAL: Never pull a knot through the needle eye. It will bend the needle or jam the eye.




7. Troubleshooting: Diagnosing the "Ghost" Problems

When the machine stops, use this logic flow. Do not guess; diagnose.

Symptom: "Check Upper Thread" Error (but thread looks fine)

• Likely Cause: Thread is riding on top of the sensor latch.
• Fix: Floss the thread back and forth to seat it under the latch until you hear the click.

Symptom: Birdnesting (Mess of loops on the bottom of fabric)

• Likely Cause: Zero top tension.
• Fix: The thread is not in the tension disks. Unwrap the tension knob and re-wrap firmly clockwise, flossing it into the disks.

Symptom: Thread Breaks immediately upon starting

• Likely Cause: Adhesive buildup on the needle or path obstruction.
• Fix: Change the needle. Check if thread is caught on the rough edge of a damaged cap or hoop.

8. Scaling Up: From Threading to Hooping (The Next Bottleneck)

Once your threading is mastered, the machine will run perfectly. Now, you will notice a new problem: Hooping is too slow.

If you are spending 2 minutes threading and 5 minutes struggling to hoop a thick hoodie or bag, your profit margin is dying on the hooping station.

The Problem: Hoop Burn & Wrist Fatigue

Standard tension hoops require significant grip strength and can leave permanent "burn" marks (crushed pile) on velvets, cords, or delicate performance wear.

The Solution: Magnetic Hoops

For production runs, professionals switch to magnetic systems.

• Level 1 Idea: Improve your standard hooping technique with backing spray.
• Level 2 Upgrade: magnetic embroidery hoops for brother. These use powerful magnets to clamp fabric instantly without forcing an inner ring into an outer ring. This eliminates hoop burn and drastically speeds up loading.
• Level 3 Commercial Scale: If you are running thousands of pieces, investigate systems designed for speed, such as mighty hoops for brother pr670e or compatible SEWTECH magnetic frames which offer similar efficiency at a scalable price point.

Decision Tree: Do You Need Magnetic Hoops?

1. Are you hooping thick items (Carhartt jackets/Towels)?
   • Yes: Upgrade Essential. Standard hoops will pop open or damage the machine arms (and your wrists).
   • No: Continue to step 2.
2. Are you getting "Hoop Burn" on delicate items?
   • Yes: Upgrade Recommended. Magnetic force holds without crushing fibers.
   • No: Continue to step 3.
3. Is your volume over 50 pieces per day?
   • Yes: Upgrade for Profit. Saving 30 seconds per hoop = 25 minutes saved daily.
   • No: Standard hoops are sufficient.

Warning: Magnet Safety
Magnetic hoops contain high-power industrial magnets.
* Pinch Hazard: They snap together with extreme force. Keep fingers clear of the mating surfaces.
* Medical Devices: Maintain a safe distance (6+ inches) from pacemakers or insulin pumps.
* Electronics: Keep away from credit cards and hard drives.

9. Operation Checklist: The 60-Second Start Routine

Before you press the green button, execute this final scan:

• Needle Selection: Is the LCD indicating the correct active needle?
• Tape/Tail Check: Are thread tails trimmed short so they don't get sewn into the design?
• Hoop Clearance: Rotate the handwheel or use the "Trace" function to ensure the needle won't hit the plastic hoop frame.
• Speed Limit: For the first 100 stitches, is the speed set to a safe 600 SPM?
• Bobbin: Do you have enough bobbin thread to finish the design? (Check the "low bobbin" sensor status).

Threading the brother pr 680w or PR670E correctly is the difference between a machine that makes noise and a machine that makes money. Respect the sensors, listen for the clicks, and when the threading is perfect but production is still slow—look to your hoops.

FAQ

• Q: On the Brother PR670E, what should be checked on the thread stand and cone setup before threading to prevent thread breakage?
  A: Extend and lock the rear thread-stand arms and ensure the thread feeds straight up without rubbing the cone or stand.
  • Loosen the rear knob and spread the telescopic arms outward into the locked “V” shape.
  • Push each cone fully down on its pin and confirm large cones sit stable.
  • Add a thread net if slippery thread pools at the cone base and causes sudden snags.
  • Success check: The thread travels from the cone center straight up to the guide hole with no dragging on the cone rim.
  • If it still fails: Slow testing to 500–600 SPM and re-check for any sharp-angle pull points at the stand.
• Q: On the Brother PR670E, how can the thread breakage sensor latch be threaded correctly so “Check Upper Thread” does not appear?
  A: Pull the thread firmly under the small metal sensor latch until a faint click/tick is heard.
  • Pull the thread down from the pre-tensioner and physically seat it under the metal latch (do not let it ride on top).
  • “Floss” the thread back and forth under the latch if it does not seat on the first try.
  • Success check: A subtle metallic click/tick is heard or felt as the thread slides fully under the latch.
  • If it still fails: Re-thread that needle path from the pre-tensioner to the tension knob and confirm the thread is not crossed with a neighboring needle path.
• Q: On the Brother PR670E, how can the main tension disks be confirmed to be engaged to prevent birdnesting (loops under the fabric)?
  A: Wrap the thread clockwise and seat it between the tension disks, then confirm “dental floss” resistance when pulling.
  • Slide the thread under the sensor latch first, then wrap clockwise around the white tension knob.
  • Pull gently from below while holding above the knob to feel smooth, controlled resistance.
  • Success check: The pull feels like dental floss—steady resistance, not loose or weightless.
  • If it still fails: Unwrap and re-wrap firmly clockwise and re-check that the thread is not sitting on top of the disks.
• Q: On the Brother PR670E, what is the correct needle numbering logic to avoid crossed thread paths and friction issues inside the head?
  A: Match each thread to its correct guide number—Needle 1 is the far-right path and Needle 6 is the far-left path, with no crossing.
  • Start by identifying Needle 1 at the far right and Needle 6 at the far left, then follow the corresponding guide holes.
  • Avoid routing Thread 3 through Guide 4 (or any mismatch), because threads can rub each other inside the head.
  • Success check: Each thread descends cleanly on its own lane with no visible crossing at the top guides.
  • If it still fails: Re-thread one needle at a time and verify the path before moving to the next needle.
• Q: On the Brother PR670E, how can the auto-threader be verified so the stitch-out does not fail from a bad needle thread?
  A: After running the auto-threader, do a tug test on the loop behind the needle eye to confirm the thread pulled through freely.
  • Select the exact needle on the LCD, then press the Threader button to position the head correctly.
  • Hook the thread under the threader guide forks and cut the excess using the side cutter to avoid a long tail snagging.
  • Gently pull the loop of thread at the back of the needle eye to confirm it releases smoothly.
  • Success check: The tail pulls through freely without dragging the needle.
  • If it still fails: Replace the needle first (a slightly bent needle commonly causes threader trouble) before adjusting the threader mechanism.
• Q: What mechanical safety rule should be followed when threading near the Brother PR670E needle bars and take-up levers?
  A: Keep hands and loose items out of the needle-bar zone and use the stylus tool for deep guiding near moving parts.
  • Keep fingers, long hair, jewelry, and loose sleeves away from needle bars and take-up levers when the machine is active.
  • Use the stylus tool instead of fingers when guiding thread near the needle bar area.
  • Success check: Thread can be guided into the correct guides while hands remain outside the moving mechanism area.
  • If it still fails: Power down before re-positioning thread paths in tight areas to reduce injury risk.
• Q: When hooping becomes the bottleneck after threading is stable, how should standard hoops vs magnetic embroidery hoops be chosen for production runs?
  A: Use a staged approach—improve technique first, then upgrade to magnetic hoops if hoop burn, thick items, or high daily volume is the limiting factor.
  • Start with Level 1: Improve standard hooping technique and use backing spray to stabilize fabric.
  • Move to Level 2: Switch to magnetic hoops when hoop burn appears on delicate fabrics or when thick items (jackets/towels) are hard to clamp.
  • Consider Level 3: If running thousands of pieces, evaluate faster, production-focused hooping systems or higher-throughput machine setups.
  • Success check: Hooping time drops and fabric shows less crushing/marking while the hoop stays secure during stitching.
  • If it still fails: Re-check hoop clearance with Trace/handwheel to ensure the needle will not hit the hoop frame and reduce speed to 600 SPM for the first 100 stitches after changes.
• Q: What magnet safety precautions should be followed when using magnetic embroidery hoops in a production environment?
  A: Treat magnetic hoops as high-force tools—prevent pinch injuries and keep magnets away from medical devices and sensitive electronics.
  • Keep fingers clear of mating surfaces; magnets can snap together with extreme force.
  • Maintain at least 6+ inches distance from pacemakers or insulin pumps.
  • Keep magnetic hoops away from credit cards and hard drives.
  • Success check: The hoop closes without finger contact in the clamp zone and remains stable on the garment.
  • If it still fails: Slow the handling process and reposition the fabric before bringing the magnetic ring halves together.
