Threading the Brother PR-600 Series Without the “Phantom Thread Break”: The Double-Wrap Habit That Saves Your Day

If you have ever re-threaded a multi-needle head three times in a row, only to get a “thread break” alert before the machine even completes a single stitch, you are not alone. You have entered the "Uncanny Valley" of machine embroidery: where the thread looks connected, but the machine’s sensors disagree.

The Brother PR-600 series is a legendary workhorse, but it operates on binary honesty. It does not care about your deadline; it cares about physics. If the thread is not seated precisely in the sensor wheel, or if a microscopic lint ball is creating drag in the pre-tensioner, the machine will stop to protect itself.

This guide is not just a walkthrough; it is a protocol. We are rebuilding the threading path shown in the video using "shop-floor logic"—the kind utilized by operators who run these machines for 8 hours a day. We will calibrate your touch, sound, and sight to ensure that when you thread a brother pr600 embroidery machine, it stays threaded.

Calm the Panic: What a Brother PR-600 “Thread Break” Usually Really Means

First, a mental reset. A "thread break" alert on a multi-needle head is rarely a snapped thread. In 90% of cases, it is a sensor error.

The machine uses a wheel sensor (the main tension knob) to detect movement. If the wheel stops turning—even if the thread is moving—the machine assumes the thread has snapped.

In the video, the host isolates the single most common cause of "phantom" breaks: insufficient contact with the sensor wheel. Wrapping it once is often not enough to grip the wheel. You must wrap it twice.

If you are new to a brother 6 needle embroidery machine, adopt this mindset:

• Threading is a circuit, not a task. Every point of contact (guide, disk, spring) adds a necessary amount of drag.
• Tension is tactile. You cannot rely on visual checks alone; you must feel the resistance.


The Hidden Prep Pros Do First: Thread Stand, Lint, and a Clean Start at the Pre-Tensioner

Before you touch the fancy tension knobs, start at the source. The journey from the cone to the pre-tensioner is where 30% of problems originate.

What the video shows (and why it matters)

1. Stage the Cone: Place your thread cone securely. Ensure the thread is unwinding from the top and not catching on the "notch" cut into the bottom of the cone (a classic rookie mistake that snaps needles).
2. The Tree: Route the thread straight up through the overhead guide on the thread tree.
3. The Pre-Tensioner: Bring the thread down to the small metal pre-tensioner unit. Seat the thread inside the small metal branch/clip—do not just rest it on top.

Sensory Anchor (Touch): When you slide the thread into the pre-tensioner clip, pull it back and forth gently (like flossing teeth). You should feel a slight, smooth resistance. If it slides freely with zero drag, it is not seated.

Pro tip pulled from real shop life

The host highlights a critical maintenance habit: keep the pre-tensioner clean.

Because this is the first point of contact, it strips dust and lint off the thread. Over weeks, this lint packs into the disks, forcing them open.

• The Symptom: Needle 1 stitches perfectly, while Needle 2 loops constantly despite identical settings.
• The Fix: "Floss" the disks with a folded piece of paper or use a non-compressed air duster.

Warning: Mechanical Safety. Keep fingers clear of moving parts. Never reach into the needle bar area or near the take-up levers while the machine is active. The sheer force of a multi-needle machine can puncture bone. Always hit the "Lock" button on the screen before manual threading.

Prep Checklist (Do this BEFORE touching the tension wheel)

• Cone Check: Is the thread spool notch at the bottom and not snagging the thread?
• Tree Alignment: Is the thread going straight up to the tree, not tangling with neighbors?
• Pre-Tensioner "Floss": Is the thread seated deep in the clip?
• Drag Test: Pull 6 inches of thread. Does it feel smooth (good) or jerky (bad)?
• Consumable Check: Do you have tweezers and a lint brush handy?

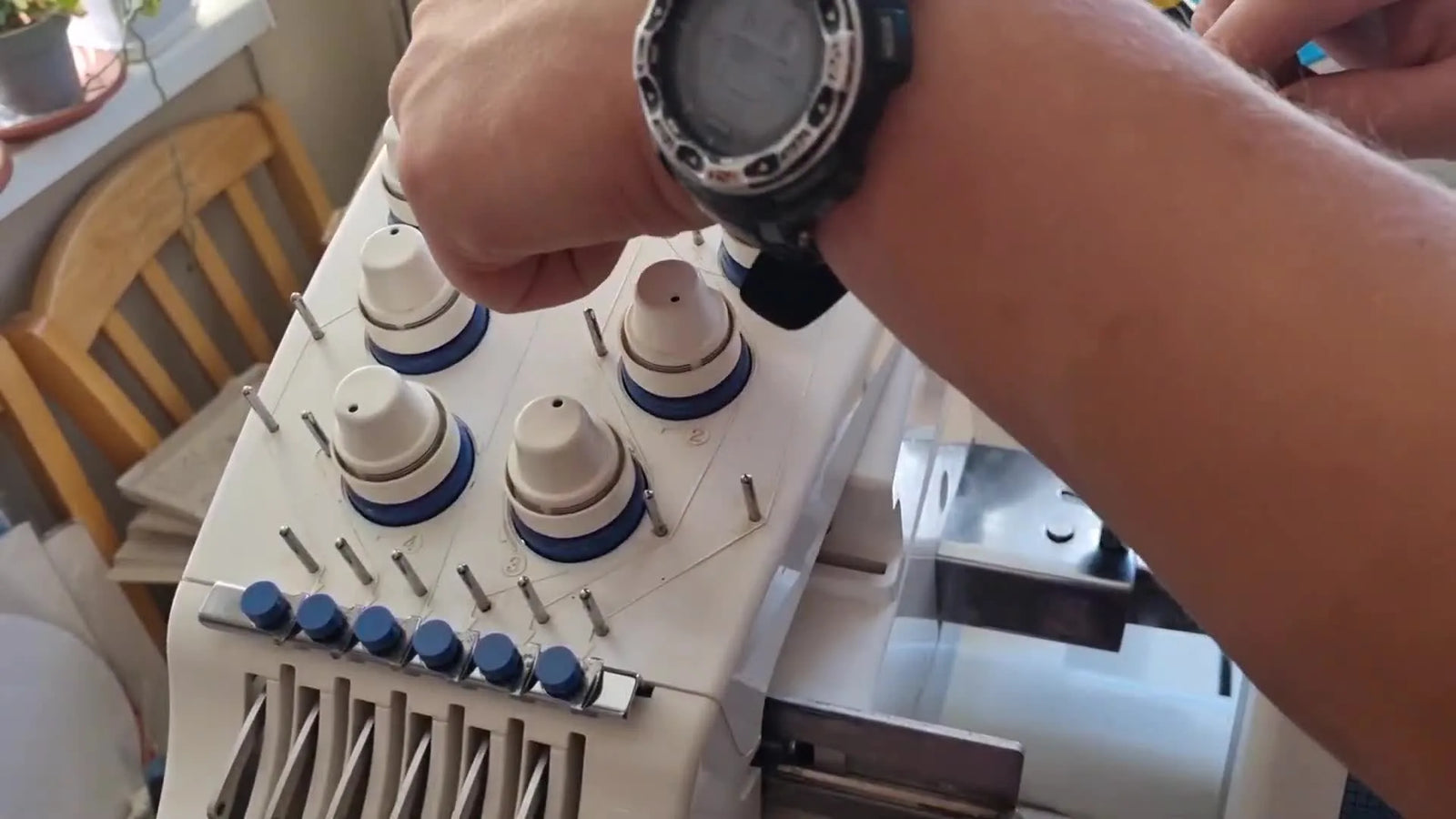

The “Double-Wrap” Rule: Wrapping the Brother PR-600 Tension Wheel Twice to Stop False Breaks

This is the most valuable takeaway from the video. It is the difference between a frustrating afternoon and a profitable one.

What to do (The "540-Degree" Rule)

1. Bring the thread down to the main tension wheel (the numbered knob).
2. Route the thread clockwise.
3. Wrap it twice. Go around a full circle, and then another full circle.

The host demonstrates the first wrap, then immediately performs the second.

Why this is non-negotiable

The PR-600 uses an optical sensor on this wheel. Modern polyester threads are incredibly slick. With a single wrap, the thread often slides over the wheel without turning it.

• Result: The wheel stands still -> The sensor sees no movement -> The machine stops and screams "Thread Break."
• The Double Wrap Fix: It creates enough friction to force the wheel to turn with the thread.

Expected outcome (your checkpoint)

Sensory Anchor (Sound/Touch): After two wraps, pull the thread downwards. It should feel tight, like a guitar string tuned low. You should see the tension knob physically verify the rotation. If it feels sloppy, stop. unwinds and re-wrap.

Production environments rely on the pr600 embroidery machine for stability; this "double-wrap" technique is the standard operating procedure for ensuring that stability.

Follow the Upper Thread Path Like a Technician: Check Spring Engagement and Take-Up Lever (Right-to-Left)

Once you leave the tension wheel, you enter the "timing" section of the path. This controls how the thread behaves when the needle penetrates the fabric.

What the video shows

1. Guide the thread down the vertical channel.
2. Critical Move: Use your index finger to press the thread against the machine face as you go down. This maintains tension so the thread doesn't jump off the wheel above.
3. The Check Spring: Hook it under the L-shaped check spring.
4. The U-Turn: Go down, around the bottom guide, and back up.
5. The Take-Up Lever: Thread the eye of the lever from right to left.


Why this section matters (Expert Insight)

The check spring is your shock absorber. It snaps back to pull the thread tight after a stitch.

• Sensory Anchor (Sound): When you pull the thread up against the check spring, listen for a faint metallic tick. That is the sound of engagement.
• Visual Check: Look closely at the check spring (the thin wire). As you pull the thread, the wire should flex and move. If the wire stays static, you missed it.


Stay in Your Lane: Needle Bar Guides and the Numbered Channel (Don’t Cross Slots)

Multi-needle machines are dense. The difference between a perfect stitch and a shredded thread is often just 2 millimeters.

What the video shows

• Bring the thread down the vertical channel specifically marked for that needle number.
• Do not cross into adjacent channels.
• Pass the thread through the guide hole on the metal plate immediately above the needle bar.


Expected outcome (your checkpoint)

Stand directly in front of the machine head. The threads should look like parallel harp strings.

• The Trap: If you thread Needle 3 but let the thread drift into the channel for Needle 4, the threads will rub against each other during operation. Friction = Heat = Shredding.
• Fix: If you catch a crossed wire, don't just push it over. Pull it back up to the source of the cross and re-lay it.


The Tiny Hook That Tests Your Patience: Threading the Needle Clamp Wire Guide

The video is honest here: Needle 1 is accessible. Needles 2 through 6 get progressively more cramped.

What the video shows

• Hook the thread through the tiny wire coil guide located directly on top of the needle clamp (the screw that holds the needle).

Watch out (Common Frustration)

The host struggles slightly on the second needle. This is normal.

• Pro Tip: Do not come straight from the front. Approach the needle clamp from a 45-degree angle. It is easier to slip the thread into the coil from the side.
• Ergonomics: If you are threading all 6 needles, take a break. Micro-movements strain the wrist. Use tweezers if your fingers are large or shaky.


Make the Brother PR-600 Automatic Needle Threader Work *With* You (LCD Button + Cutter Length)

This mechanism is brilliant, but it is calibrated to a specific tolerance. It is not magic; it is engineering.

What the video shows (Full Sequence)

1. On the LCD control panel, press the Automatic Threading button (icon of a needle with a thread). The carriage will move to position.
2. Pass the thread under the carrier hook (the large plastic hook).
3. The Critical Cut: Pull the thread up into the built-in side cutter and trim it.
4. Press the button again to execute.




Why the cutter step is NOT optional

The host explains that cutting the thread on the built-in cutter sets the exact length of the "tail."

• Too Long: The tail gets caught in the mechanism and makes a nest.
• Too Short: The hook misses the thread entirely.
• Just Right: Using the built-in cutter ensures the threader hook grabs the perfect amount of thread to pull a loop through the eye.


Setup Checklist (Before you press the final button)

• Path Integrity: Is the thread under the check spring and through the take-up lever? (If no, the threader will just pull slack and fail).
• Carrier Hook: Is the thread seated under the large horizontal hook?
• Tail Length: Did you cut the thread using the machine’s side cutter?
• Clearance: Are your hands away from the mechanism?

The “Why It Works” Layer: Tension, Sensors, and Smooth Feeding

Understanding the physics prevents you from having to relearn this every week.

1. The Double Wrap is about Communication, not just Grip. You are telling the computer "I am moving." Without that signal, the computer assumes the worst.
2. Lint is variable resistance. A clean machine stitches consistently. A dirty machine requires constant (and wrong) tension knob adjustments.
3. Flow over Force. If you ever have to yank thread, something is wrong. The path should flow like water. Force causes pigtails (which snap needles) and stretching (which ruins satin stitches).

Troubleshooting the Brother PR-600 Thread Path: Symptom → Cause → Fix

When the machine stops, do not just hit "Start" again. Diagnose using this matrix.

A Simple Decision Tree: When Threading Problems Are Really Hooping Problems

Sometimes the thread path is perfect, but the result is terrible. This is usually due to Stabilization.

Start Here:

1. Does the thread break immediately (beep)?
   • YES: RETHREAD. (Focus on Tension Wheel and Pre-tensioner).
   • NO: Go to step 2.
2. Does the thread shred or break after 100+ stitches?
   • YES: CHECK NEEDLE. (Burred tip? Old needle? Wrong type? Change it.)
   • NO: Go to step 3.
3. Is the fabric puckering, or are outlines not lining up?
   • YES: THIS IS A HOOPING ISSUE. Stop adjusting tension.

The Business of Hooping: Upgrading Your Stability

If you are confident in your threading but struggling with registration (alignment) or efficiency, look at your hoops.

The Pain Point: Traditional screw-tightened hoops are slow. They cause "hoop burn" (permanent rings on delicate fabric) and hand strain (Carpal Tunnel is real in this industry).

The Upgrade Path:

• Level 1 (Technique): Use better stabilizers. If stitches are sinking, use water-soluble toppings.
• Level 2 (Tool Upgrade): Switch to Magnetic Hoops.
  • Terms like hooping for embroidery machine often lead professionals to magnetic solutions because they hold fabric firmly without the "burn" of traditional friction hoops.
  • If you are creating hats, searching for a specialized brother pr600 hat hoop setup is crucial, but for flats, a magnetic frame can cut your hooping time by 50%.
• Level 3 (Scale): If you are running 50+ pieces a day, the time saved by machine embroidery hoops that snap instantly into place can equal an extra hour of production per day.

Warning: Magnet Safety. Magnetic hoops use industrial-strength neodymium magnets.
* Pinch Hazard: They snap together with enough force to crush fingers. Handle with extreme care.
* Medical Safety: Keep magnets away from pacemakers and insulin pumps. The strong field can disrupt medical devices.

The Operational Logic: Reduce Re-Threading, Increase Output

Proper threading is about Predictability. When you eliminate variables (by double-wrapping, flossing tensioners, and checking springs), you stop fighting the machine and start managing production.

If you find yourself constantly battling the machine despite perfect threading, it might be time to evaluate your hardware. High-volume shops eventually graduate to dedicated production units (like SEWTECH multi-needles) to handle the load, but optimizing your current Brother PR-600 with the right techniques and magnetic hoops will squeeze every ounce of profit out of your current setup.

Operation Checklist (The Final 30-Second Pre-Flight)

Do not hit "Start" until you can check all seven boxes:

• Pre-Tensioner: Thread seated deep in clip; no debris.
• Tension Wheel: Wrapped TWICE (Clockwise).
• Check Spring: Thread captured and "clicking."
• Take-Up Lever: Threaded Right-to-Left.
• Vertical Lane: Thread is in its own channel, not crossing lines.
• Needle Guide: Thread passes through the wire coil on the clamp.
• Clearance: Hoop is clear of obstructions; hands are safe.

Thread once. Thread right. Run all day.

FAQ

• Q: Why does the Brother PR-600 show a “Thread Break” alarm even when the thread is not broken?
  A: This is usually a sensor-reading issue—wrap the Brother PR-600 main tension wheel twice so the sensor wheel must turn.
  • Re-thread from the cone to the main tension wheel and route the thread clockwise.
  • Loop the thread around the main tension wheel two full wraps before continuing down the path.
  • Pull the thread downward with steady tension to keep it from jumping off the wheel.
  • Success check: the tension wheel visibly rotates and the pull feels firm (not sloppy).
  • If it still fails: go back to the pre-tensioner clip and re-seat the thread, then re-check check-spring engagement.
• Q: How do I know the Brother PR-600 thread is correctly seated in the pre-tensioner clip?
  A: Seat the thread deep in the metal pre-tensioner clip and do a “floss test” to confirm controlled drag.
  • Slide the thread into the small metal branch/clip (do not let it rest on top).
  • Pull the thread back and forth gently like floss to confirm it is captured.
  • Clean lint from the pre-tensioner area if drag feels inconsistent.
  • Success check: the thread moves with slight, smooth resistance (not zero drag, not jerky).
  • If it still fails: re-thread that needle path from the cone again and verify the thread is not tangling with neighboring cones on the thread tree.
• Q: What is the correct Brother PR-600 upper thread path after the tension wheel to prevent looping and missed tension?
  A: Follow the Brother PR-600 upper path exactly and capture the check spring, then thread the take-up lever right-to-left.
  • Press the thread against the machine face while guiding it down the vertical channel to keep tension on the wheel.
  • Hook the thread under the L-shaped check spring, then make the down-around-up “U-turn.”
  • Thread the take-up lever eye from right to left before continuing downward.
  • Success check: the check spring flexes when you pull the thread and you may hear a faint metallic “tick.”
  • If it still fails: re-check that the thread did not slip off the tension wheel during the downstroke and re-wrap twice if needed.
• Q: How can crossing needle channels on a Brother PR-600 cause shredding, and how do I fix it?
  A: Keep each Brother PR-600 thread in its own numbered vertical lane—crossed lanes create friction that can shred thread.
  • Stand centered in front of the machine head and trace the thread straight down its assigned channel.
  • Re-lay the thread if it drifts into a neighboring slot (do not just push it sideways at the bottom).
  • Pass the thread through the guide hole on the metal plate above the needle bar for that needle.
  • Success check: threads look like parallel harp strings with no rubbing or crossing.
  • If it still fails: inspect the needle for burrs and replace the needle if shredding continues.
• Q: Why does the Brother PR-600 automatic needle threader fail, and what is the correct cutter step?
  A: Use the Brother PR-600 built-in side cutter to set the correct tail length—hand-cut tails often make the threader miss.
  • Press the LCD Automatic Threading button to position the mechanism.
  • Place the thread under the large carrier hook, then cut using the machine’s side cutter (do not guess the length).
  • Press the button again to execute the threading cycle.
  • Success check: the threader pulls a loop cleanly through the needle eye without nesting.
  • If it still fails: confirm the thread path is complete (check spring + take-up lever) before using the threader again.
• Q: What safety steps should be followed when re-threading a Brother PR-600 multi-needle embroidery machine?
  A: Lock the Brother PR-600 before putting hands near moving parts—multi-needle force can cause serious injury.
  • Press the “Lock” button on the screen before manual threading or clearing thread.
  • Keep fingers away from the needle bar area and take-up levers whenever the machine could move.
  • Use tweezers for tight needle clamp wire guides instead of forcing fingers into cramped spaces.
  • Success check: the machine is locked and no mechanisms move while your hands are in the threading area.
  • If it still fails: stop and re-check that the correct on-screen lock state is active before continuing.
• Q: When Brother PR-600 stitch quality problems are actually hooping or stabilization problems, what is the best upgrade path?
  A: If Brother PR-600 threading is correct but puckering or mis-registration continues, stop adjusting tension and address hooping/stabilization in levels.
  • Level 1 (Technique): improve stabilization (use appropriate stabilizers; add water-soluble topping when stitches sink).
  • Level 2 (Tool): switch to magnetic hoops to reduce hoop burn, speed hooping, and improve consistency on flats.
  • Level 3 (Scale): if producing high daily volume, consider a production-focused multi-needle setup for throughput stability.
  • Success check: outlines line up cleanly and fabric stays flat without over-tightening the hoop.
  • If it still fails: return to the decision tree—verify whether the issue happens immediately (threading) or after many stitches (needle condition).
