Threading the Baby Lock Venture 10-Needle Without the Headache: A Shop-Pro Walkthrough (Plus Cap Driver Setup That Won’t Slip)

If you have ever upgraded from a domestic flatbed machine to a multi-needle beast and felt a spike of panic—“What if I thread this wrong and ruin a $30 cap?”—you are experiencing a very specific type of anxiety. The Baby Lock Venture is a serious production-minded machine. The good news? Multi-needle embroidery is 10% mechanics and 90% muscle memory.

In my 20 years of floor experience, I have learned that the difference between a frustrated hobbyist and a profitable shop owner isn't talent; it’s process. In this "White Paper" style guide, I am rebuilding the workflow shown in the video into a production-grade Standard Operating Procedure (SOP). We will cover the specific sensory cues (clicks and snaps) you need to feel, the safety margins you need to respect, and the tools that turn embroidery from a struggle into a system.

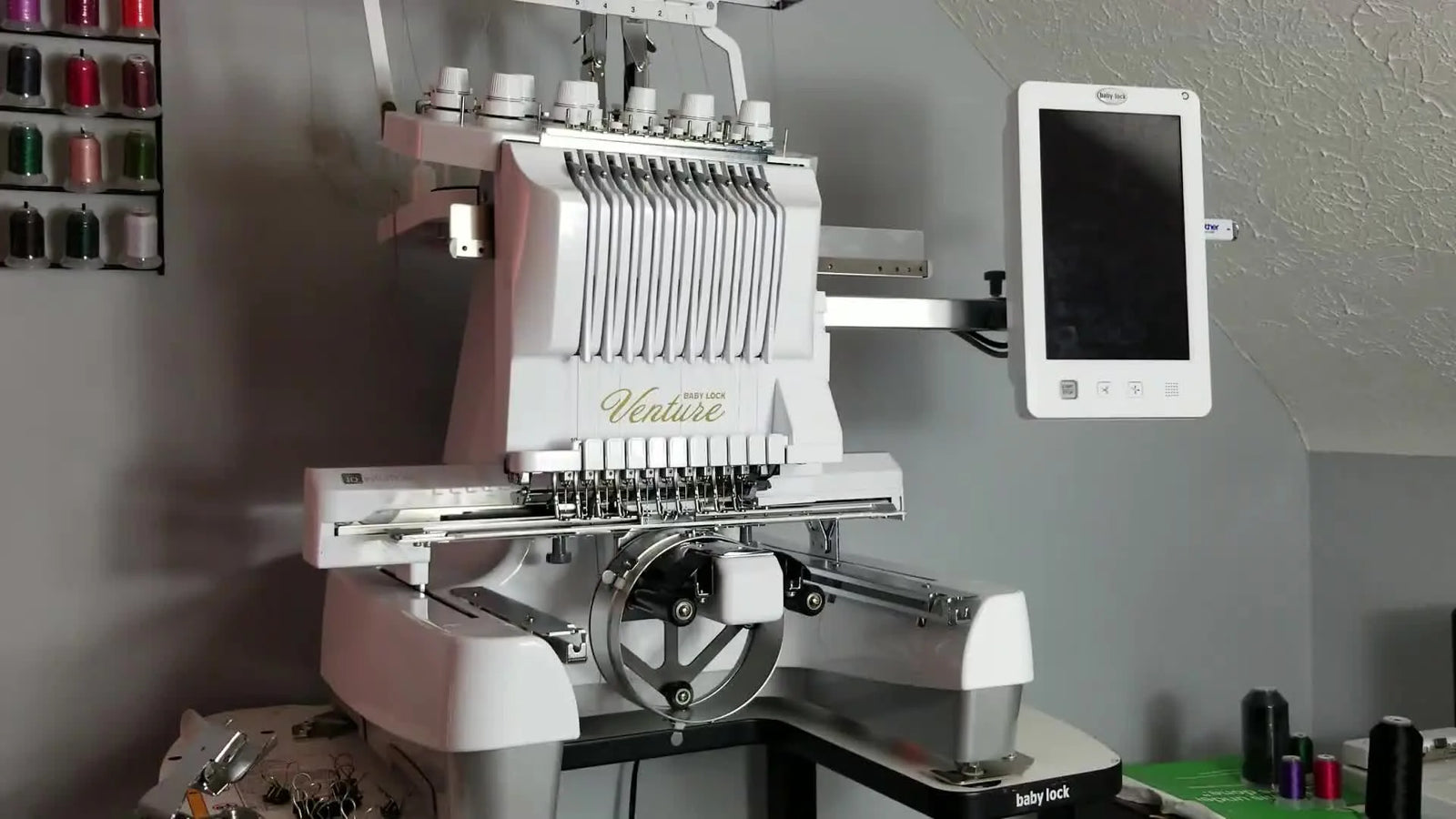

The “New Machine Jitters” Moment: Baby Lock Venture 10-Needle Basics That Calm You Down Fast

Dion’s reveal makes one thing clear: this is not a toy. You are looking at a 10-needle head, a 360-degree cap system, and a massive 14" x 8" field.

If you are coming from a single-needle world, you need a mental shift. On a single-needle machine, you are the color changer. On a multi-needle, you are the production manager. Your job is to set the stage so the machine can perform uninterrupted.

One viewer asked about the screen interface. As noted, the screen is integrated. However, the elephant in the room mentioned in the comments is the price—around $25,000. This number is critical. At this price point, "downtime" is expensive. You aren't just buying stitches; you are buying speed.

The "Sweet Spot" for Speed: While this machine can run at 1,000 stitches per minute (SPM), I advise all my students to start their first 20 hours at 600-700 SPM. Speed amplifies mistakes. Master the rhythm first; speed comes for free later.

The Cap Driver Reality Check: Setting Up the 360 Hat Hoop/Cap Driver So It Doesn’t Fight You

The video shows the 360-style hat hoop attached to the machine arm. The promise is brim-to-brim embroidery. The reality? Caps are the hardest item to embroider because they are curved, structured, and fight the needle.

Caps fail due to "Flagging"—where the fabric bounces up and down with the needle, causing birdnesting. A standard cap driver relies on mechanical tension to stop this.

The Sensory Anchor: When hooping a cap, tap the front panel. It should sound like a dull thud (good) or a tight drum (better). If it sounds hollow or loose, you will get registration errors.

If you are shopping for a cap hoop for embroidery machine, your decision criteria should be grip strength. Many pros eventually upgrade to magnetic cap frames or specialized clamps because they reduce the physical strain of hooping 50 hats in a row and eliminate "hoop burn" (the shiny ring left by tight plastic hoops).

The Startup Oil Pop-Up on the Baby Lock Venture: Treat It Like a Non-Negotiable Ritual

Early in the video, the machine displays a maintenance reminder. Dion taps "OK." Do not just tap OK—do the work.

The rotary hook races on these machines spin at thousands of RPM. Friction creates heat; heat snaps thread.

• The Rule: One drop of clear embroidery oil on the hook race every morning.
• The Risk: If you skip this, your machine will get louder (a metallic grinding sound) and you will see "false" tension issues.

Warning: Mechanical Safety. Keep fingers, scissors, and loose sleeves at least 6 inches away from the needle bar area when powering on. Multi-needle heads calibrate by moving horizontally and vertically without warning. A moving head can crush fingers against the frame.

The Thread Tree Numbers 1–10: How to Think About a 10-Spool Setup Without Tangling Your Brain

Dion points out the numbering from 1 through 10. This is your logic map.

Production Tip: The "Standard Load" Strategy Don't change your threads for every job. Professional shops keep their top 5 colors (Black, White, Red, Navy, Royal) on needles 1-5 permanently. This reduces setup time by 50%.

If you are running a baby lock 10 needle embroidery machine for profit, consistency beats creativity in setup. Save the creativity for the digitizing.

The Big 14" x 8" Hoop: When the Baby Lock Venture Frame Size Actually Pays Off

The video shows the 14x8 frame. This is ideal for jacket backs and hoodie fronts. However, large hoops introduce a physics problem: Center Sag.

The middle of a large hoop has the least tension.

• The Fix: For large setups, use a "fusible" stabilizer or temporary spray adhesive to bond the fabric to the backing. This unifies the two layers.
• The Upgrade: This is where Industrial Magnetic Hoops (like those from SEWTECH) shine. They clamp the fabric continuously along the edge, providing uniform tension that traditional plastic screw-hoops struggle to achieve on thick hoodies.


The Stitch-Texture Preview on the Venture Screen: A Small Feature That Prevents Big Mistakes

Dion shows the realistic preview. Use this as your "Digital Twin."

What to look for (The 3-Second Scan):

1. Readability: Are small letters turning into blobs?
2. Density: Do you see solid blocks of color overlapping? (Risk of needle breakage).
3. Rotation: Is the design upside down? (Happens more often than you think).

If you are comparing a 10 needle embroidery machine to others, high-resolution previewing is a non-negotiable feature for catching errors before they cost you money.

The Upper Thread Path on the Baby Lock Venture: Route It Like Dion Does, or You’ll Chase Tension All Day

This is the "Brain Surgery" portion of the setup. Dion walks through the path. We must be precise.

The Sequence (Example Needle #9):

1. The Pre-Tensioner: Go behind the top guide.
2. The Tension Disc: Come down and wrap under the knob.
3. The Check Spring: Go down, around the L-shaped wire.
4. The Take-Up Lever: Up and through the eyelet.

Crucial Concept: The "Floss" Test When you pull the thread through the path (before the needle), it should feel like flossing your teeth—smooth resistance, but not stuck. If it pulls freely like there is no resistance, you missed the tension disc.

The “Hidden” Prep Before You Thread: What I Check in a Real Shop

Amateurs thread blindly. Pros inspect first. Here is your pre-flight procedure.

Prep Checklist (Pre-Thread Inspection):

• Cone Orientation: Is the thread cone sitting flat? A wobbling cone causes jerky tension.
• The "Puddle": Is there a puddle of thread at the base of the cone? (This will snag and snap the needle).
• Needle Condition: Run your fingernail down the needle tip. If it catches, it is burred. Replace it.
• Bobbin Check: blow out the bobbin case with canned air (away from machine internals) to remove lint.


The “Seat It or Regret It” Moment: Getting Under the Tension Disc on the Venture Without Guessing

Dion zooms in on the tension knob. This is the #1 failure point for new users.

The Sensory Anchor: The "Click" You must pull the thread firmly into the tension discs.

• Wrong: Gently laying the thread in the groove.
• Right: Holding the thread with two hands (creates a "U" shape) and flossing it into the disc until you feel or hear a subtle "Click" or "Snap."

If you don't feel that snap, the thread is riding on top of the discs. This results in "looping" on the top of your embroidery instantly.

The Take-Up Lever Pass-Through: The One Guide People Skip When They’re Rushing

The take-up lever pulls the stitch tight. If you miss this eyelet, the thread will not retract, and you will get a "bird's nest" (a giant knot) under the throat plate within seconds.

Visual Check: Ensure the thread is inside the eyelet, not just resting near it.

Move Needle #7 Into Position on the Touch Screen: Let the Venture Bring the Needle to You

Dion selects Needle #7 on the screen. The head moves.

Ergonomics Alert: Never reach across the head to thread a needle. Let the machine center the needle for you. This improves your visibility and reduces eye strain.

The Tiny Metal Needle Bar Guide: Use the Fork Tool, Save Your Fingernails (and Your Patience)

Dion uses the white fork tool. This is not a gimmick; it is an ergonomic necessity.

The needle bar guide is a tiny metal hook right above the needle clamp.

• Human Hand: Too big, blocks light.
• Fork Tool: Precise.
• Action: Push the thread behind the metal tab until it sits in the groove.


The Automatic Needle Threader Button: The Correct Hand Motions That Make It Work Every Time

Automatic threaders are temperamental if you don't help them.

1. Press button to lower mechanism.
2. The Secret: Hold the thread taut (tight) horizontally.
3. Guide it under the hook and up into the cutter.
4. Cut.
5. Press button to retract.

If the thread is loose/slack, the hook will miss it. Tension is key here.

Warning: Magnetic Safety. As you advance, you will likely use Magnetic Hoops. These use industrial-grade magnets (Neodymium).
* Pinch Hazard: They can snap effective force powerful enough to break a finger or pinch skin severely.
* Medical: Keep at least 6 inches away from pacemakers.
* Electronics: Keep away from credit cards and machine screens.

Switching From Needle #7 to Needle #8: The Fast Habit That Keeps Multi-Color Jobs Flowing

Dion moves to the next needle immediately.

Workflow Optimization: Do not thread needles "as you need them." Thread all 6 or 10 colors at the start of the day. A multi-needle machine is designed for continuous flow; stopping to re-thread kills your profit margin per hour.

The Binder Clip Cap Trick: Eliminate “Play” on the Cap Driver Before the First Stitch

Dion uses black binder clips (office supplies) to secure the cap brim.

Why? Because stabilizers and hooping are not always enough. If the cap vibrates, the registration drifts.

The Professional Solution: While binder clips work in a pinch, they are a band-aid. If you struggle with cap stability:

1. Level 1: Use a heavier cap stabilizer (3.0 oz tearaway).
2. Level 2: Use binder clips.
3. Level 3: Upgrade to a specialized cap clamping system or ensure your cap driver cable tension is properly calibrated by a technician.


Decision Tree: Choosing Stabilizer Strategy (The "Why" Behind the Setup)

Dion mentions caps and shirts. Stabilizer is the foundation of your house. Pick wrong, and the house sinks.

• Scenario A: Stretchy Fabric (T-Shirts/Polos)
  • Risk: Pucker and distortion.
  • Solution: Cutaway Stabilizer (2.5 - 3.0 oz). No exceptions. Adhesive spray acts as a second anchor.
• Scenario B: Stable Fabric (Caps/Denim/Canvas)
  • Risk: Needle deflection.
  • Solution: Tearaway Stabilizer. It provides rigidity but rips away cleanly.
• Scenario C: High Pile (Hoodies/Towels)
  • Risk: Stitches sinking into the fabric.
  • Solution: Water Soluble Topping (Solvy) on top + Cutaway on bottom.

If you are confused about hooping for embroidery machine best practices, memorize this: "If it stretches, cut it (Cutaway). If it's stable, tear it (Tearaway)."

Troubleshooting the Venture Threading and Cap Setup: Structured Diagnostics

Don't guess. Follow the logic path: Physical -> Thread -> Machine.

Hidden Consumables to Keep on Hand:

• Temporary Spray Adhesive (ODIF 505 or similar).
• Tweezers (for grabbing thread tails).
• Correct Needles (75/11 Sharp for Woven, 75/11 Ballpoint for Knits).

The Upgrade Path: Moving from Apprentice to Master

Dion suggests buying extra hoops and Fast Frames. He is right.

The "Bottleneck" Concept: Your machine runs at 1,000 stitches per minute. You hoop at 0 stitches per minute. If the machine protects your revenue, the hoops protect your sanity.

1. The Entry Level: Using standard plastic hoops provided with the machine. Slow, triggers repetitive strain injury (RSI), leaves hoop burn.
2. The Commercial Upgrade: SEWTECH Magnetic Hoops.
   • Why: They just "snap" onto the fabric. No screws to tighten. No hoop burn on sensitive fabrics like velvet or performance wear.
   • Result: Hooping time drops from 2 minutes to 30 seconds.
3. The Productivity Upgrade: SEWTECH Multi-Needle Machines.
   • Why: If the Baby Lock Venture ($25k) is out of budget, brands like SEWTECH offer industrial-grade multi-needle reliability at a price point that allows for faster ROI (Return on Investment).

Operators searching for terms like babylock magnetic embroidery hoops or baby lock magnetic embroidery hoop are usually looking for relief from the physical pain of hooping. Magnetic frames are valid medical devices in my opinion—they save your wrists.

For difficult items like bags or loose straps, many turn to fast frames embroidery systems, which use adhesive backing rather than clamping, perfect for items that physically cannot fit in a standard hoop.

Operation Checklist (The "Green Light" Sequence):

• Oil Check: Did I acknowledge the maintenance screen and apply oil?
• Path Check: Are all active threads seated in the tension discs (Click test)?
• Field Check: Is the hoop clear of the needle plate? (Trace the design).
• Bobbin Check: Do I have enough bobbin thread for this run?
• Safety Check: Are my fingers (and magnets) clear of the embroidery head?

A Beginner’s Reality Check: Is the Venture Right for You?

Is a 10-needle machine overkill?

• If you embroider 1 shirt a week: Yes. Stick to a single needle.
• If you embroider 10 shirts a week: Maybe.
• If you have an order for 50 caps: No. It is a necessity.

The Venture is a powerhouse, but it demands respect. If the price tag is a barrier, look at the high-efficiency alternatives in the SEWTECH lineup. But regardless of the machine you choose, the principles of tension, stabilization, and precise threading remain the universal language of embroidery.

The Bottom Line: Discipline Equals Freedom

The Baby Lock Venture threading sequence is a ritual.

1. Respect the Oil.
2. Sensory Threading (Feel the Click).
3. Tool-Assisted Guidance (Use the Fork).
4. Mechanical Locking (Clips/Magnets).

Master these four steps, and you will stop fighting the machine and start producing professional embroidery that pays for itself.

FAQ

• Q: How do I preload threads on the Baby Lock Venture 10-needle embroidery machine to avoid daily tangles and constant re-threading?
  A: Use a consistent “standard load” and thread all planned colors at the start of the day to keep multi-color jobs flowing.
  • Keep the most-used colors mounted on needles 1–5 (for example: Black, White, Red, Navy, Royal) instead of swapping every job.
  • Thread all active needles (6 or 10) before production starts, not “as needed.”
  • Verify each cone sits flat and does not wobble, and remove any “puddle” of loose thread at the cone base.
  • Success check: Thread feeds smoothly with steady resistance (no jerky pulls) when you gently pull from each needle’s path.
  • If it still fails: Re-check cone orientation and re-seat the thread through the tension path before touching tension settings.
• Q: How do I seat thread correctly in the Baby Lock Venture tension discs so the top thread does not loop on top of the embroidery?
  A: Floss the thread firmly into the Baby Lock Venture tension discs until the subtle “click/snap” is felt or heard.
  • Hold the thread with two hands to form a “U,” then pull it into the tension discs with a firm flossing motion.
  • Follow the full path in order (pre-tensioner → tension disc → check spring → take-up lever) before threading the needle.
  • Do the “floss test” before the needle: the pull should feel like dental floss—smooth resistance, not free-sliding.
  • Success check: A distinct click/snap is felt/heard when the thread drops into the discs, and the thread no longer pulls “too easily.”
  • If it still fails: Re-thread completely from the cone (don’t patch mid-path), because one missed guide can mimic bad tension.
• Q: What causes a bird’s nest under the throat plate on the Baby Lock Venture, and what is the fastest fix?
  A: A Baby Lock Venture bird’s nest is most often caused by missing the take-up lever eyelet—re-thread and confirm the thread is inside the lever.
  • Stop the machine immediately and re-thread that needle from the top, step-by-step.
  • Put special focus on the take-up lever: pass the thread through the eyelet, not just near it.
  • Re-check the tension disc seating using the click/floss method before restarting.
  • Success check: The next test stitches form cleanly without a knot mass forming underneath within the first seconds.
  • If it still fails: Inspect for skipped guides in the upper path and verify the needle is not bent before continuing.
• Q: What should I inspect before threading the Baby Lock Venture to prevent false tension problems and random thread breaks?
  A: Do a quick “pre-flight” inspection—needle condition, bobbin area lint, and thread cone behavior prevent most “mystery” tension issues.
  • Check the needle tip with a fingernail; replace the needle if the nail catches (burr) or if the needle is suspect.
  • Blow lint out of the bobbin case using canned air directed away from machine internals.
  • Confirm the thread cone sits stable and remove any pooled thread at the cone base that could snag.
  • Success check: The machine runs with steadier sound and fewer sudden snaps, and thread pull feels consistent during the floss test.
  • If it still fails: Treat it as a threading-path seating issue first (re-seat into tension discs) before changing tension settings.
• Q: How should I respond to the Baby Lock Venture startup oil reminder pop-up to reduce noise and prevent thread snapping?
  A: Treat the Baby Lock Venture oil reminder as a non-negotiable daily ritual—apply one drop of clear embroidery oil to the hook race each morning.
  • Acknowledge the reminder only after performing the oiling step, not as a “dismiss and go.”
  • Apply exactly one drop to the hook race area as part of the first-start routine.
  • Listen for abnormal sound changes during the first run, because skipping oil can create “false” tension symptoms.
  • Success check: The machine sounds smoother (no metallic grinding) and thread breaks decrease during normal stitching.
  • If it still fails: Pause and re-check threading and bobbin-area cleanliness, because dry running and mis-threading can look similar.
• Q: What safety rules should beginners follow when powering on and threading the Baby Lock Venture multi-needle embroidery head?
  A: Keep hands, tools, and sleeves clear because the Baby Lock Venture head can move suddenly during calibration and can crush fingers against the frame.
  • Keep fingers, scissors, and loose sleeves at least 6 inches away from the needle bar area when powering on.
  • Use the touchscreen to bring the selected needle to center instead of reaching across the head.
  • Use the fork tool for the tiny needle bar guide to avoid putting fingertips near moving parts.
  • Success check: Threading is done with the needle centered, good visibility, and no reaching into the head travel zone.
  • If it still fails: Stop and reposition—never “work around” a moving head; restart with the needle centered.
• Q: What are the safety risks of industrial magnetic embroidery hoops, and how can SEWTECH-style magnetic frames be handled safely?
  A: Industrial magnetic hoops can pinch hard and can affect medical devices—handle magnets like a pinch hazard and keep them away from pacemakers and sensitive electronics.
  • Keep fingers out of the closing zone and “set down, then release” instead of letting magnets snap together uncontrolled.
  • Keep magnetic hoops at least 6 inches away from pacemakers and similar medical implants.
  • Keep magnetic hoops away from credit cards and machine screens/electronics to avoid damage or interference.
  • Success check: The hoop closes without skin pinches and stays controlled in the hands (no sudden slam).
  • If it still fails: Slow down and separate the magnetic parts fully before re-attempting—rushing is what causes most magnet injuries.
• Q: How do I reduce cap flagging and needle breaks on the Baby Lock Venture 360 cap driver when embroidering structured hats?
  A: Stabilize the cap so it cannot bounce—upgrade your cap stability in levels, starting with heavier tearaway and adding physical clamping if needed.
  • Use a heavier tearaway cap stabilizer (example mentioned: 3.0 oz tearaway) to increase rigidity.
  • Add binder clips to remove “play” and stop vibration on the brim area when needed.
  • Check the cap hooping tightness using sound: tap the front panel and aim for a dull thud or tight drum, not hollow/loose.
  • Success check: The cap stops bouncing during stitching, registration stays consistent, and needle breaks reduce on dense areas.
  • If it still fails: Reduce design density for caps and consider a specialized cap clamping system or technician calibration of the cap driver setup.
